Model Kenmore 790.48879900 OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL

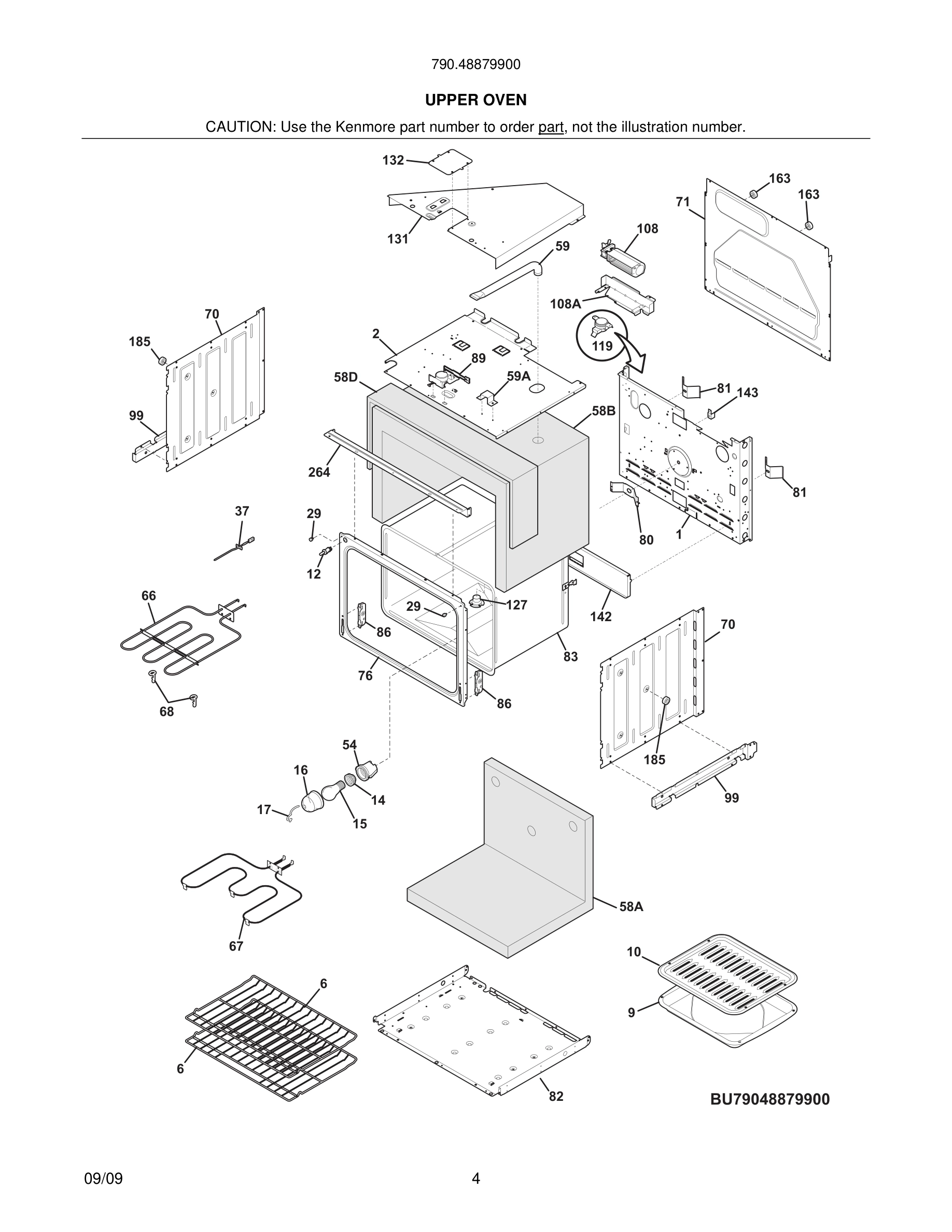

05 - UPPER OVEN

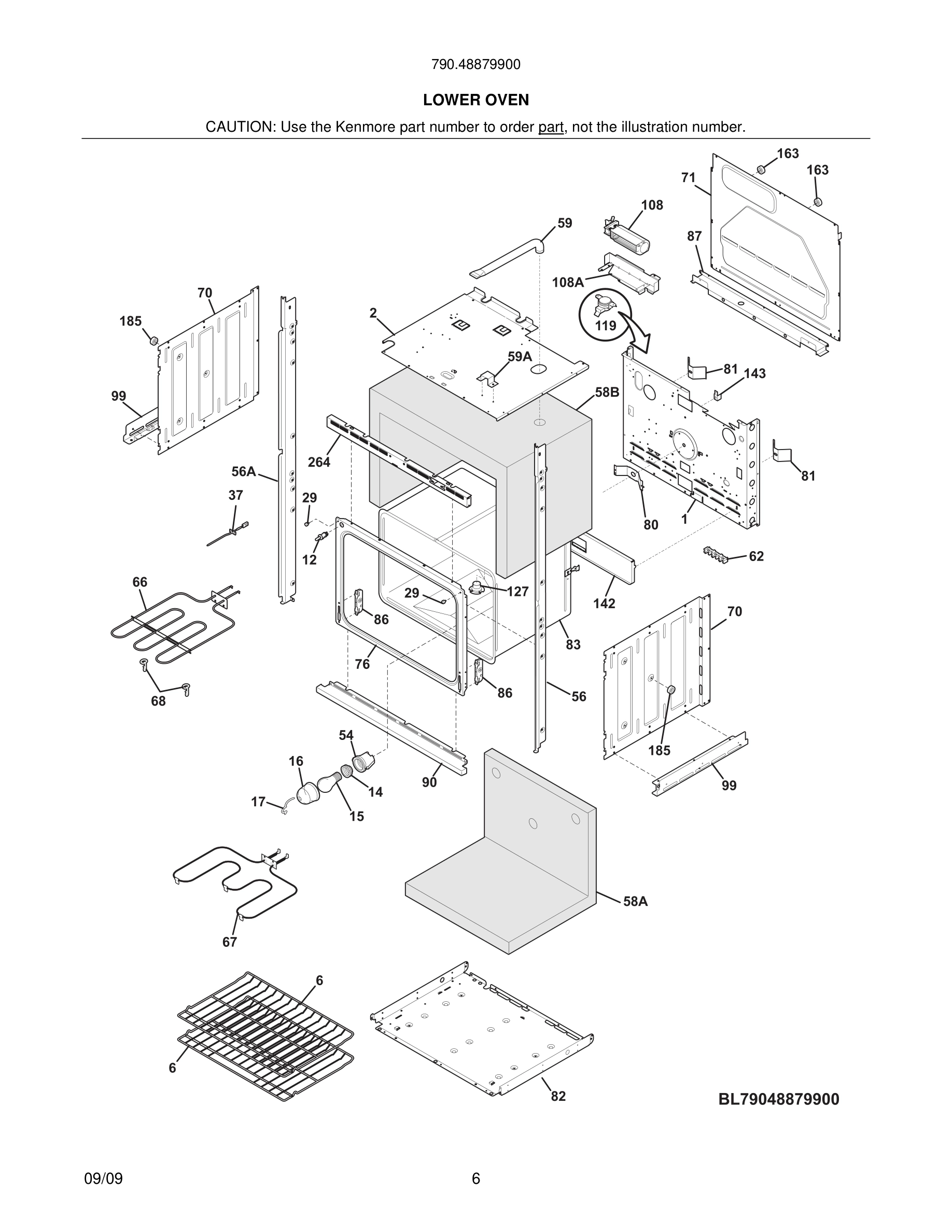

07 - LOWER OVEN

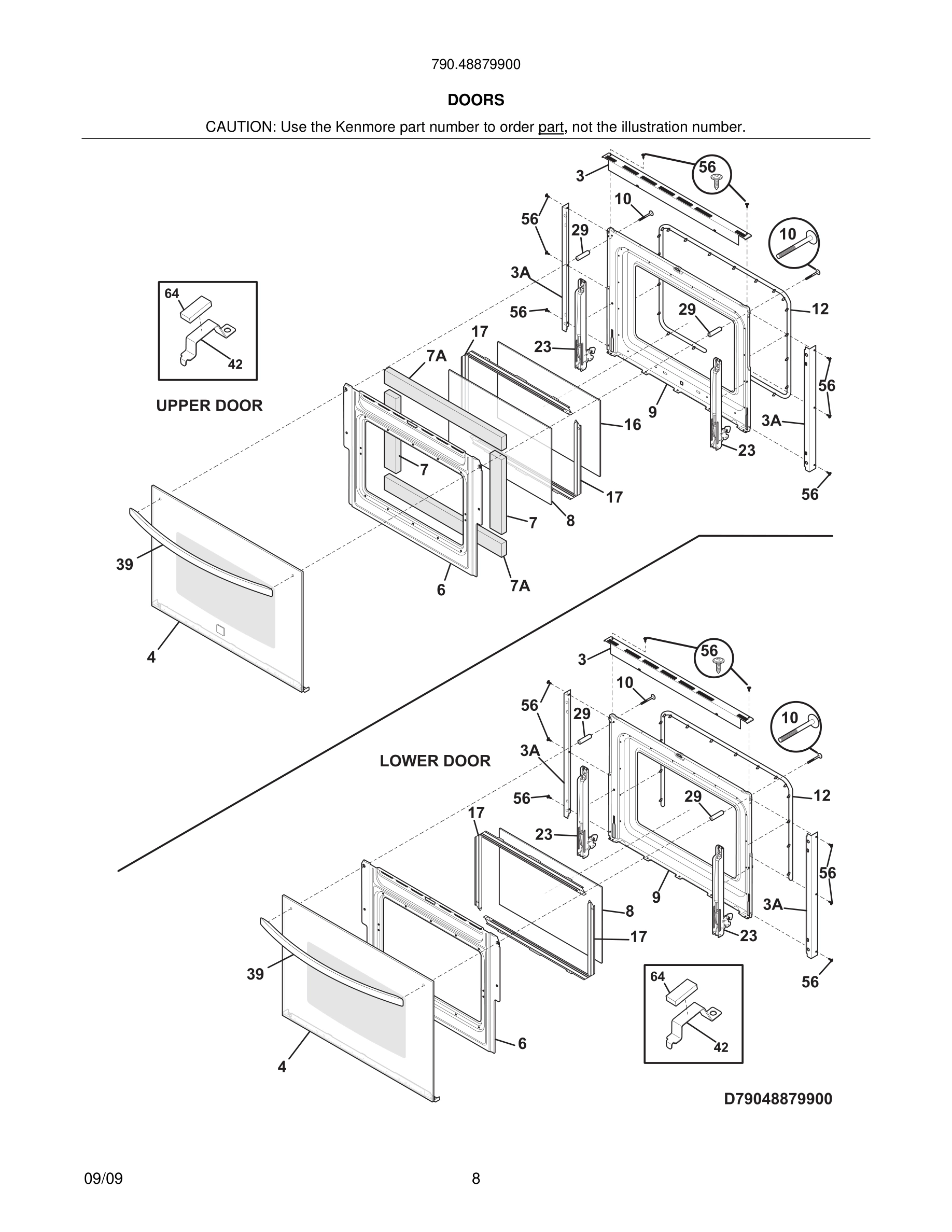

09 - DOORS

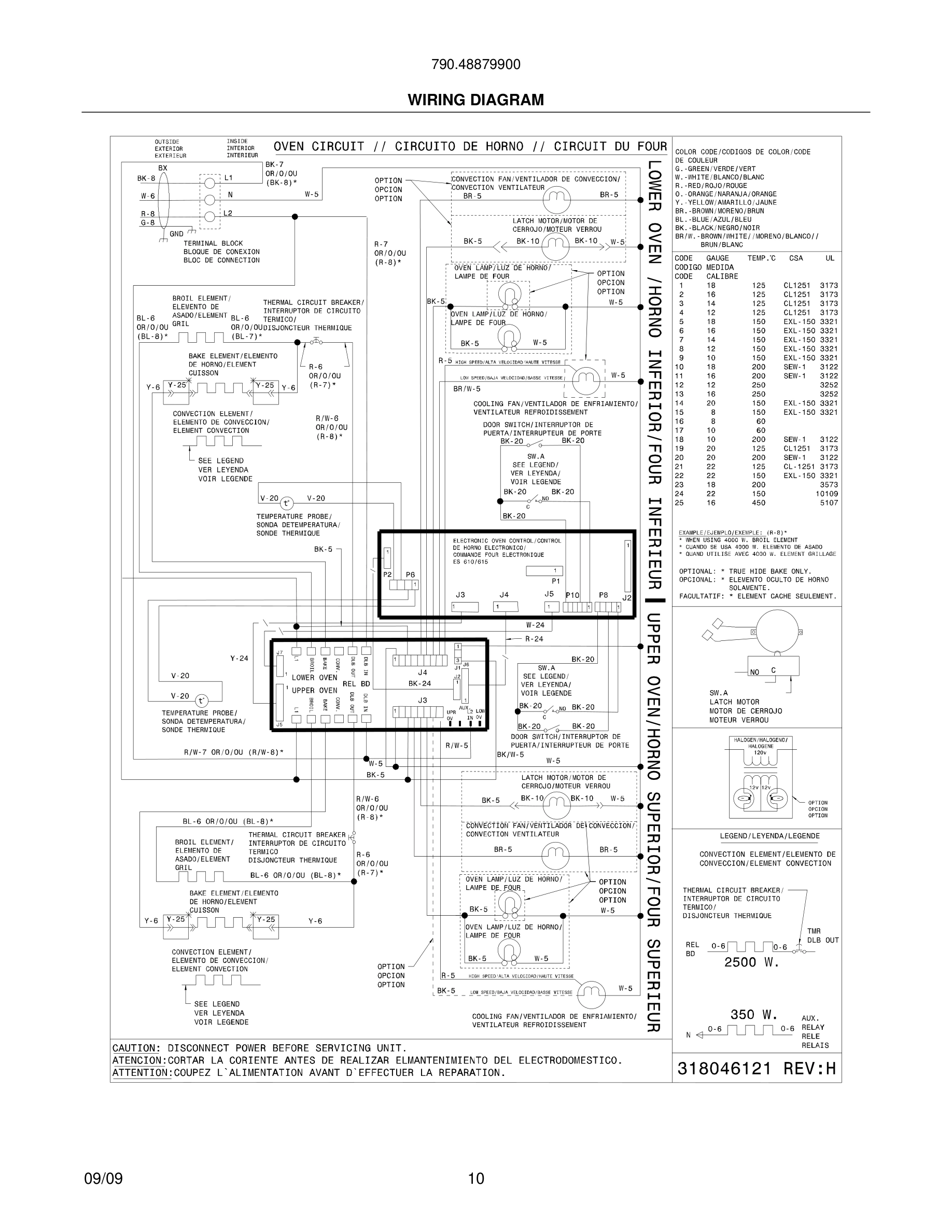

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.48879900 OVEN
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
2B
Cover, box WCI 318260100 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, black, lower, w/trim WCI 318304128 Contact Us For Availability
6
Baffle, door WCI 318260522 Contact Us For Availability
9
Liner, oven door, upper WCI 318360111 Contact Us For Availability
9
Liner, oven door, lower WCI 318360105 Contact Us For Availability
12
Seal, oven door, upper WCI 318053121 Contact Us For Availability
12
Seal, oven door, lower WCI 318053325 Contact Us For Availability
16
Glass, oven door, heat barrier, lower door WCI 318212210 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
20#
Control, electronic, ES615W3, dual oven WCI 316443848 Contact Us For Availability
23
Hinge, oven door, upper, (2) WCI 318567101 Contact Us For Availability
23
Hinge, oven door, lower, (2) WCI 318567108 Contact Us For Availability
29
Spacer, door WCI 318014405 Contact Us For Availability
39
Handle, door, black, w/spacer WCI 318372417 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
127
Adapter, vent tube WCI 318317000 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
264
Trim, oven, black, front WCI 318257801 Contact Us For Availability
× ![]()
