Model Electrolux 790.48859900 Wall Oven/Microwave Combo (Kenmore 79048859900) – Common Parts & Diagrams
LOWER OVEN
CONTROL PANEL

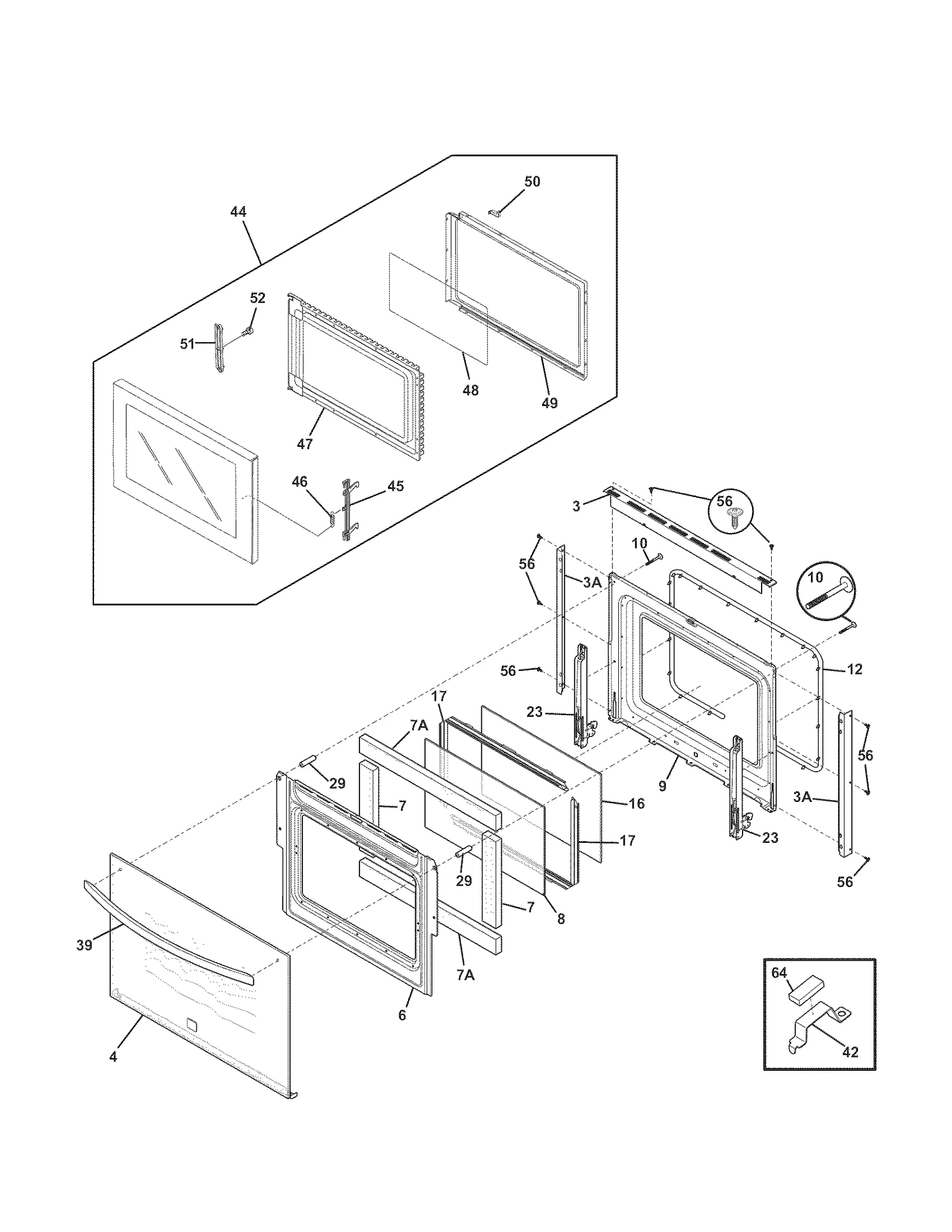

DOORS

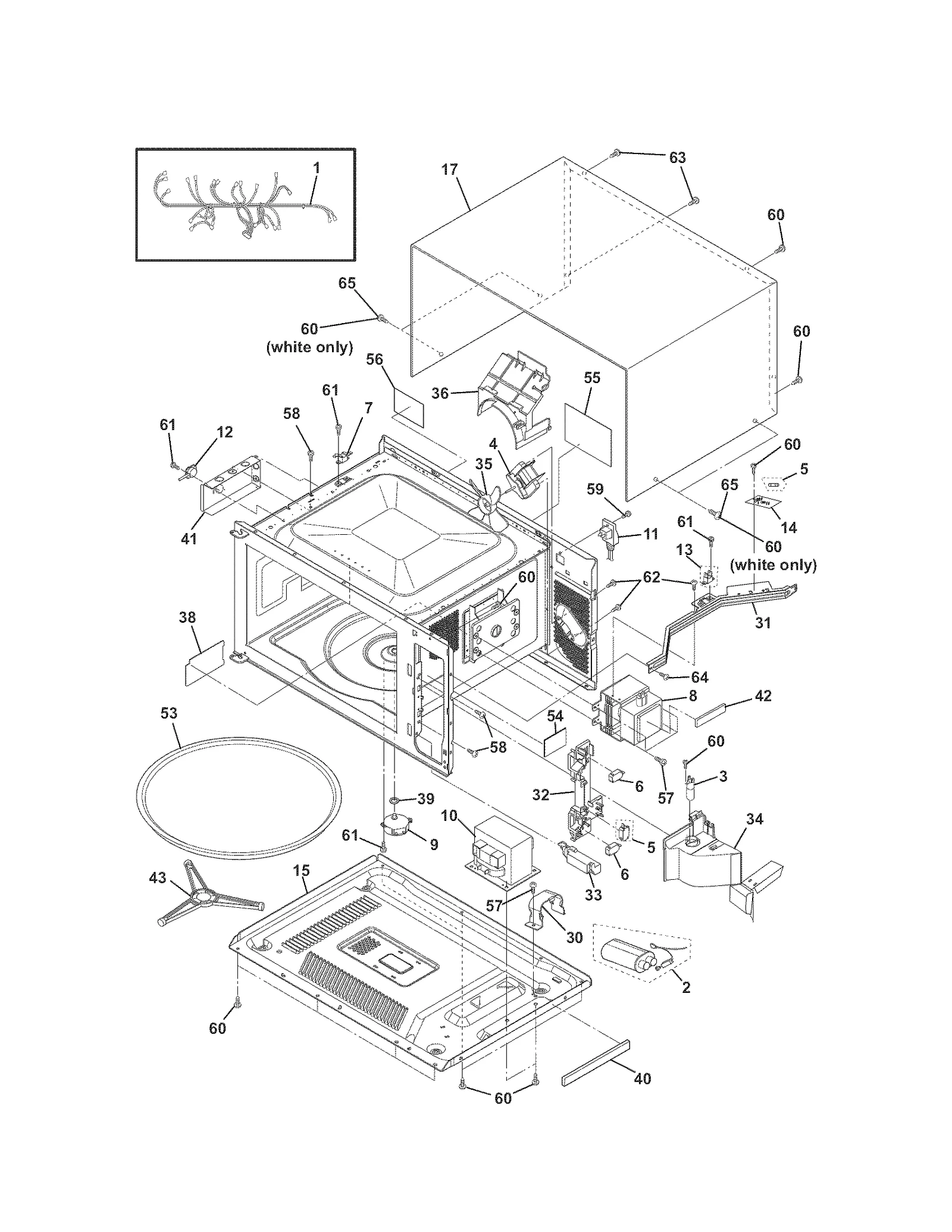

MICROWAVE
Common parts from model Electrolux 790.48859900 Wall Oven/Microwave Combo (Kenmore 79048859900)
3
Crosley Range Oven Door Trim WCI 318260201 Contact Us For Availability
3A
Range Oven Door Trim WCI 318260401 Contact Us For Availability
8
Range Oven Bottom Panel WCI 318262001 Contact Us For Availability
8A
Range Hidden Bake Element Bracket WCI 318318600 Contact Us For Availability
12
Wall Oven Door Seal WCI 318053121 Contact Us For Availability
15
Base WCI 5304440814 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318212210 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Wrapper WCI 5304440816 Contact Us For Availability
17
Oven Cabinet WCI 5304462259 Contact Us For Availability
19
Wall Oven Microwave Control Panel Frame (Blac WCI 5304440821 Contact Us For Availability
20
Microwave Control Panel Overlay WCI 5304475171 Contact Us For Availability
20
Oven Insert WCI 5304475170 Contact Us For Availability
21
Microwave Door Release Button (Black) WCI 5304440827 Contact Us For Availability
21
Microwave Door Release Button (White) WCI 5304442133 Contact Us For Availability
23
Range Oven Door Hinge WCI 318567101 Contact Us For Availability
24
Microwave Electronic Control Board Seal WCI 5304440832 Contact Us For Availability
27
Microwave Display Board WCI 5304440835 Contact Us For Availability
29
Microwave Keypad WCI 5304453940 Contact Us For Availability
30
Holder WCI 5304440838 Contact Us For Availability
31
Bracket WCI 5304462313 Contact Us For Availability
34
Air Duct WCI 5304440842 Contact Us For Availability
35
Fan Blade WCI 5304440843 Contact Us For Availability
36
Duct WCI 5304472846 Contact Us For Availability
39
Range Oven Door Handle WCI 318372416 Contact Us For Availability
39
Bushing WCI 5304440288 Contact Us For Availability
39
Range Oven Door Handle WCI 318372417 Contact Us For Availability
40
Pad WCI 5304441882 Contact Us For Availability
41
Air Duct WCI 5304440847 Contact Us For Availability
42
Cushion WCI 5304441910 Contact Us For Availability
50
Door Stop WCI 5304442145 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
56
Label WCI 5304453941 Contact Us For Availability
57
Screw WCI 5303319636 Contact Us For Availability
59
Screw WCI 5304462315 Contact Us For Availability
60
Wall Oven Screw, M4 x 12 WCI 5304451553 Contact Us For Availability
61
Electrolux Screw WCI 5304453725 Contact Us For Availability
62
Screw WCI 5304450253 Contact Us For Availability
63
Screw WCI 5304440873 Contact Us For Availability
65
Range Screw WCI 5304452261 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
84
Wall Oven Microwave Electrical Receptacle WCI 318146833 Contact Us For Availability
90
Wall Oven Bottom Trim (Black) WCI 318259701 Contact Us For Availability
90
Wall Oven Trim, Lower (White) WCI 318259700 Contact Us For Availability
108
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
112
Range Control Panel Cooling Fan Relay WCI 318112703 Contact Us For Availability
219
Range High-Limit Thermostat WCI 318003635 Contact Us For Availability
264
Wall Oven Vent Trim (Black) WCI 318257701 Contact Us For Availability
300
Wall Oven Microwave Trim, Upper or Lower (Bla WCI 318925001 Contact Us For Availability
300
Wall Oven Microwave Vent Grille (White) WCI 318925000 Contact Us For Availability
301
Wall Oven Microwave Side Trim WCI 318925101 Contact Us For Availability
402
Bracket WCI 318276204 Contact Us For Availability
403
Bracket WCI 318276206 Contact Us For Availability
× ![]()
