Model Kenmore 790.48852900 WALL OVEN / MICROWAVE COMBO – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL

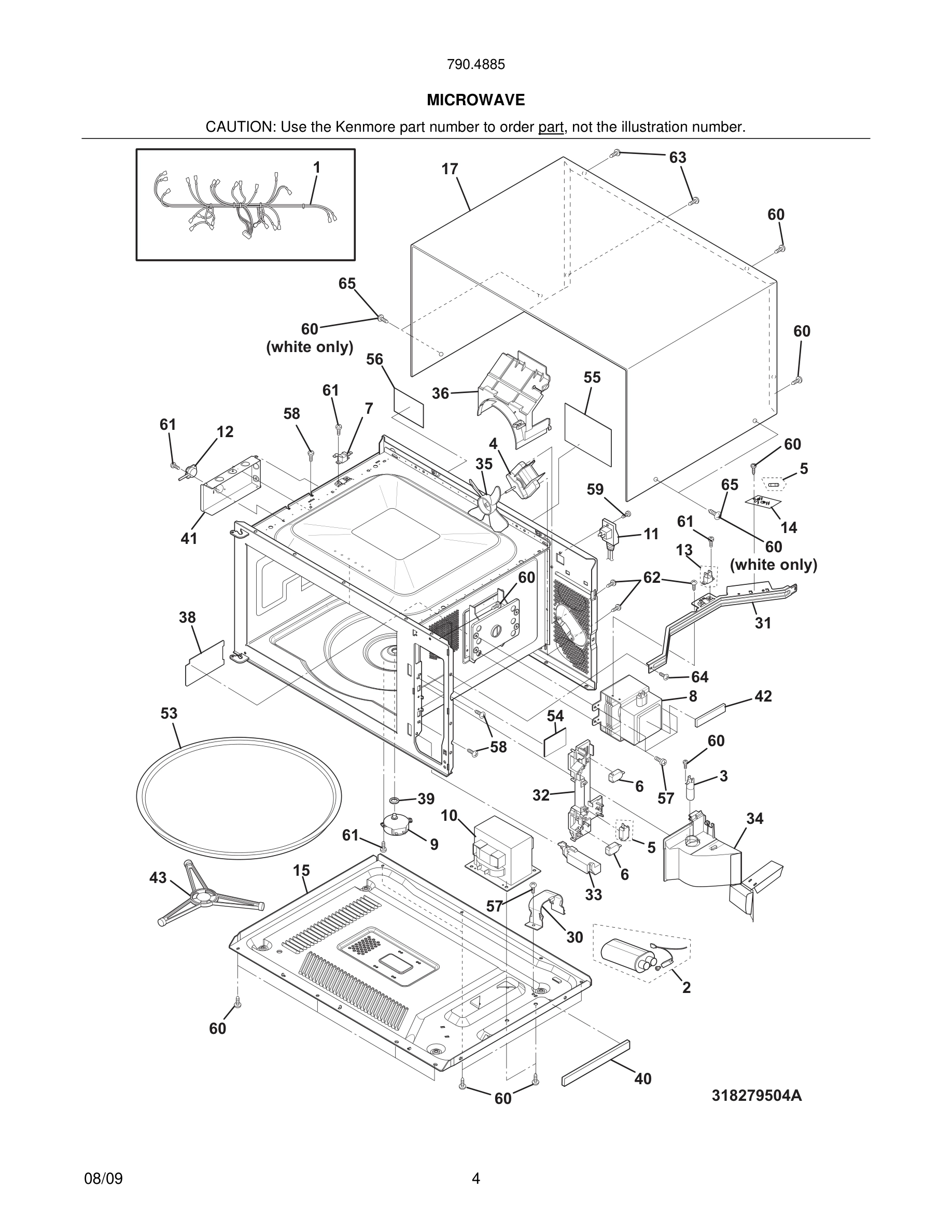

05 - MICROWAVE

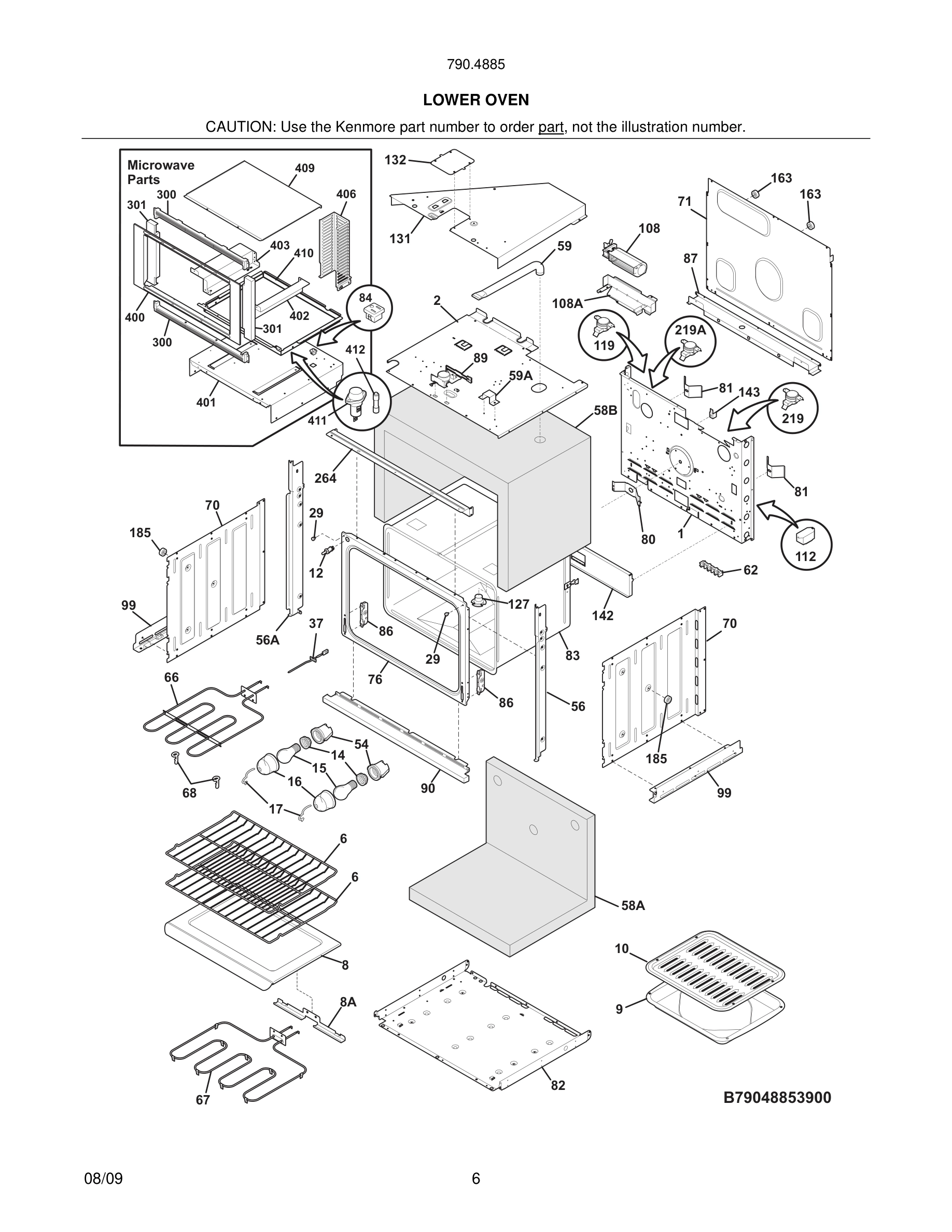

07 - LOWER OVEN
09 - LOWER OVEN

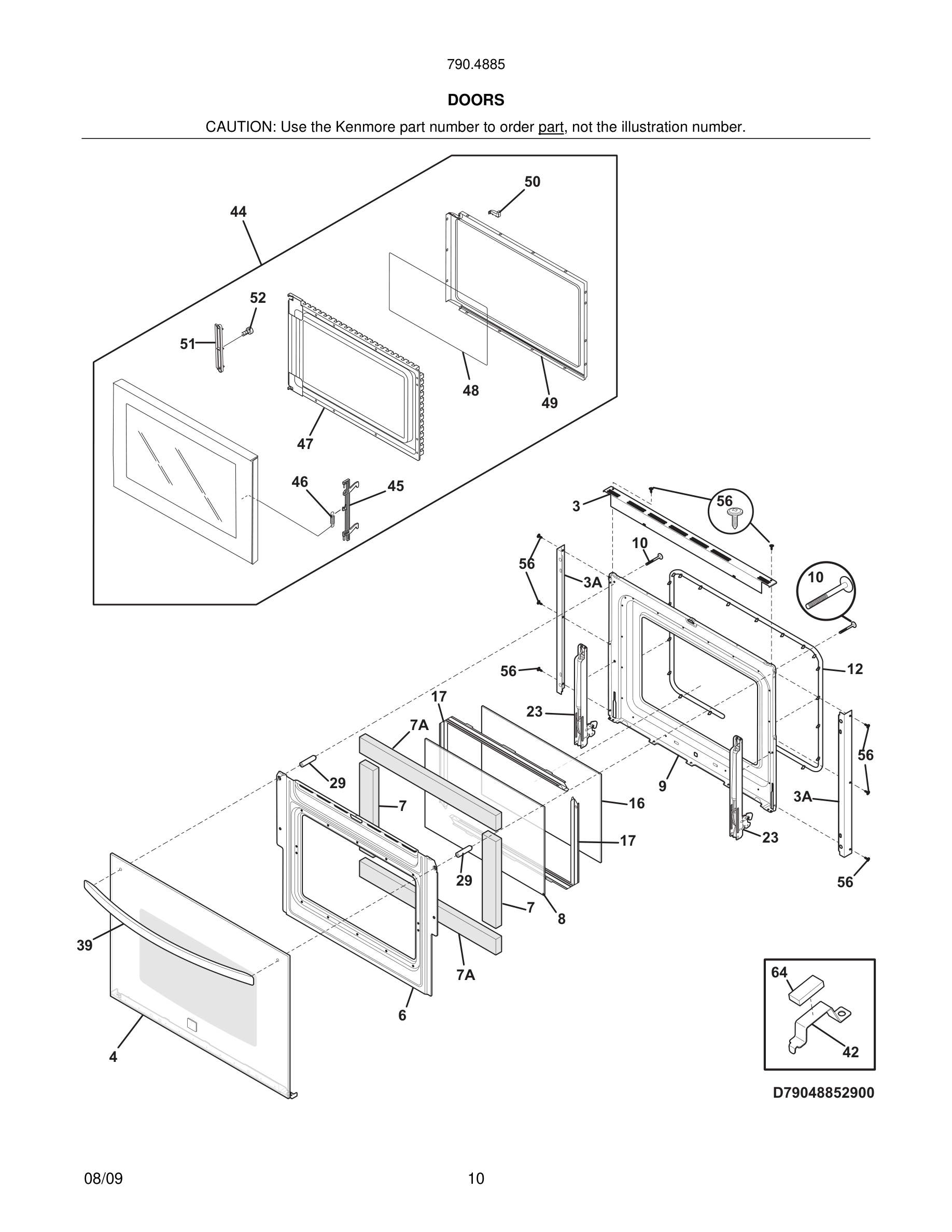

11 - DOORS

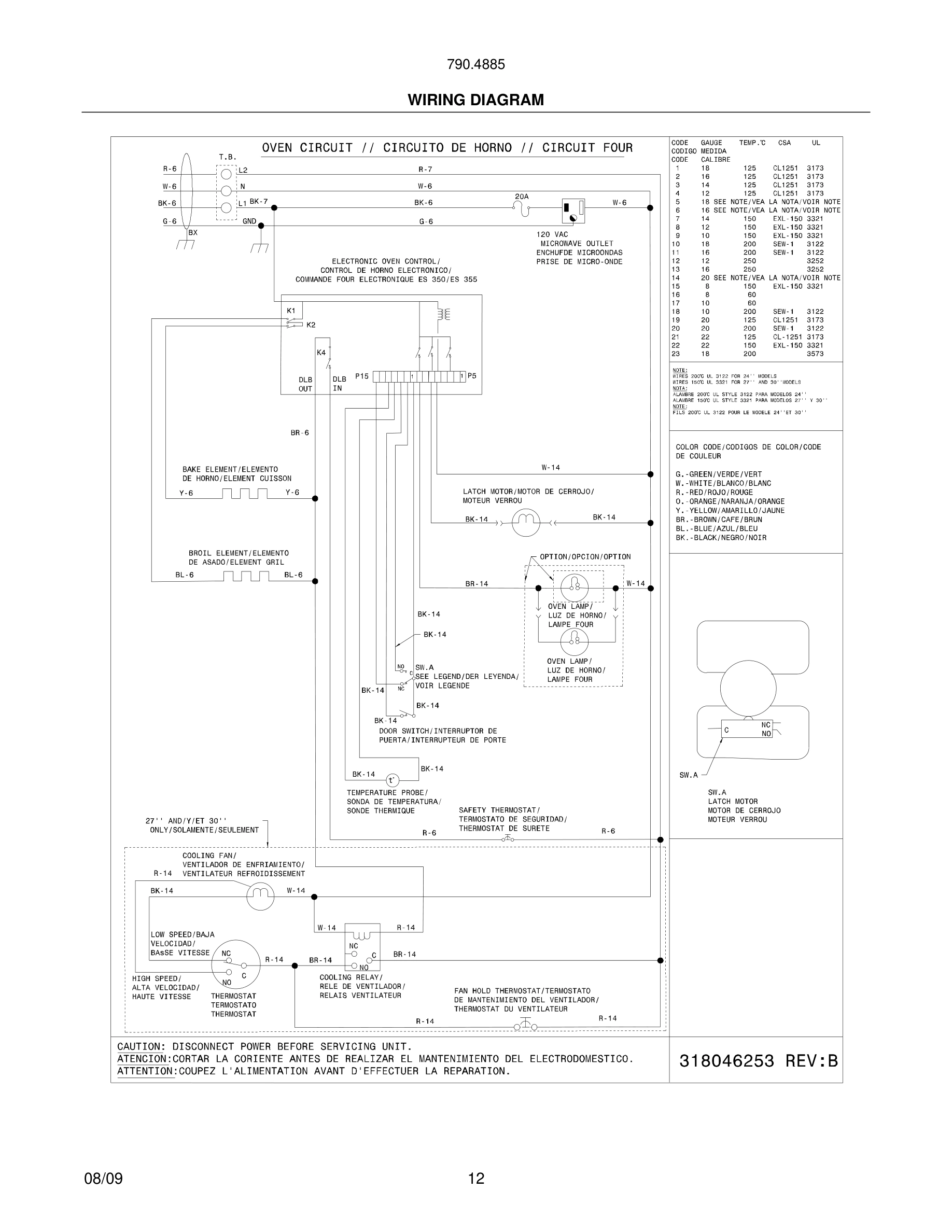

12 - WIRING DIAGRAM
Common parts from model Kenmore 790.48852900 WALL OVEN / MICROWAVE COMBO
*
Screw Kit, anti-tip, cabinet mount WCI 5304470865 Contact Us For Availability
*
Screw, 6-32 x 3/8, black, (2) WCI 5303307406 Contact Us For Availability
*#
Harness, wiring, main WCI 318231754 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Baffle, door WCI 318260522 Contact Us For Availability
8
Cover, element WCI 318262001 No Longer Available
9
Liner, oven door, upper WCI 318360111 Contact Us For Availability
12
Seal, oven door, upper WCI 318053121 Contact Us For Availability
16
Glass, oven door, heat barrier, lower door WCI 318212210 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
19
Frame, control panel, black WCI 5304440821 Contact Us For Availability
20
Overlay, graphic sheet, black WCI 5304475171 Contact Us For Availability
20
Overlay, graphic sheet, white WCI 5304475170 Contact Us For Availability
21
Push Button, door, black WCI 5304440827 Contact Us For Availability
21
Push Button, door, white WCI 5304442133 Contact Us For Availability
23
Hinge, oven door, (2) WCI 318567101 Contact Us For Availability
24
Connector, rubber, control board WCI 5304440832 Contact Us For Availability
27#
LCD, display WCI 5304440835 Contact Us For Availability
29
Spacer, door WCI 318014405 Contact Us For Availability
29#
Switch, touch pad WCI 5304453940 Contact Us For Availability
31
Bracket, chassis support WCI 5304462313 Contact Us For Availability
39
Handle, door, white, w/spacer WCI 318372416 Contact Us For Availability
39
Bushing, motor shaft, turntable WCI 5304440288 Contact Us For Availability
39
Handle, door, black, w/spacer WCI 318372417 Contact Us For Availability
44
Door Assembly, complete, white WCI 5304475173 Contact Us For Availability
44
Door Assembly, complete, black WCI 5304475174 Contact Us For Availability
47
Panel, inner door, white WCI 5304442144 Contact Us For Availability
51
Door Stop WCI 5304440862 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
84#
Outlet-electrical, miniature, black-glossy WCI 318146833 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
90
Trim, oven front, white, bottom WCI 318259700 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112703 Contact Us For Availability
131
Box, vent WCI 318272901 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer, (4) WCI 318531703 Contact Us For Availability
219#
Thermostat, safety WCI 318003635 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
300
Trim, microwave frame, black, top/bottom WCI 318925001 Contact Us For Availability
300
Trim, microwave frame, white, top/bottom WCI 318925000 Contact Us For Availability
301
Trim, microwave frame, black, sides, (2) WCI 318925101 Contact Us For Availability
301
Trim, microwave frame, white, sides, (2) WCI 318925100 Contact Us For Availability
400
Frame, microwave, white WCI 318930205 Contact Us For Availability
400
Frame, microwave, black WCI 318930206 Contact Us For Availability
401
Plate, support, microwave, 27" WCI 318297207 Contact Us For Availability
402
Bracket, base pad, RH WCI 318276204 Contact Us For Availability
403
Bracket, base pad, LH WCI 318276206 Contact Us For Availability
406
Shield, microwave rear WCI 318277201 Contact Us For Availability
409
Bracket, top trim WCI 318295301 Contact Us For Availability
410
Flue, black WCI 318297111 Contact Us For Availability
× ![]()
