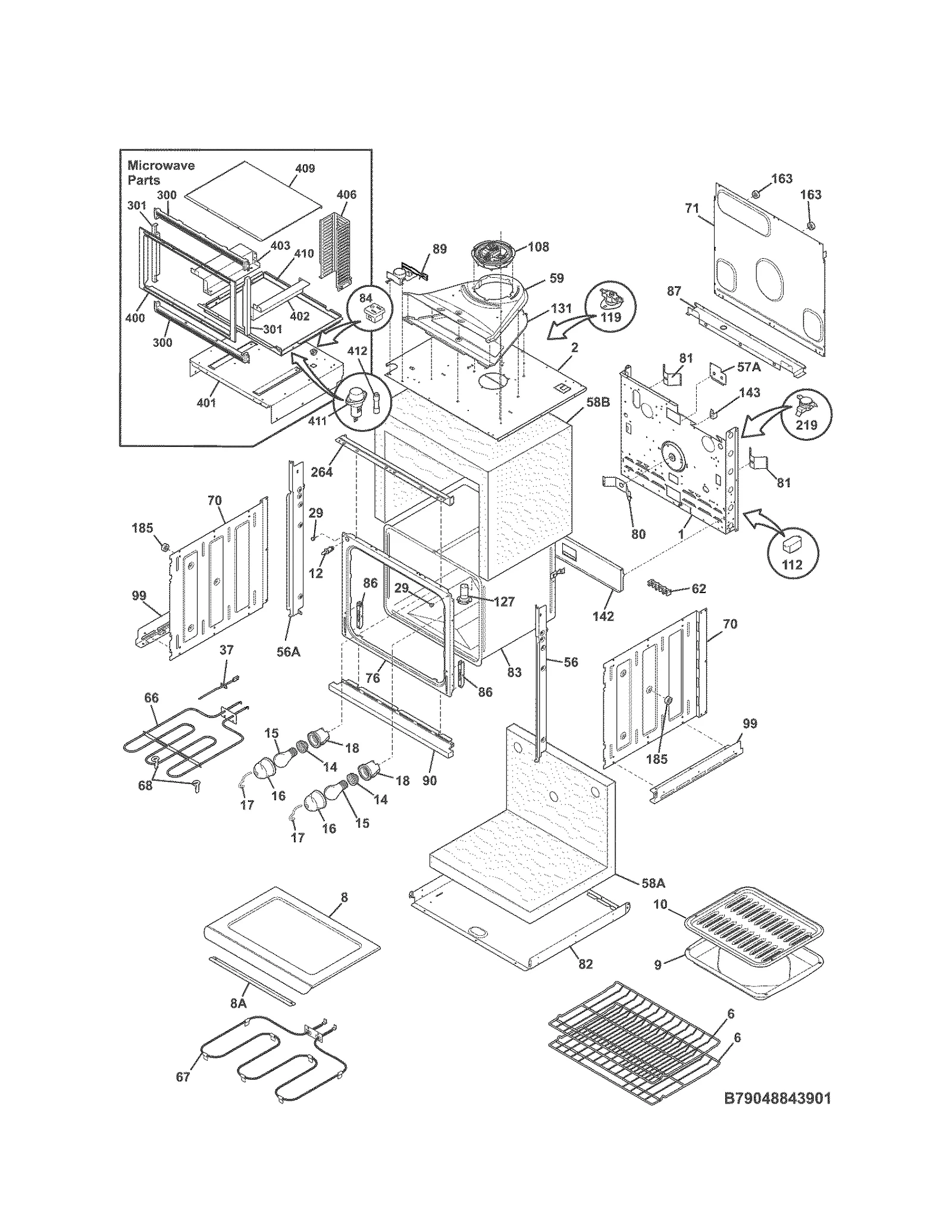

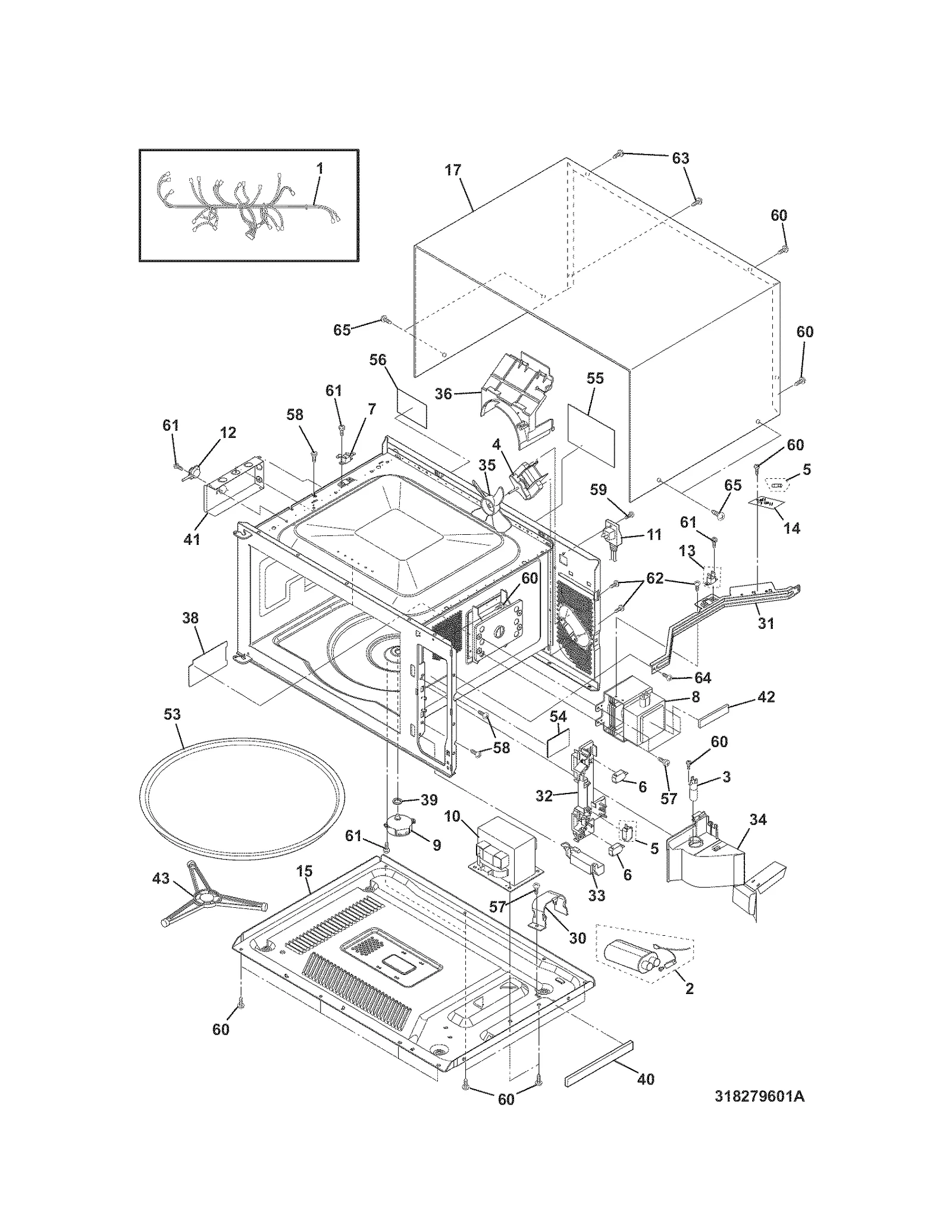

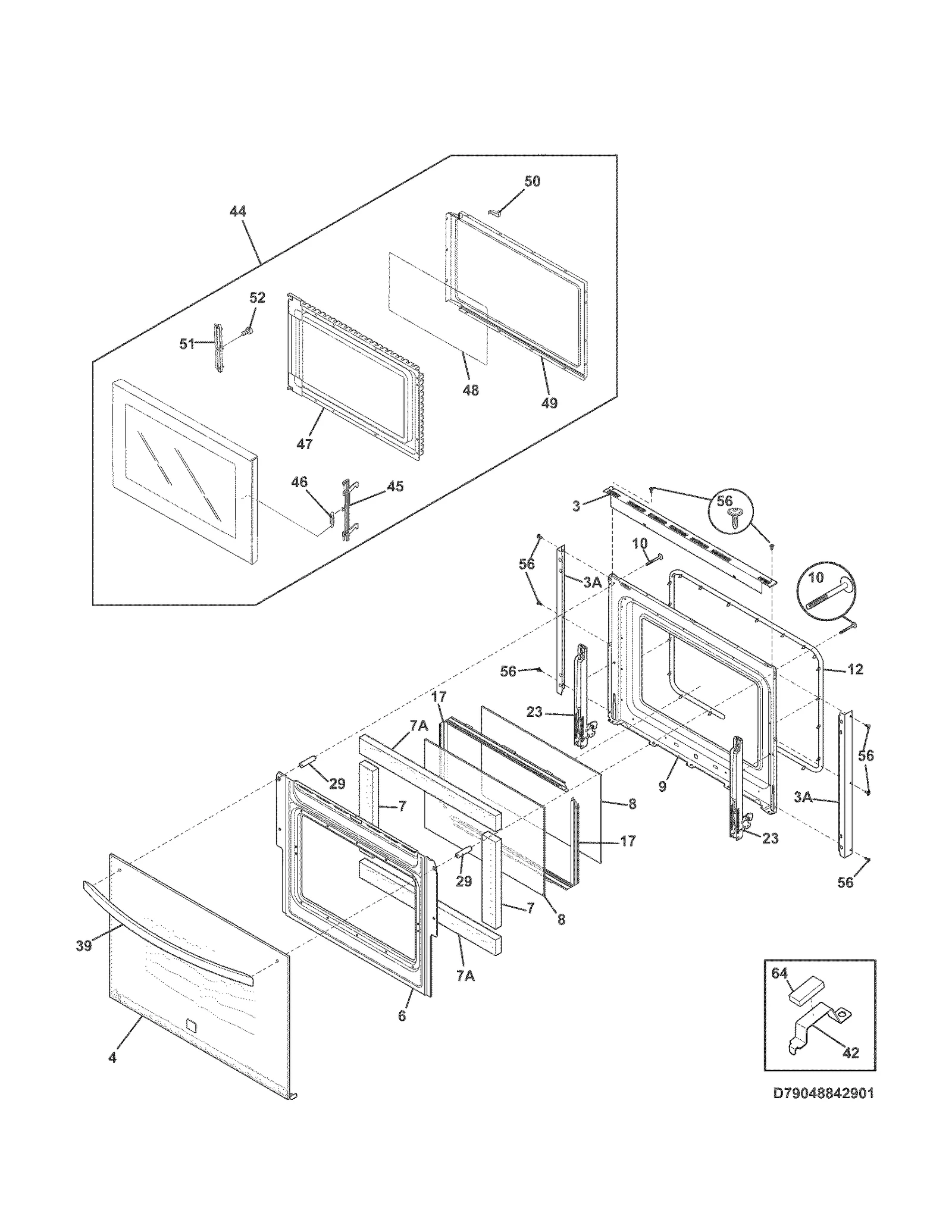

Model Electrolux 790.48849901 Wall Oven/Microwave Combo (Kenmore 79048849901) – Common Parts & Diagrams

1
Wall Oven Control Panel Assembly
Wall Oven Control Panel Assembly WCI 318277106 Contact Us For Availability
View on Model
3
Oven Trim
Oven Trim WCI 318260217 Contact Us For Availability
View on Model
3A
Range Oven Door Trim
Range Oven Door Trim WCI 318260401 Contact Us For Availability
View on Model
4
Wall Oven Door Outer Panel Assembly, Upper (W
Wall Oven Door Outer Panel Assembly, Upper (W WCI 318304147 Contact Us For Availability
View on Model
4
Wall Oven Door Outer Panel Assembly (Black)
Wall Oven Door Outer Panel Assembly (Black) WCI 318304148 Contact Us For Availability
View on Model
6
Wall Oven Door Baffle
Wall Oven Door Baffle WCI 318260511 Contact Us For Availability
View on Model
8
Wall Oven Door Inner Glass
Wall Oven Door Inner Glass WCI 318212200 Contact Us For Availability
View on Model
8
Wall Oven Bottom Liner
Wall Oven Bottom Liner WCI 318262011 Contact Us For Availability
View on Model
9
Oven Liner
Oven Liner WCI 318259672 Contact Us For Availability
View on Model
10
Range Oven Door Handle Screw
Range Oven Door Handle Screw WCI 5304477986 Contact Us For Availability
View on Model
12
Wall Oven Door Gasket
Wall Oven Door Gasket WCI 318053137 Contact Us For Availability
View on Model
17
Wall Oven Light Lens Retainer
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
View on Model
17
Wall Oven Door Glass Retainer
Wall Oven Door Glass Retainer WCI 318264700 Contact Us For Availability
View on Model
18
Range Oven Light Housing
Range Oven Light Housing WCI 318222400 Contact Us For Availability
View on Model
19
Wall Oven Microwave Control Panel Frame (Blac
Wall Oven Microwave Control Panel Frame (Blac WCI 5304440821 Contact Us For Availability
View on Model
20
Microwave Control Panel Overlay
Microwave Control Panel Overlay WCI 5304475171 Contact Us For Availability
View on Model
20
Oven Insert
Oven Insert WCI 5304475170 Contact Us For Availability
View on Model
21
Microwave Door Release Button (Black)
Microwave Door Release Button (Black) WCI 5304440827 Contact Us For Availability
View on Model
21
Microwave Door Release Button (White)
Microwave Door Release Button (White) WCI 5304442133 Contact Us For Availability
View on Model
23
Oven Hinge
Oven Hinge WCI 318567108 Contact Us For Availability
View on Model
24
Microwave Electronic Control Board Seal
Microwave Electronic Control Board Seal WCI 5304440832 Contact Us For Availability
View on Model
27
Microwave Display Board
Microwave Display Board WCI 5304440835 Contact Us For Availability
View on Model
29
Microwave Keypad
Microwave Keypad WCI 5304453940 Contact Us For Availability
View on Model
29
Range Oven Door Spacer
Range Oven Door Spacer WCI 318014411 Contact Us For Availability
View on Model
31
Bracket
Bracket WCI 5304462313 Contact Us For Availability
View on Model
39
Bushing
Bushing WCI 5304440288 Contact Us For Availability
View on Model
39
Oven Handle
Oven Handle WCI 318372421 Contact Us For Availability
View on Model
39
Wall Oven Door Handle (Black)
Wall Oven Door Handle (Black) WCI 318372422 Contact Us For Availability
View on Model
44
Microwave Door Assembly
Microwave Door Assembly WCI 5304475173 Contact Us For Availability
View on Model
44
Microwave Door Assembly
Microwave Door Assembly WCI 5304475174 Contact Us For Availability
View on Model
47
Wall Oven Microwave Door Inner Panel (Black)
Wall Oven Microwave Door Inner Panel (Black) WCI 5304440857 Contact Us For Availability
View on Model
47
Panel
Panel WCI 5304442144 Contact Us For Availability
View on Model
48
Microwave Door Film
Microwave Door Film WCI 5304440860 Contact Us For Availability
View on Model
50
Door Stop
Door Stop WCI 5304442145 Contact Us For Availability
View on Model
51
Stop
Stop WCI 5304440862 Contact Us For Availability
View on Model
52
Wall Oven Microwave Door Stop Screw
Wall Oven Microwave Door Stop Screw WCI 5304452259 Contact Us For Availability
View on Model
60
Wall Oven Screw, M4 x 12
Wall Oven Screw, M4 x 12 WCI 5304451553 Contact Us For Availability
View on Model
81
Wall Oven Rear Shield Spring Clip
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
View on Model
84
Wall Oven Microwave Electrical Receptacle
Wall Oven Microwave Electrical Receptacle WCI 318146833 Contact Us For Availability
View on Model
90
Wall Oven Base Trim
Wall Oven Base Trim WCI 318259711 Contact Us For Availability
View on Model
90
Wall Oven Vent, Lower (White)
Wall Oven Vent, Lower (White) WCI 318259710 Contact Us For Availability
View on Model
112
Range Control Panel Cooling Fan Relay
Range Control Panel Cooling Fan Relay WCI 318112703 Contact Us For Availability
View on Model
127
Range Vent Tube Adapter
Range Vent Tube Adapter WCI 318317105 Contact Us For Availability
View on Model
300
Wall Oven Microwave Trim, Upper or Lower (Bla
Wall Oven Microwave Trim, Upper or Lower (Bla WCI 318925001 Contact Us For Availability
View on Model
300
Wall Oven Microwave Vent Grille (White)
Wall Oven Microwave Vent Grille (White) WCI 318925000 Contact Us For Availability
View on Model
301
Oven Trim
Oven Trim WCI 318925102 Contact Us For Availability
View on Model
301
Wall Oven Microwave Door Frame Trim (Black)
Wall Oven Microwave Door Frame Trim (Black) WCI 318925103 Contact Us For Availability
View on Model
400
Wall Oven Microwave Frame
Wall Oven Microwave Frame WCI 318930306 Contact Us For Availability
View on Model
402
Bracket
Bracket WCI 318276204 Contact Us For Availability
View on Model
403
Bracket
Bracket WCI 318276206 Contact Us For Availability
View on Model
NI
Range Wire Harness Retainer
Range Wire Harness Retainer WCI 5304400192 Contact Us For Availability
View on Model
NI
Range Screw
Range Screw WCI 5304454881 Contact Us For Availability
View on Model
