Model Electrolux 790.48849900 Wall Oven/Microwave Combo (Kenmore 79048849900) – Common Parts & Diagrams

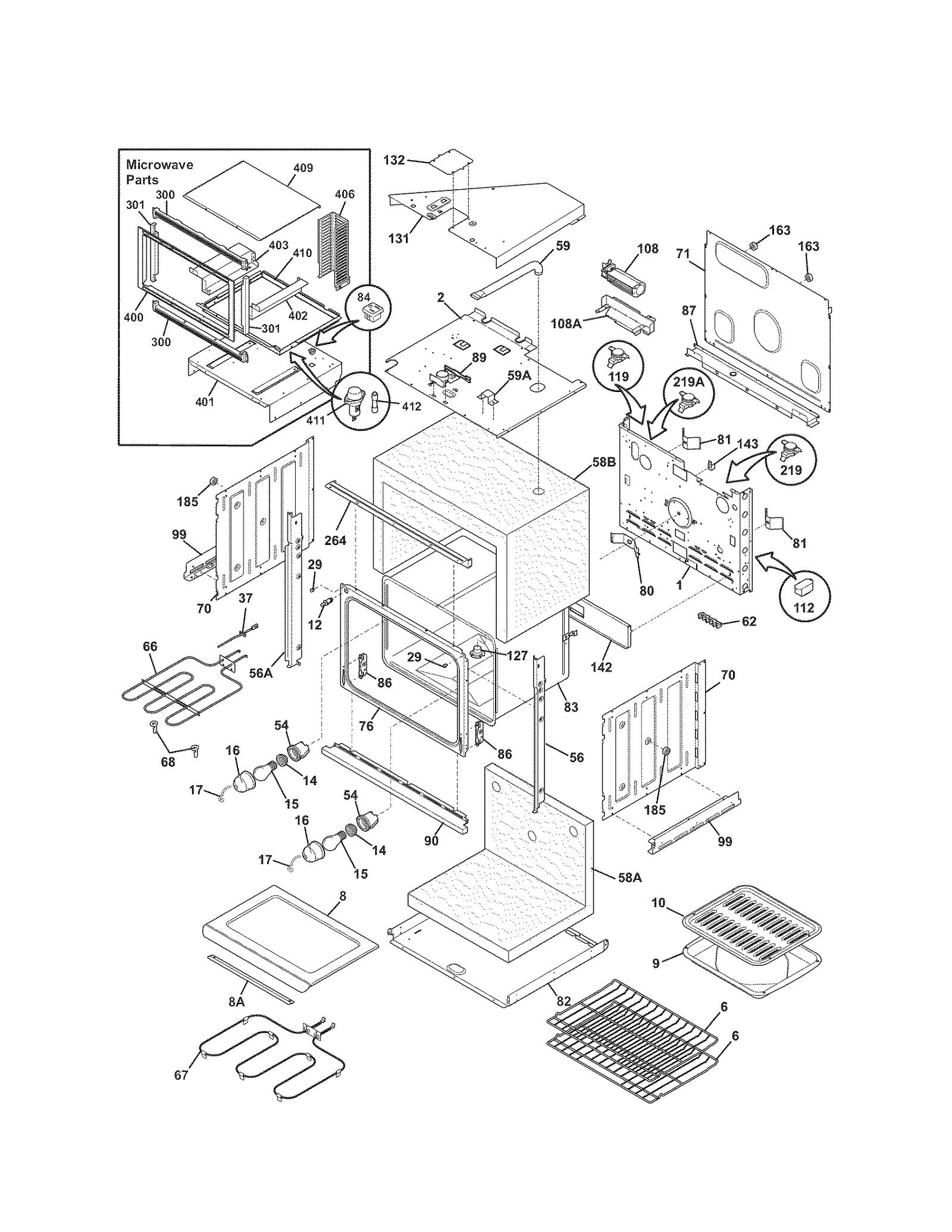

LOWER OVEN

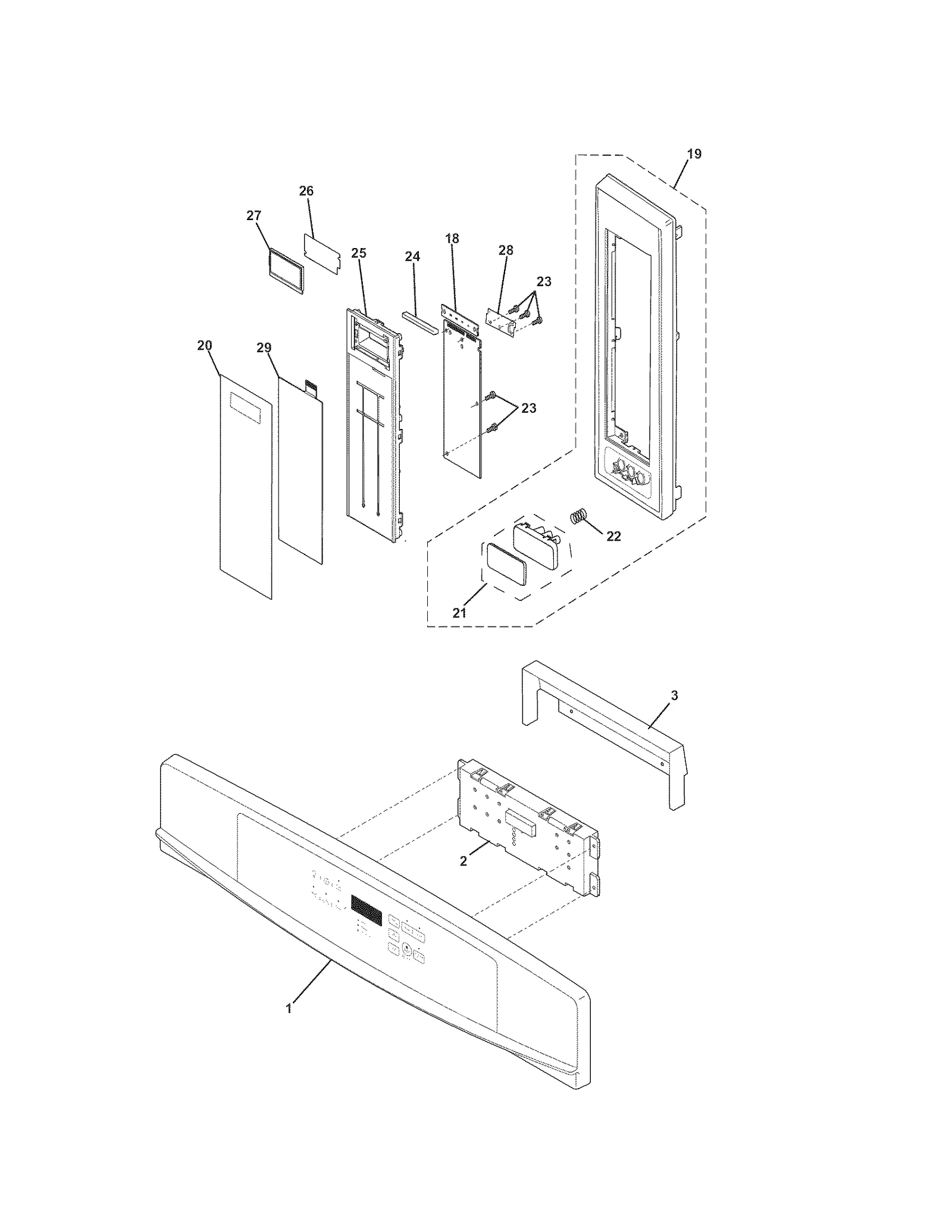

CONTROL PANEL
DOORS
MICROWAVE
Common parts from model Electrolux 790.48849900 Wall Oven/Microwave Combo (Kenmore 79048849900)
3
Wall Oven Door Vent Trim (Black) WCI 318260211 Contact Us For Availability
3A
Range Oven Door Trim WCI 318260401 Contact Us For Availability
4
Wall Oven Door Outer Panel Assembly, Upper (W WCI 318304147 Contact Us For Availability
4
Wall Oven Door Outer Panel Assembly (Black) WCI 318304148 Contact Us For Availability
8
Wall Oven Door Inner Glass WCI 318212200 Contact Us For Availability
8
Wall Oven Bottom Liner WCI 318262011 Contact Us For Availability
8A
Range Hidden Bake Element Bracket WCI 318318600 Contact Us For Availability
12
Wall Oven Door Seal, Upper WCI 318053126 Contact Us For Availability
15
Base WCI 5304440814 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Wrapper WCI 5304440816 Contact Us For Availability
17
Oven Cabinet WCI 5304462259 Contact Us For Availability
19
Wall Oven Microwave Control Panel Frame (Blac WCI 5304440821 Contact Us For Availability
20
Microwave Control Panel Overlay WCI 5304475171 Contact Us For Availability
20
Oven Insert WCI 5304475170 Contact Us For Availability
21
Microwave Door Release Button (Black) WCI 5304440827 Contact Us For Availability
21
Microwave Door Release Button (White) WCI 5304442133 Contact Us For Availability
23
Oven Hinge WCI 318567108 Contact Us For Availability
24
Microwave Electronic Control Board Seal WCI 5304440832 Contact Us For Availability
27
Microwave Display Board WCI 5304440835 Contact Us For Availability
29
Microwave Keypad WCI 5304453940 Contact Us For Availability
30
Holder WCI 5304440838 Contact Us For Availability
31
Bracket WCI 5304462313 Contact Us For Availability
34
Air Duct WCI 5304440842 Contact Us For Availability
35
Fan Blade WCI 5304440843 Contact Us For Availability
36
Duct WCI 5304472846 Contact Us For Availability
39
Bushing WCI 5304440288 Contact Us For Availability
40
Pad WCI 5304441882 Contact Us For Availability
41
Air Duct WCI 5304440847 Contact Us For Availability
42
Cushion WCI 5304441910 Contact Us For Availability
50
Door Stop WCI 5304442145 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
56
Label WCI 5304453941 Contact Us For Availability
57
Screw WCI 5303319636 Contact Us For Availability
59
Screw WCI 5304462315 Contact Us For Availability
60
Wall Oven Screw, M4 x 12 WCI 5304451553 Contact Us For Availability
61
Electrolux Screw WCI 5304453725 Contact Us For Availability
62
Screw WCI 5304450253 Contact Us For Availability
63
Screw WCI 5304440873 Contact Us For Availability
65
Range Screw WCI 5304452261 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
84
Wall Oven Microwave Electrical Receptacle WCI 318146833 Contact Us For Availability
90
Wall Oven Base Trim WCI 318259711 Contact Us For Availability
90
Wall Oven Vent, Lower (White) WCI 318259710 Contact Us For Availability
108
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
112
Range Control Panel Cooling Fan Relay WCI 318112703 Contact Us For Availability
219
Range High-Limit Thermostat WCI 318003635 Contact Us For Availability
300
Wall Oven Microwave Trim, Upper or Lower (Bla WCI 318925001 Contact Us For Availability
300
Wall Oven Microwave Vent Grille (White) WCI 318925000 Contact Us For Availability
301
Oven Trim WCI 318925102 Contact Us For Availability
301
Wall Oven Microwave Door Frame Trim (Black) WCI 318925103 Contact Us For Availability
400
Wall Oven Microwave Frame WCI 318930306 Contact Us For Availability
402
Bracket WCI 318276204 Contact Us For Availability
403
Bracket WCI 318276206 Contact Us For Availability
× ![]()
