Model Kenmore 790.48843900 WALL OVEN / MICROWAVE COMBO – Common Parts & Diagrams

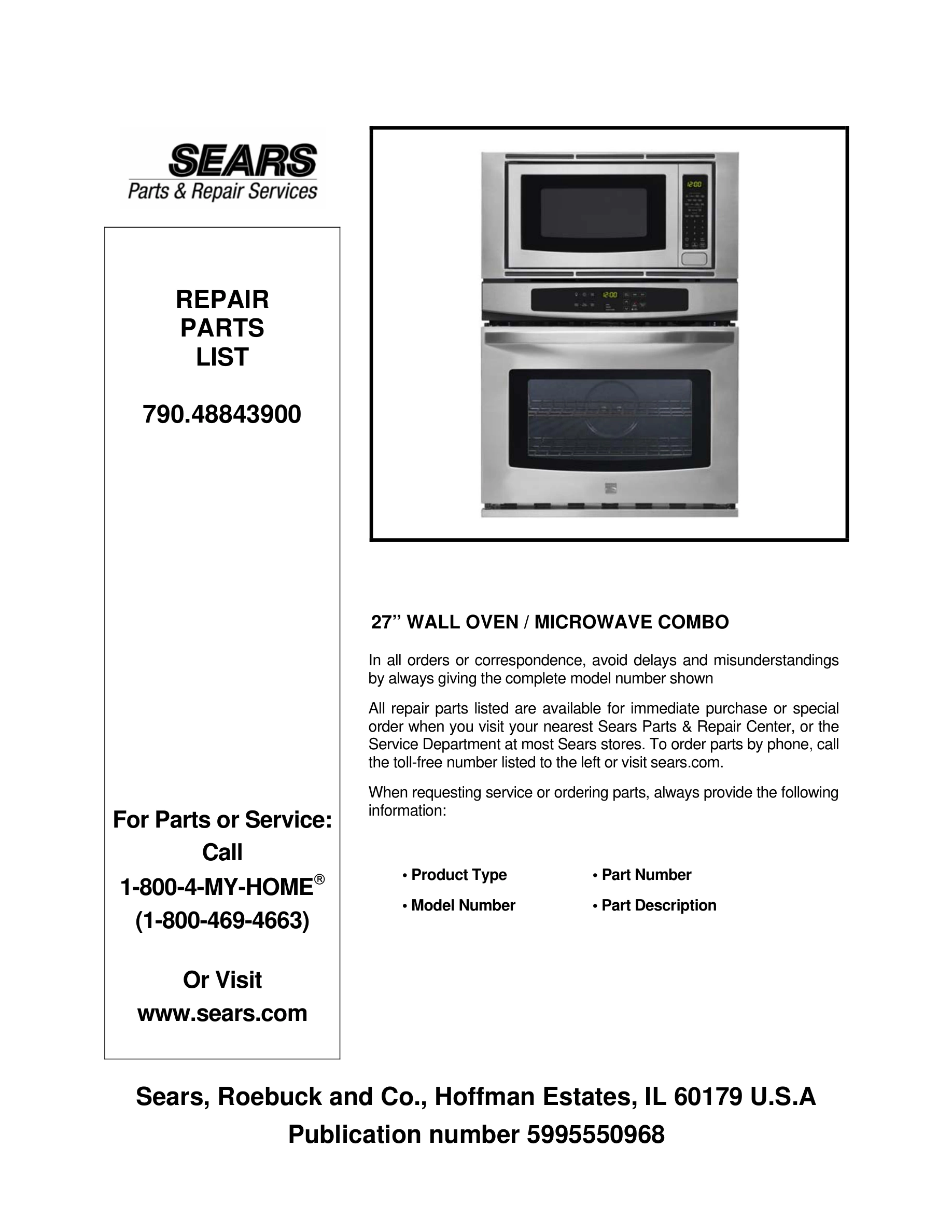

01 - COVER

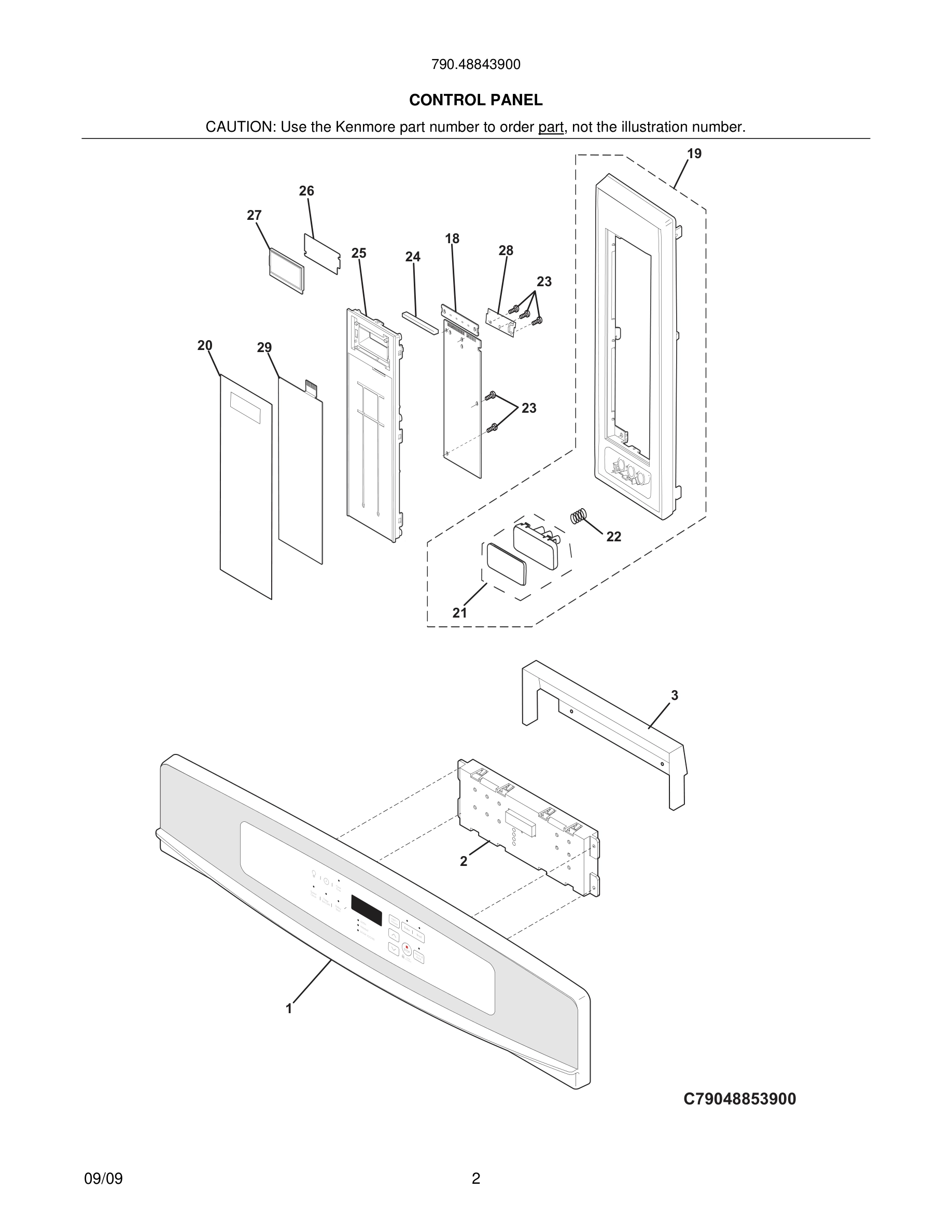

03 - CONTROL PANEL

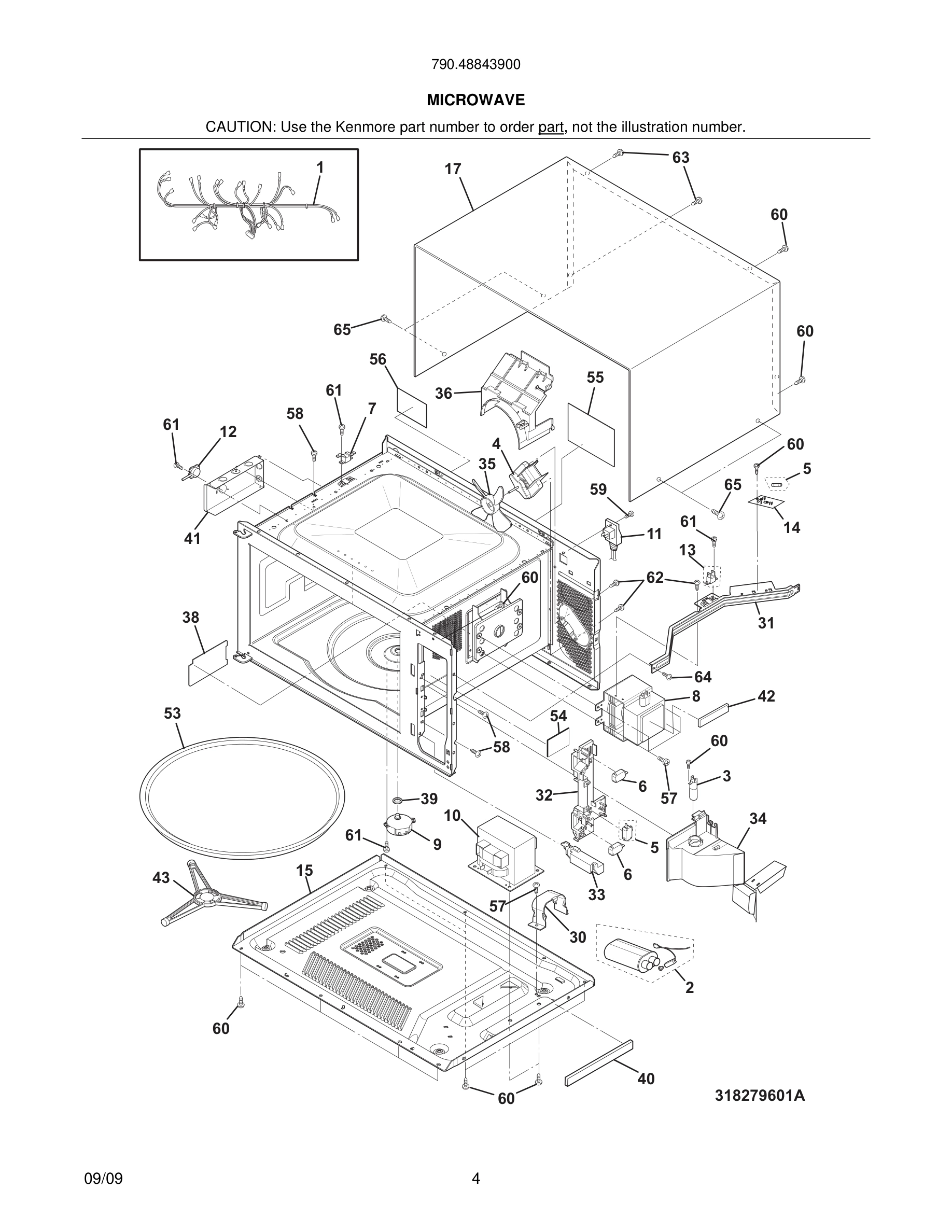

05 - MICROWAVE

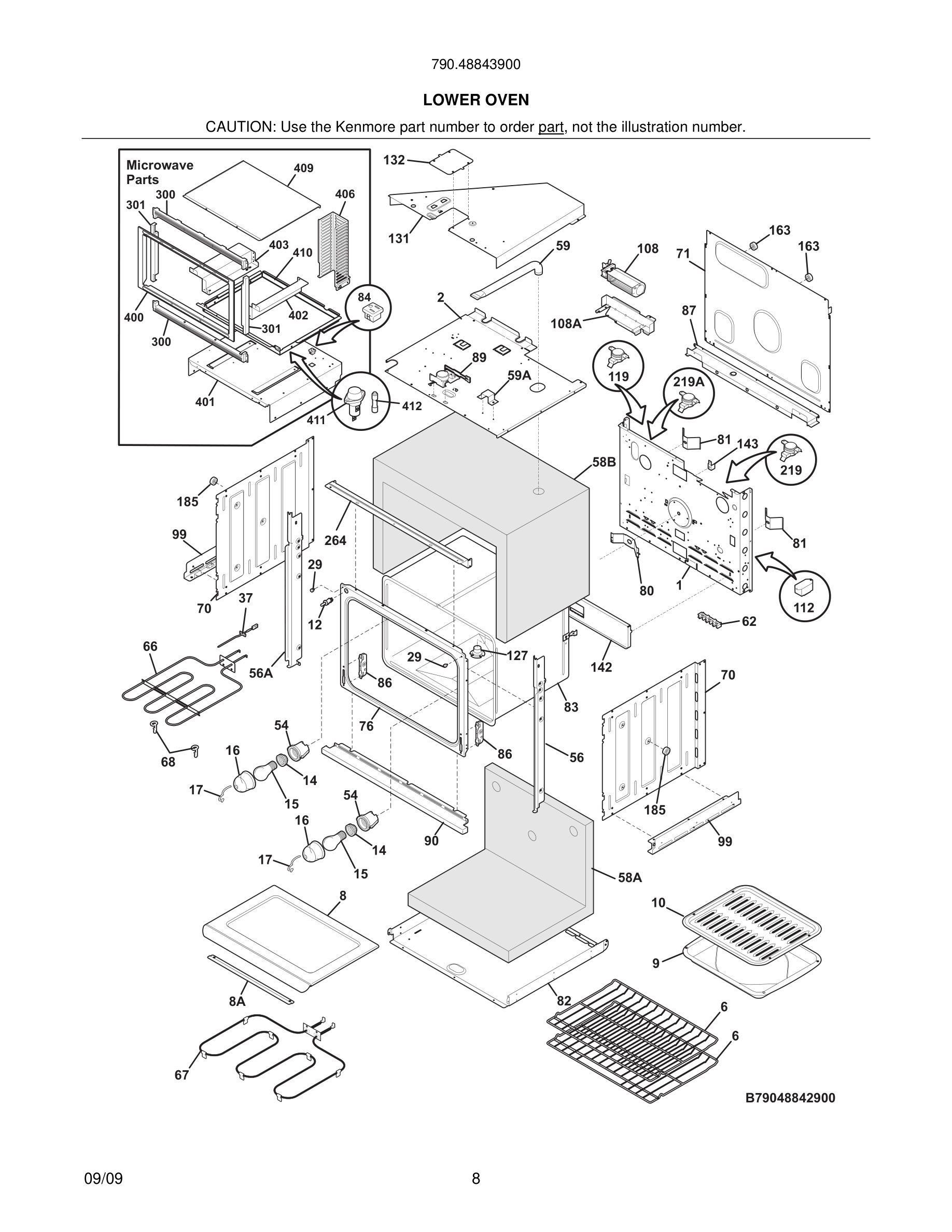

07 - LOWER OVEN
09 - LOWER OVEN

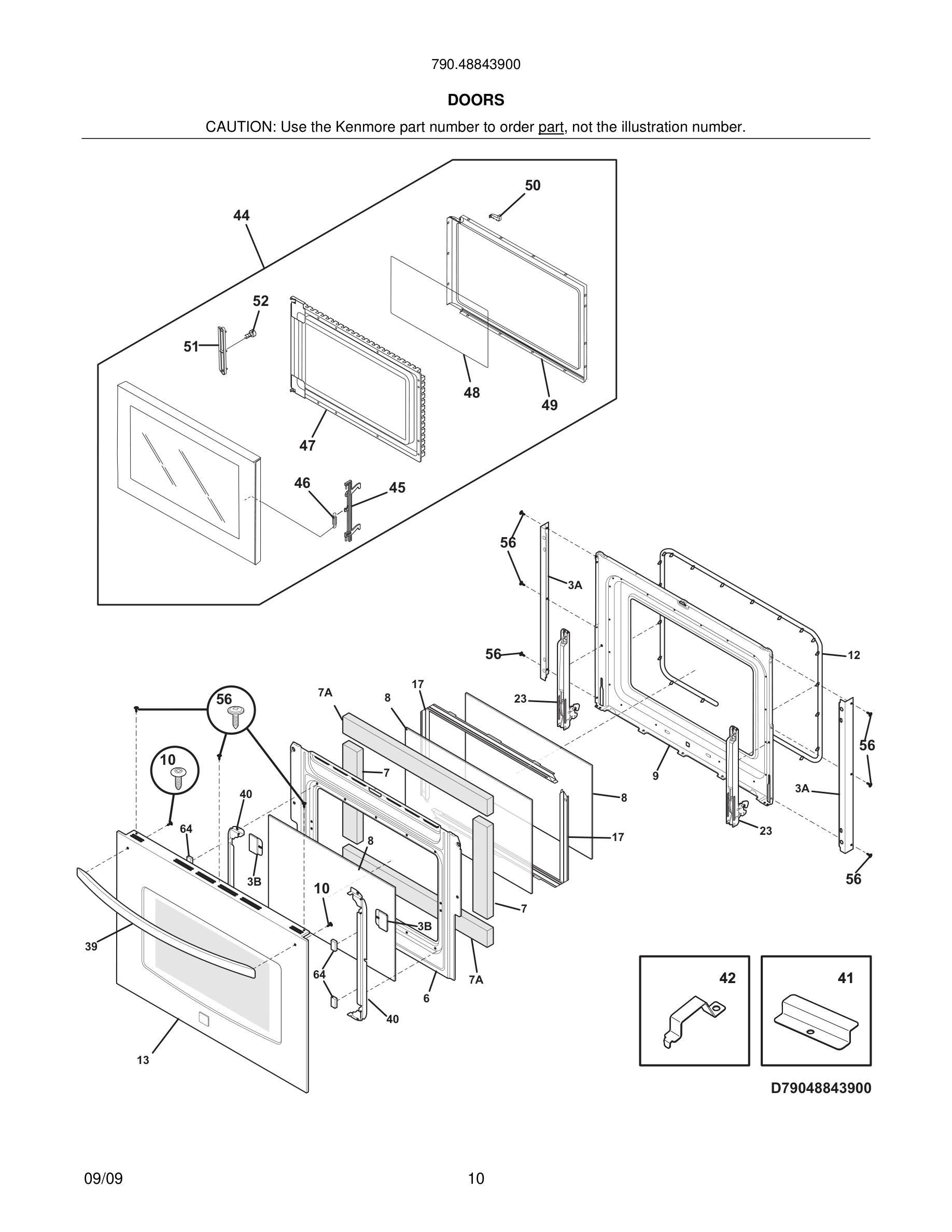

11 - DOORS

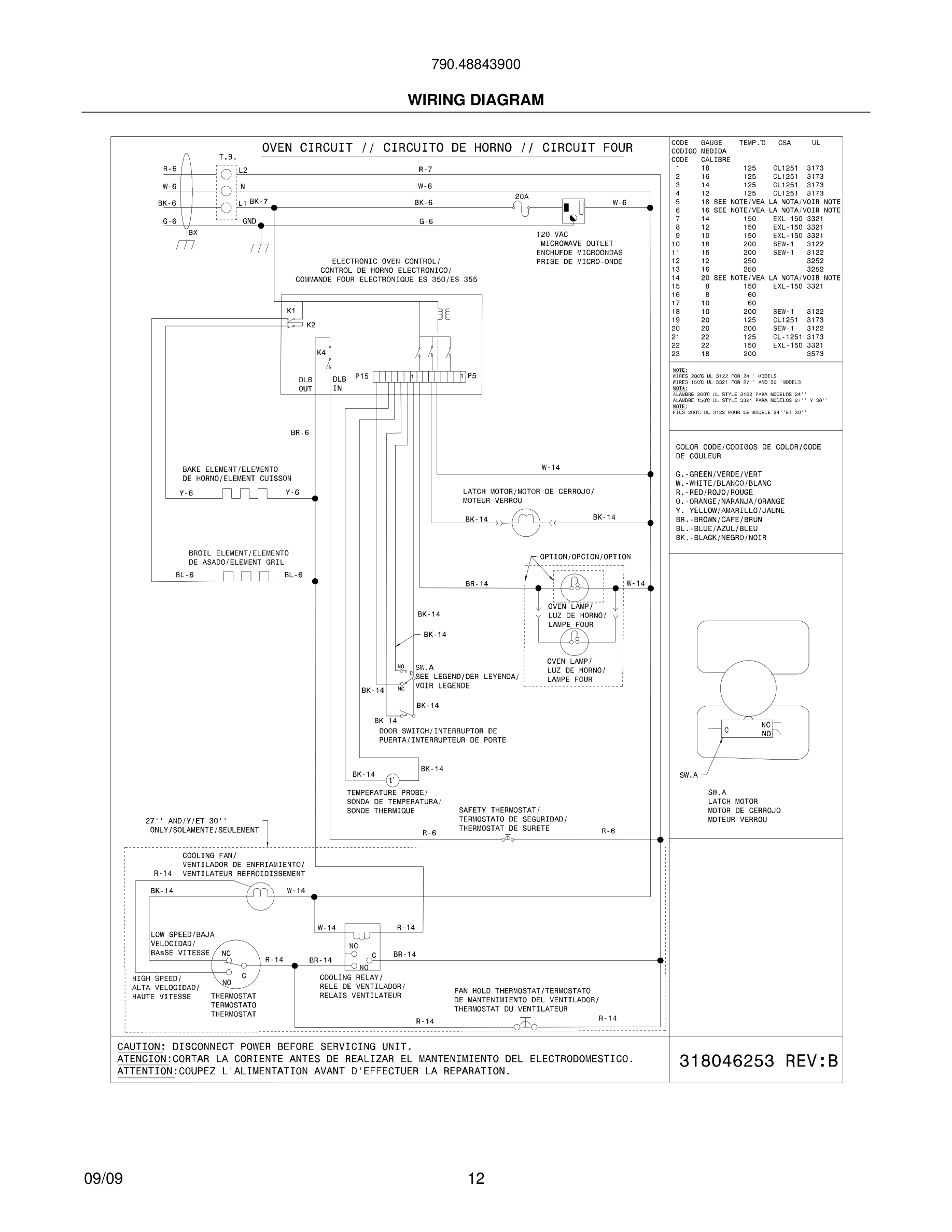

12 - WIRING DIAGRAM
Common parts from model Kenmore 790.48843900 WALL OVEN / MICROWAVE COMBO
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*#
Harness, wiring, main WCI 318231754 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Baffle, door WCI 318260510 Contact Us For Availability
8
Glass, oven door, heat barrier WCI 318212200 Contact Us For Availability
8
Cover, element WCI 318262011 Contact Us For Availability
9
Liner, upper door WCI 318259656 Contact Us For Availability
12
Gasket, oven door seal WCI 318053126 Contact Us For Availability
13
Door Assembly, outer, steel/glass, stainless/ WCI 318304150 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, (2) WCI 318264700 Contact Us For Availability
19
Panel Assembly, control, black/stainless WCI 5304475169 Contact Us For Availability
20
Ovelay, graphic sheet, black WCI 5304475171 Contact Us For Availability
21
Button Assembly, door open, stainless WCI 5304475172 Contact Us For Availability
23
Hinge, oven door, (2) WCI 318567105 Contact Us For Availability
24
Connector, rubber, control board WCI 5304440832 Contact Us For Availability
27#
LCD, display WCI 5304440835 Contact Us For Availability
29#
Switch, touch pad WCI 5304453940 Contact Us For Availability
31
Bracket, chassis support WCI 5304462313 Contact Us For Availability
39
Bushing, motor shaft, turntable WCI 5304440288 Contact Us For Availability
39
Handle, door, stainless WCI 318915902 Contact Us For Availability
44
Door Assembly, complete, stainless WCI 5304475175 Contact Us For Availability
48
Seal, door, film WCI 5304440860 Contact Us For Availability
50
Door Stop WCI 5304442145 Contact Us For Availability
51
Door Stop WCI 5304440862 Contact Us For Availability
52
Screw WCI 5304452259 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
60
Screw, 4 mm x 12 mm WCI 5304451553 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
84#
Outlet-electrical, miniature, black-glossy WCI 318146833 Contact Us For Availability
90
Trim, base, stainless WCI 318259845 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112703 Contact Us For Availability
131
Box, vent WCI 318272901 Contact Us For Availability
132
Plate, shield WCI 318003000 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer, (4) WCI 318531703 Contact Us For Availability
219#
Thermostat, safety WCI 318003635 Contact Us For Availability
264
Trim, oven, black, front WCI 318257711 Contact Us For Availability
300
Trim, microwave frame, black, top/bottom WCI 318925001 Contact Us For Availability
301
Trim, microwave frame, black, sides, (2) WCI 318925103 Contact Us For Availability
400
Frame, microwave, stainless WCI 318930302 Contact Us For Availability
401
Plate, support, microwave, 27" WCI 318297206 Contact Us For Availability
402
Bracket, base pad, RH WCI 318276204 Contact Us For Availability
403
Bracket, base pad, LH WCI 318276206 Contact Us For Availability
406
Shield, microwave rear WCI 318277201 Contact Us For Availability
409
Bracket, top trim WCI 318295301 Contact Us For Availability
410
Flue, black WCI 318297111 Contact Us For Availability
× ![]()
