Model Kenmore 790.48842901 WALL OVEN / MICROWAVE COMBO – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL

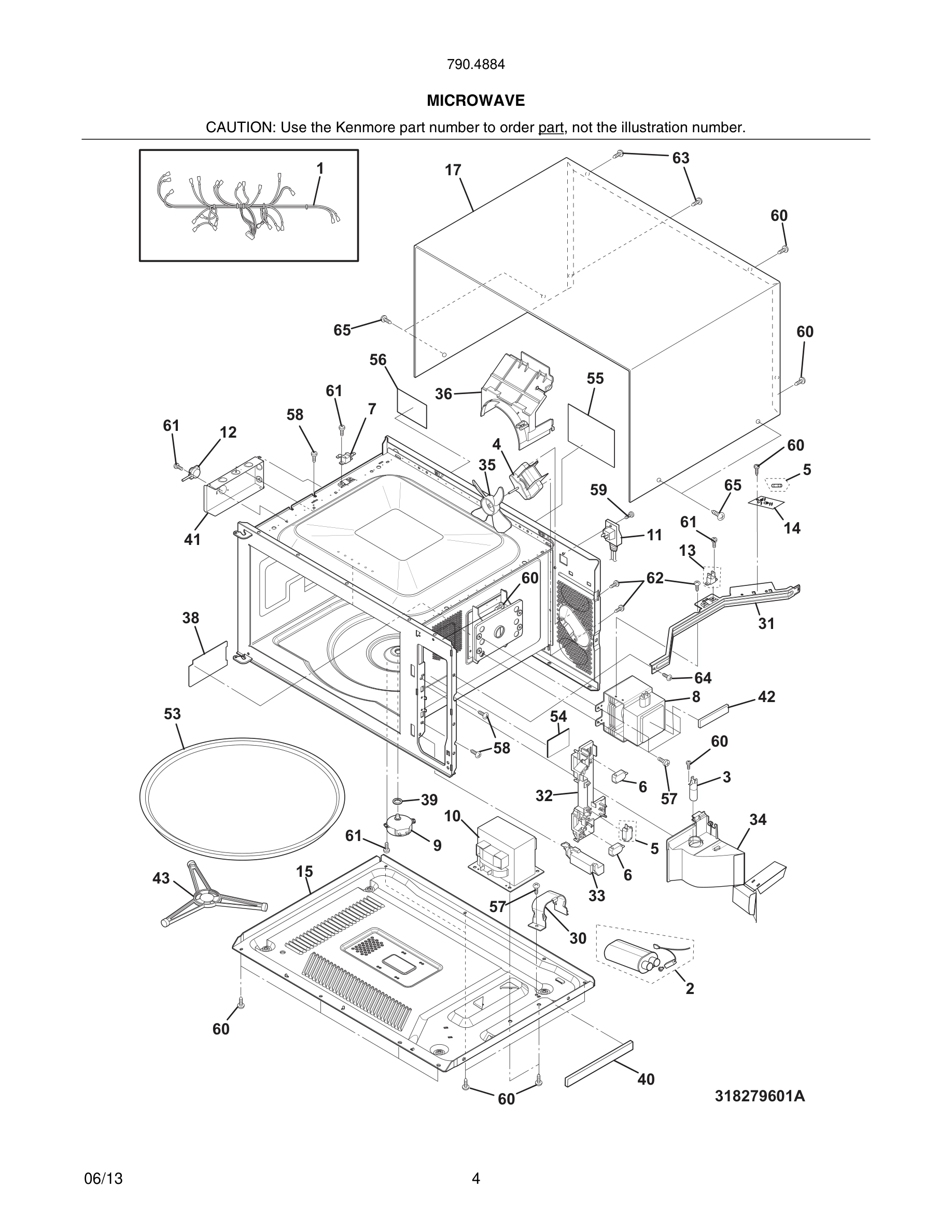

05 - MICROWAVE

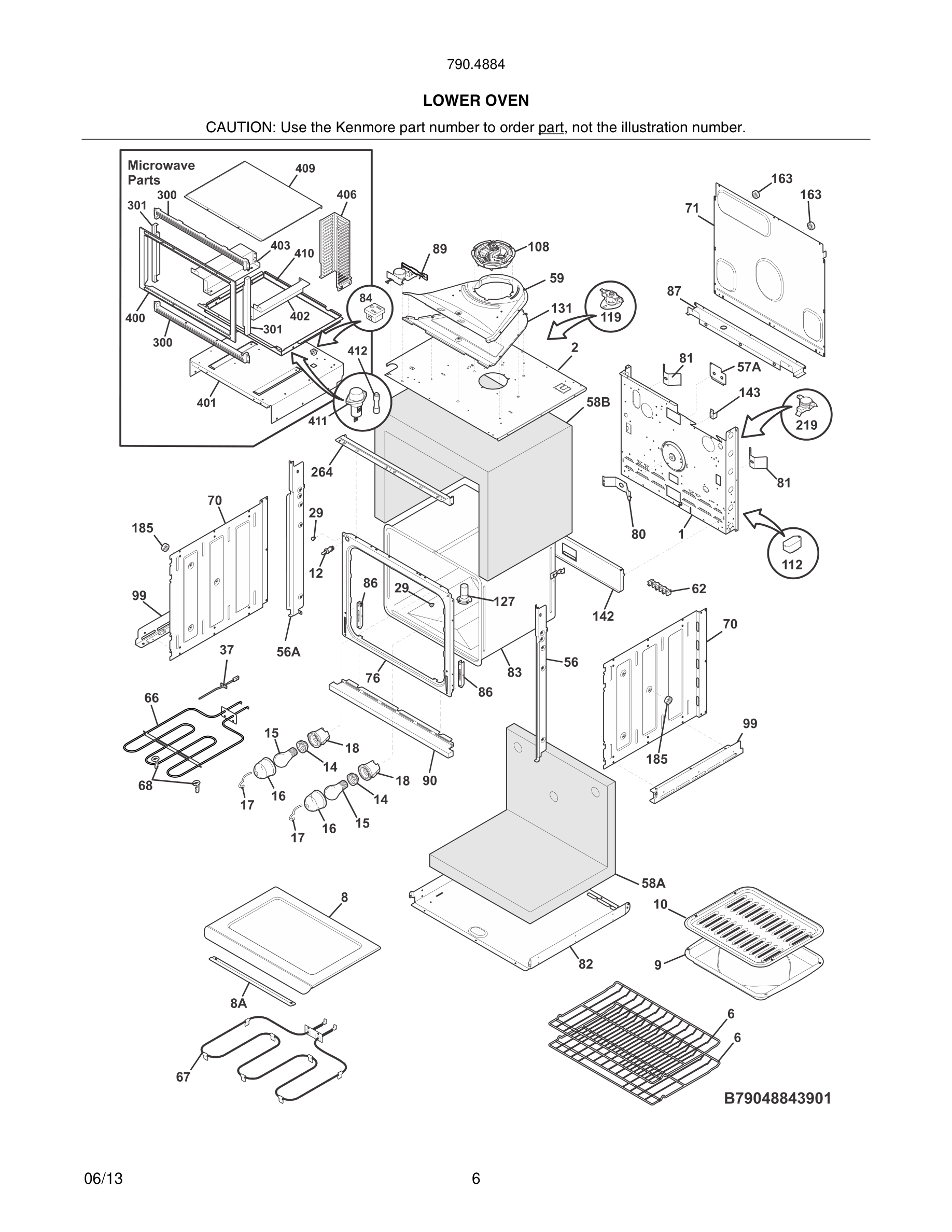

07 - LOWER OVEN
09 - LOWER OVEN

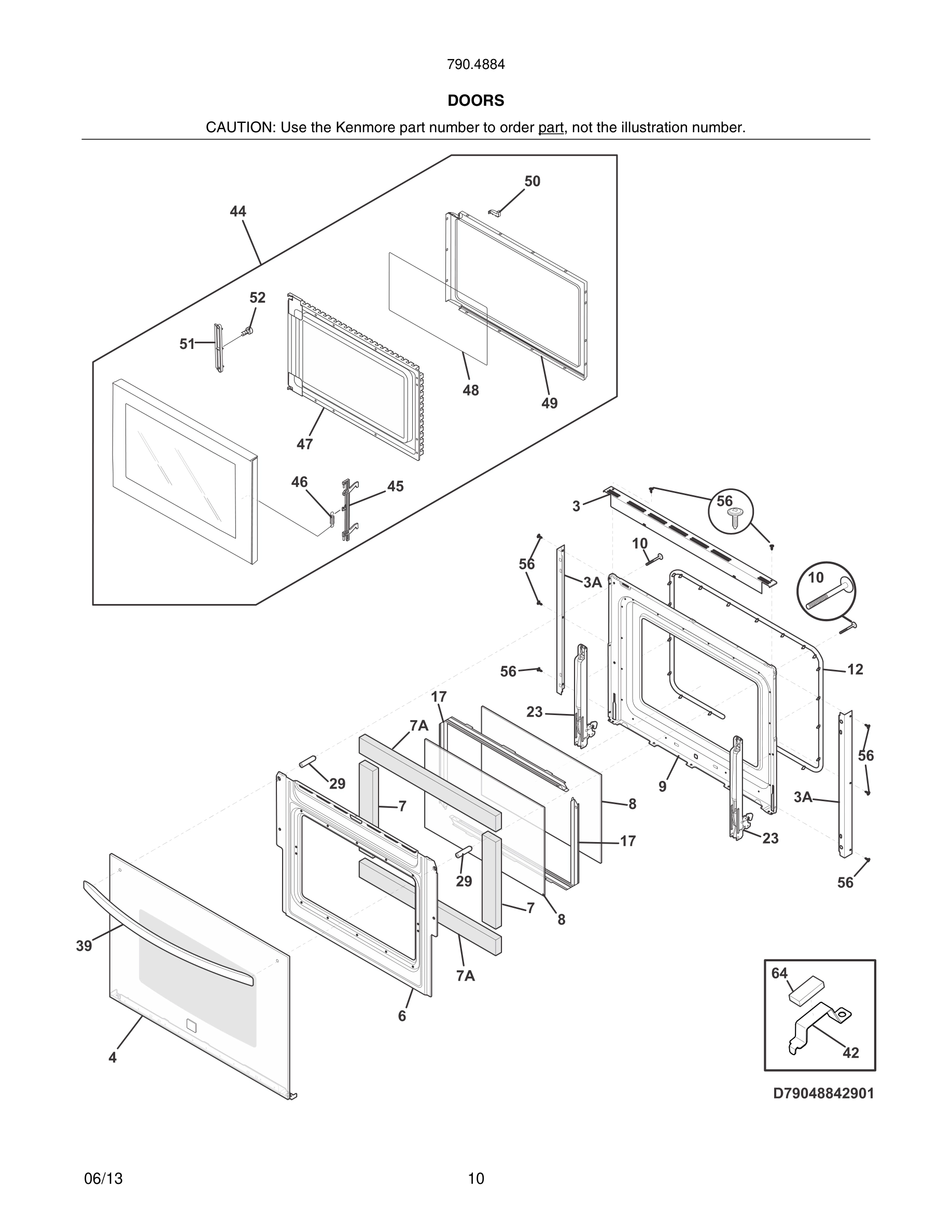

11 - DOORS

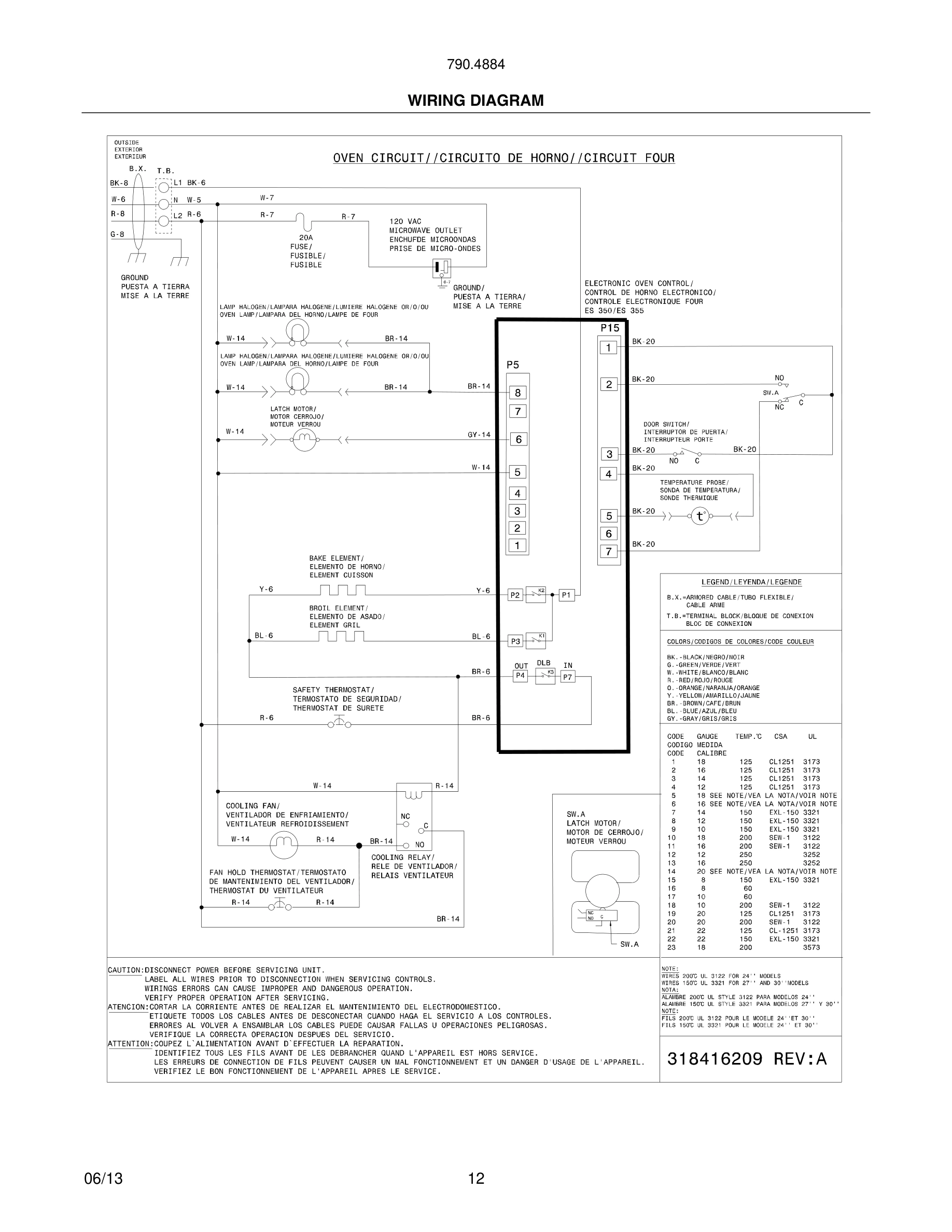

12 - WIRING DIAGRAM
Common parts from model Kenmore 790.48842901 WALL OVEN / MICROWAVE COMBO
3
Trim, oven door, black, upper WCI 318260217 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Door Assembly, glass, white, upper oven, w/tr WCI 318304147 Contact Us For Availability
4
Door Assembly, glass, black, upper oven, w/tr WCI 318304148 Contact Us For Availability
6
Baffle, door WCI 318260511 Contact Us For Availability
8
Glass, oven door, heat barrier WCI 318212200 Contact Us For Availability
8
Cover, element WCI 318262011 Contact Us For Availability
9
Liner, oven door WCI 318259672 Contact Us For Availability
10
Screw, 10-24 x 1.770, handle mtg WCI 5304477986 Contact Us For Availability
12
Gasket, oven door seal WCI 318053137 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, (2) WCI 318264700 Contact Us For Availability
18
Housing, oven light WCI 318222400 Contact Us For Availability
19
Frame, control panel, black WCI 5304440821 Contact Us For Availability
20
Ovelay, graphic sheet, black WCI 5304475171 Contact Us For Availability
20
Ovelay, graphic sheet, white WCI 5304475170 Contact Us For Availability
21
Push Button, door, black WCI 5304440827 Contact Us For Availability
21
Push Button, door, white WCI 5304442133 Contact Us For Availability
23
Hinge, door, lower oven, (2) WCI 318567108 Contact Us For Availability
24
Connector, rubber, control board WCI 5304440832 Contact Us For Availability
27#
LCD, display WCI 5304440835 Contact Us For Availability
29
Spacer, door WCI 318014411 Contact Us For Availability
29#
Switch, touch pad WCI 5304453940 Contact Us For Availability
31
Bracket, chassis support WCI 5304462313 Contact Us For Availability
39
Bushing, motor shaft, turntable WCI 5304440288 Contact Us For Availability
39
Handle, door, white, w/spacer WCI 318372421 Contact Us For Availability
39
Handle, door, black, w/spacer WCI 318372422 Contact Us For Availability
44
Door Assembly, complete, white WCI 5304475173 Contact Us For Availability
44
Door Assembly, complete, black WCI 5304475174 Contact Us For Availability
47
Panel, inner door, white WCI 5304442144 Contact Us For Availability
48
Seal, door, film WCI 5304440860 Contact Us For Availability
50
Door Stop WCI 5304442145 Contact Us For Availability
51
Stop, door glass WCI 5304440862 Contact Us For Availability
52
Screw WCI 5304452259 Contact Us For Availability
60
Screw, 4 mm x 12 mm WCI 5304451553 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
84#
Outlet-electrical, miniature, black-glossy WCI 318146833 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259711 Contact Us For Availability
90
Trim, oven front, white, bottom WCI 318259710 Contact Us For Availability
112#
Relay WCI 318112703 Contact Us For Availability
127
Adapter Assembly, vent tube, w/converter WCI 318317105 Contact Us For Availability
300
Trim, microwave frame, black, top/bottom WCI 318925001 Contact Us For Availability
300
Trim, microwave frame, white, top/bottom WCI 318925000 Contact Us For Availability
301
Trim, microwave frame, white, sides, (2) WCI 318925102 Contact Us For Availability
301
Trim, microwave frame, black, sides, (2) WCI 318925103 Contact Us For Availability
400
Frame, microwave, black WCI 318930306 Contact Us For Availability
402
Bracket, base pad, RH WCI 318276204 Contact Us For Availability
403
Bracket, base pad, LH WCI 318276206 Contact Us For Availability
409
Bracket, top trim WCI 318295301 Contact Us For Availability
410
Flue, black WCI 318297111 Contact Us For Availability
× ![]()
