Model Kenmore 790.48832901 OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL
05 - BODY

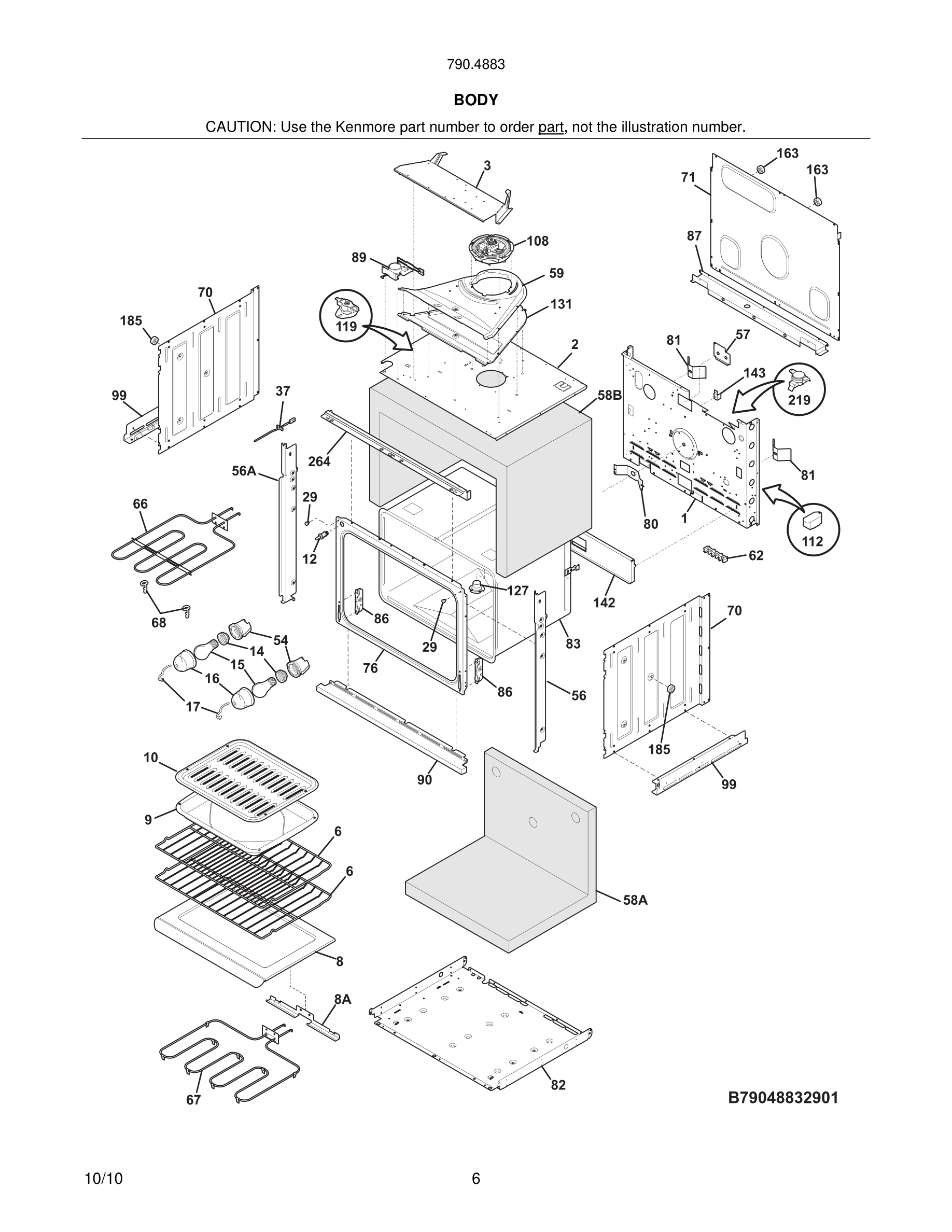

07 - BODY

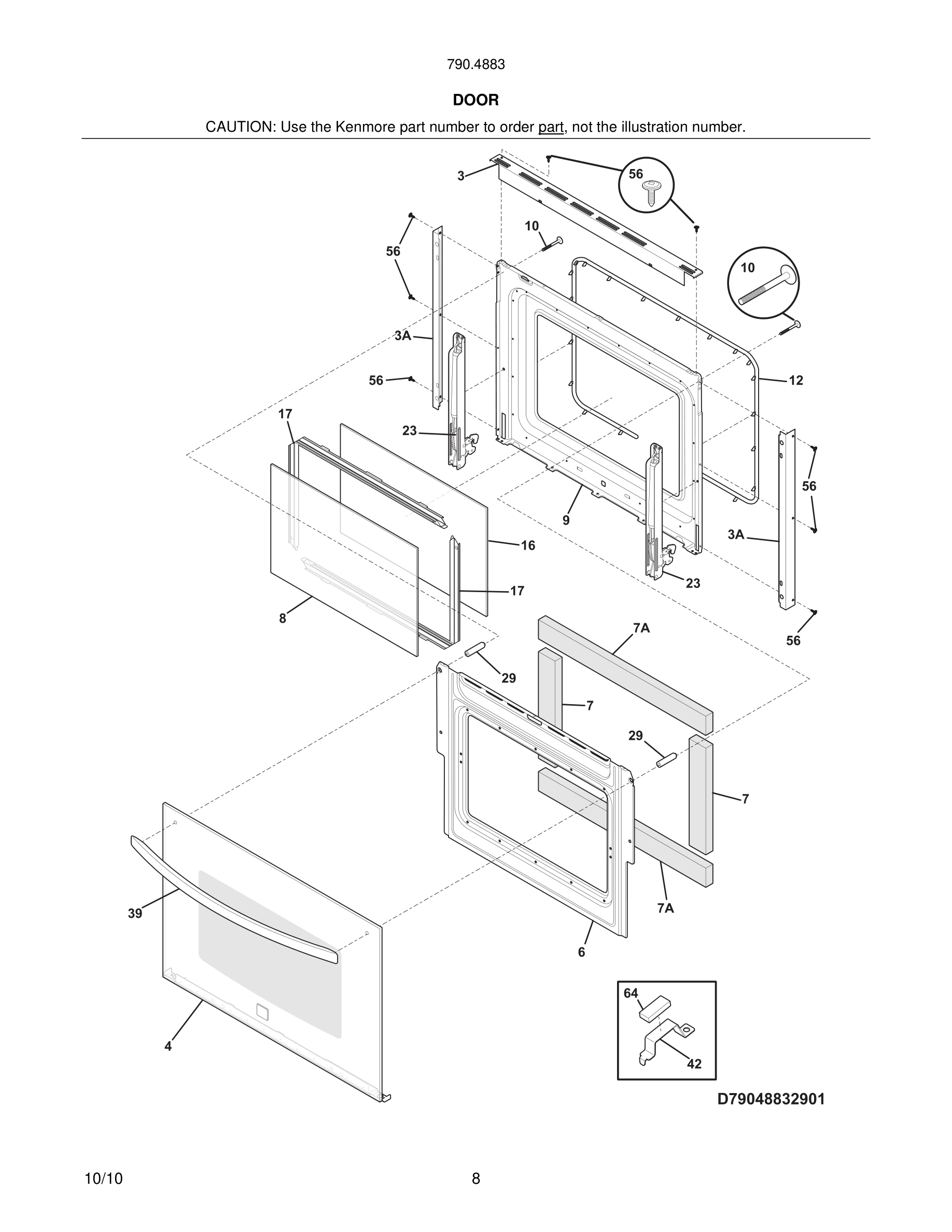

09 - DOOR

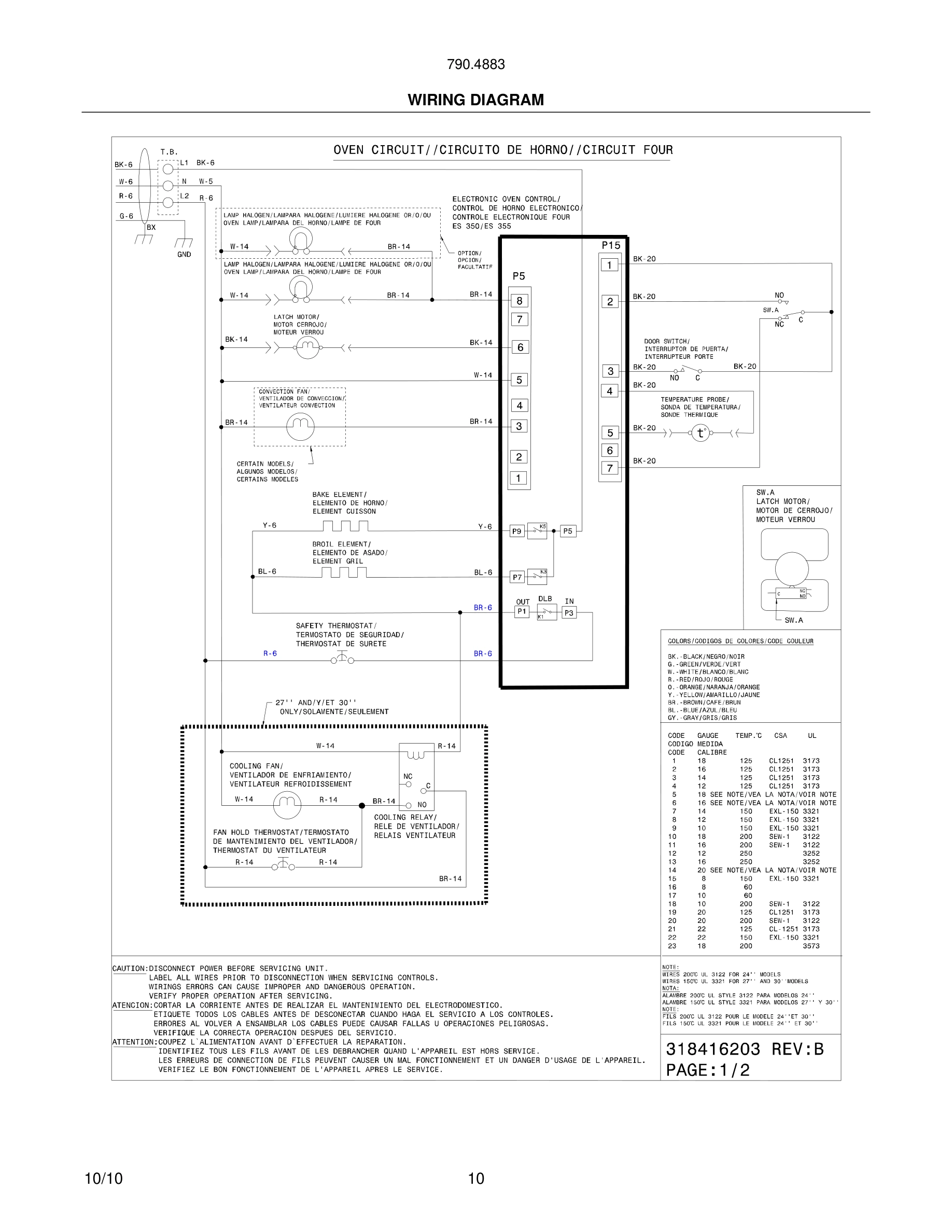

10 - WIRING DIAGRAM

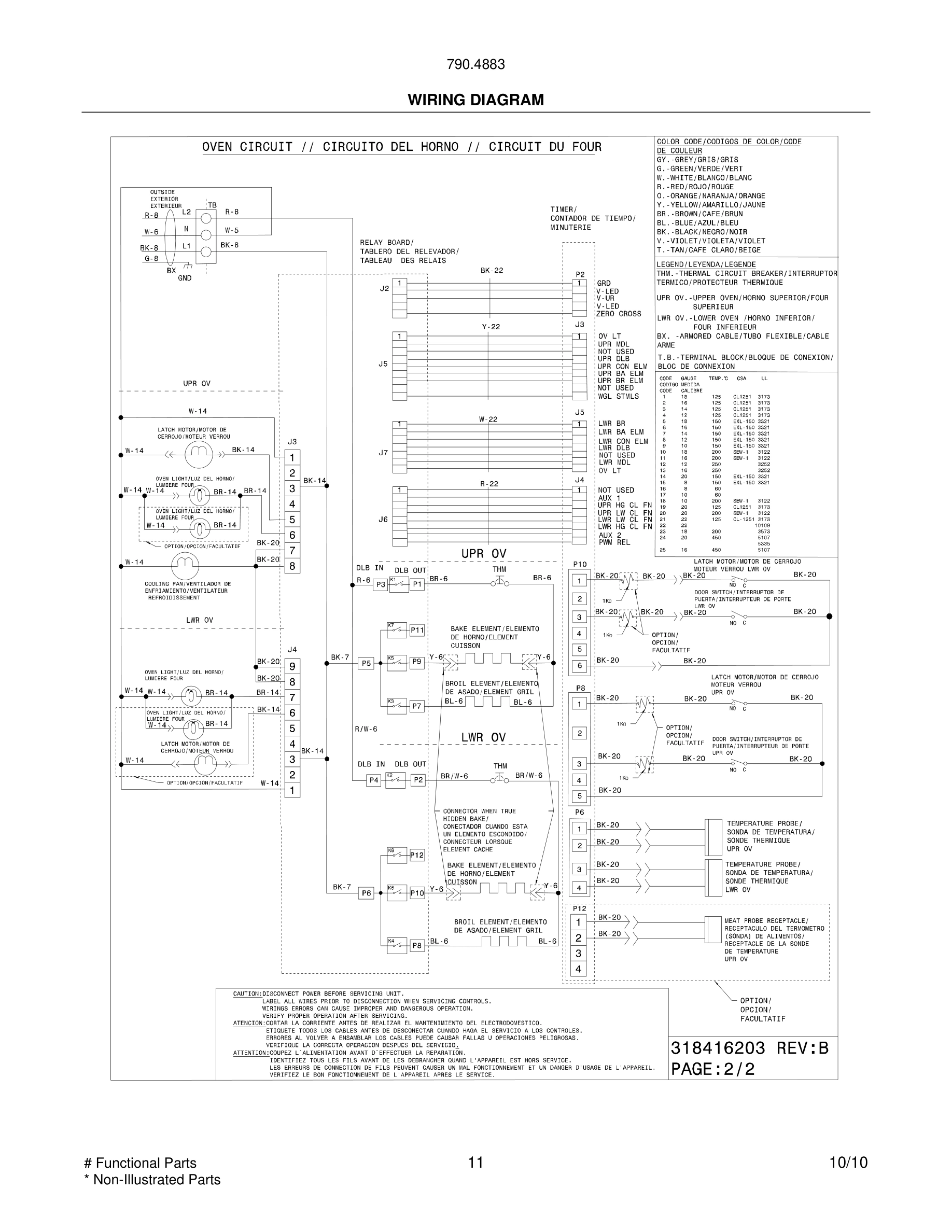

11 - WIRING DIAGRAM
Common parts from model Kenmore 790.48832901 OVEN
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318304145 Contact Us For Availability
6
Baffle, door WCI 318260522 Contact Us For Availability
8
Cover, element WCI 318262001 No Longer Available
9
Liner, oven door WCI 318411650 Contact Us For Availability
16
Glass, oven door, heat barrier, lower door WCI 318212210 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
23
Hinge, oven door, (2) WCI 318567101 Contact Us For Availability
29
Spacer, door WCI 318014405 Contact Us For Availability
39
Handle, door, white, w/spacer WCI 318372416 Contact Us For Availability
39
Handle, door, black, w/spacer WCI 318372417 Contact Us For Availability
39
Handle, door, bisque, w/spacer WCI 318372418 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
90
Trim, oven front, white, bottom WCI 318259700 Contact Us For Availability
112#
Relay WCI 318112703 Contact Us For Availability
127
Adapter Assembly, vent tube, w/converter WCI 318317105 Contact Us For Availability
131
Bottom, cooling duct WCI 318574805 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer WCI 318531703 Contact Us For Availability
264
Trim, oven, black, front WCI 318257706 Contact Us For Availability
× ![]()
