Model Kenmore 790.48784901 OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL

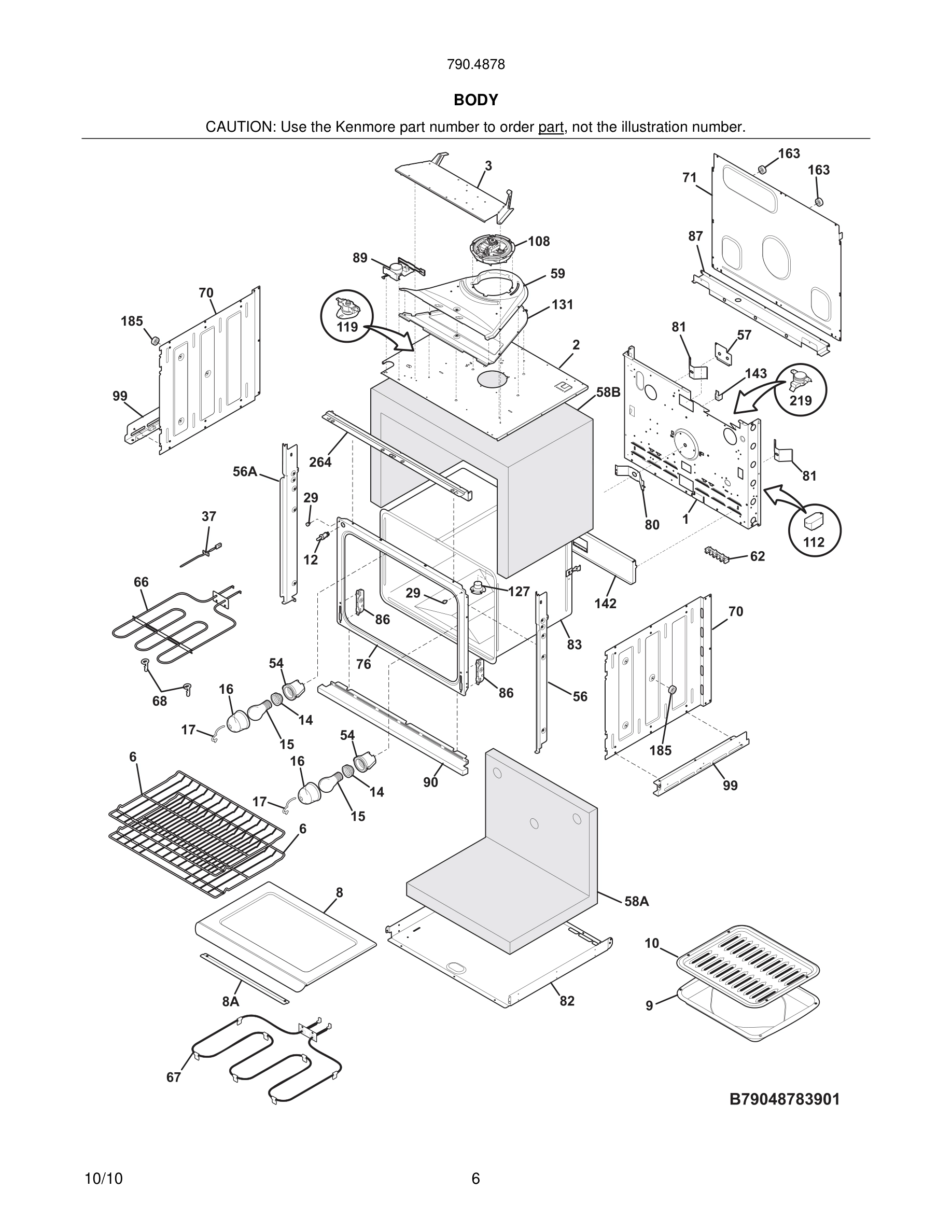

05 - BODY
07 - BODY

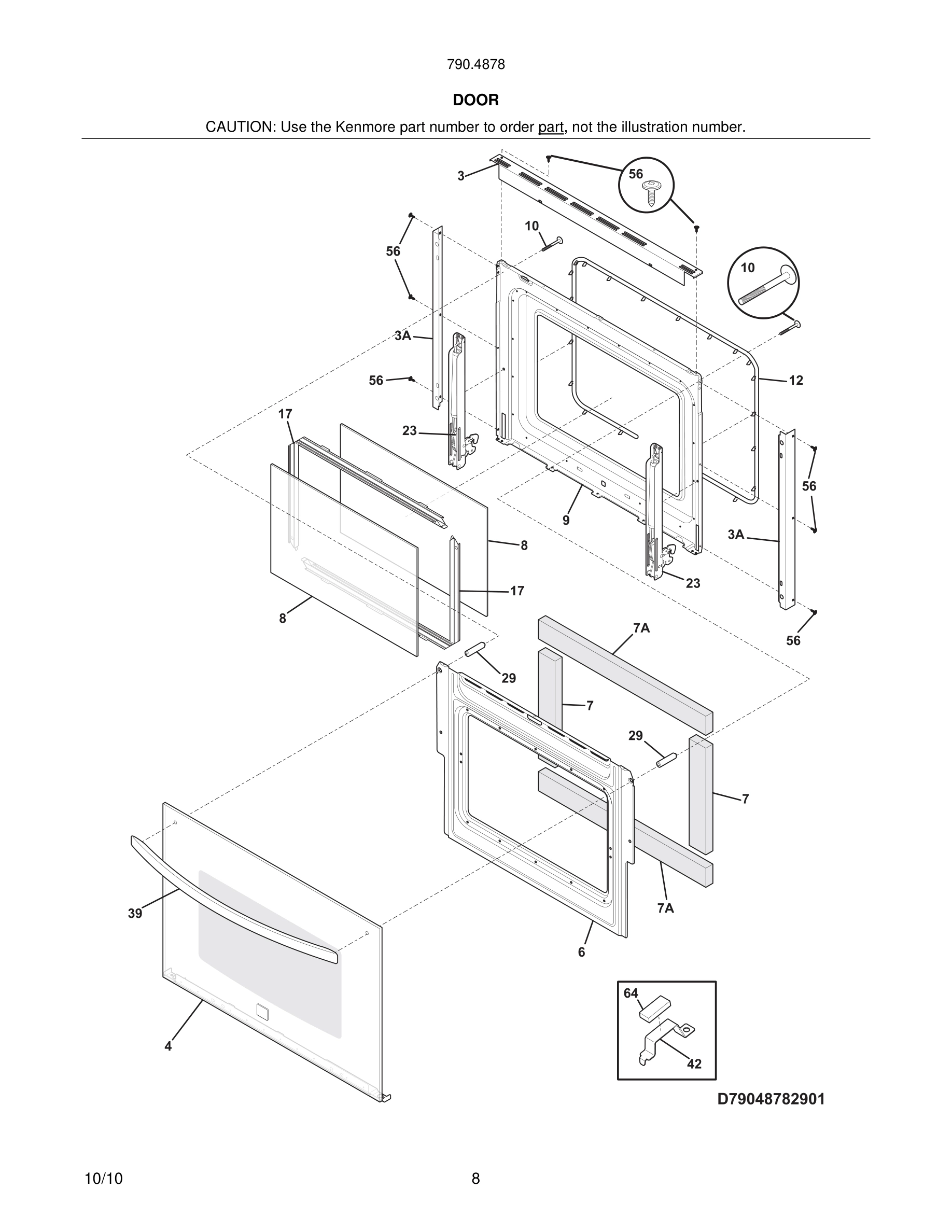

09 - DOOR

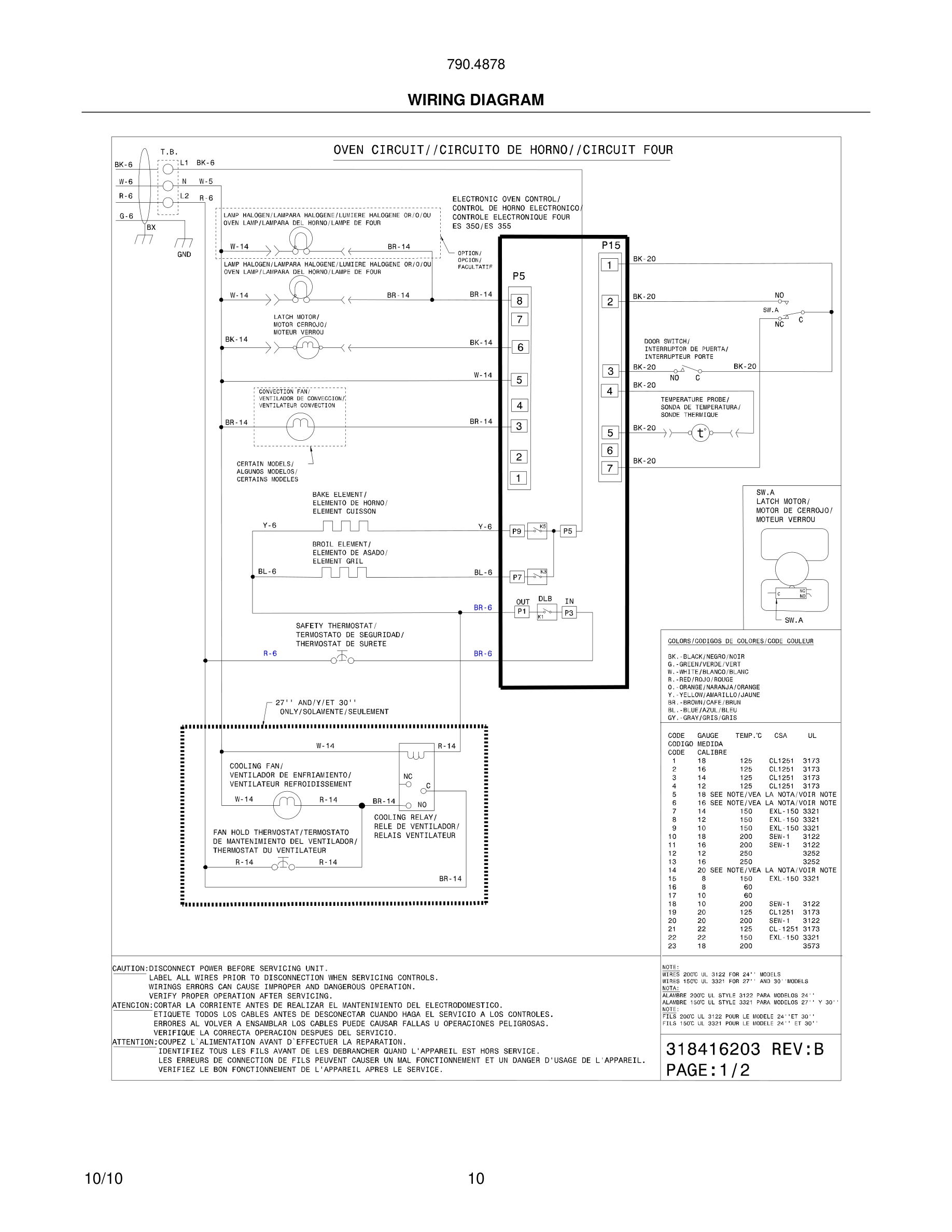

10 - WIRING DIAGRAM

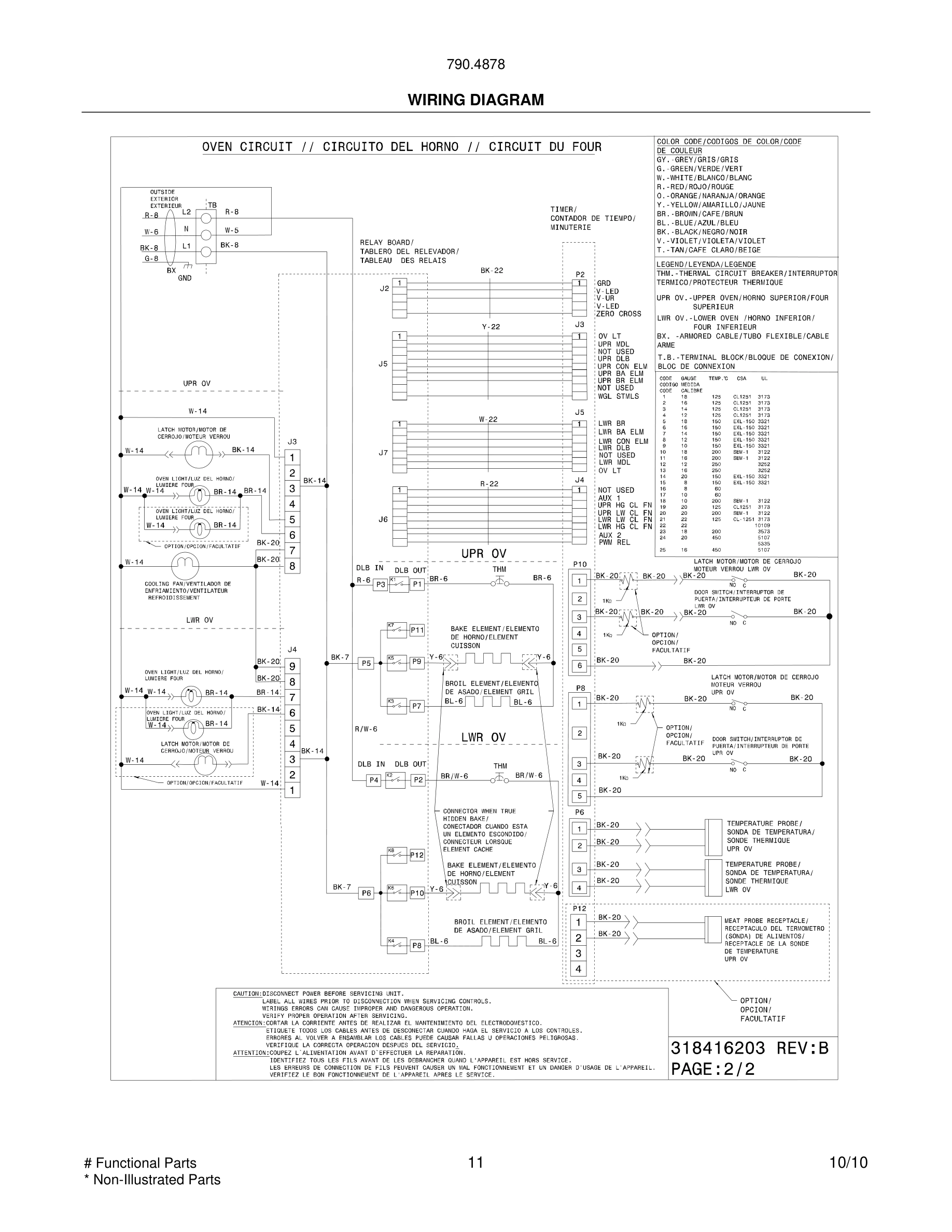

11 - WIRING DIAGRAM
Common parts from model Kenmore 790.48784901 OVEN
3
Trim, oven door, black, upper WCI 318260217 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318304149 Contact Us For Availability
6
Baffle, door WCI 318260510 Contact Us For Availability
8
Glass, oven door, heat barrier WCI 318212200 Contact Us For Availability
8
Cover, element WCI 318262011 Contact Us For Availability
9
Liner, oven door WCI 318259672 Contact Us For Availability
12
Gasket, oven door seal WCI 318053137 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, (2) WCI 318264700 Contact Us For Availability
23
Hinge, door, lower oven, (2) WCI 318567108 Contact Us For Availability
29
Spacer, door WCI 318014405 Contact Us For Availability
39
Handle, door, bisque, w/spacer WCI 318372423 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
112#
Relay WCI 318112703 Contact Us For Availability
127
Adapter Assembly, vent tube, w/converter WCI 318317105 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer WCI 318531703 Contact Us For Availability
264
Trim, oven, black, front WCI 318257713 Contact Us For Availability
× ![]()
