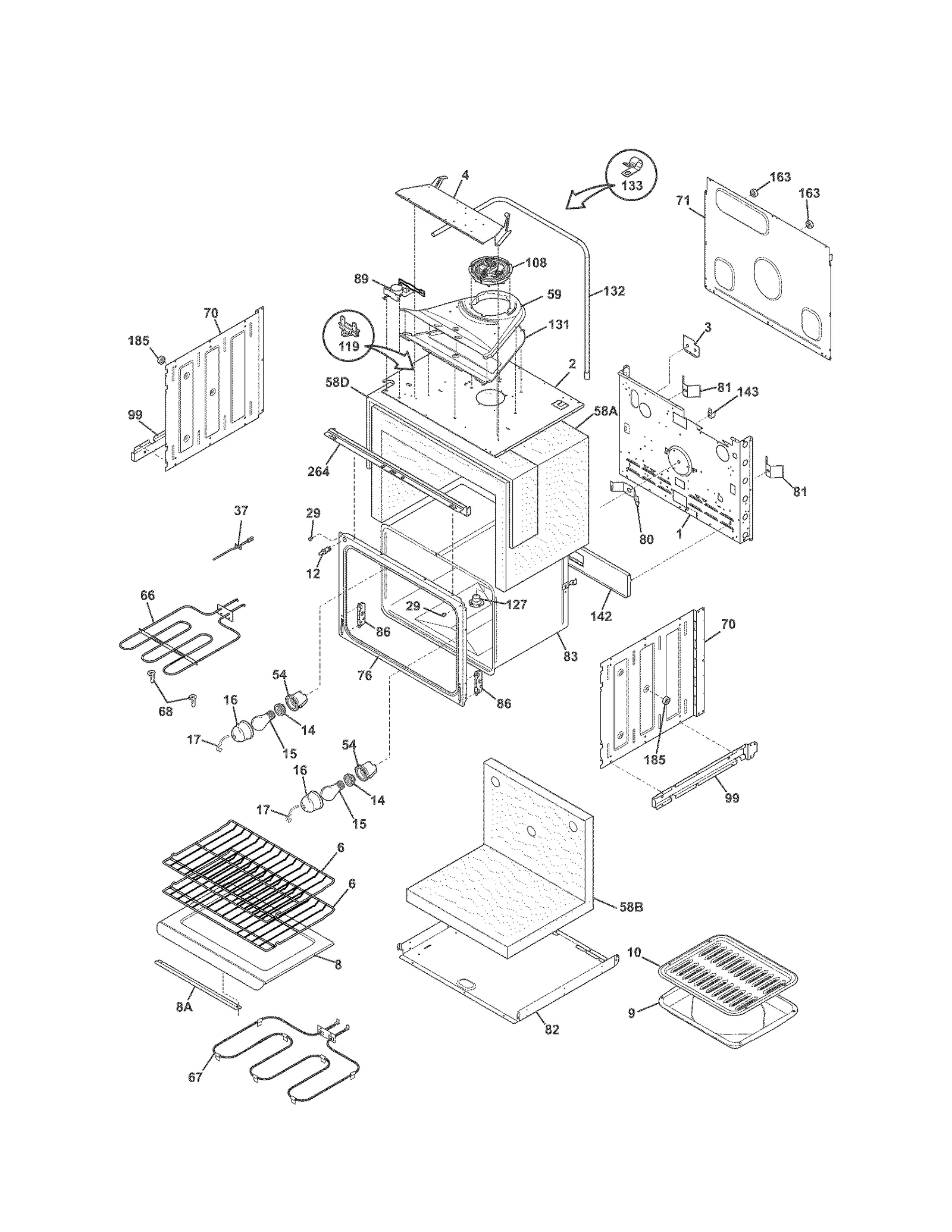

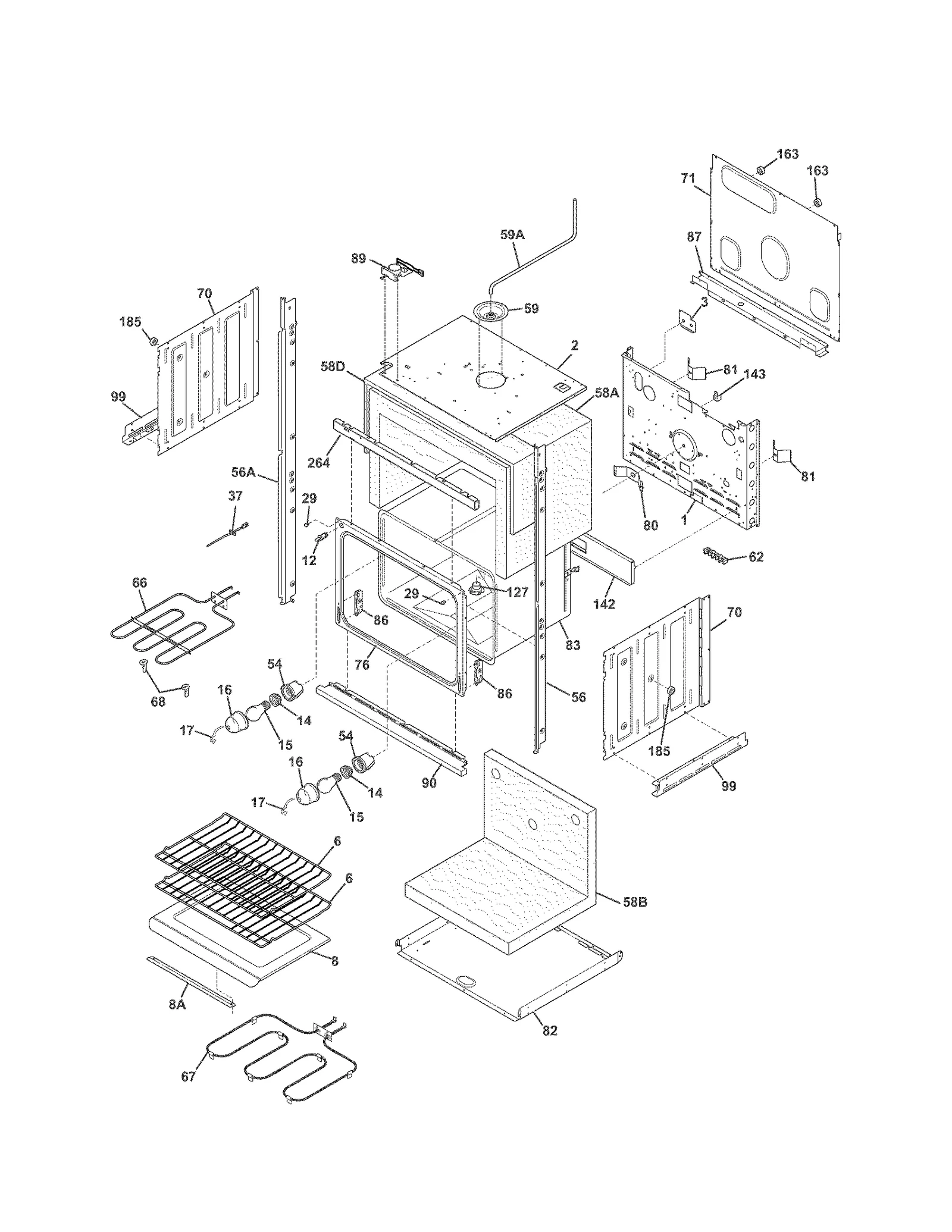

Model Electrolux 790.48769901 Wall Oven (Kenmore 79048769901) – Common Parts & Diagrams

3
Oven Trim
Oven Trim WCI 318260217 Contact Us For Availability
View on Model
3A
Range Oven Door Trim
Range Oven Door Trim WCI 318260401 Contact Us For Availability
View on Model
4

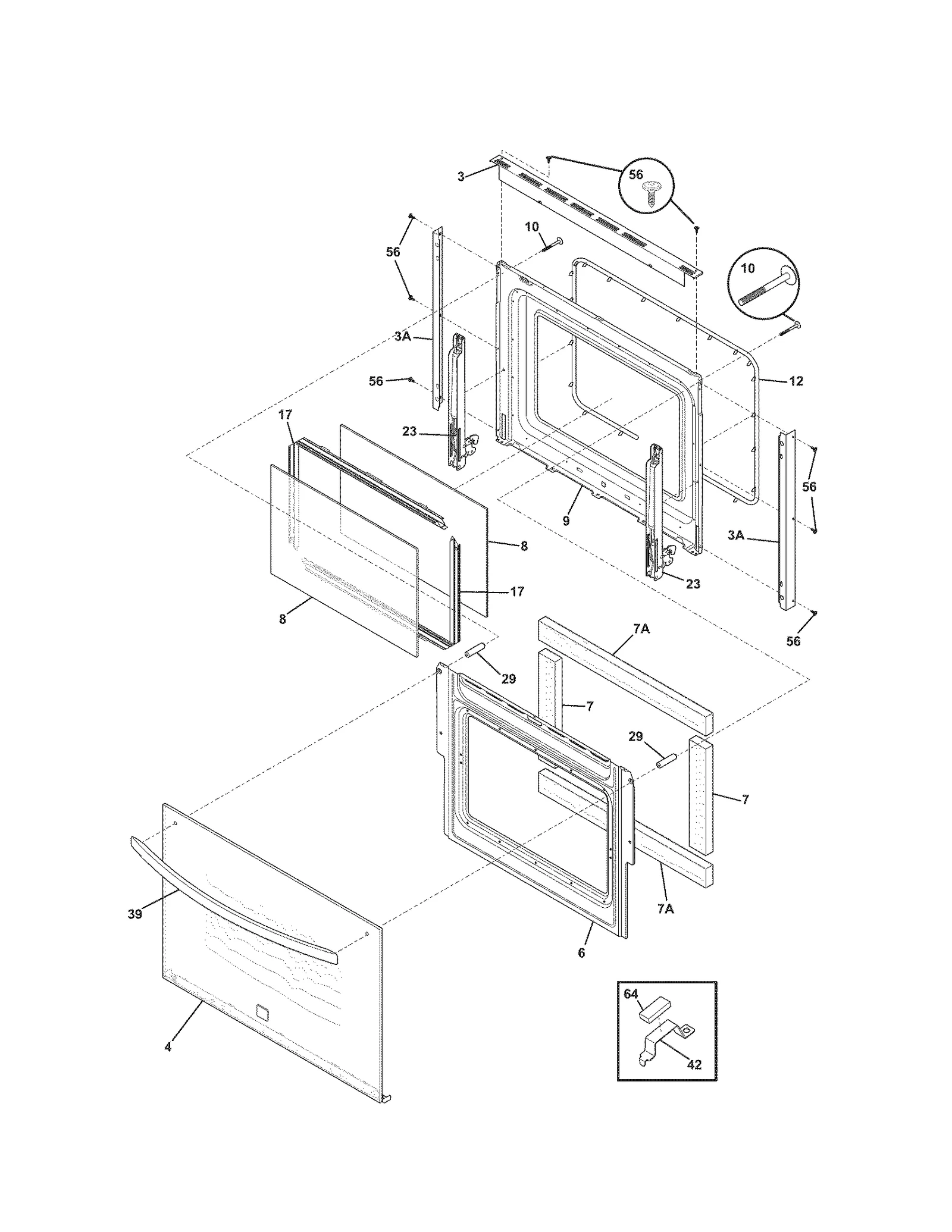

Wall Oven Door Outer Panel Assembly (White)
Wall Oven Door Outer Panel Assembly (White) WCI 318304153 Contact Us For Availability
View on Model
4
Wall Oven Door Outer Panel Assembly, Upper (W
Wall Oven Door Outer Panel Assembly, Upper (W WCI 318304147 Contact Us For Availability
View on Model
4
Wall Oven Door Outer Panel Assembly (Black)
Wall Oven Door Outer Panel Assembly (Black) WCI 318304148 Contact Us For Availability
View on Model
4
Wall Oven Door Outer Panel Assembly, Lower (B
Wall Oven Door Outer Panel Assembly, Lower (B WCI 318304120 Contact Us For Availability
View on Model
6
Baffle
Baffle WCI 318260510 Contact Us For Availability
View on Model
8
Wall Oven Door Inner Glass
Wall Oven Door Inner Glass WCI 318212200 Contact Us For Availability
View on Model
8
Wall Oven Bottom Liner
Wall Oven Bottom Liner WCI 318262011 Contact Us For Availability
View on Model
9
Oven Liner
Oven Liner WCI 318259672 Contact Us For Availability
View on Model
10
Range Oven Door Handle Screw
Range Oven Door Handle Screw WCI 5304477986 Contact Us For Availability
View on Model
12
Wall Oven Door Gasket
Wall Oven Door Gasket WCI 318053137 Contact Us For Availability
View on Model
17
Wall Oven Light Lens Retainer
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
View on Model
17
Wall Oven Door Glass Retainer
Wall Oven Door Glass Retainer WCI 318264700 Contact Us For Availability
View on Model
20

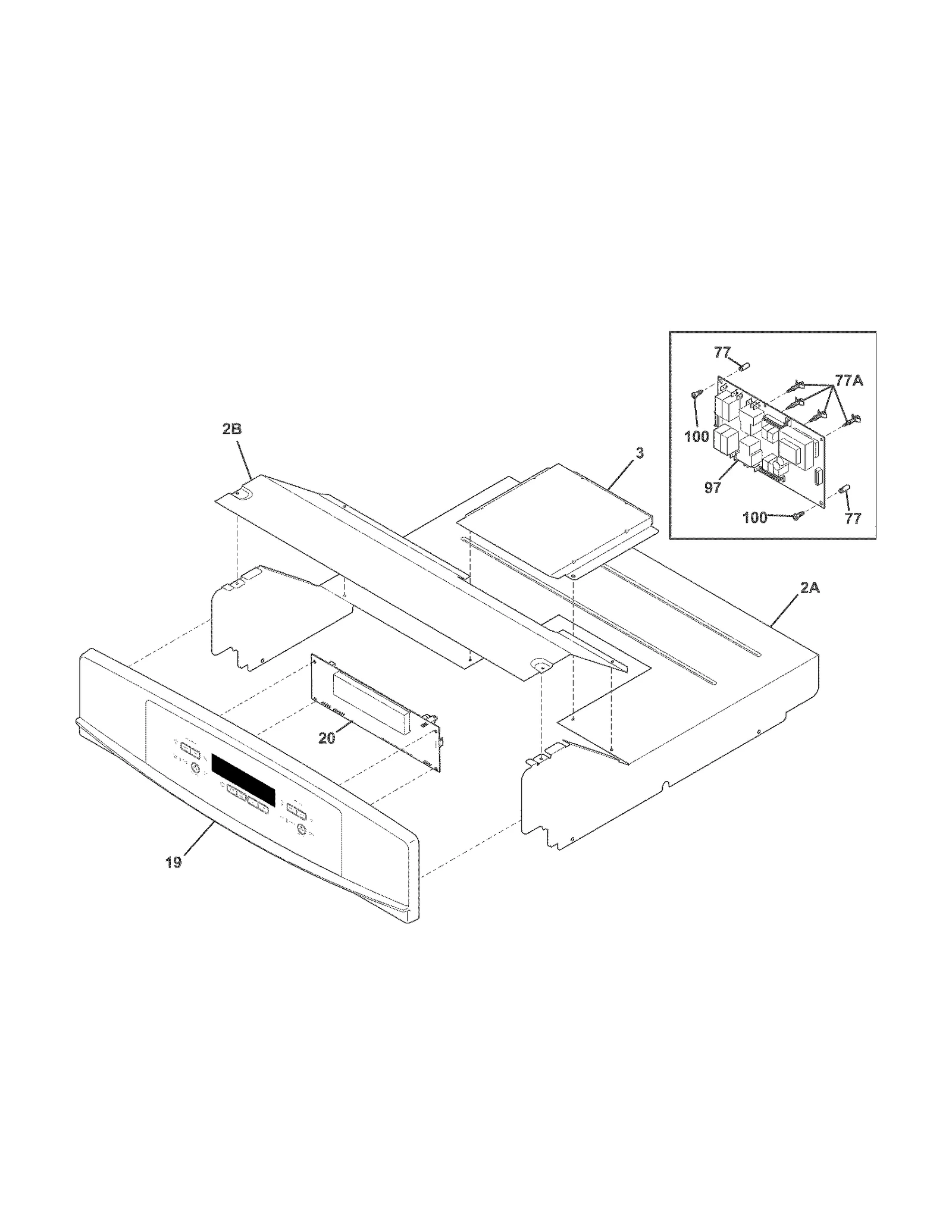

Wall Oven Control Board
Wall Oven Control Board WCI 316443877 Contact Us For Availability
View on Model
23
Oven Hinge
Oven Hinge WCI 318567108 Contact Us For Availability
View on Model
29
Oven Spacer
Oven Spacer WCI 318014405 Contact Us For Availability
View on Model
39
Oven Handle
Oven Handle WCI 318372421 Contact Us For Availability
View on Model
39
Wall Oven Door Handle (Black)
Wall Oven Door Handle (Black) WCI 318372422 Contact Us For Availability
View on Model
54
Range Oven Light Housing
Range Oven Light Housing WCI 318222400 Contact Us For Availability
View on Model
81
Wall Oven Rear Shield Spring Clip
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
View on Model
90
Wall Oven Base Trim
Wall Oven Base Trim WCI 318259711 Contact Us For Availability
View on Model
90
Wall Oven Vent, Lower (White)
Wall Oven Vent, Lower (White) WCI 318259710 Contact Us For Availability
View on Model
108
Wall Oven Cooling Fan Assembly
Wall Oven Cooling Fan Assembly WCI 318575604 Contact Us For Availability
View on Model
127
Range Vent Tube Adapter
Range Vent Tube Adapter WCI 318317105 Contact Us For Availability
View on Model
132
Tube
Tube WCI 318579103 Contact Us For Availability
View on Model
133
Clamp
Clamp WCI 318591500 Contact Us For Availability
View on Model
142
Deflector
Deflector WCI 318123910 Contact Us For Availability
View on Model
143
Stiffener
Stiffener WCI 318172904 Contact Us For Availability
View on Model
163
Cooking Appliance Spacer
Cooking Appliance Spacer WCI 318531703 Contact Us For Availability
View on Model
264
Wall Oven Vent Trim
Wall Oven Vent Trim WCI 318257713 Contact Us For Availability
View on Model
NI
Range Warming Drawer Element Bracket
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
View on Model
NI
Oven Wiring Harness
Oven Wiring Harness WCI 318199787 Contact Us For Availability
View on Model
NI
Insulation
Insulation WCI 318268099 Contact Us For Availability
View on Model
NI
Oven Seal
Oven Seal WCI 318368501 Contact Us For Availability
View on Model
NI
Oven Harness
Oven Harness WCI 318572723 Contact Us For Availability
View on Model
NI
Bracket
Bracket WCI 318579001 Contact Us For Availability
View on Model
NI
Bracket
Bracket WCI 318585001 Contact Us For Availability
View on Model
NI
Spacer
Spacer WCI 5304455945 Contact Us For Availability
View on Model
