Model Kenmore 790.48762900 OVEN – Common Parts & Diagrams

*
Screw, truss head, 8-18 x 0.375
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
View on Model
*#

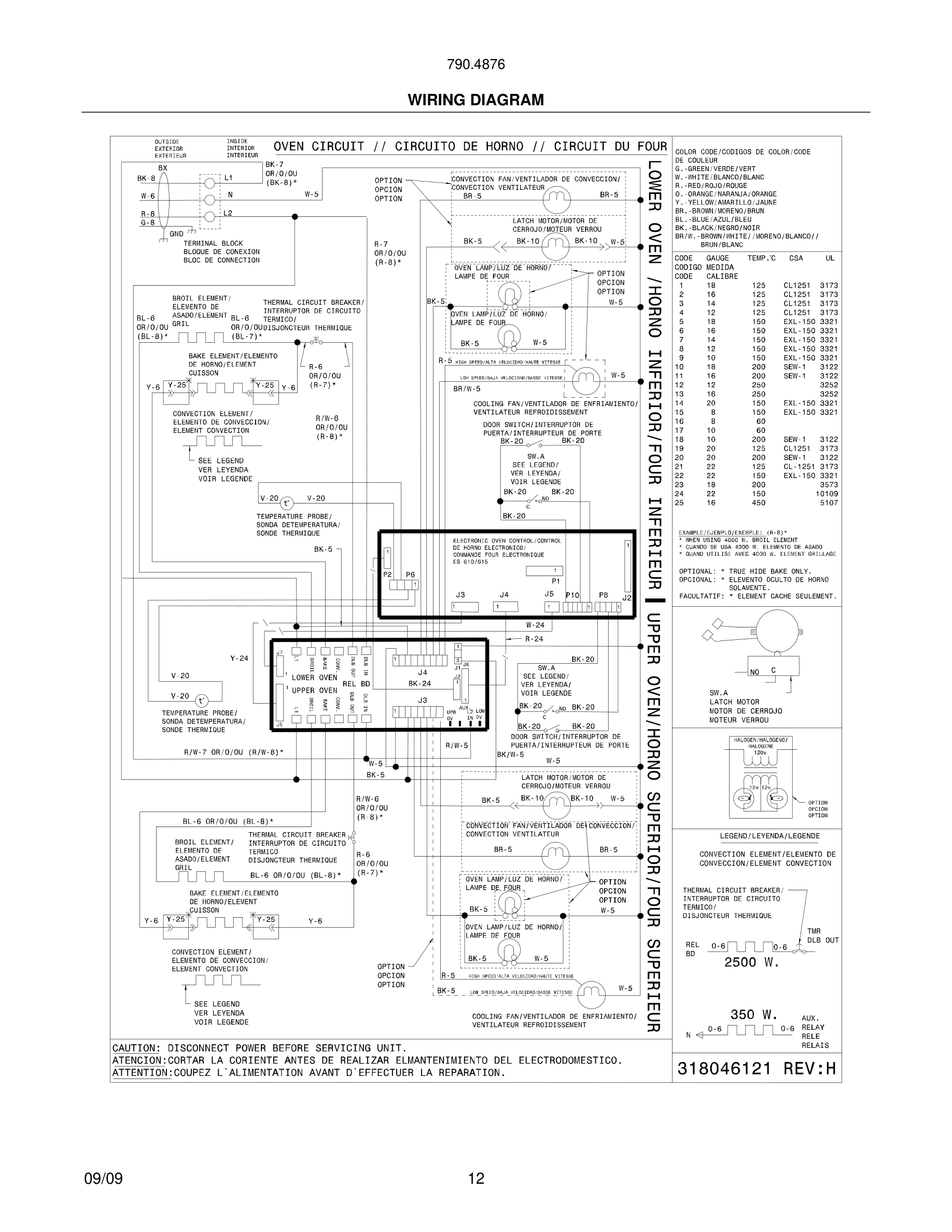

Wiring Harness, main
Wiring Harness, main WCI 318370302 Contact Us For Availability
View on Model
3

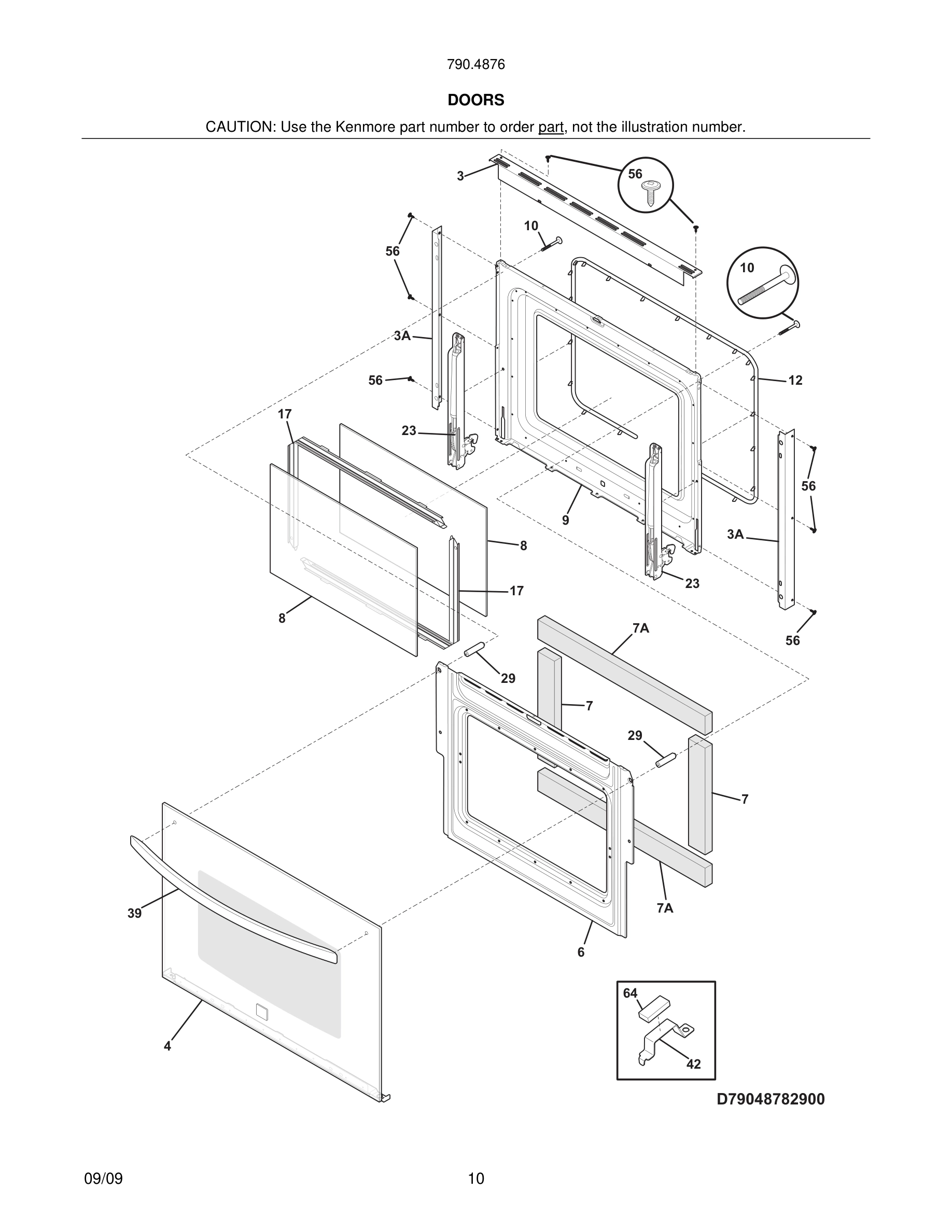

Trim, oven door, black, upper
Trim, oven door, black, upper WCI 318260211 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
4
Door Assembly, glass, white, w/trim
Door Assembly, glass, white, w/trim WCI 318304153 Contact Us For Availability
View on Model
4
Glass Assy., oven door, white, outer, w/trim
Glass Assy., oven door, white, outer, w/trim WCI 318304147 Contact Us For Availability
View on Model
4
Glass Assy., oven door, black, outer, w/trim
Glass Assy., oven door, black, outer, w/trim WCI 318304148 Contact Us For Availability
View on Model
4
Door Assembly, glass, black, w/trim
Door Assembly, glass, black, w/trim WCI 318304120 Contact Us For Availability
View on Model
4
Door Assembly, glass, bisque, w/trim
Door Assembly, glass, bisque, w/trim WCI 318304122 Contact Us For Availability
View on Model
4
Glass Assy., oven door, bisque, outer, w/trim
Glass Assy., oven door, bisque, outer, w/trim WCI 318304149 Contact Us For Availability
View on Model
6
Baffle, door
Baffle, door WCI 318260510 Contact Us For Availability
View on Model
8
Glass, oven door, heat barrier
Glass, oven door, heat barrier WCI 318212200 Contact Us For Availability
View on Model
8
Cover, element
Cover, element WCI 318262011 Contact Us For Availability
View on Model
9
Liner, oven door
Liner, oven door WCI 318259652 Contact Us For Availability
View on Model
12
Gasket, oven door seal
Gasket, oven door seal WCI 318053126 Contact Us For Availability
View on Model
17
Retainer, light cover
Retainer, light cover WCI 5304400195 Contact Us For Availability
View on Model
17
Spacer, glass, (2)
Spacer, glass, (2) WCI 318264700 Contact Us For Availability
View on Model
20#
Control, electronic, ES615W2, dual oven
Control, electronic, ES615W2, dual oven WCI 316443847 Contact Us For Availability
View on Model
23
Hinge, oven door, (2)
Hinge, oven door, (2) WCI 318567108 Contact Us For Availability
View on Model
29
Spacer, door
Spacer, door WCI 318014405 Contact Us For Availability
View on Model
39
Handle, door, white, w/spacer
Handle, door, white, w/spacer WCI 318372421 Contact Us For Availability
View on Model
39
Handle, door, bisque, w/spacer
Handle, door, bisque, w/spacer WCI 318372423 Contact Us For Availability
View on Model
39
Handle, door, black, w/spacer
Handle, door, black, w/spacer WCI 318372422 Contact Us For Availability
View on Model
54
Housing, oven light
Housing, oven light WCI 318222400 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
90
Trim, oven front, black, bottom
Trim, oven front, black, bottom WCI 318259711 Contact Us For Availability
View on Model
90
Trim, oven front, white, bottom
Trim, oven front, white, bottom WCI 318259710 Contact Us For Availability
View on Model
90
Trim, oven front, bisque, bottom
Trim, oven front, bisque, bottom WCI 318259712 Contact Us For Availability
View on Model
108A
Bracket, fan support
Bracket, fan support WCI 318251300 Contact Us For Availability
View on Model
142
Deflector
Deflector WCI 318123910 Contact Us For Availability
View on Model
143
Support, wire
Support, wire WCI 318172904 Contact Us For Availability
View on Model
163
Spacer, (4)
Spacer, (4) WCI 318531703 Contact Us For Availability
View on Model
264
Trim, oven, black, front
Trim, oven, black, front WCI 318257811 Contact Us For Availability
View on Model
