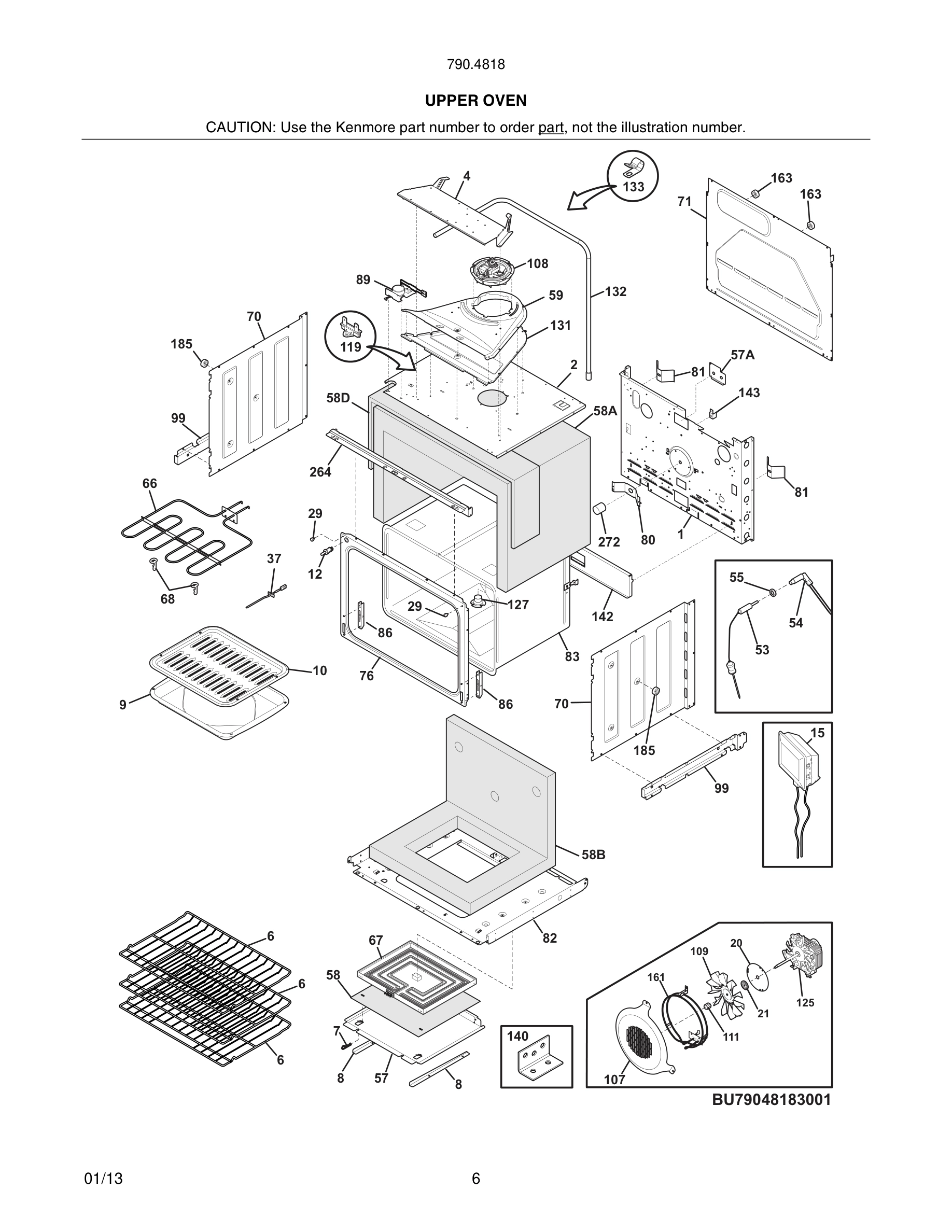

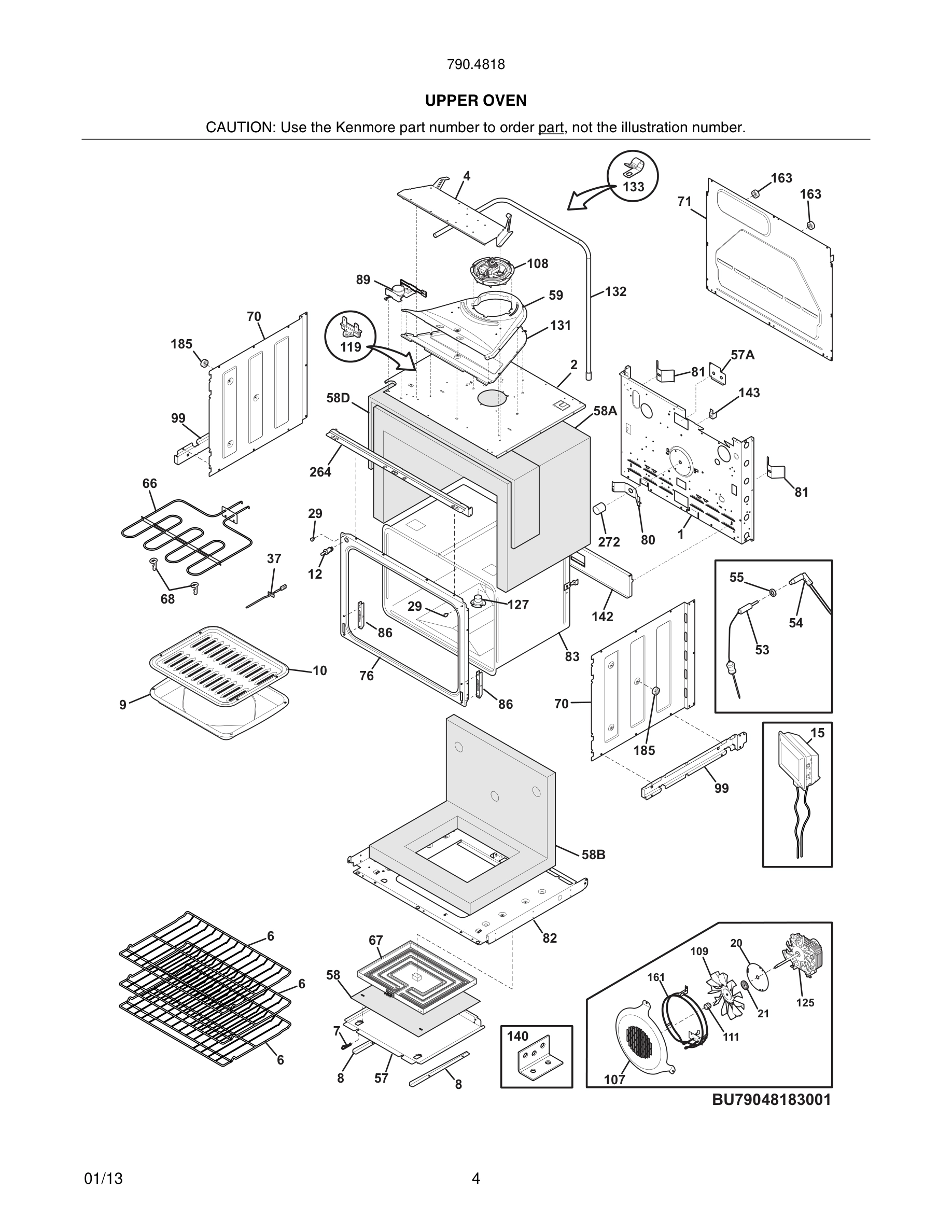

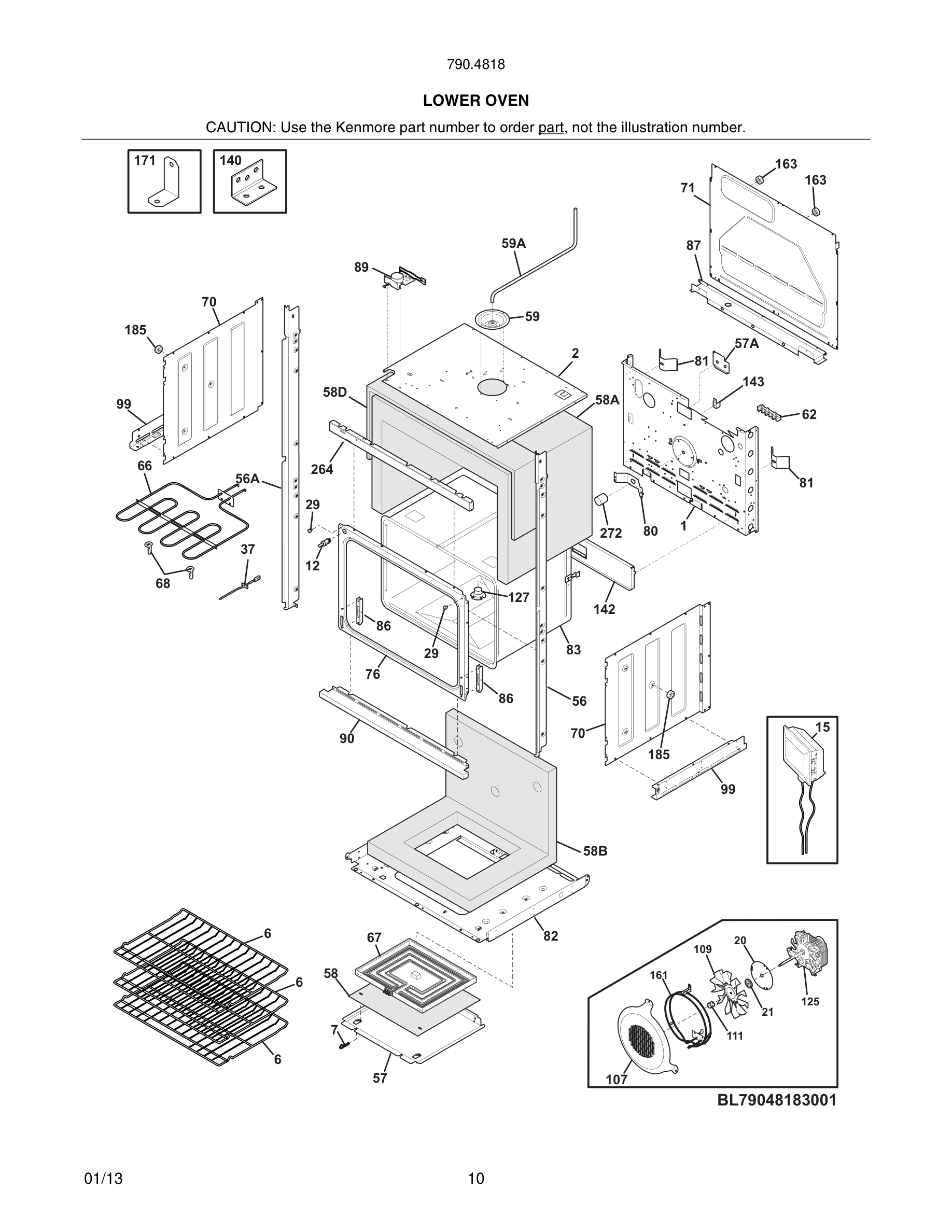

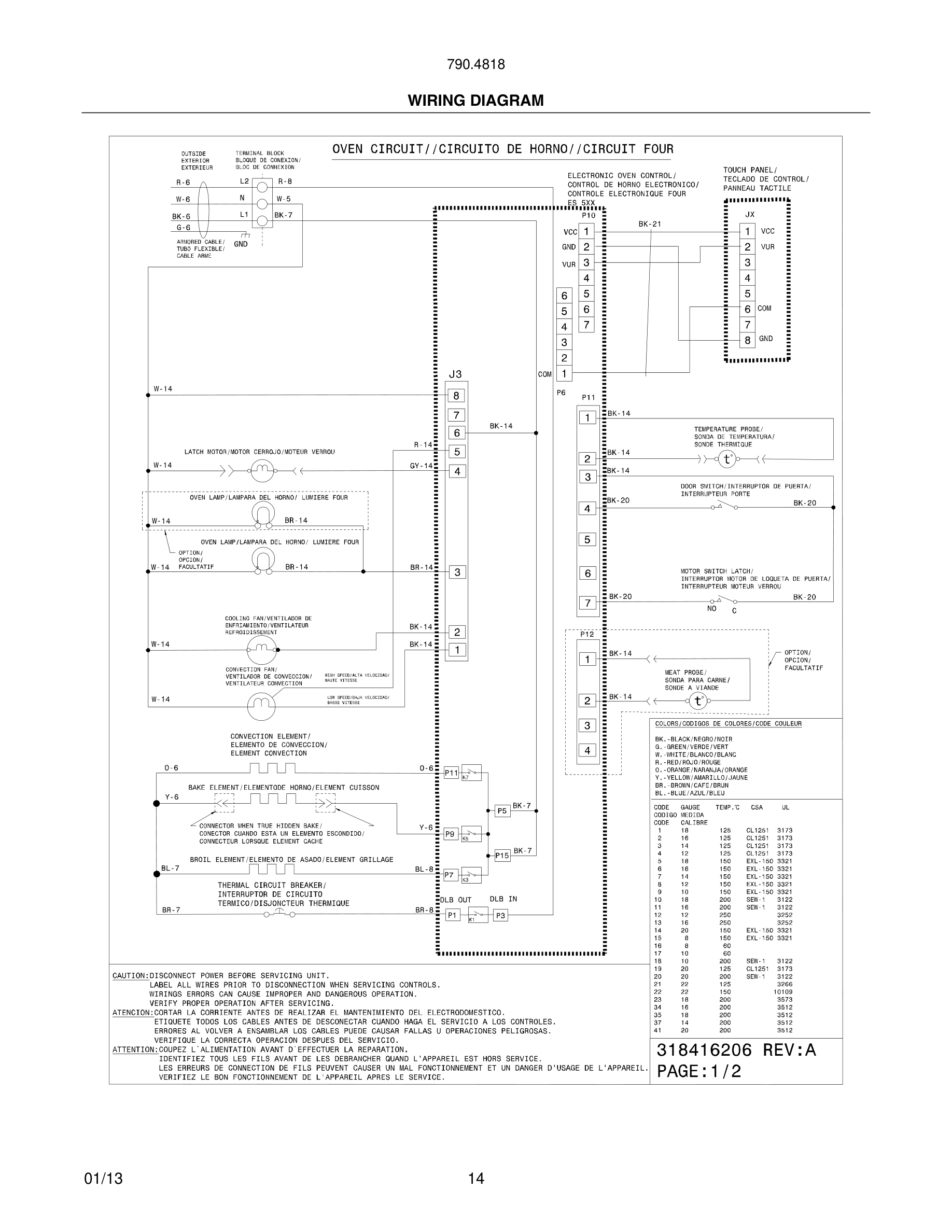

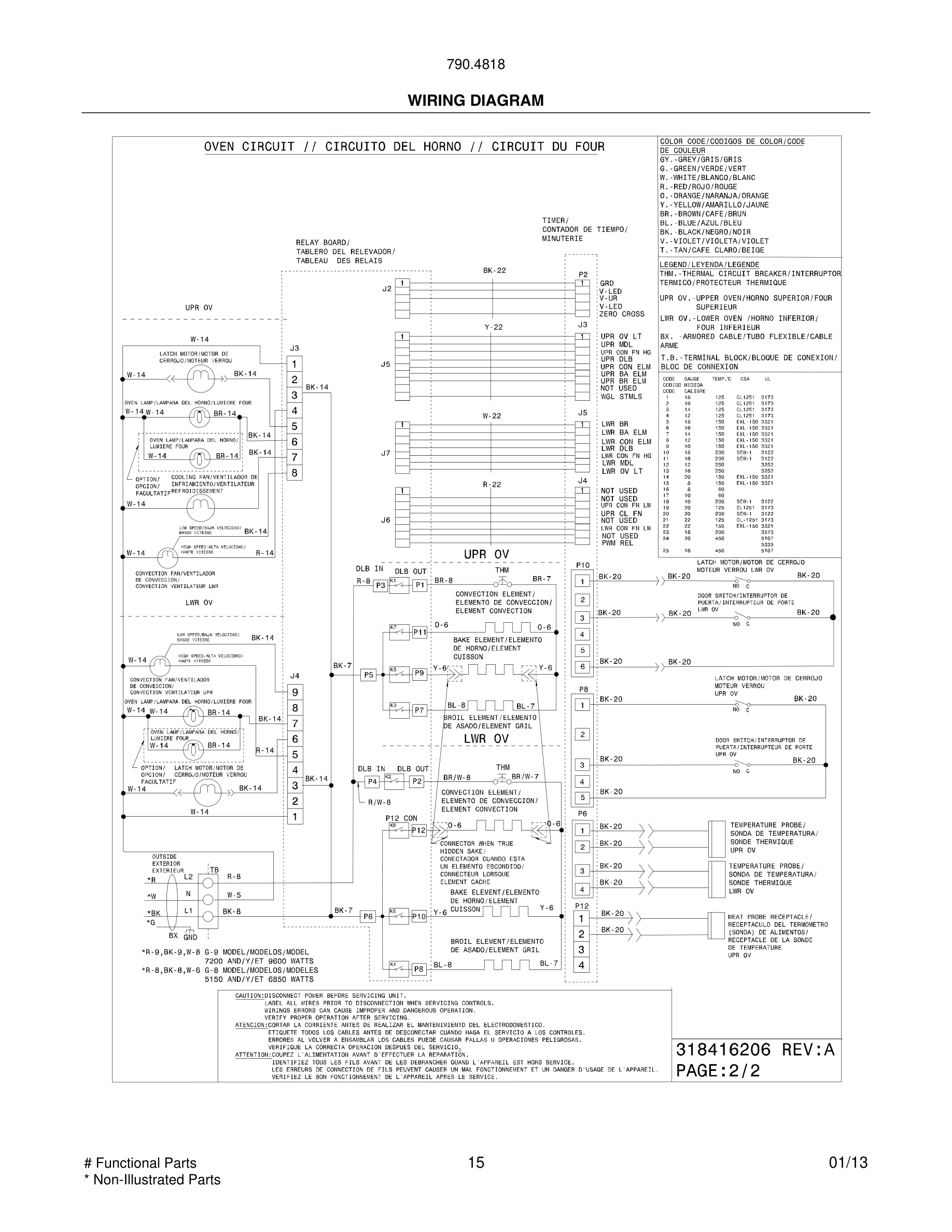

Model Kenmore 790.48182001 OVEN – Common Parts & Diagrams

*
Screw, shoulder, 8-18 X 1/2, (4)
Screw, shoulder, 8-18 X 1/2, (4) WCI 5304417153 Contact Us For Availability
View on Model
*#
Wiring Harness, bake element
Wiring Harness, bake element WCI 318231870 Contact Us For Availability
View on Model
*#
Harness, wiring, latch, upper oven
Harness, wiring, latch, upper oven WCI 318572742 Contact Us For Availability
View on Model
3

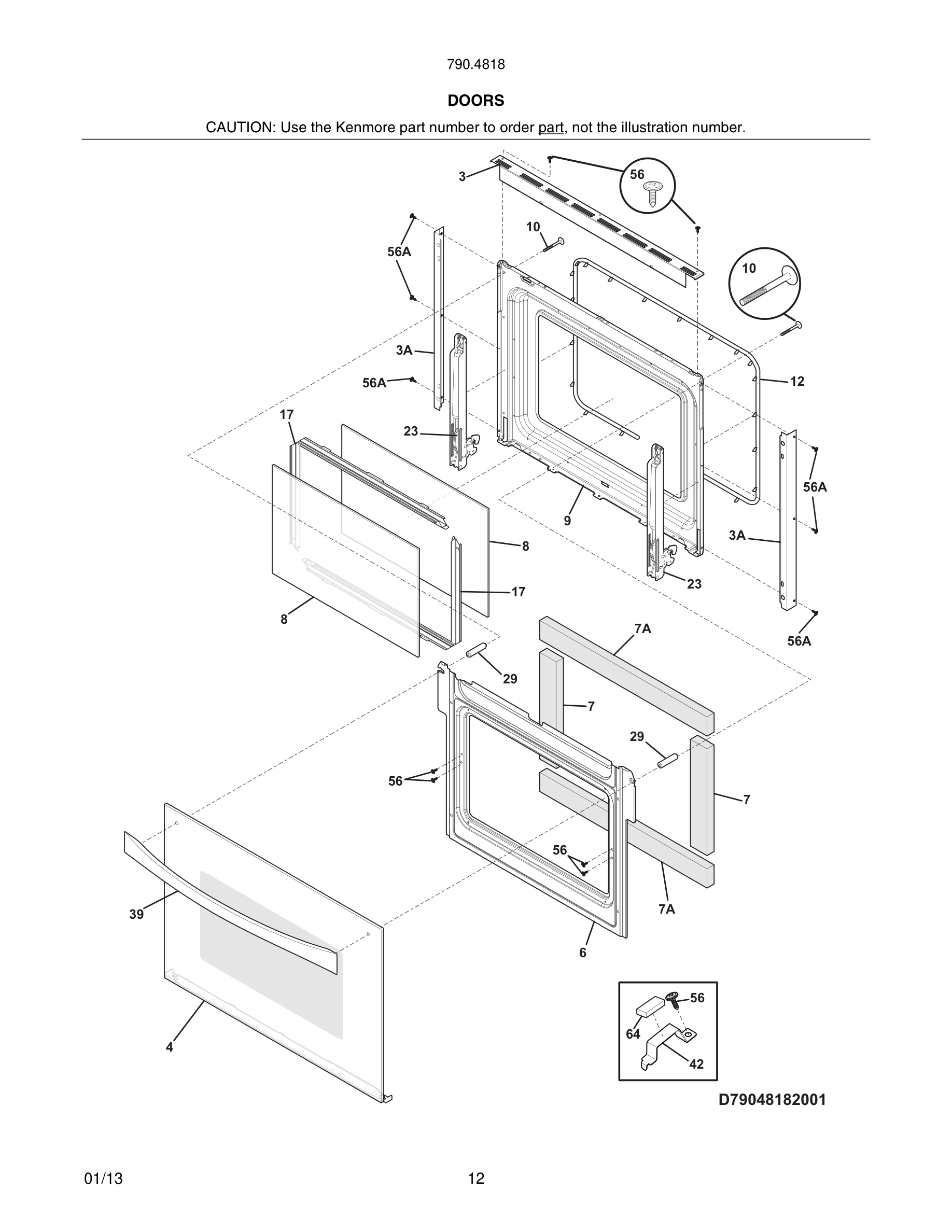

Trim, oven door, black, upper
Trim, oven door, black, upper WCI 318260205 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
4
Glass Assy., door, white, outer, w/trim
Glass Assy., door, white, outer, w/trim WCI 318299528 Contact Us For Availability
View on Model
4
Glass Assy., door, black, outer, w/trim
Glass Assy., door, black, outer, w/trim WCI 318299527 Contact Us For Availability
View on Model
6
Rack, oven, (3)
Rack, oven, (3) WCI 318262520 Contact Us For Availability
View on Model
6
Baffle, door
Baffle, door WCI 318260531 Contact Us For Availability
View on Model
9
Pan, broilerOPTIONAL ACCESS0RY
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
View on Model
9
Liner, oven door
Liner, oven door WCI 318411650 Contact Us For Availability
View on Model
10
Insert, broiler panOPTIONAL ACCESS0RY
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
View on Model
10
Screw, 10-24 x 1.770, handle mtg
Screw, 10-24 x 1.770, handle mtg WCI 5304477986 Contact Us For Availability
View on Model
20
Plate, retainer
Plate, retainer WCI 318389400 Contact Us For Availability
View on Model
20#
Controller, electronic, ES615
Controller, electronic, ES615 WCI 316576308 Contact Us For Availability
View on Model
23
Hinge, oven door, (2)
Hinge, oven door, (2) WCI 318567101 Contact Us For Availability
View on Model
29
Spacer, door
Spacer, door WCI 318014405 Contact Us For Availability
View on Model
39
Handle, door/drawer, white, w/spacer
Handle, door/drawer, white, w/spacer WCI 316353900 Contact Us For Availability
View on Model
39
Handle, door/drawer, black, w/spacer
Handle, door/drawer, black, w/spacer WCI 316353901 Contact Us For Availability
View on Model
54#
Receptacle probe temp.
Receptacle probe temp. WCI 318601210 Contact Us For Availability
View on Model
54*
Bracket, receptacle, temp probe
Bracket, receptacle, temp probe WCI 318373001 Contact Us For Availability
View on Model
56A
Screw, 8-18 x 3/8
Screw, 8-18 x 3/8 WCI 5304476599 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
90
Trim, base, white
Trim, base, white WCI 318259832 Contact Us For Availability
View on Model
90
Trim, base, black
Trim, base, black WCI 318259831 Contact Us For Availability
View on Model
99
Bracket, side, bottom, (2)
Bracket, side, bottom, (2) WCI 318256203 Contact Us For Availability
View on Model
107
Cover, fan
Cover, fan WCI 318219405 Contact Us For Availability
View on Model
108#
Motor, cooling fan
Motor, cooling fan WCI 318575604 Contact Us For Availability
View on Model
127
Adapter Assembly, vent tube, w/converter
Adapter Assembly, vent tube, w/converter WCI 318317105 Contact Us For Availability
View on Model
140
Bracket, holding
Bracket, holding WCI 318399313 Contact Us For Availability
View on Model
142
Deflector
Deflector WCI 318123910 Contact Us For Availability
View on Model
143
Support, wire
Support, wire WCI 318172904 Contact Us For Availability
View on Model
163
Spacer
Spacer WCI 318531703 Contact Us For Availability
View on Model
171
Bracket, anti-tilt
Bracket, anti-tilt WCI 318335202 Contact Us For Availability
View on Model
264
Trim, oven, black, front
Trim, oven, black, front WCI 318257846 Contact Us For Availability
View on Model
272
Tube, protector
Tube, protector WCI 318249412 Contact Us For Availability
