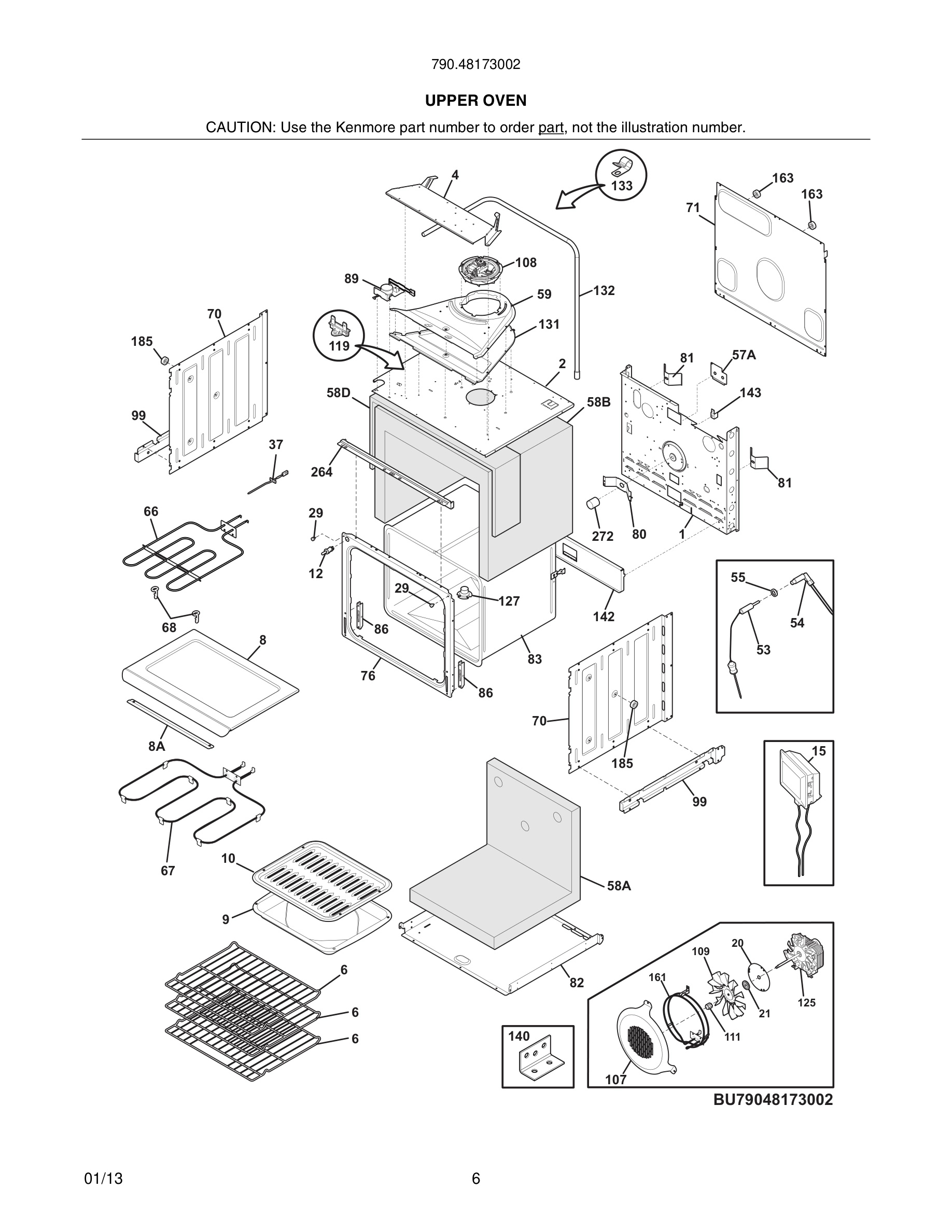

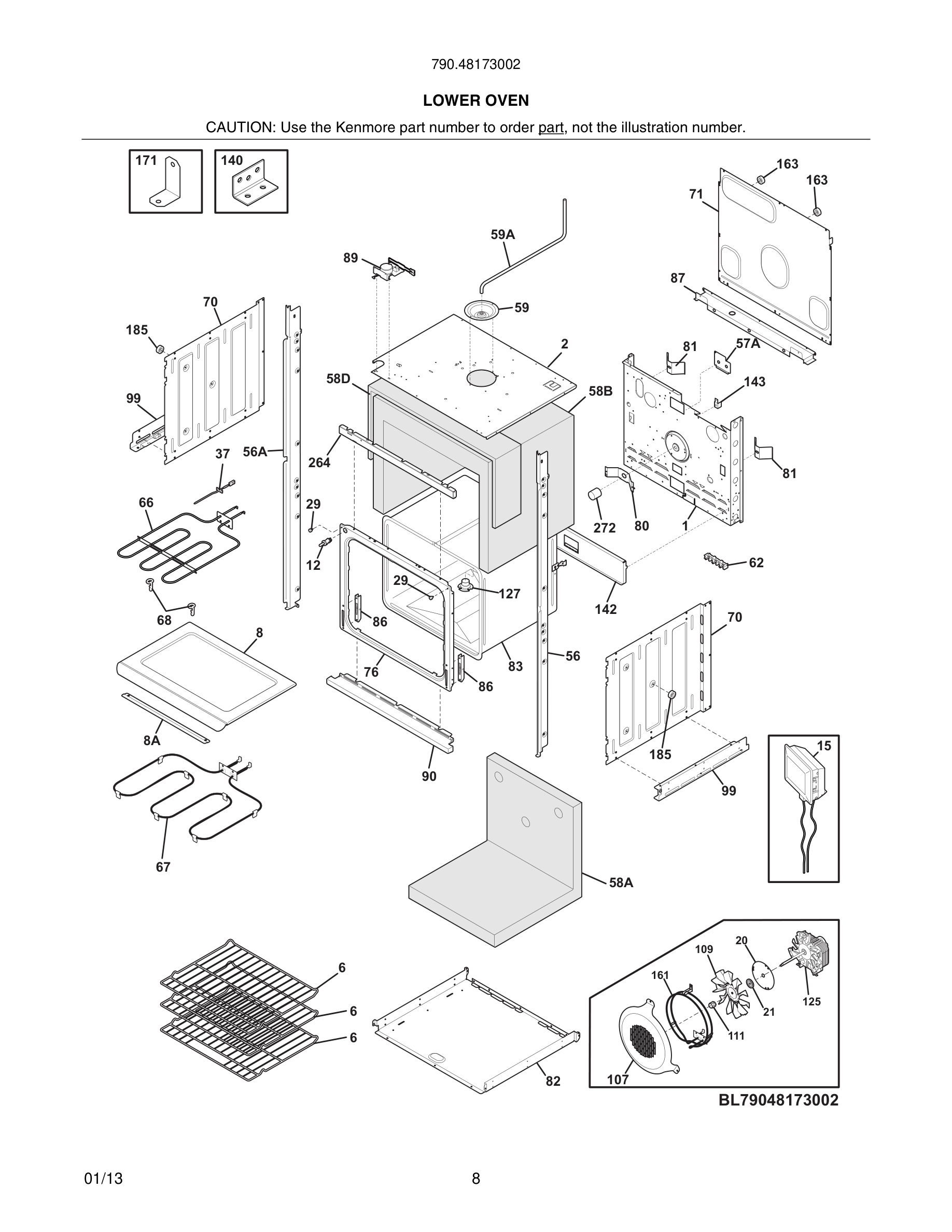

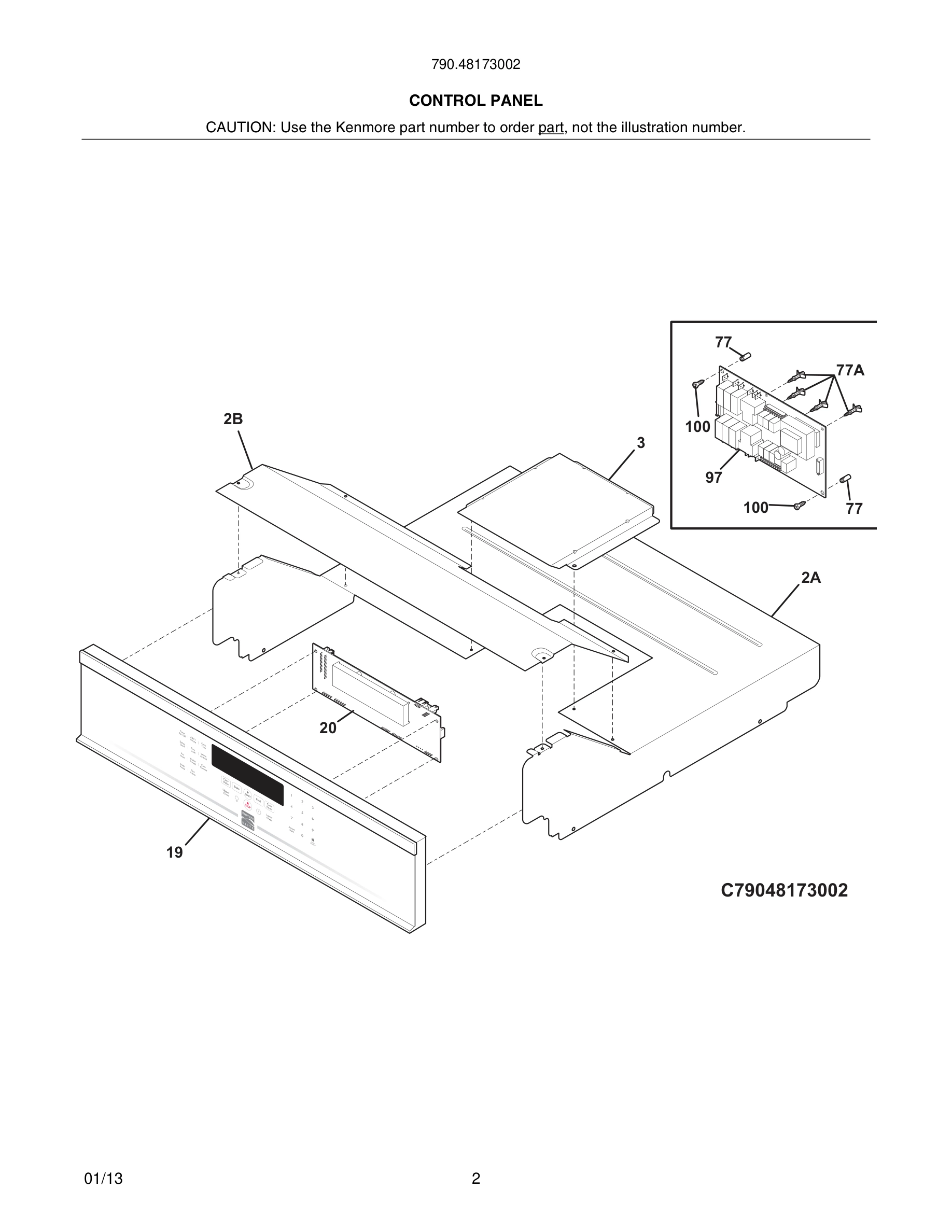

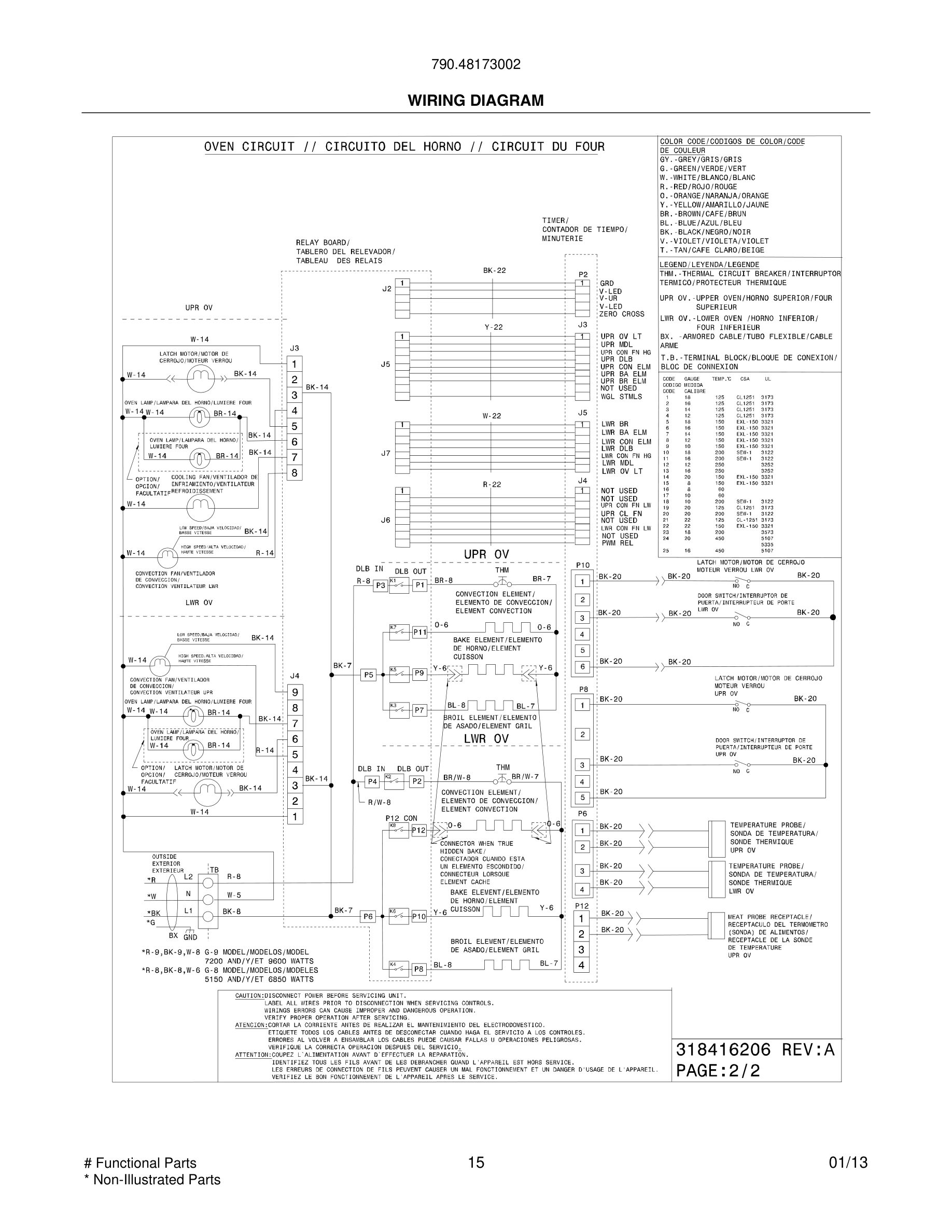

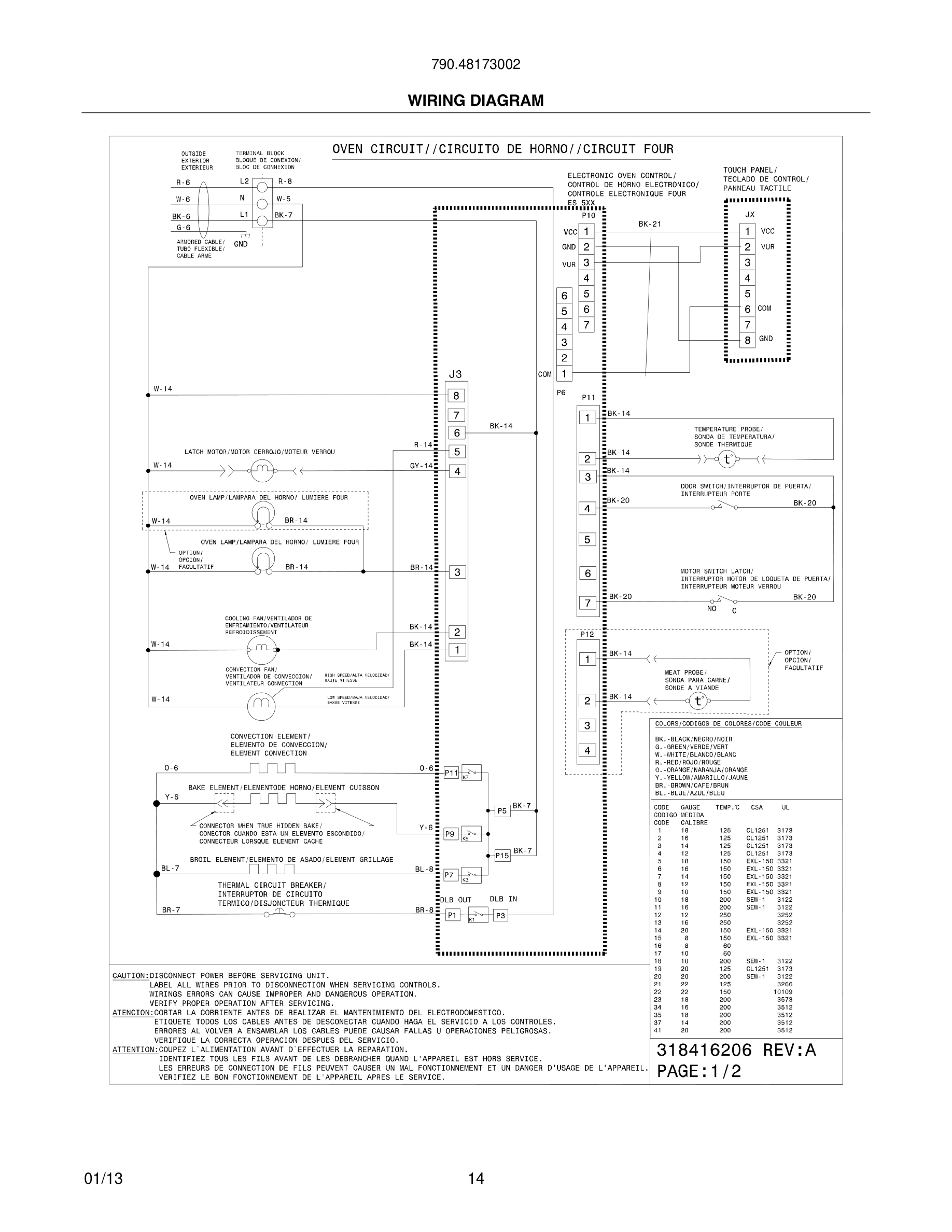

Model Kenmore 790.48173002 OVEN – Common Parts & Diagrams

*
Screw, shoulder, 8-18 X 1/2, (4)
Screw, shoulder, 8-18 X 1/2, (4) WCI 5304417153 Contact Us For Availability
View on Model
*#
Harness, wiring, latch, upper oven
Harness, wiring, latch, upper oven WCI 318572742 Contact Us For Availability
View on Model
8
Cover, element
Cover, element WCI 318262011 Contact Us For Availability
View on Model
9
Pan, broilerOPTIONAL ACCESS0RY
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
View on Model
10
Insert, broiler panOPTIONAL ACCESS0RY
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
View on Model
20
Plate, retainer
Plate, retainer WCI 318389400 Contact Us For Availability
View on Model
20#
Controller, electronic, ES615
Controller, electronic, ES615 WCI 316576309 Contact Us For Availability
View on Model
37*
Bracket, receptacle, temp probe
Bracket, receptacle, temp probe WCI 318373001 Contact Us For Availability
View on Model
54#
Receptacle probe temp.
Receptacle probe temp. WCI 318601210 Contact Us For Availability
View on Model
70
Shield, insulation, sides, (2)
Shield, insulation, sides, (2) WCI 318259105 Contact Us For Availability
View on Model
71
Panel, rear box
Panel, rear box WCI 318260001 Contact Us For Availability
View on Model
76
Front, oven
Front, oven WCI 318056224 Contact Us For Availability
View on Model
80
Plate, oven mtg
Plate, oven mtg WCI 5303320846 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
82
Shield, insulation, lower
Shield, insulation, lower WCI 318258768 Contact Us For Availability
View on Model
83
Liner, oven assy
Liner, oven assy WCI 318261523 Contact Us For Availability
View on Model
87
Bracket, cable mtg.
Bracket, cable mtg. WCI 318260623 Contact Us For Availability
View on Model
90
Trim, base, stainless
Trim, base, stainless WCI 318259845 Contact Us For Availability
View on Model
99
Bracket, side, bottom, (2)
Bracket, side, bottom, (2) WCI 318256203 Contact Us For Availability
View on Model
107
Cover, fan
Cover, fan WCI 318219405 Contact Us For Availability
View on Model
108#
Motor, cooling fan
Motor, cooling fan WCI 318575604 Contact Us For Availability
View on Model
127
Adapter Assembly, vent tube, w/converter
Adapter Assembly, vent tube, w/converter WCI 318317105 Contact Us For Availability
View on Model
140
Bracket, holding
Bracket, holding WCI 318399313 Contact Us For Availability
View on Model
