Model Kenmore 790.48132800 OVEN – Common Parts & Diagrams

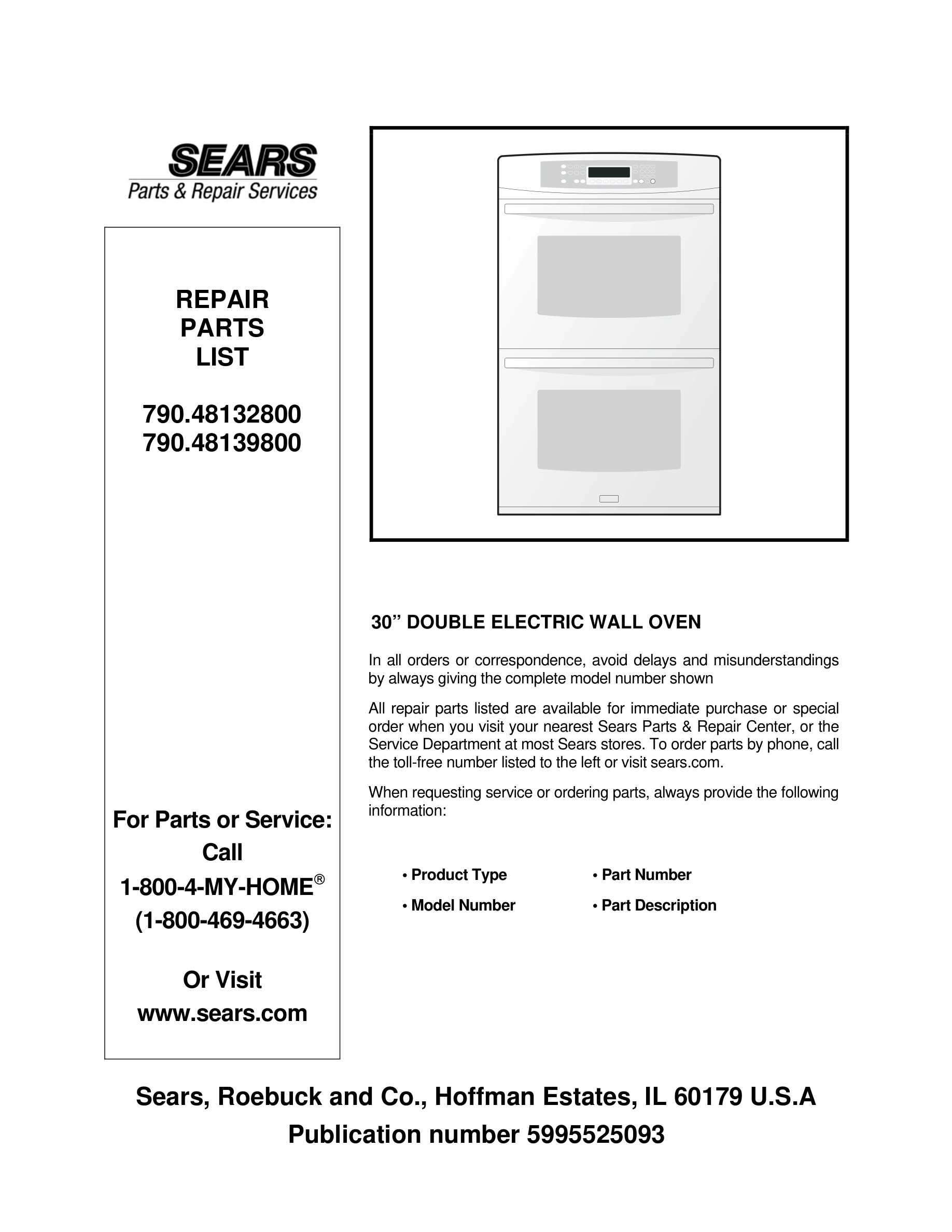

01 - COVER

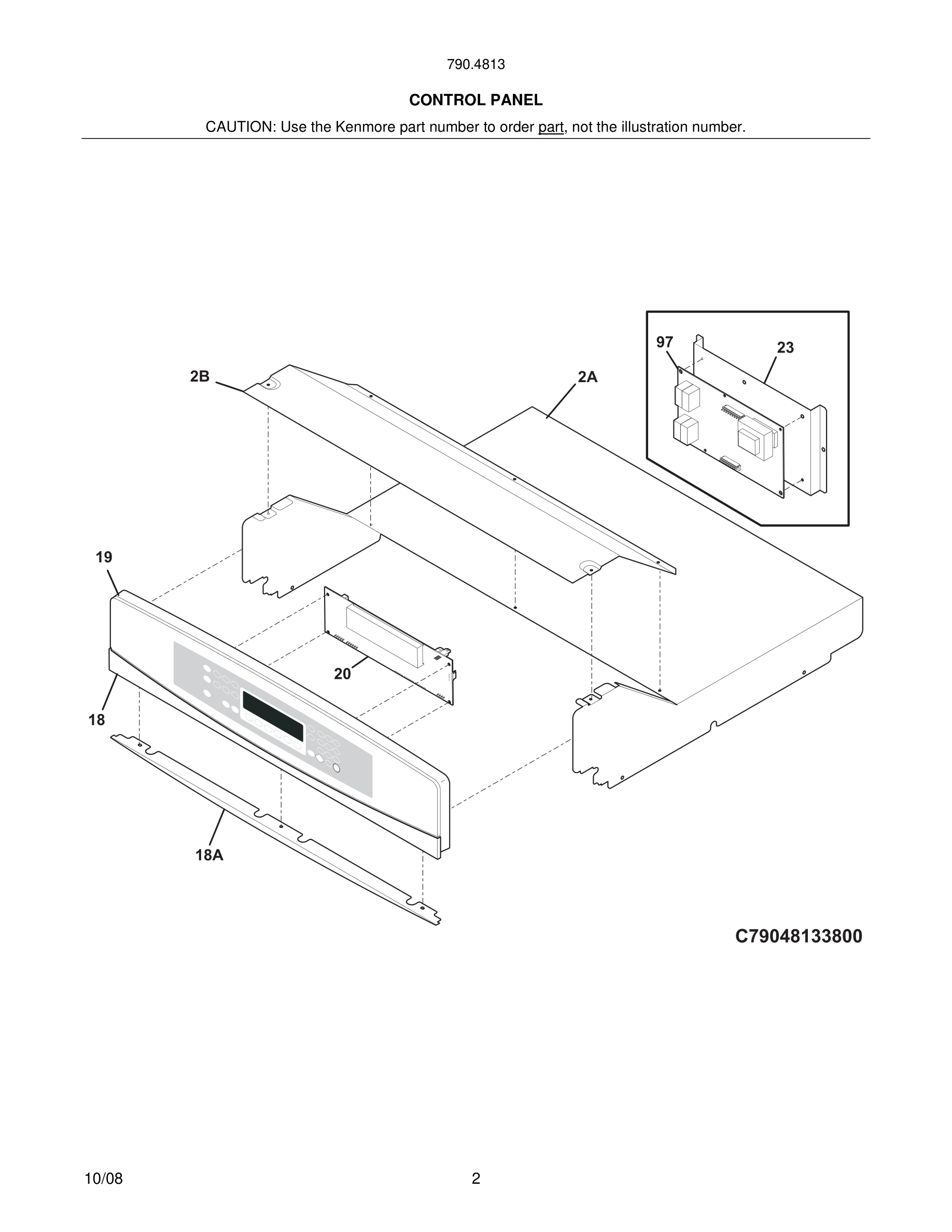

03 - CONTROL PANEL

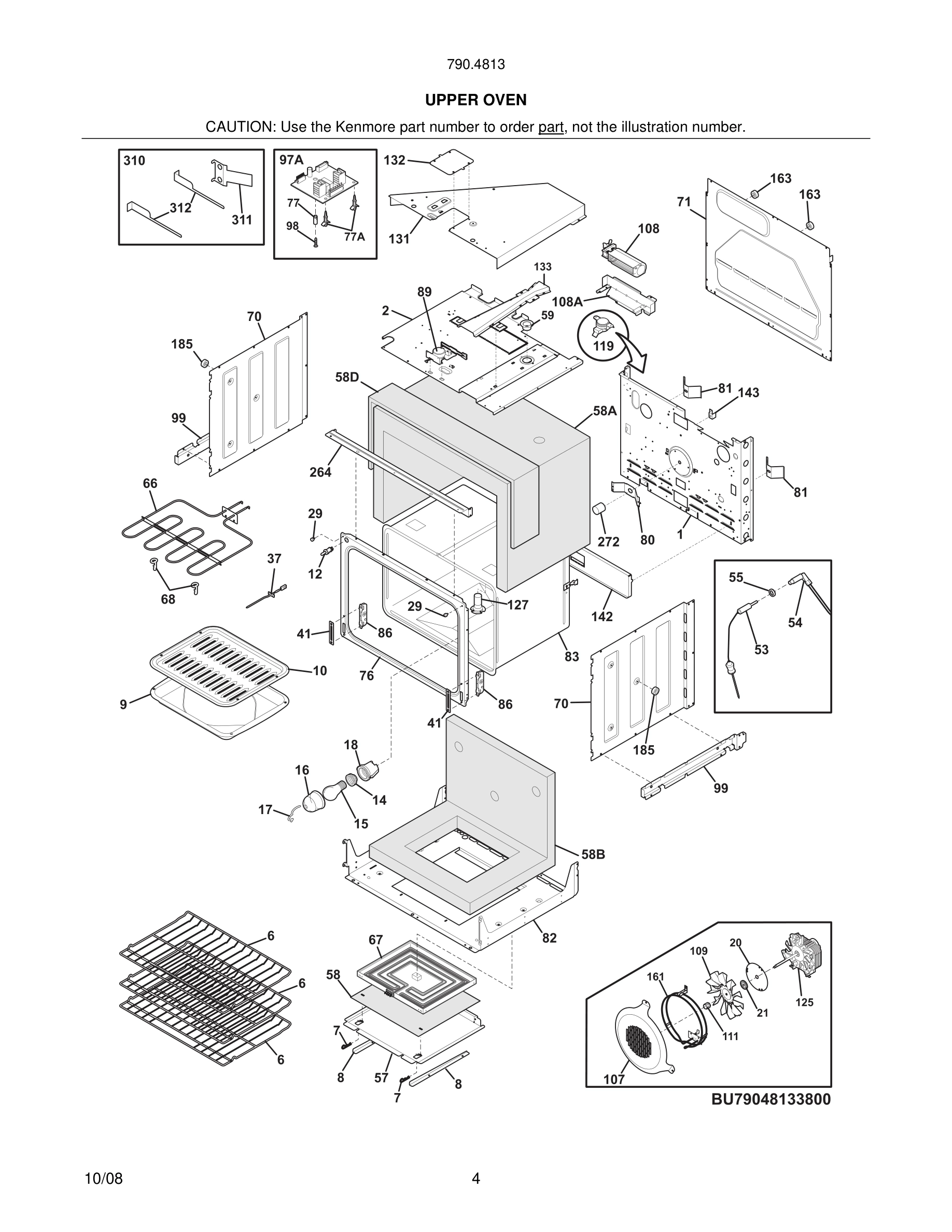

05 - UPPER OVEN
07 - UPPER OVEN

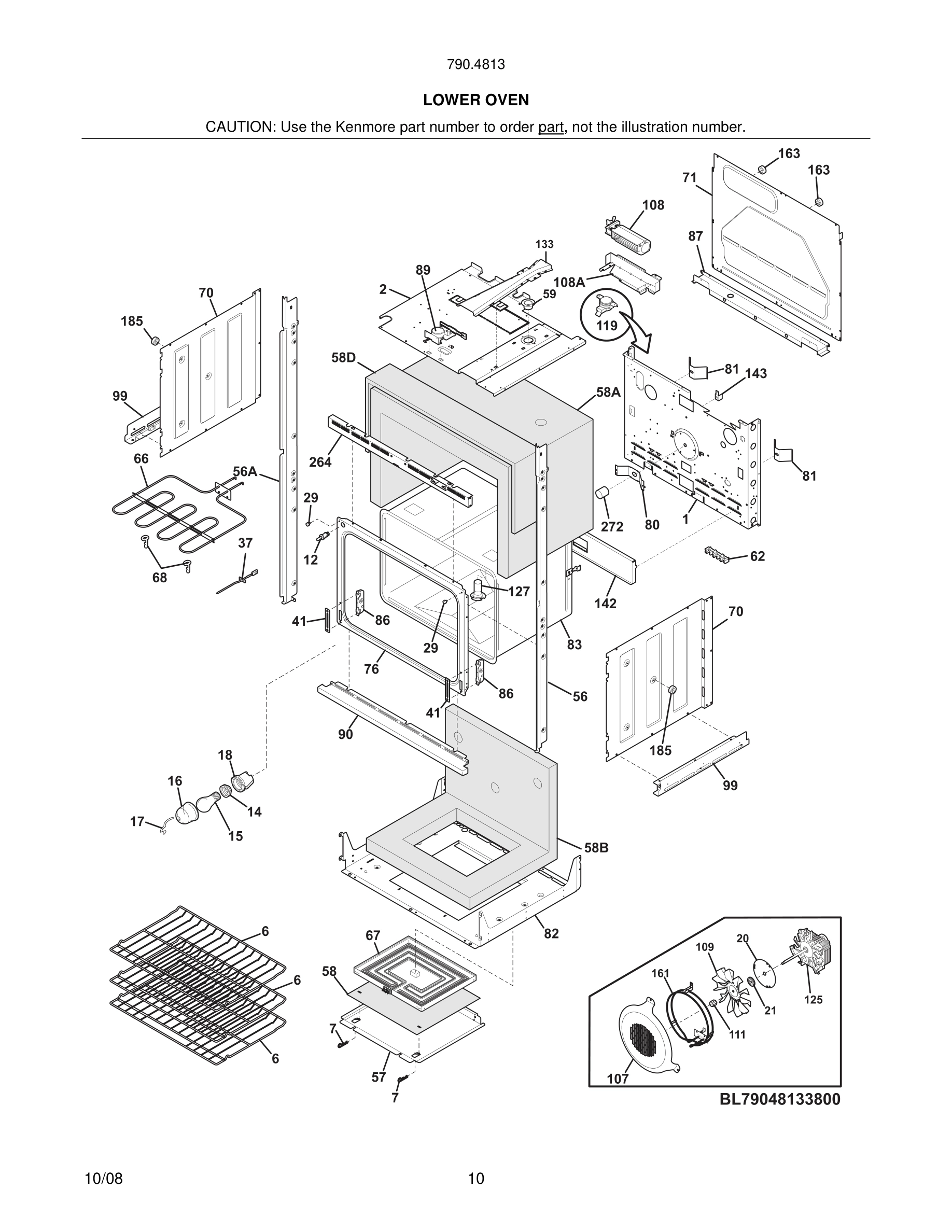

09 - LOWER OVEN
11 - LOWER OVEN

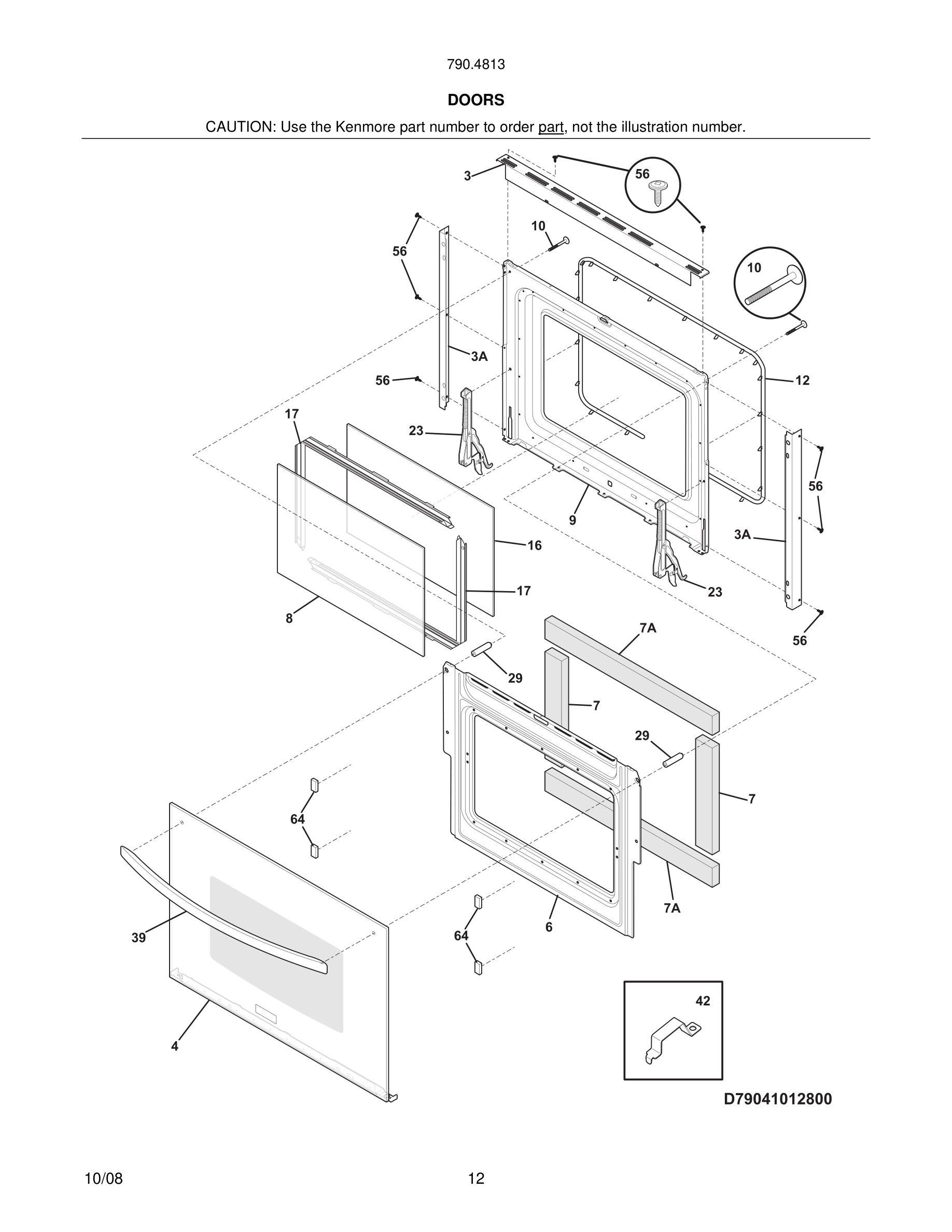

13 - DOORS

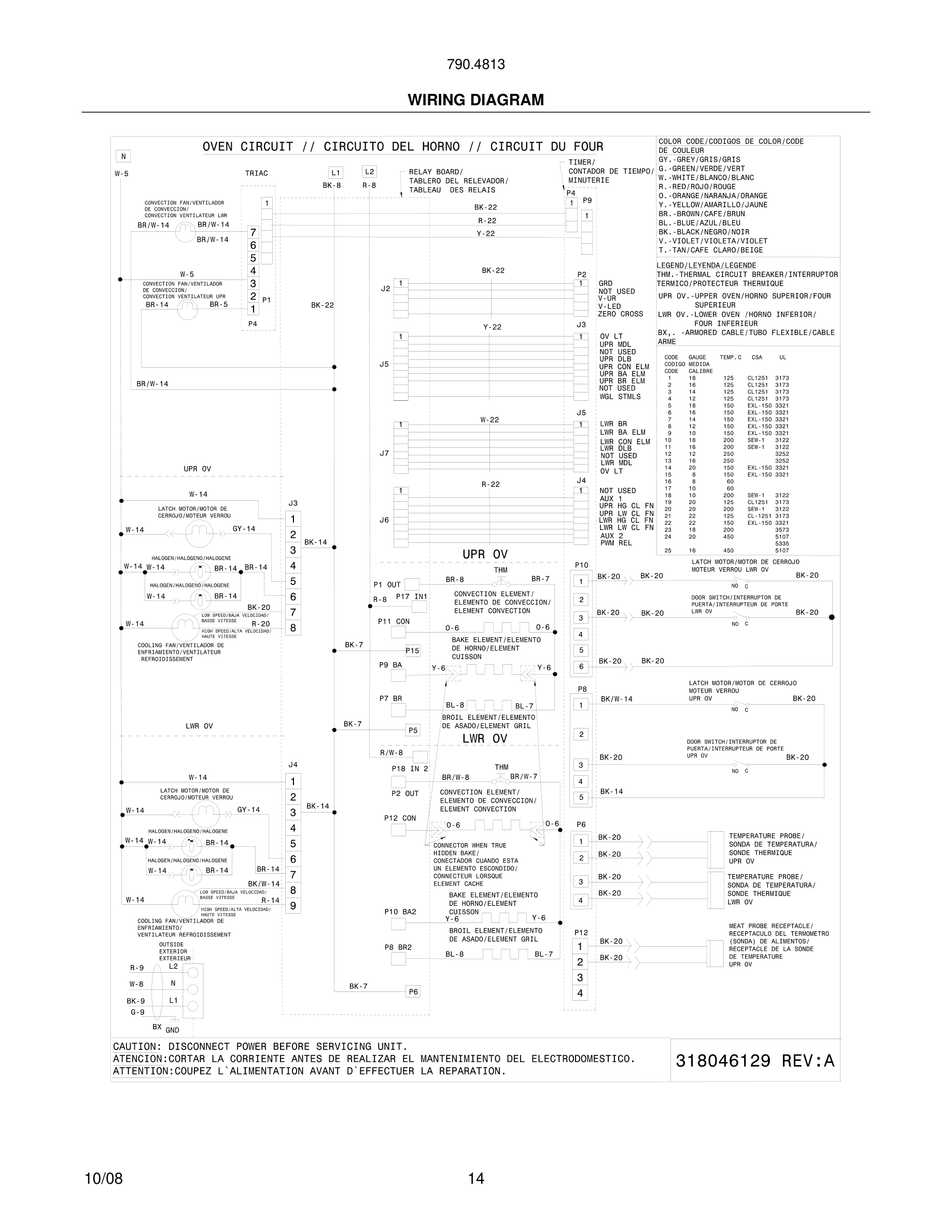

14 - WIRING DIAGRAM
Common parts from model Kenmore 790.48132800 OVEN
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*#
Harness, wiring, main WCI 318532159 Contact Us For Availability
2B
Cover, box WCI 318260100 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., upper door, white, outer, w/trim WCI 318264066 Contact Us For Availability
4
Glass Assy., lower door, white, outer, w/trim WCI 318299519 Contact Us For Availability
4
Glass Assy., upper door, black, outer, w/trim WCI 318299513 Contact Us For Availability
4
Glass Assy., oven door, black, outer, w/trim WCI 318299512 Contact Us For Availability
6
Baffle, door WCI 318260522 Contact Us For Availability
9
Liner, oven door, upper WCI 318259601 Contact Us For Availability
16
Glass, oven door, heat barrier WCI 318212210 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
18
Housing, oven light WCI 318222400 Contact Us For Availability
20
Plate, retainer WCI 318389400 Contact Us For Availability
23
Hinge, door, (2) WCI 318024749 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
37*
Bracket, receptacle, temp probe WCI 318373001 Contact Us For Availability
39
Handle, door, white, w/spacer WCI 318372416 Contact Us For Availability
39
Handle, door, black, w/spacer WCI 318372417 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260007 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258730 Contact Us For Availability
83
Liner, oven assy WCI 318261435 Contact Us For Availability
86
Receptacle, hinge WCI 318342400 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260600 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
90
Trim, oven front, white, bottom WCI 318259700 Contact Us For Availability
97A#
Board, relay, convection WCI 316519203 Contact Us For Availability
107
Cover, fan WCI 318219405 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
125*
Insulation, 3.81 x 3.13 WCI 5303316994 Contact Us For Availability
127
Adapter Assembly, w/vent tube, and catalyst WCI 318357001 Contact Us For Availability
133
Chimney WCI 318347800 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer, (2) WCI 318531703 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
264
Trim, oven, black, front WCI 318257801 Contact Us For Availability
272
Tube, protector WCI 318249403 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
