Model Kenmore 790.48082001 OVEN – Common Parts & Diagrams

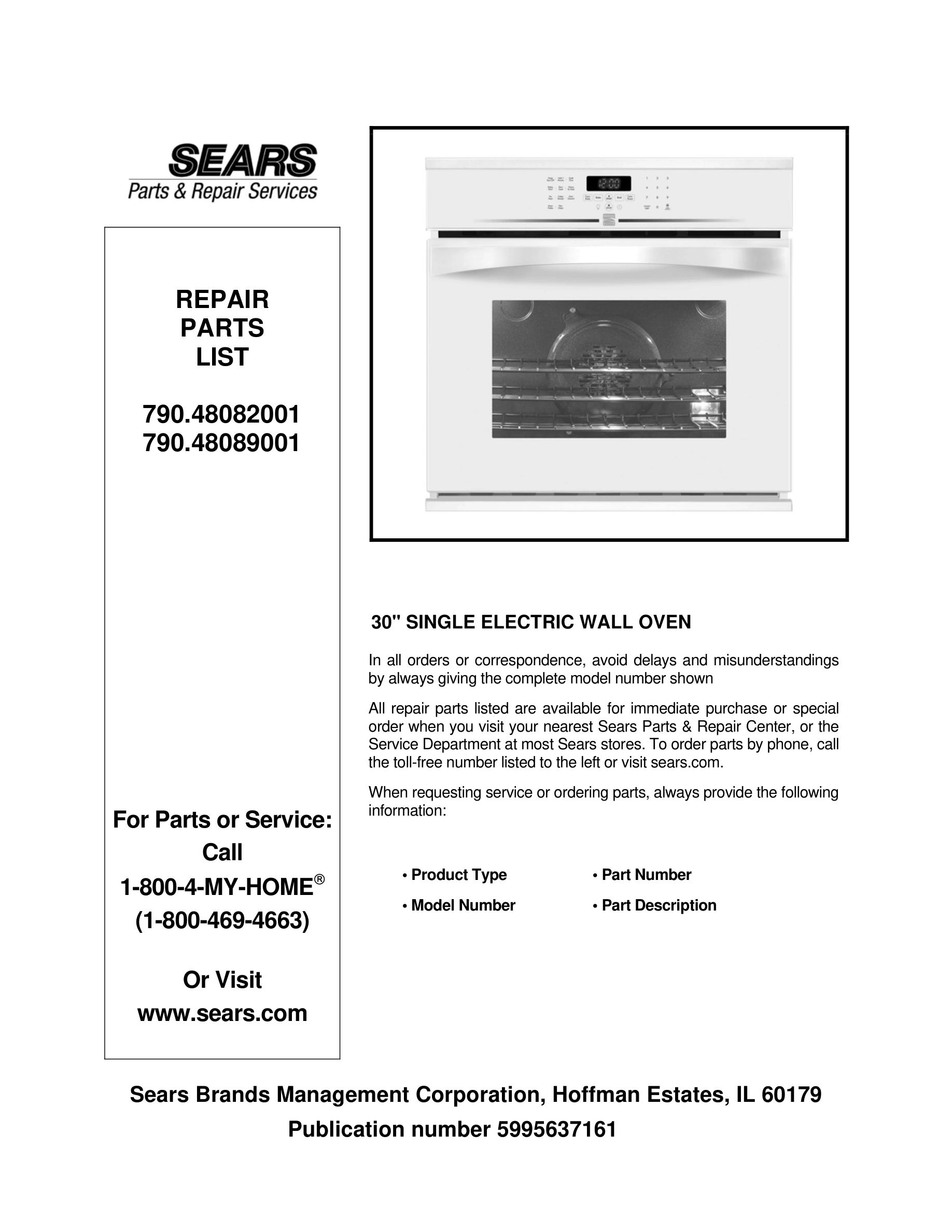

01 - COVER

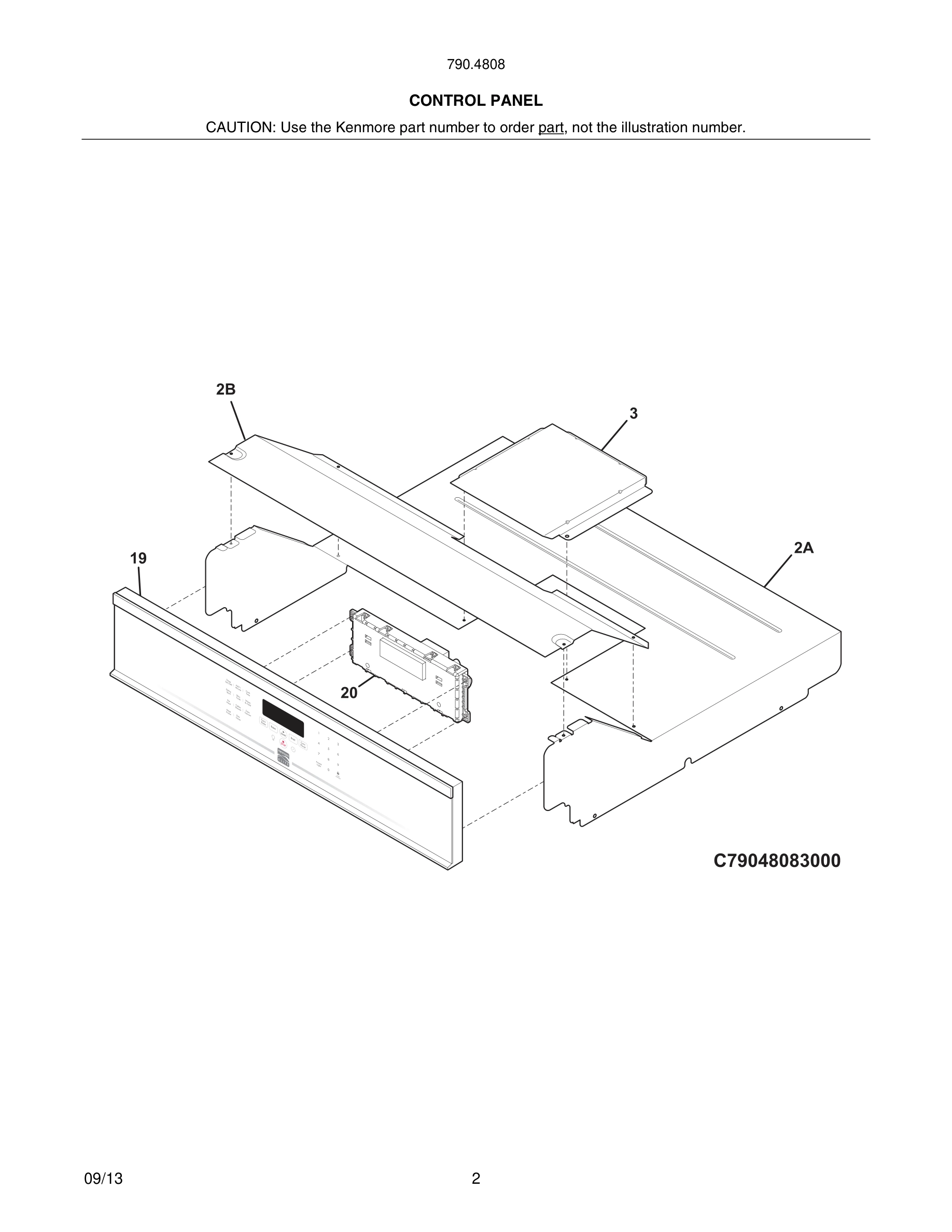

03 - CONTROL PANEL
05 - BODY
07 - BODY
09 - DOOR
10 - WIRING DIAGRAM
11 - WIRING DIAGRAM
Common parts from model Kenmore 790.48082001 OVEN
*
Screw, shoulder, 8-18 X 1/2, (4) WCI 5304417153 Contact Us For Availability
*#
Wiring Harness, bake element WCI 318231870 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., door, white, outer, w/trim WCI 318299528 Contact Us For Availability
4
Glass Assy., door, black, outer, w/trim WCI 318299527 Contact Us For Availability
6
Rack, oven, (2) WCI 318262520 Contact Us For Availability
6
Baffle, door WCI 318260531 Contact Us For Availability
9
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
9
Liner, oven door WCI 318411650 Contact Us For Availability
10
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10
Screw, 10-24 x 1.770, handle mtg WCI 5304477986 Contact Us For Availability
20
Plate, retainer WCI 318389400 Contact Us For Availability
20#
Controller, electronic, ES585 WCI 316577050 Contact Us For Availability
23
Hinge, door, oven, (2) WCI 318567103 Contact Us For Availability
29
Spacer, door WCI 318014411 Contact Us For Availability
39
Handle, door/drawer, black, w/spacer WCI 316353901 Contact Us For Availability
54#
Receptacle probe temp. WCI 318601210 Contact Us For Availability
54*
Bracket, receptacle, temp probe WCI 318373001 Contact Us For Availability
56
Trim, side, black, RH WCI 318903747 Contact Us For Availability
56A
Screw, 8-18 x 3/8 WCI 5304476599 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
107
Cover, fan WCI 318219405 Contact Us For Availability
127
Adapter Assembly, vent tube, w/converter WCI 318317105 Contact Us For Availability
× ![]()
