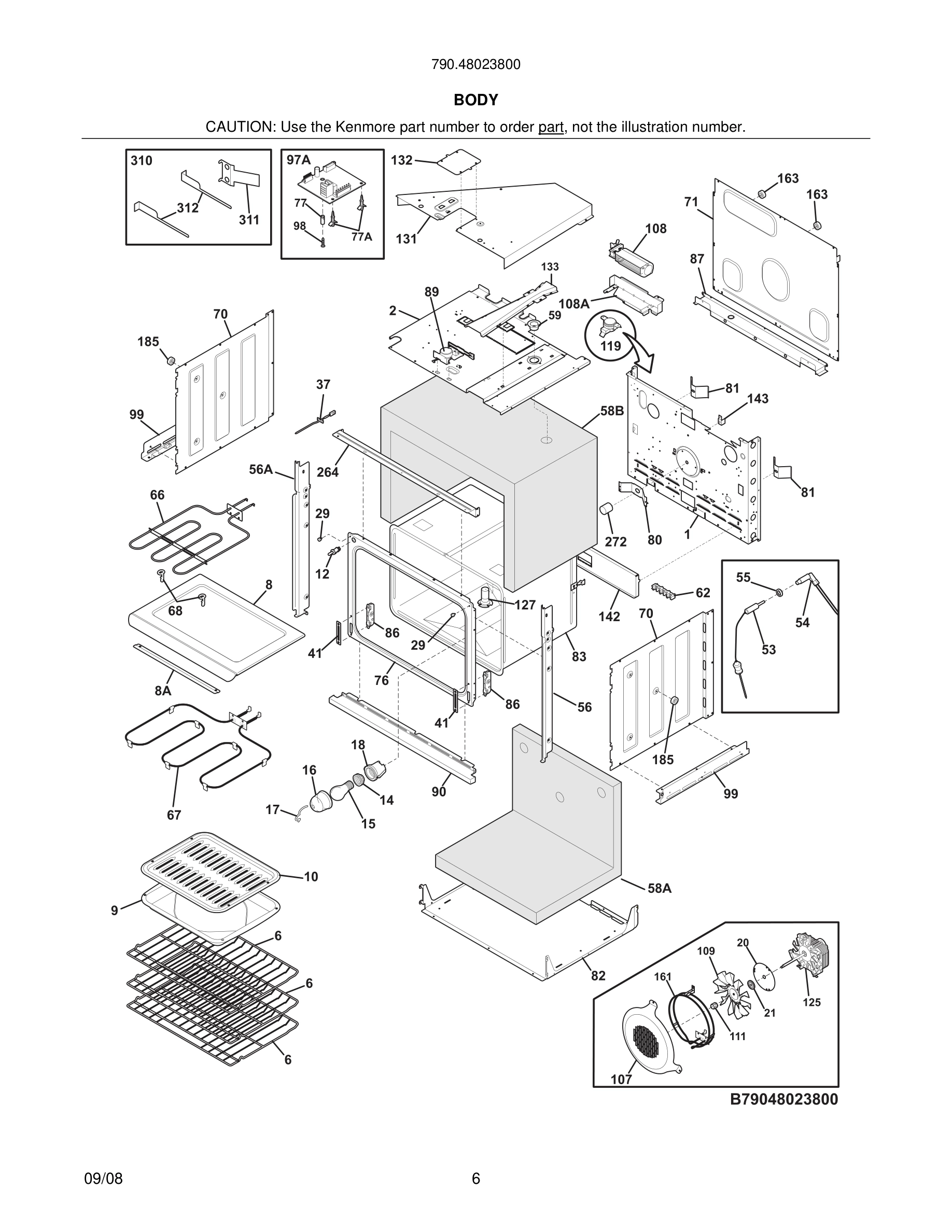

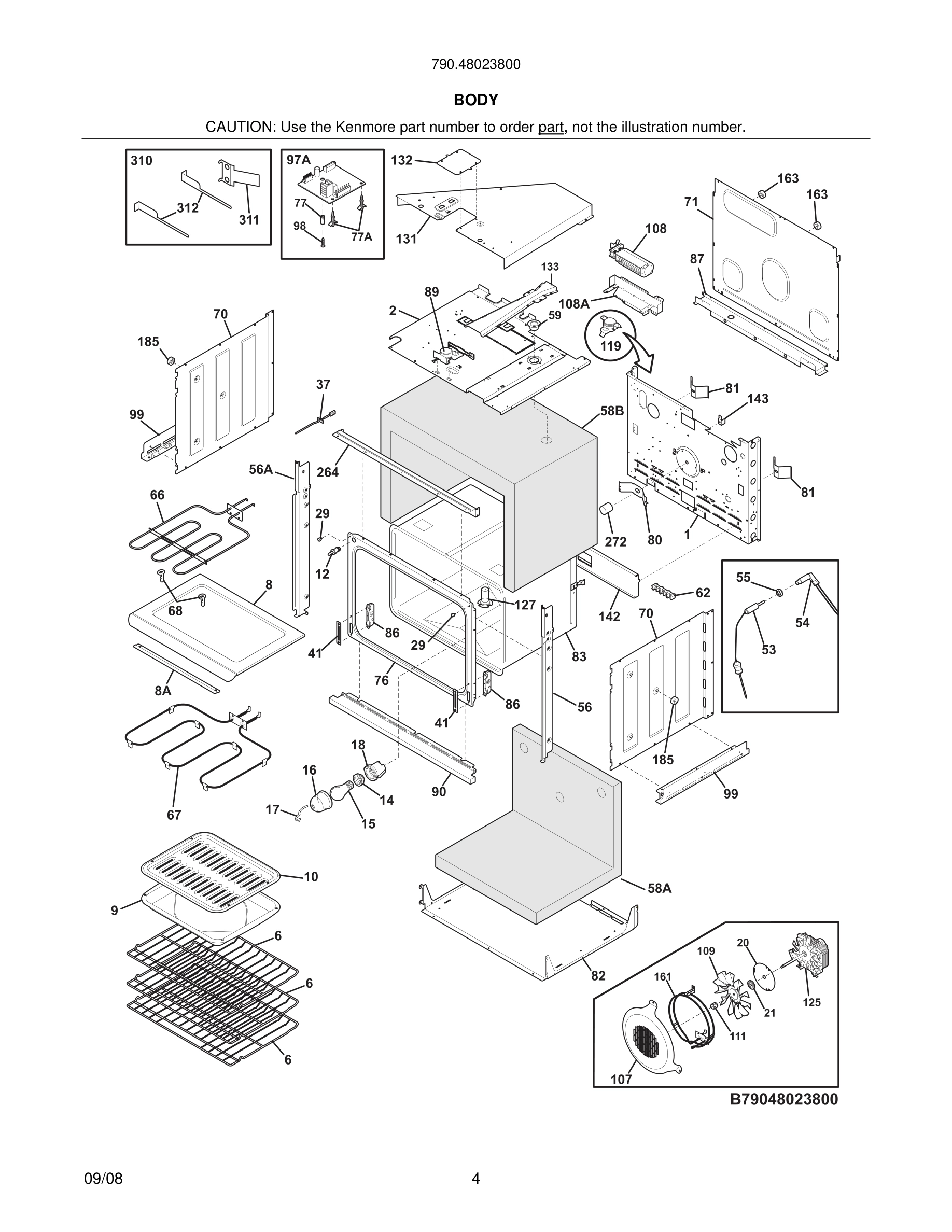

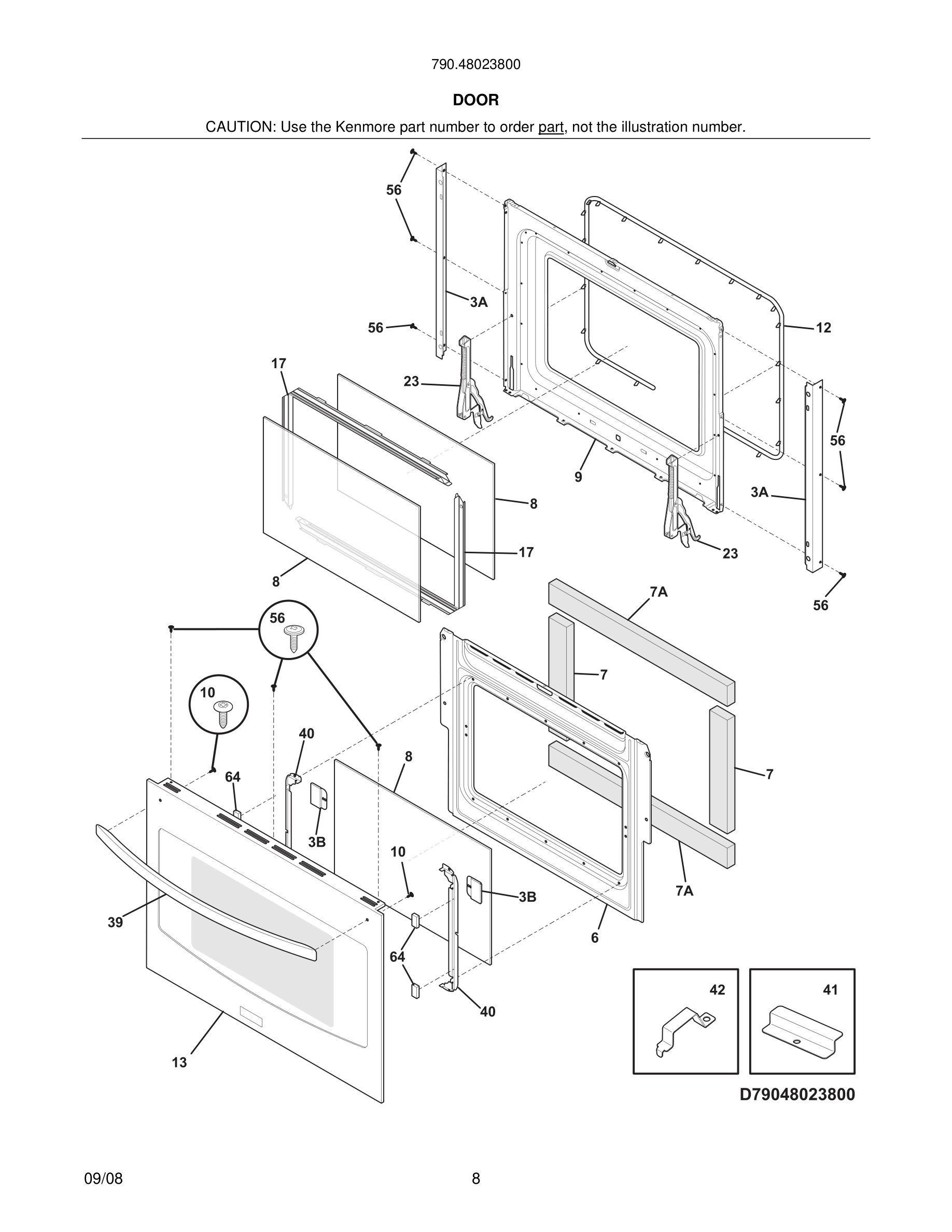

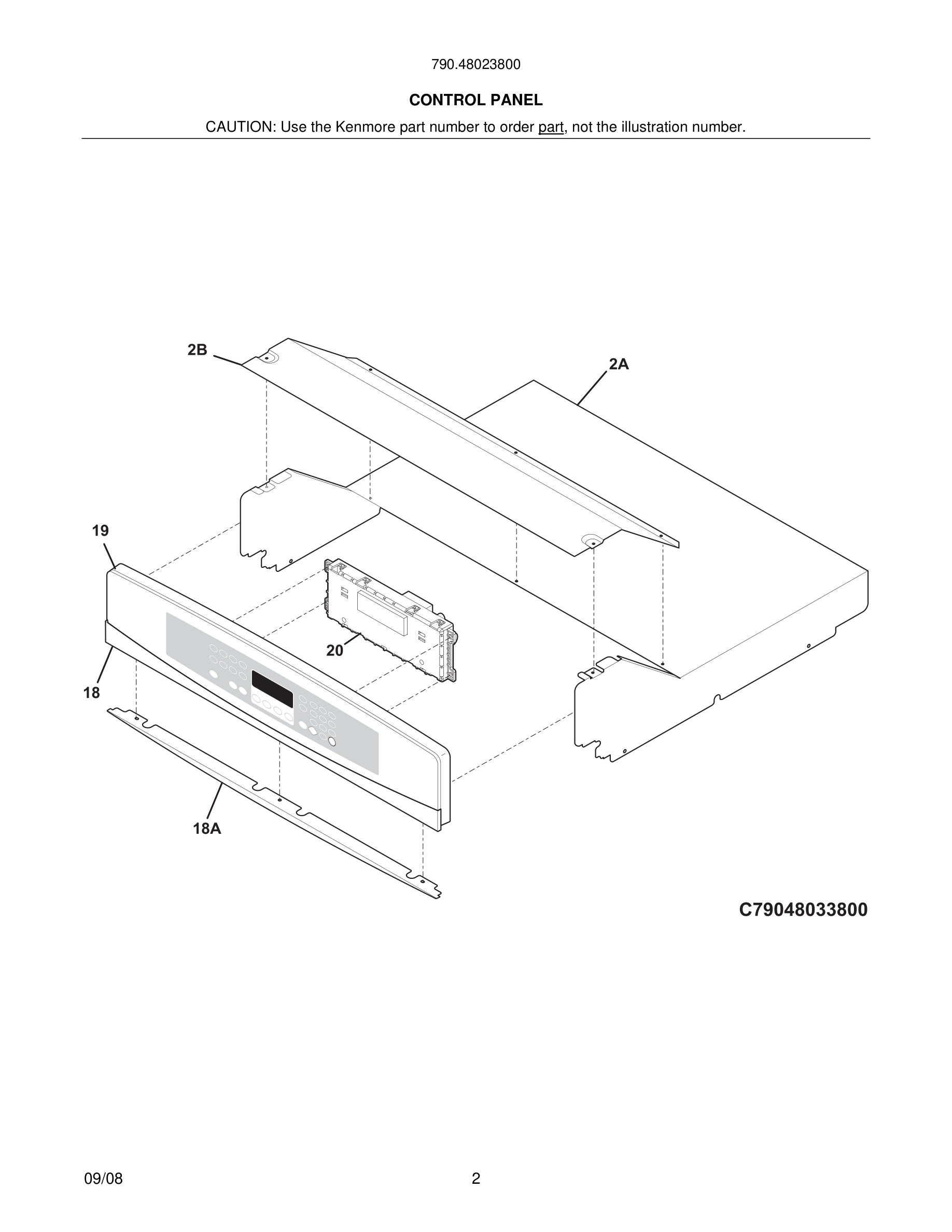

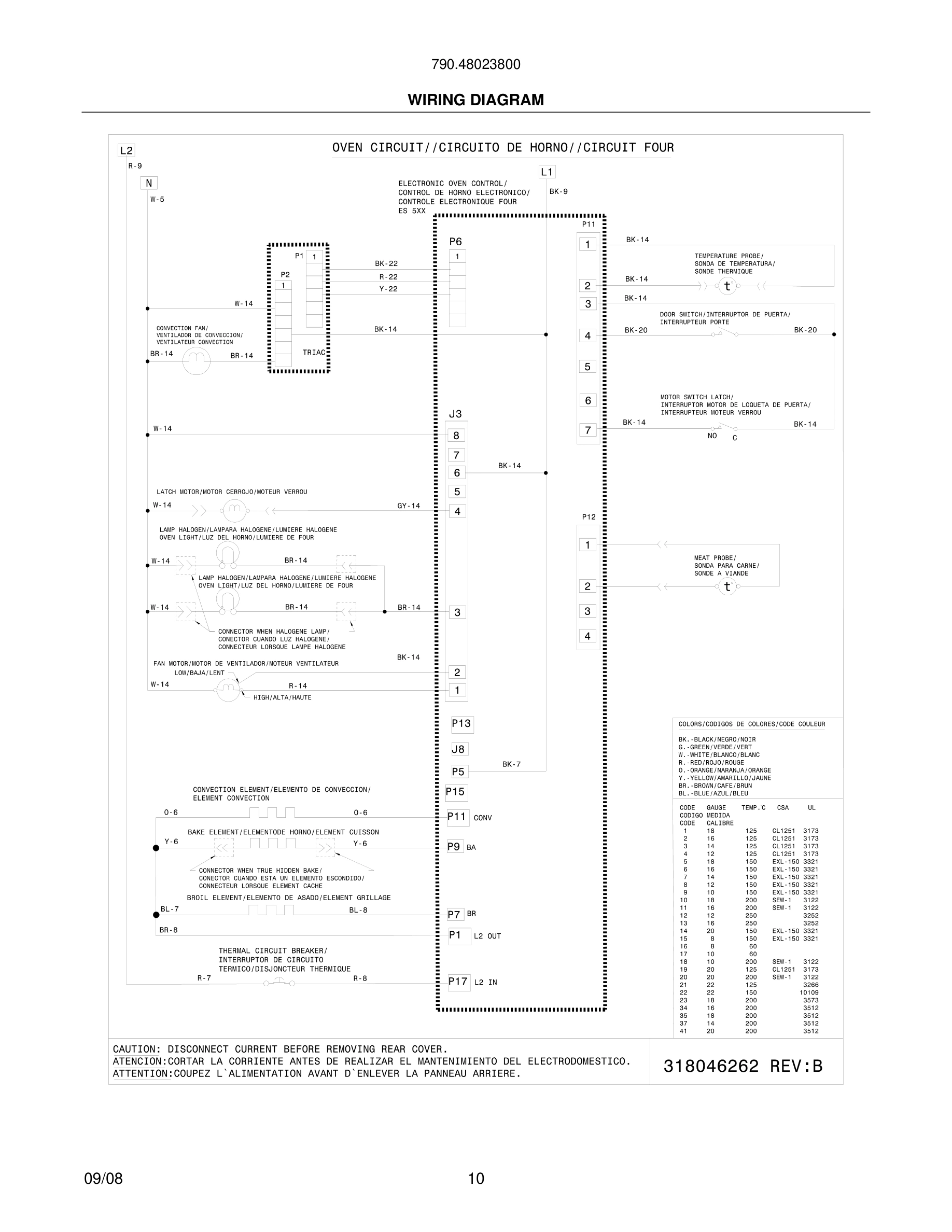

Model Kenmore 790.48023800 OVEN – Common Parts & Diagrams

*
Cleaner, stainless steel
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
6
Baffle, door
Baffle, door WCI 318260510 Contact Us For Availability
View on Model
8
Glass, oven door, heat barrier
Glass, oven door, heat barrier WCI 318212200 Contact Us For Availability
View on Model
8
Cover, element
Cover, element WCI 318262011 Contact Us For Availability
View on Model
9
Liner, upper door
Liner, upper door WCI 318259615 Contact Us For Availability
View on Model
12
Seal, door
Seal, door WCI 318053125 Contact Us For Availability
View on Model
13
Door Assy, w/glass, stainless, outer, w/tape
Door Assy, w/glass, stainless, outer, w/tape WCI 318396903 Contact Us For Availability
View on Model
17
Retainer, light cover
Retainer, light cover WCI 5304400195 Contact Us For Availability
View on Model
17
Spacer, glass, (2)
Spacer, glass, (2) WCI 318264700 Contact Us For Availability
View on Model
18
Housing, oven light
Housing, oven light WCI 318222400 Contact Us For Availability
View on Model
20
Plate, retainer
Plate, retainer WCI 318389400 Contact Us For Availability
View on Model
23
Hinge, door, (2)
Hinge, door, (2) WCI 318024749 Contact Us For Availability
View on Model
37*
Bracket, receptacle, temp probe
Bracket, receptacle, temp probe WCI 318373001 Contact Us For Availability
View on Model
39
Handle, door, stainless
Handle, door, stainless WCI 318915902 Contact Us For Availability
View on Model
41
Cover, hinge cutout
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
86
Receptacle, hinge
Receptacle, hinge WCI 318328010 Contact Us For Availability
View on Model
97A#
Board, relay, convection
Board, relay, convection WCI 316519204 Contact Us For Availability
View on Model
107
Cover, fan
Cover, fan WCI 318219405 Contact Us For Availability
View on Model
108A
Bracket, fan support
Bracket, fan support WCI 318251300 Contact Us For Availability
View on Model
125*
Insulation, 3.81 x 3.13
Insulation, 3.81 x 3.13 WCI 5303316994 Contact Us For Availability
View on Model
127
Adapter Assembly, w/vent tube, and catalyst
Adapter Assembly, w/vent tube, and catalyst WCI 318357001 Contact Us For Availability
View on Model
131
Box, vent
Box, vent WCI 318272901 Contact Us For Availability
View on Model
132
Plate, shield
Plate, shield WCI 318003000 Contact Us For Availability
View on Model
133
Chimney
Chimney WCI 318347800 Contact Us For Availability
View on Model
142
Deflector
Deflector WCI 318123910 Contact Us For Availability
View on Model
143
Support, wire
Support, wire WCI 318172904 Contact Us For Availability
View on Model
163
Spacer, (2)
Spacer, (2) WCI 318531703 Contact Us For Availability
View on Model
264
Trim, oven, black, front
Trim, oven, black, front WCI 318257711 Contact Us For Availability
View on Model
272
Tube, protector
Tube, protector WCI 318249403 Contact Us For Availability
View on Model
310
Cabinet Mounting Kit
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
View on Model
311
Bracket, cabinet mtg, (2)
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
View on Model
