Model Kenmore 790.47892602 OVEN – Common Parts & Diagrams

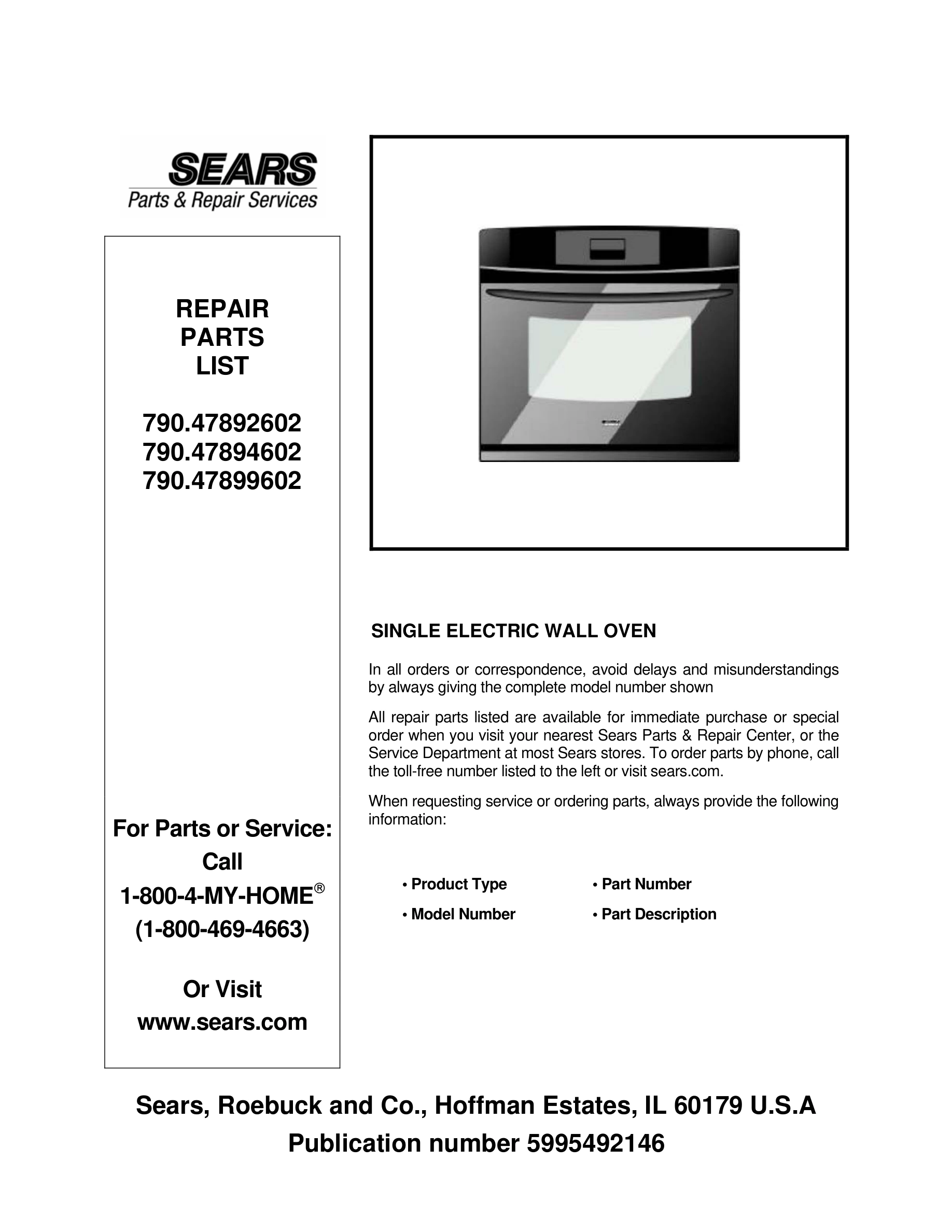

01 - COVER

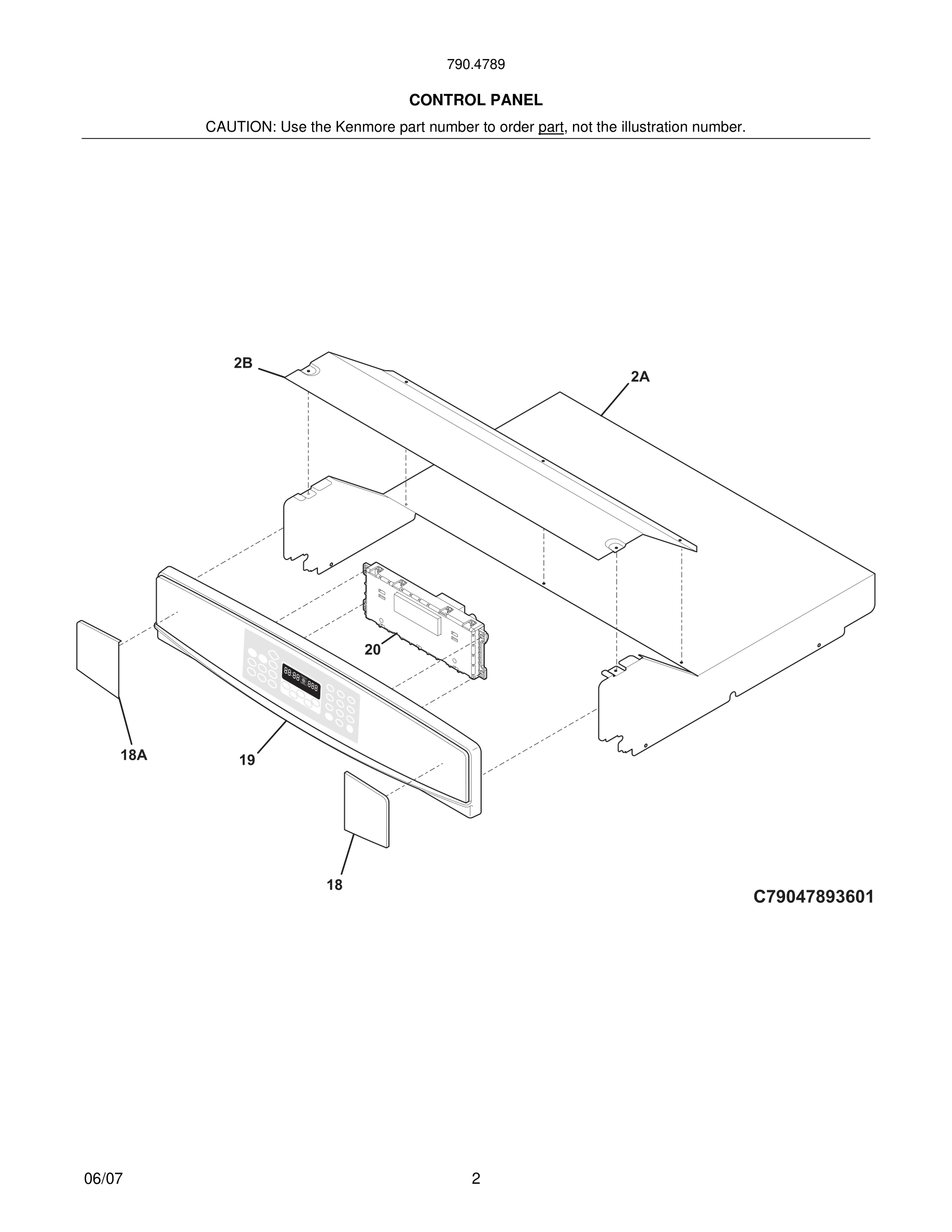

03 - CONTROL PANEL

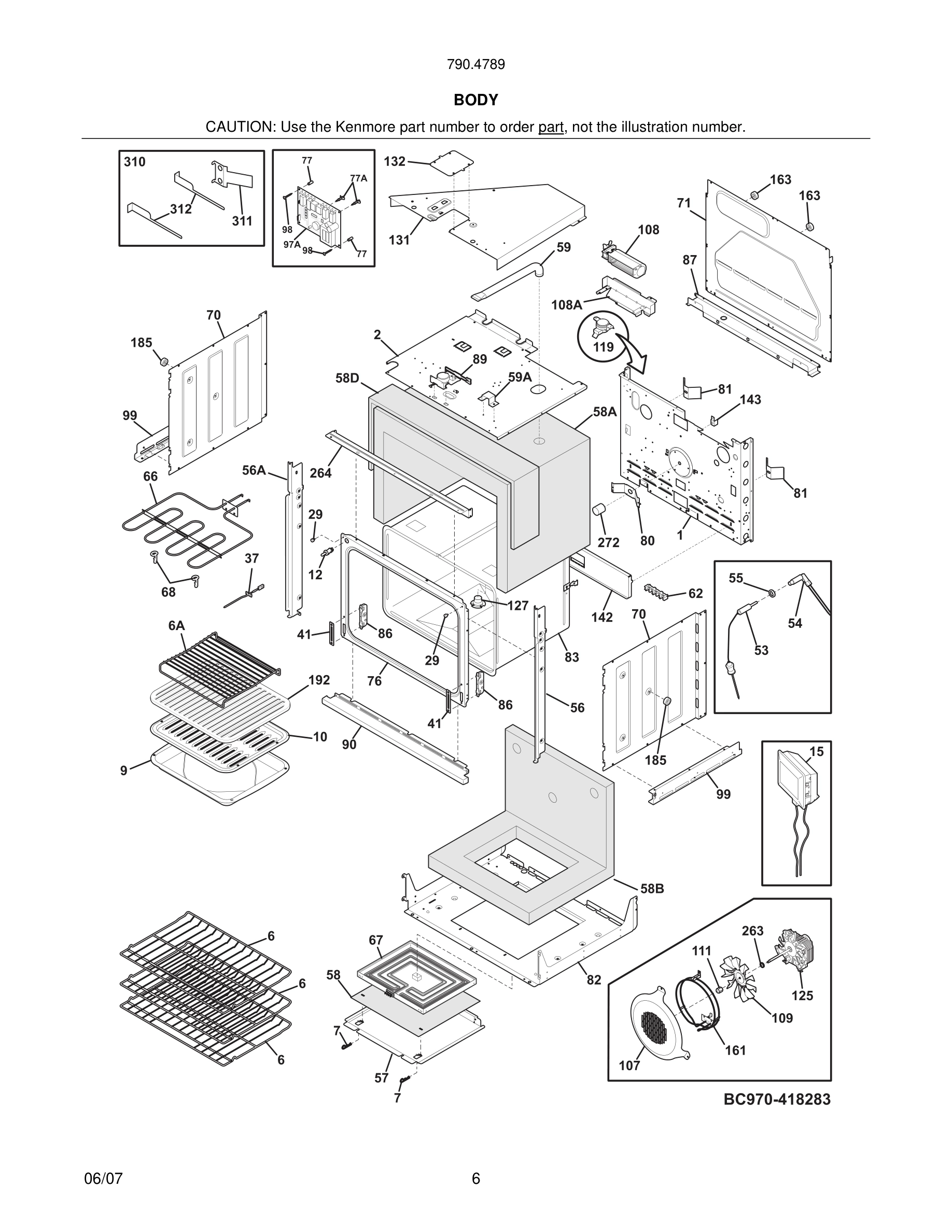

05 - BODY
07 - BODY

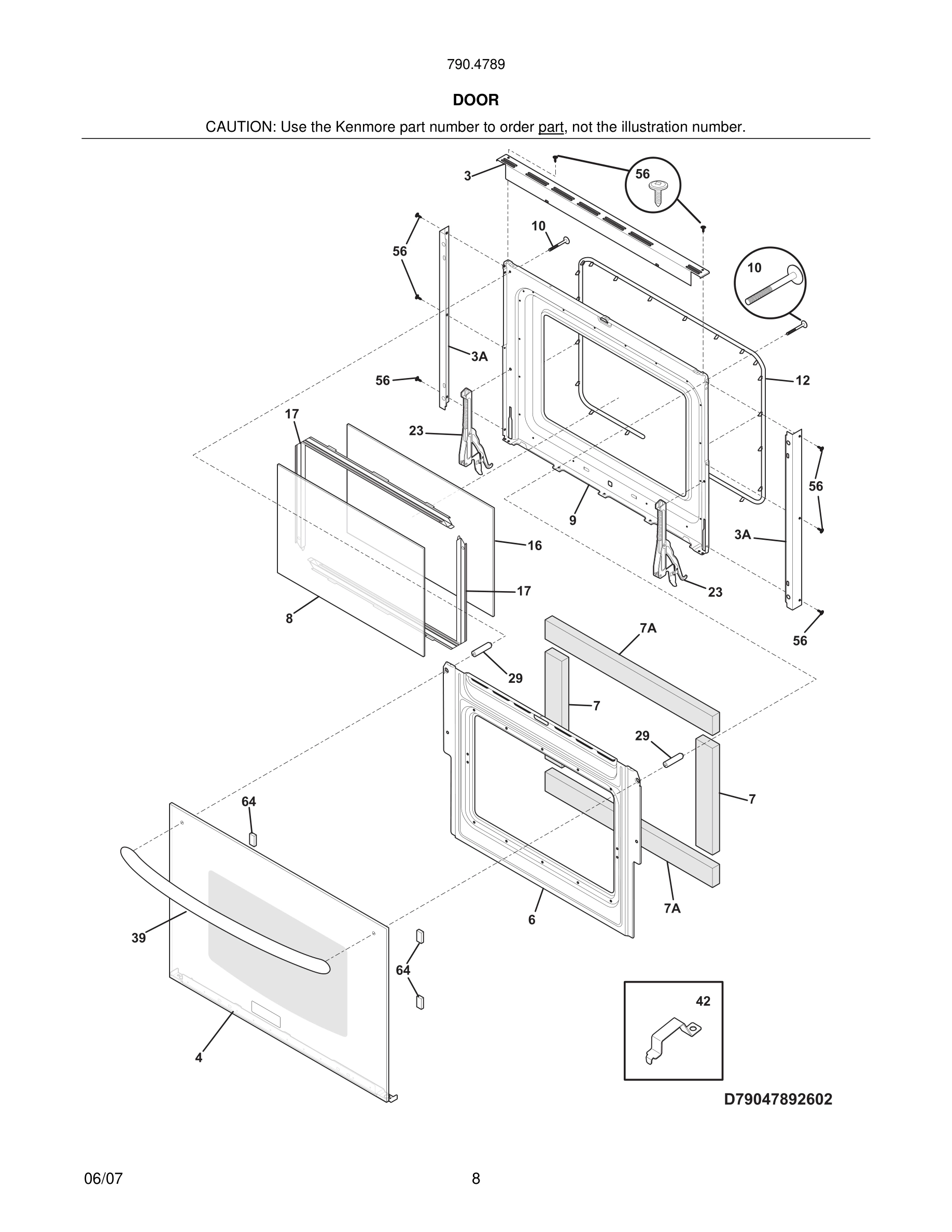

09 - DOOR

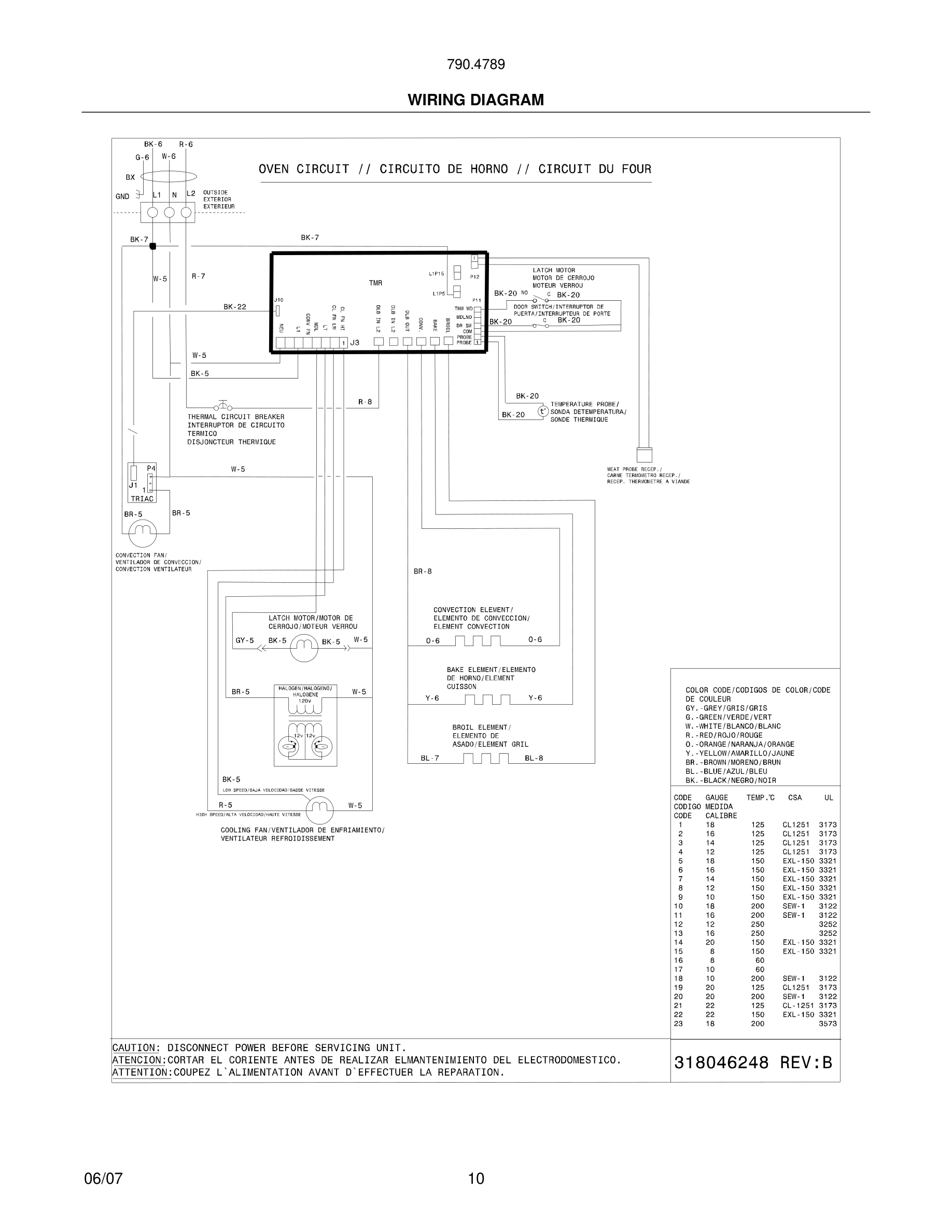

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.47892602 OVEN
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*#
Wriring Harness, latch WCI 318370303 Contact Us For Availability
*#
Wriring Harness, main WCI 318370315 Contact Us For Availability
2B
Cover, box WCI 318260100 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261362 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318261364 Contact Us For Availability
4
Glass Assy., oven door, black, outer, w/trim WCI 318261363 Contact Us For Availability
6
Baffle, door WCI 318260520 Contact Us For Availability
6A
Rack, broiler pan WCI 318365800 Contact Us For Availability
9
Liner, oven door, upper WCI 318259601 Contact Us For Availability
16
Glass, oven door, heat barrier WCI 318212210 Contact Us For Availability
20#
Controller, electronic, ES575W1 WCI 316462811 Contact Us For Availability
23
Hinge, door, upper, (2) WCI 318024722 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
37*
Bracket, receptacle, temp probe WCI 318373001 Contact Us For Availability
39
Handle, door/drawer, white WCI 316432302 Contact Us For Availability
39
Handle, door/drawer, bisque WCI 316432304 Contact Us For Availability
39
Handle, door/drawer, black WCI 316432303 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260007 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258714 Contact Us For Availability
83
Liner, oven assy WCI 318261419 Contact Us For Availability
86
Receptacle, hinge WCI 318342400 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260600 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
90
Trim, oven front, white, bottom WCI 318259700 Contact Us For Availability
90
Trim, oven front, bisque, bottom WCI 318259702 Contact Us For Availability
107
Cover, fan WCI 318219401 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
125*
Insulation, 3.81 x 3.13 WCI 5303316994 Contact Us For Availability
131
Box, vent WCI 318272900 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
272
Tube, protector WCI 318249401 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
