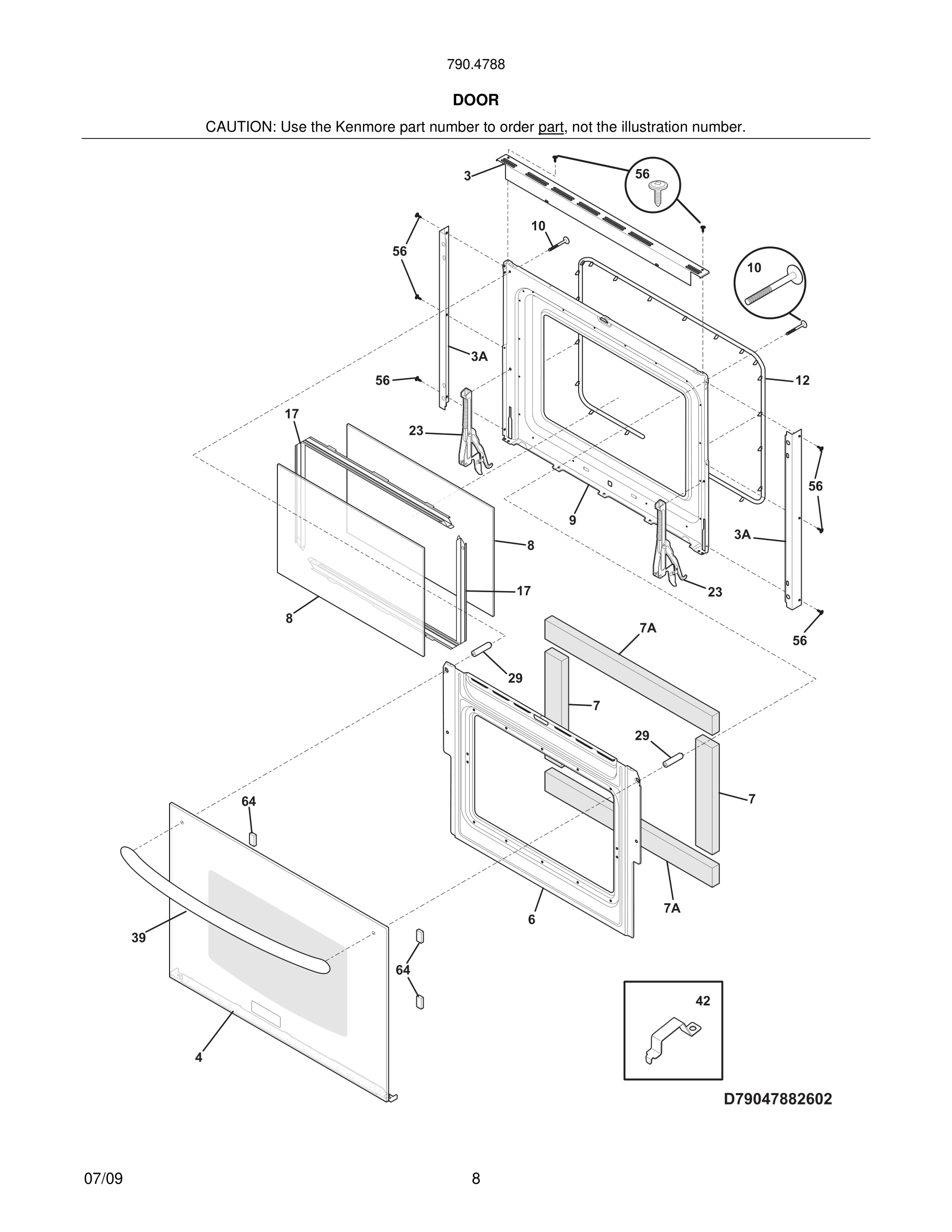

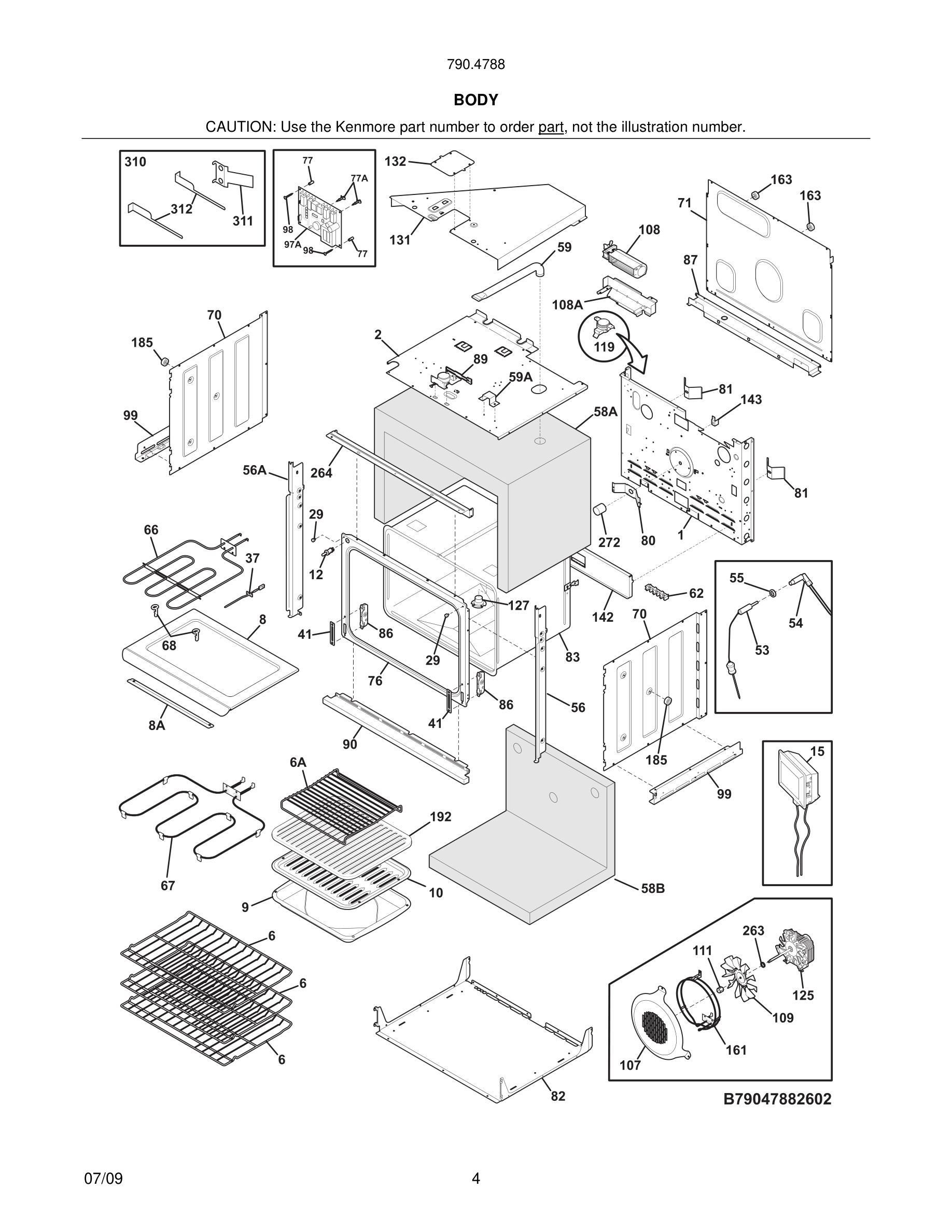

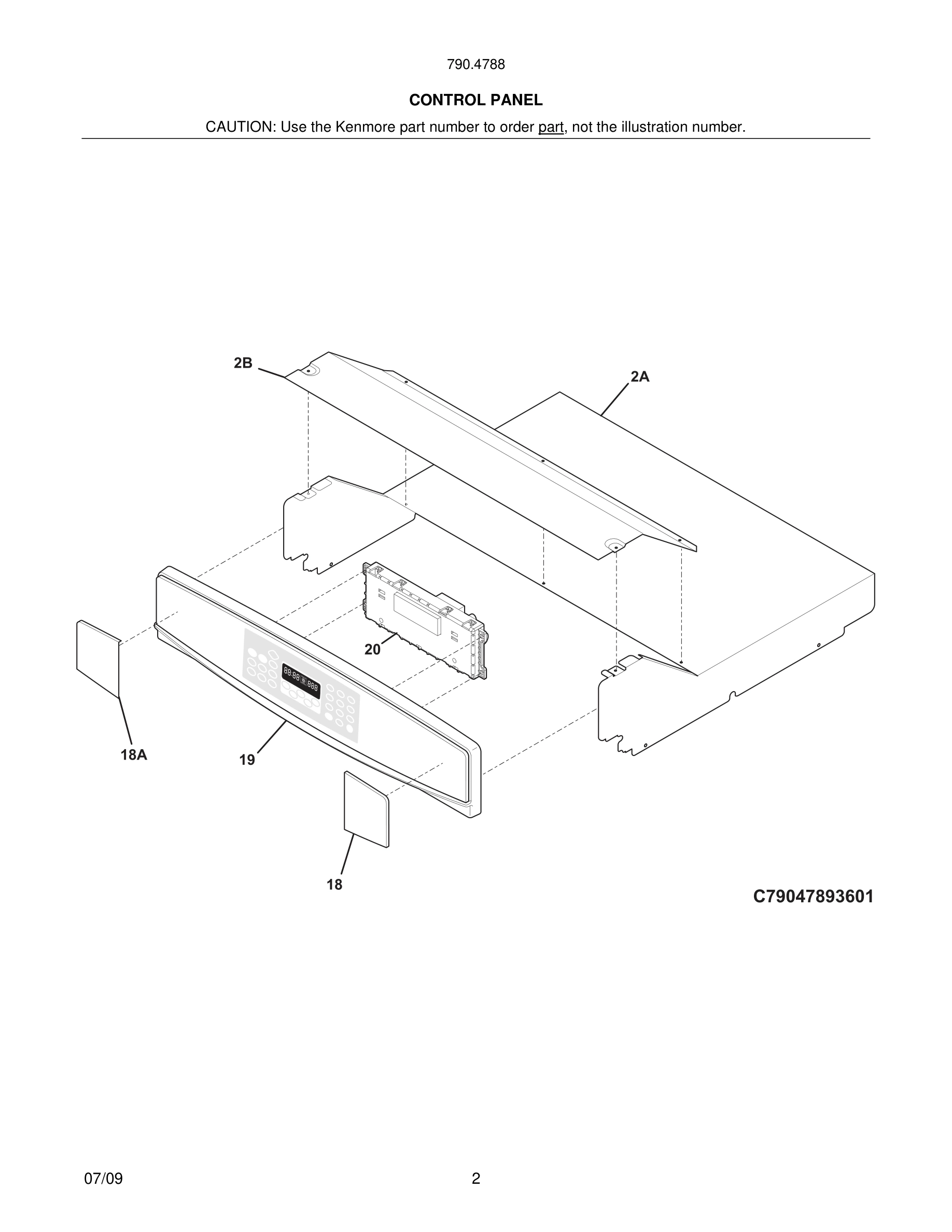

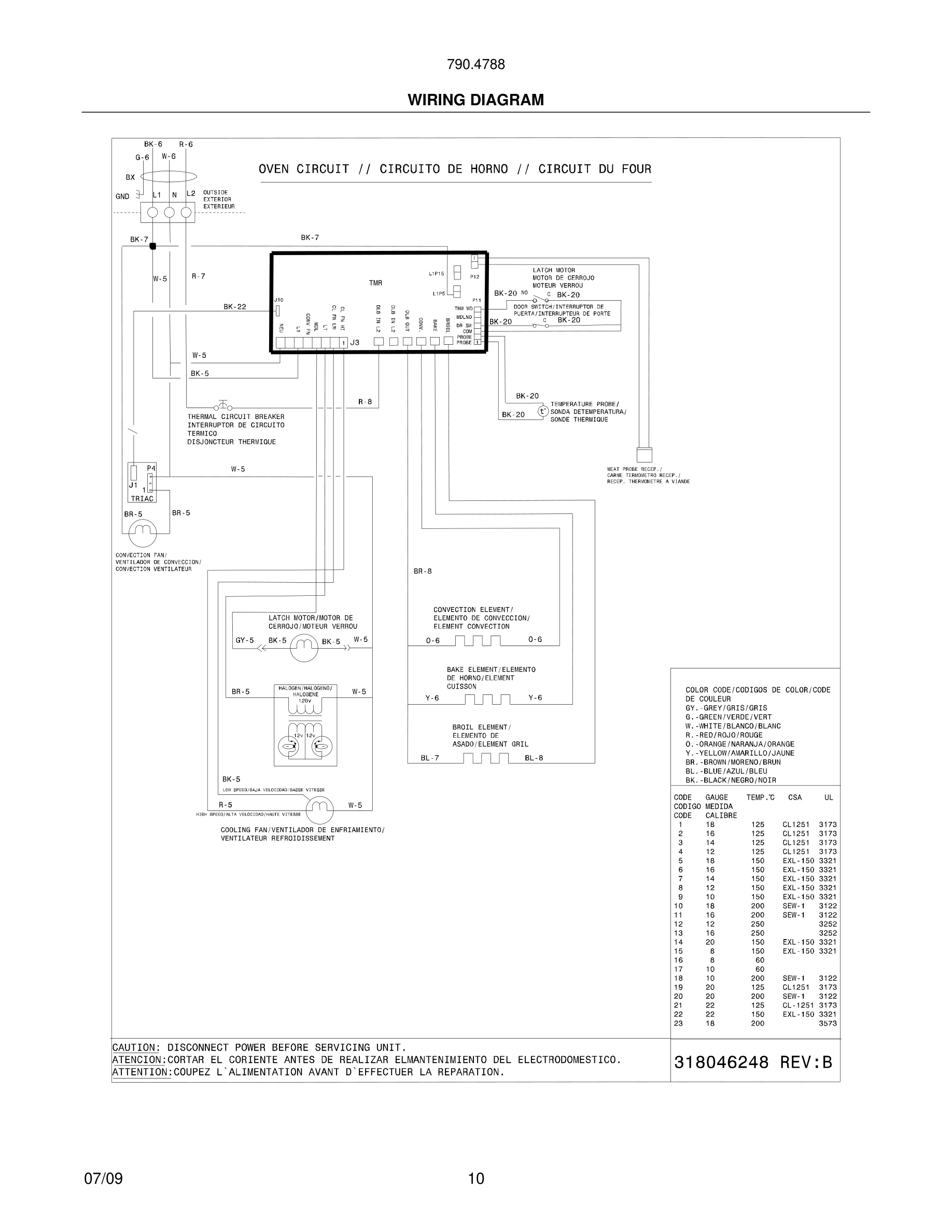

Model Kenmore 790.47882603 OVEN – Common Parts & Diagrams

*
Screw, truss head, 8-18 x 0.375
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
View on Model
3
Trim, oven door, black, upper
Trim, oven door, black, upper WCI 318260211 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
4
Glass Assy., oven door, white, outer, w/trim
Glass Assy., oven door, white, outer, w/trim WCI 318261365 Contact Us For Availability
View on Model
4
Glass Assy., oven door, black, outer, w/trim
Glass Assy., oven door, black, outer, w/trim WCI 318261366 Contact Us For Availability
View on Model
6
Baffle, door
Baffle, door WCI 318260510 Contact Us For Availability
View on Model
6A
Rack, broiler pan
Rack, broiler pan WCI 318365800 Contact Us For Availability
View on Model
8
Glass, oven door, heat barrier
Glass, oven door, heat barrier WCI 318212200 Contact Us For Availability
View on Model
8
Cover, element
Cover, element WCI 318262011 Contact Us For Availability
View on Model
9
Liner, oven door, upper
Liner, oven door, upper WCI 318259611 Contact Us For Availability
View on Model
12
Gasket, oven door seal
Gasket, oven door seal WCI 318053126 Contact Us For Availability
View on Model
17
Spacer, glass, (2)
Spacer, glass, (2) WCI 318264700 Contact Us For Availability
View on Model
20#
Controller, electronic, ES575W1
Controller, electronic, ES575W1 WCI 316462810 Contact Us For Availability
View on Model
23
Hinge, door, (2)
Hinge, door, (2) WCI 318024748 Contact Us For Availability
View on Model
29
Spacer, door
Spacer, door WCI 318014402 Contact Us For Availability
View on Model
37*
Bracket, receptacle, temp probe
Bracket, receptacle, temp probe WCI 318373001 Contact Us For Availability
View on Model
39
Handle, door, white
Handle, door, white WCI 318361201 Contact Us For Availability
View on Model
39
Handle, door, black
Handle, door, black WCI 318361202 Contact Us For Availability
View on Model
41
Cover, hinge cutout
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
86
Receptacle, hinge
Receptacle, hinge WCI 318342400 Contact Us For Availability
View on Model
90
Trim, oven front, black, bottom
Trim, oven front, black, bottom WCI 318259711 Contact Us For Availability
View on Model
90
Trim, oven front, white, bottom
Trim, oven front, white, bottom WCI 318259710 Contact Us For Availability
View on Model
107
Cover, fan
Cover, fan WCI 318219405 Contact Us For Availability
View on Model
108A
Bracket, fan support
Bracket, fan support WCI 318251300 Contact Us For Availability
View on Model
143
Support, wire
Support, wire WCI 318172904 Contact Us For Availability
View on Model
163
Spacer, (4)
Spacer, (4) WCI 318531703 Contact Us For Availability
View on Model
192
Grill, searing
Grill, searing WCI 318398000 Contact Us For Availability
View on Model
264
Trim, oven, black, front
Trim, oven, black, front WCI 318257711 Contact Us For Availability
View on Model
272
Tube, protector
Tube, protector WCI 318249409 Contact Us For Availability
View on Model
310
Cabinet Mounting Kit
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
View on Model
311
Bracket, cabinet mtg, (2)
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
View on Model
