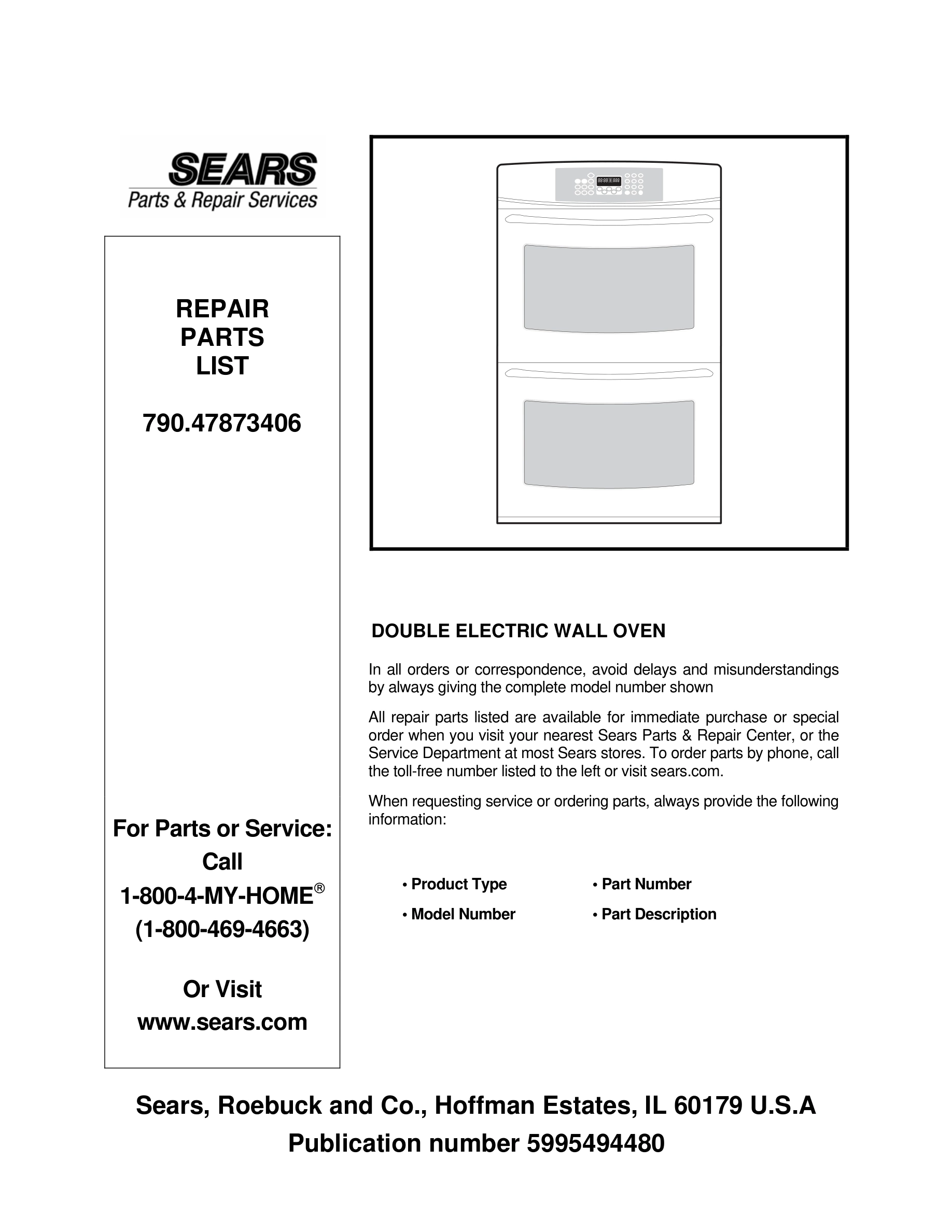

Model Kenmore 790.47873406 OVEN – Common Parts & Diagrams

*
Cleaner, stainless steel
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
View on Model

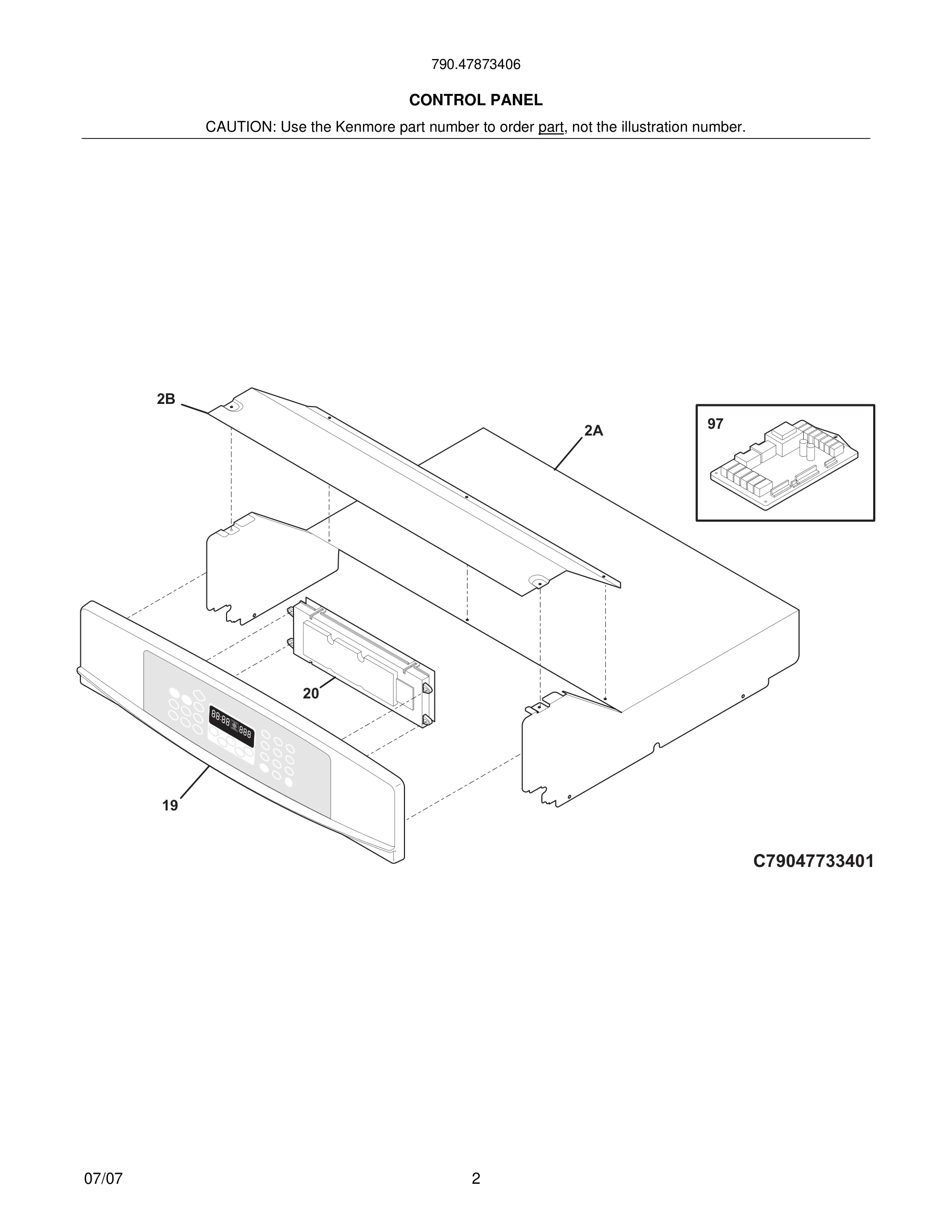

2B
Cover, box
Cover, box WCI 318260100 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
6
Baffle, door
Baffle, door WCI 318260520 Contact Us For Availability
View on Model
9
Pan, broilerOPTIONAL ACCESS0RY
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
View on Model
9
Liner, door
Liner, door WCI 318259605 Contact Us For Availability
View on Model
9
Liner, lower door
Liner, lower door WCI 318259607 Contact Us For Availability
View on Model
10
Insert, broiler panOPTIONAL ACCESS0RY
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
View on Model
10
Screw, handle mtg, 10-14 x 1/2, (2)
Screw, handle mtg, 10-14 x 1/2, (2) WCI 5304452028 Contact Us For Availability
View on Model
12
Seal, door, lower oven
Seal, door, lower oven WCI 318053325 Contact Us For Availability
View on Model
13
Door Assy, glass, stainless steel, outer
Door Assy, glass, stainless steel, outer WCI 318272190 Contact Us For Availability
View on Model
16
Glass, oven door, heat barrier
Glass, oven door, heat barrier WCI 318212210 Contact Us For Availability
View on Model
17
Retainer, light cover
Retainer, light cover WCI 5304400195 Contact Us For Availability
View on Model
20#
Control, electronic, ES615W3, dual oven
Control, electronic, ES615W3, dual oven WCI 316443820 Contact Us For Availability
View on Model
23
Hinge, door, (2)
Hinge, door, (2) WCI 318024714 Contact Us For Availability
View on Model
23
Hinge, lower door, (2)
Hinge, lower door, (2) WCI 318024721 Contact Us For Availability
View on Model
24
Trim, door, black, lower
Trim, door, black, lower WCI 318260301 Contact Us For Availability
View on Model
41
Cover, hinge cutout
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
View on Model
54
Housing, oven light
Housing, oven light WCI 318222400 Contact Us For Availability
View on Model
76
Front, oven
Front, oven WCI 318056217 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
86
Receptacle, hinge
Receptacle, hinge WCI 318342400 Contact Us For Availability
View on Model
87
Bracket, cable mtg.
Bracket, cable mtg. WCI 318260600 Contact Us For Availability
View on Model
90
Trim, oven front, black, bottom
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
View on Model
90A
Trim, oven front, black, bottom
Trim, oven front, black, bottom WCI 318259704 Contact Us For Availability
View on Model
108A
Bracket, fan support
Bracket, fan support WCI 318251300 Contact Us For Availability
View on Model
127
Adapter, vent tube
Adapter, vent tube WCI 318317000 Contact Us For Availability
View on Model
142
Deflector
Deflector WCI 318123910 Contact Us For Availability
View on Model
143
Support, wire
Support, wire WCI 318172904 Contact Us For Availability
View on Model
163
Spacer
Spacer WCI 318014111 Contact Us For Availability
View on Model
264
Trim, oven, black, front
Trim, oven, black, front WCI 318257701 Contact Us For Availability
View on Model
264
Trim, oven, black, front
Trim, oven, black, front WCI 318257801 Contact Us For Availability
View on Model
310
Cabinet Mounting Kit
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
View on Model
311
Bracket, cabinet mtg, (2)
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
View on Model
