Model Kenmore 790.47872404 OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL

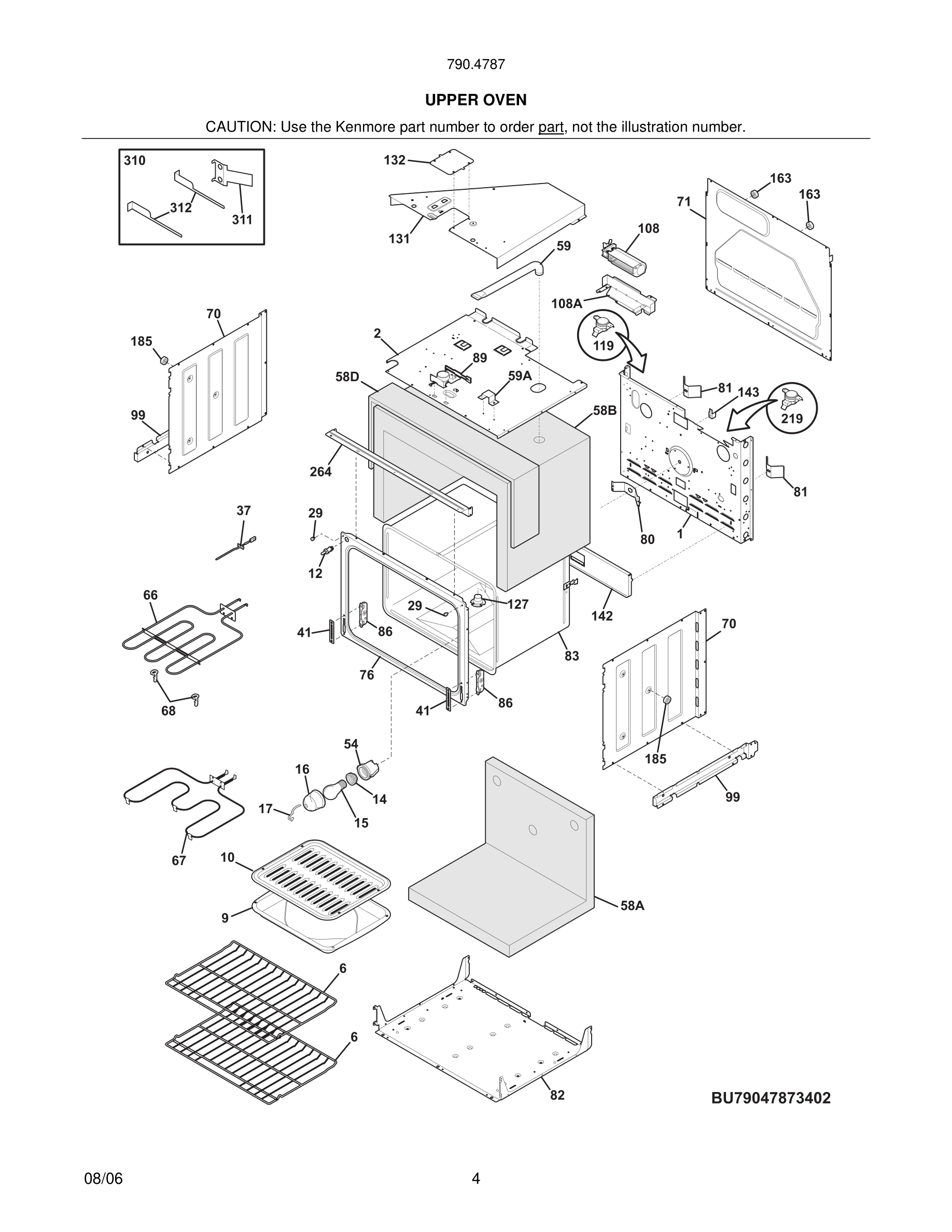

05 - UPPER OVEN

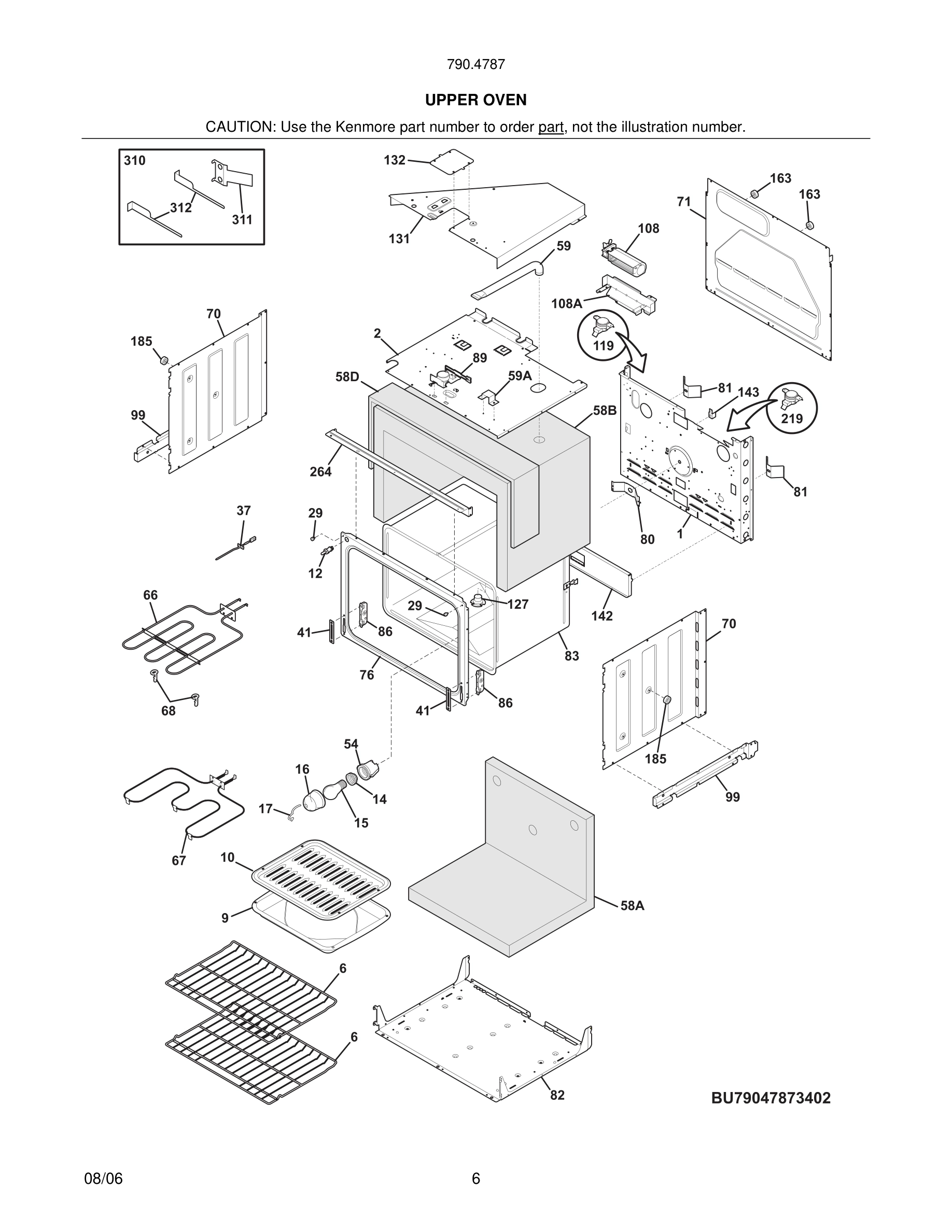

07 - UPPER OVEN
09 - LOWER OVEN

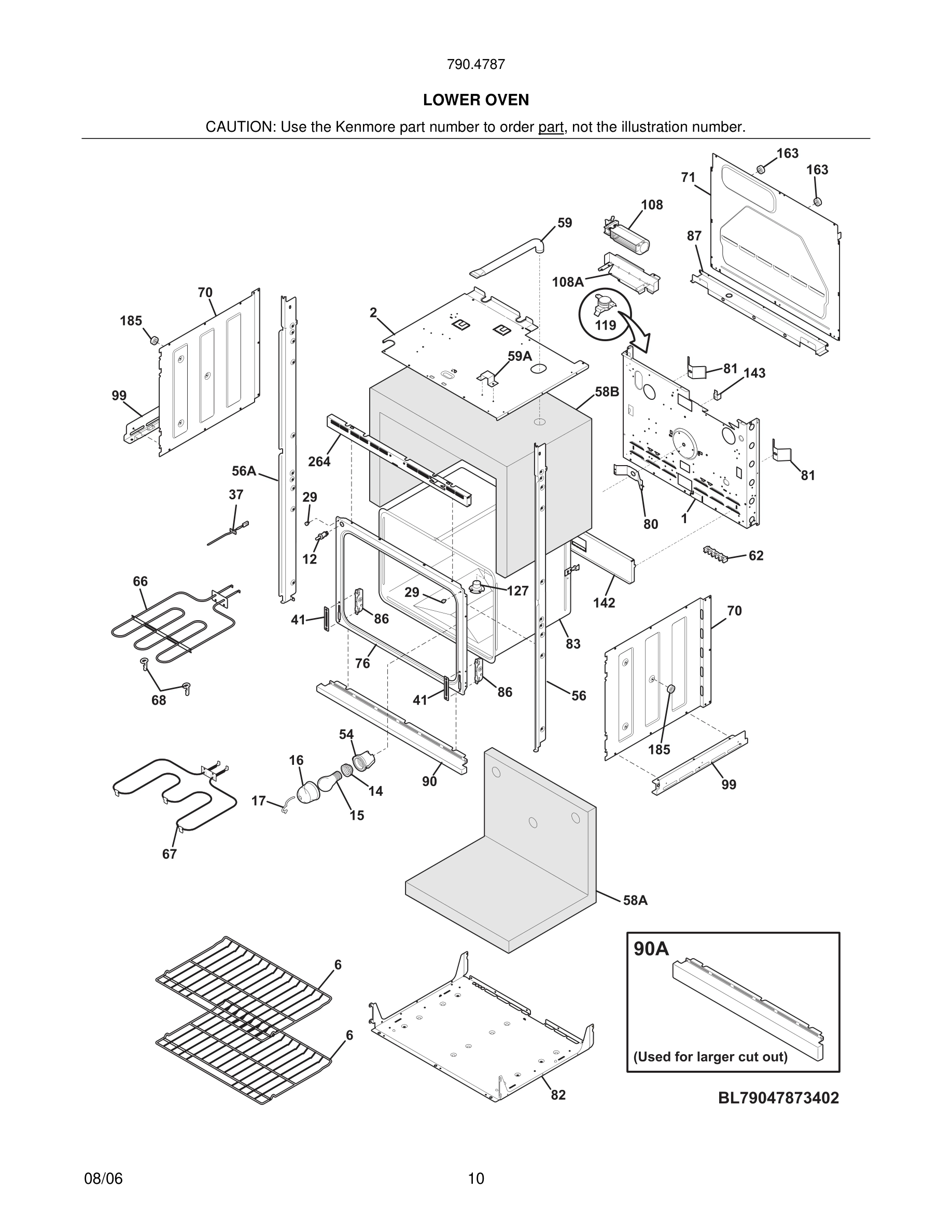

11 - LOWER OVEN

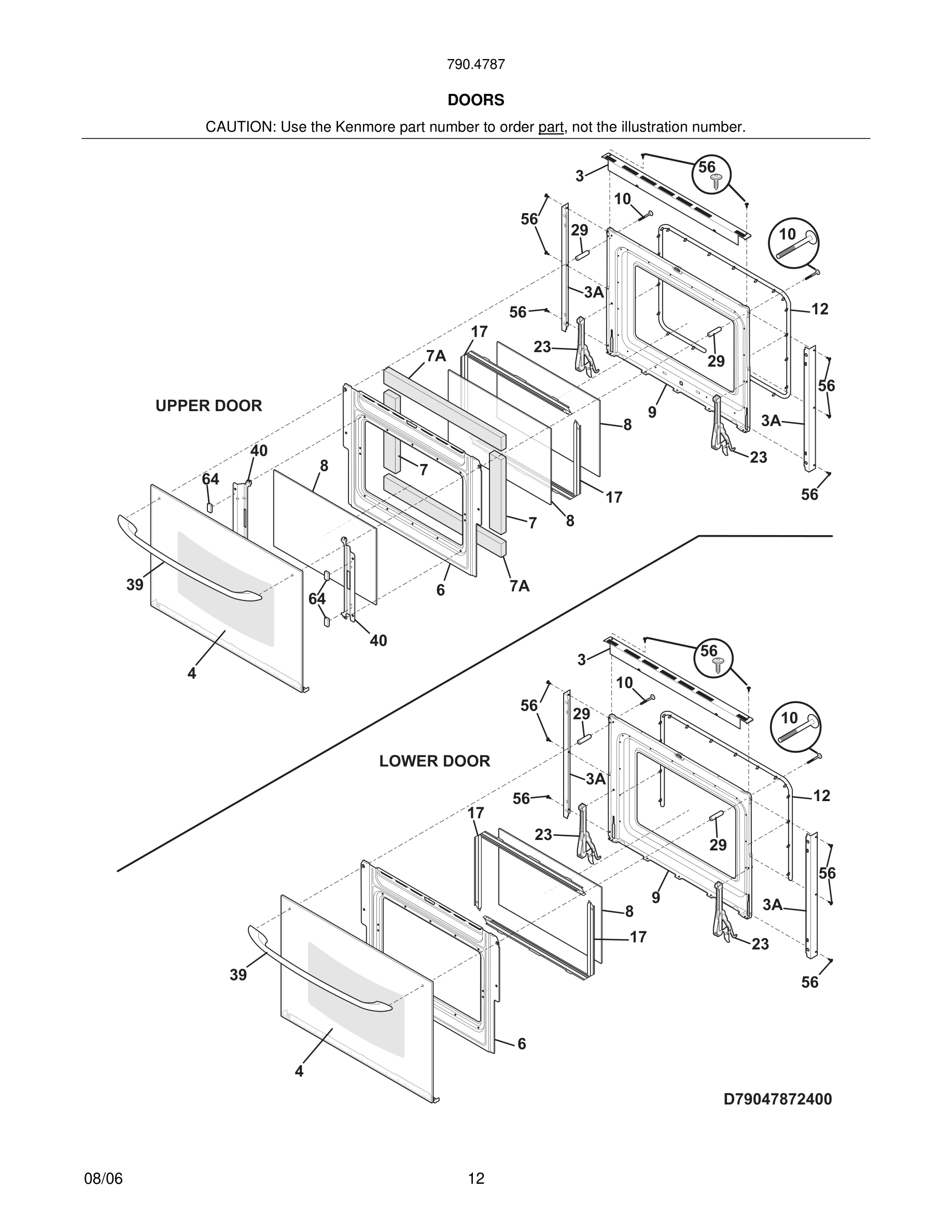

13 - DOORS

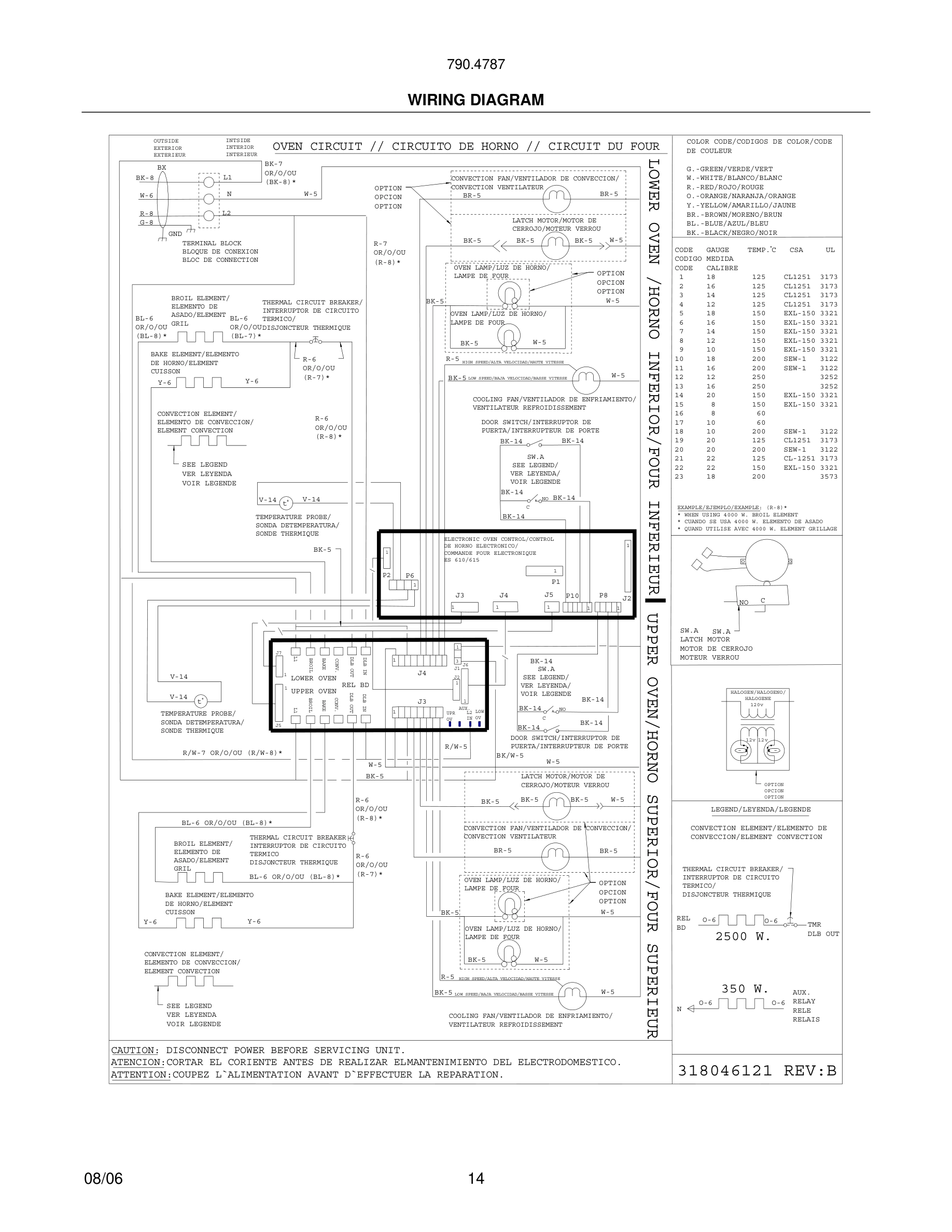

14 - WIRING DIAGRAM
Common parts from model Kenmore 790.47872404 OVEN
*
Harness, wiring, control-relay WCI 318231751 Contact Us For Availability
*#
Wriring Harness, main WCI 318370301 Contact Us For Availability
2B
Cover, box WCI 318260100 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318261357 Contact Us For Availability
6
Baffle, door WCI 318260520 Contact Us For Availability
9
Liner, oven door, upper WCI 318259601 Contact Us For Availability
9
Liner, door, lower WCI 318259603 Contact Us For Availability
9
Liner, lower door WCI 318259607 Contact Us For Availability
12
Seal, door, lower oven WCI 318053325 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
20#
Control, electronic, ES615W3, dual oven WCI 316443820 Contact Us For Availability
23
Hinge, lower door, (2) WCI 318024721 Contact Us For Availability
23
Hinge, door, (2) WCI 318024722 Contact Us For Availability
23
Hinge, oven door, upper, (2) WCI 5303310828 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
39
Handle, oven door, bisque WCI 316443602 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260007 Contact Us For Availability
71*
Bracket, insul. panel WCI 318340200 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258707 Contact Us For Availability
83
Liner, oven assy WCI 318261403 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260600 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
90
Trim, oven front, white, bottom WCI 318259700 Contact Us For Availability
90
Trim, oven front, bisque, bottom WCI 318259702 Contact Us For Availability
90A
Trim, oven front, black, bottom WCI 318259704 Contact Us For Availability
90A
Trim, oven front, white, bottom WCI 318259703 Contact Us For Availability
90A
Trim, oven front, bisque, bottom WCI 318259705 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
127
Adapter, vent tube WCI 318317000 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
264
Trim, oven, black, front WCI 318257801 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
