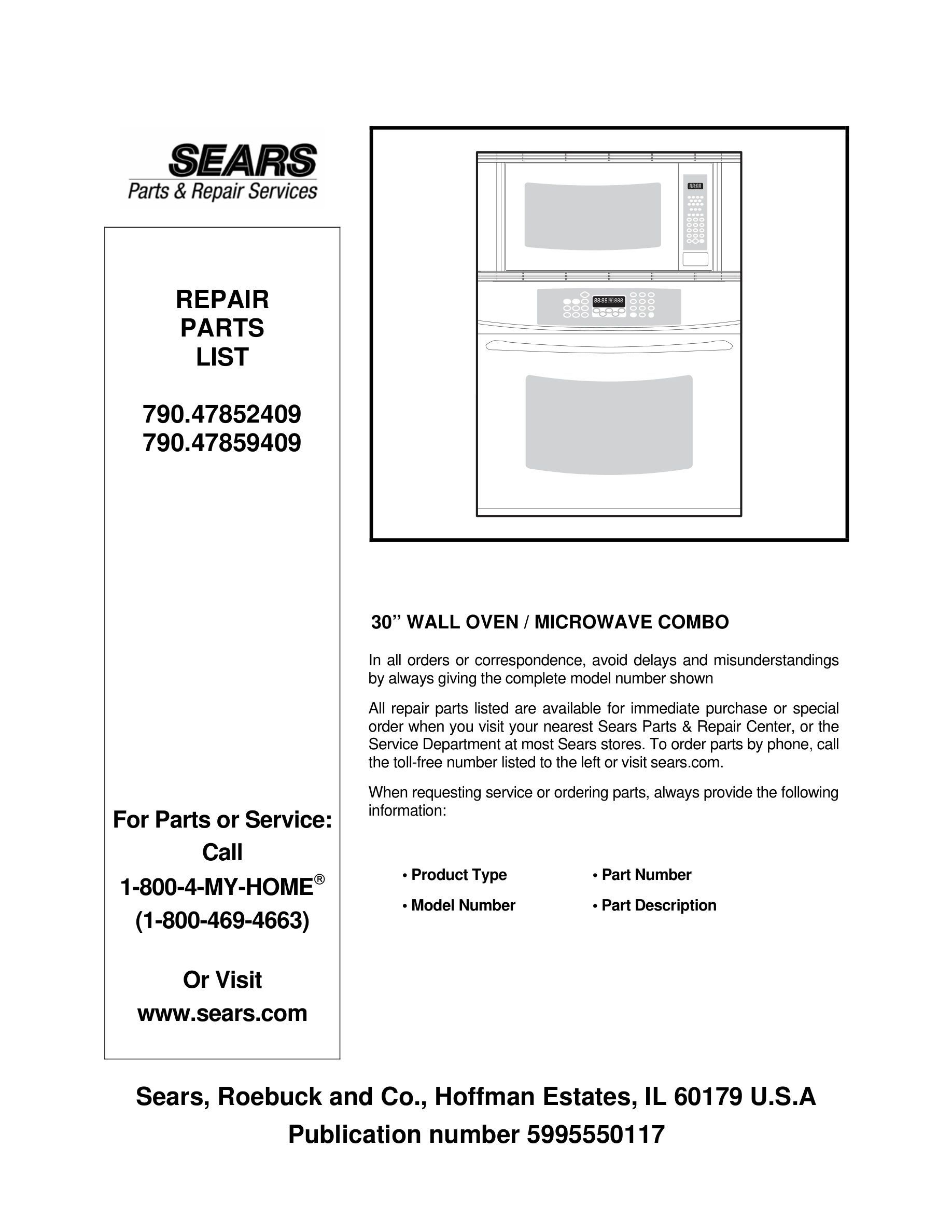

Model Kenmore 790.47852409 WALL OVEN / MICROWAVE COMBO – Common Parts & Diagrams

*
Screw, truss head, 8-18 x 0.375
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
View on Model
*#
Harness, wiring, main
Harness, wiring, main WCI 318231754 Contact Us For Availability
View on Model
*#
Wiring Harness, power board, to triac, main
Wiring Harness, power board, to triac, main WCI 318370375 Contact Us For Availability
View on Model

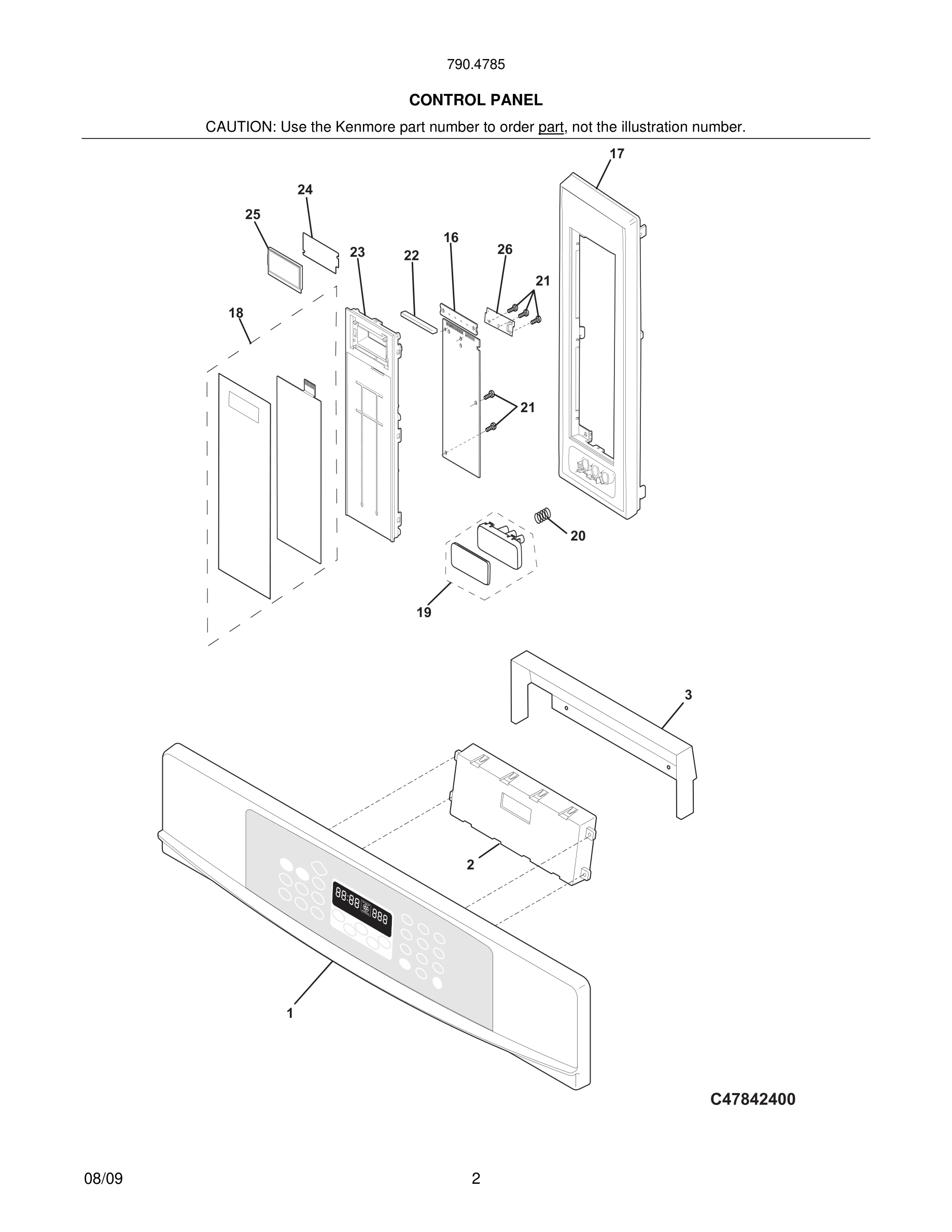

2#
Clock/Timer, electronic, ES355W2
Clock/Timer, electronic, ES355W2 WCI 316418576 Contact Us For Availability
View on Model
3
Trim, oven door, black, upper
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
4
Glass Assy., oven door, white, outer, w/trim
Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability
View on Model
6
Baffle, door
Baffle, door WCI 318260522 Contact Us For Availability
View on Model
9
Liner, oven door
Liner, oven door WCI 318360111 Contact Us For Availability
View on Model
12
Seal, oven door, upper
Seal, oven door, upper WCI 318053121 Contact Us For Availability
View on Model
16
Glass, oven door, heat barrier, lower door
Glass, oven door, heat barrier, lower door WCI 318212210 Contact Us For Availability
View on Model
17
Retainer, light cover
Retainer, light cover WCI 5304400195 Contact Us For Availability
View on Model
19
Push Button, door opener, black
Push Button, door opener, black WCI 5304440827 Contact Us For Availability
View on Model
19
Push Button, door opener, white
Push Button, door opener, white WCI 5304442133 Contact Us For Availability
View on Model
22
Connector, rubber, control board
Connector, rubber, control board WCI 5304440832 Contact Us For Availability
View on Model
23
Hinge, oven door, (2)
Hinge, oven door, (2) WCI 318567101 Contact Us For Availability
View on Model
25#
LCD, display
LCD, display WCI 5304440835 Contact Us For Availability
View on Model
29
Spacer, door
Spacer, door WCI 318014405 Contact Us For Availability
View on Model
37
Bushing, motor shaft, turntable
Bushing, motor shaft, turntable WCI 5304440288 Contact Us For Availability
View on Model
41
Door Assembly, complete, white
Door Assembly, complete, white WCI 5304442136 Contact Us For Availability
View on Model
41
Door Assembly, complete, black
Door Assembly, complete, black WCI 5304442138 Contact Us For Availability
View on Model
42
Frame Assembly, door, white
Frame Assembly, door, white WCI 5304442140 Contact Us For Availability
View on Model
42
Frame Assembly, door, black
Frame Assembly, door, black WCI 5304442142 Contact Us For Availability
View on Model
45
Panel, inner door, white
Panel, inner door, white WCI 5304442144 Contact Us For Availability
View on Model
49
Glass, door, white
Glass, door, white WCI 5304442146 Contact Us For Availability
View on Model
49
Glass, door, black
Glass, door, black WCI 5304442148 Contact Us For Availability
View on Model
50
Door Stop
Door Stop WCI 5304440862 Contact Us For Availability
View on Model
51
Screw
Screw WCI 5304440866 Contact Us For Availability
View on Model
54
Housing, oven light
Housing, oven light WCI 318222400 Contact Us For Availability
View on Model
56
Trim, side filler, white, RH
Trim, side filler, white, RH WCI 318276312 Contact Us For Availability
View on Model
56A
Trim, side filler, white, LH
Trim, side filler, white, LH WCI 318276313 Contact Us For Availability
View on Model
56A
Trim, side filler, black, LH
Trim, side filler, black, LH WCI 318276315 Contact Us For Availability
View on Model
58A
Insulation, oven wrapper
Insulation, oven wrapper WCI 318386100 Contact Us For Availability
View on Model
58B
Insulation, oven back, back/bottom
Insulation, oven back, back/bottom WCI 318133791 Contact Us For Availability
View on Model
59A
Bracket, vent tube
Bracket, vent tube WCI 318261600 Contact Us For Availability
View on Model
70
Shield, insulation, sides, (2)
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
View on Model
71
Panel, rear box
Panel, rear box WCI 318260007 Contact Us For Availability
View on Model
76
Front, oven
Front, oven WCI 318056292 Contact Us For Availability
View on Model
80
Plate, oven mtg
Plate, oven mtg WCI 5303320846 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
82
Shield, insulation, lower
Shield, insulation, lower WCI 318258707 Contact Us For Availability
View on Model
83
Liner, oven assy
Liner, oven assy WCI 318261402 Contact Us For Availability
View on Model
84#
Outlet-electrical, miniature, black-glossy
Outlet-electrical, miniature, black-glossy WCI 318146833 No Longer Available
View on Model
87
Bracket, cable mtg.
Bracket, cable mtg. WCI 318260600 Contact Us For Availability
View on Model
90
Trim, oven front, black, bottom
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
View on Model
90
Trim, oven front, white, bottom
Trim, oven front, white, bottom WCI 318259700 Contact Us For Availability
View on Model
108A
Bracket, fan support
Bracket, fan support WCI 318251300 Contact Us For Availability
View on Model
112#
Relay
Relay WCI 318112703 Contact Us For Availability
View on Model
131
Box, vent
Box, vent WCI 318272901 Contact Us For Availability
View on Model
142
Deflector
Deflector WCI 318123910 Contact Us For Availability
View on Model
143
Support, wire
Support, wire WCI 318172904 Contact Us For Availability
View on Model
163
Spacer, (4)
Spacer, (4) WCI 318531703 Contact Us For Availability
View on Model
264
Trim, oven, black, front
Trim, oven, black, front WCI 318257701 Contact Us For Availability
View on Model
400
Trim Assembly, microwave, 30", white
Trim Assembly, microwave, 30", white WCI 318275701 Contact Us For Availability
View on Model
400
Trim Assembly, microwave, 30", black
Trim Assembly, microwave, 30", black WCI 318275700 Contact Us For Availability
View on Model
401
Plate, support, microwave, 27"
Plate, support, microwave, 27" WCI 318297207 Contact Us For Availability
View on Model
402
Bracket, base pad, RH
Bracket, base pad, RH WCI 318276202 Contact Us For Availability
View on Model
403
Bracket, base pad, LH
Bracket, base pad, LH WCI 318276203 Contact Us For Availability
View on Model
406
Shield, microwave rear
Shield, microwave rear WCI 318277201 Contact Us For Availability
View on Model
409
Bracket, top trim
Bracket, top trim WCI 318295301 Contact Us For Availability
View on Model
410
Flue, black
Flue, black WCI 318297111 Contact Us For Availability
