Model Kenmore 790.47833407 OVEN – Common Parts & Diagrams

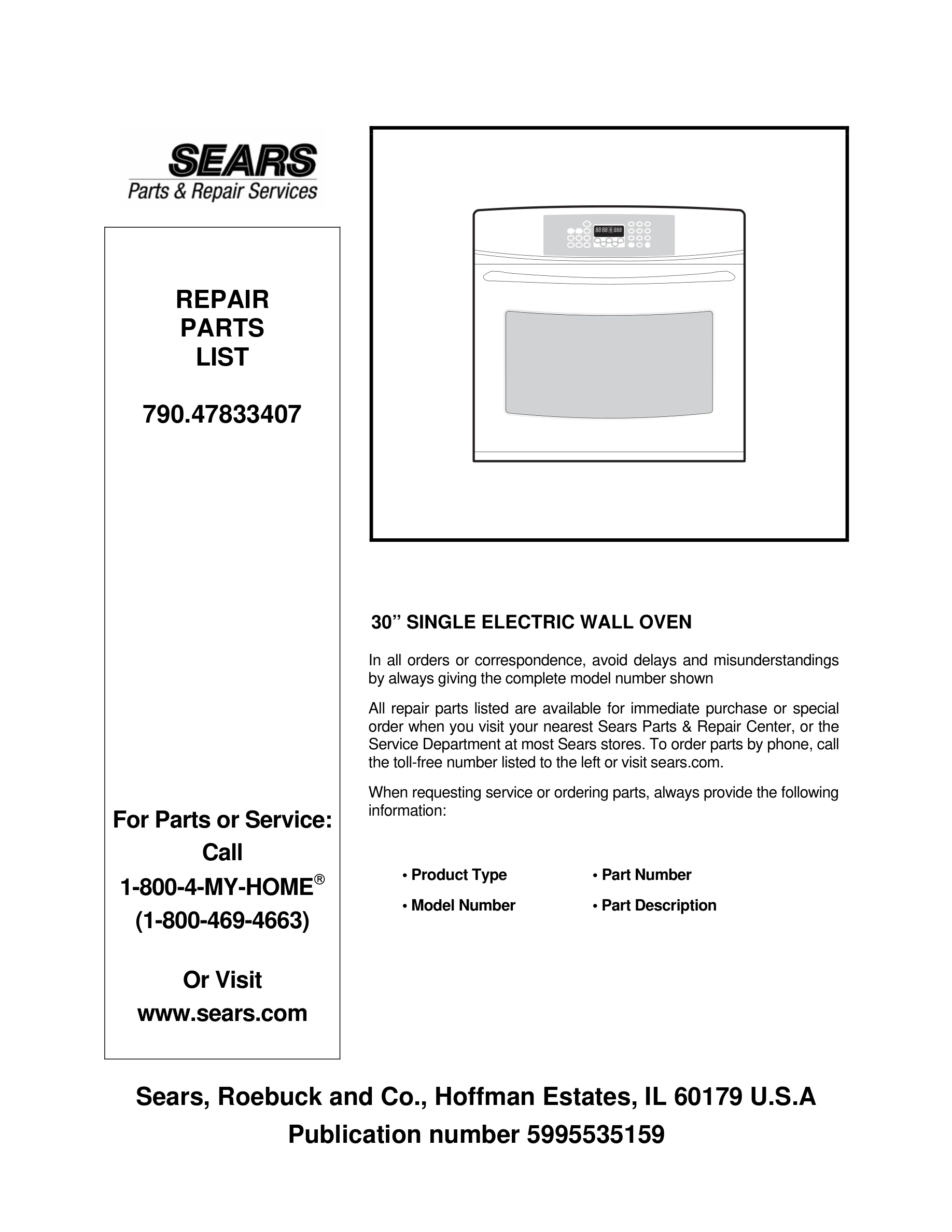

01 - COVER

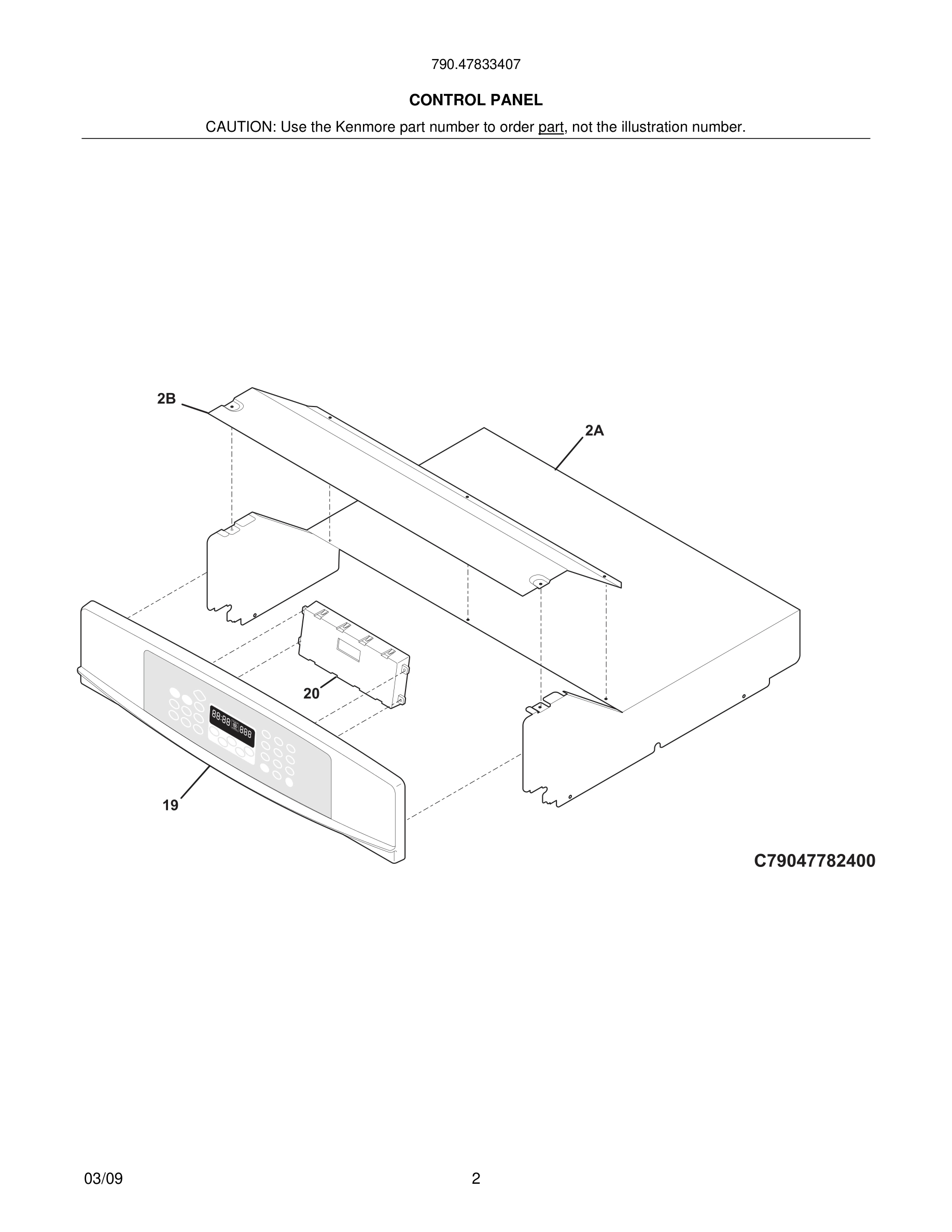

03 - CONTROL PANEL

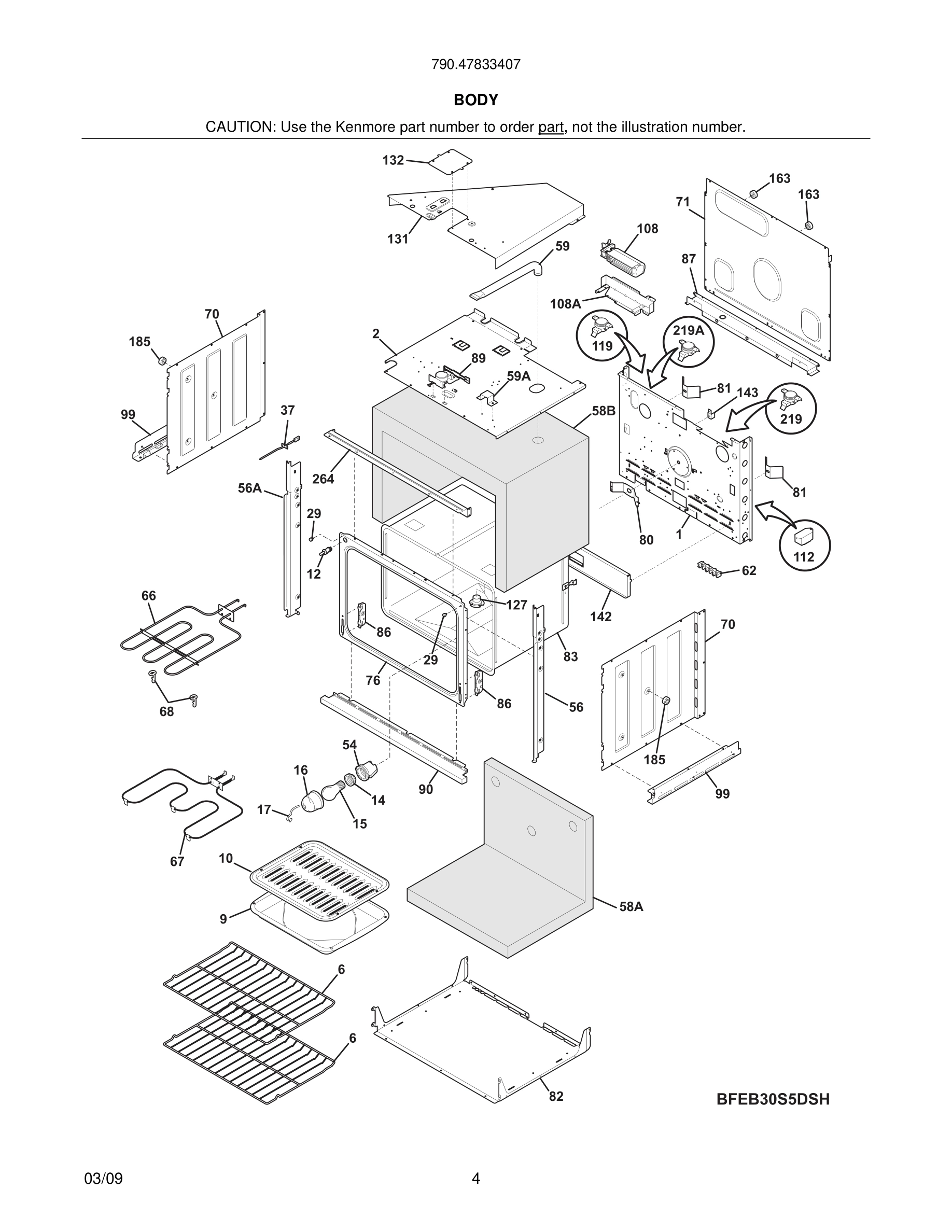

05 - BODY

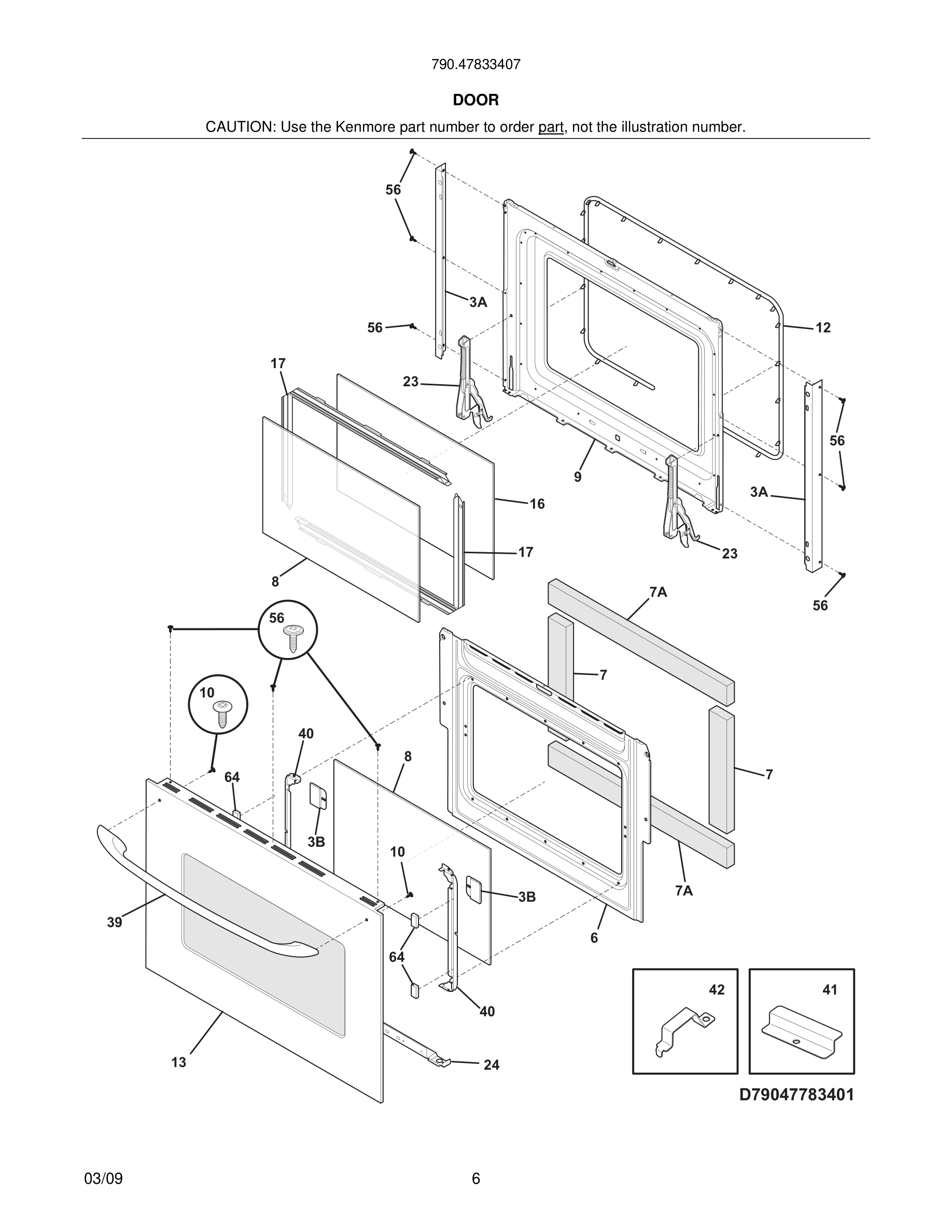

07 - DOOR

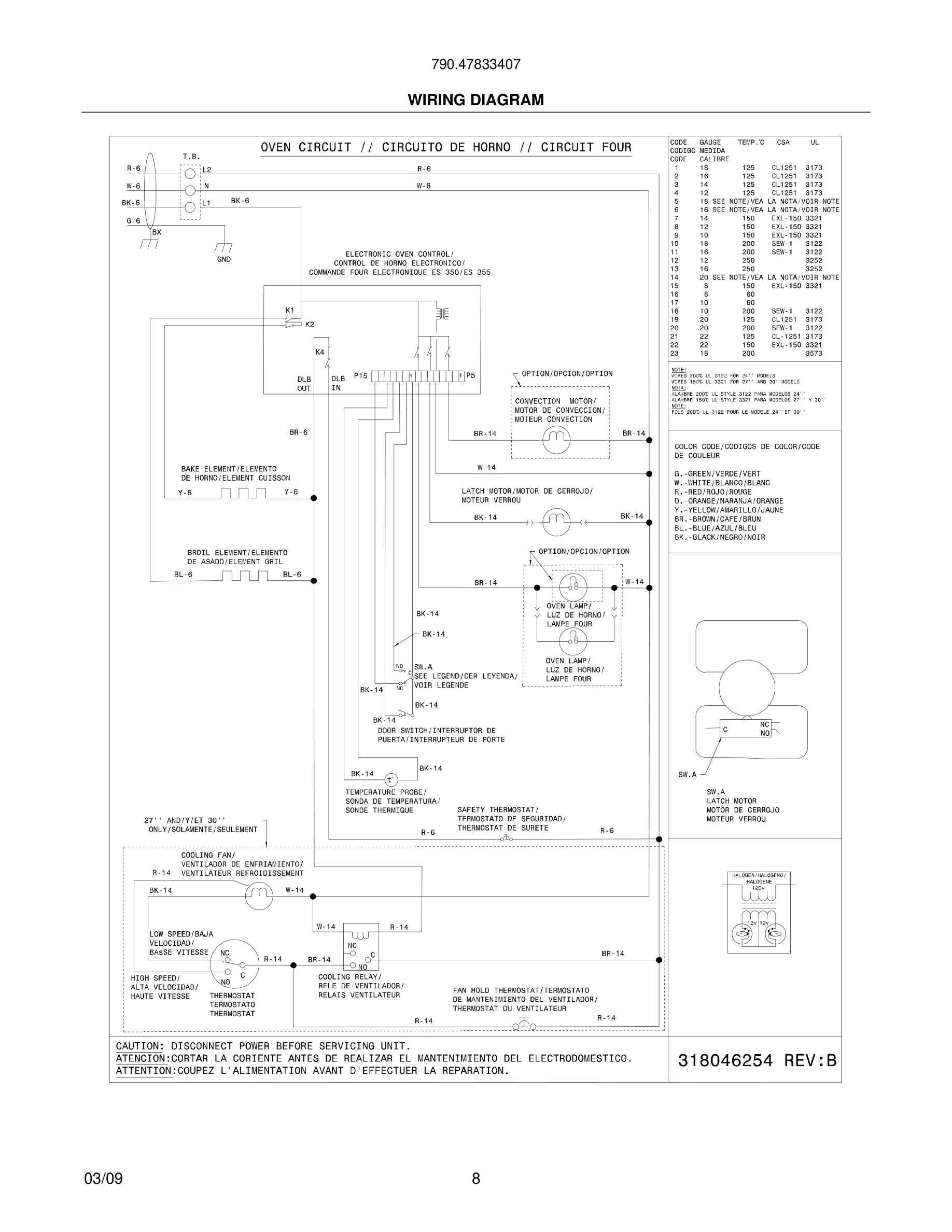

08 - WIRING DIAGRAM
Common parts from model Kenmore 790.47833407 OVEN
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
2B
Cover, box WCI 318260100 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Baffle, door WCI 318260522 Contact Us For Availability
9
Liner, oven door WCI 318360108 Contact Us For Availability
10
Screw, handle mtg, 10-14 x 1/2, (2) WCI 5304452028 Contact Us For Availability
12
Seal, oven door WCI 318053121 Contact Us For Availability
13
Door Assy, glass, stainless steel, outer WCI 318272190 Contact Us For Availability
16
Glass, oven door, heat barrier, lower door WCI 318212210 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
19
Control Panel Assy., glass, black, w/membrane WCI 318275002 Contact Us For Availability
20#
Clock/Timer, electronic, ES355W2 WCI 316418576 Contact Us For Availability
23
Hinge, oven door, (2) WCI 318567100 Contact Us For Availability
24
Trim, door, black, lower WCI 318260301 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112703 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer, (4) WCI 318531703 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
× ![]()
