Model Kenmore 790.47833406 OVEN – Common Parts & Diagrams

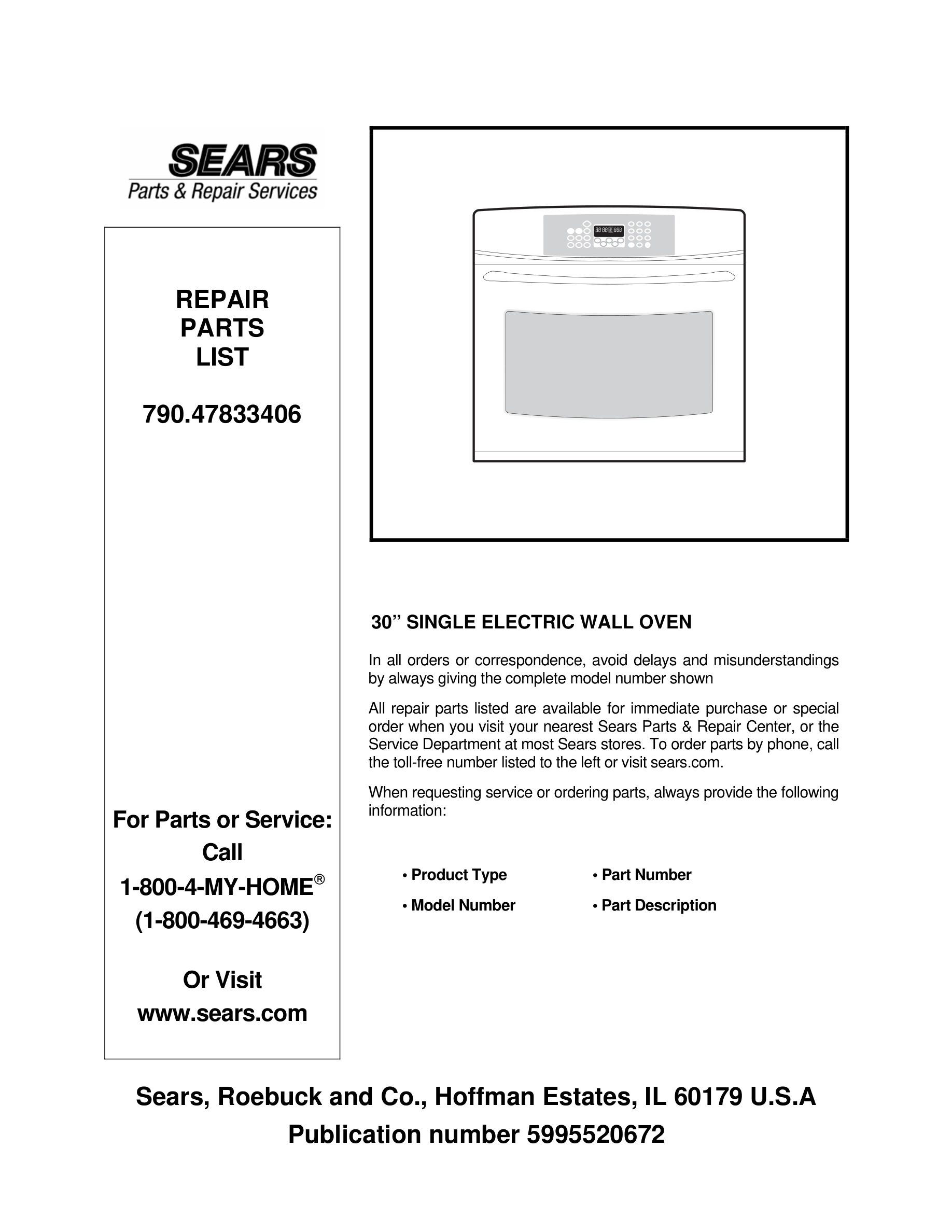

01 - COVER

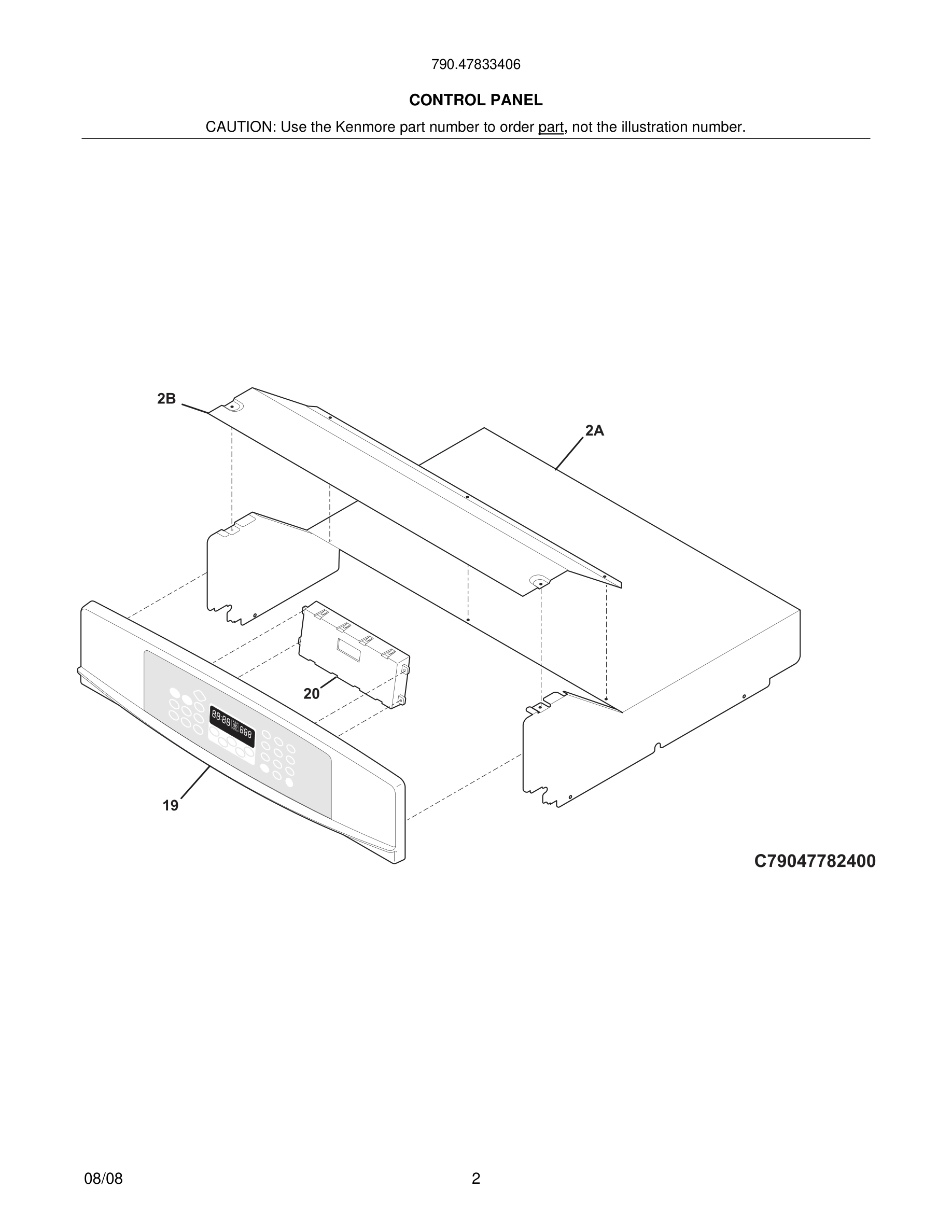

03 - CONTROL PANEL

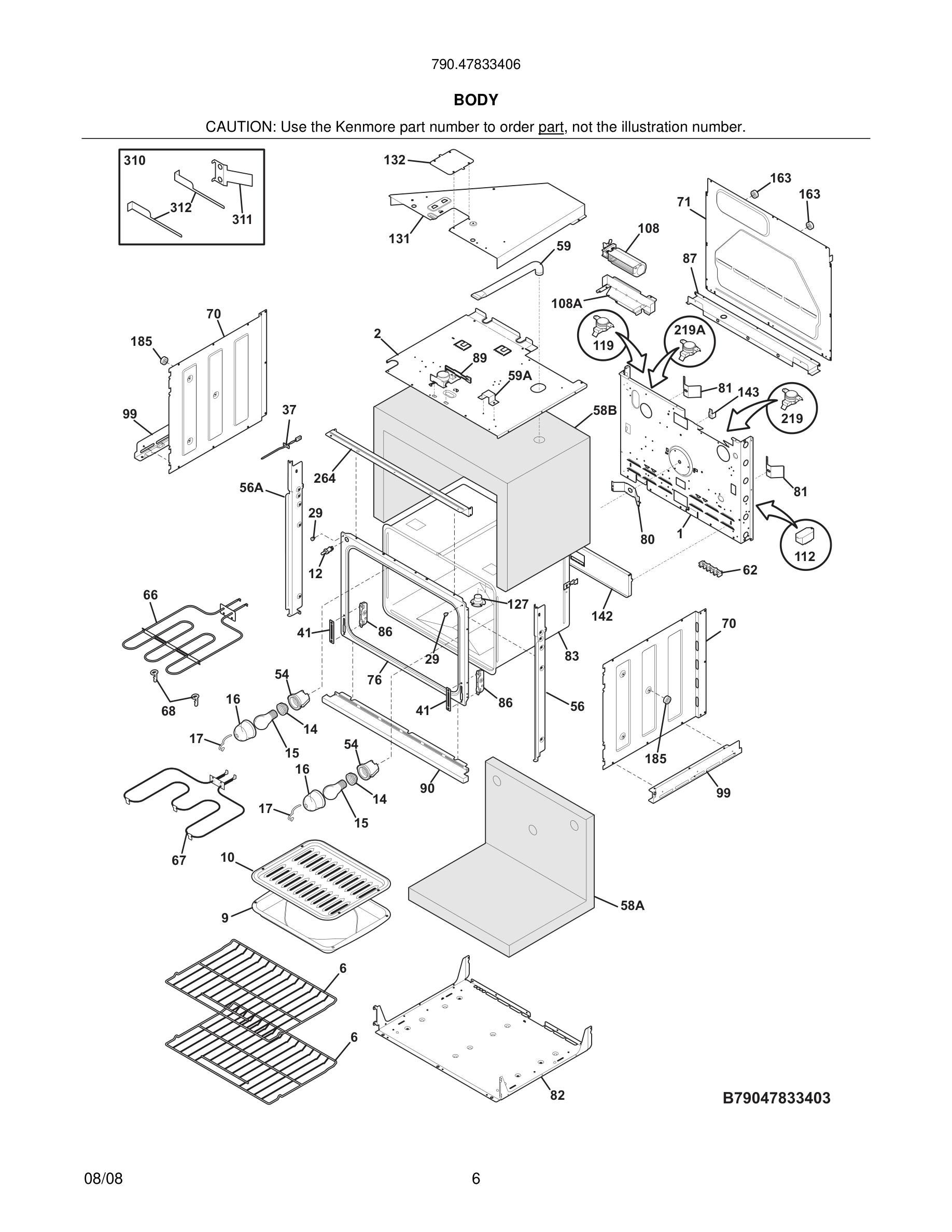

05 - BODY
07 - BODY

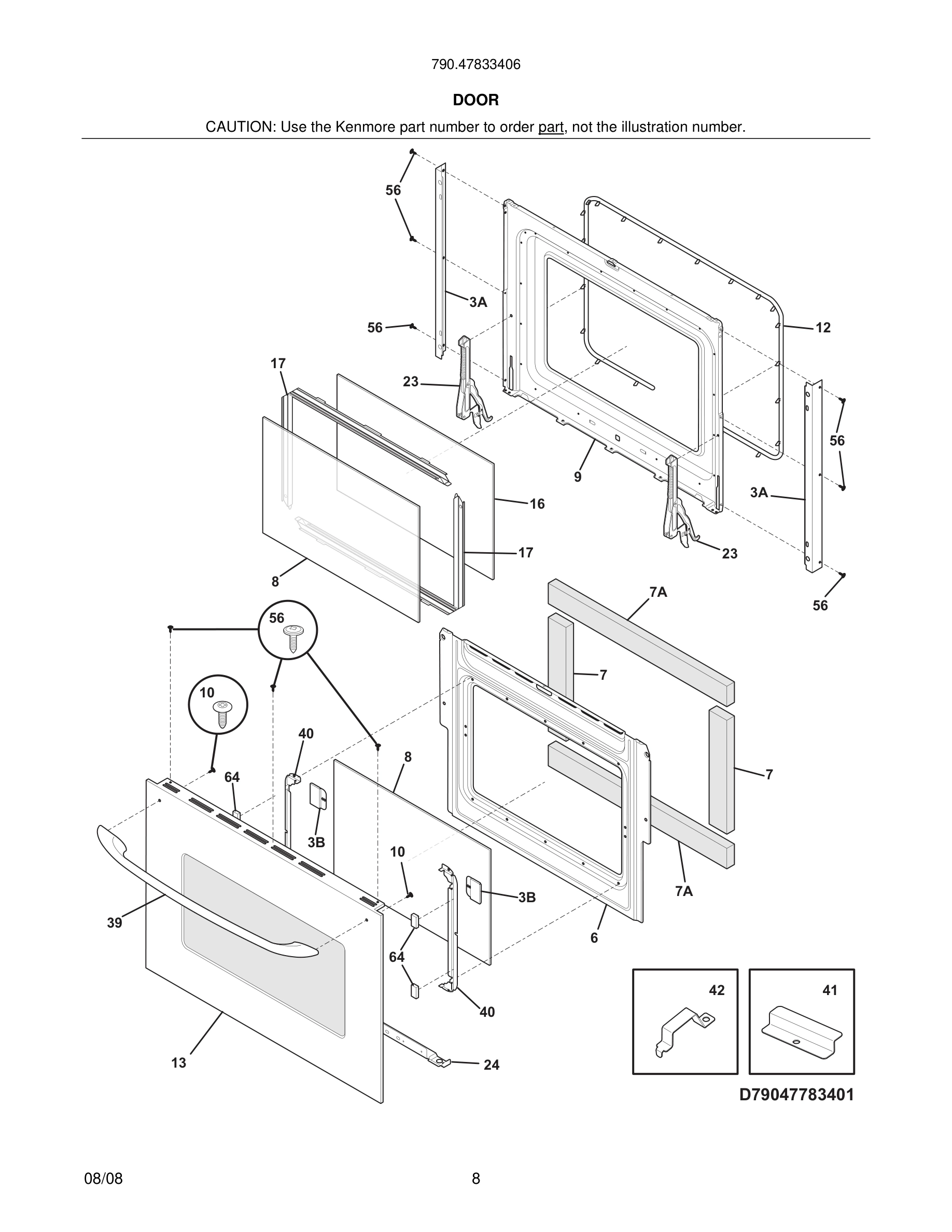

09 - DOOR

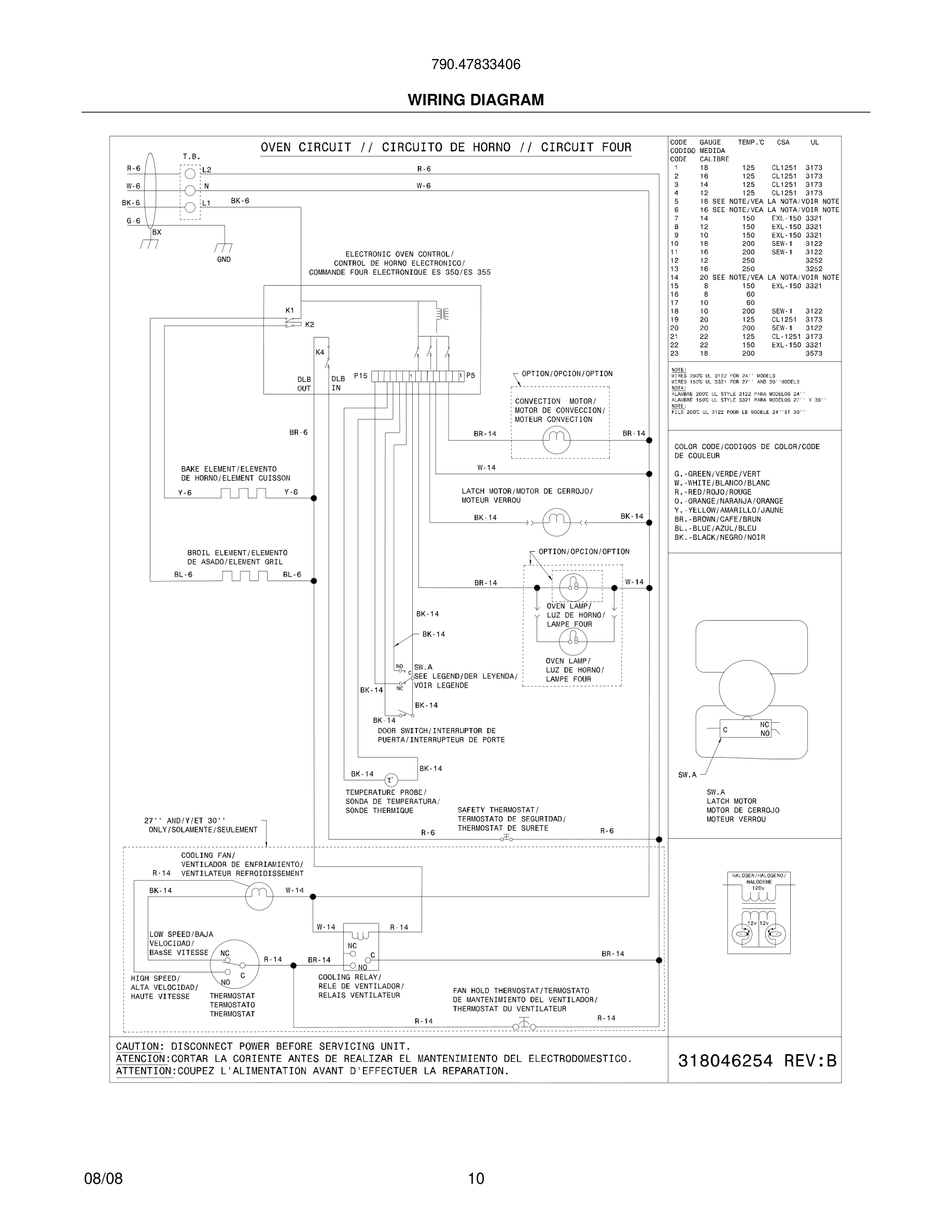

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.47833406 OVEN
2B
Cover, box WCI 318260100 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Baffle, door WCI 318260522 Contact Us For Availability
9
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
9
Liner, door WCI 318259605 Contact Us For Availability
10
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10
Screw, handle mtg, 10-14 x 1/2, (2) WCI 5304452028 Contact Us For Availability
13
Door Assy, glass, stainless steel, outer WCI 318272190 Contact Us For Availability
16
Glass, oven door, heat barrier WCI 318212210 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
19
Control Panel Assy., glass, black, w/membrane WCI 318275002 Contact Us For Availability
20#
Clock/Timer, electronic, ES355W2 WCI 316418576 Contact Us For Availability
23
Hinge, door, (2) WCI 318024715 Contact Us For Availability
24
Trim, door, black, lower WCI 318260301 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
86
Receptacle, hinge WCI 318342400 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112703 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
