Model Kenmore 790.47833402 OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL

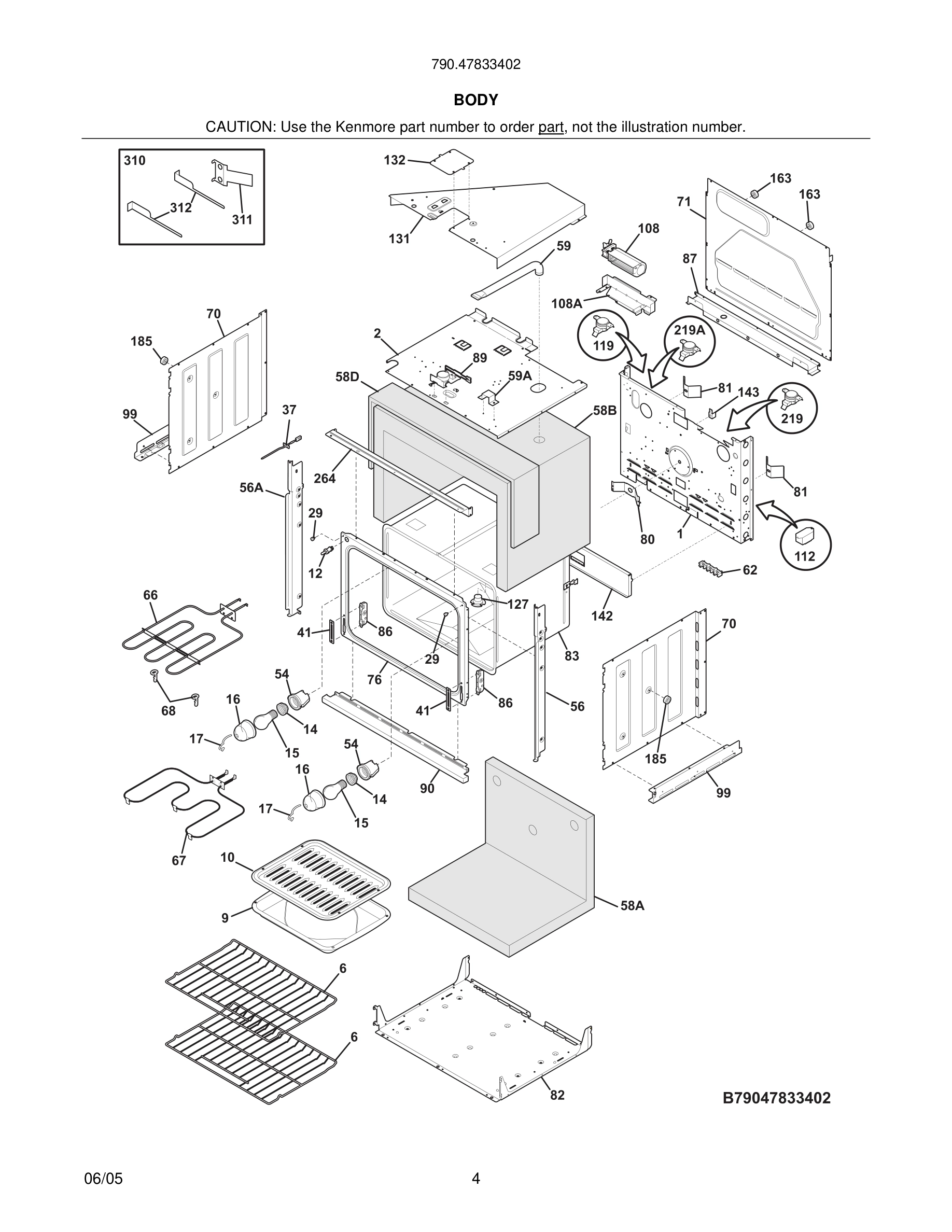

05 - BODY
07 - BODY

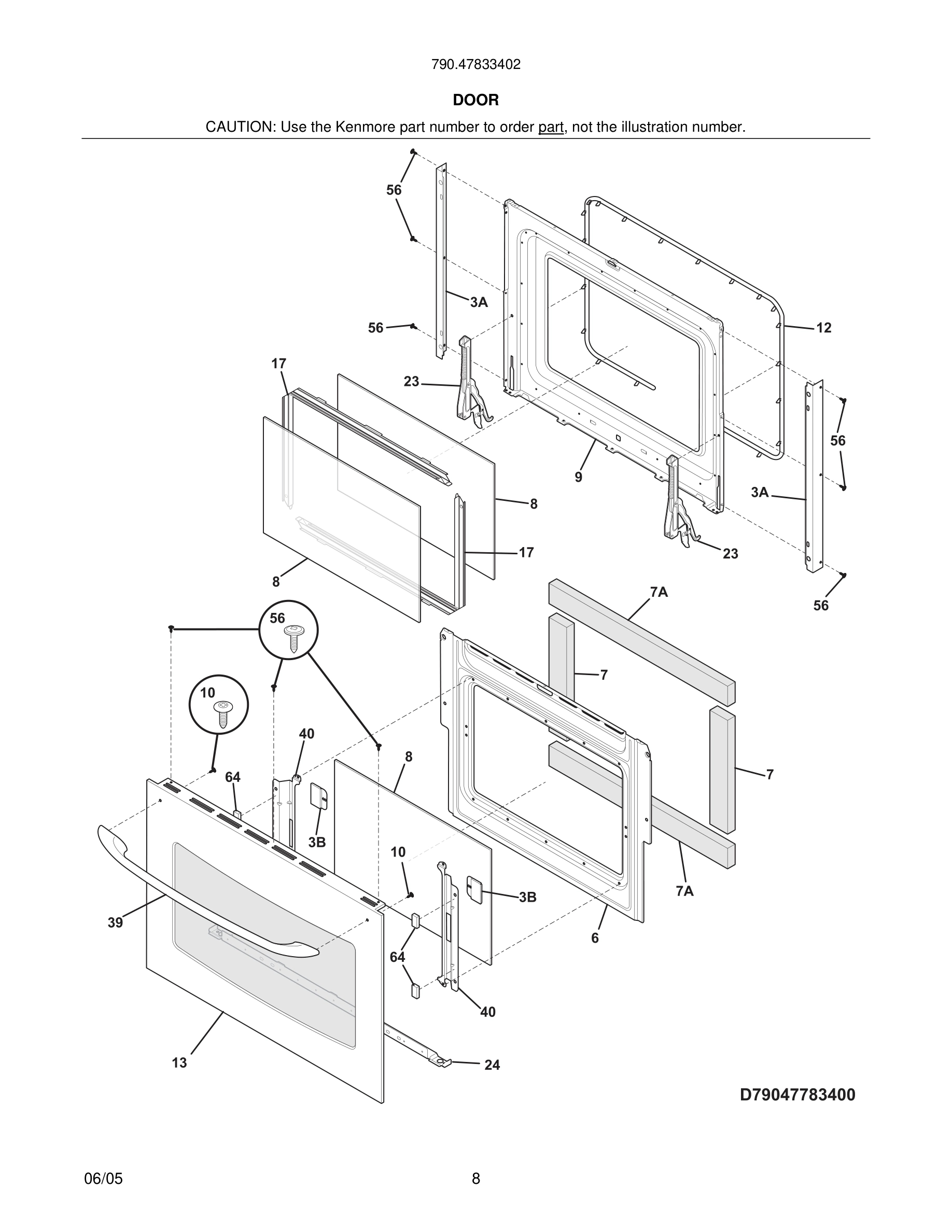

09 - DOOR

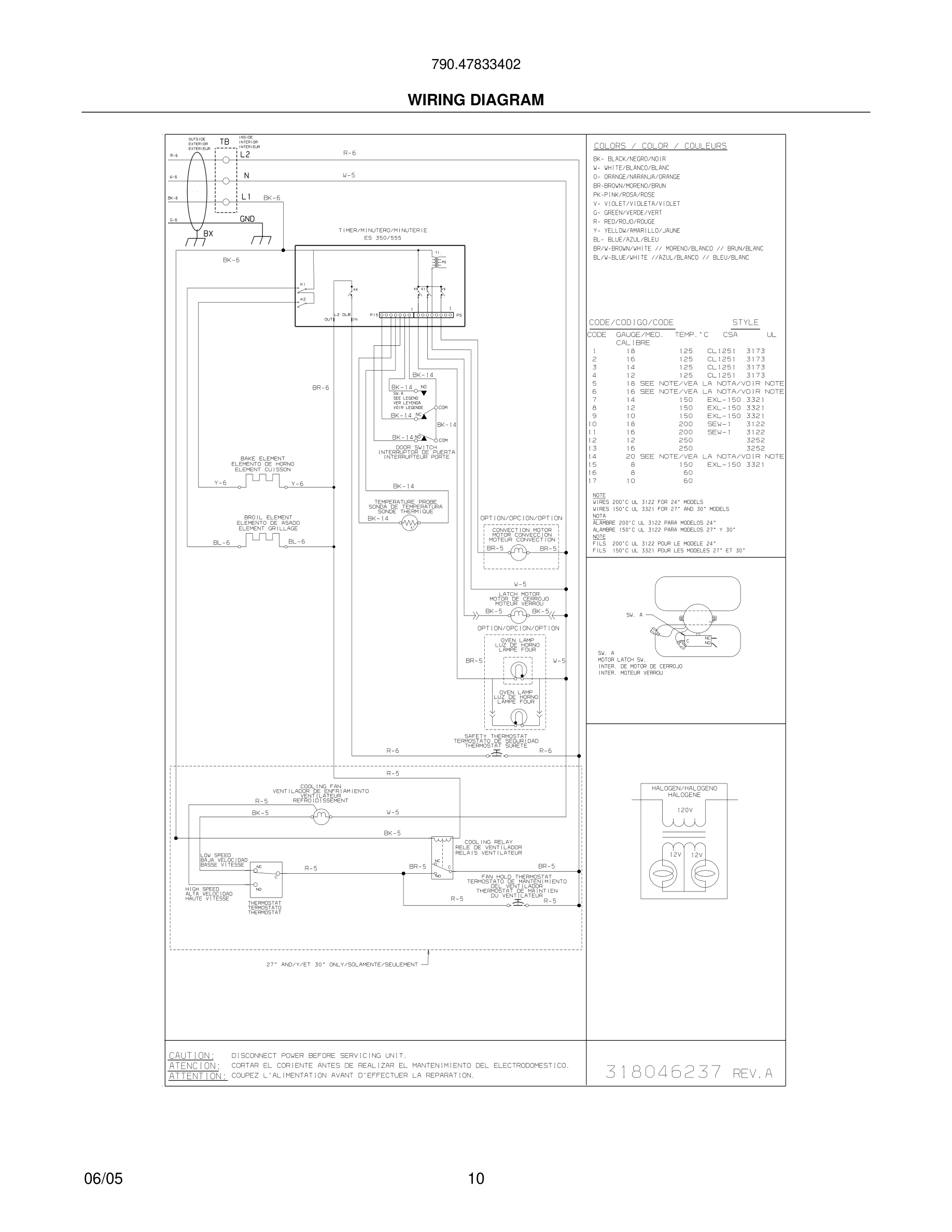

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.47833402 OVEN
*
Harness, wiring, main WCI 318231735 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
2B
Cover, box WCI 318260100 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Baffle, door WCI 318260500 Contact Us For Availability
9
Liner, oven door WCI 318259605 Contact Us For Availability
13
Door Assy, glass, stainless steel, outer WCI 318272154 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
19
Control Panel Assy., glass, black, w/membrane WCI 318275002 Contact Us For Availability
23
Hinge, oven door WCI 318024714 Contact Us For Availability
24
Trim, door, black, lower WCI 318260301 Contact Us For Availability
39
Handle, door, black WCI 316209701 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112701 Contact Us For Availability
131
Box, vent WCI 318272900 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire/glass WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
