Model Electrolux 790.47784400 Electric Oven (Kenmore 79047784400) – Common Parts & Diagrams

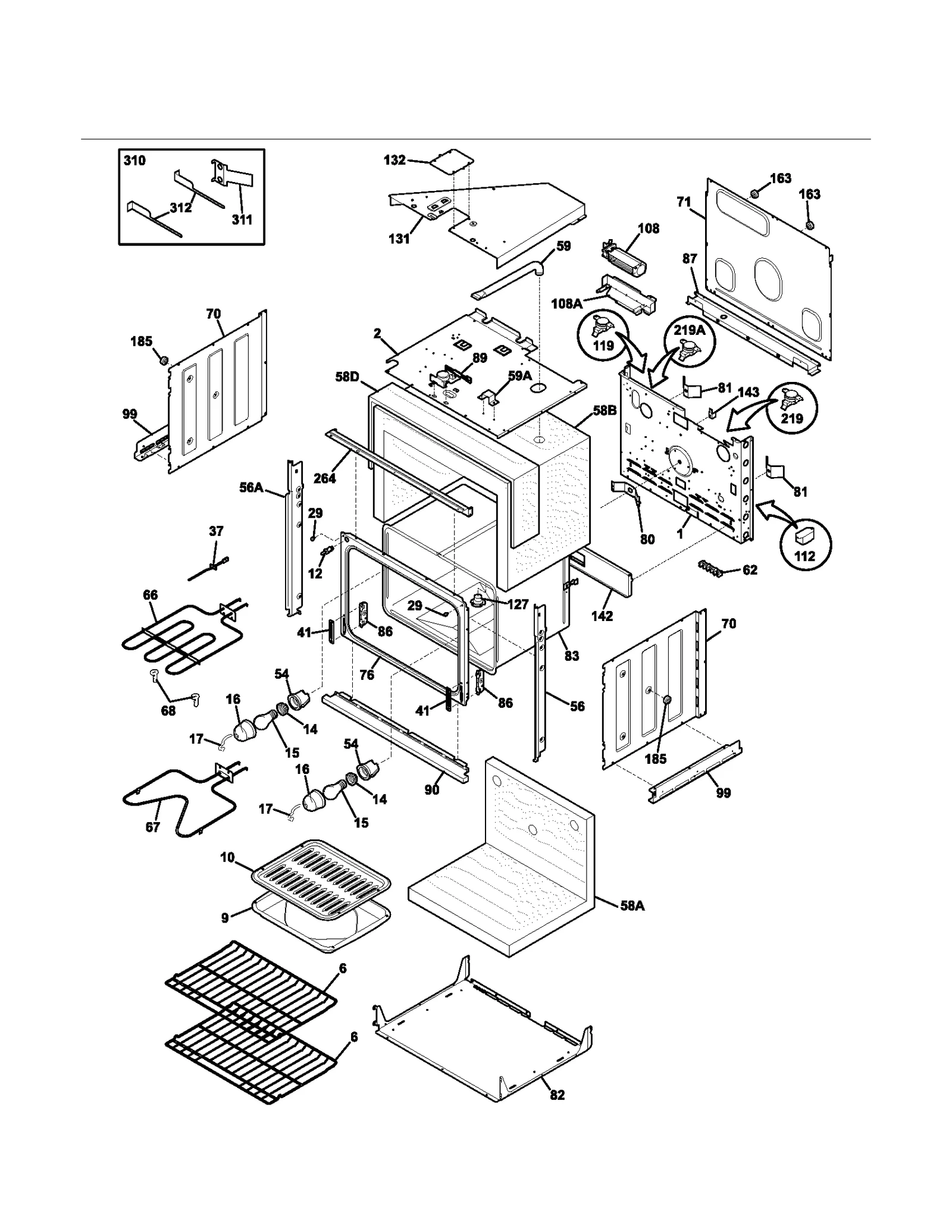

BODY

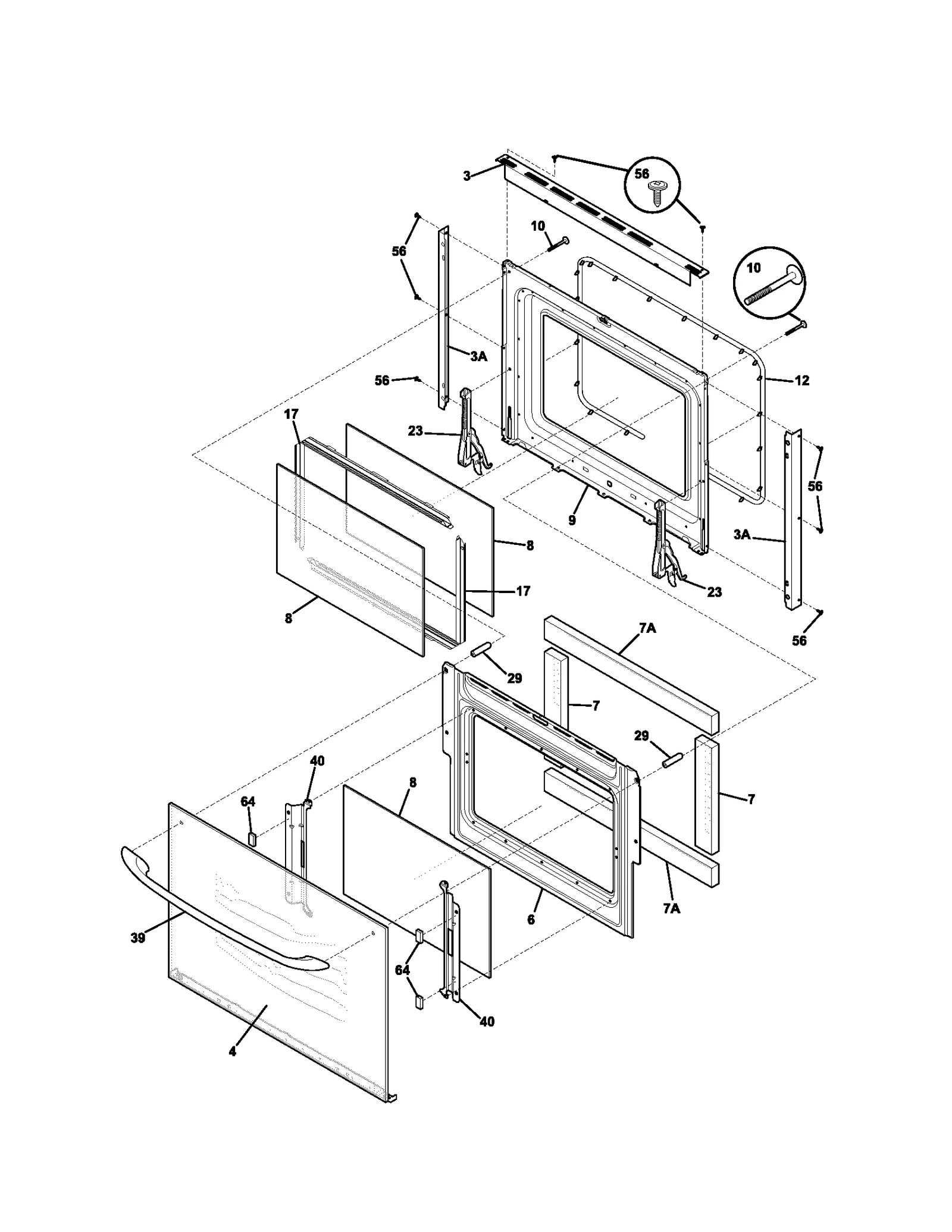

DOOR
CONTROL PANEL
Common parts from model Electrolux 790.47784400 Electric Oven (Kenmore 79047784400)
2A
Wall Oven Control Panel Cover WCI 318257301 Contact Us For Availability
2B
Oven Cover WCI 318260101 Contact Us For Availability
3
Wall Oven Door Vent Trim (Black) WCI 318260211 Contact Us For Availability
3A
Range Oven Door Trim WCI 318260401 Contact Us For Availability
4
Wall Oven Door Outer Panel Assembly (Black) WCI 318261355 Contact Us For Availability
4
Wall Oven Door Outer Panel Assembly (White) WCI 318261353 Contact Us For Availability
4
Glass Assembly WCI 318261354 Contact Us For Availability
6
Baffle WCI 318260510 Contact Us For Availability
8
Wall Oven Door Inner Glass WCI 318212200 Contact Us For Availability
9
Oven Liner WCI 318259611 Contact Us For Availability
12
Seal WCI 318053125 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Wall Oven Door Glass Retainer WCI 318264700 Contact Us For Availability
19
Range Control Panel WCI 318274802 Contact Us For Availability
19
Control Panel WCI 318274803 Contact Us For Availability
19
Wall Oven Control Panel WCI 318274804 Contact Us For Availability
23
Hinge WCI 318024722 Contact Us For Availability
29
Spacer WCI 318014402 Contact Us For Availability
39
Handle WCI 318264400 Contact Us For Availability
39
Wall Oven Door Handle (White) WCI 318264401 Contact Us For Availability
39
Handle WCI 318264402 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
90
Wall Oven Base Trim WCI 318259711 Contact Us For Availability
90
Wall Oven Vent, Lower (White) WCI 318259710 Contact Us For Availability
108
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
112
Range Cooling Fan Relay WCI 318112701 Contact Us For Availability
219
Wall Oven Safety Thermostat WCI 318003606 Contact Us For Availability
264
Wall Oven Vent Trim (Black) WCI 318257711 Contact Us For Availability
310
Wall Oven Mounting Kit WCI 5304440067 Contact Us For Availability
310
Cabinet Mounting Plate WCI 5304440068 Contact Us For Availability
311
Wall Oven Installation Bracket WCI 318246010 Contact Us For Availability
NI
Clip WCI 3015722 Contact Us For Availability
NI
Oven Harness WCI 318231719 Contact Us For Availability
NI
Range Wire Harness Retainer WCI 5304400192 Contact Us For Availability
NI
Service Data Sheet WCI 318046227 Contact Us For Availability
NI
Wall Oven Owner's Manual WCI 318200925 Contact Us For Availability
NI
Parts List WCI 5995411443 Contact Us For Availability
× ![]()
