Model Kenmore 790.47783406 OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL
05 - BODY

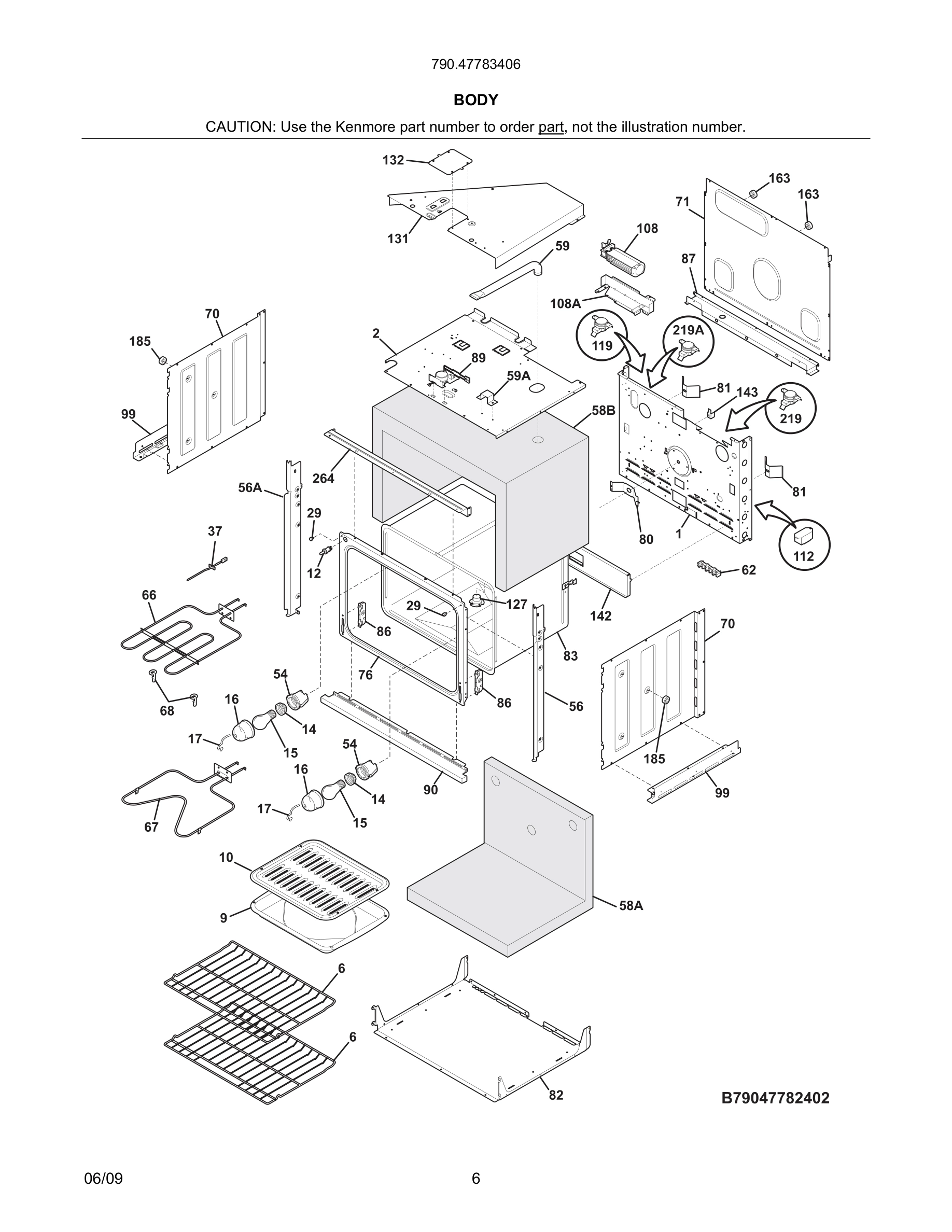

07 - BODY

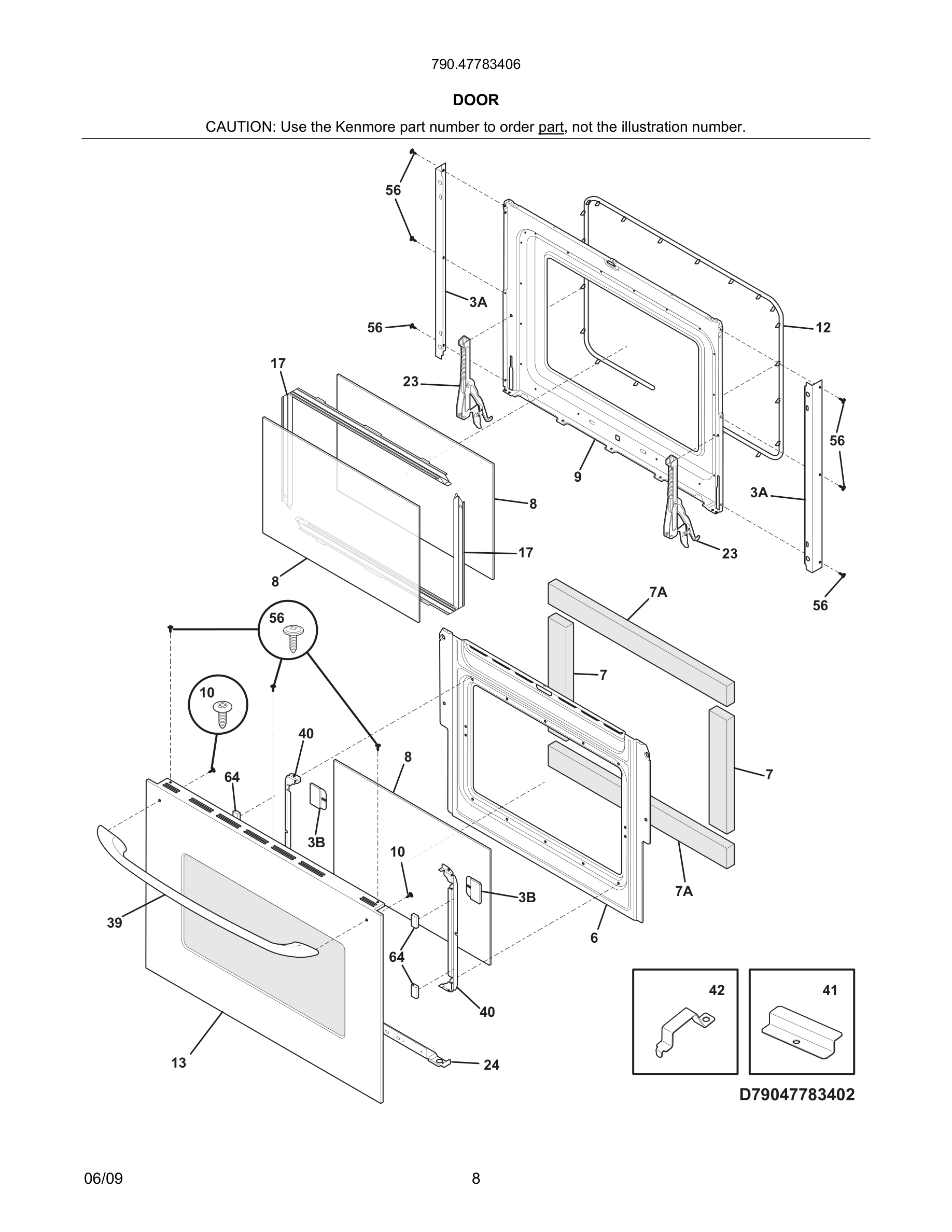

09 - DOOR

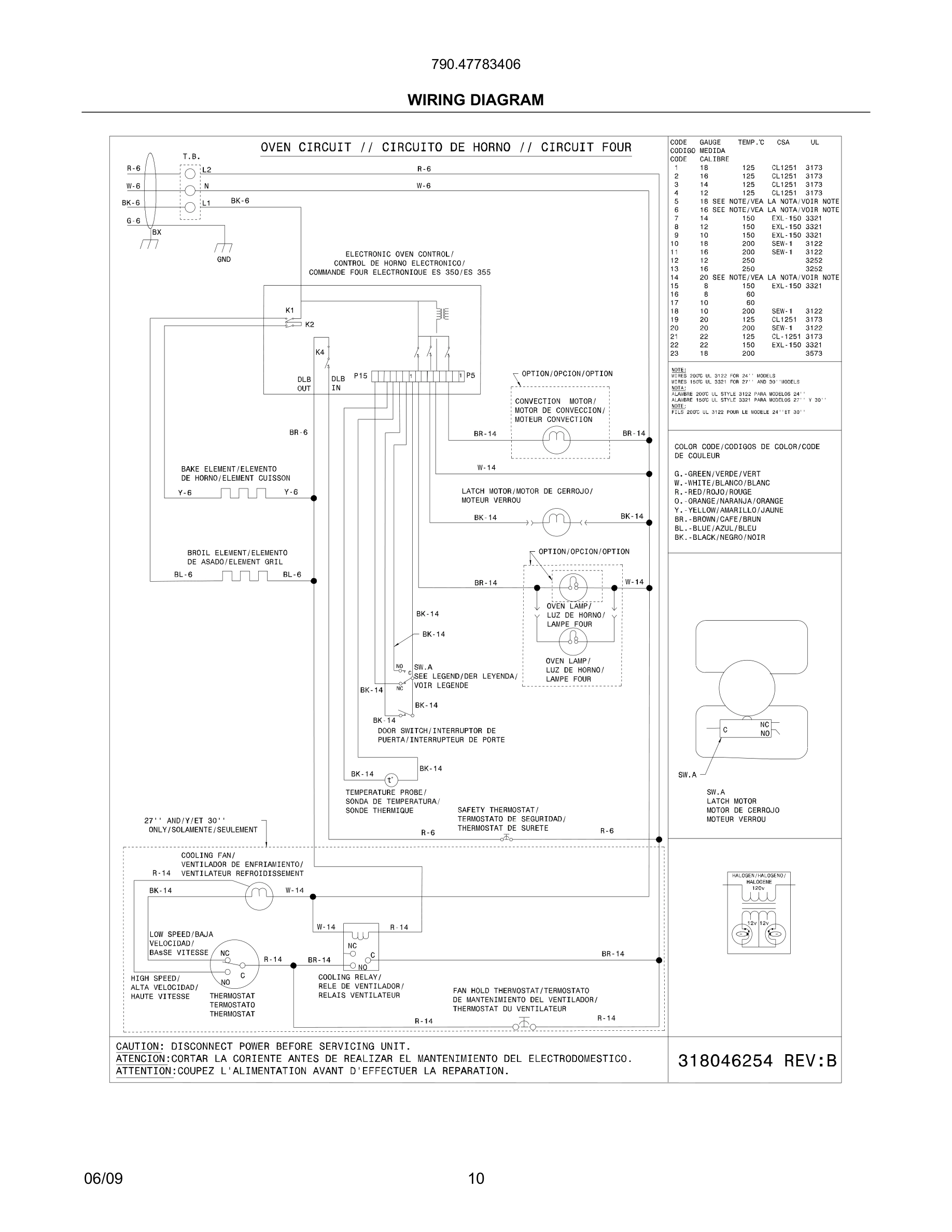

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.47783406 OVEN
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*#
Harness, wiring, main WCI 318231754 Contact Us For Availability
*#
Wiring Harness, power board, to triac, main WCI 318370375 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Baffle, door WCI 318260510 Contact Us For Availability
8
Glass, oven door, heat barrier WCI 318212200 Contact Us For Availability
9
Liner, upper door WCI 318259656 Contact Us For Availability
12
Gasket, oven door seal WCI 318053126 Contact Us For Availability
13
Door Assy, stainless steel, outer, w/tape & f WCI 318272123 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, (2) WCI 318264700 Contact Us For Availability
23
Hinge, oven door, (2) WCI 318567105 Contact Us For Availability
39
Handle, door, black, oven WCI 318264400 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259711 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112703 Contact Us For Availability
163
Spacer, (4) WCI 318531703 Contact Us For Availability
264
Trim, oven, black, front WCI 318257711 Contact Us For Availability
× ![]()
