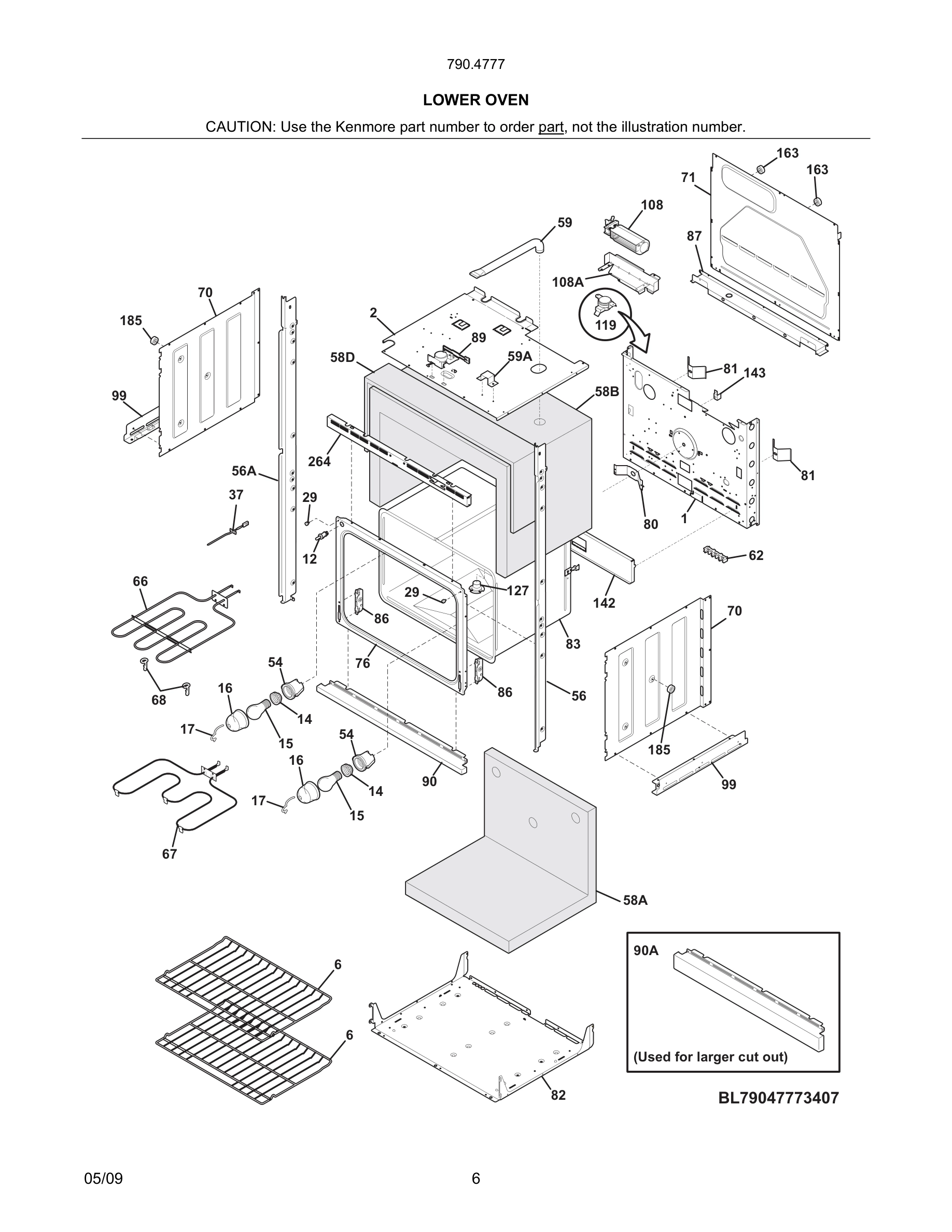

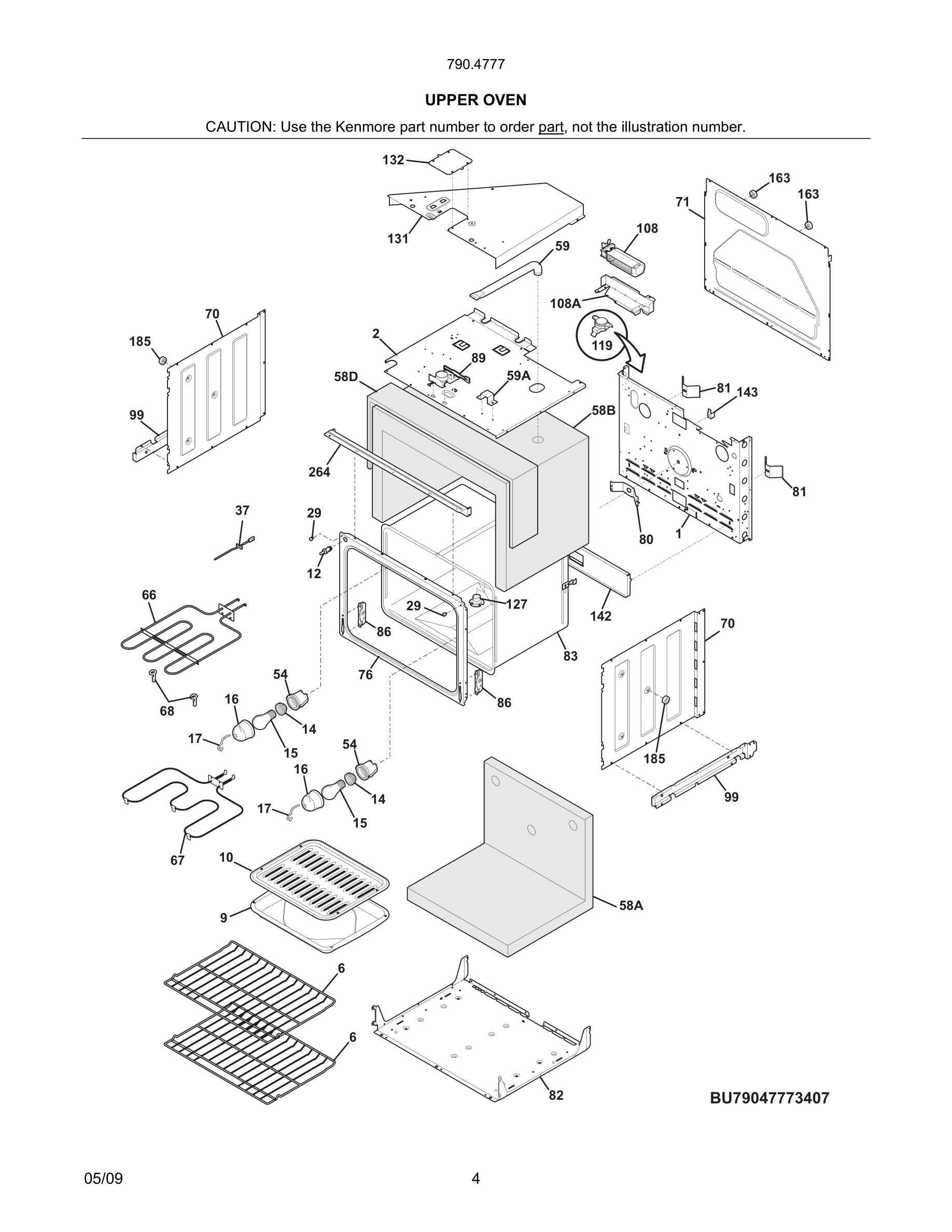

Model Kenmore 790.47772406 OVEN – Common Parts & Diagrams

*#

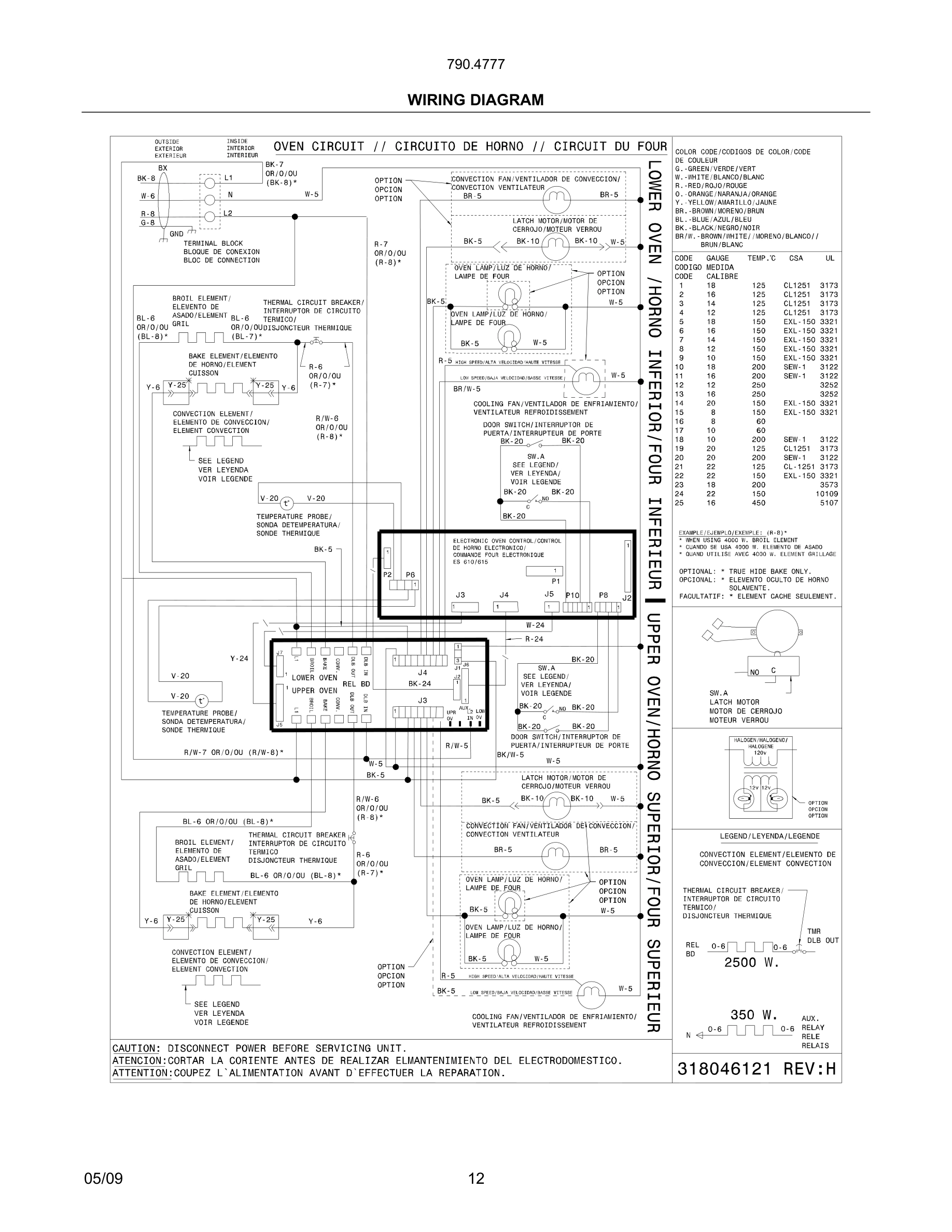

Wiring Harness, main
Wiring Harness, main WCI 318370302 Contact Us For Availability
View on Model
2B
Cover, box
Cover, box WCI 318260100 Contact Us For Availability
View on Model
3

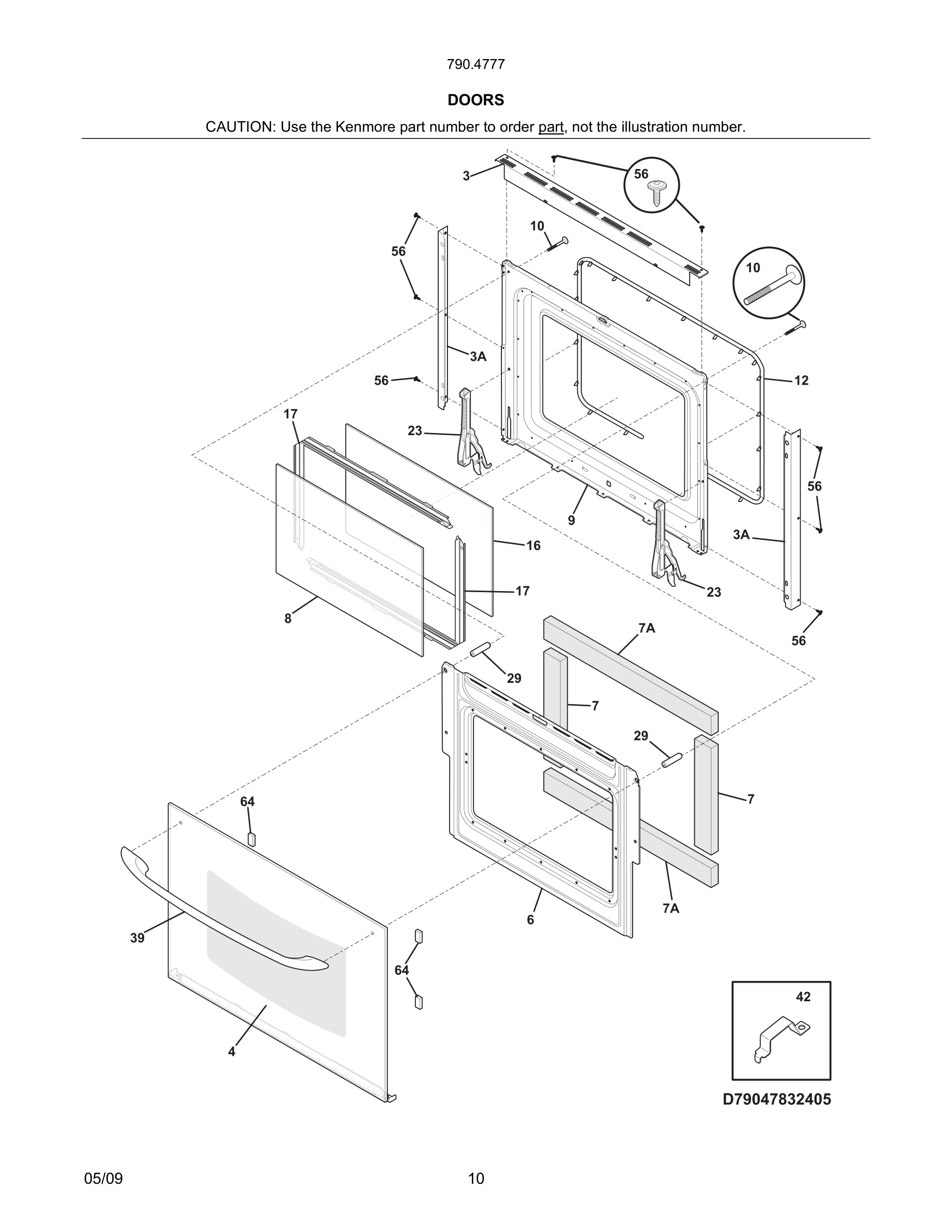

Trim, oven door, black, upper
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
4
Glass Assy., oven door, white, outer, w/trim
Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability
View on Model
4
Glass Assy., oven door, bisque, outer, w/trim
Glass Assy., oven door, bisque, outer, w/trim WCI 318261357 Contact Us For Availability
View on Model
6
Baffle, door
Baffle, door WCI 318260522 Contact Us For Availability
View on Model
9
Liner, oven door
Liner, oven door WCI 318360111 Contact Us For Availability
View on Model
12
Seal, oven door, upper
Seal, oven door, upper WCI 318053121 Contact Us For Availability
View on Model
16
Glass, oven door, heat barrier, lower door
Glass, oven door, heat barrier, lower door WCI 318212210 Contact Us For Availability
View on Model
17
Retainer, light cover
Retainer, light cover WCI 5304400195 Contact Us For Availability
View on Model
20#

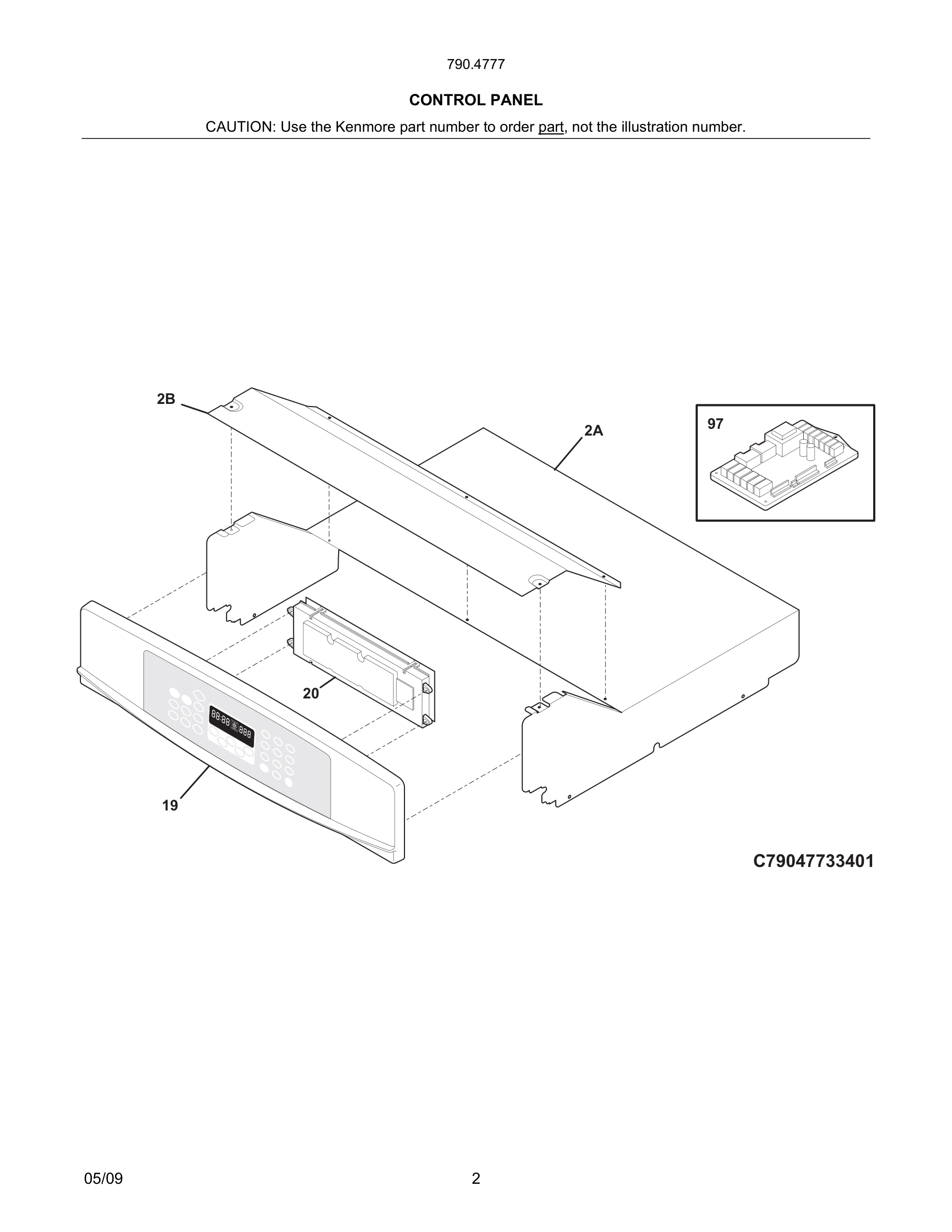

Control, electronic, ES615W2, dual oven
Control, electronic, ES615W2, dual oven WCI 316443819 Contact Us For Availability
View on Model
23
Hinge, oven door, (2)
Hinge, oven door, (2) WCI 318567101 Contact Us For Availability
View on Model
29
Spacer, door
Spacer, door WCI 318014405 Contact Us For Availability
View on Model
39
Handle, oven door, bisque
Handle, oven door, bisque WCI 316443602 Contact Us For Availability
View on Model
54
Housing, oven light
Housing, oven light WCI 318222400 Contact Us For Availability
View on Model
76
Front, oven
Front, oven WCI 318056292 Contact Us For Availability
View on Model
80
Plate, oven mtg
Plate, oven mtg WCI 5303320846 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
82
Shield, insulation, lower
Shield, insulation, lower WCI 318258707 Contact Us For Availability
View on Model
83
Liner, oven assy
Liner, oven assy WCI 318261402 Contact Us For Availability
View on Model
87
Bracket, cable mtg.
Bracket, cable mtg. WCI 318260600 Contact Us For Availability
View on Model
90
Trim, oven front, black, bottom
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
View on Model
90
Trim, oven front, white, bottom
Trim, oven front, white, bottom WCI 318259700 Contact Us For Availability
View on Model
90
Trim, oven front, bisque, bottom
Trim, oven front, bisque, bottom WCI 318259702 Contact Us For Availability
View on Model
90A
Trim, oven front, black, bottom
Trim, oven front, black, bottom WCI 318259704 Contact Us For Availability
View on Model
90A
Trim, oven front, white, bottom
Trim, oven front, white, bottom WCI 318259703 Contact Us For Availability
View on Model
90A
Trim, oven front, bisque, bottom
Trim, oven front, bisque, bottom WCI 318259705 Contact Us For Availability
View on Model
108A
Bracket, fan support
Bracket, fan support WCI 318251300 Contact Us For Availability
View on Model
142
Deflector
Deflector WCI 318123910 Contact Us For Availability
View on Model
143
Support, wire
Support, wire WCI 318172904 Contact Us For Availability
View on Model
163
Spacer, (4)
Spacer, (4) WCI 318531703 Contact Us For Availability
View on Model
264
Trim, oven, black, front
Trim, oven, black, front WCI 318257701 Contact Us For Availability
View on Model
264
Trim, oven, black, front
Trim, oven, black, front WCI 318257801 Contact Us For Availability
View on Model
