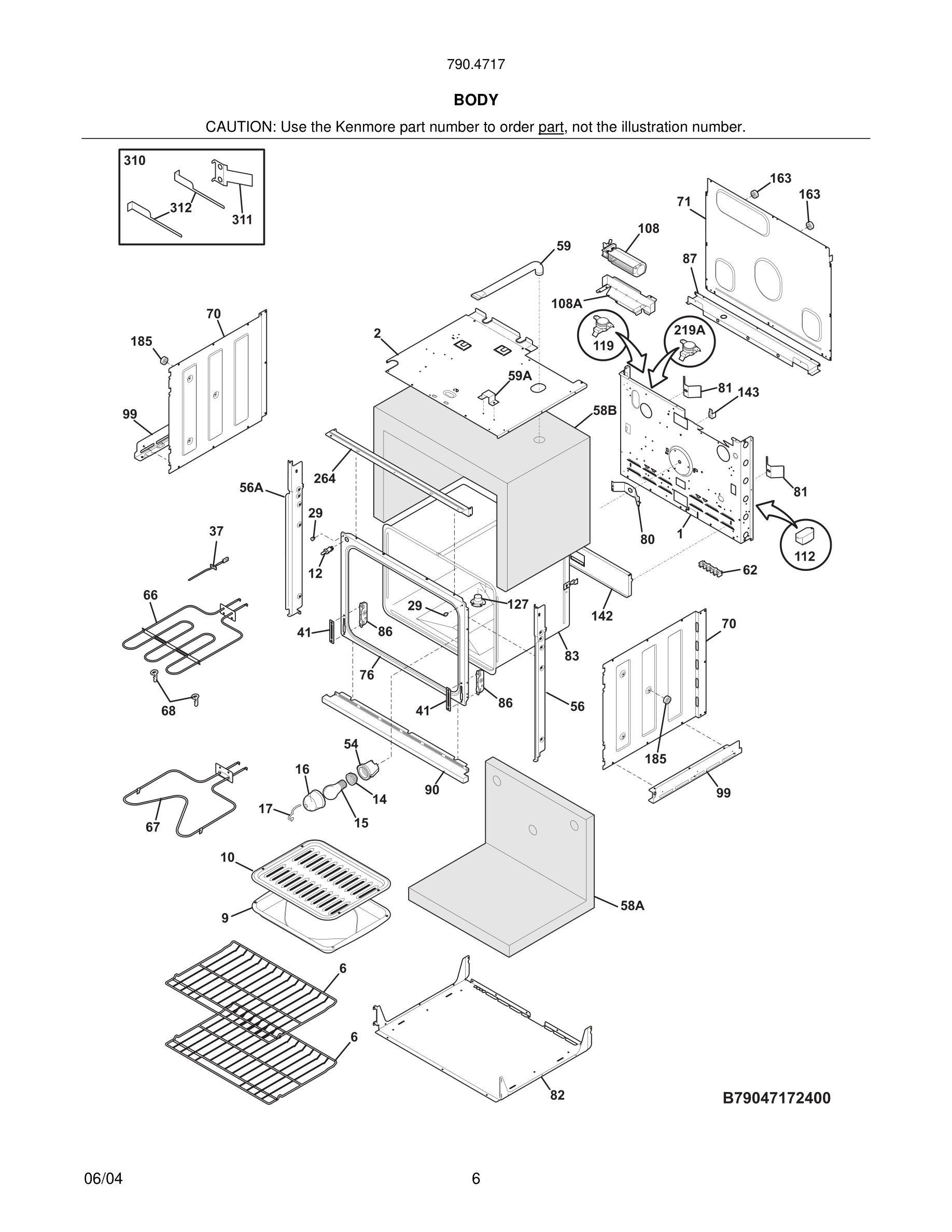

Model Kenmore 790.47172400 OVEN – Common Parts & Diagrams

*
retainer wire
retainer wire WCI 5304400192 Contact Us For Availability
View on Model
*

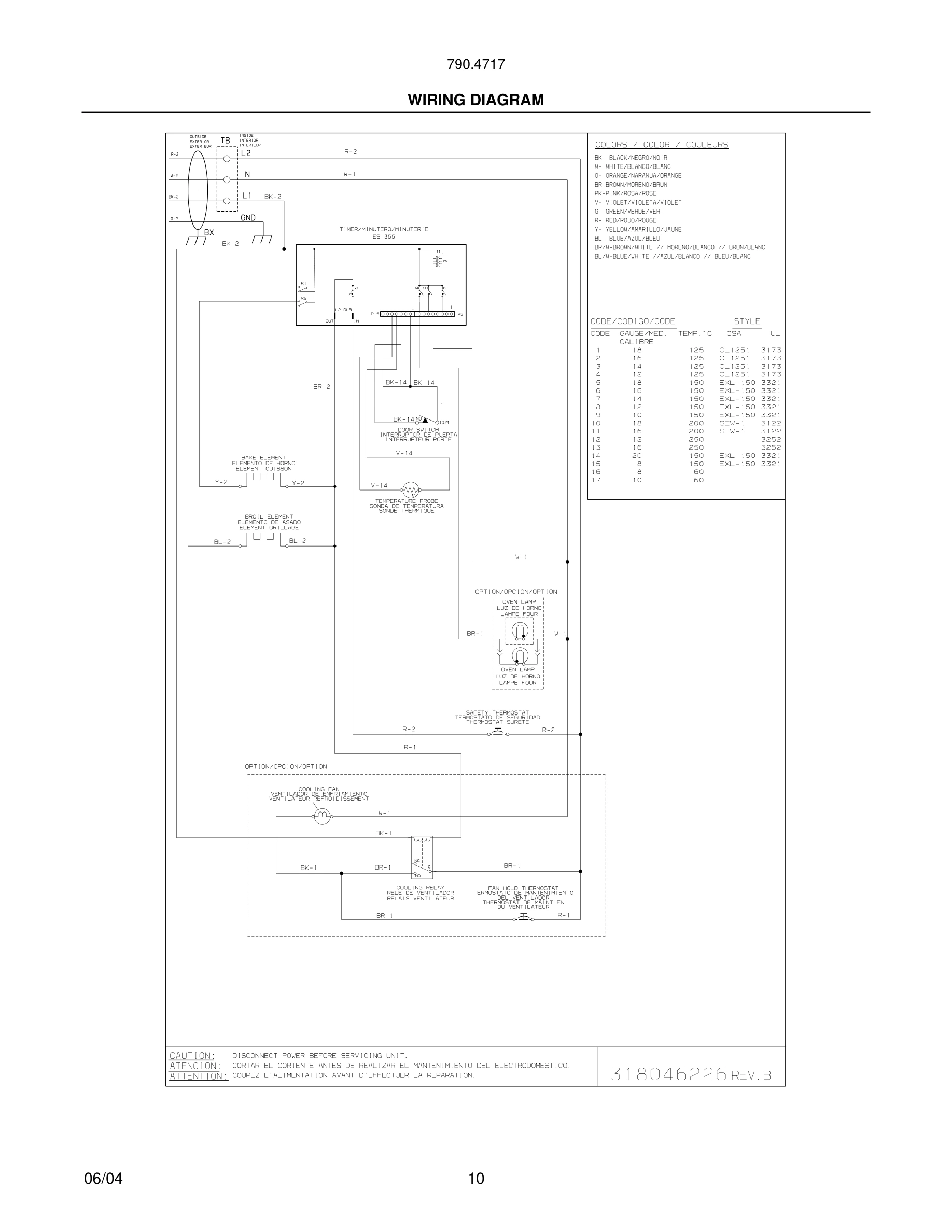

Harness, wiring, main
Harness, wiring, main WCI 318231720 Contact Us For Availability
View on Model
3

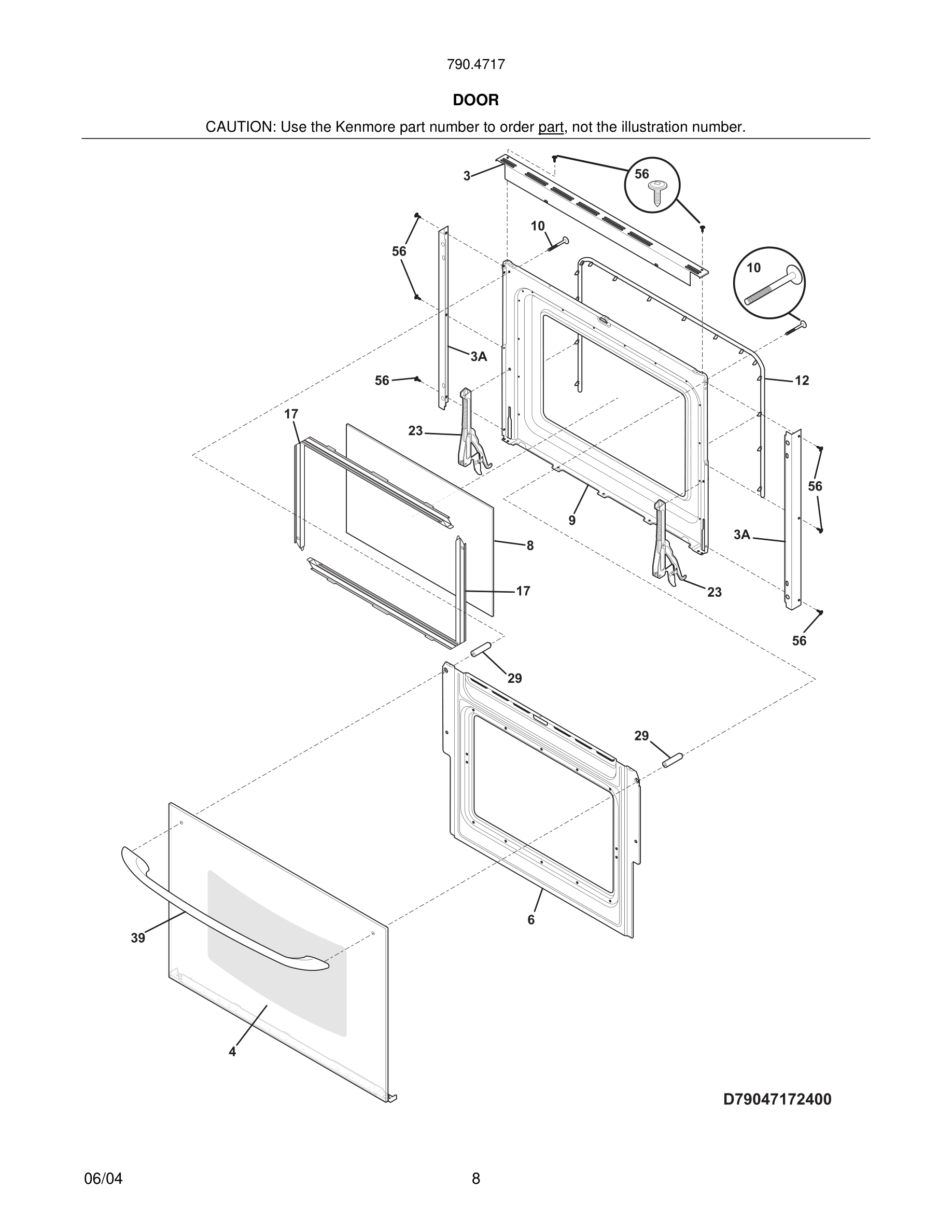

Trim, oven door, black, upper
Trim, oven door, black, upper WCI 318260211 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
4
Glass Assy., oven door, black, outer, w/ trim
Glass Assy., oven door, black, outer, w/ trim WCI 318261355 Contact Us For Availability
View on Model
4
Glass Assy., oven door, white, outer, w/ trim
Glass Assy., oven door, white, outer, w/ trim WCI 318261353 Contact Us For Availability
View on Model
6
Baffle, door
Baffle, door WCI 318260510 Contact Us For Availability
View on Model
8
Glass, oven door, heat barrier
Glass, oven door, heat barrier WCI 318212200 Contact Us For Availability
View on Model
9
Liner, oven door
Liner, oven door WCI 318259613 Contact Us For Availability
View on Model
12
Seal, lower door
Seal, lower door WCI 318053324 Contact Us For Availability
View on Model
17
Retainer, light cover
Retainer, light cover WCI 5304400195 Contact Us For Availability
View on Model
17
Spacer, glass, (2)
Spacer, glass, (2) WCI 318264700 Contact Us For Availability
View on Model
20#
Clock/Timer, electronic, ES355W1
Clock/Timer, electronic, ES355W1 WCI 316418555 Contact Us For Availability
View on Model
23
Hinge, lower door, (2)
Hinge, lower door, (2) WCI 318024723 Contact Us For Availability
View on Model
29
Spacer, door
Spacer, door WCI 318014402 Contact Us For Availability
View on Model
39
Handle, door, black, oven
Handle, door, black, oven WCI 318264400 Contact Us For Availability
View on Model
39
Handle, door, white, oven
Handle, door, white, oven WCI 318264401 Contact Us For Availability
View on Model
41
Cover, hinge cutout
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
View on Model
54
Housing, oven light
Housing, oven light WCI 318222400 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
87
Bracket, cable mtg.
Bracket, cable mtg. WCI 318260601 Contact Us For Availability
View on Model
90
Trim, oven front, black, bottom
Trim, oven front, black, bottom WCI 318259711 Contact Us For Availability
View on Model
90
Trim, oven front, white, bottom
Trim, oven front, white, bottom WCI 318259710 Contact Us For Availability
View on Model
108A
Bracket, fan support
Bracket, fan support WCI 318251300 Contact Us For Availability
View on Model
112#
Relay
Relay WCI 318112701 Contact Us For Availability
View on Model
127
Adapter, vent tube
Adapter, vent tube WCI 318230000 Contact Us For Availability
View on Model
142
Deflector
Deflector WCI 318123910 Contact Us For Availability
View on Model
143
Support, wire/glass
Support, wire/glass WCI 318172904 Contact Us For Availability
View on Model
163
Spacer
Spacer WCI 318014111 Contact Us For Availability
View on Model
264
Trim, oven, black, front
Trim, oven, black, front WCI 318257711 Contact Us For Availability
View on Model
310
Cabinet Mounting Kit
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
View on Model
310
Cabinet Mounting Kit
Cabinet Mounting Kit WCI 5304440068 Contact Us For Availability
View on Model
311
Bracket, cabinet mtg, (2)
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
View on Model
