Model Kenmore 790.47153401 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

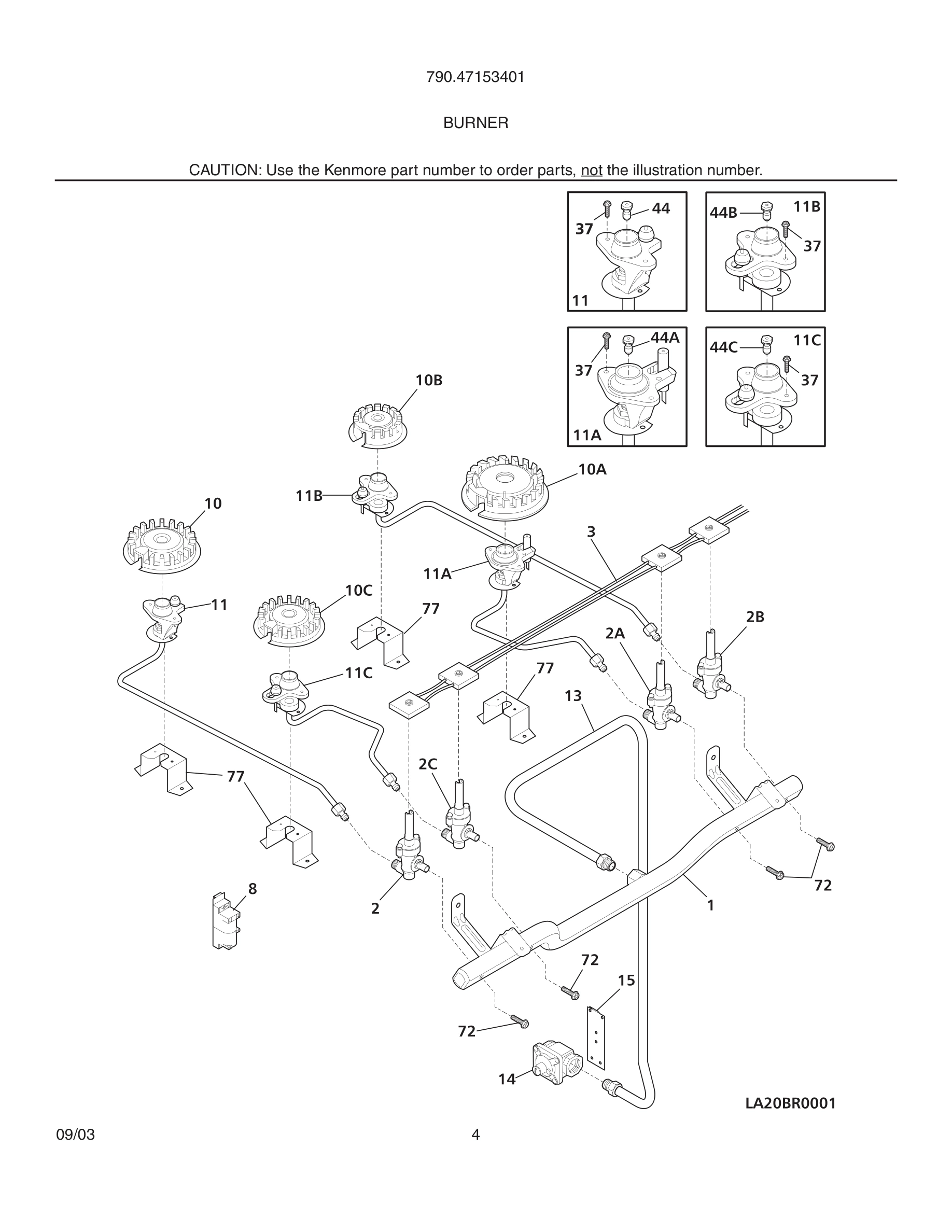

05 - BURNER

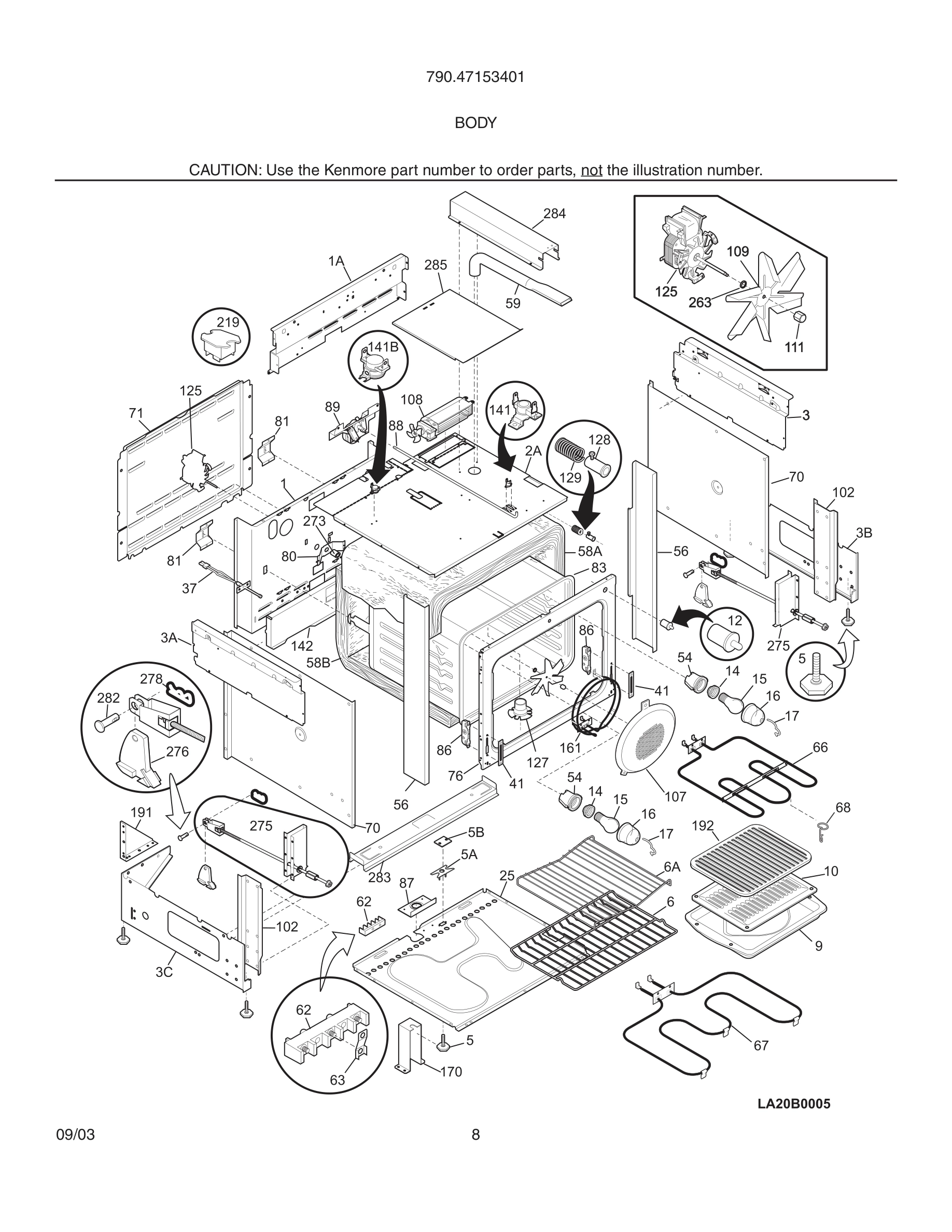

07 - BODY
09 - BODY

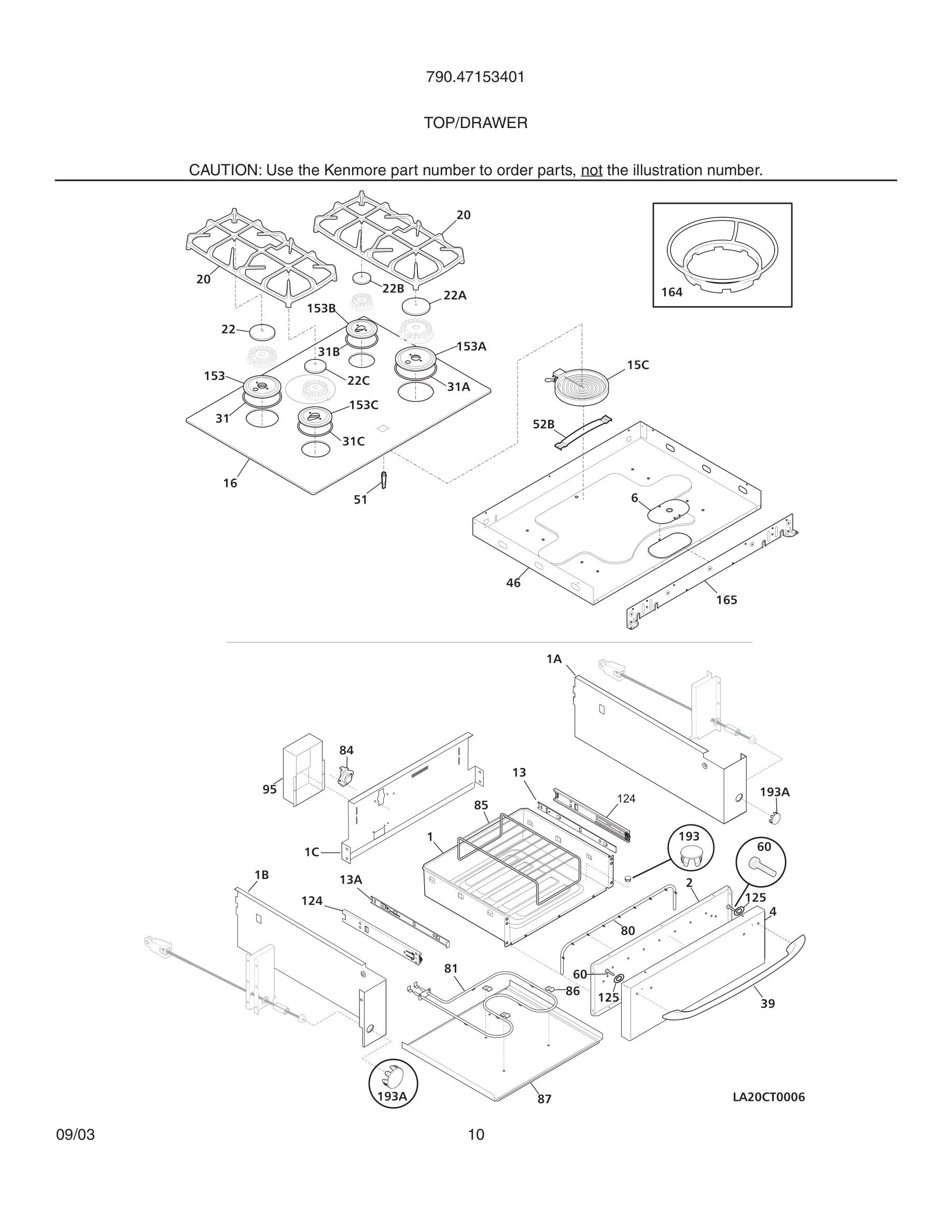

11 - TOP/DRAWER

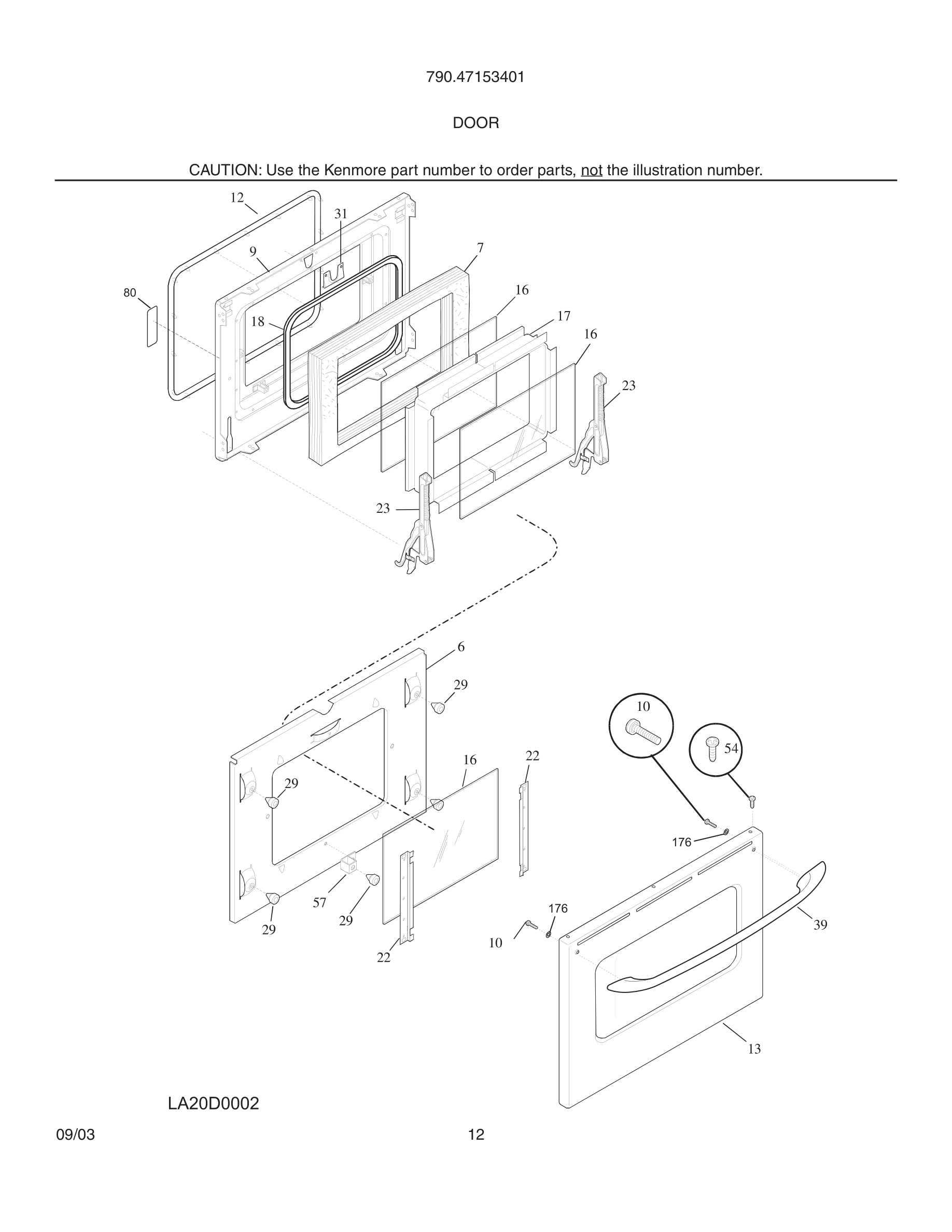

13 - DOOR

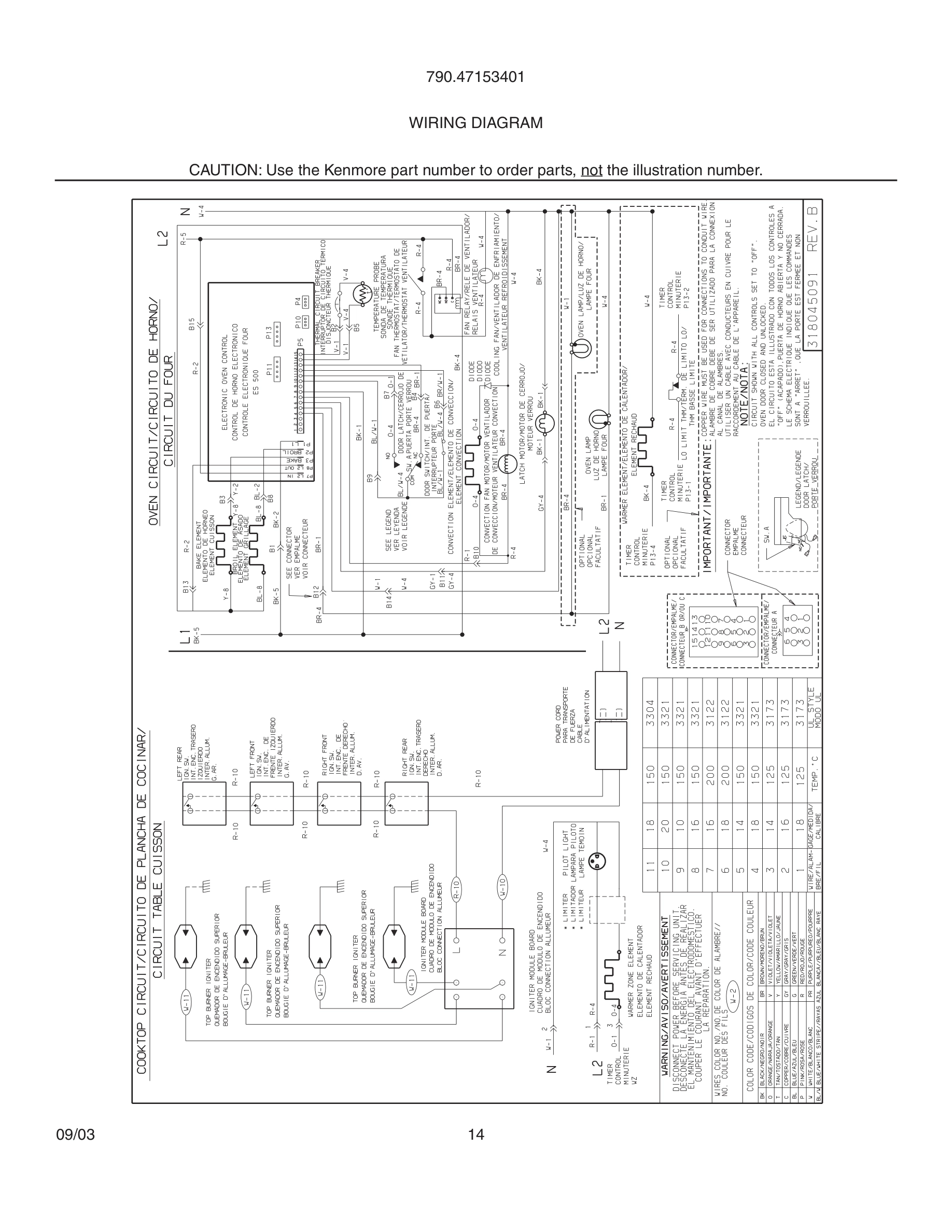

14 - WIRING DIAGRAM
Common parts from model Kenmore 790.47153401 RANGE
*
Bushing,snap-in ,nylon WCI 5304400795 Contact Us For Availability
*
Clip,wiring WCI 318226300 Contact Us For Availability
*
Cleaner,cooktop WCI 316112100 Contact Us For Availability
*
Cleaner,grate WCI 316119700 Contact Us For Availability
*
Cleaner,stainless steel WCI 316136900 Contact Us For Availability
*
Screw,truss head ,8-18 x 0.375 WCI 08016432 Contact Us For Availability
1
Drawer,warmer WCI 318142500 Contact Us For Availability
1A
Deflector,warmer drawer ,RH WCI 318143333 Contact Us For Availability
1B
Deflector,warmer drawer ,LH WCI 318143332 Contact Us For Availability
1C
Deflector,warmer drawer ,rear WCI 318143203 Contact Us For Availability
2
Liner,drawer WCI 318108025 Contact Us For Availability
2#
Valve,top burner ,11000 btu WCI 318233920 Contact Us For Availability
2A#
Valve,top burner ,17000 BTU WCI 318233940 Contact Us For Availability
2C#
Valve,top burner ,9500 BTU WCI 318233910 Contact Us For Availability
4
Panel,drawer ,stainless WCI 318107909 Contact Us For Availability
5
Screw,leveling WCI 318175503 Contact Us For Availability
6
Rack,oven WCI 318025311 Contact Us For Availability
6
Cover,wiring WCI 318229900 Contact Us For Availability
6
Shield,insulation WCI 318056802 Contact Us For Availability
7
Insulation,oven door WCI 318133781 Contact Us For Availability
9
Liner,door WCI 318157011 Contact Us For Availability
10#
Burner,sealed ,11K WCI 316212300 Contact Us For Availability
10A#
Burner,sealed ,17K WCI 316223300 Contact Us For Availability
11#
Ignitor/orifice assy.,top burner ,LH rear,11K WCI 318221310 Contact Us For Availability
11C#
Ignitor/orifice assy.,top burner ,LH front,9. WCI 318221311 Contact Us For Availability
13
Stainless Panel,oven door ,w/ glass WCI 318187942 Contact Us For Availability
14#
Regulator,pressure WCI 318122700 Contact Us For Availability
15C#
Element,surface ,warmer ,100 W WCI 318198804 Contact Us For Availability
16
Panel,glass ,inner oven door WCI 318041603 Contact Us For Availability
16
Console,assy. ,graphite ,w/ end caps WCI 318235003 Contact Us For Availability
16
Main Top,assy. ,glass ,black WCI 318223704 Contact Us For Availability
17
Retainer,light cover WCI 5304400195 Contact Us For Availability
17
Spacer,glass WCI 318042102 Contact Us For Availability
18
Seal,window WCI 318053001 Contact Us For Availability
19A
Panel,control mtg. WCI 318224404 Contact Us For Availability
20
Grate,black WCI 316249700 Contact Us For Availability
22
Cap,11K burner ,black WCI 316242800 Contact Us For Availability
22
Bar,glass retainer WCI 5303310511 Contact Us For Availability
22A
Cap,17K burner ,black WCI 316219700 Contact Us For Availability
22B
Cap,5K burner ,black WCI 316206500 Contact Us For Availability
22C
Cap,9.5K burner ,black WCI 316242900 Contact Us For Availability
23
Hinge,oven door ,(2) WCI 5303310828 Contact Us For Availability
29
Bumper,base WCI 318147410 Contact Us For Availability
31
Latch,oven door WCI 5303310536 Contact Us For Availability
39
Handle,door ,graphite WCI 316268303 Contact Us For Availability
41
Cover,hinge cutout WCI 5303310526 Contact Us For Availability
44A
Orifice,top burner ,17K WCI 316237909 Contact Us For Availability
44B
Orifice,top burner ,5K WCI 316237903 Contact Us For Availability
46
Box,burner WCI 318225401 Contact Us For Availability
52B
Spring,element mtg ,700W & 2100W WCI 318122004 Contact Us For Availability
54
Housing,oven light WCI 318222400 Contact Us For Availability
57
Stiffener,glass WCI 318172902 Contact Us For Availability
58B
Insulation,oven back WCI 318133785 Contact Us For Availability
80
Gasket,warmer drawer WCI 318054310 Contact Us For Availability
80
Label,anti-tip WCI 316221000 Contact Us For Availability
81
Spring,oven WCI 318192400 Contact Us For Availability
84#
Thermostat,safety WCI 318005103 Contact Us For Availability
86
Clip,hold down ,warmer element WCI 316095800 Contact Us For Availability
87
Base,warmer WCI 318121503 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
95
Cover,wire WCI 318143702 Contact Us For Availability
125#
Motor,fan WCI 316136300 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141#
Switch,thermal cutout WCI 318005201 Contact Us For Availability
141B
Thermostat,safety WCI 318003607 Contact Us For Availability
142
Deflector WCI 318123901 Contact Us For Availability
153
Skirt,11K burner ,black WCI 316241701 Contact Us For Availability
153A
Skirt,17K burner ,black WCI 316264801 Contact Us For Availability
153B
Skirt,5K burner ,black WCI 316241901 Contact Us For Availability
153C
Skirt,9.5K burner ,black WCI 316241801 Contact Us For Availability
161#
Element,convection ,2500 W WCI 318050710 Contact Us For Availability
164
Grate,WOK WCI 316241400 Contact Us For Availability
165
Plate,mounting WCI 318227500 Contact Us For Availability
170
Bracket,Anit-tip WCI 5304417440 Contact Us For Availability
191
Bracket,angle ,corner WCI 5303304030 Contact Us For Availability
193
Cap,plug WCI 5303325173 Contact Us For Availability
193A
Plug,button WCI 3204817 Contact Us For Availability
219#
Relay WCI 318112701 Contact Us For Availability
273
Tube,protector WCI 5303311207 Contact Us For Availability
275
Leveling assy WCI 318174800 Contact Us For Availability
276
Came WCI 318096200 Contact Us For Availability
278
Lock Pin WCI 5304412258 Contact Us For Availability
282
Pivot pin WCI 5304412259 Contact Us For Availability
283
Support,reinforcement WCI 318179400 Contact Us For Availability
284
Box,vent tube WCI 318226600 Contact Us For Availability
285
Shield,hidden wires WCI 318236200 Contact Us For Availability
× ![]()
