Model Kenmore 790.47102400 RANGE – Common Parts & Diagrams
01 - COVER

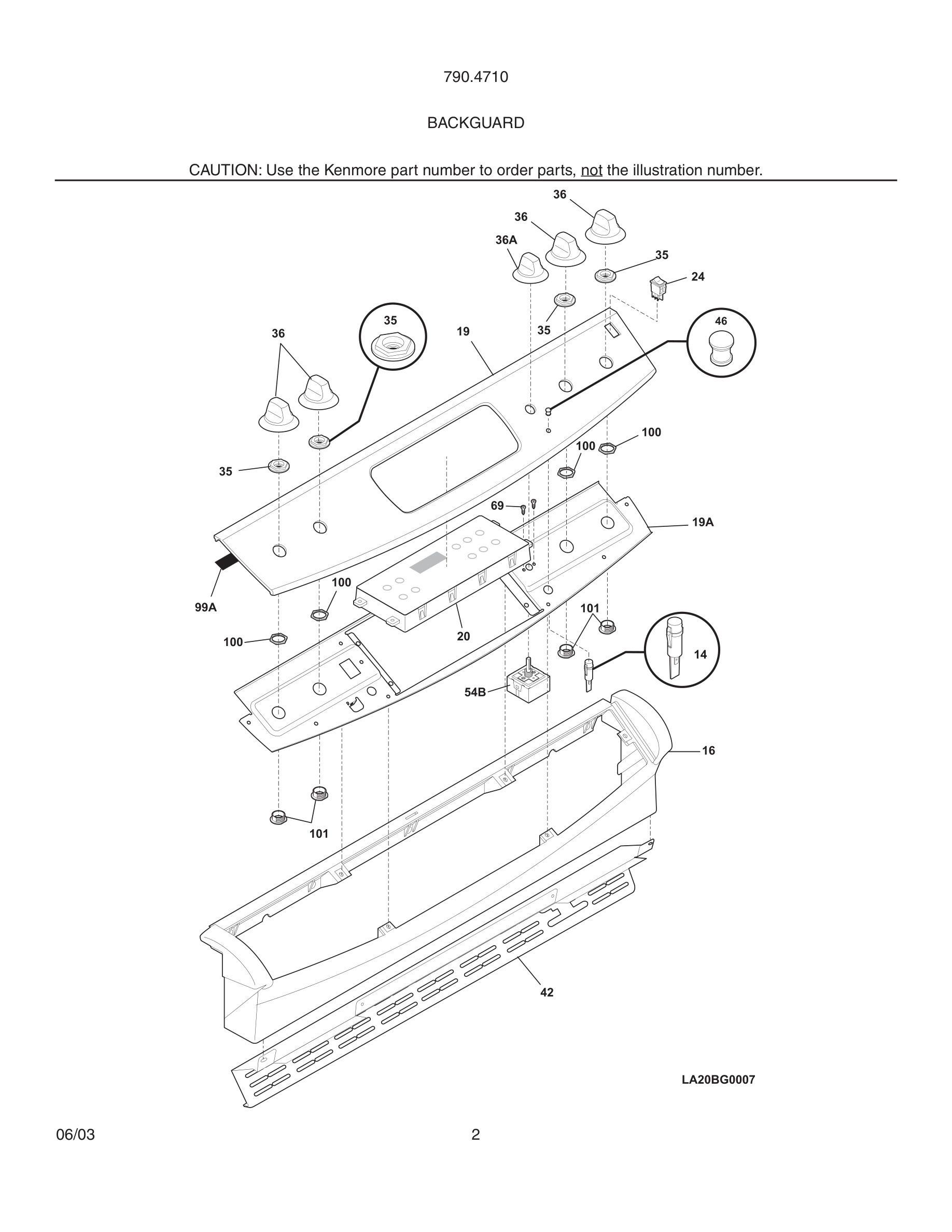

03 - BACKGUARD

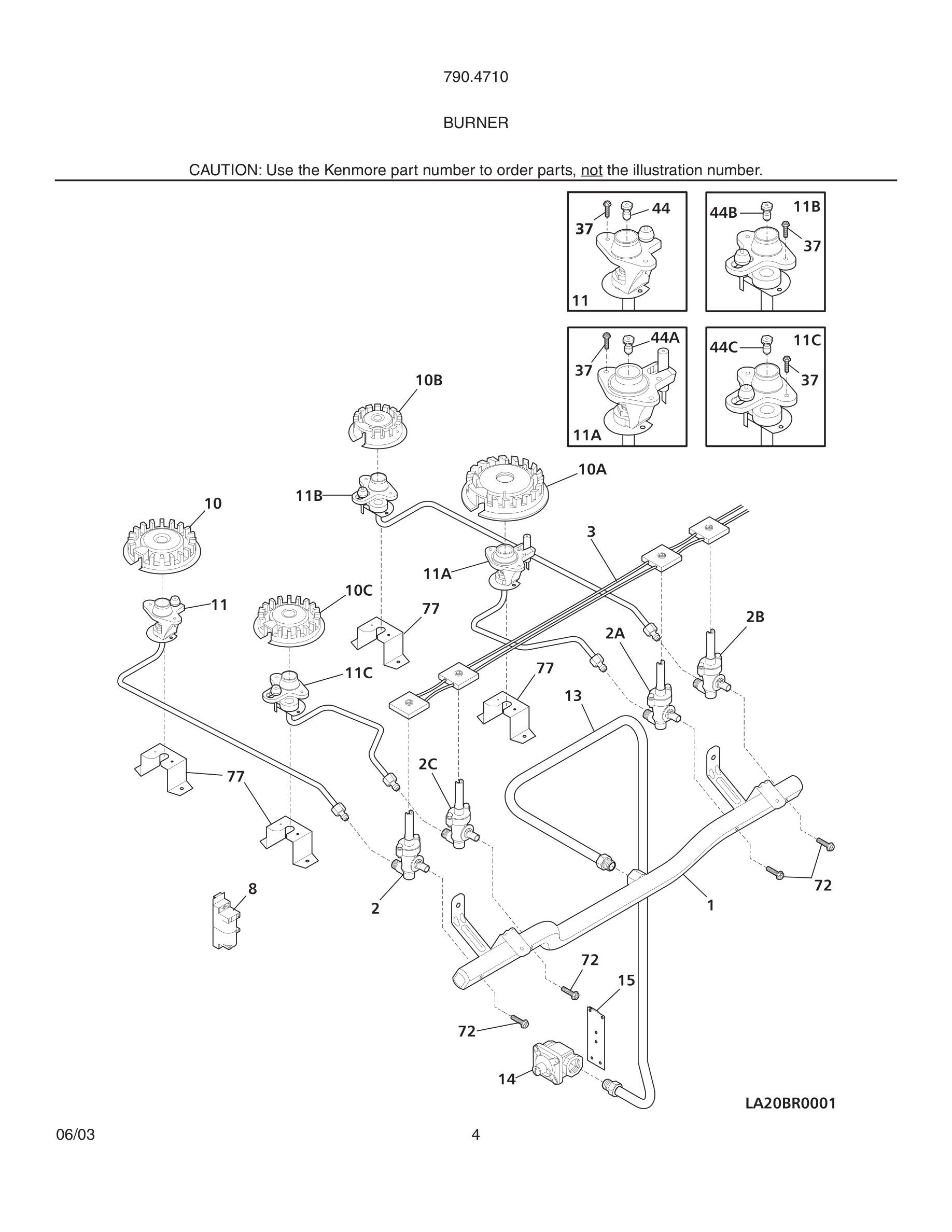

05 - BURNER

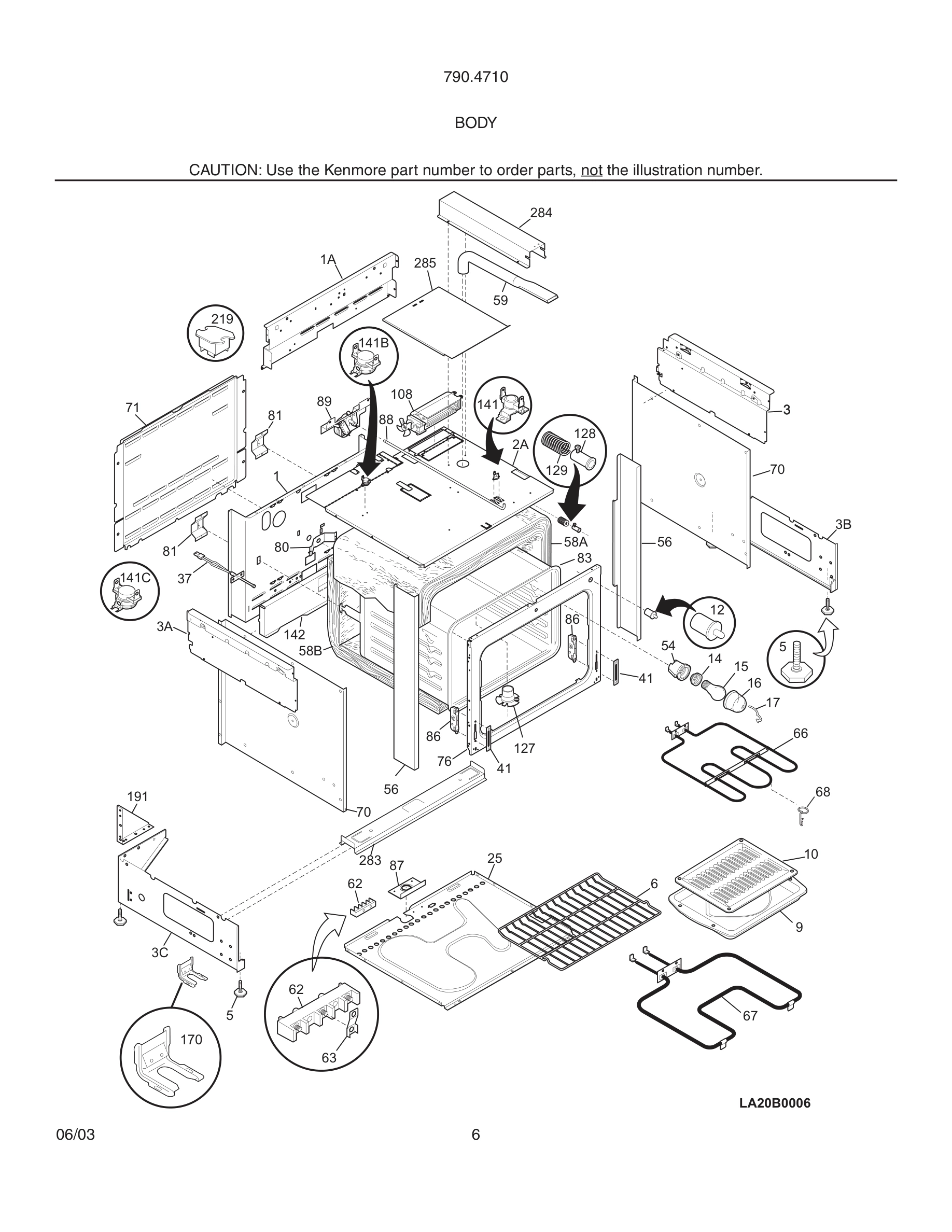

07 - BODY
09 - BODY

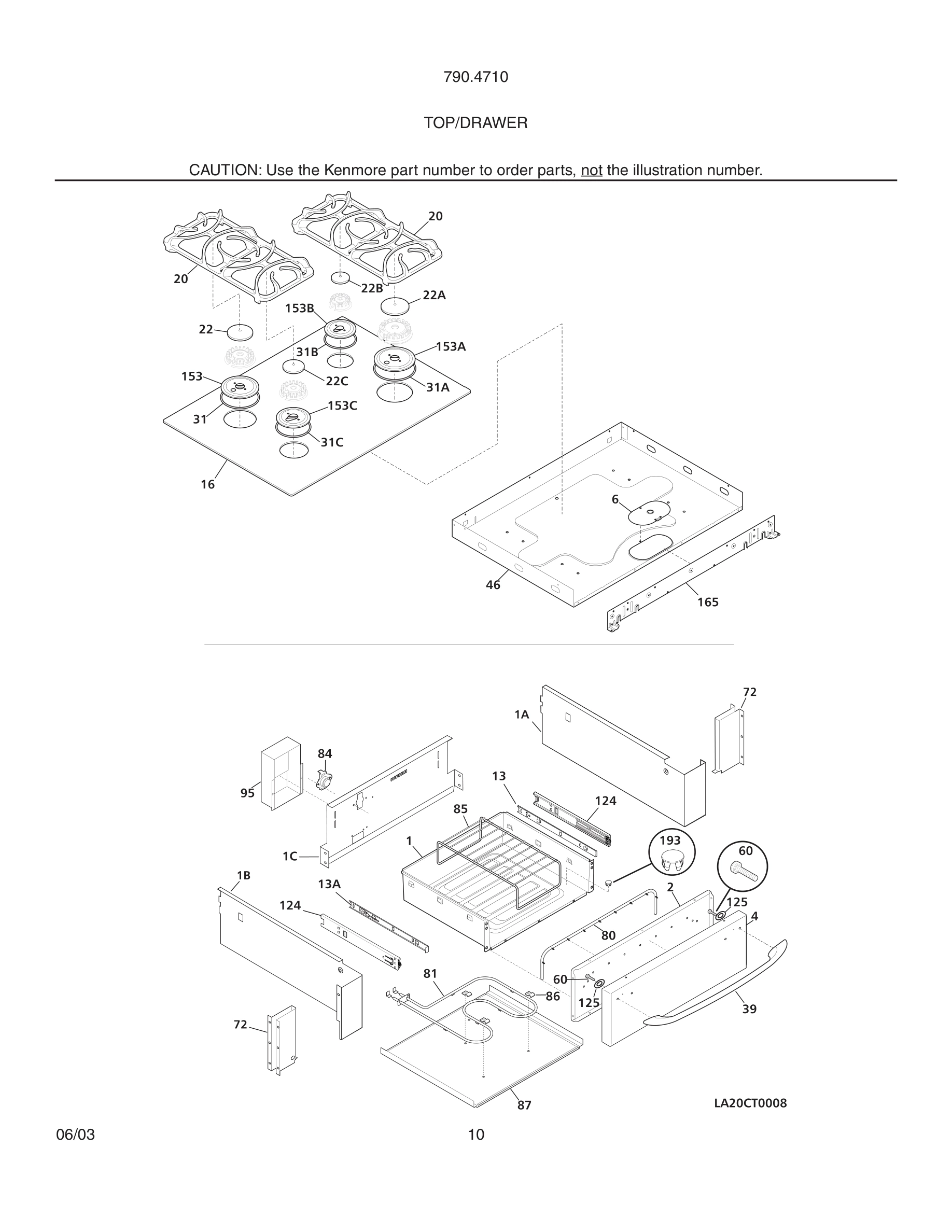

11 - TOP/DRAWER

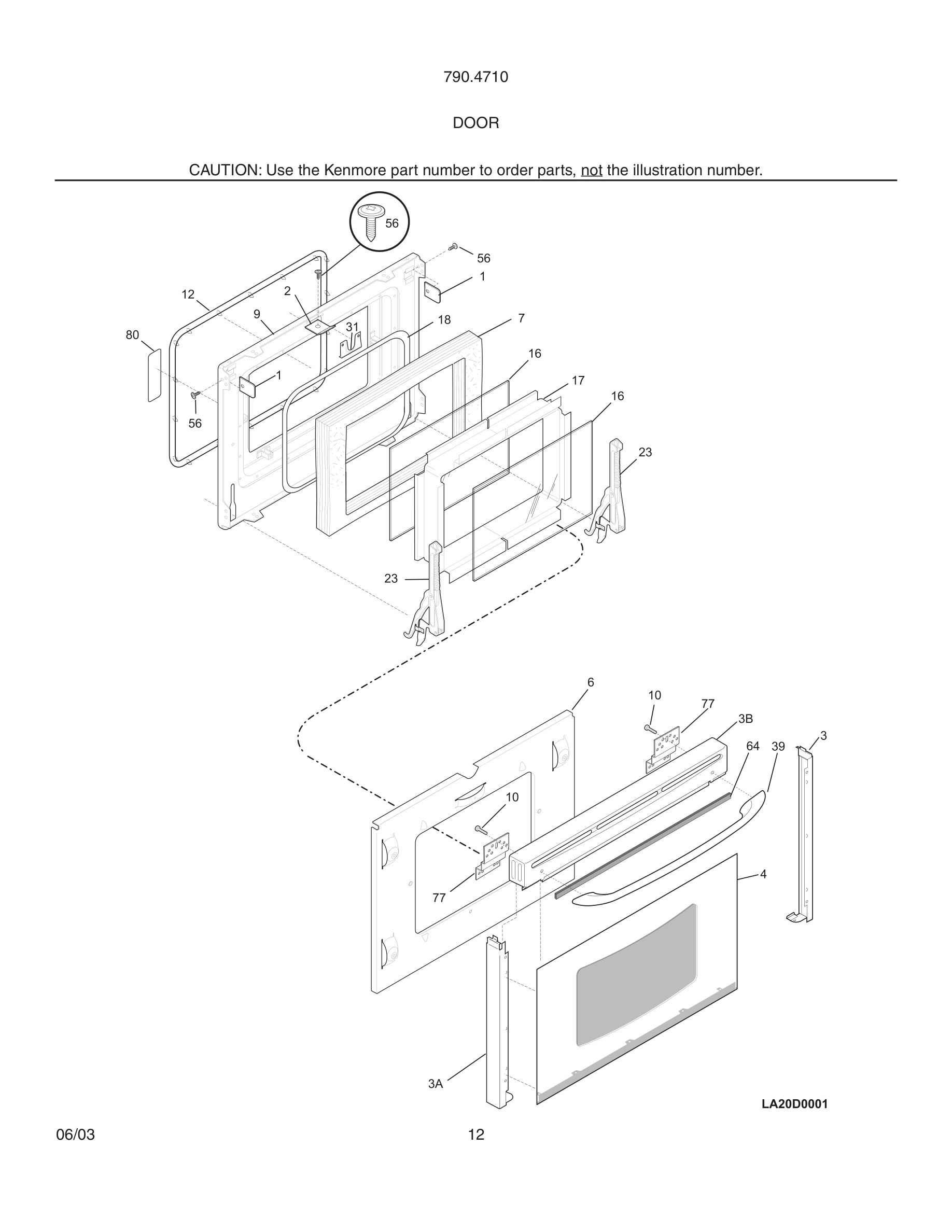

13 - DOOR
14 - WIRING DIAGRAM
Common parts from model Kenmore 790.47102400 RANGE
*
Bushing,snap-in ,nylon WCI 5304400795 Contact Us For Availability
*
Screw,truss head ,8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Cleaner,cooktop WCI 316112100 Contact Us For Availability
*
Cleaner,grate WCI 316119700 Contact Us For Availability
1
Drawer,warmer WCI 318142500 Contact Us For Availability
1
Bracket,trim mtg WCI 318180310 Contact Us For Availability
1A
Deflector,warmer drawer ,RH WCI 318143335 Contact Us For Availability
1B
Deflector,warmer drawer ,LH WCI 318143334 Contact Us For Availability
1C
Deflector,warmer drawer ,rear WCI 318143203 Contact Us For Availability
2
Liner,drawer WCI 318108021 Contact Us For Availability
2
Bracket,upper trim mtg WCI 318180312 Contact Us For Availability
2#
Valve,top burner ,11000 btu WCI 318233920 Contact Us For Availability
2A#
Valve,top burner ,14000 BTU WCI 318233930 Contact Us For Availability
2C#
Valve,top burner ,9500 BTU WCI 318233910 Contact Us For Availability
3
Trim,door ,white ,RH side WCI 318187810 Contact Us For Availability
3
Trim,door ,bisque ,RH side WCI 318187812 Contact Us For Availability
3
Trim,door ,black ,RH side WCI 318187814 Contact Us For Availability
3A
Trim,door ,white ,LH side WCI 318187811 Contact Us For Availability
3A
Trim,door ,bisque ,LH side WCI 318187813 Contact Us For Availability
3A
Trim,door ,black ,LH side WCI 318187815 Contact Us For Availability
3B
Trim,door ,white ,top WCI 318176646 Contact Us For Availability
3B
Trim,door ,bisque ,top WCI 318176648 Contact Us For Availability
3B
Trim,door ,black ,top WCI 318176647 Contact Us For Availability
4
Panel,drawer ,white ,front WCI 318134015 Contact Us For Availability
4
Panel,drawer ,bisque ,front WCI 318134016 Contact Us For Availability
4
Panel,drawer ,black ,front WCI 318134017 Contact Us For Availability
4
Panel,door front assy ,glass ,white ,with low WCI 318187721 Contact Us For Availability
4
Panel,door front assy ,glass ,bisque ,with lo WCI 318187722 Contact Us For Availability
4
Panel,door front assy ,glass ,black ,with low WCI 318187723 Contact Us For Availability
5
Screw,leveling WCI 318175503 Contact Us For Availability
6
Cover,wiring WCI 318229900 Contact Us For Availability
6
Shield,insulation WCI 318056802 Contact Us For Availability
7
Insulation,oven door WCI 318133781 Contact Us For Availability
9
Liner,door WCI 318157011 Contact Us For Availability
10#
Burner,sealed ,11K WCI 316212300 Contact Us For Availability
10A#
Burner,sealed ,14K WCI 316223400 Contact Us For Availability
11#
Ignitor/orifice assy.,top burner ,LH rear,11K WCI 318221310 Contact Us For Availability
11A#
Ignitor/orifice assy.,top burner ,RH front,14 WCI 318221314 Contact Us For Availability
11C#
Ignitor/orifice assy.,top burner ,LH front,9. WCI 318221311 Contact Us For Availability
14#
Regulator,pressure WCI 318122700 Contact Us For Availability
16
Panel,glass ,inner oven door WCI 318041603 Contact Us For Availability
16
Main Top,assy. ,glass ,black WCI 318223700 Contact Us For Availability
16
Main Top,assy. ,glass ,white WCI 318223701 Contact Us For Availability
16
Main Top,assy. ,glass ,bisque WCI 318223705 Contact Us For Availability
17
Retainer,light cover WCI 5304400195 Contact Us For Availability
17
Spacer,glass WCI 318042102 Contact Us For Availability
18
Seal,window WCI 318053001 Contact Us For Availability
19A
Panel,control mtg. WCI 318224402 Contact Us For Availability
20
Grate,gray ,(2) WCI 318231301 Contact Us For Availability
20
Grate,brown ,(2) WCI 318231302 Contact Us For Availability
20
Grate,black ,(2) WCI 318231300 Contact Us For Availability
20#
Clock/Timer,electronic ,black ,ES300 WCI 318185480 Contact Us For Availability
22
Cap,11K burner ,black WCI 316242800 Contact Us For Availability
22
Cap,11K burner ,gray WCI 316242804 Contact Us For Availability
22
Cap,11K burner ,brown WCI 316242805 Contact Us For Availability
22A
Cap,14K burner ,black WCI 316219800 Contact Us For Availability
22A
Cap,14K burner ,gray WCI 316219803 Contact Us For Availability
22A
Cap,14K burner ,brown WCI 316219804 Contact Us For Availability
22B
Cap,5K burner ,black WCI 316206500 Contact Us For Availability
22B
Cap,5K burner ,gray WCI 316206503 Contact Us For Availability
22B
Cap,5K burner ,brown WCI 316206504 Contact Us For Availability
22C
Cap,9.5K burner ,black WCI 316242900 Contact Us For Availability
22C
Cap,9.5K burner ,gray WCI 316242904 Contact Us For Availability
22C
Cap,9.5K burner ,brown WCI 316242905 Contact Us For Availability
23
Hinge,oven door WCI 318024700 Contact Us For Availability
31
Latch,oven door WCI 5303310536 Contact Us For Availability
36
Knob,control ,black WCI 316208119 Contact Us For Availability
39
Handle,door ,bisque WCI 316209702 Contact Us For Availability
39
Handle,door ,black WCI 316209701 Contact Us For Availability
41
Cover,hinge cutout WCI 5303310526 Contact Us For Availability
44A
Orifice,top burner ,14K WCI 316237900 Contact Us For Availability
44B
Orifice,top burner ,5K WCI 316237903 Contact Us For Availability
46
Box,burner WCI 318225401 Contact Us For Availability
54
Housing,oven light WCI 318222400 Contact Us For Availability
64
Tape,0.762 m ,Neoprene WCI 5304417120 Contact Us For Availability
70
Shield,insulation WCI 318194400 Contact Us For Availability
71
Panel,wiring cover ,rear WCI 5303310515 Contact Us For Availability
72
Bracket,slide ,(2) WCI 318113403 Contact Us For Availability
76
Front,oven WCI 318225302 Contact Us For Availability
77
Bracket,trim ,handle ,(2) WCI 318043100 Contact Us For Availability
80
Gasket,warmer drawer WCI 318054310 Contact Us For Availability
80
Label,anti-tip WCI 316221000 Contact Us For Availability
81
Spring,oven WCI 318192400 Contact Us For Availability
83
Liner,oven WCI 318089613 Contact Us For Availability
84#
Thermostat,safety WCI 318005103 Contact Us For Availability
86
Receptacle,hinge WCI 5303310524 Contact Us For Availability
86
Clip,hold down ,warmer element WCI 316095800 Contact Us For Availability
87
Plate,mounting WCI 318111803 Contact Us For Availability
87
Base,warmer WCI 318121503 Contact Us For Availability
88
Rod,latch WCI 318118904 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
95
Cover,wire WCI 318143702 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141#
Switch,thermal cutout WCI 318005201 Contact Us For Availability
141B
Thermostat,safety WCI 318003607 Contact Us For Availability
142
Deflector WCI 318123901 Contact Us For Availability
153
Skirt,11K burner ,black WCI 316241701 Contact Us For Availability
153
Skirt,11K burner ,gray WCI 316241705 Contact Us For Availability
153
Skirt,11K burner ,brown WCI 316241706 Contact Us For Availability
153A
Skirt,14K burner ,black WCI 316264901 Contact Us For Availability
153A
Skirt,14K burner ,gray WCI 316264904 Contact Us For Availability
153A
Skirt,14K burner ,brown WCI 316264905 Contact Us For Availability
153B
Skirt,5K burner ,black WCI 316241901 Contact Us For Availability
153B
Skirt,5K burner ,gray WCI 316241905 Contact Us For Availability
153B
Skirt,5K burner ,brown WCI 316241906 Contact Us For Availability
153C
Skirt,9.5K burner ,black WCI 316241801 Contact Us For Availability
153C
Skirt,9.5K burner ,gray WCI 316241805 Contact Us For Availability
153C
Skirt,9.5K burner ,brown WCI 316241806 Contact Us For Availability
165
Plate,mounting WCI 318227500 Contact Us For Availability
170
Anti-tip & accessories WCI 5304405244 Contact Us For Availability
191
Bracket,angle ,corner WCI 5303304030 Contact Us For Availability
193
Cap,plug WCI 5303325173 Contact Us For Availability
219#
Relay WCI 318112701 Contact Us For Availability
283
Support,reinforcement WCI 318179400 Contact Us For Availability
284
Box,vent tube WCI 318226600 Contact Us For Availability
285
Shield,hidden wires WCI 318236200 Contact Us For Availability
× ![]()
