Model Kenmore 790.46892905 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD
05 - BODY

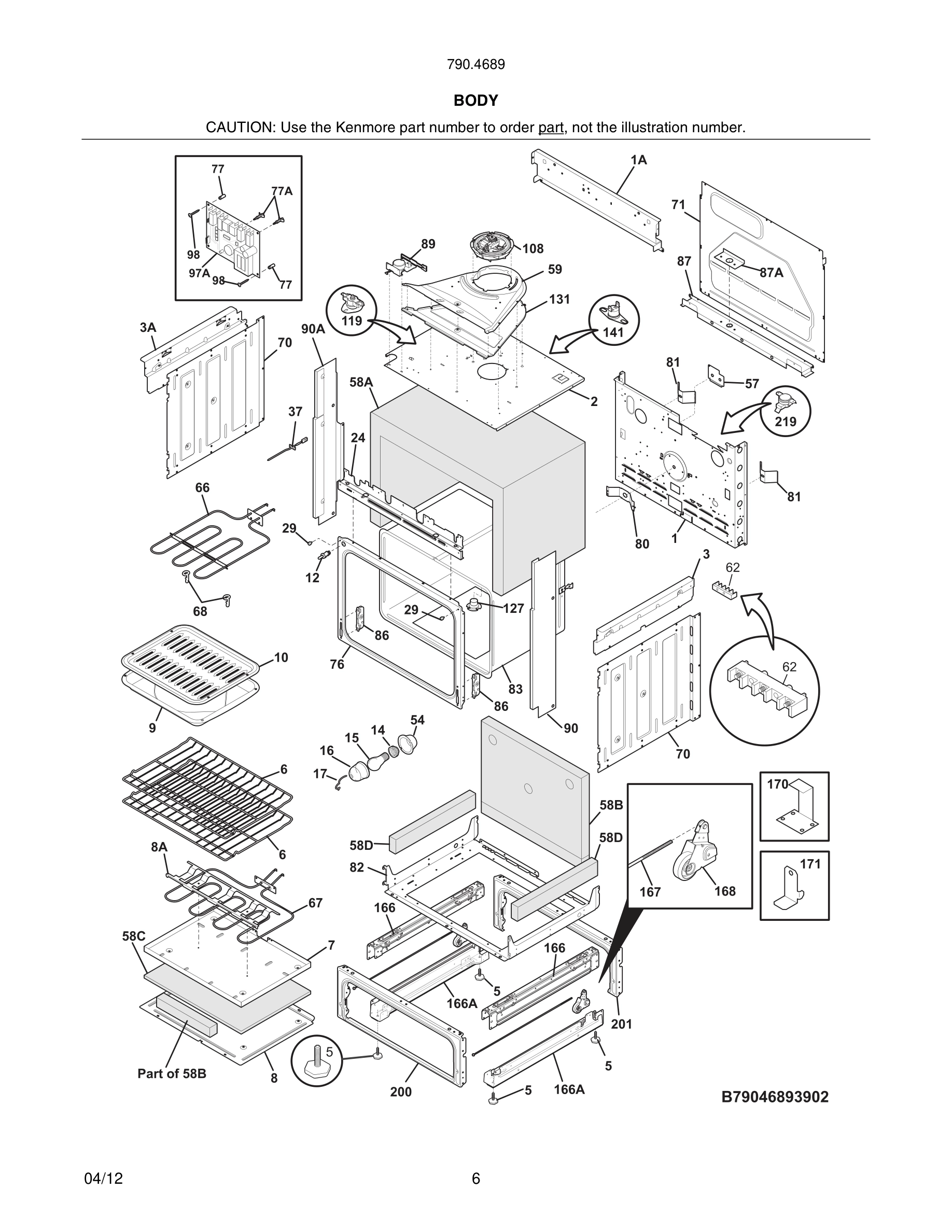

07 - BODY

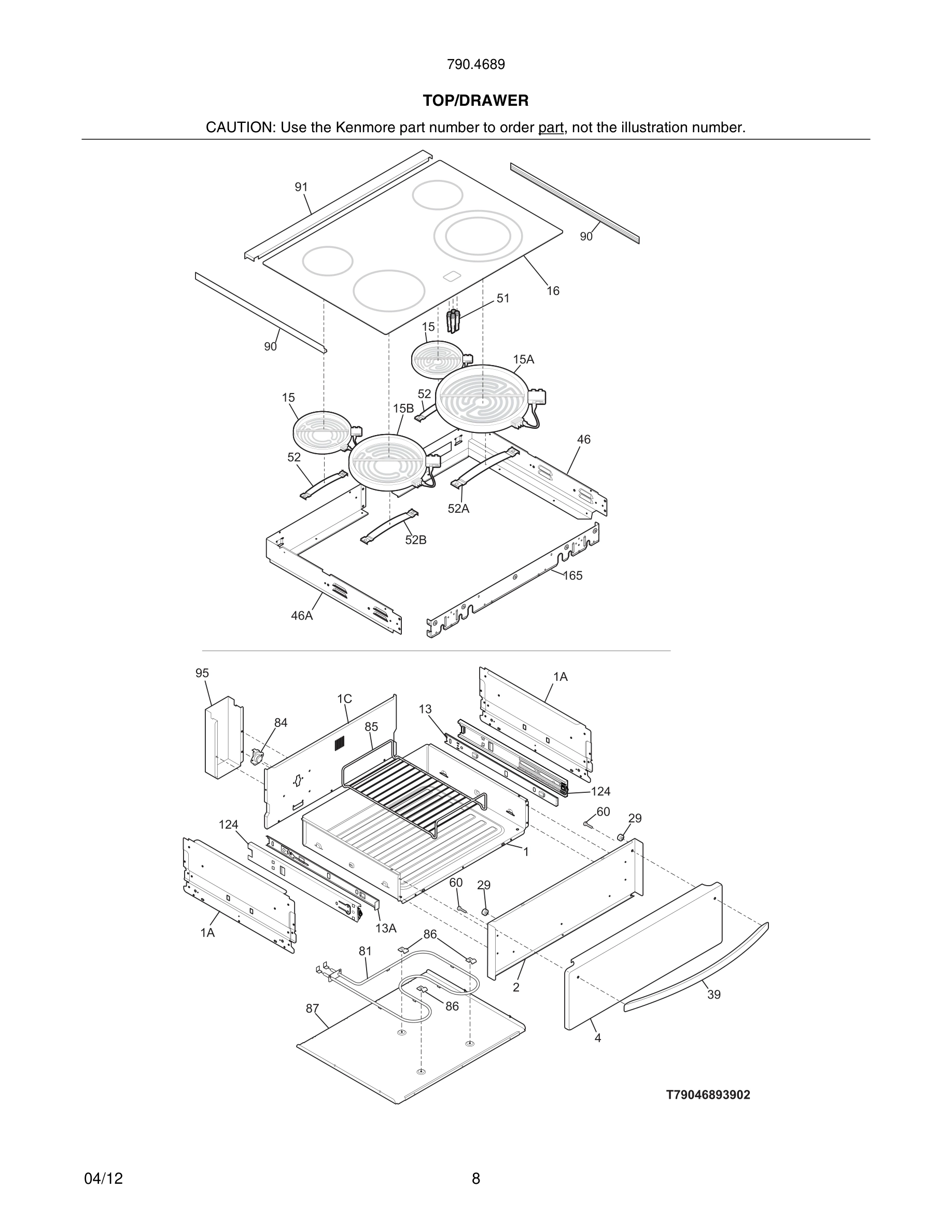

09 - TOP/DRAWER
11 - DOOR

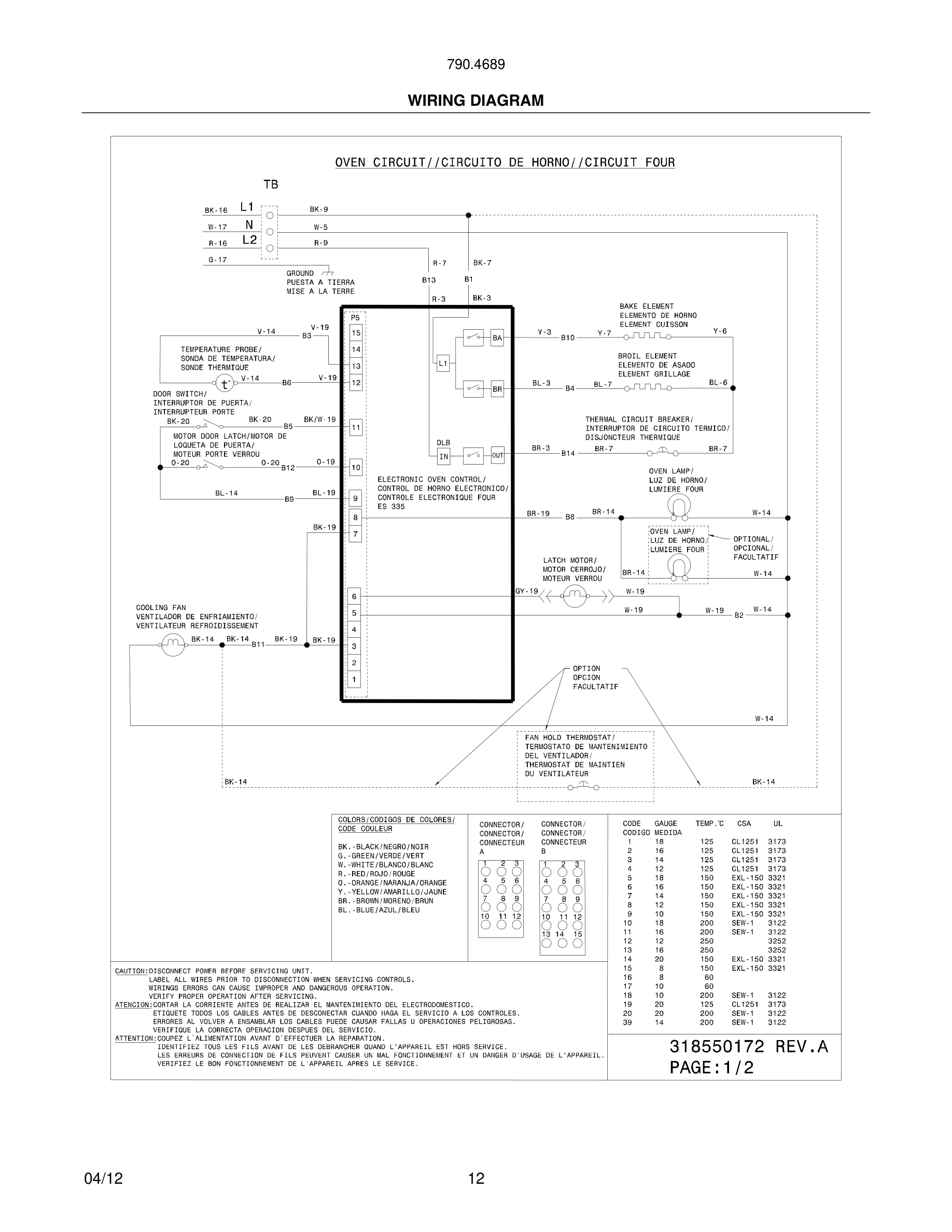

12 - WIRING DIAGRAM

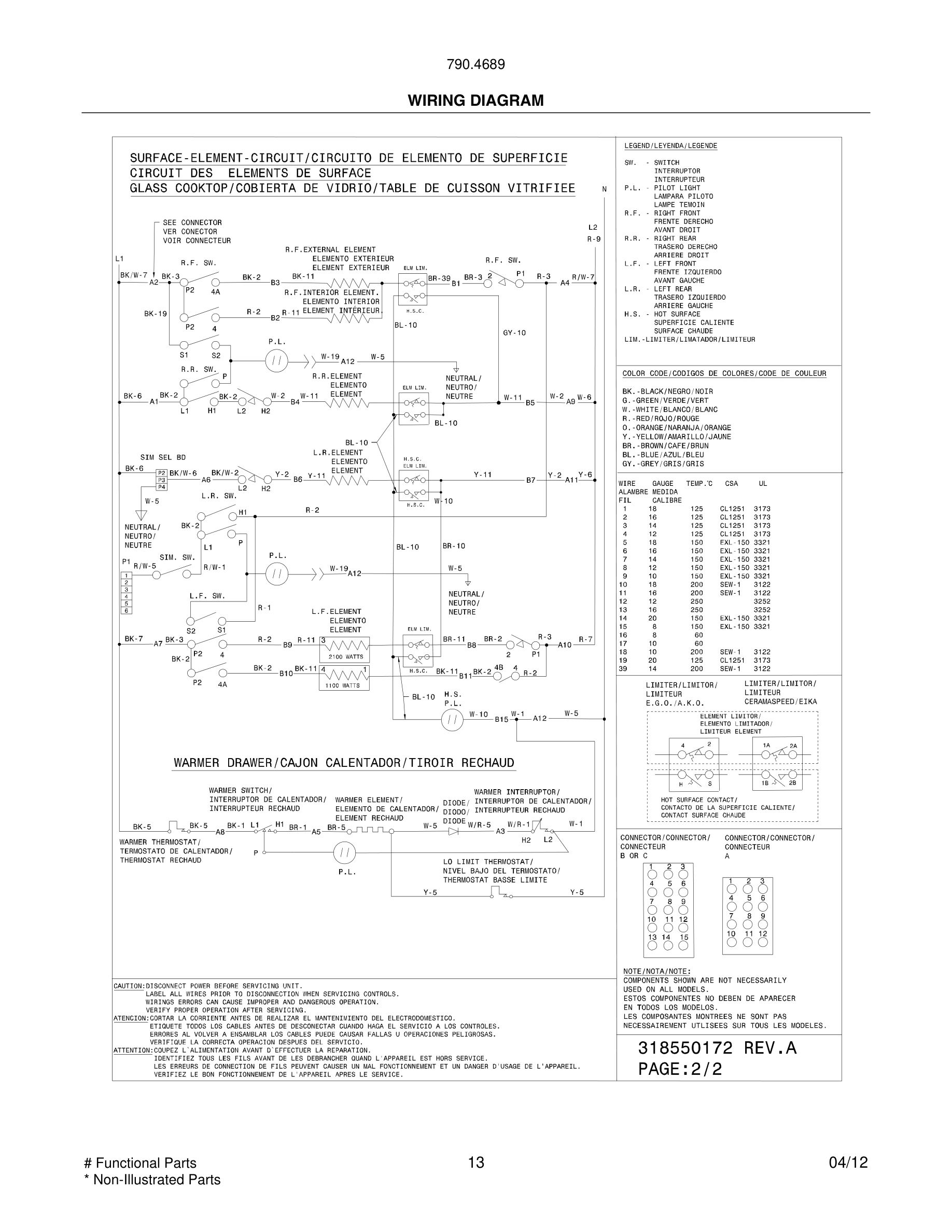

13 - WIRING DIAGRAM
Common parts from model Kenmore 790.46892905 RANGE
*
Pad, cleaning WCI 316459400 Contact Us For Availability
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
*
Screw, 10-24 x 2 3/16 WCI 5303311217 Contact Us For Availability
*
Screw, shoulder, 8-18 X 1/2, (4) WCI 5304417153 Contact Us For Availability
*#
Harness, wiring, timer WCI 318224876 Contact Us For Availability
1
Drawer, body assembly WCI 318304404 Contact Us For Availability
2
Panel, drawer, black, inner WCI 318303907 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
8A
Bracket, bake element WCI 318313601 Contact Us For Availability
9
Liner, oven door WCI 318411650 Contact Us For Availability
10
Screw, 10-24 x 1.770, handle mtg WCI 5304477986 Contact Us For Availability
13
Glide, warmer, inner RH WCI 318259509 Contact Us For Availability
13A
Glide, warmer, inner LH WCI 318259508 Contact Us For Availability
14#
Light, indicator, 125v, (2) WCI 318293901 Contact Us For Availability
16
Main Top, glass assy., black WCI 318223679 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
19A
Panel, control mtg. WCI 318289715 Contact Us For Availability
20#
Clock/Timer, electronic, ES335, black, w/over WCI 318296824 Contact Us For Availability
23
Hinge, oven door, (2) WCI 318567113 Contact Us For Availability
35
Support, glass, black, (4) WCI 318183105 No Longer Available
36
Knob, control, white, single WCI 318921137 Contact Us For Availability
36A
Knob, control, white, dual WCI 318921140 Contact Us For Availability
36A
Knob, control, black, dual WCI 318921141 Contact Us For Availability
36B
Knob, control, white, turbo boil WCI 318921130 Contact Us For Availability
36C
Knob, control, white, simmer select WCI 318921146 Contact Us For Availability
36D
Knob, control, white, warmer drawer WCI 318921143 Contact Us For Availability
39
Handle, door, white, w/spacer WCI 318372416 Contact Us For Availability
39
Handle, door, black, w/spacer WCI 318372417 Contact Us For Availability
46
Lens, indicator light WCI 318228301 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
54C#
Switch, warmer, drawer/zone WCI 318078813 Contact Us For Availability
56A
Screw, 8-18 x 3/8 WCI 5304476599 Contact Us For Availability
66#
Element, broil, 3400W WCI 318255808 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
90
Channel, glass protector, (2) WCI 318368001 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
90A
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
127
Adapter Assembly, vent tube, w/converter WCI 318317105 Contact Us For Availability
× ![]()
