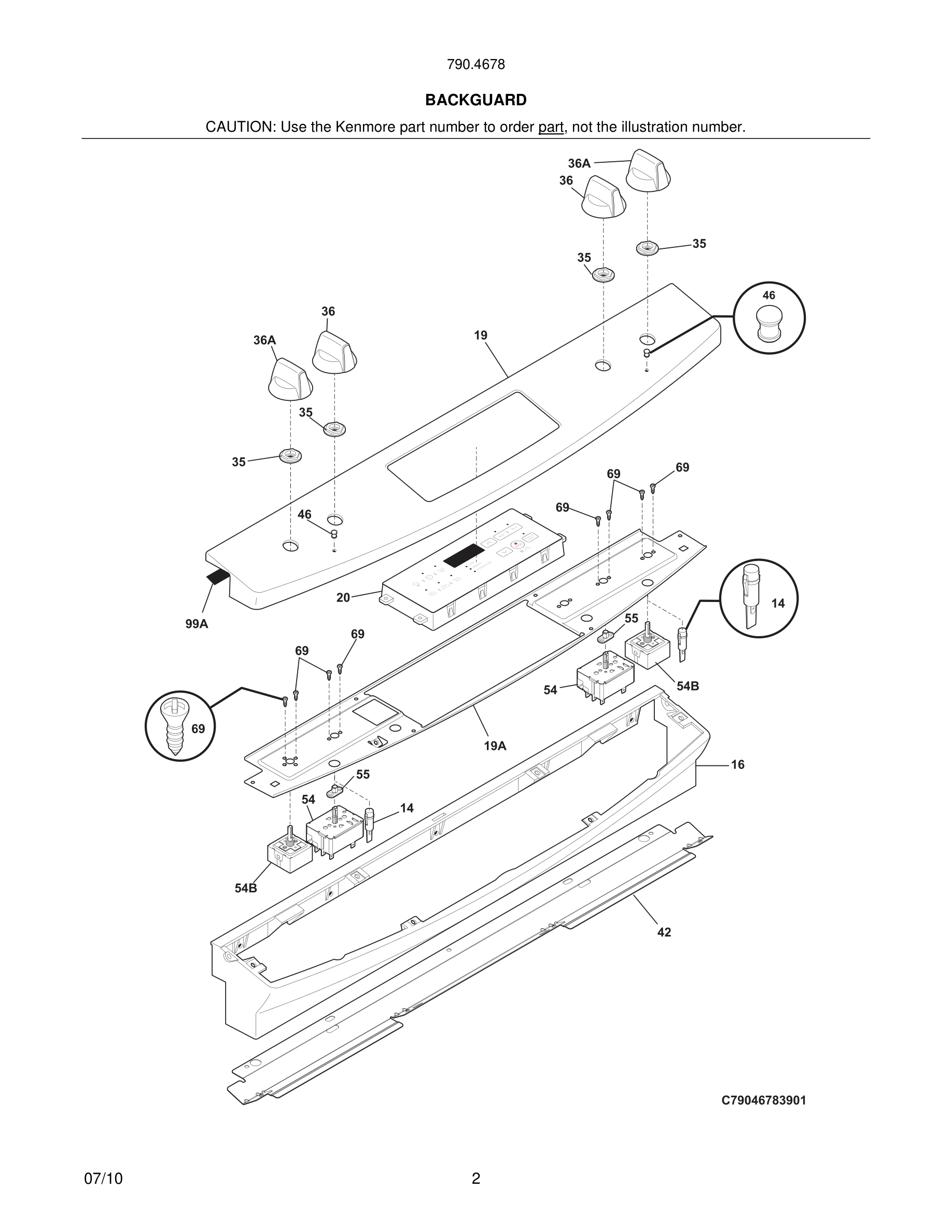

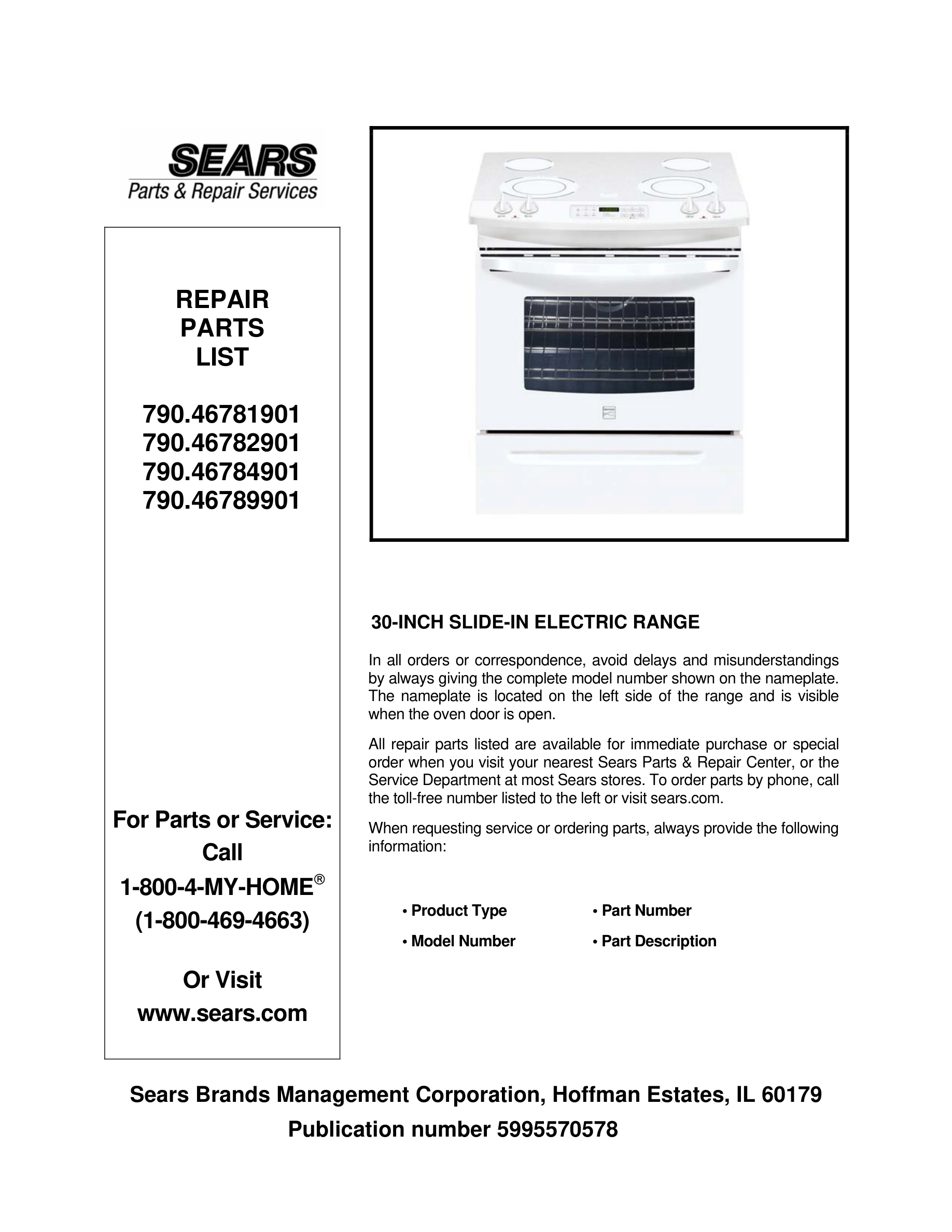

Model Kenmore 790.46781901 RANGE – Common Parts & Diagrams

*
Pad, cleaning
Pad, cleaning WCI 316459400 Contact Us For Availability
View on Model
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
View on Model
*
Screw, shoulder, 8-18 X 1/2, (4)
Screw, shoulder, 8-18 X 1/2, (4) WCI 5304417153 Contact Us For Availability
View on Model
*#
Harness, wiring, timer
Harness, wiring, timer WCI 318224876 Contact Us For Availability
View on Model
*#
Wiring Harness, main
Wiring Harness, main WCI 318384492 Contact Us For Availability
View on Model
*#
Harness, wiring, main, backguard
Harness, wiring, main, backguard WCI 318228873 Contact Us For Availability
View on Model
3
Trim, oven door, black, upper
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
4
Glass Assy., oven door, bisque, outer, w/trim
Glass Assy., oven door, bisque, outer, w/trim WCI 318304145 Contact Us For Availability
View on Model
4
Panel, drawer, white, front
Panel, drawer, white, front WCI 318298906 Contact Us For Availability
View on Model
4
Panel, drawer, black, front
Panel, drawer, black, front WCI 318298908 Contact Us For Availability
View on Model
8
Cover, element
Cover, element WCI 318262001 Contact Us For Availability
View on Model
9
Liner, oven door
Liner, oven door WCI 318411650 Contact Us For Availability
View on Model
13
Channel, drawer, RH
Channel, drawer, RH WCI 318018100 Contact Us For Availability
View on Model
13A
Channel, drawer, LH
Channel, drawer, LH WCI 318018101 Contact Us For Availability
View on Model
14#
Light, indicator, 125v, (2)
Light, indicator, 125v, (2) WCI 318293901 Contact Us For Availability
View on Model
16
Glass, oven door, heat barrier, lower door
Glass, oven door, heat barrier, lower door WCI 318212210 Contact Us For Availability
View on Model
16
Main Top, glass assy., white
Main Top, glass assy., white WCI 318223682 Contact Us For Availability
View on Model
16
Console, assy., white
Console, assy., white WCI 318296600 Contact Us For Availability
View on Model
16
Main Top, glass assy., black/white
Main Top, glass assy., black/white WCI 318223692 Contact Us For Availability
View on Model
16
Main Top, glass assy., bisque
Main Top, glass assy., bisque WCI 318223683 Contact Us For Availability
View on Model
17
Retainer, light cover
Retainer, light cover WCI 5304400195 Contact Us For Availability
View on Model
19A
Panel, control mtg.
Panel, control mtg. WCI 318289715 Contact Us For Availability
View on Model
20#
Clock/Timer, electronic, ES335, black, w/over
Clock/Timer, electronic, ES335, black, w/over WCI 318296822 No Longer Available
View on Model
20#
Clock/Timer, electronic, ES335, white, w/over
Clock/Timer, electronic, ES335, white, w/over WCI 318296820 Contact Us For Availability
View on Model
23
Hinge, oven door, (2)
Hinge, oven door, (2) WCI 318567101 Contact Us For Availability
View on Model
35
Support, glass, white, (4)
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
View on Model
35
Support, glass, bisque, (4)
Support, glass, bisque, (4) WCI 318183102 Contact Us For Availability
View on Model
36
Knob, control, white, single
Knob, control, white, single WCI 318921137 Contact Us For Availability
View on Model
36
Knob, control, bisque, single
Knob, control, bisque, single WCI 318921139 Contact Us For Availability
View on Model
36A
Knob, control, white, dual
Knob, control, white, dual WCI 318921140 Contact Us For Availability
View on Model
36A
Knob, control, black, dual
Knob, control, black, dual WCI 318921141 Contact Us For Availability
View on Model
36A
Knob, control, bisque, dual
Knob, control, bisque, dual WCI 318921142 Contact Us For Availability
View on Model
39
Handle, door, white, w/spacer
Handle, door, white, w/spacer WCI 318372416 Contact Us For Availability
View on Model
39
Handle, door, black, w/spacer
Handle, door, black, w/spacer WCI 318372417 Contact Us For Availability
View on Model
46
Lens, indicator light
Lens, indicator light WCI 318228301 Contact Us For Availability
View on Model
54
Housing, oven light
Housing, oven light WCI 318222400 Contact Us For Availability
View on Model
56A
Screw, 8-18 x 3/8
Screw, 8-18 x 3/8 WCI 5304476599 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
90
Panel, filler, black, RH
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
View on Model
90
Panel, filler, white, RH
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
View on Model
90A
Panel, filler, white, LH
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
View on Model
91
Trim, filler, white, rear
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
View on Model
127
Adapter Assembly, vent tube, w/converter
Adapter Assembly, vent tube, w/converter WCI 318317105 Contact Us For Availability
View on Model
170
Anti-tip & accessories
Anti-tip & accessories WCI 318335500 Contact Us For Availability
View on Model
200
Frame & Wheel Assembly, black
Frame & Wheel Assembly, black WCI 318335600 Contact Us For Availability
View on Model
