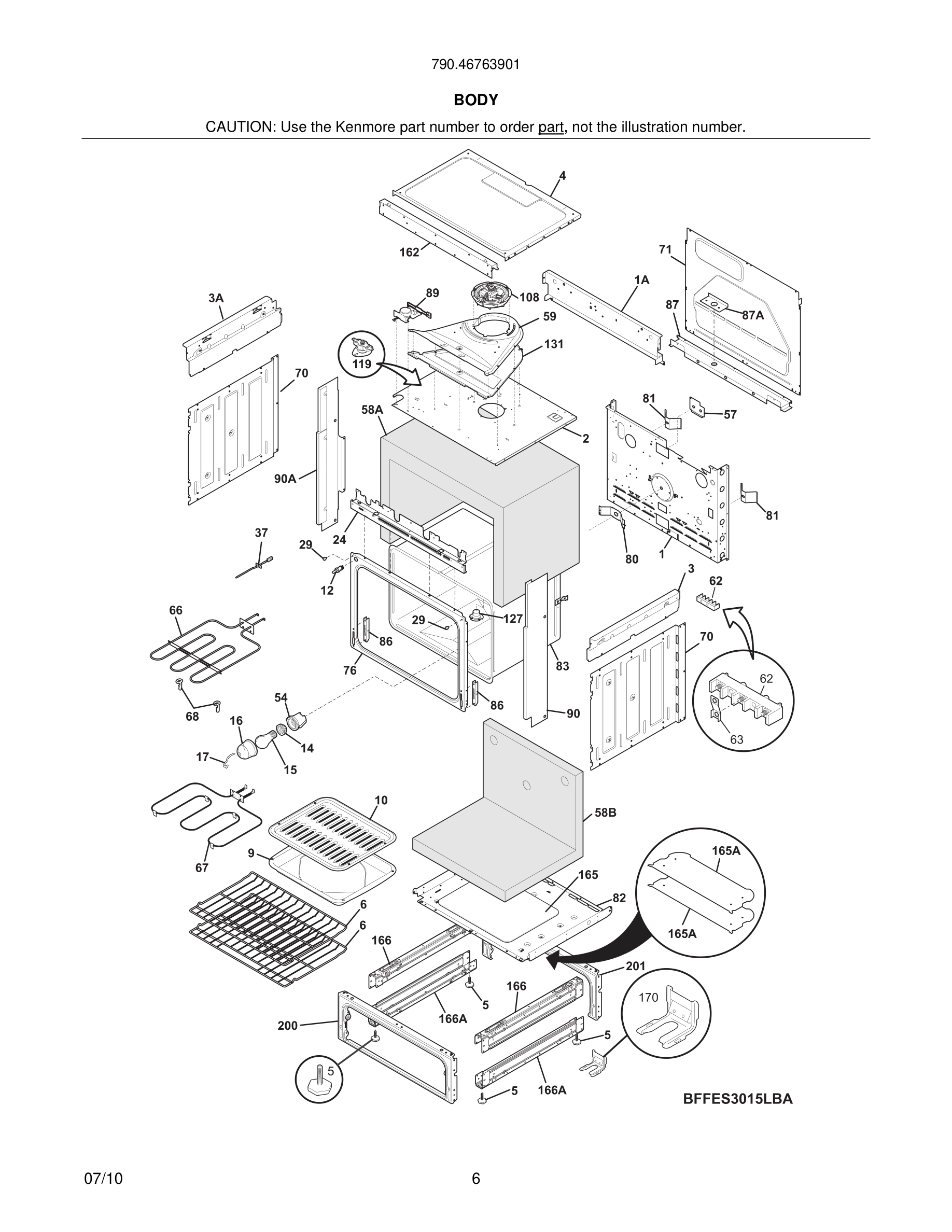

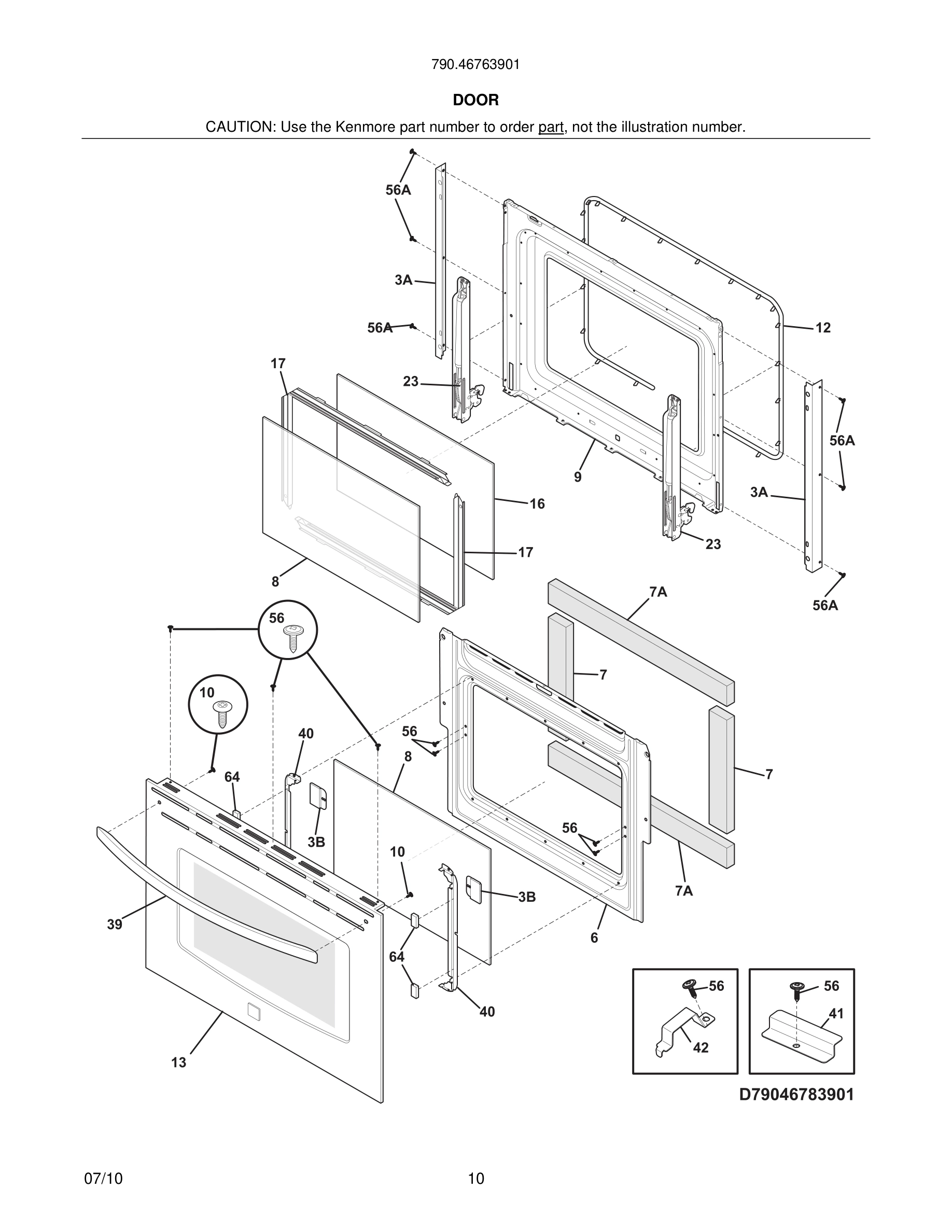

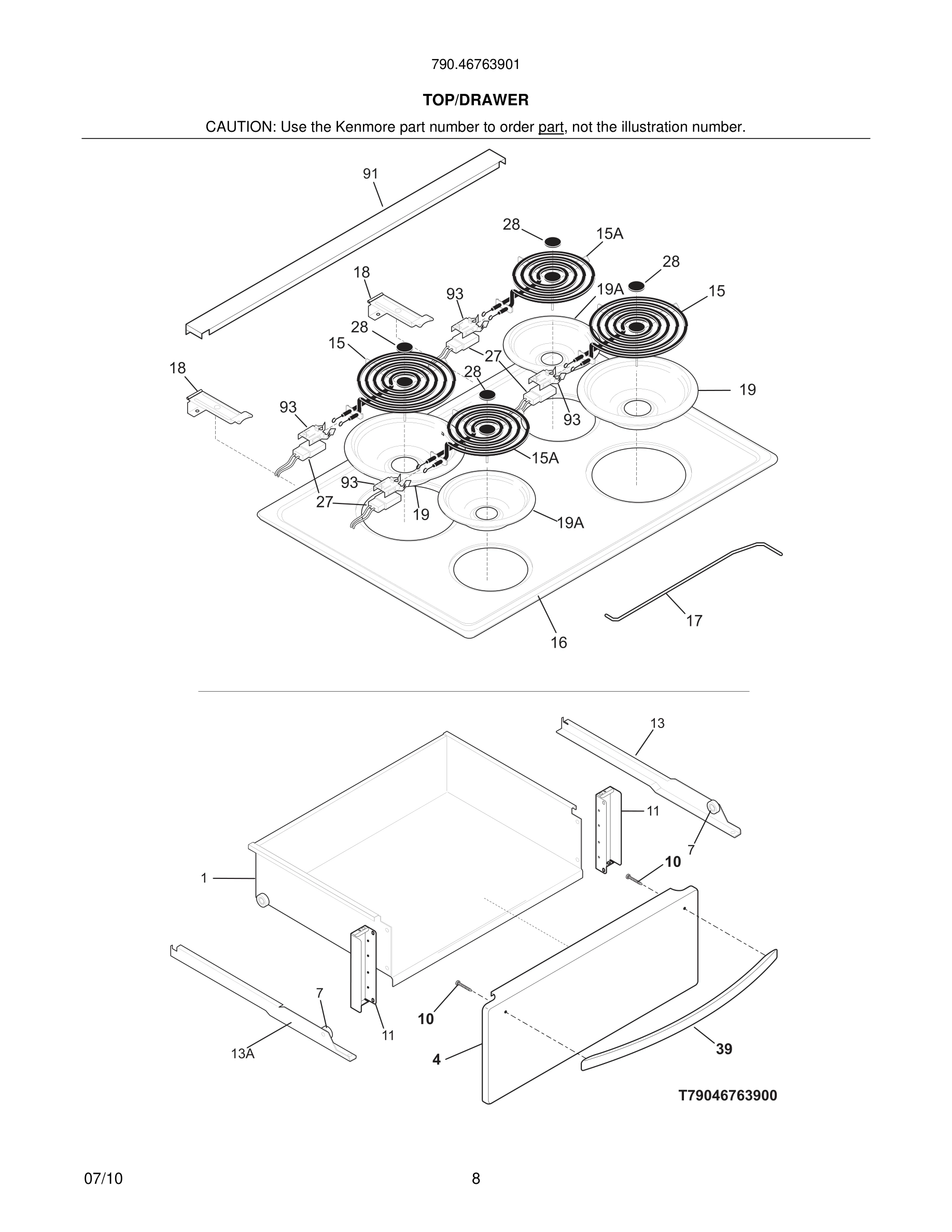

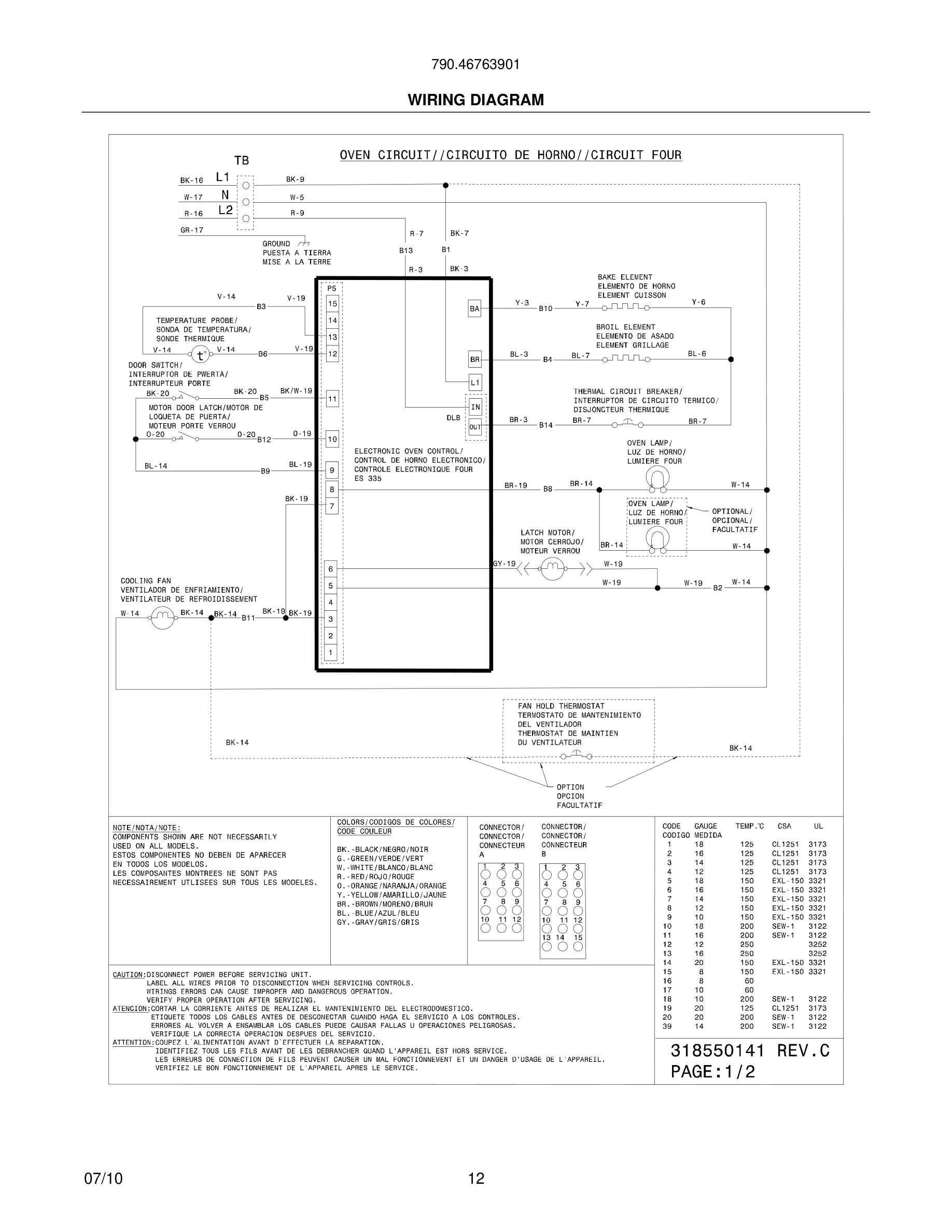

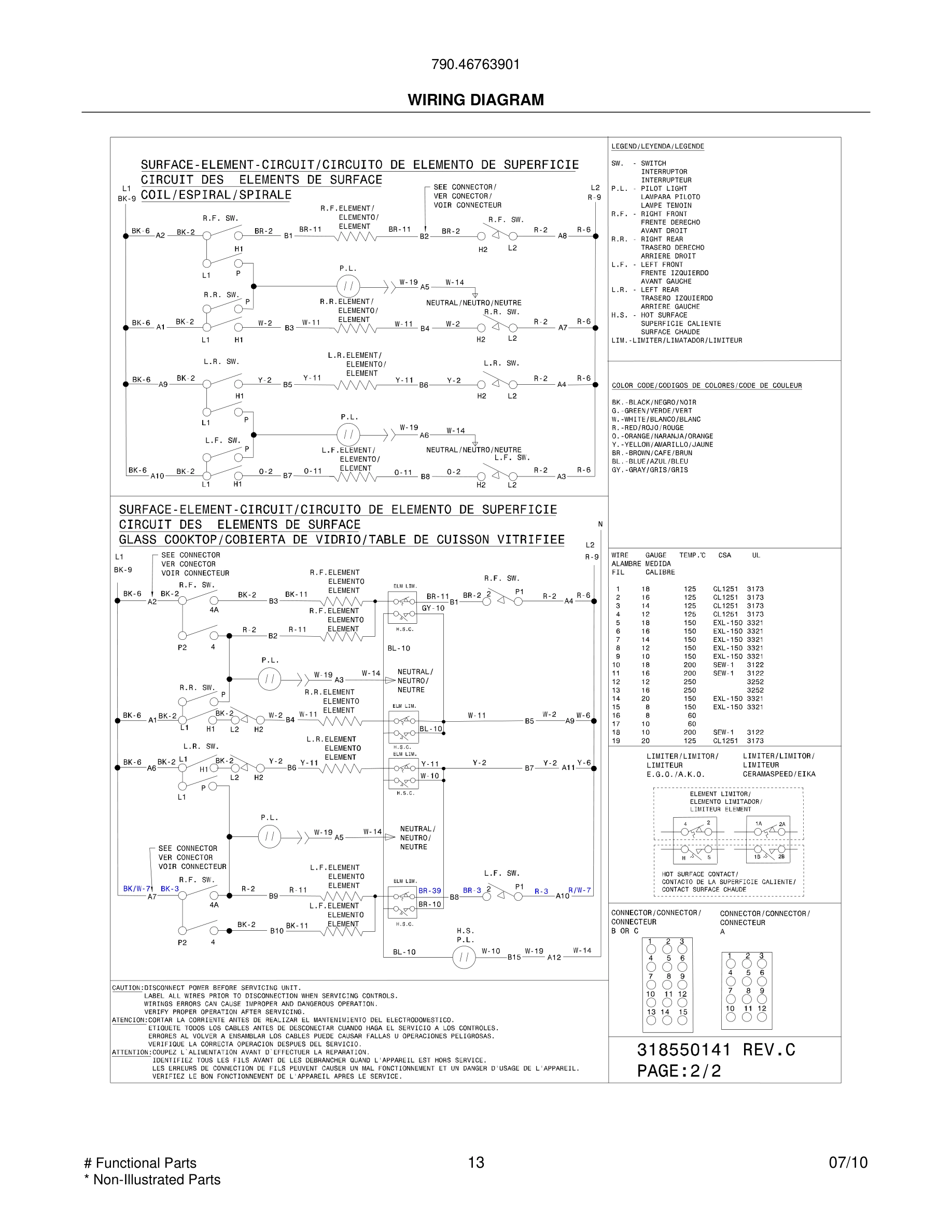

Model Kenmore 790.46763901 RANGE – Common Parts &amp; Diagrams

*

5303211311 Frigidaire Refrigerator Screw Backorder WCI 5303211311 $9.06

*

5303300265 Frigidaire Oven Screw Backorder WCI 5303300265 $9.04

*

5303323129 Frigidaire Oven Screw Backorder WCI 5303323129 $9.06

*

5303323277 Frigidaire Oven Screw Backorder WCI 5303323277 $6.34

*

5303324184 Frigidaire Wall Oven Range Screw Backorder WCI 5303324184 $9.06

*

5304415832 Frigidaire Oven Screw Backorder WCI 5304415832 $8.60

*

Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability

*

Screw, shoulder, 8-18 X 1/2, (4) WCI 5304417153 Contact Us For Availability

Harness, wiring, timer WCI 318224876 Contact Us For Availability

Harness, wiring, main, backguard WCI 318228877 Contact Us For Availability

Wiring Harness, main WCI 318384494 Contact Us For Availability

Wiring Harness, surface units WCI 318301003 Contact Us For Availability

1

5304505701 Frigidaire Drawer Body with Roller Backorder WCI 5304505701 $82.45

3A

Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability

6

Rack, oven WCI 318262504 Contact Us For Availability

8

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $73.95

12

318053132 Frigidaire Oven Gasket Backorder WCI 318053132 $89.07

12#

316445501 Frigidaire Oven Switch In Stock WCI 316445501 $56.93

13

Channel, drawer, RH WCI 318018100 Contact Us For Availability

13A

Channel, drawer, LH WCI 318018101 Contact Us For Availability

14

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $40.25

14#

Light, indicator, 125v, (2) WCI 318293901 Contact Us For Availability

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15A#

318372211 Frigidaire Oven 6" Electric Range B In Stock WCI 318372211 $31.30

318296602 Frigidaire Oven Console Backorder WCI 318296602 $174.64

5304524341 Frigidaire Lens In Stock WCI 5304524341 $9.87

Glass, oven door, heat barrier, lower door WCI 318212210 Contact Us For Availability

Main Top, black WCI 318225606 Contact Us For Availability

16*

Clip, console, (2) WCI 5304447071 Contact Us For Availability

17

Retainer, light cover WCI 5304400195 Contact Us For Availability

18

Hinge, maintop, (2) WCI 318227710 Contact Us For Availability

19A

Panel, control mtg. WCI 318289715 Contact Us For Availability

20#

Clock/Timer, electronic, ES335, black, w/over WCI 318296814 No Longer Available

23

Hinge, door, upper oven, (2) WCI 318567100 Contact Us For Availability

28

5303017715 Frigidaire Medallion Backorder WCI 5303017715 $38.09

29

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 $7.69

36

Knob, control, stainless, single WCI 318921149 Contact Us For Availability

37#

5304504897 Frigidaire Oven Temperature Sensor In Stock WCI 5304504897 $27.16

39

316553302 Frigidaire Oven Handle Backorder WCI 316553302 $103.77

40

318242702 Frigidaire Oven Bracket Assembly Backorder WCI 318242702 $11.78

42

318382302 Frigidaire Bracket Backorder WCI 318382302 $30.36

46

Lens, indicator light WCI 318228301 Contact Us For Availability

54

Housing, oven light WCI 318222400 Contact Us For Availability

54#

318293830 Frigidaire Oven Switch In Stock WCI 318293830 $54.57

54A#

318293831 Frigidaire Range Surface Element Sw In Stock WCI 318293831 $53.64

55

318402901 Frigidaire Oven Bushing Backorder WCI 318402901 $11.32

56

5304436875 Frigidaire Oven Screw In Stock WCI 5304436875 $8.60

56A

Screw, 8-18 x 3/8 WCI 5304476599 Contact Us For Availability

63

318264200 Frigidaire Oven Plate Backorder WCI 318264200 $14.03

64

318165800 Frigidaire Oven Door Glass Spacer w Backorder WCI 318165800 $11.32

67#

318255401 Frigidaire Oven Element In Stock WCI 318255401 $151.75

68

5304403015 Frigidaire Oven Support Backorder WCI 5304403015 $20.91

69

5303288565 Frigidaire Screw In Stock WCI 5303288565 $1.87

81

Spring, oven WCI 318192400 Contact Us For Availability

86

318561100 Frigidaire Receptacle Backorder WCI 318561100 $12.67

86*

5304461333 Frigidaire Oven Screw Backorder WCI 5304461333 $8.58

90

Panel, filler, black, RH WCI 318296904 Contact Us For Availability

90A

5304511890 Frigidaire Oven Panel Backorder WCI 5304511890 $47.95

91

903113-9010 Frigidaire Filler Kit Assembly Backorder WCI 903113-9010 $41.69

93

Support, terminal block, (4) WCI 318366410 Contact Us For Availability

99A

Gasket, black WCI 318313201 Contact Us For Availability

108#

318575600 Frigidaire Oven Motor Backorder WCI 318575600 $154.89

119#

318578506 Frigidaire Oven High Limit Thermost In Stock WCI 318578506 $32.71

127

Adapter Assembly, vent tube, w/converter WCI 318317105 Contact Us For Availability

166

318298410 Frigidaire Oven Bracket Backorder WCI 318298410 $44.82

170

Anti-tip & accessories WCI 318335500 Contact Us For Availability

200

Frame & Wheel Assembly, black WCI 318335600 Contact Us For Availability

201

318298233 Frigidaire Oven Frame Backorder WCI 318298233 $28.99
