Kenmore 790.46763900

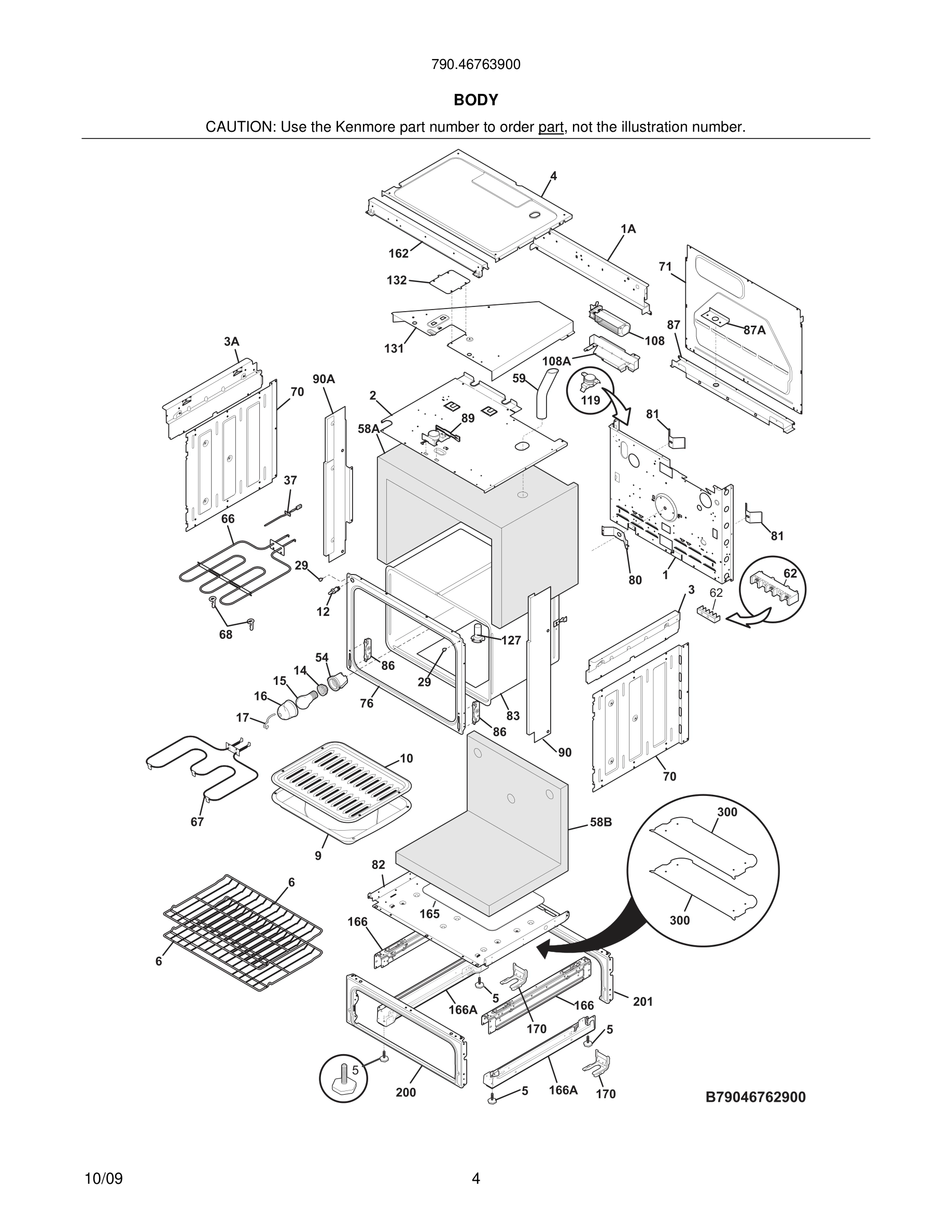

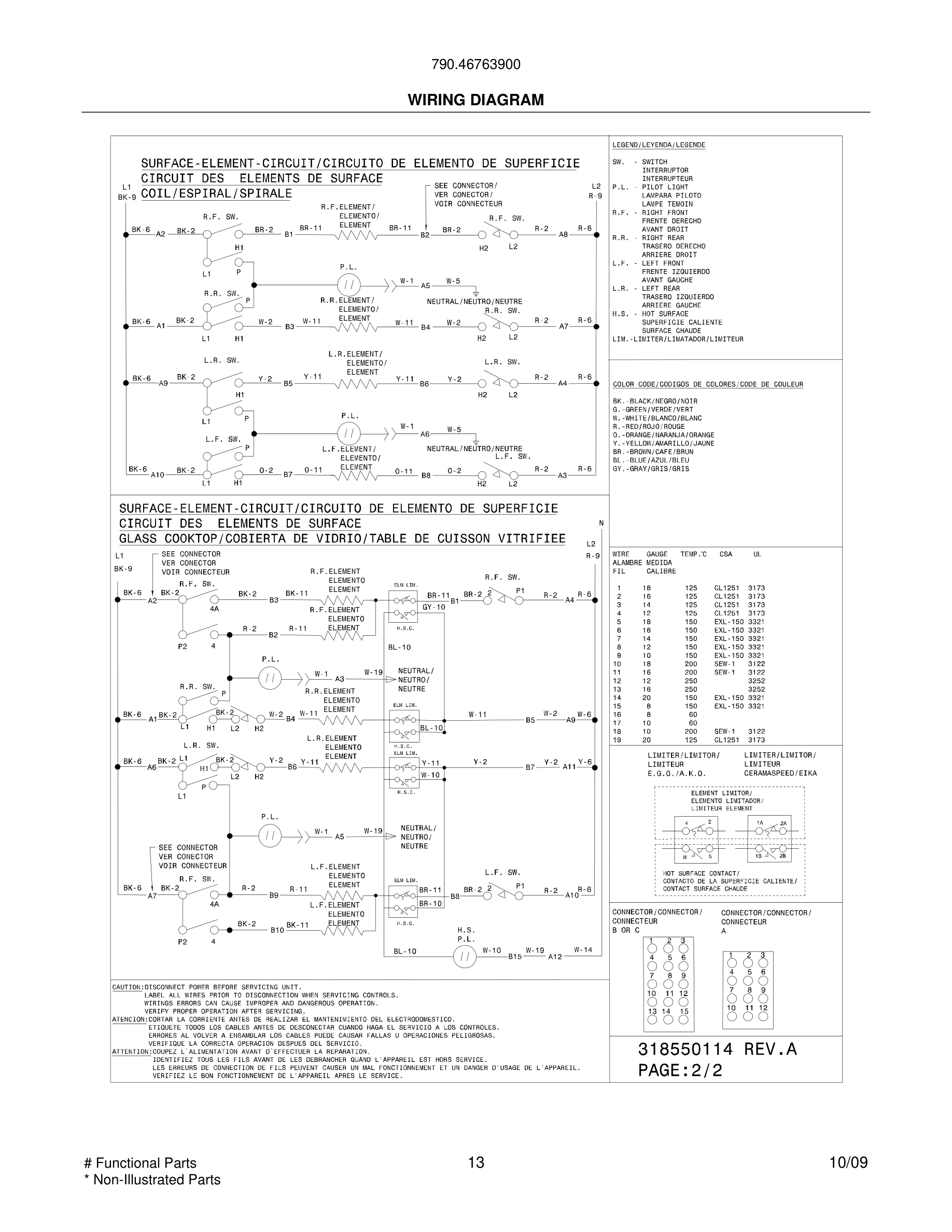

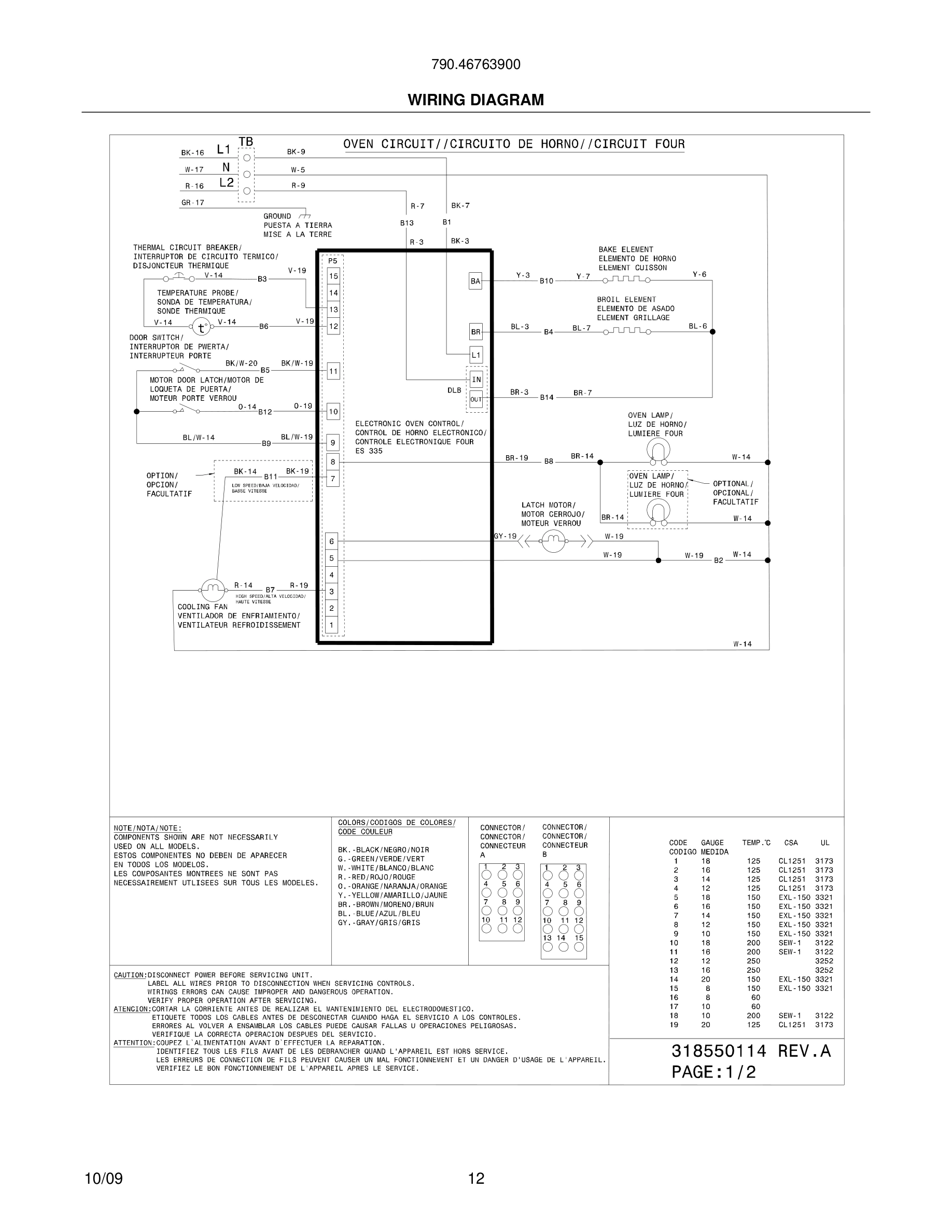

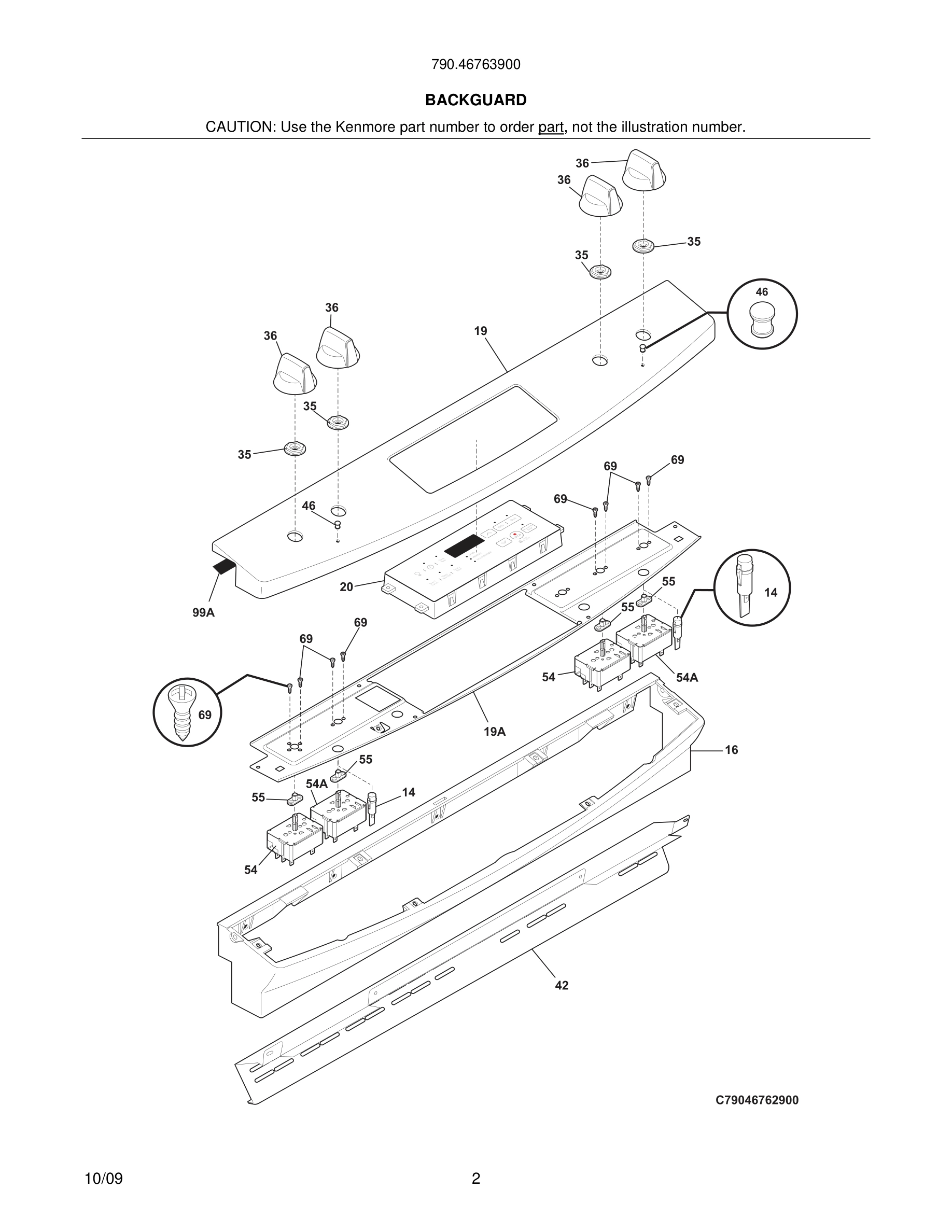

Model Kenmore 790.46763900 RANGE – Common Parts & Diagrams

Common parts from model Kenmore 790.46763900 RANGE

318531701 Frigidaire Spacer

318531701 Frigidaire Spacer Backorder WCI 318531701 $7.69

3201861 Frigidaire Screw

3201861 Frigidaire Screw Backorder WCI 3201861 $0.46

5303211311 Frigidaire Refrigerator Screw

5303211311 Frigidaire Refrigerator Screw Backorder WCI 5303211311 $9.06

5303300265 Frigidaire Oven Screw

5303300265 Frigidaire Oven Screw Backorder WCI 5303300265 $9.04

5303324184 Frigidaire Wall Oven Range Screw

5303324184 Frigidaire Wall Oven Range Screw Backorder WCI 5303324184 $9.06

5304436875 Frigidaire Oven Screw

5304436875 Frigidaire Oven Screw In Stock WCI 5304436875 $8.60

Harness, wiring, main, backguard

Harness, wiring, main, backguard WCI 318228866 Contact Us For Availability

Rack, oven

Rack, oven WCI 318262504 Contact Us For Availability

Pan, broiler, OPTIONAL ACCESS0RY

Pan, broiler, OPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability

Insert, broiler pan, OPTIONAL ACCESS0RY

Insert, broiler pan, OPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability

316445501 Frigidaire Oven Switch

316445501 Frigidaire Oven Switch In Stock WCI 316445501 $56.93

316116400 Frigidaire Oven Light Socket

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $40.25

Light, indicator, 125v, (2)

Light, indicator, 125v, (2) WCI 318293901 Contact Us For Availability

316538904 Frigidaire Oven Light Lamp

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

318296602 Frigidaire Oven Console

318296602 Frigidaire Oven Console Backorder WCI 318296602 $174.64

5304524341 Frigidaire Lens

5304524341 Frigidaire Lens In Stock WCI 5304524341 $9.87

Clip, console, (2)

Clip, console, (2) WCI 5304447071 Contact Us For Availability

Retainer, light cover

Retainer, light cover WCI 5304400195 Contact Us For Availability

Panel, control mtg.

Panel, control mtg. WCI 318289715 Contact Us For Availability

Clock/Timer, electronic, ES335, black, w/over

Clock/Timer, electronic, ES335, black, w/over WCI 318296814 No Longer Available

316517600 Frigidaire Oven Spacer

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 $7.69

Knob, control, stainless, single

Knob, control, stainless, single WCI 318921149 Contact Us For Availability

316217002 Frigidaire Oven Temperature Probe

316217002 Frigidaire Oven Temperature Probe In Stock WCI 316217002 $43.36

Lens, indicator light

Lens, indicator light WCI 318228301 Contact Us For Availability

Housing, oven light

Housing, oven light WCI 318222400 Contact Us For Availability

318293830 Frigidaire Oven Switch

318293830 Frigidaire Oven Switch In Stock WCI 318293830 $54.57

318293831 Frigidaire Range Surface Element Sw

318293831 Frigidaire Range Surface Element Sw In Stock WCI 318293831 $53.64

318402901 Frigidaire Oven Bushing

318402901 Frigidaire Oven Bushing Backorder WCI 318402901 $11.32

Tube, oven vent

Tube, oven vent WCI 318549815 Contact Us For Availability

318264200 Frigidaire Oven Plate

318264200 Frigidaire Oven Plate Backorder WCI 318264200 $14.03

318255401 Frigidaire Oven Element

318255401 Frigidaire Oven Element In Stock WCI 318255401 $144.94

5304403015 Frigidaire Oven Support

5304403015 Frigidaire Oven Support Backorder WCI 5304403015 $20.91

5303288565 Frigidaire Screw

5303288565 Frigidaire Screw In Stock WCI 5303288565 $1.87

Spring, oven

Spring, oven WCI 318192400 Contact Us For Availability

318561100 Frigidaire Receptacle

318561100 Frigidaire Receptacle Backorder WCI 318561100 $12.67

5304461333 Frigidaire Oven Screw

5304461333 Frigidaire Oven Screw Backorder WCI 5304461333 $8.58

5304511889 Frigidaire Oven Panel

5304511889 Frigidaire Oven Panel Backorder WCI 5304511889 $47.05

5304511890 Frigidaire Oven Panel

5304511890 Frigidaire Oven Panel Backorder WCI 5304511890 $47.95

Gasket, black

Gasket, black WCI 318313201 Contact Us For Availability

318073028 Frigidaire Oven Motor

318073028 Frigidaire Oven Motor In Stock WCI 318073028 $186.75

Bracket, fan support

Bracket, fan support WCI 318251300 Contact Us For Availability

318005202 Frigidaire Limit Switch

318005202 Frigidaire Limit Switch Backorder WCI 318005202 $73.49
