Model Kenmore 790.46762900 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD
05 - BODY

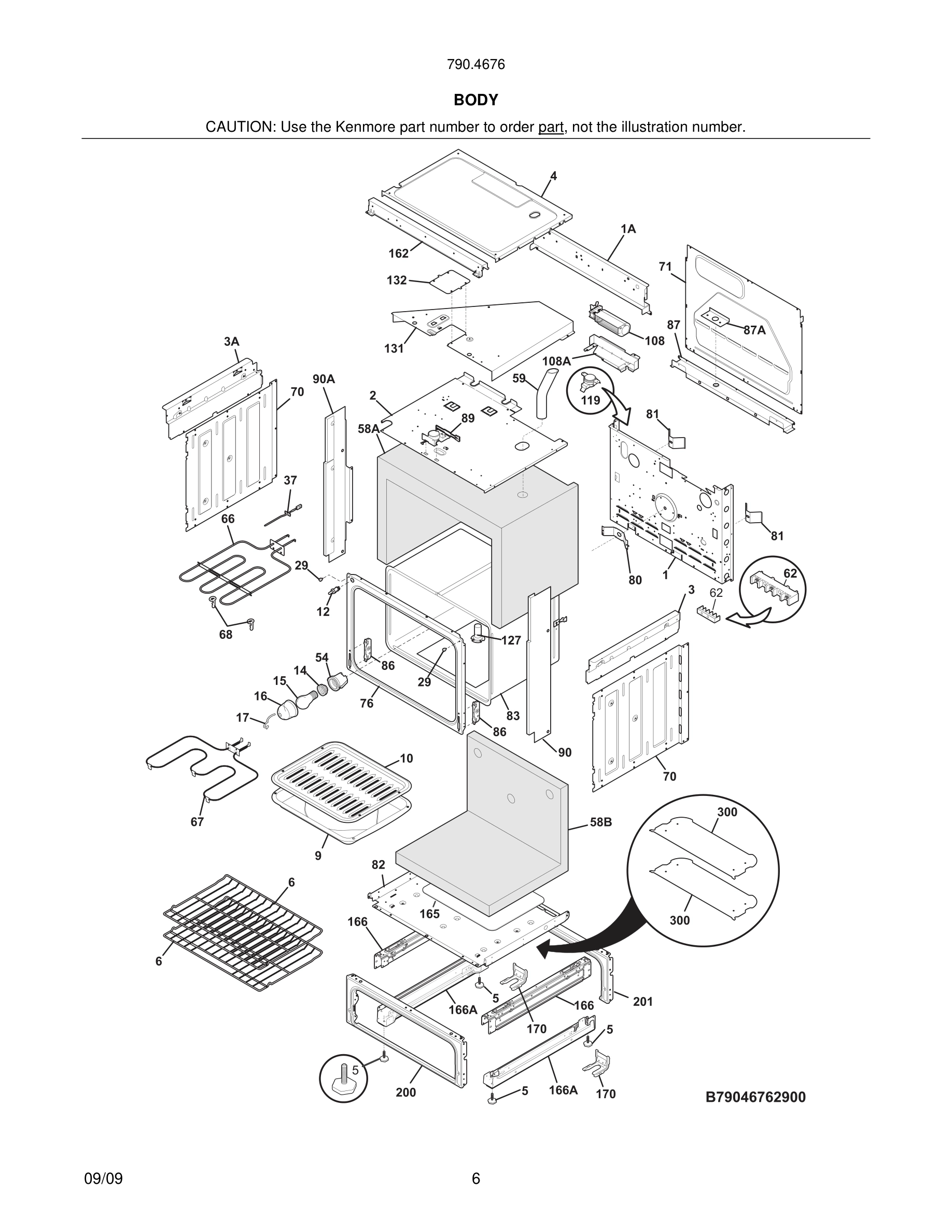

07 - BODY

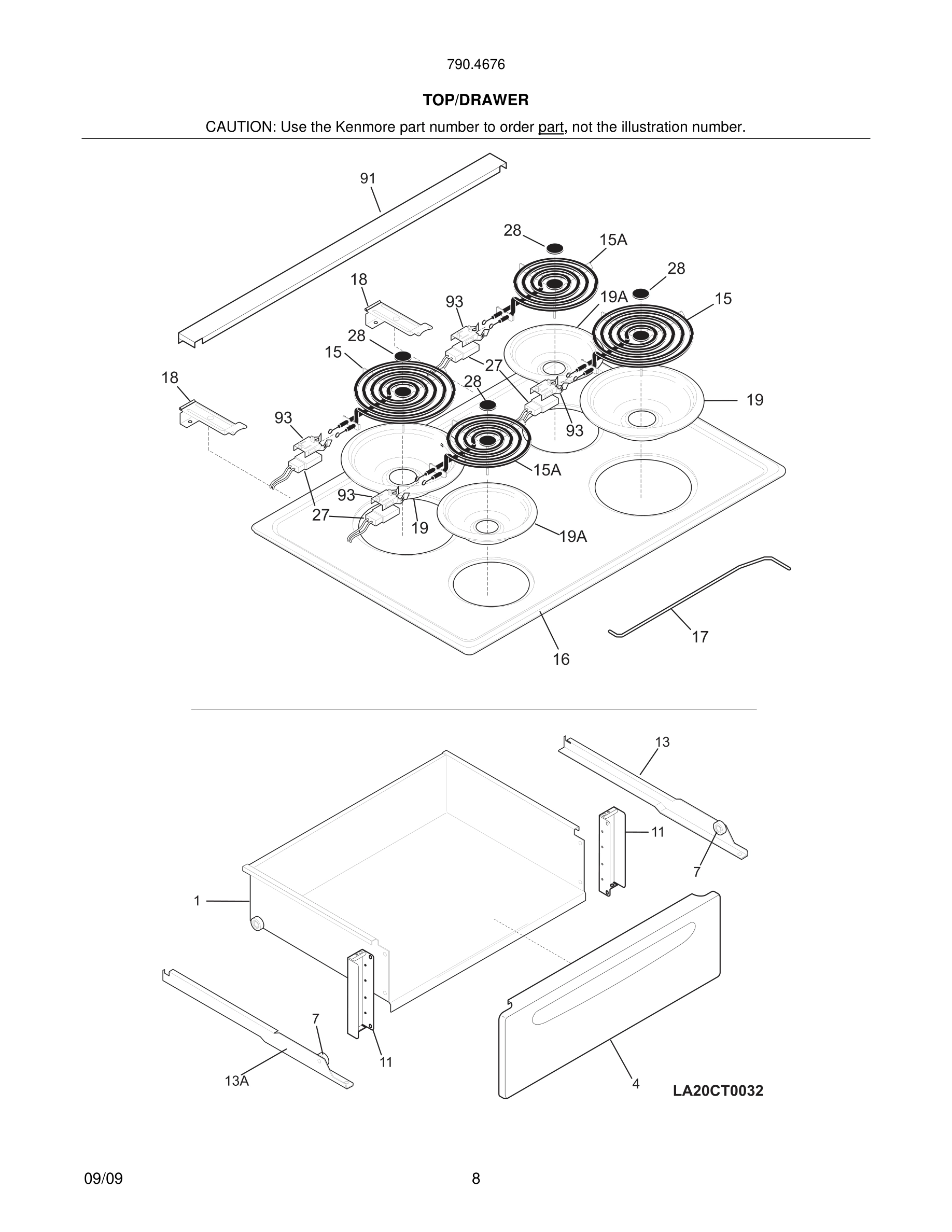

09 - TOP/DRAWER

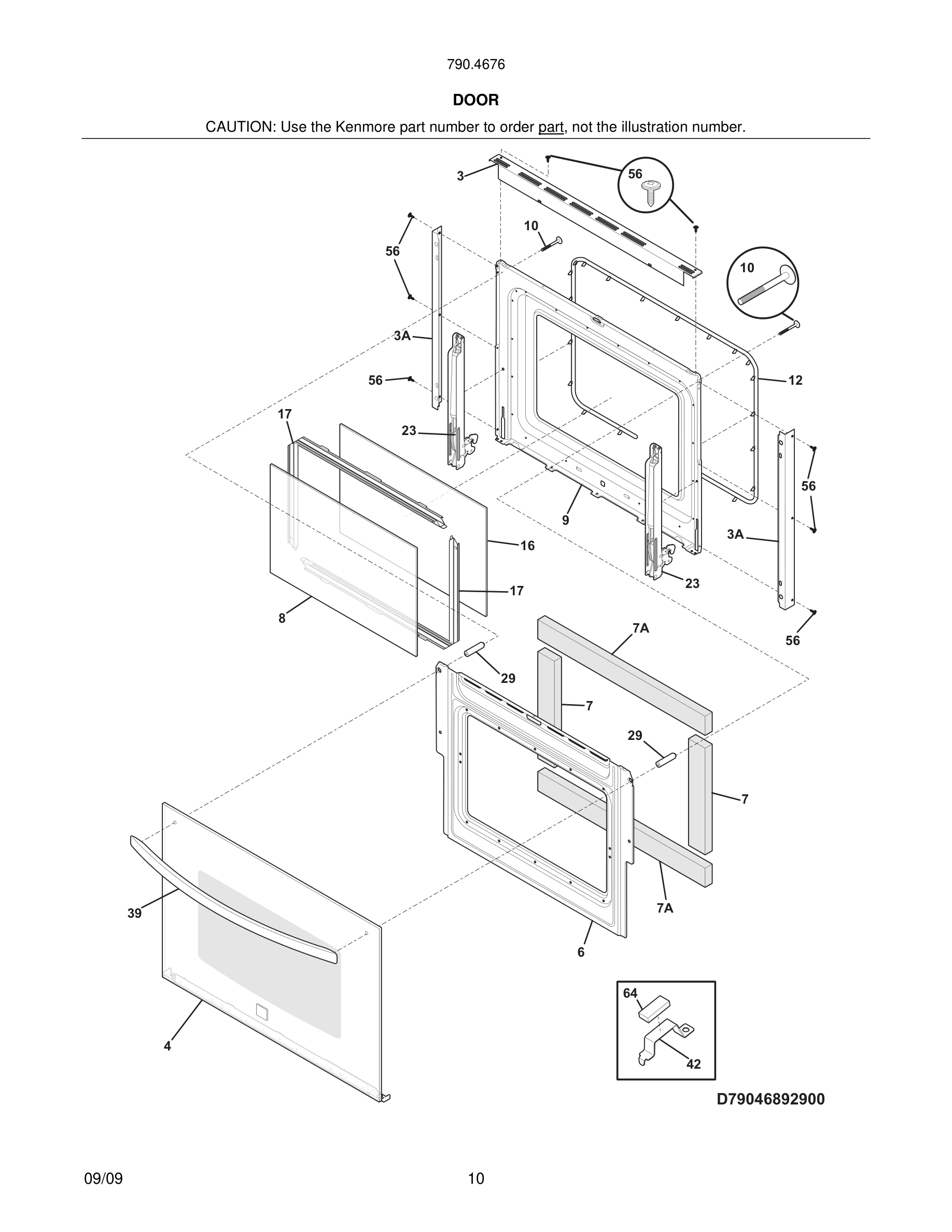

11 - DOOR

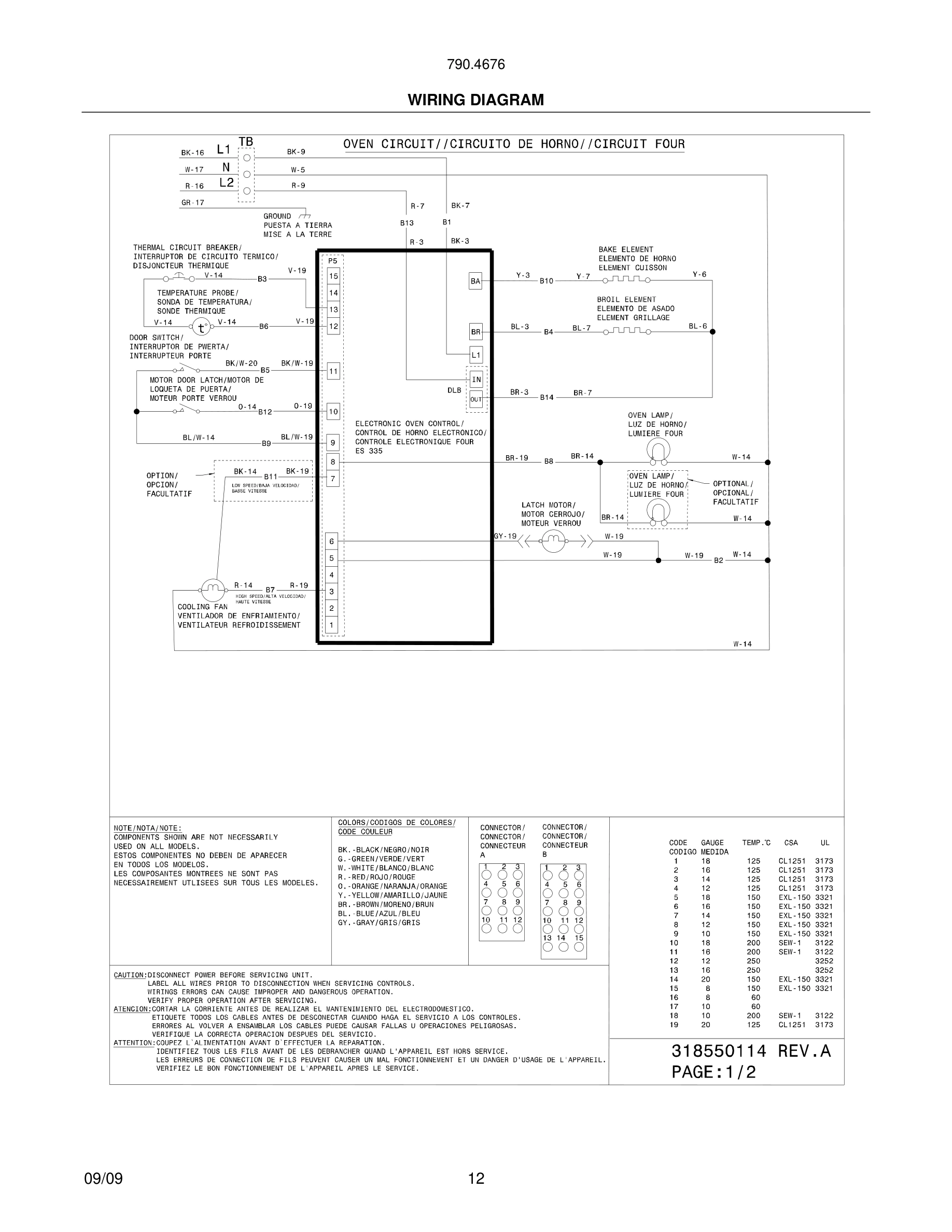

12 - WIRING DIAGRAM

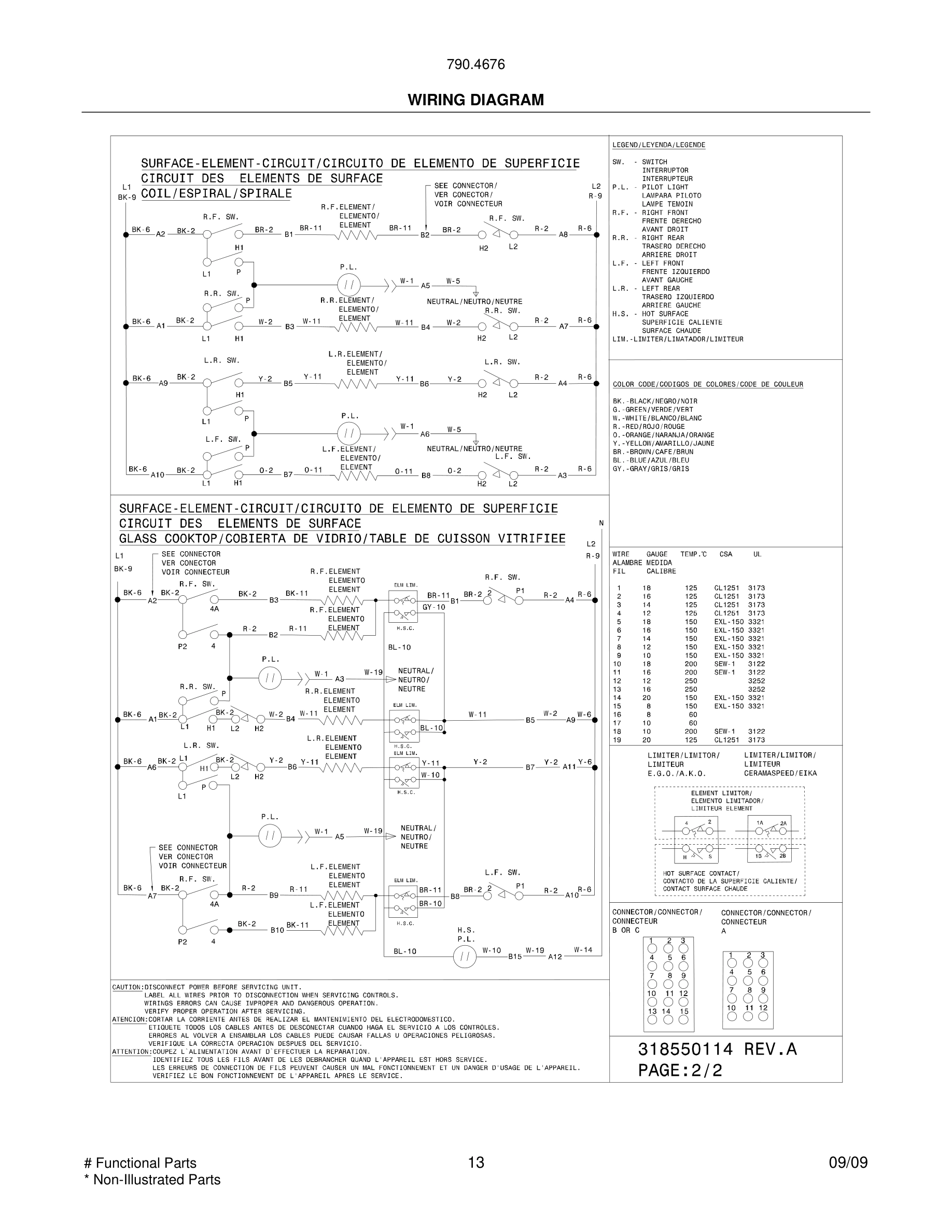

13 - WIRING DIAGRAM
Common parts from model Kenmore 790.46762900 RANGE
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
*
Screw, shoulder, 8-18 X 1/2, (4) WCI 5304417153 Contact Us For Availability
*#
Harness, wiring, main, backguard WCI 318228866 Contact Us For Availability
*#
Wiring Harness, surface units WCI 318301002 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318304145 Contact Us For Availability
4
Panel, drawer, white, front WCI 318298906 Contact Us For Availability
4
Panel, drawer, black, front WCI 318298908 Contact Us For Availability
6
Rack, oven WCI 318262504 Contact Us For Availability
9
Pan, broiler, OPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
Insert, broiler pan, OPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
13
Channel, drawer, RH WCI 318018100 Contact Us For Availability
13A
Channel, drawer, LH WCI 318018101 Contact Us For Availability
14#
Light, indicator, 125v, (2) WCI 318293901 Contact Us For Availability
16
Glass, oven door, heat barrier, lower door WCI 318212210 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
16*
Clip, console, (2) WCI 5304447071 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
18
Hinge, maintop, (2) WCI 318227710 Contact Us For Availability
19A
Panel, control mtg. WCI 318289715 Contact Us For Availability
20#
Clock/Timer, electronic, ES335, black, w/over WCI 318296814 No Longer Available
20#
Clock/Timer, electronic, ES335, white, w/over WCI 318296812 Contact Us For Availability
20#
Clock/Timer, electronic, ES335, bisque, w/ove WCI 318296813 Contact Us For Availability
23
Hinge, oven door, (2) WCI 318567101 Contact Us For Availability
35
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
35
Support, glass, bisque, (4) WCI 318183102 Contact Us For Availability
36
Knob, control, white, single WCI 318921137 Contact Us For Availability
36
Knob, control, bisque, single WCI 318921139 Contact Us For Availability
39
Handle, door, white, w/spacer WCI 318372416 Contact Us For Availability
39
Handle, door, black, w/spacer WCI 318372417 Contact Us For Availability
46
Lens, indicator light WCI 318228301 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
59
Tube, oven vent WCI 318549815 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
90A
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
93
Support, terminal block, (4) WCI 318366410 Contact Us For Availability
99A
Gasket, black WCI 318313201 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
170
Anti-tip & accessories WCI 318335500 Contact Us For Availability
200
Frame & Wheel Assembly, black WCI 318335600 Contact Us For Availability
× ![]()
