Model Kenmore 790.46723700 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

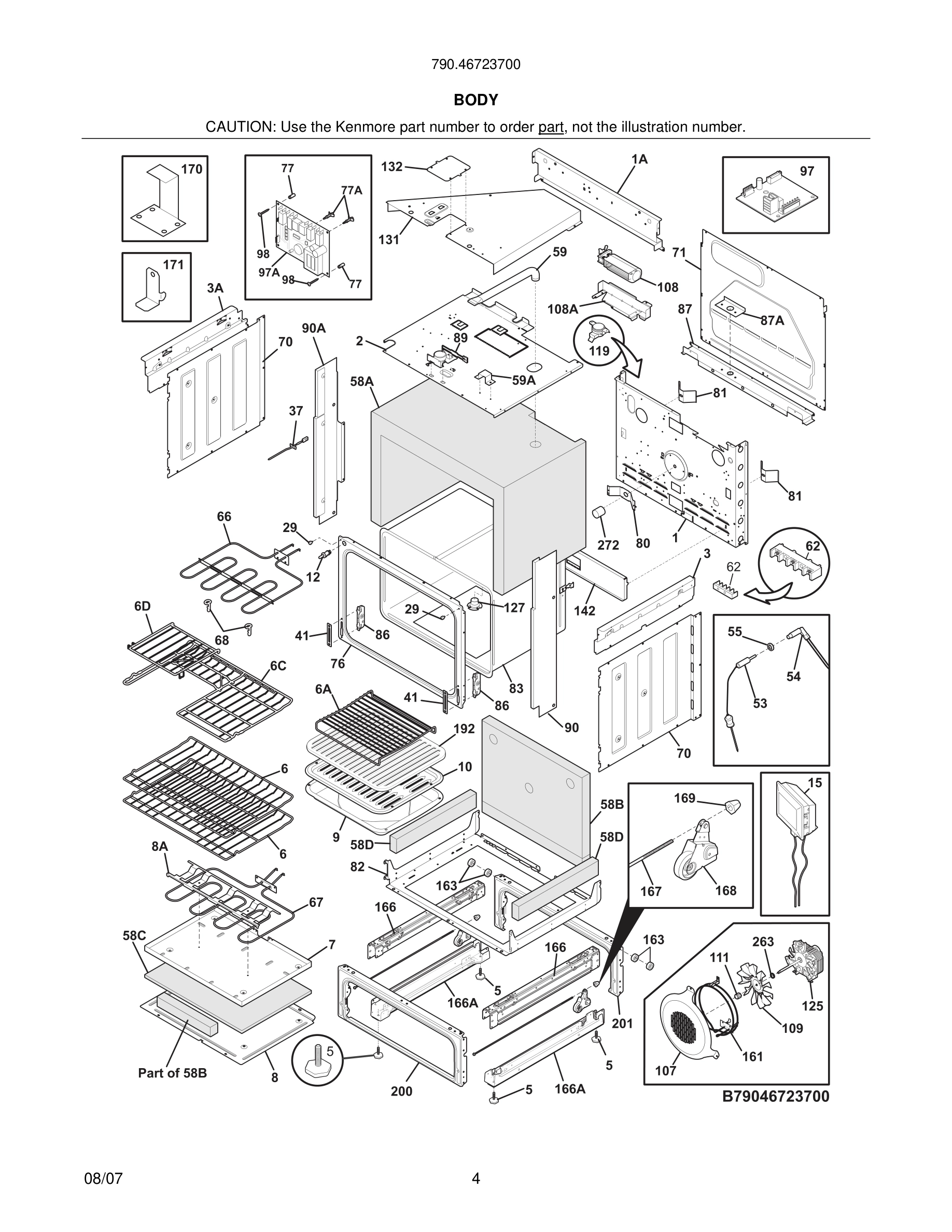

05 - BODY
07 - BODY

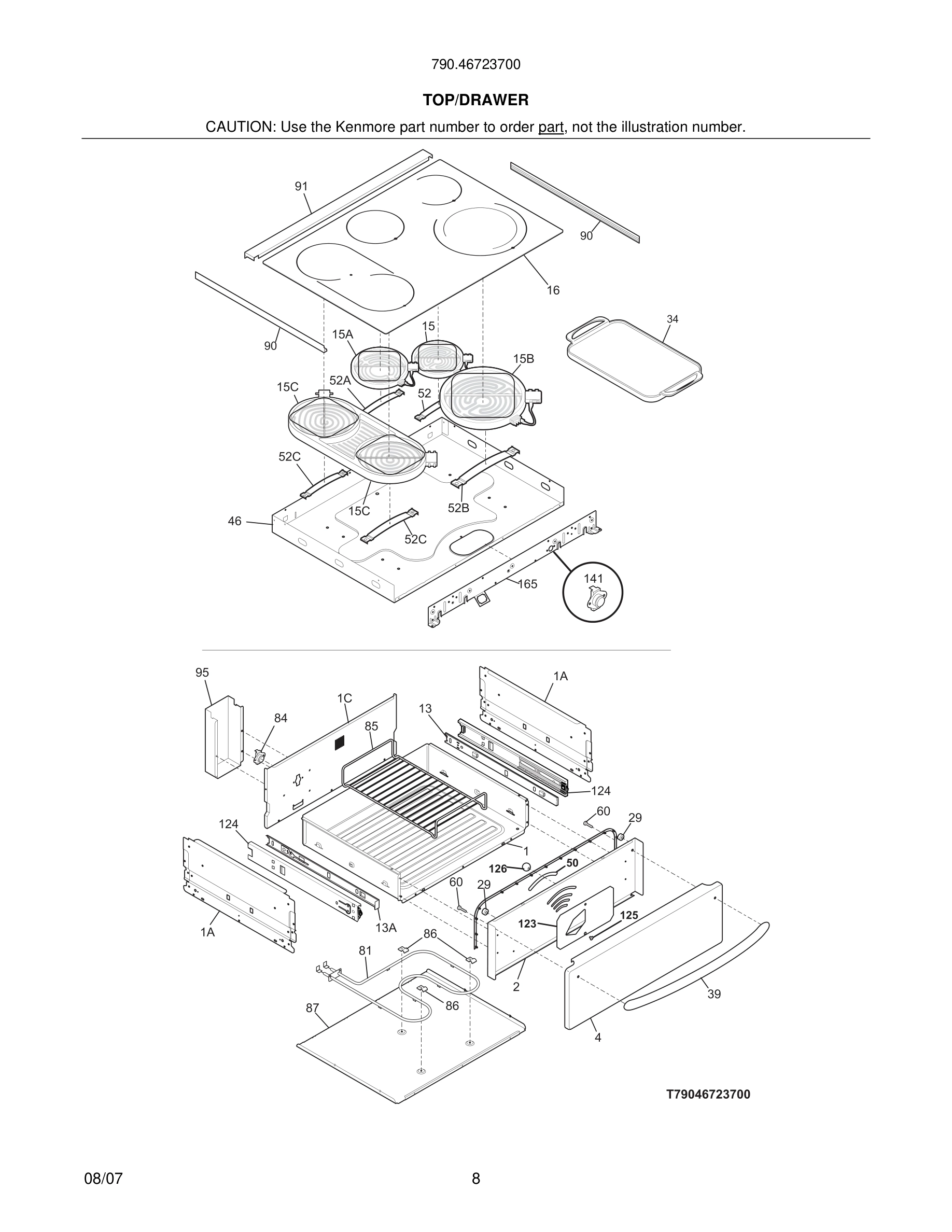

09 - TOP/DRAWER
11 - DOOR

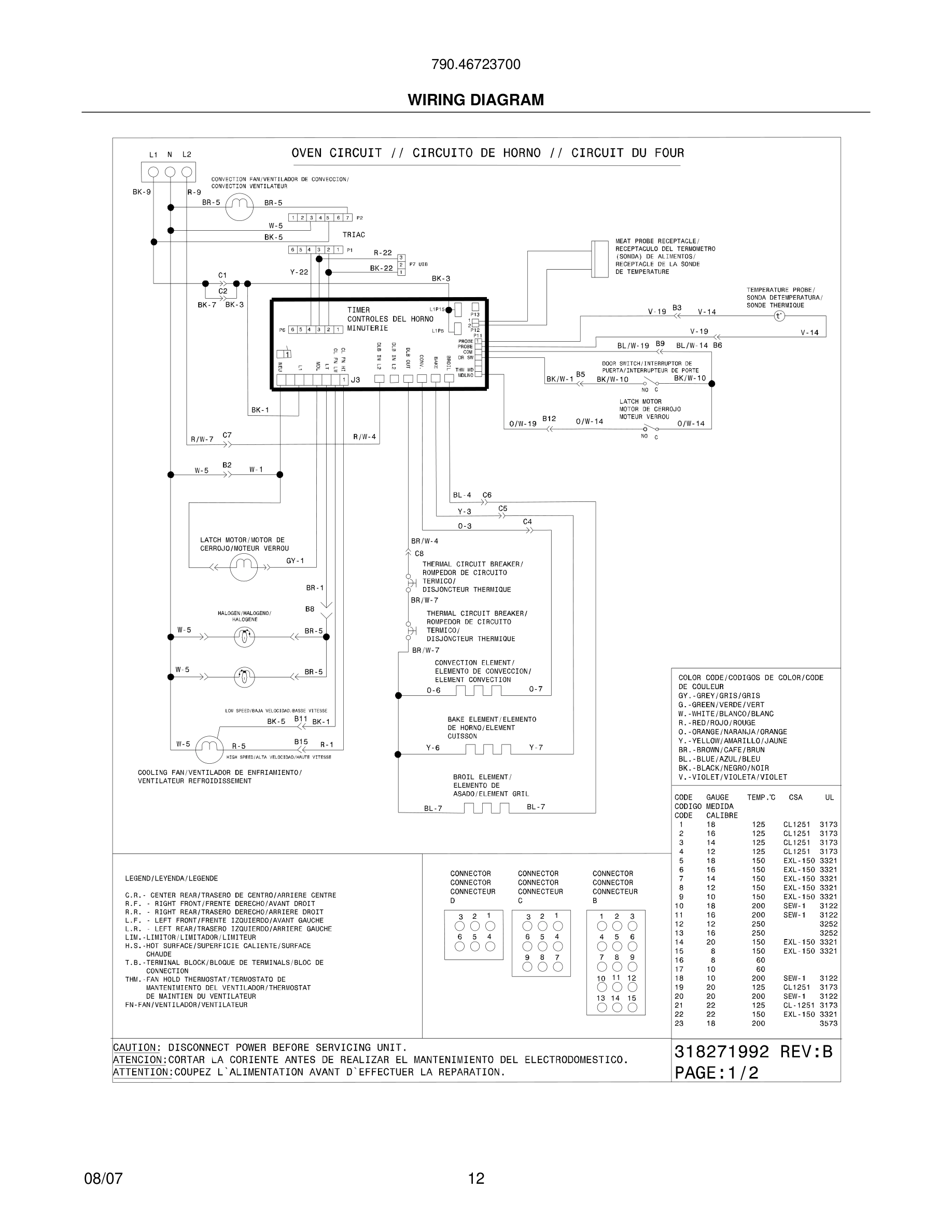

12 - WIRING DIAGRAM

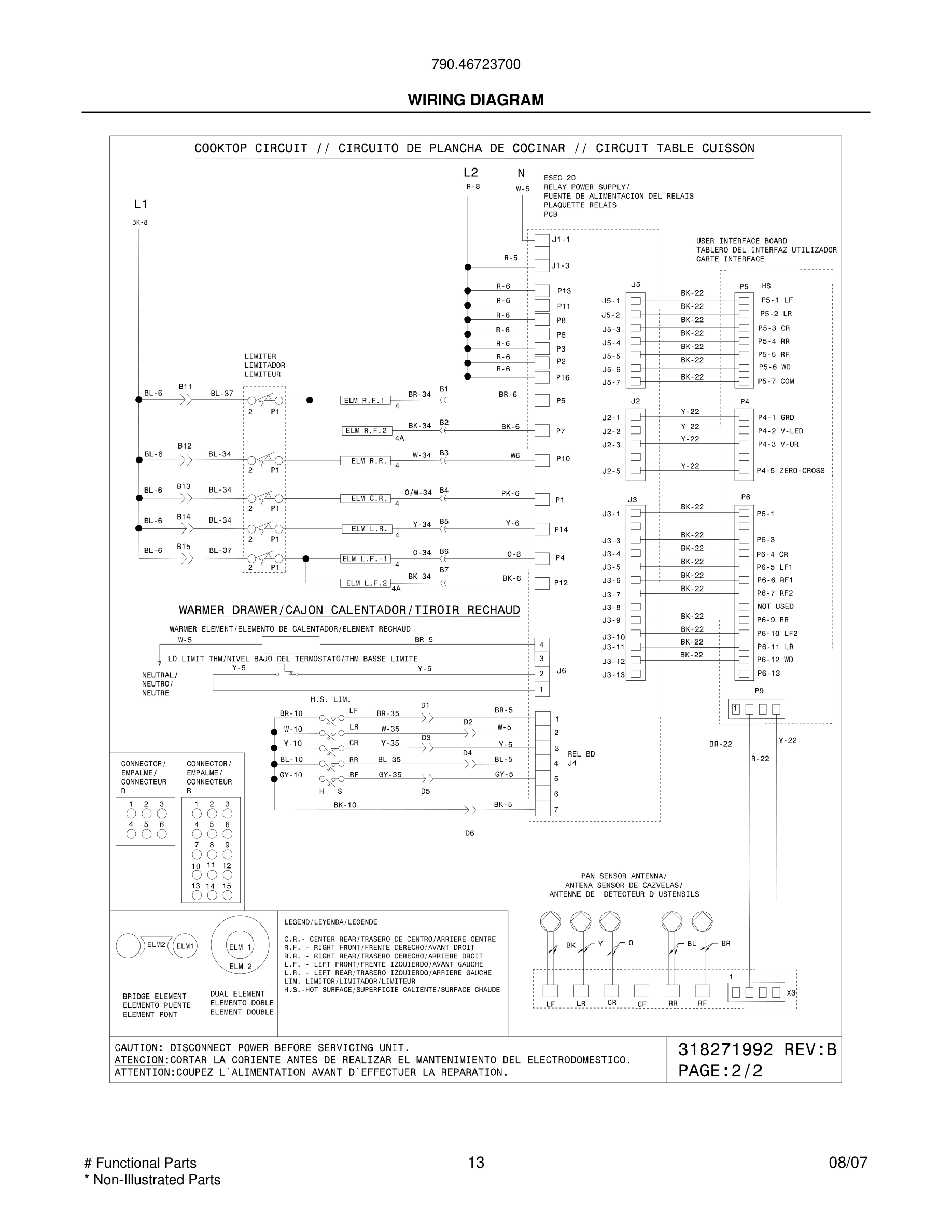

13 - WIRING DIAGRAM
Common parts from model Kenmore 790.46723700 RANGE
*
Washer, plastic WCI 5303325171 Contact Us For Availability
*
Cleaner, cooktop WCI 318163600 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*#
Harness, wiring, cooktop WCI 318228921 Contact Us For Availability
1
Drawer, body assembly WCI 318304401 Contact Us For Availability
1C
Panel, warmer drawer, rear WCI 318300300 Contact Us For Availability
2
Panel, drawer, black, inner WCI 318303903 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Panel, drawer, stainless, front WCI 318298814 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
6
Baffle, door WCI 318260520 Contact Us For Availability
6A
Rack, broiler pan WCI 318365800 Contact Us For Availability
8A
Bracket, bake element WCI 318313601 Contact Us For Availability
9
Liner, door WCI 318259605 Contact Us For Availability
12
Seal, door, lower oven WCI 318053327 Contact Us For Availability
13
Door Assy, stainless steel, outer, w/tape & f WCI 318272195 Contact Us For Availability
15#
Element, radiant, 6", top, 1200W WCI 318360800 Contact Us For Availability
15A#
Element, radiant, 7", top, 1500w WCI 318360801 Contact Us For Availability
15B#
Element, dual radiant, 9"/12", top, 1800W/300 WCI 318361001 Contact Us For Availability
15C#
Element, bridge radiant, top, 4400W WCI 318374200 Contact Us For Availability
16
Glass, oven door, heat barrier WCI 318212210 Contact Us For Availability
16
Main Top, glass assy., black WCI 318223657 Contact Us For Availability
23
Hinge, door, (2) WCI 318024714 Contact Us For Availability
24
Trim, door, black, lower WCI 318260301 Contact Us For Availability
37*
Bracket, receptacle, temp probe WCI 318373001 Contact Us For Availability
39
Handle, door/drawer, stainless WCI 316432305 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
46
Box, burner WCI 318225410 Contact Us For Availability
50
Insert, control, humidity WCI 318284400 Contact Us For Availability
52B
Spring, element mtg, 700W & 2100W WCI 318122004 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
86
Receptacle, hinge WCI 318342400 Contact Us For Availability
86
Clip, hold down, warmer element WCI 316095800 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
90
Channel, glass protector, (2) WCI 318368000 Contact Us For Availability
95
Shield, wire WCI 318303800 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
123
Panel, control, humidity WCI 318247103 Contact Us For Availability
126*
Washer, flat, (2) WCI 5304463280 Contact Us For Availability
141#
Thermostat WCI 318397000 Contact Us For Availability
165
Plate, mounting WCI 318227506 Contact Us For Availability
170
Anti-tip & accessories WCI 318335700 Contact Us For Availability
200
Frame, drawer, black, front WCI 318298201 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
272
Tube, protector WCI 318249403 Contact Us For Availability
× ![]()
