Model Kenmore 790.46712603 RANGE – Common Parts & Diagrams

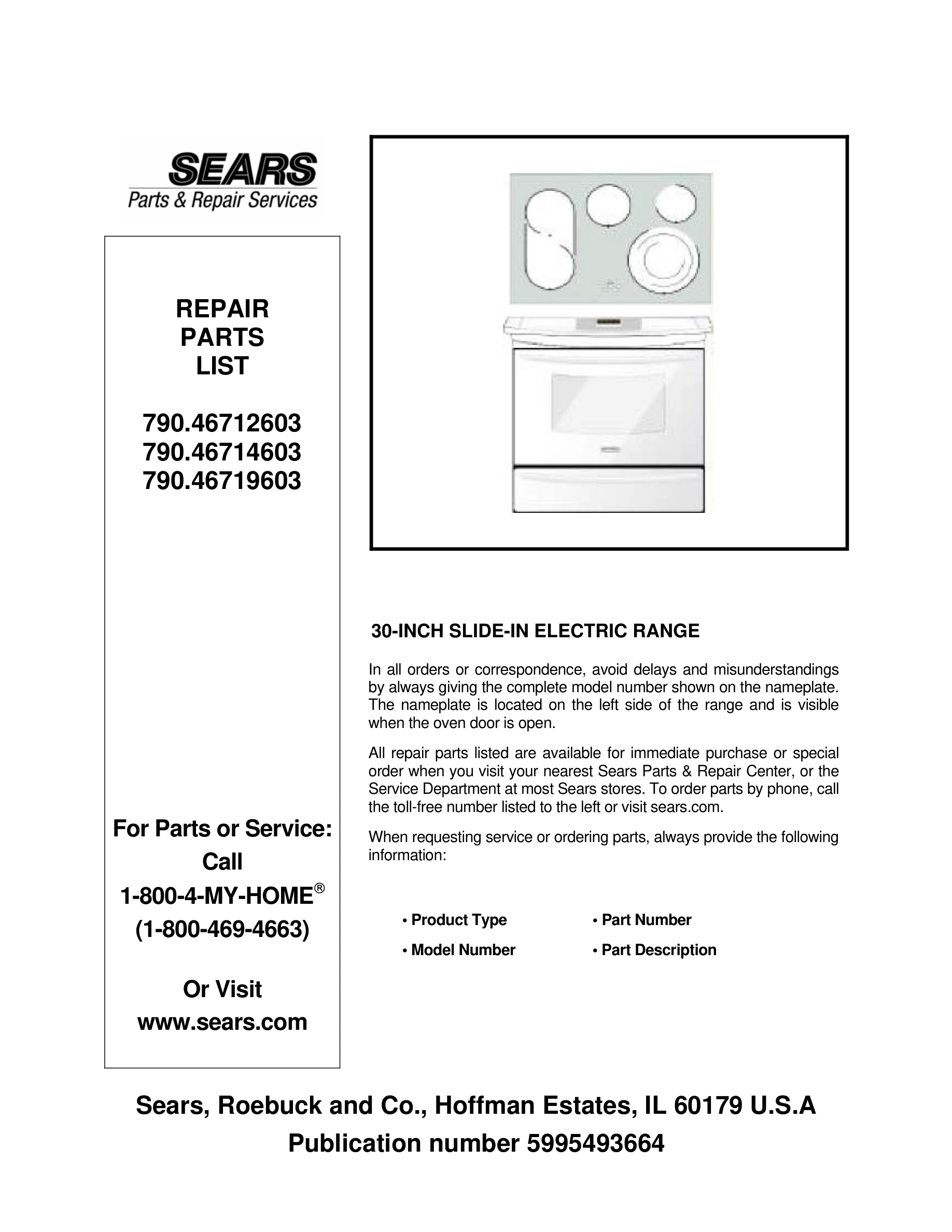

01 - COVER

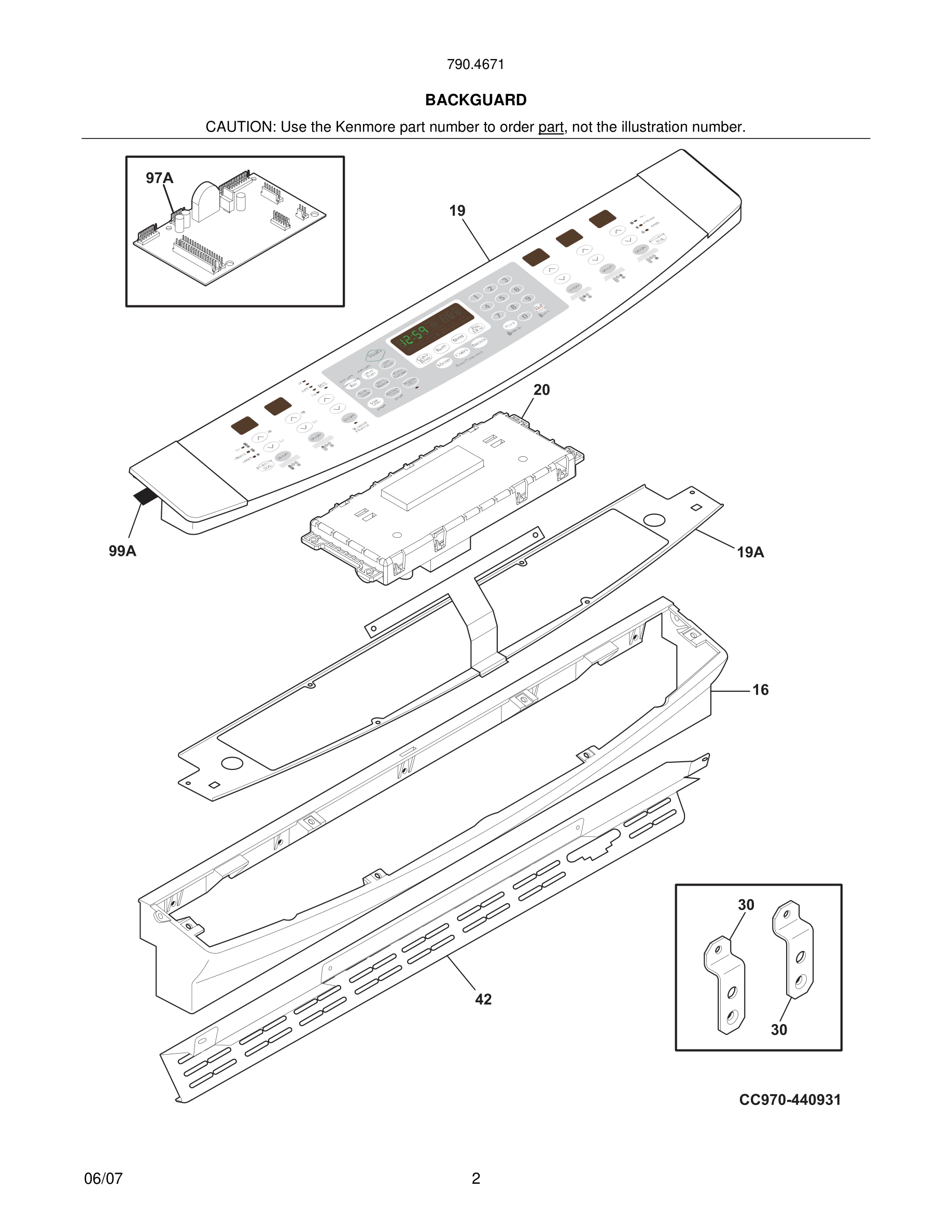

03 - BACKGUARD
05 - BODY
07 - BODY
09 - TOP/DRAWER
11 - DOOR
12 - WIRING DIAGRAM
13 - WIRING DIAGRAM
Common parts from model Kenmore 790.46712603 RANGE
*
Label, anti-tip WCI 316221000 Contact Us For Availability
*#
Harness, wiring, main, backguard WCI 318228816 Contact Us For Availability
*#
Harness, wiring, main, UIB to timer WCI 318083057 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261362 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318261364 Contact Us For Availability
4
Glass Assy., oven door, black, outer, w/trim WCI 318261363 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
6
Baffle, door WCI 318260520 Contact Us For Availability
6A
Rack, broiler pan WCI 318365800 Contact Us For Availability
8A
Bracket, bake element WCI 318313601 Contact Us For Availability
9
Liner, oven door, upper WCI 318259601 Contact Us For Availability
16
Glass, oven door, heat barrier WCI 318212210 Contact Us For Availability
16
Main Top, glass assy., black WCI 318223637 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
16
Main Top, glass assy., white WCI 318223635 Contact Us For Availability
16
Main Top, glass assy., bisque WCI 318223636 Contact Us For Availability
20#
Controller, electronic, ES575 WCI 316462820 Contact Us For Availability
23
Hinge, door, upper, (2) WCI 318024722 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
39
Handle, door/drawer, white WCI 316432302 Contact Us For Availability
39
Handle, door/drawer, bisque WCI 316432304 Contact Us For Availability
39
Handle, door/drawer, black WCI 316432303 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
46
Box, burner WCI 318225410 Contact Us For Availability
51#
Light, indicator, natural WCI 318044826 Contact Us For Availability
52B
Spring, element mtg, 700W & 2100W WCI 318122004 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
86
Receptacle, hinge WCI 318342400 Contact Us For Availability
86
Clip, hold down, warmer element WCI 316095800 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
90
Channel, glass protector, (2) WCI 318368000 Contact Us For Availability
90A
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
91
Trim, filler, bisque, rear WCI 318304302 Contact Us For Availability
95
Shield, wire WCI 318303800 Contact Us For Availability
97
Board, power, relay WCI 316442110 Contact Us For Availability
97A
Board, power, UIB WCI 316442040 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
119#
Switch, thermal cutout WCI 318005212 Contact Us For Availability
165
Plate, mounting WCI 318227503 Contact Us For Availability
170
Anti-tip & accessories WCI 318335700 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
219#
Switch, thermal cutout WCI 318005213 Contact Us For Availability
× ![]()
