Model Kenmore 790.46622501 RANGE – Common Parts & Diagrams

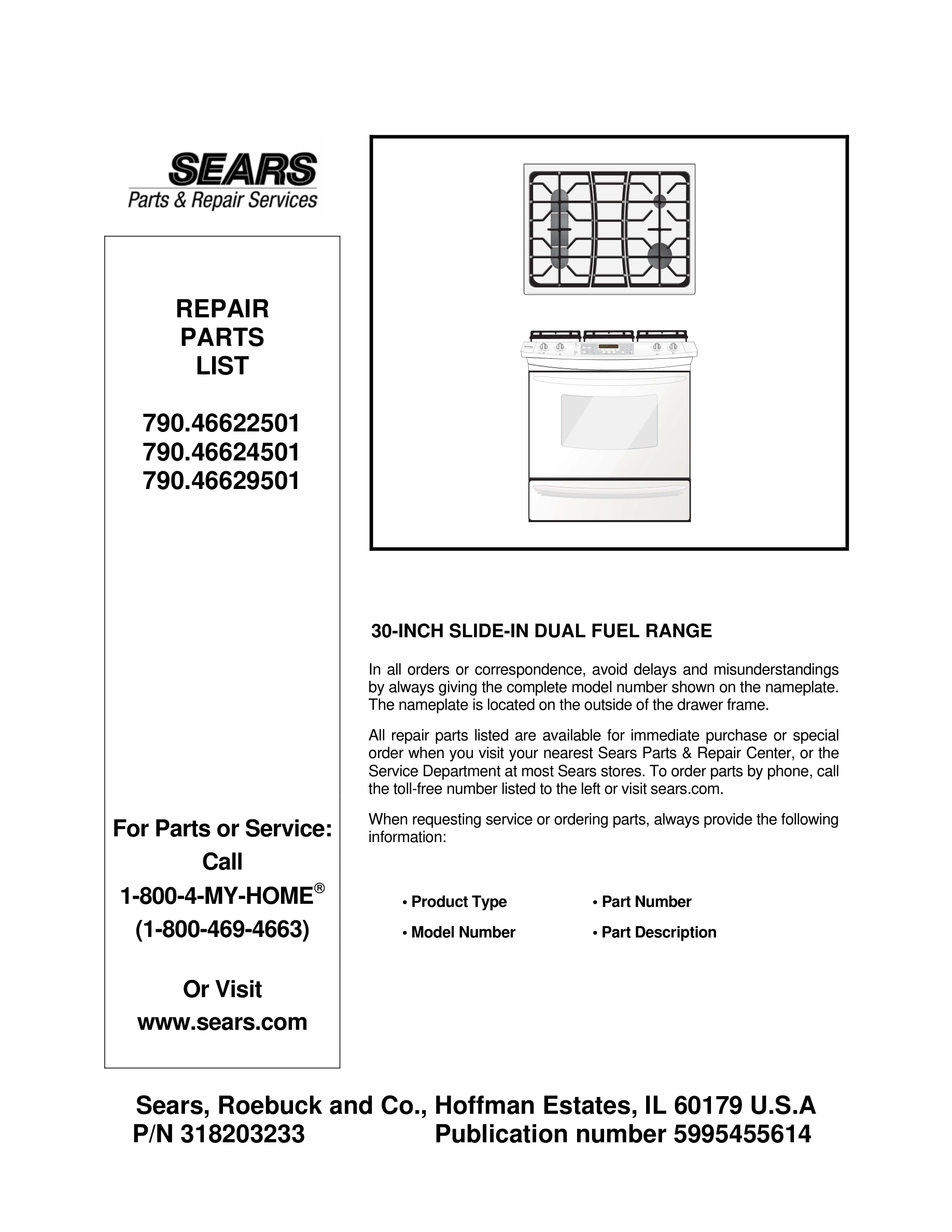

01 - COVER

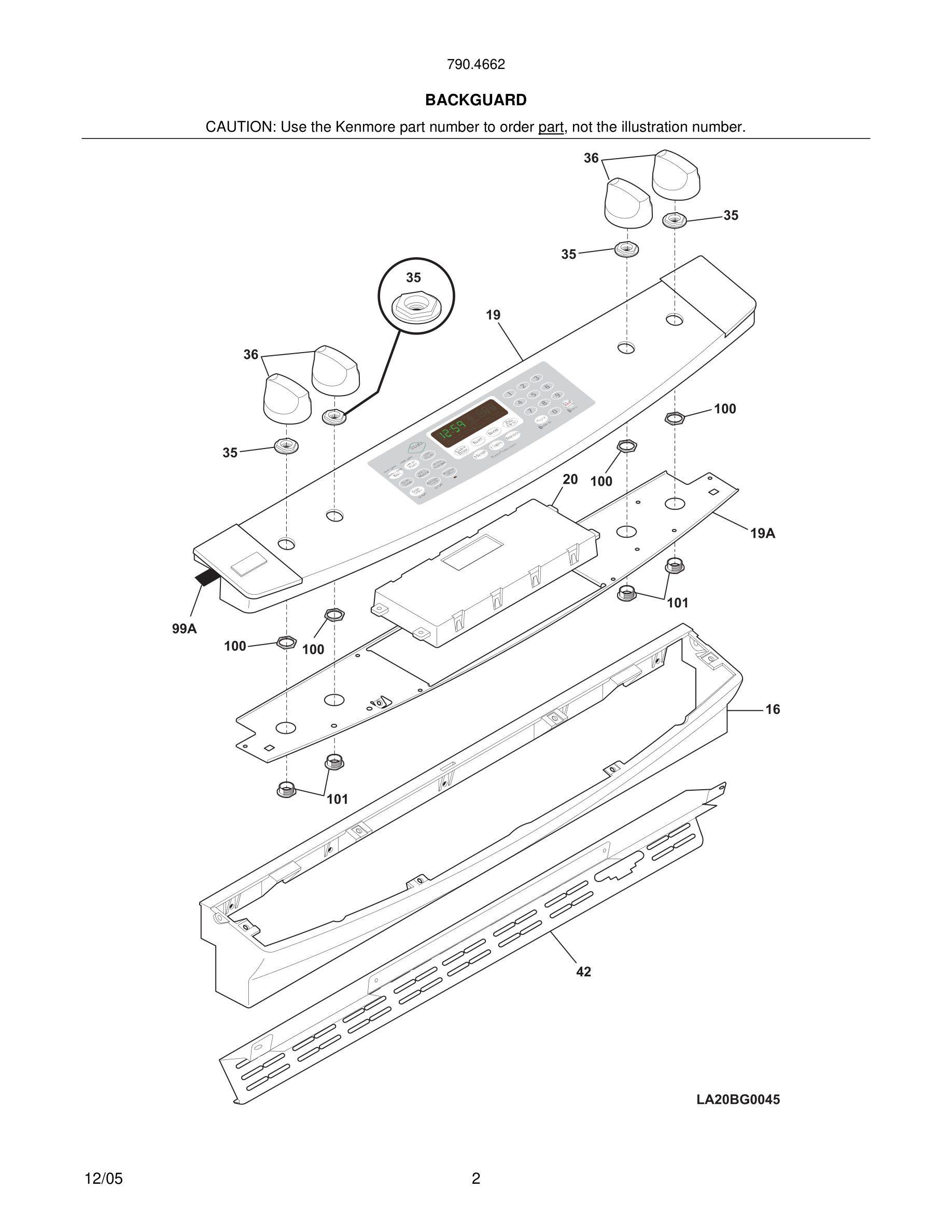

03 - BACKGUARD

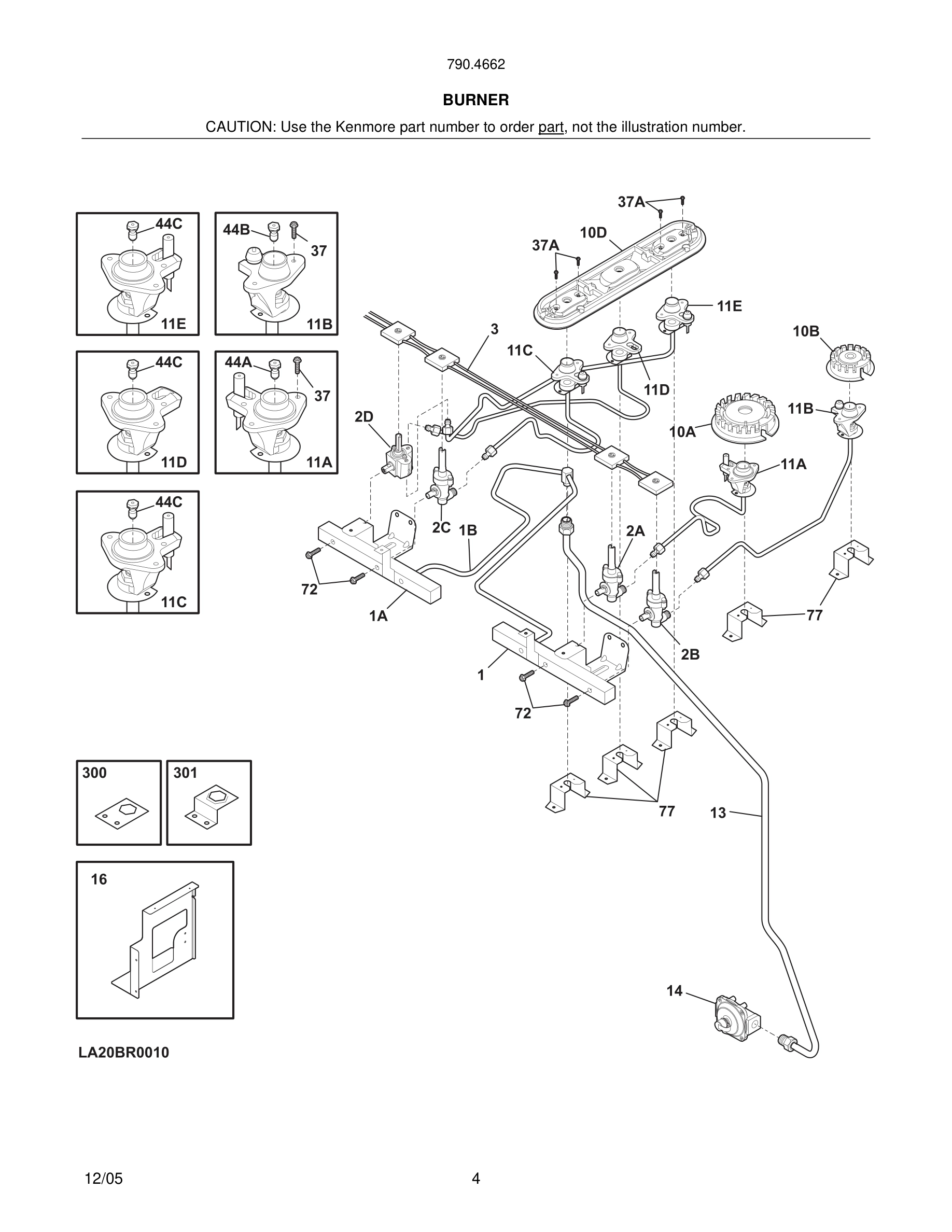

05 - BURNER
07 - BODY

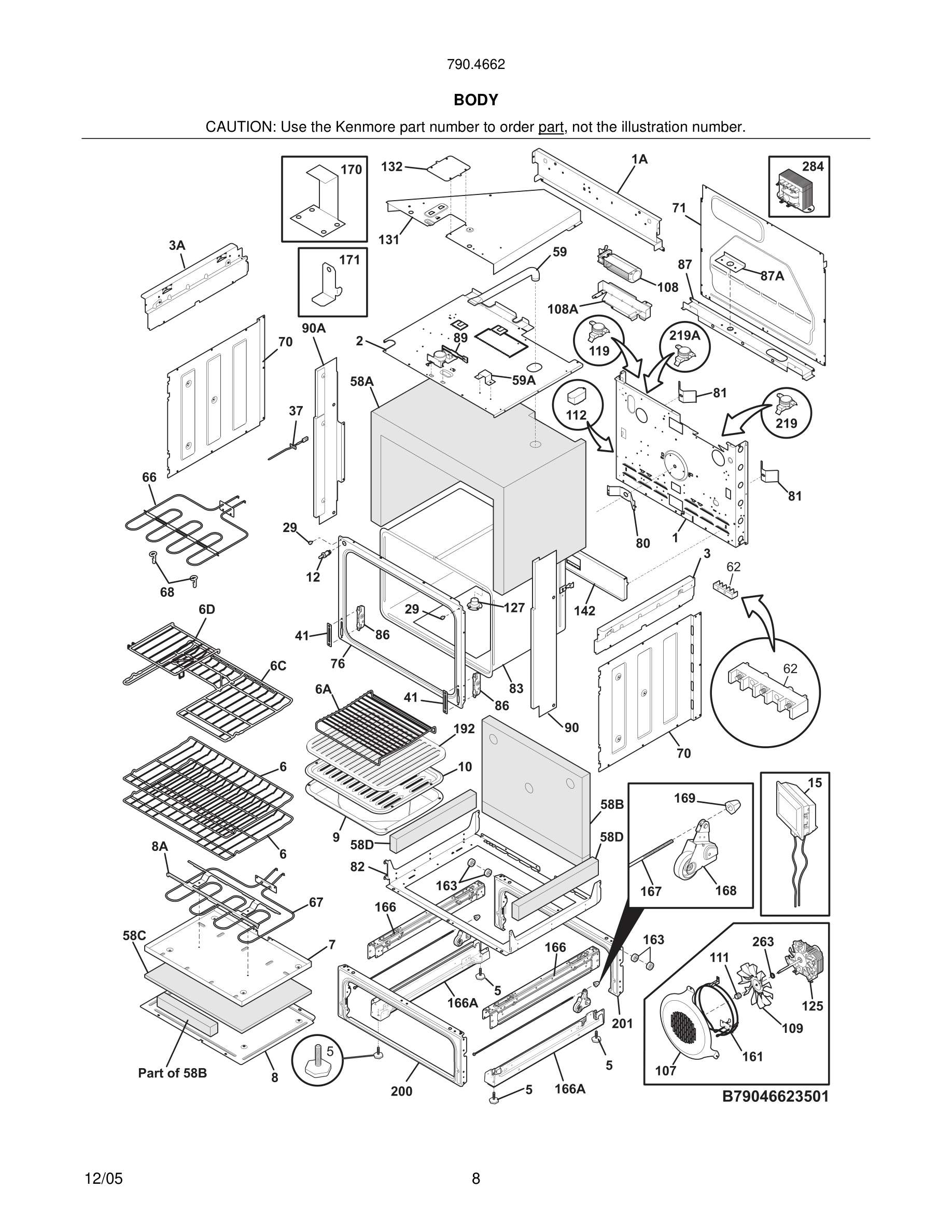

09 - BODY

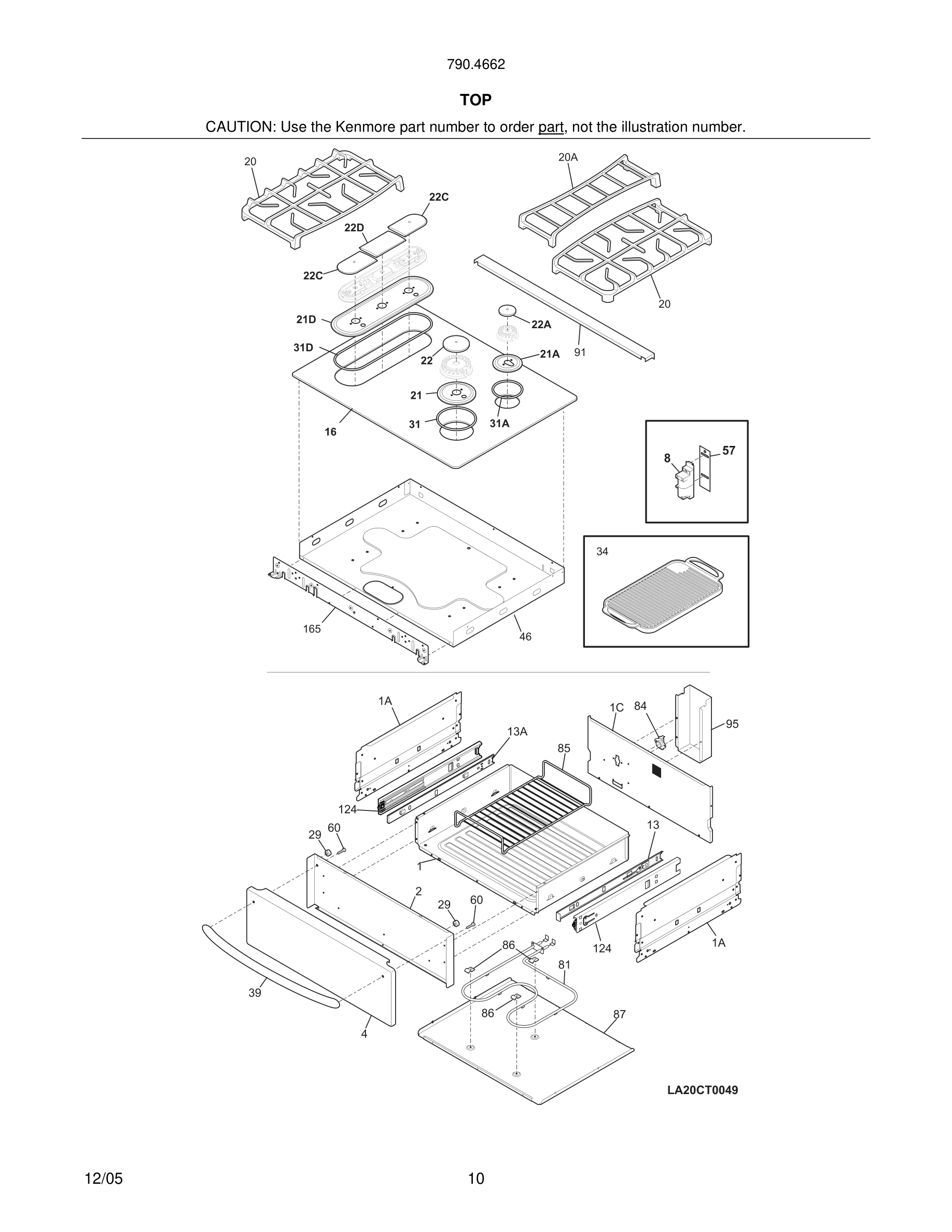

11 - TOP

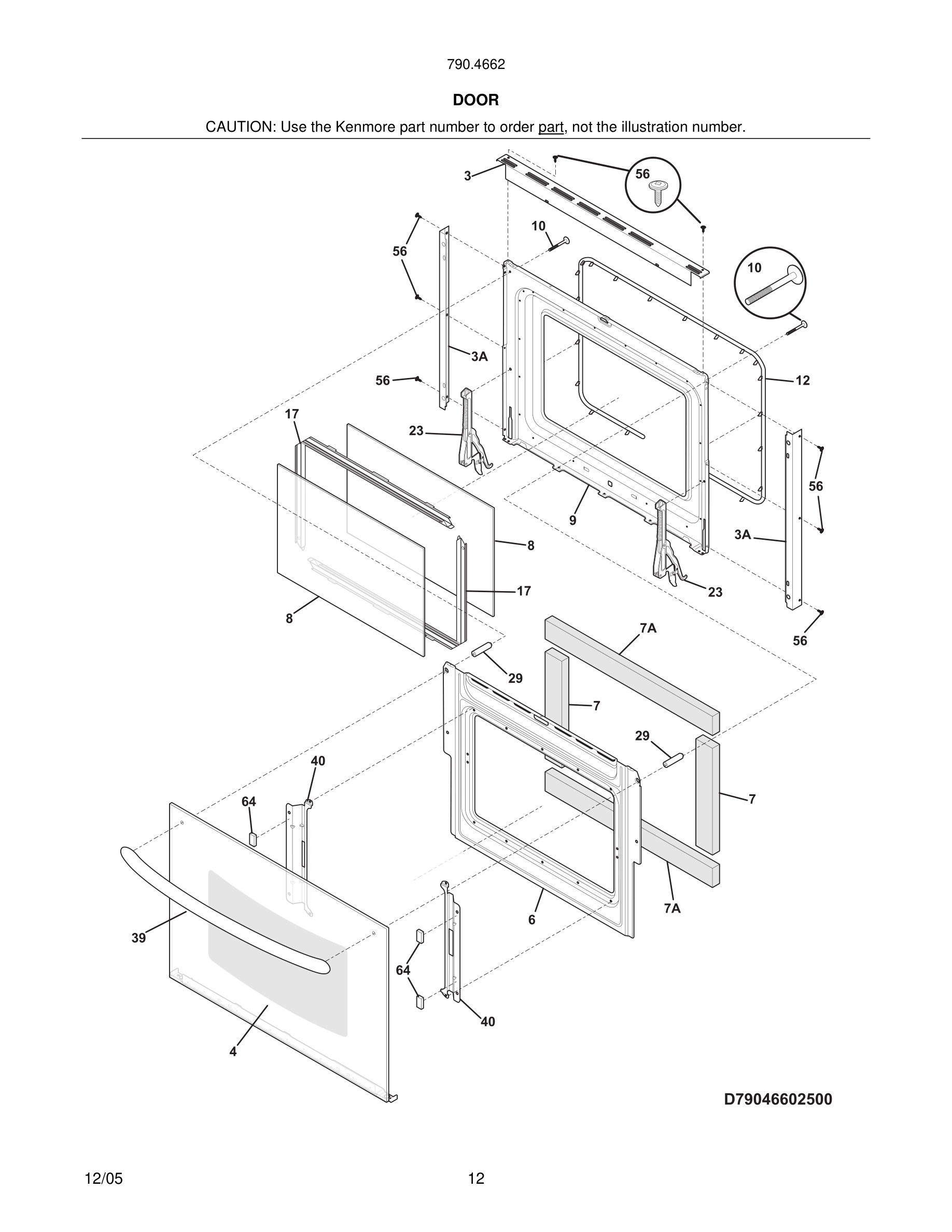

13 - DOOR

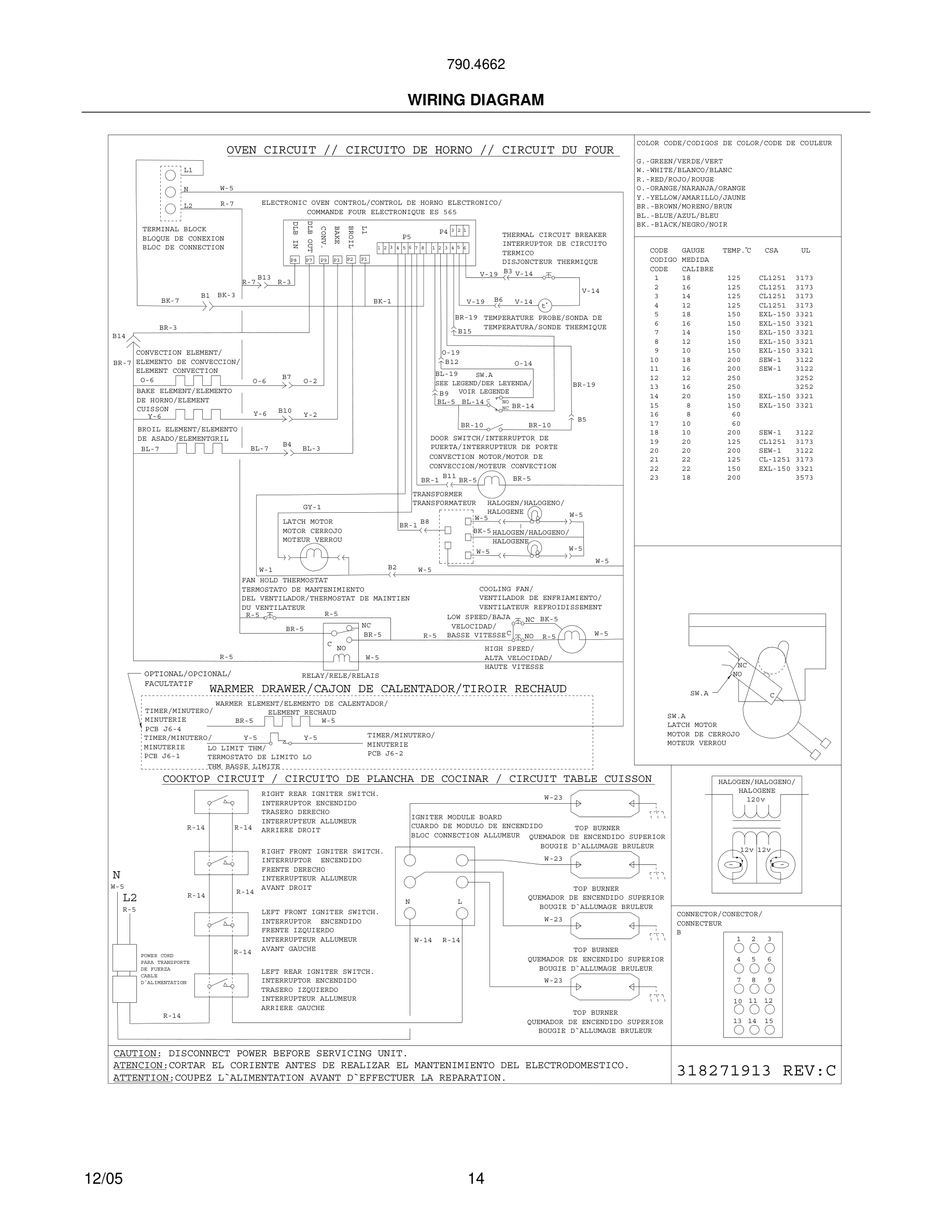

14 - WIRING DIAGRAM
Common parts from model Kenmore 790.46622501 RANGE
*
LP Conversion Kit WCI 318186910 Contact Us For Availability
*
Wiring Harness, drawer WCI 318199749 Contact Us For Availability
*
Cap, plug WCI 5303325173 Contact Us For Availability
*
Washer, plastic WCI 5303325171 Contact Us For Availability
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Cleaner, grate WCI 316119700 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
1
Drawer, body assembly WCI 318304401 Contact Us For Availability
1C
Panel, warmer drawer, rear WCI 318300300 Contact Us For Availability
2
Panel, drawer, black, inner WCI 318303901 Contact Us For Availability
2A#
Valve, top burner, 17000 BTU WCI 318233940 Contact Us For Availability
2C#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
2D#
Valve, top burner, dual port, 9K WCI 316412502 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318261306 Contact Us For Availability
4
Panel, drawer, white, front WCI 318299901 Contact Us For Availability
4
Panel, drawer, bisque, front WCI 318299902 Contact Us For Availability
4
Panel, drawer, black, front WCI 318299903 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
6
Baffle, door WCI 318260500 Contact Us For Availability
9
Liner, oven door WCI 318259601 Contact Us For Availability
10A#
Burner, sealed, 17K WCI 316223300 Contact Us For Availability
11A
Ignitor Assembly, 17K, right front, w/tube & WCI 318306213 Contact Us For Availability
11E
Ignitor Assembly, 9K, left rear, w/tube & hol WCI 318306212 Contact Us For Availability
14#
Regulator, pressure WCI 318122700 Contact Us For Availability
15
Lamp, oven, (2), halogen WCI 318241000 Contact Us For Availability
16
Main Top, assy., glass, black WCI 318223722 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
16
Main Top, assy., glass, white WCI 318223720 Contact Us For Availability
16
Main Top, assy., glass, bisque WCI 318223721 Contact Us For Availability
20
Grate, black, (2) WCI 318221659 Contact Us For Availability
20#
Clock/Timer, electronic, ES565 WCI 316418781 Contact Us For Availability
20A
Grate, center, black WCI 318221504 Contact Us For Availability
21
Skirt, 17K burner, black WCI 316264803 Contact Us For Availability
21A
Skirt, 5K burner, black WCI 316241904 Contact Us For Availability
21D
Skirt, bridge burner, black WCI 316411703 Contact Us For Availability
22
Cap, 17K burner, black WCI 316219705 Contact Us For Availability
22A
Cap, 5K burner, black WCI 316206505 Contact Us For Availability
22C
Cap, 9.5K burner, black, bridge, (2) WCI 316428103 Contact Us For Availability
22D
Cap, 9.5K burner, black, bridge center WCI 316412003 Contact Us For Availability
23
Hinge, door, (2) WCI 318024722 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
31D
Seal, bridge burner WCI 316428300 Contact Us For Availability
34
Griddle WCI 316432202 Contact Us For Availability
35
Retainer, control panel, black WCI 318233720 Contact Us For Availability
35
Retainer, control panel, white WCI 318233721 Contact Us For Availability
39
Handle, door/drawer, white WCI 316432302 Contact Us For Availability
39
Handle, door/drawer, bisque WCI 316432304 Contact Us For Availability
39
Handle, door/drawer, black WCI 316432303 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
44C
Orifice, top burner, 9K WCI 316237911 Contact Us For Availability
46
Box, burner WCI 318225410 Contact Us For Availability
57
Panel, service WCI 318295610 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
86
Clip, hold down, warmer element WCI 316095800 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
90A
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
91
Trim, filler, bisque, rear WCI 318304302 Contact Us For Availability
95
Shield, wire WCI 318303800 Contact Us For Availability
101
Bushing, retainer WCI 318233401 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112703 Contact Us For Availability
131
Box, vent WCI 318272900 Contact Us For Availability
132
Plate, shield WCI 318003000 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
165
Plate, mounting WCI 318227504 Contact Us For Availability
166
Bracket, base support, (4) WCI 318298400 Contact Us For Availability
166A
Bracket, base support, lower, (2) WCI 318298403 Contact Us For Availability
169
Nut, acorn, 10-32 x 3/8, (2) WCI 5304446440 Contact Us For Availability
170
Anti-tip & accessories WCI 318335700 Contact Us For Availability
200
Frame, drawer, black, front WCI 318298201 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
284
Transformer WCI 318244500 Contact Us For Availability
× ![]()
