Model Kenmore 790.46613502 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

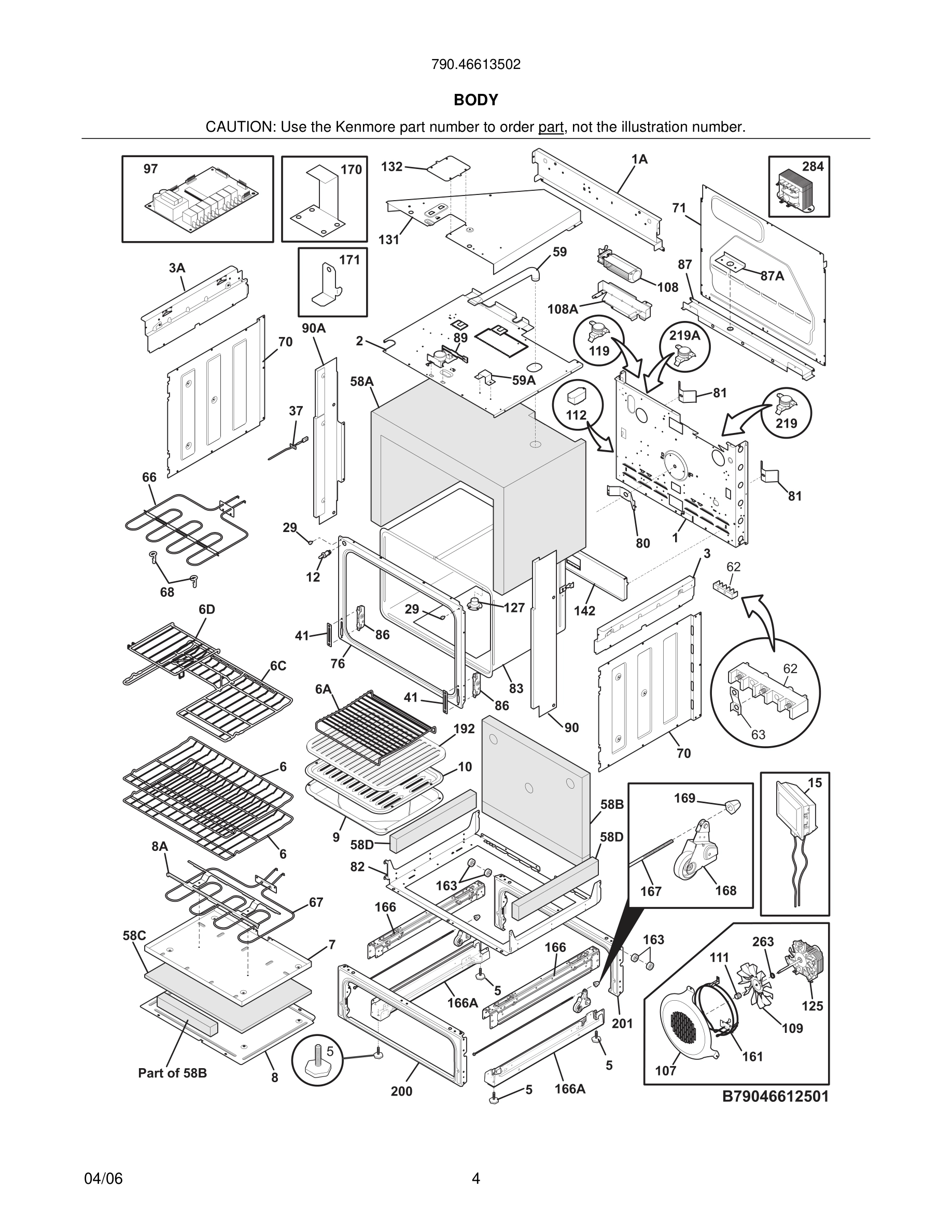

05 - BODY
07 - BODY

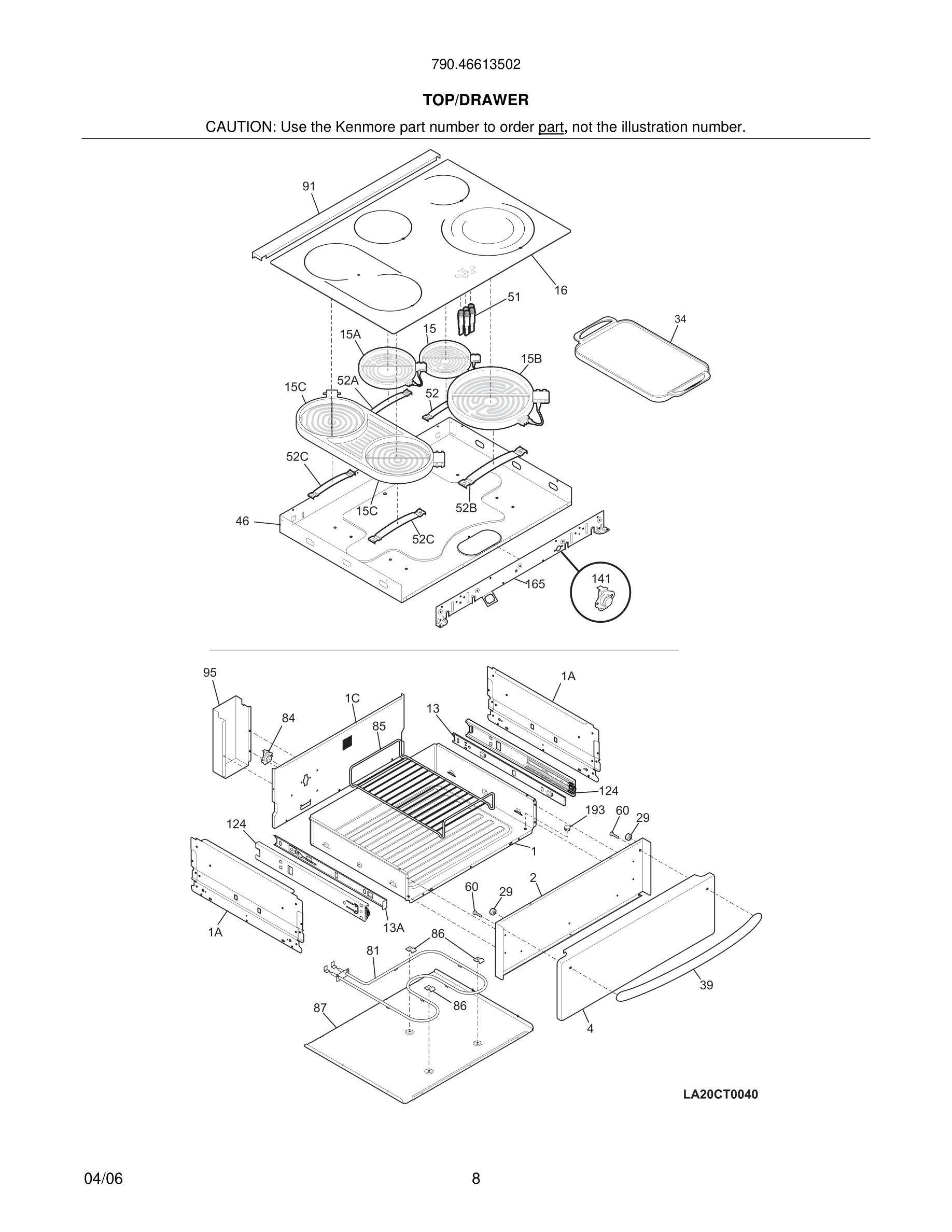

09 - TOP/DRAWER

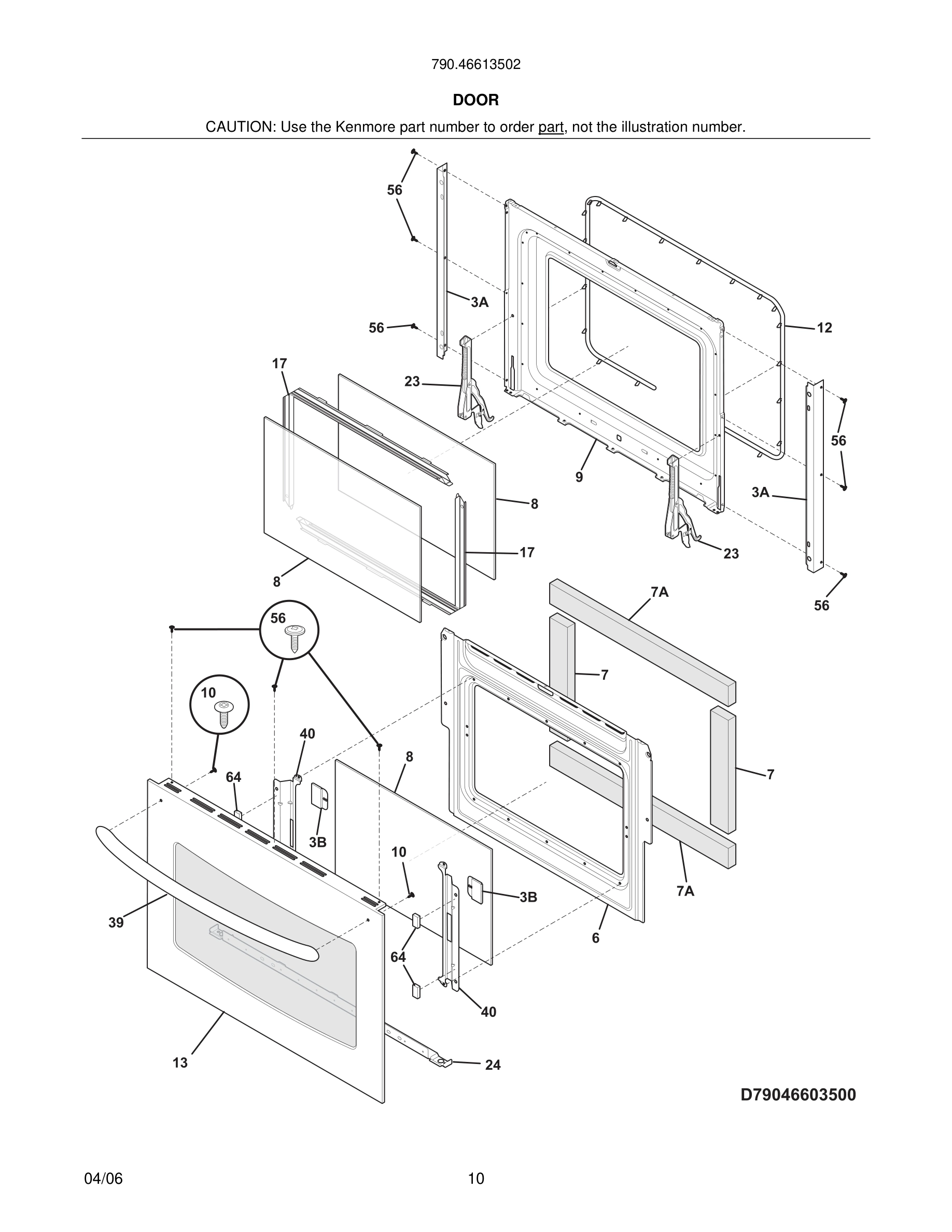

11 - DOOR

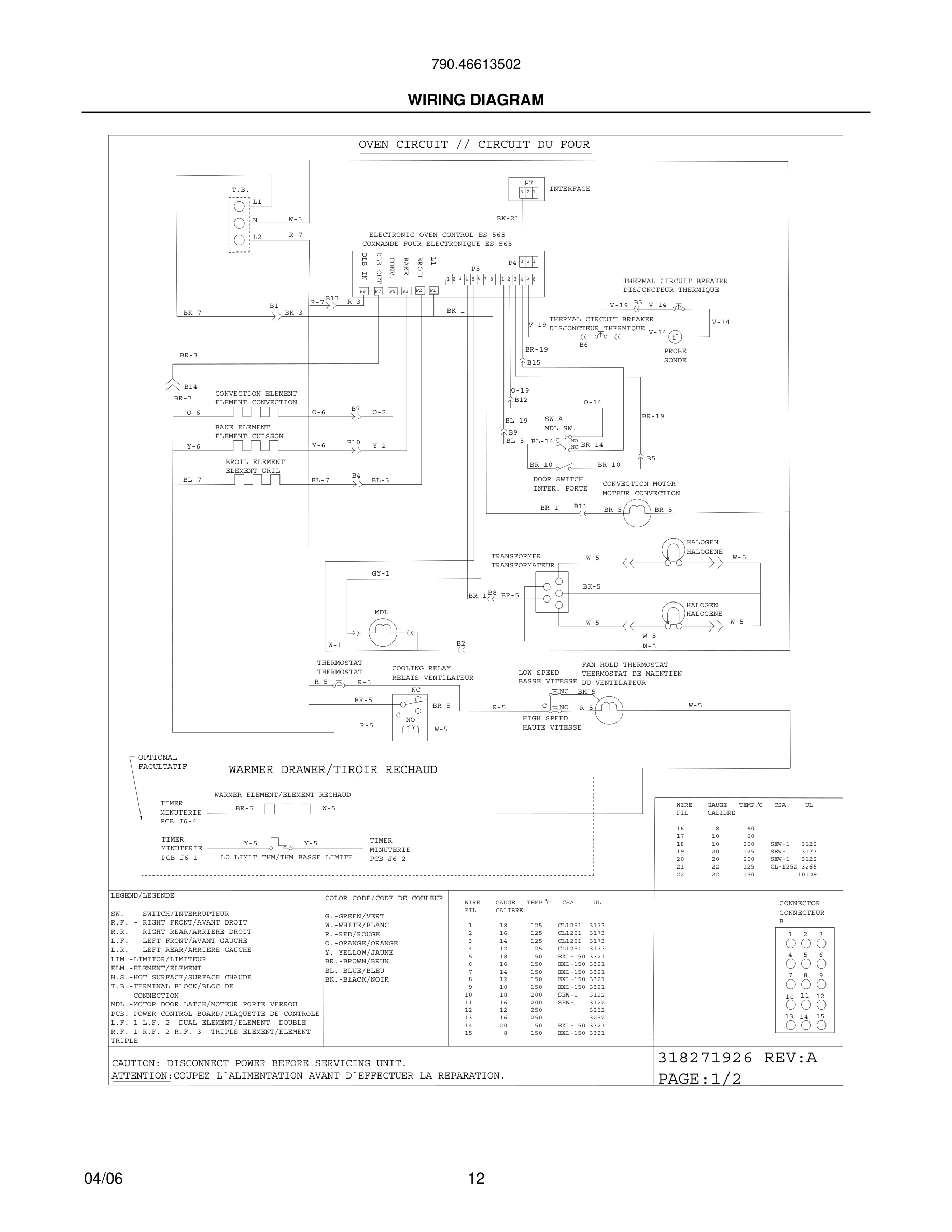

12 - WIRING DIAGRAM

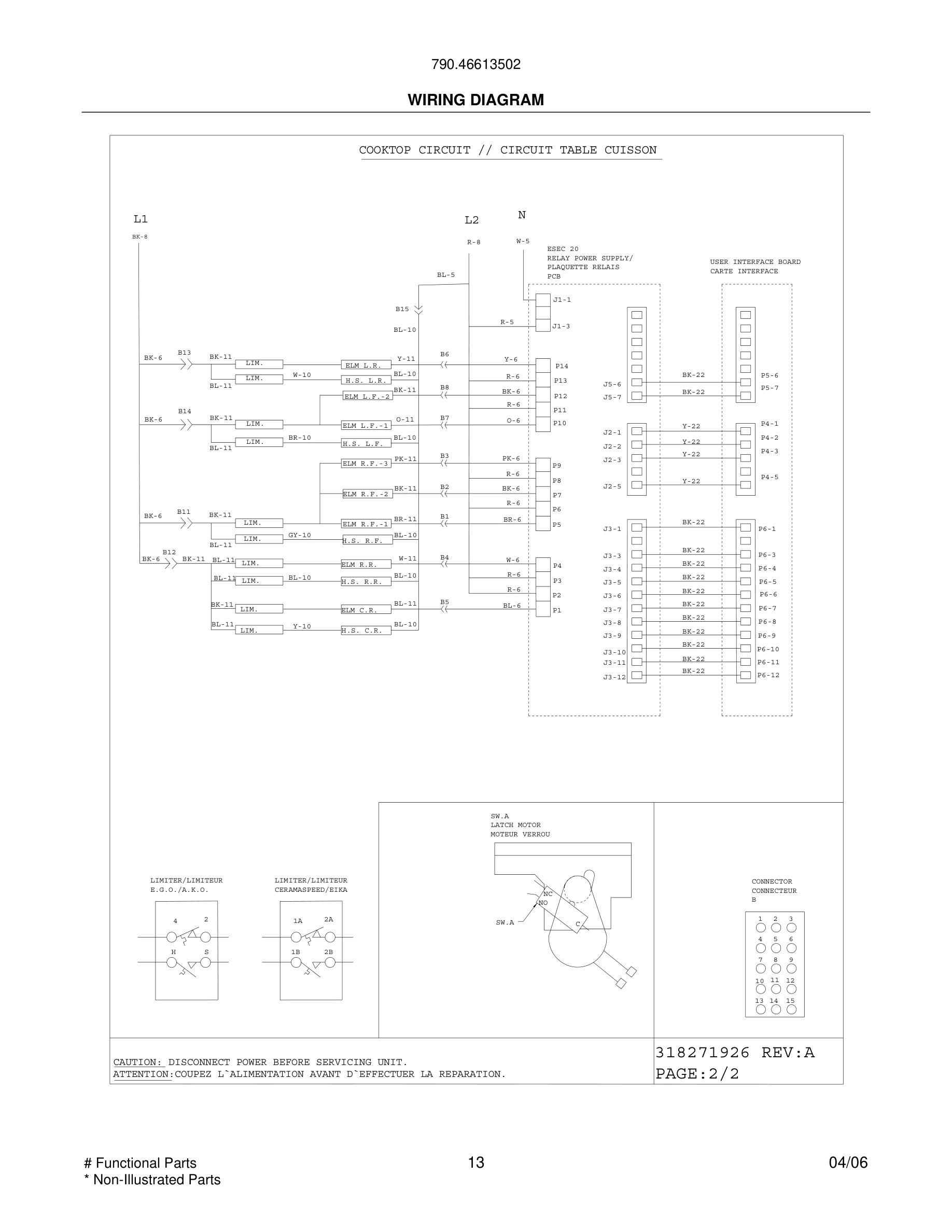

13 - WIRING DIAGRAM
Common parts from model Kenmore 790.46613502 RANGE
*
Washer, plastic WCI 5303325171 Contact Us For Availability
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*#
Harness, wiring, timer WCI 318224819 Contact Us For Availability
*#
Harness, wiring, main, backguard WCI 318228816 Contact Us For Availability
*#
Harness, wiring, cooktop WCI 318228916 Contact Us For Availability
*#
Wiring Harness, pilot light WCI 318052193 Contact Us For Availability
1
Drawer, body assembly WCI 318304401 Contact Us For Availability
1C
Panel, warmer drawer, rear WCI 318300300 Contact Us For Availability
2
Panel, drawer, black, inner WCI 318303901 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Panel, drawer, stainless, front WCI 318298800 Contact Us For Availability
6
Baffle, door WCI 318260500 Contact Us For Availability
9
Liner, door WCI 318259605 Contact Us For Availability
13
Door Assy, glass, stainless steel, outer WCI 318272154 Contact Us For Availability
15
Lamp, oven, (2), halogen WCI 318241000 Contact Us For Availability
15#
Element, surface, 7", 1500 W WCI 318198820 Contact Us For Availability
16
Main Top, glass assy., black WCI 318223637 Contact Us For Availability
19
Control Panel Assembly, graphite, w/membrane WCI 318335856 Contact Us For Availability
20#
Clock/Timer, electronic, ES565 WCI 316418780 Contact Us For Availability
23
Hinge, door, (2) WCI 318024714 Contact Us For Availability
24
Trim, door, black, lower WCI 318260301 Contact Us For Availability
39
Handle, door/drawer, stainless WCI 316432300 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
46
Box, burner WCI 318225410 Contact Us For Availability
52B
Spring, element mtg, 700W & 2100W WCI 318122004 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
86
Clip, hold down, warmer element WCI 316095800 Contact Us For Availability
95
Shield, wire WCI 318303800 Contact Us For Availability
97
Board, power, relay WCI 316442100 Contact Us For Availability
97A
Board, power, UIB WCI 316442030 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112703 Contact Us For Availability
119#
Switch, thermal cutout WCI 318005212 Contact Us For Availability
131
Box, vent WCI 318272900 Contact Us For Availability
141#
Switch, thermal cutout WCI 318005211 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
165
Plate, mounting WCI 318227503 Contact Us For Availability
166
Bracket, base support, (4) WCI 318298400 Contact Us For Availability
166A
Bracket, base support, lower, (2) WCI 318298403 Contact Us For Availability
169
Nut, acorn, 10-32 x 3/8, (2) WCI 5304446440 Contact Us For Availability
170
Anti-tip & accessories WCI 318335700 Contact Us For Availability
193
Cap, plug WCI 5303325173 Contact Us For Availability
200
Frame, drawer, black, front WCI 318298201 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
284
Transformer WCI 318244500 Contact Us For Availability
× ![]()
