Model Kenmore 790.46612501 RANGE – Common Parts &amp; Diagrams

*

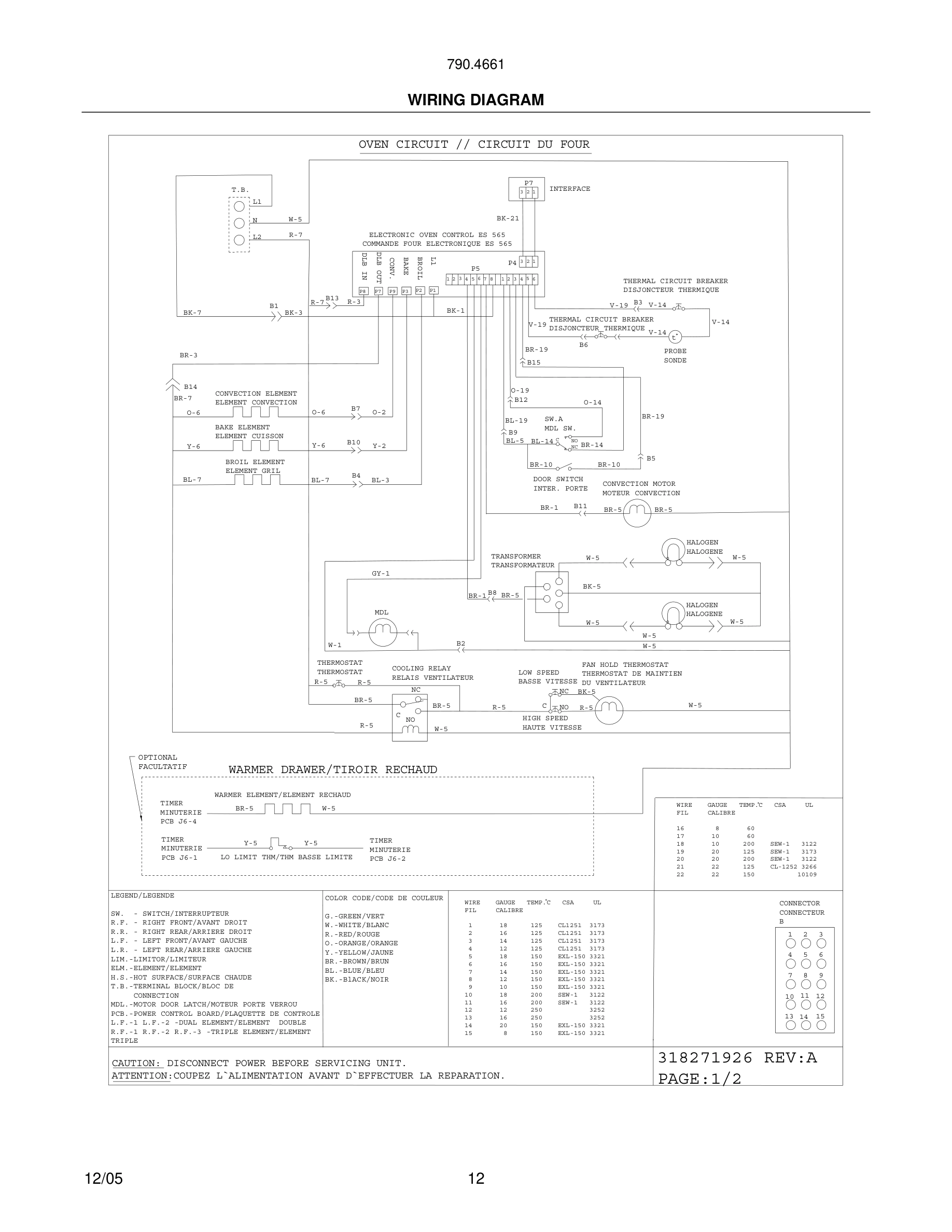

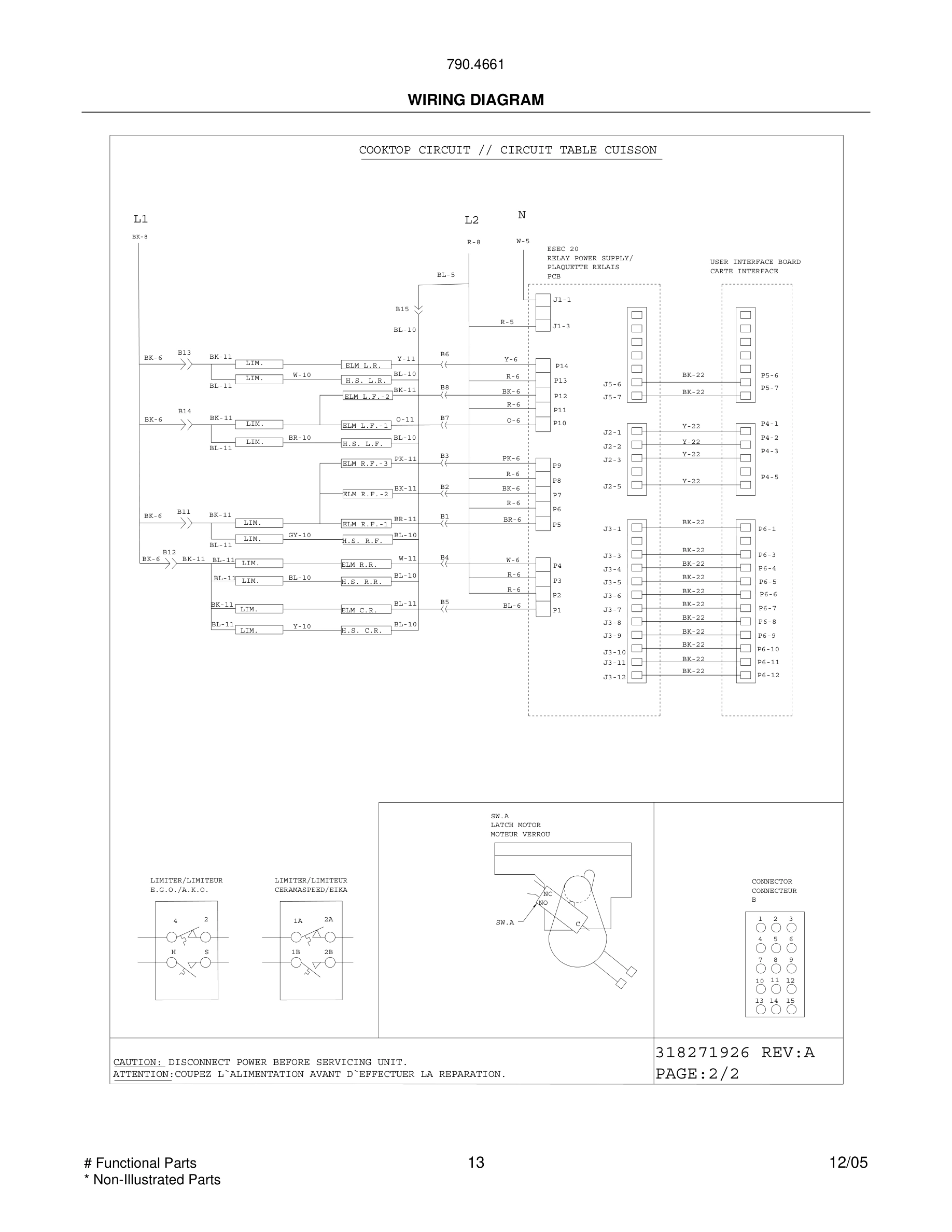

5303300265 Frigidaire Oven Screw Backorder WCI 5303300265 $9.04

*

5303307980 Frigidaire Oven Screw Backorder WCI 5303307980 $9.06

*

5303323129 Frigidaire Oven Screw Backorder WCI 5303323129 $9.06

*

5303324184 Frigidaire Wall Oven Range Screw Backorder WCI 5303324184 $9.06

*

5304415832 Frigidaire Oven Screw Backorder WCI 5304415832 $8.60

*

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

*

5304500008 Frigidaire Oven Screw In Stock WCI 5304500008 $7.23

*

retainer wire WCI 5304400192 Contact Us For Availability

*

Washer, plastic WCI 5303325171 Contact Us For Availability

*

Cleaner, cooktop WCI 316112100 Contact Us For Availability

*

Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability

*

Label, anti-tip WCI 316221000 Contact Us For Availability

Harness, wiring, timer WCI 318224819 Contact Us For Availability

Harness, wiring, main, backguard WCI 318228816 Contact Us For Availability

Harness, wiring, cooktop WCI 318228916 Contact Us For Availability

Wiring Harness, pilot light WCI 318052193 Contact Us For Availability

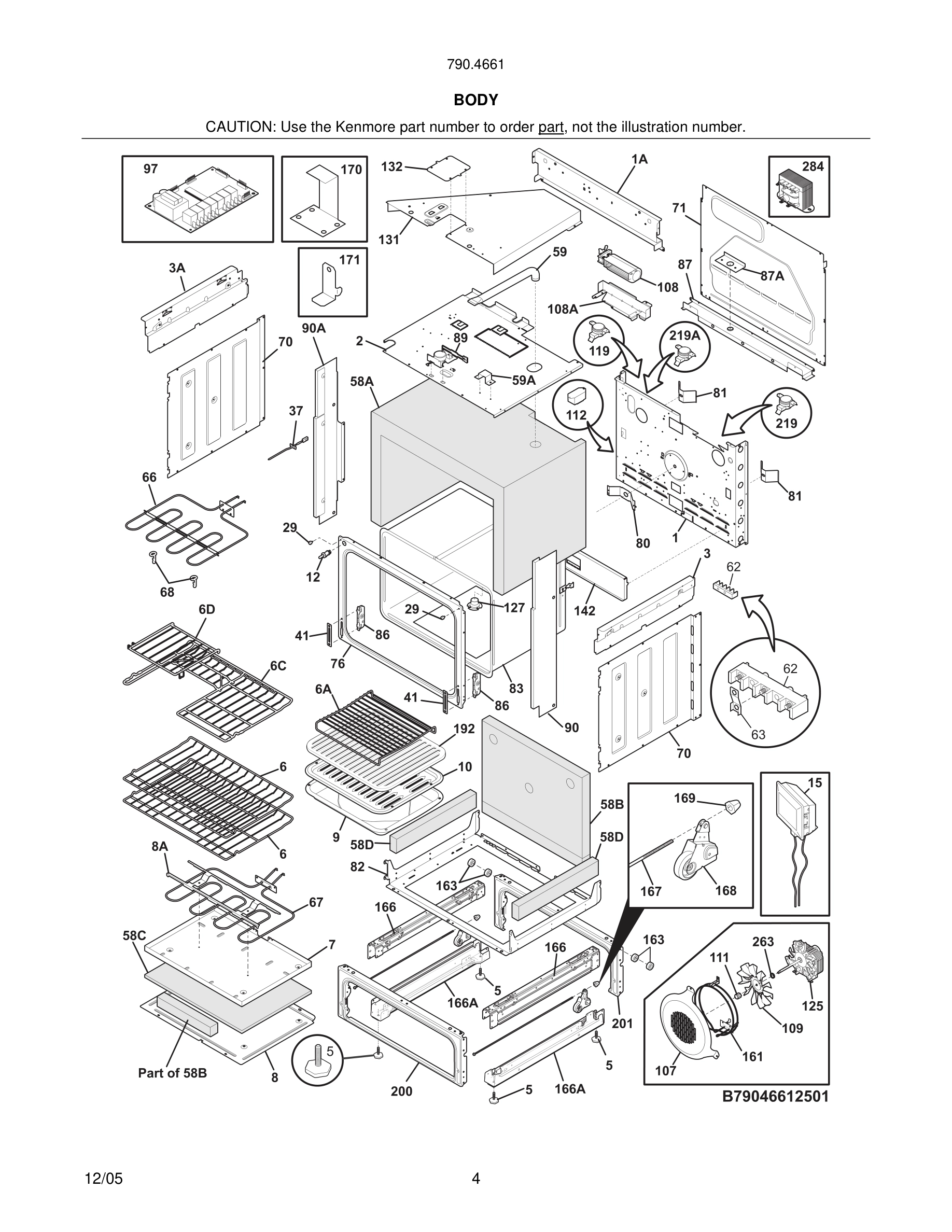

1

Drawer, body assembly WCI 318304401 Contact Us For Availability

1A

318300003 Frigidaire Oven Panel Backorder WCI 318300003 $35.87

1C

Panel, warmer drawer, rear WCI 318300300 Contact Us For Availability

2

Panel, drawer, black, inner WCI 318303901 Contact Us For Availability

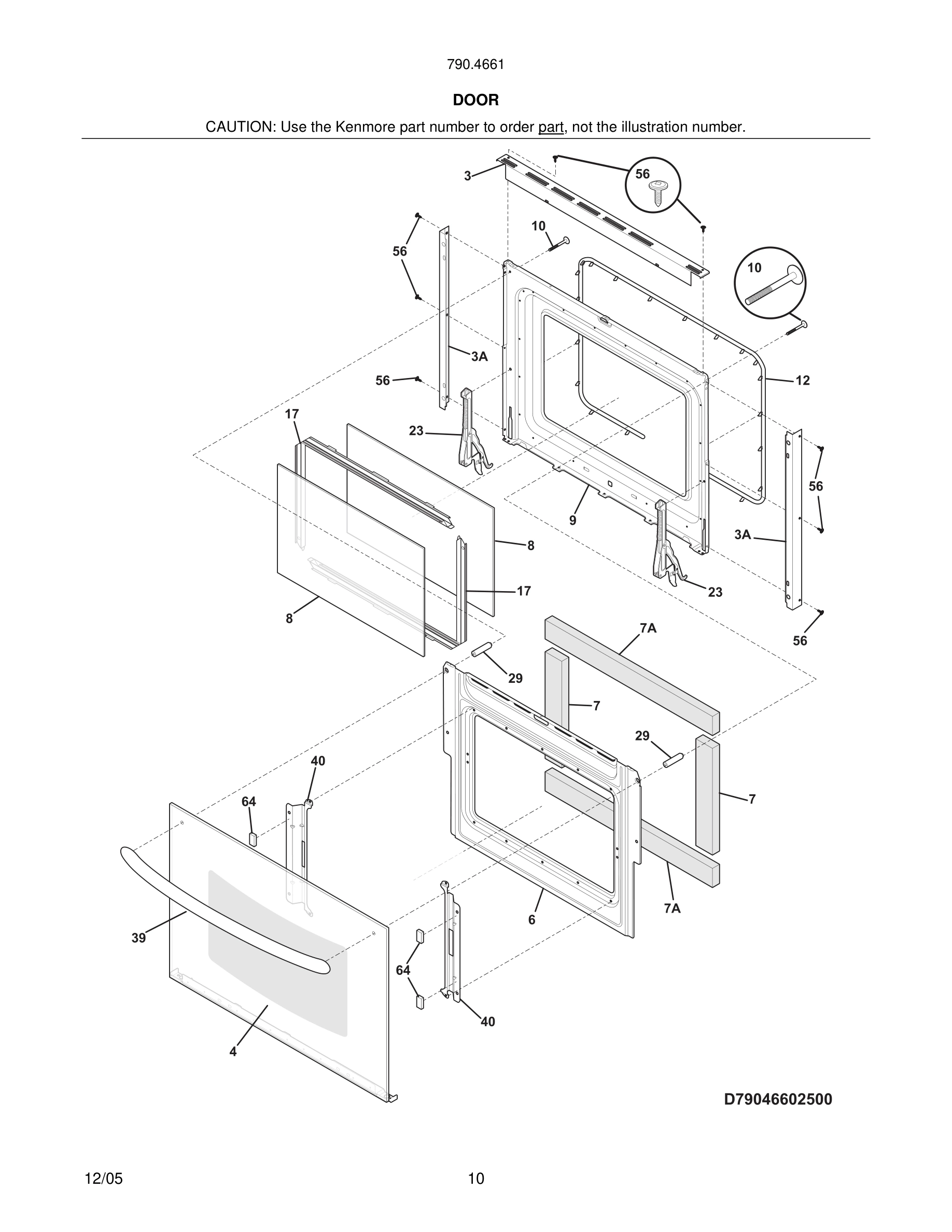

3

Trim, oven door, black, upper WCI 318260201 Contact Us For Availability

3A

Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability

4

318261301 Frigidaire Oven Glass Assembly Backorder WCI 318261301 $327.92

4

318403500 Frigidaire Oven Outer Door Glass Bl Backorder WCI 318403500 $220.33

4

Glass Assy., oven door, bisque, outer, w/trim WCI 318261306 Contact Us For Availability

4

Panel, drawer, white, front WCI 318299901 Contact Us For Availability

4

Panel, drawer, bisque, front WCI 318299902 Contact Us For Availability

4

Panel, drawer, black, front WCI 318299903 Contact Us For Availability

5

Screw, leveling WCI 318175503 Contact Us For Availability

6

Baffle, door WCI 318260500 Contact Us For Availability

7A

318372016 Frigidaire Insulation Backorder WCI 318372016 $11.32

8

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $73.95

9

Liner, oven door WCI 318259601 Contact Us For Availability

12

318053120 Frigidaire Oven Range Door Seal Backorder WCI 318053120 $98.18

13A

318259506 Frigidaire Oven Glide Backorder WCI 318259506 $40.80

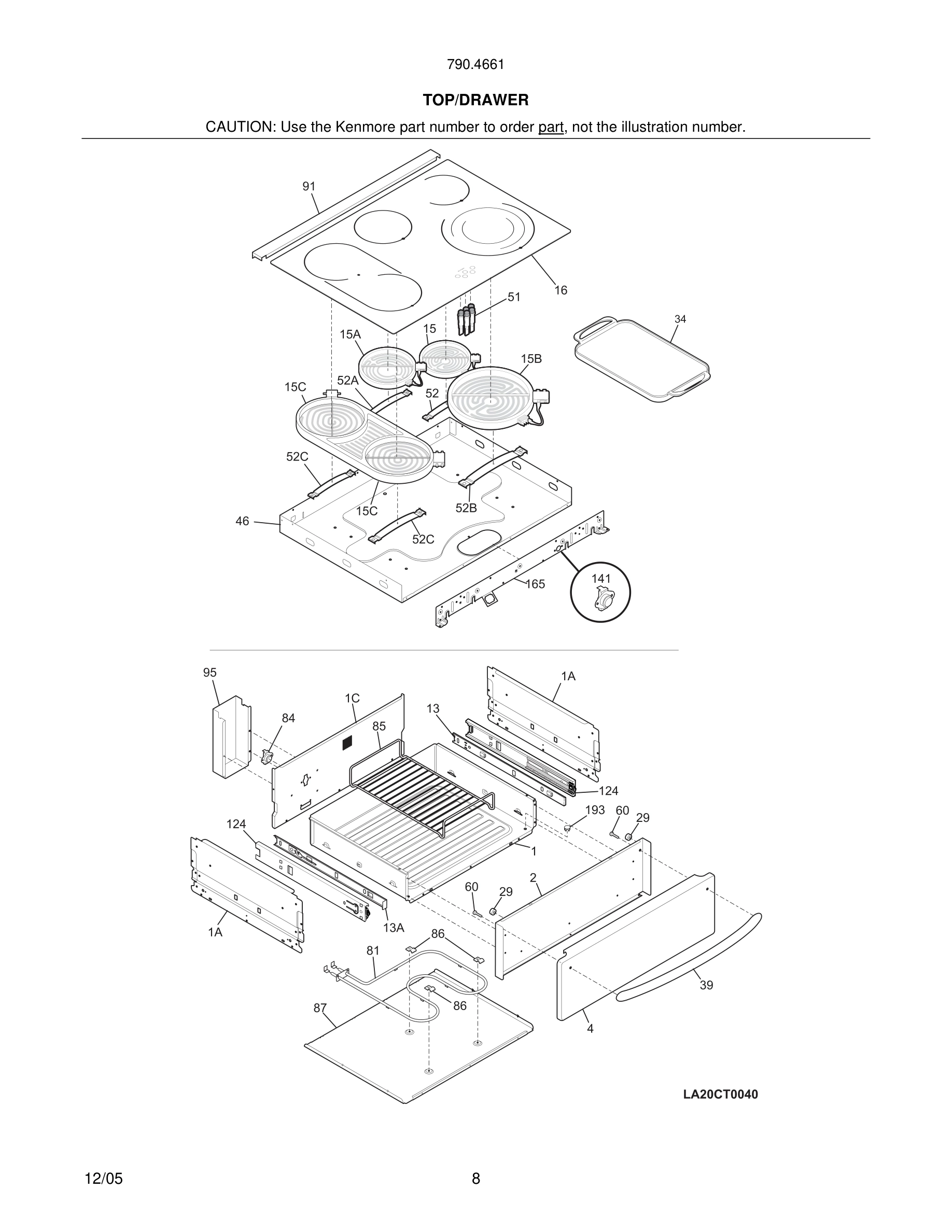

15

Lamp, oven, (2), halogen WCI 318241000 Contact Us For Availability

15#

Element, surface, small, 1500 W WCI 318198820 Contact Us For Availability

15A#

318198817 Frigidaire Oven Element In Stock WCI 318198817 $8.75

15B#

318297805 Frigidaire Radiant Surface Element Backorder WCI 318297805 $191.84

15C#

318258201 Frigidaire P-1 Element Backorder WCI 318258201 $330.30

318296602 Frigidaire Oven Console Backorder WCI 318296602 $174.64

Main Top, glass assy., black WCI 318223637 Contact Us For Availability

Console, assy., white WCI 318296600 Contact Us For Availability

Main Top, glass assy., white WCI 318223635 Contact Us For Availability

Main Top, glass assy., bisque WCI 318223636 Contact Us For Availability

17

5304504811 Frigidaire Glass Spacer In Stock WCI 5304504811 $14.94

20#

Clock/Timer, electronic, ES565 WCI 316418780 Contact Us For Availability

23

Hinge, door, (2) WCI 318024722 Contact Us For Availability

29

318147430 Frigidaire Oven Bumper Backorder WCI 318147430 $11.32

29

Spacer, door WCI 318014402 Contact Us For Availability

37#

316217002 Frigidaire Oven Temperature Probe In Stock WCI 316217002 $43.36

39

Handle, door/drawer, white WCI 316432302 Contact Us For Availability

39

Handle, door/drawer, bisque WCI 316432304 Contact Us For Availability

39

Handle, door/drawer, black WCI 316432303 Contact Us For Availability

40

318382302 Frigidaire Bracket Backorder WCI 318382302 $30.36

41

Cover, hinge cutout WCI 5303310526 Contact Us For Availability

46

Box, burner WCI 318225410 Contact Us For Availability

51#

318044827 Frigidaire Oven Light Backorder WCI 318044827 $38.09

52

318122011 Frigidaire Oven Spring Backorder WCI 318122011 $36.72

52A

318122006 Frigidaire Small Element Mounting S Backorder WCI 318122006 $41.88

52B

Spring, element mtg, 700W & 2100W WCI 318122004 Contact Us For Availability

52C

318122008 Frigidaire Oven Spring Assembly Backorder WCI 318122008 $53.64

56

5304436875 Frigidaire Oven Screw In Stock WCI 5304436875 $8.60

60

5303311174 Frigidaire Oven Screw Backorder WCI 5303311174 $9.50

63

318264200 Frigidaire Oven Plate Backorder WCI 318264200 $14.03

64

318165800 Frigidaire Oven Door Glass Spacer w Backorder WCI 318165800 $11.32

68

5304403015 Frigidaire Oven Support Backorder WCI 5304403015 $20.91

76

Front, oven WCI 318056217 Contact Us For Availability

81

Spring, oven WCI 318192400 Contact Us For Availability

81#

318255301 Frigidaire Oven Element In Stock WCI 318255301 $62.29

84#

318005108 Frigidaire Appliance Thermostat In Stock WCI 318005108 $47.95

86

Clip, hold down, warmer element WCI 316095800 Contact Us For Availability

87

318300102 Frigidaire Oven Panel Backorder WCI 318300102 $62.79

90

Panel, filler, black, RH WCI 318296904 Contact Us For Availability

90

Panel, filler, white, RH WCI 318296902 Contact Us For Availability

90A

5304511890 Frigidaire Oven Panel Backorder WCI 5304511890 $47.95

90A

Panel, filler, white, LH WCI 318296903 Contact Us For Availability

91

903113-9010 Frigidaire Filler Kit Assembly Backorder WCI 903113-9010 $41.69

91

Trim, filler, white, rear WCI 318304301 Contact Us For Availability

91

Trim, filler, bisque, rear WCI 318304302 Contact Us For Availability

95

Shield, wire WCI 318303800 Contact Us For Availability

97

Board, power, relay WCI 316442100 Contact Us For Availability

97A

Board, UIB WCI 316442030 Contact Us For Availability

99A

318313231 Frigidaire Oven Gasket Backorder WCI 318313231 $48.39

108A

Bracket, fan support WCI 318251300 Contact Us For Availability

111

316136600 Frigidaire Oven Range Lock Nut Backorder WCI 316136600 $12.20

112#

Relay WCI 318112703 Contact Us For Availability

119#

Switch, thermal cutout WCI 318005212 Contact Us For Availability

124

316105501 Frigidaire P-1 Glide Backorder WCI 316105501 $57.37

127

318317100 Frigidaire Adapter Assembly Backorder WCI 318317100 $47.51

141#

Switch, thermal cutout WCI 318005211 Contact Us For Availability

163

318531702 Frigidaire Oven Spacer Backorder WCI 318531702 $6.32

165

Plate, mounting WCI 318227503 Contact Us For Availability

166

Bracket, base support, (4) WCI 318298400 Contact Us For Availability

166A

Bracket, base support, lower, (2) WCI 318298403 Contact Us For Availability

167

318147811 Frigidaire Oven Screw Backorder WCI 318147811 $19.93

168

318302400 Frigidaire Bracket & Wheel Backorder WCI 318302400 $47.49

169

Nut, acorn, 10-32 x 3/8, (2) WCI 5304446440 Contact Us For Availability

170

Anti-tip & accessories WCI 318335700 Contact Us For Availability

171

318335200 Frigidaire Oven Bracket Backorder WCI 318335200 $20.38

192

5304495353 Frigidaire Oven Griddle Backorder WCI 5304495353 $114.16

193

Cap, plug WCI 5303325173 Contact Us For Availability

200

Frame, drawer, black, front WCI 318298201 Contact Us For Availability

201

Frame, drawer WCI 318298210 Contact Us For Availability

219#

318003614 Frigidaire Thermostat In Stock WCI 318003614 $61.86

219A

318003624 Frigidaire Oven High Limit Thermost In Stock WCI 318003624 $14.92

263

316008401 Frigidaire Washer P-1 In Stock WCI 316008401 $7.23

284

Transformer WCI 318244500 Contact Us For Availability
