Model Kenmore 790.46602502 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD
05 - BODY

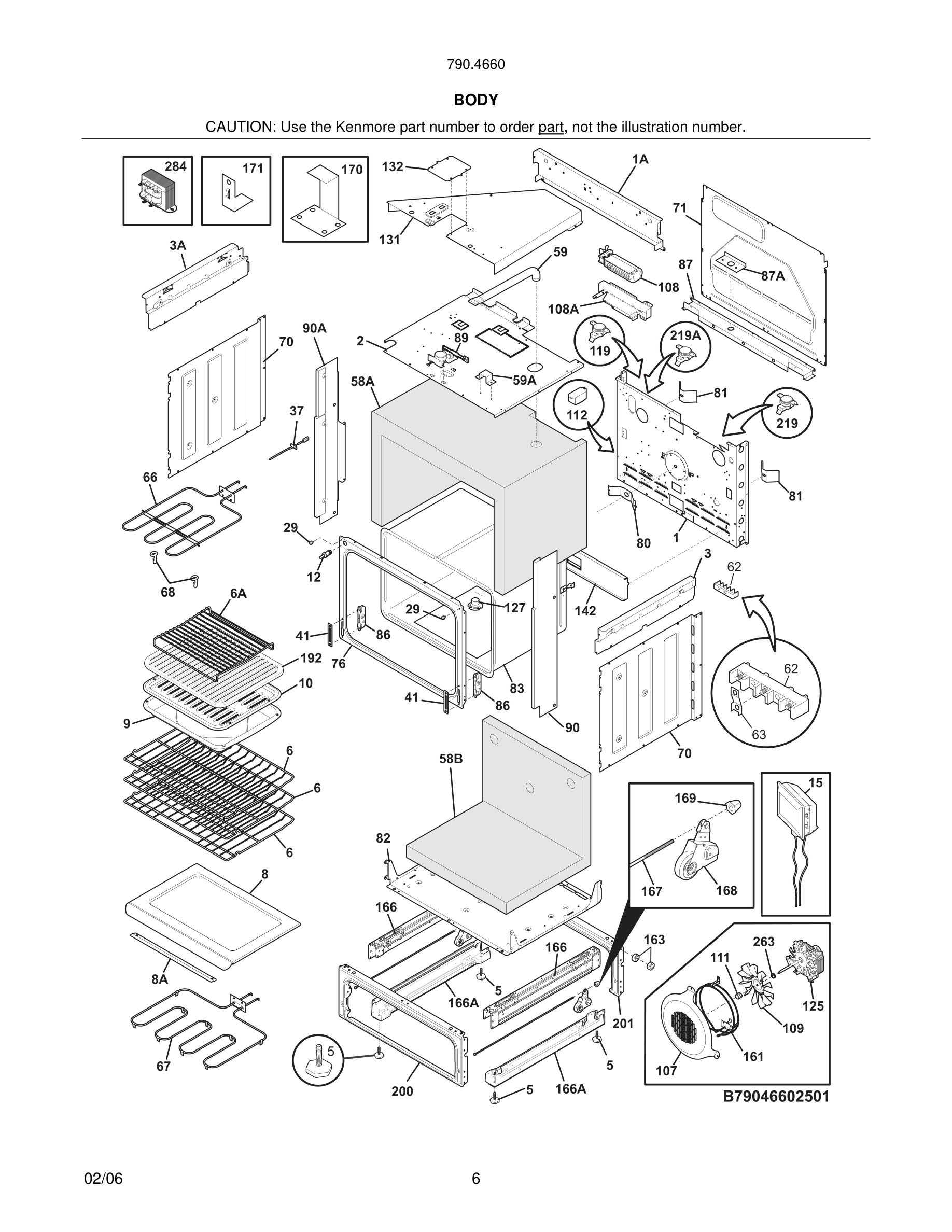

07 - BODY

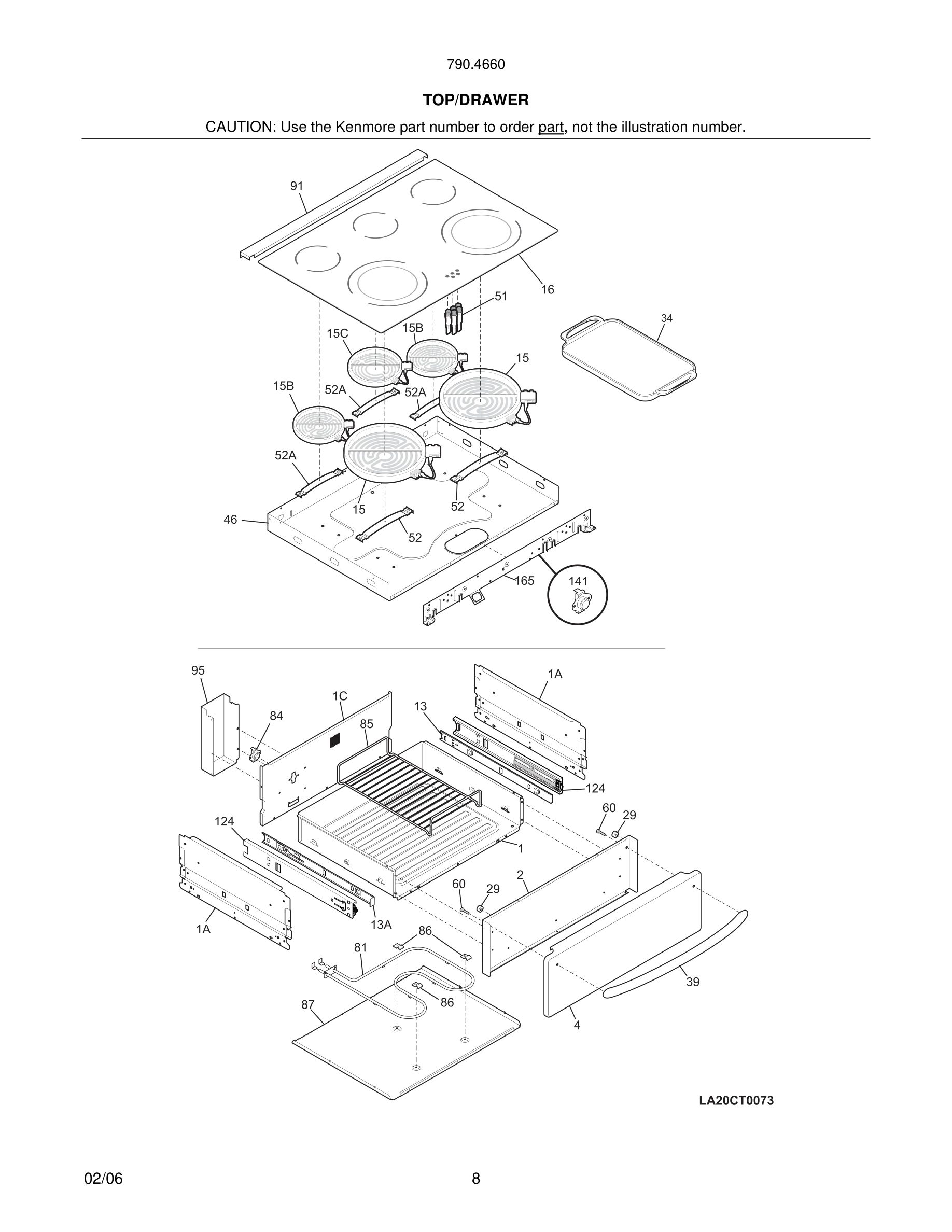

09 - TOP/DRAWER

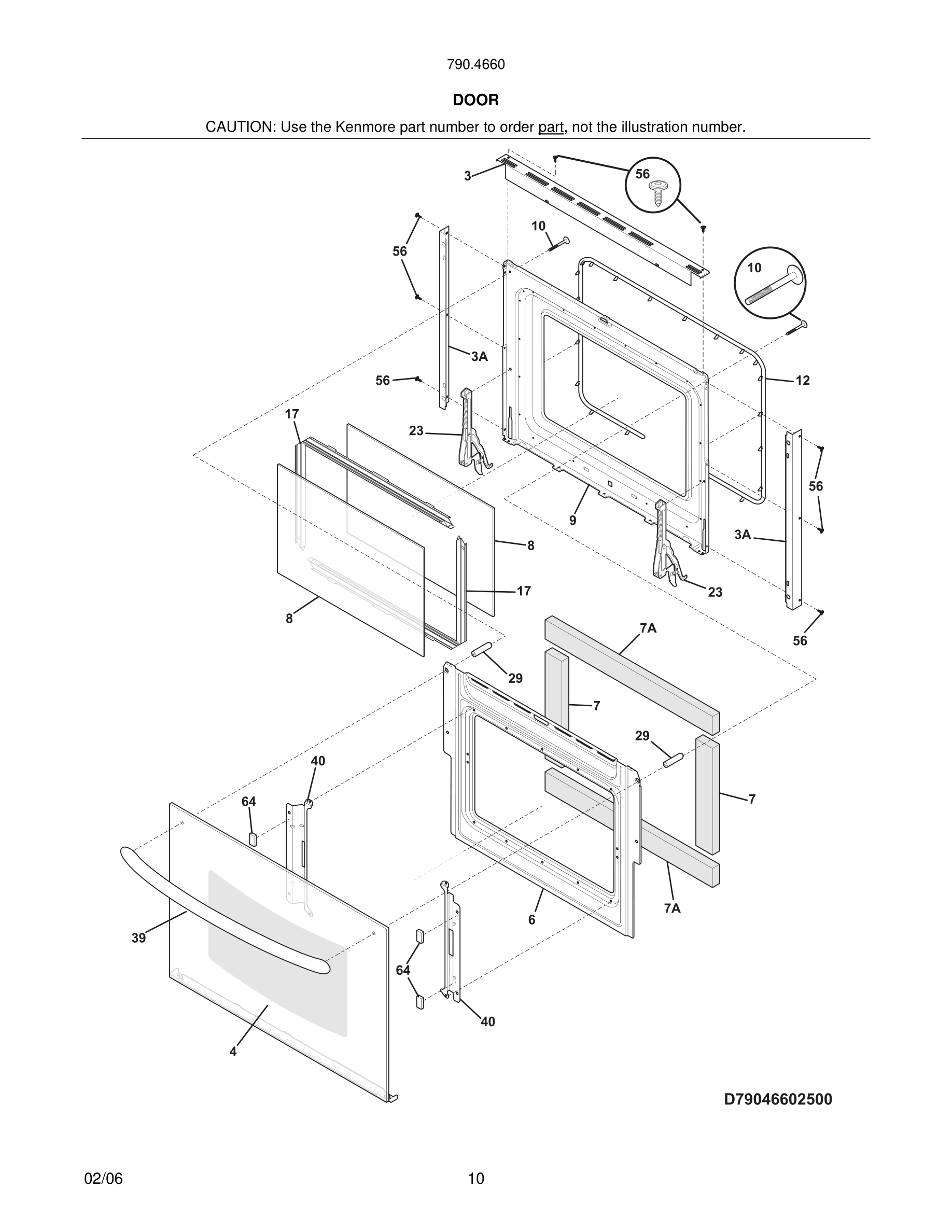

11 - DOOR

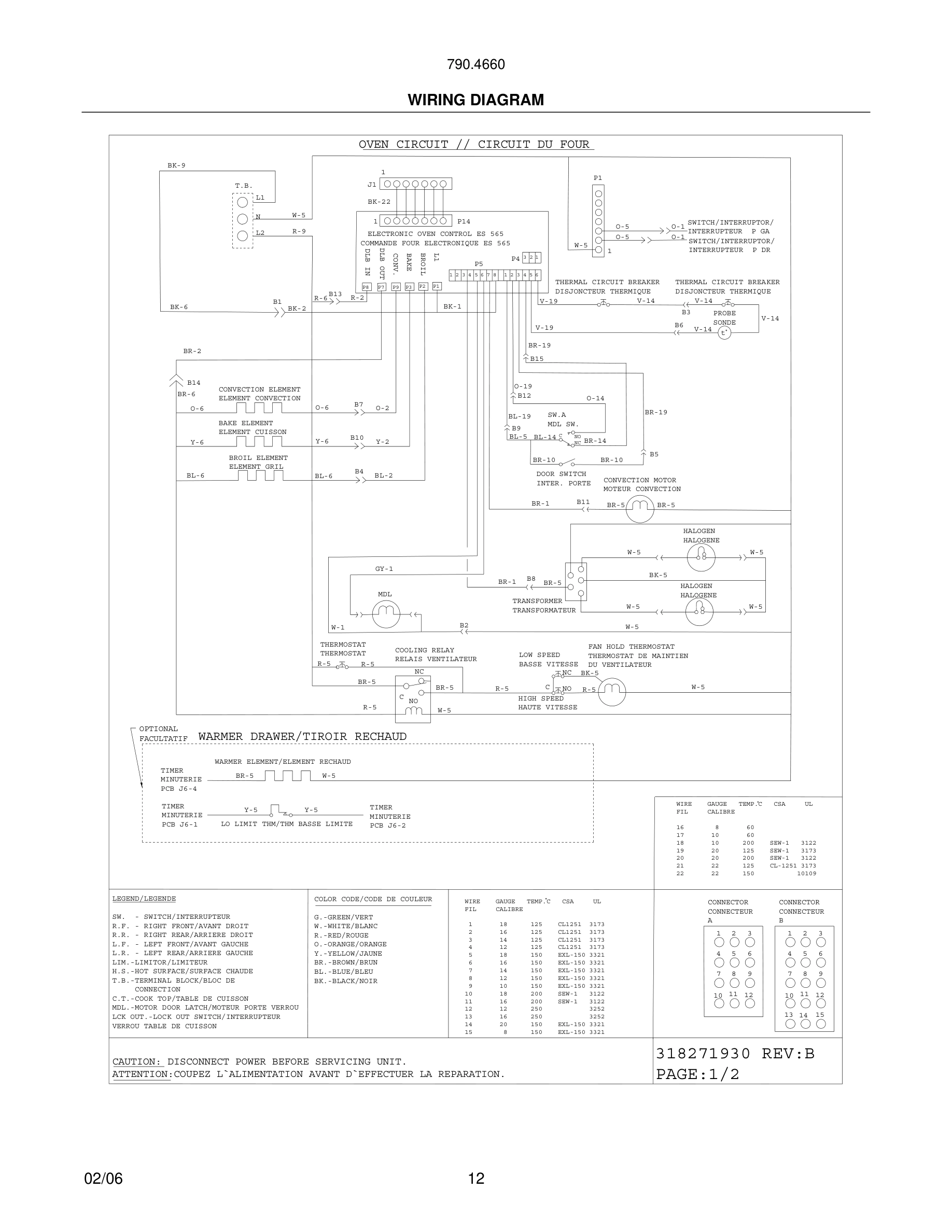

12 - WIRING DIAGRAM

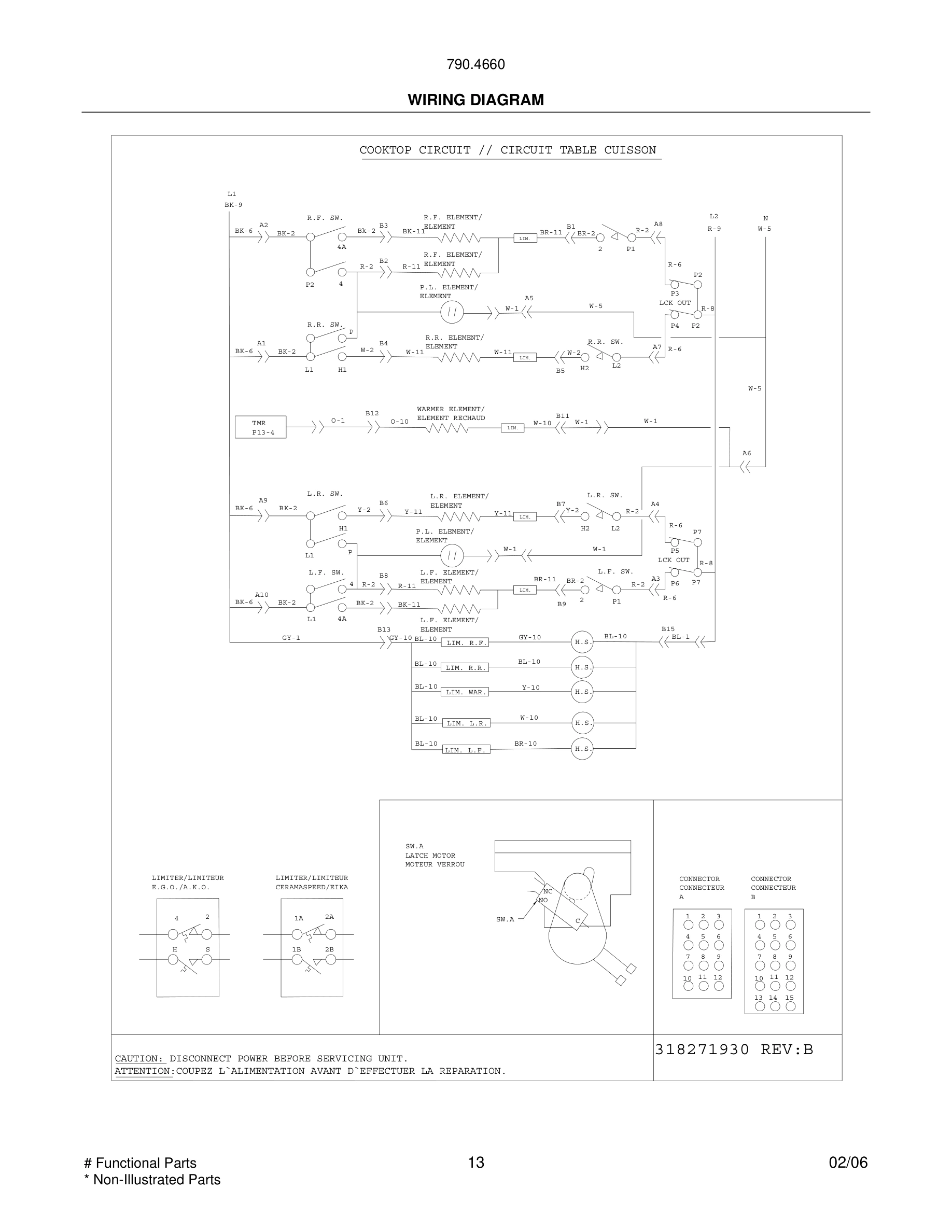

13 - WIRING DIAGRAM
Common parts from model Kenmore 790.46602502 RANGE
*
Wiring Harness, drawer WCI 318199749 Contact Us For Availability
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Washer, plastic WCI 5303325171 Contact Us For Availability
*
Screw, shoulder WCI 3051050 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
*#
Harness, wiring, cooktop WCI 318228915 Contact Us For Availability
*#
Wiring Harness, pilot light WCI 318052193 Contact Us For Availability
1
Drawer, body assembly WCI 318304401 Contact Us For Availability
1C
Panel, warmer drawer, rear WCI 318300300 Contact Us For Availability
2
Panel, drawer, black, inner WCI 318303901 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability
4
Panel, drawer, white, front WCI 318299901 Contact Us For Availability
4
Panel, drawer, bisque, front WCI 318299902 Contact Us For Availability
4
Panel, drawer, black, front WCI 318299903 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318261357 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
6
Baffle, door WCI 318260500 Contact Us For Availability
8
Cover, element WCI 318262001 Contact Us For Availability
9
Liner, oven door WCI 318259601 Contact Us For Availability
15
Lamp, oven, (2), halogen WCI 318241000 Contact Us For Availability
15#
Element, surface, 6/9, 1200/1800W, dual radia WCI 318198927 Contact Us For Availability
15C#
Element, surface, warmer, 100 W WCI 318198825 Contact Us For Availability
16
Main Top, glass assy., black WCI 318223617 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
16
Main Top, glass assy., white WCI 318223615 Contact Us For Availability
16
Main Top, glass assy., bisque WCI 318223616 Contact Us For Availability
19
Control Panel Assembly, white, w/membrane WCI 318335815 Contact Us For Availability
20#
Clock/Timer, electronic, ES565 WCI 316418783 Contact Us For Availability
23
Hinge, door, (2) WCI 318024722 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
35
Support, glass, black, (4) WCI 318183122 Contact Us For Availability
36
Knob, control, white WCI 316121618 Contact Us For Availability
39
Handle, door/drawer, white WCI 316432302 Contact Us For Availability
39
Handle, door/drawer, bisque WCI 316432304 Contact Us For Availability
39
Handle, door/drawer, black WCI 316432303 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
46
Box, burner WCI 318225410 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
86
Clip, hold down, warmer element WCI 316095800 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
90A
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
91
Trim, filler, bisque, rear WCI 318304302 Contact Us For Availability
95
Shield, wire WCI 318303800 Contact Us For Availability
97
Board, cooktop lockout WCI 316418101 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112703 Contact Us For Availability
119#
Switch, thermal cutout WCI 318005212 Contact Us For Availability
141#
Switch, thermal cutout WCI 318005211 Contact Us For Availability
165
Plate, mounting WCI 318227503 Contact Us For Availability
166
Bracket, base support, (4) WCI 318298400 Contact Us For Availability
170
Anti-tip & accessories WCI 318335700 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
284
Transformer WCI 318244500 Contact Us For Availability
× ![]()
