Model Kenmore 790.46582501 RANGE – Common Parts & Diagrams
01 - COVER

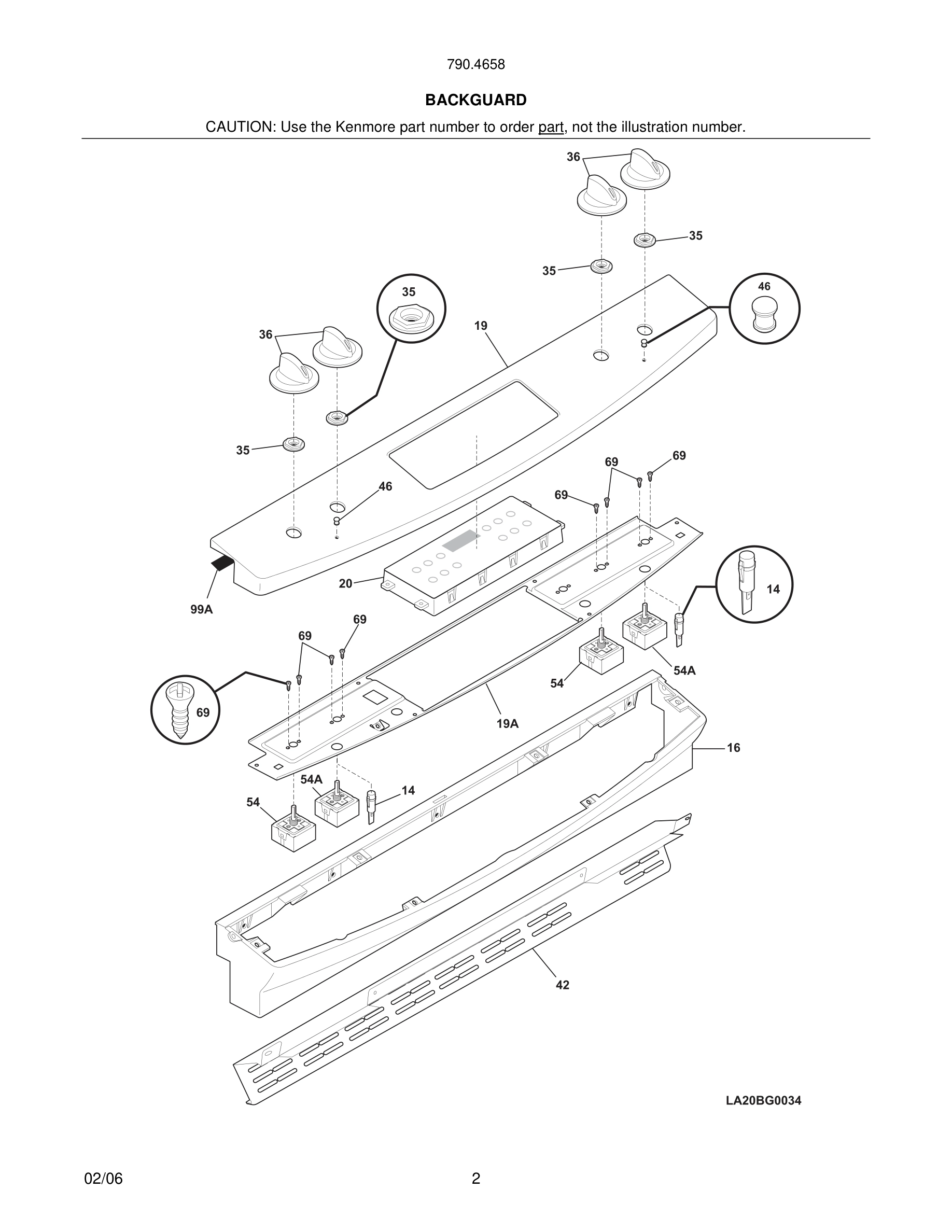

03 - BACKGUARD
05 - BODY
07 - BODY
09 - TOP/DRAWER
11 - DOOR
12 - WIRING DIAGRAM
Common parts from model Kenmore 790.46582501 RANGE
*
Wiring Harness, backguard WCI 318301100 Contact Us For Availability
*#
Harness, wiring, main WCI 318224926 Contact Us For Availability
*#
Harness, wiring, timer WCI 318224810 Contact Us For Availability
*#
Harness, wiring, infinite switch WCI 318224815 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
6
Rack, oven WCI 318262504 Contact Us For Availability
7
Spacer WCI 318014800 Contact Us For Availability
9
Liner, oven door WCI 318259601 Contact Us For Availability
13
Channel, drawer, RH WCI 318018100 Contact Us For Availability
13A
Channel, drawer, LH WCI 318018101 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
16*
Clip, console, (2) WCI 5304447071 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
18
Hinge, maintop, (2) WCI 318227710 Contact Us For Availability
20#
Clock/Timer, electronic, ES335, black, w/over WCI 318296802 Contact Us For Availability
20#
Clock/Timer, electronic, ES335, white, w/over WCI 318296800 Contact Us For Availability
20#
Clock/Timer, electronic, ES335, bisque, w/ove WCI 318296801 Contact Us For Availability
20*
Overlay, clock, bisque, ES335 WCI 316419308 Contact Us For Availability
23
Hinge, door, (2) WCI 318024722 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
35
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
35
Support, glass, bisque, (4) WCI 318183102 Contact Us For Availability
36
Knob, control, black WCI 316442416 Contact Us For Availability
39
Handle, oven door, bisque WCI 316443602 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
90A
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
99A
Gasket, black WCI 318313201 Contact Us For Availability
99A
Gasket, grey WCI 318313200 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
166
Bracket, base support, (4) WCI 318298400 Contact Us For Availability
170
Anti-tip & accessories WCI 318335500 Contact Us For Availability
200
Frame & Wheel Assembly, black WCI 318335600 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
219#
Thermostat, safety WCI 318003606 Contact Us For Availability
× ![]()
