Model Kenmore 790.46573401 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

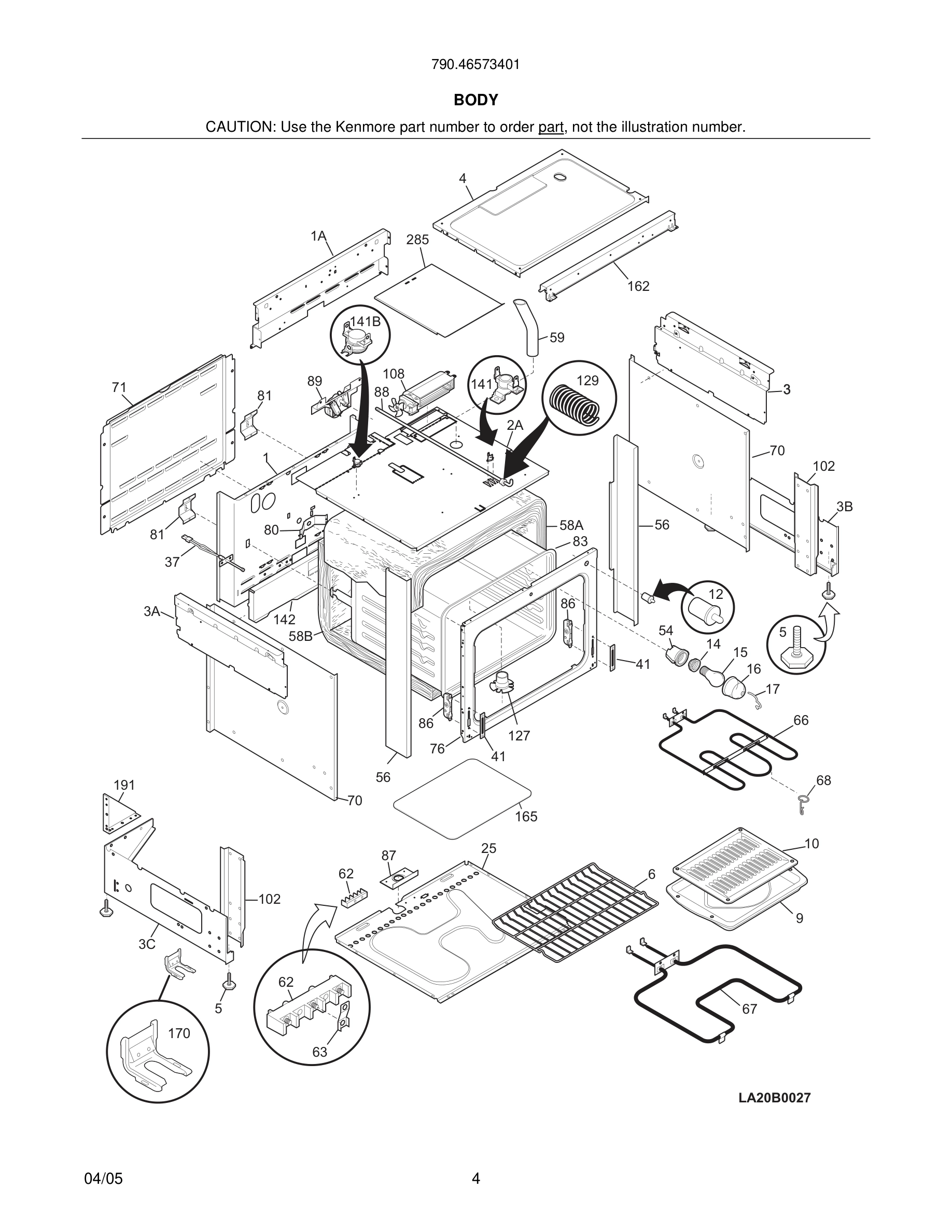

05 - BODY

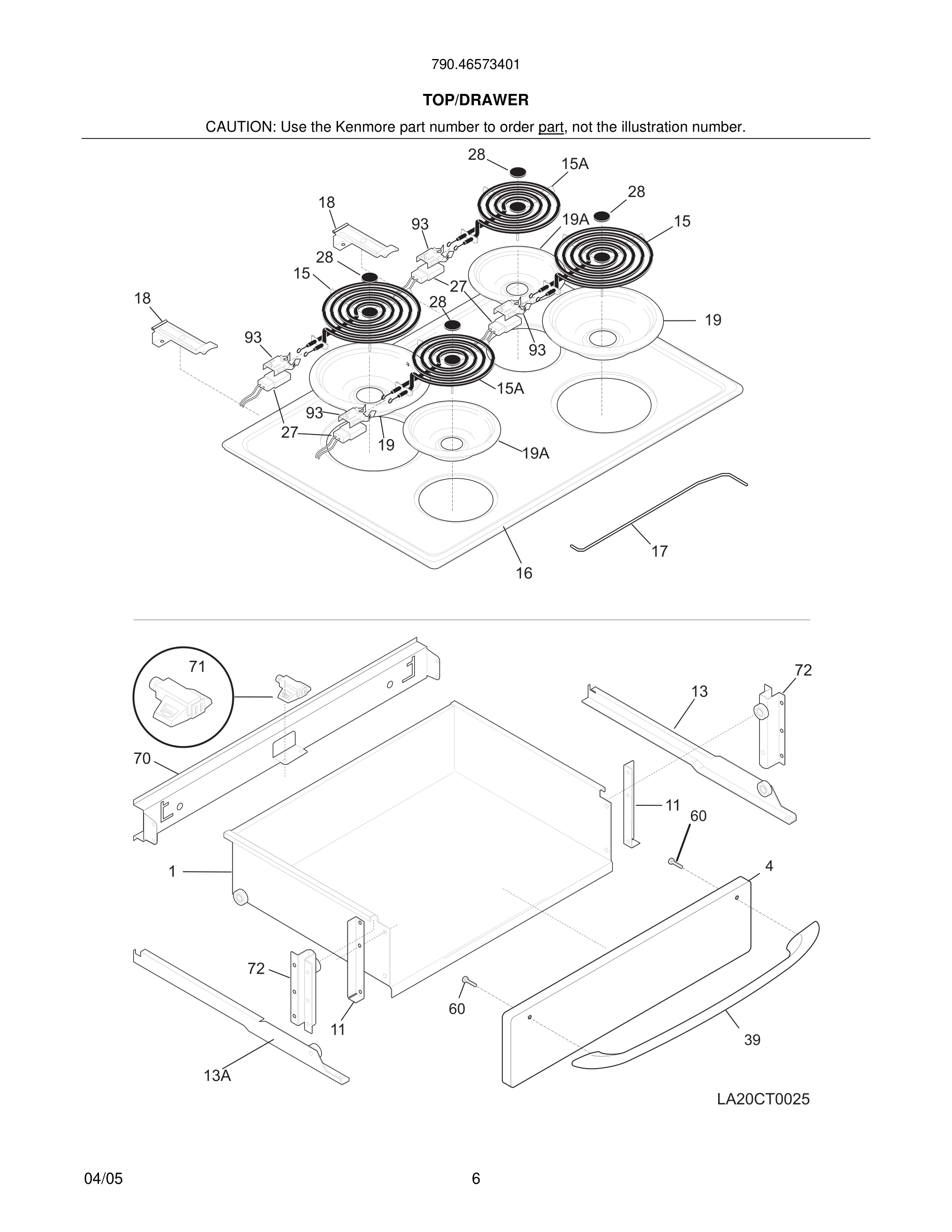

07 - TOP/DRAWER

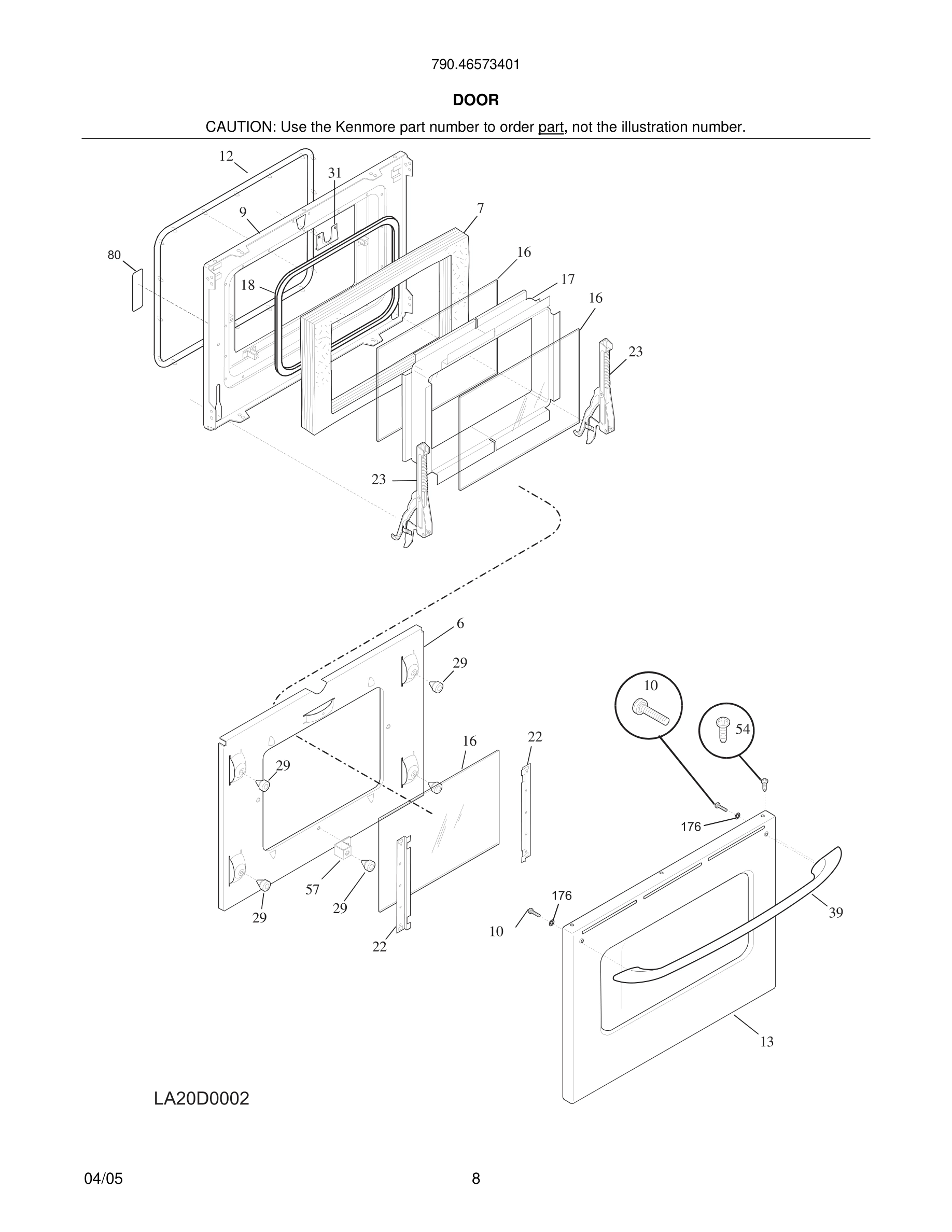

09 - DOOR

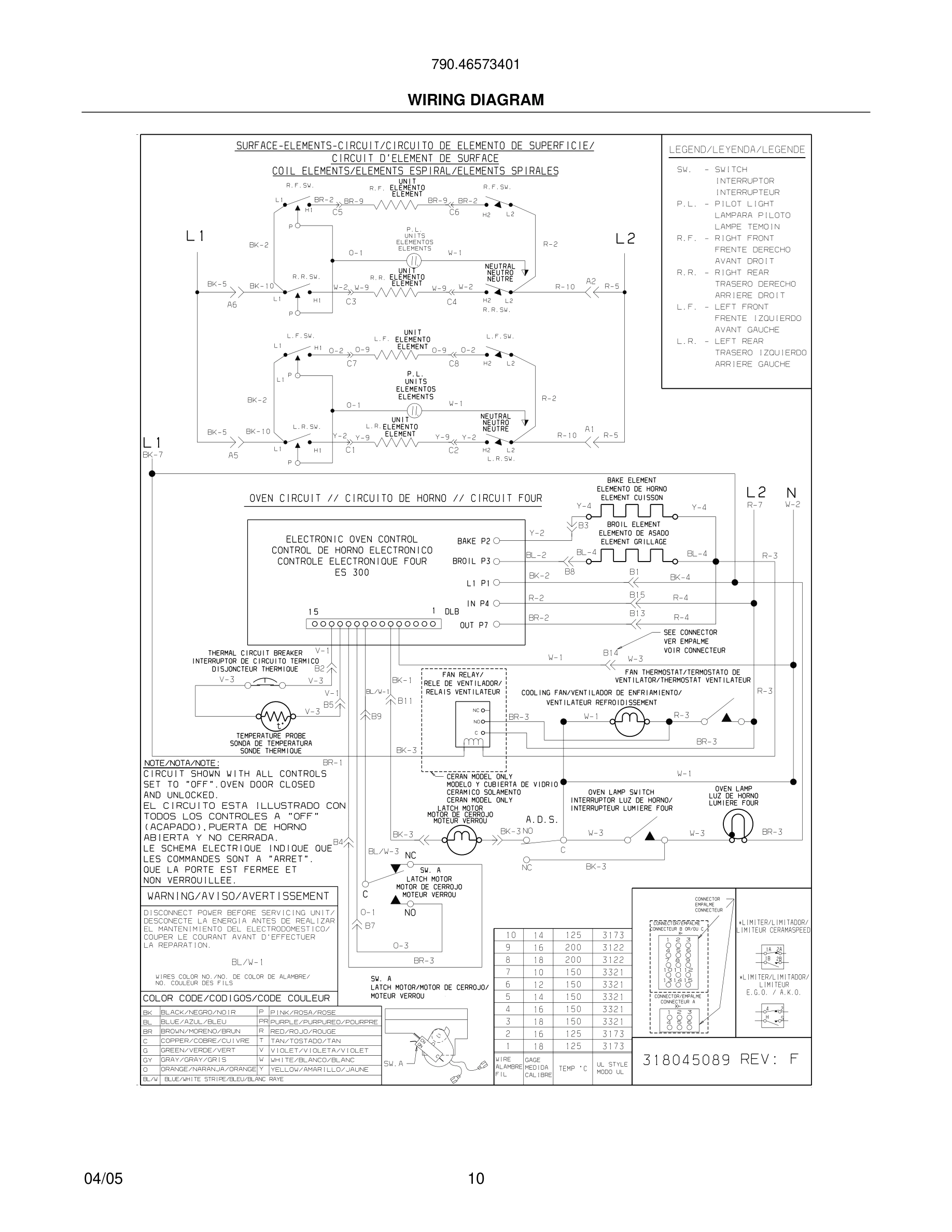

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.46573401 RANGE
*
Spacer WCI 318014800 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
1*
Bracket, drawer channel WCI 318248600 Contact Us For Availability
4
Panel, drawer, stainless WCI 318107913 Contact Us For Availability
6
Deflector, door WCI 318056814 Contact Us For Availability
7
Insulation, oven door WCI 318285051 Contact Us For Availability
9
Liner, door WCI 318157011 Contact Us For Availability
11
Bracket, drawer, (2) WCI 318263100 Contact Us For Availability
13
Channel, drawer, RH WCI 5303311129 Contact Us For Availability
13
Stainless Panel, oven door, w/glass WCI 318187946 Contact Us For Availability
13A
Channel, drawer, LH WCI 5303311130 Contact Us For Availability
16
Panel, glass, inner oven door WCI 318041603 Contact Us For Availability
16
Console, assy., black, w/end caps WCI 318235021 Contact Us For Availability
16
Main Top, black WCI 318225601 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Rod, support, main top panel WCI 3051554 Contact Us For Availability
17
Spacer, glass WCI 318042102 Contact Us For Availability
18
Gasket, door glass seal WCI 318293501 Contact Us For Availability
18
Hinge, maintop, (2) WCI 318227700 Contact Us For Availability
19A
Panel, control mtg. WCI 318224401 Contact Us For Availability
20#
Clock/Timer, electronic, black, ES300 WCI 318185477 Contact Us For Availability
22
Bar, glass retainer WCI 5303310511 Contact Us For Availability
23
Hinge, oven door, (2) WCI 5303310828 Contact Us For Availability
27#
Terminal Block, surface element, 36", white l WCI 318223414 Contact Us For Availability
27#
Terminal Block, surface element, 48", orange WCI 318223413 Contact Us For Availability
27#
Terminal Block, surface element, 36", yellow WCI 318223415 Contact Us For Availability
27#
Terminal Block, surface element, 42", brown l WCI 318223418 Contact Us For Availability
28
Medallion, stainless steel, surf elem WCI 3017801 Contact Us For Availability
31
Latch, oven door WCI 5303310536 Contact Us For Availability
36
Knob, control, black WCI 316208113 Contact Us For Availability
39
Handle, door, black WCI 316209701 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
57
Stiffener, glass WCI 318172902 Contact Us For Availability
70
Shield, insulation WCI 318194401 Contact Us For Availability
70
Bracket, slide, rear WCI 5303311143 Contact Us For Availability
71
Panel, wiring cover, rear WCI 5303310515 Contact Us For Availability
71
Magnet & spring assy WCI 318279800 Contact Us For Availability
72
Bracket & wheel assy WCI 5303311145 Contact Us For Availability
74
Bumper, base WCI 318147410 Contact Us For Availability
76
Front, oven WCI 318225302 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
83
Liner, oven WCI 318089613 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Plate, mounting WCI 318111803 Contact Us For Availability
88
Rod, latch, w/bushing WCI 318250210 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
93
Support, terminal block, (4) WCI 318122500 Contact Us For Availability
102
Support, oven front WCI 5303311142 Contact Us For Availability
141#
Switch, thermal cutout WCI 318005203 Contact Us For Availability
141B
Thermostat, safety WCI 318003606 Contact Us For Availability
142
Deflector WCI 318123901 Contact Us For Availability
162
Box, extension WCI 318225810 Contact Us For Availability
165
Plate, heat shield WCI 318003100 Contact Us For Availability
170
Anti-tip accessories WCI 5304405243 Contact Us For Availability
191
Bracket, angle, corner WCI 5303304030 Contact Us For Availability
× ![]()
