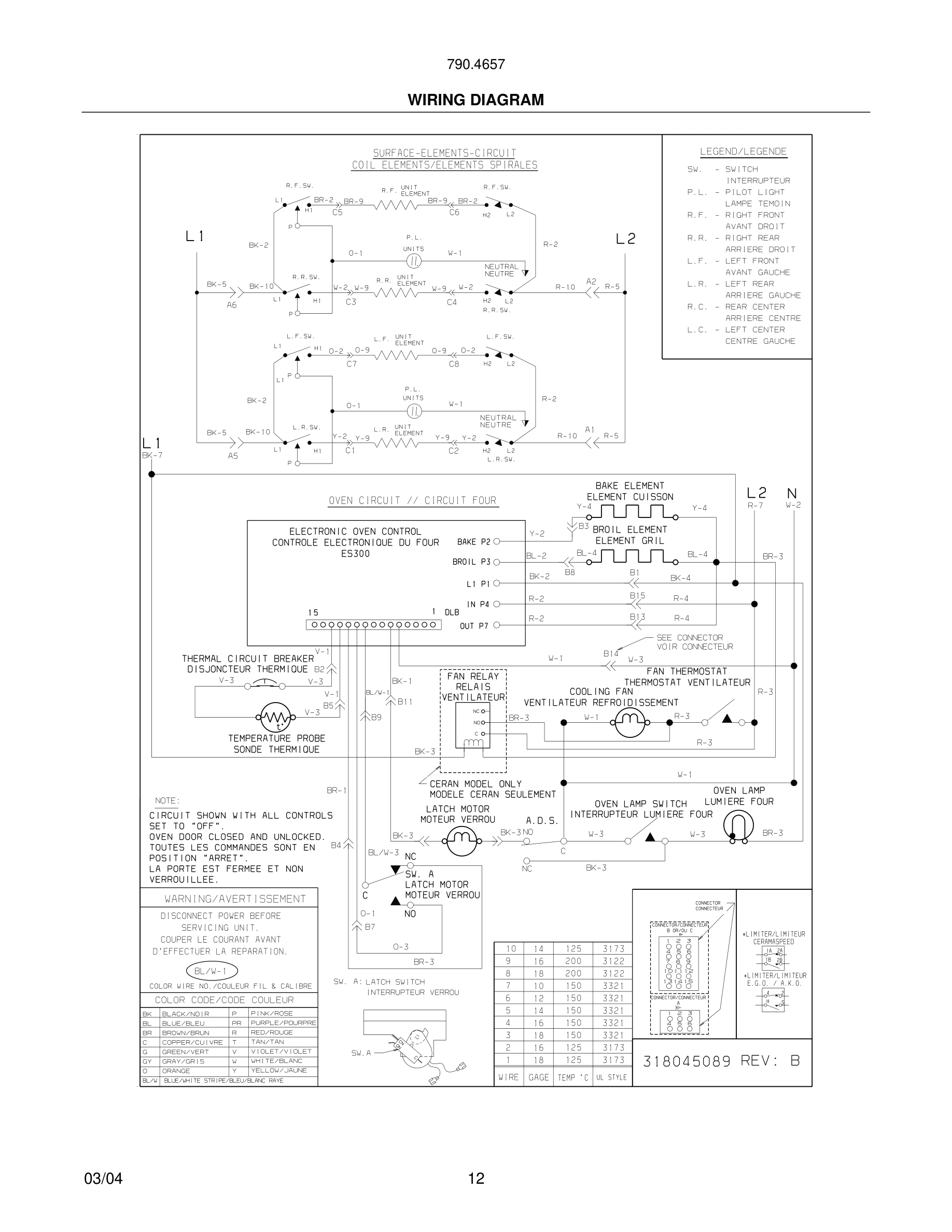

Model Kenmore 790.46572400 RANGE – Common Parts &amp; Diagrams

*

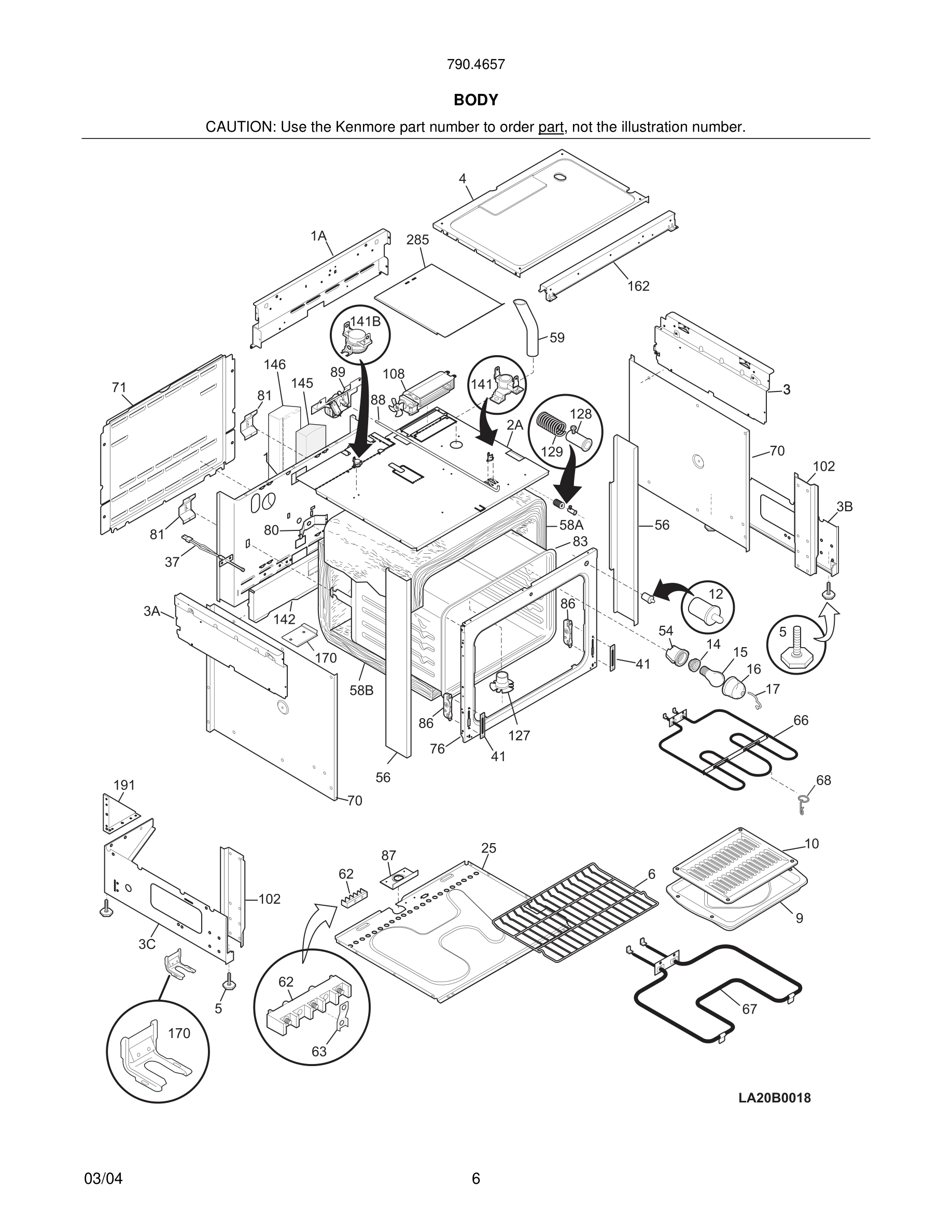

5303211311 Frigidaire Refrigerator Screw Backorder WCI 5303211311 $9.06

*

5303307980 Frigidaire Oven Screw Backorder WCI 5303307980 $9.06

*

Screw, 6-32 x 0.375, top trim WCI 5303131766 Contact Us For Availability

*

Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability

*

Cap, plug WCI 5303325173 Contact Us For Availability

*

Label, anti-tip WCI 316221000 Contact Us For Availability

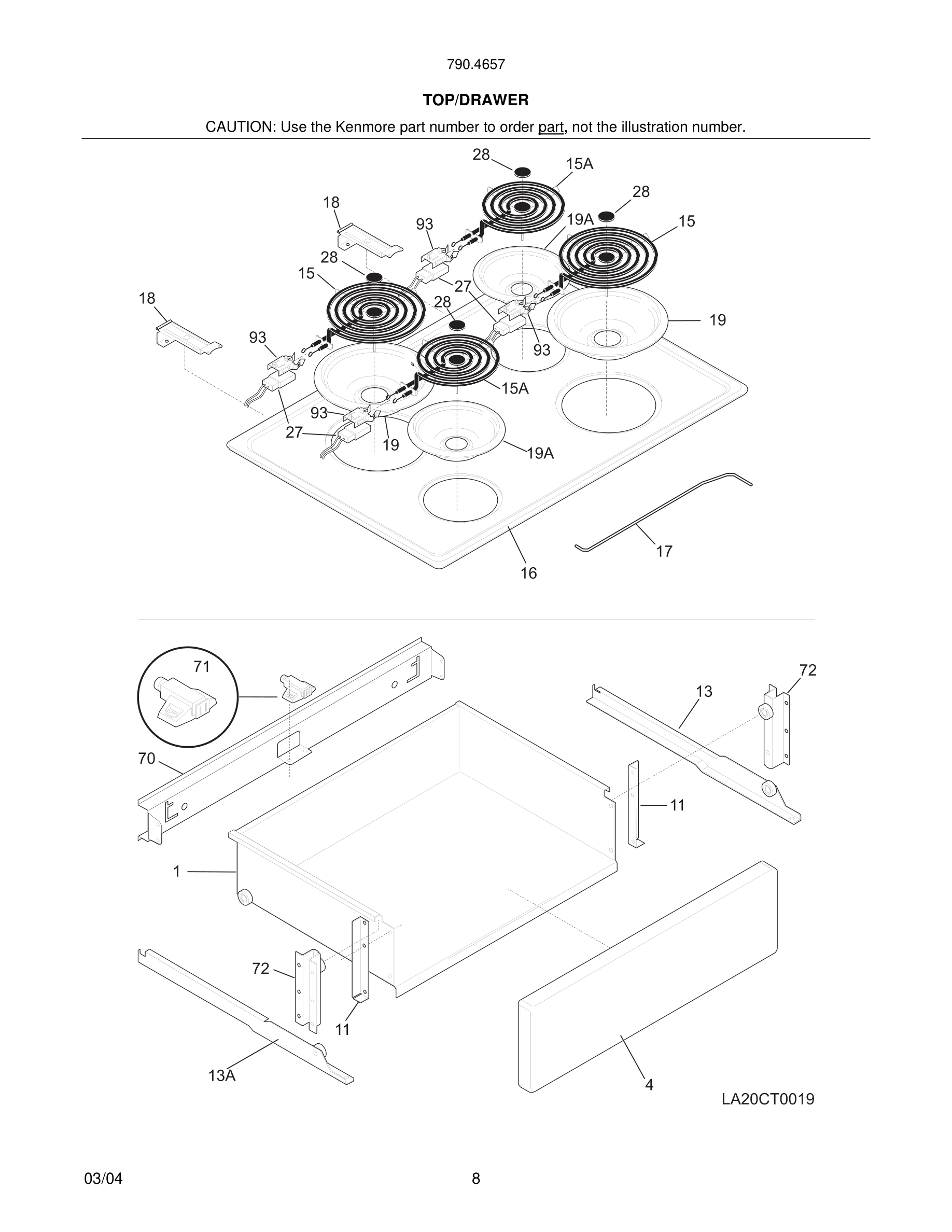

1

5304505701 Frigidaire Drawer Body with Roller Backorder WCI 5304505701 $82.45

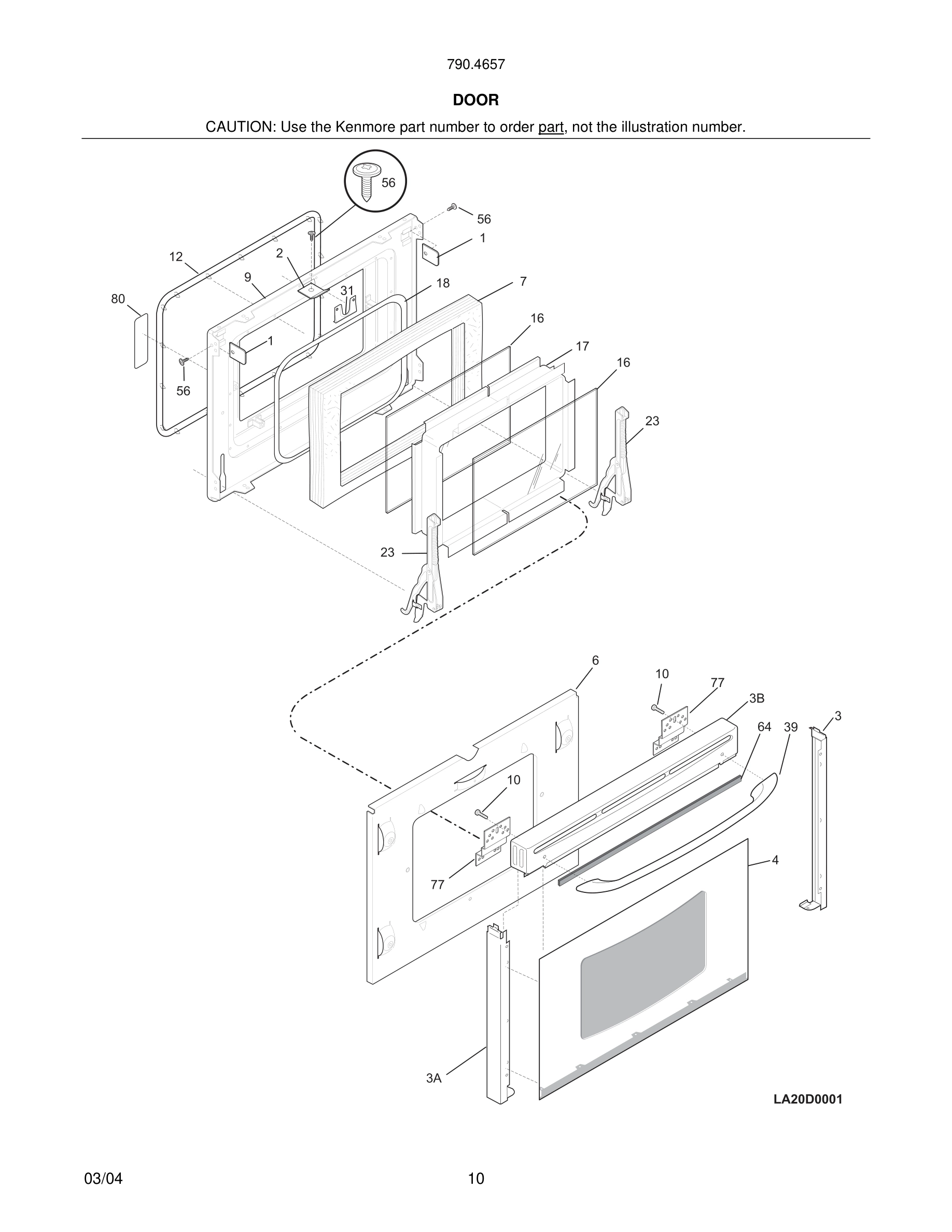

1

Bracket, trim mtg WCI 318180310 Contact Us For Availability

2

Bracket, upper trim mtg WCI 318180312 Contact Us For Availability

3

Trim, door, white, RH side WCI 318187810 Contact Us For Availability

3

Trim, door, bisque, RH side WCI 318187812 Contact Us For Availability

3

Trim, door, black, RH side WCI 318187814 Contact Us For Availability

3A

Trim, door, white, LH side WCI 318187811 Contact Us For Availability

3A

Trim, door, bisque, LH side WCI 318187813 Contact Us For Availability

3A

Trim, door, black, LH side WCI 318187815 Contact Us For Availability

3B

Trim, door, white, top WCI 318176646 Contact Us For Availability

3B

Trim, door, bisque, top WCI 318176648 Contact Us For Availability

3B

Trim, door, black, top WCI 318176647 Contact Us For Availability

4

Panel, drawer, white, front WCI 318134011 Contact Us For Availability

4

Panel, drawer, bisque, front WCI 318134013 Contact Us For Availability

4

Panel, drawer, black, front WCI 318134012 Contact Us For Availability

4

Panel, door front assy, glass, white, with lo WCI 318187721 Contact Us For Availability

4

Panel, door front assy, glass, bisque, with l WCI 318187722 Contact Us For Availability

4

Panel, door front assy, glass, black, with lo WCI 318187723 Contact Us For Availability

5

318175503 Frigidaire Screw with Bolt Backorder WCI 318175503 $10.39

6

Shield, insulation WCI 318056802 Contact Us For Availability

7

Insulation, oven door WCI 318133781 Contact Us For Availability

9

Liner, door WCI 318157011 Contact Us For Availability

10

5303311174 Frigidaire Oven Screw Backorder WCI 5303311174 $9.50

11

Bracket, drawer WCI 5303311125 Contact Us For Availability

12

318053103 Frigidaire Oven Door Seal Gasket Backorder WCI 318053103 $83.75

13

Channel, drawer, RH WCI 5303311129 Contact Us For Availability

13A

Channel, drawer, LH WCI 5303311130 Contact Us For Availability

14

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $40.25

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15#

316442301 Frigidaire Oven 8 Coil Element 2600 In Stock WCI 316442301 $47.77

15A#

318372211 Frigidaire Oven 6" Electric Range B In Stock WCI 318372211 $31.30

Panel, glass, inner oven door WCI 318041603 Contact Us For Availability

Main Top, white WCI 318225602 Contact Us For Availability

Main Top, bisque WCI 318225603 Contact Us For Availability

Main Top, black WCI 318225601 Contact Us For Availability

17

Retainer, light cover WCI 5304400195 Contact Us For Availability

17

Rod, support, main top panel WCI 3051554 Contact Us For Availability

17

Spacer, glass WCI 318042102 Contact Us For Availability

18

Hinge, maintop, (2) WCI 318227700 Contact Us For Availability

18

Seal, window WCI 318053001 Contact Us For Availability

19

A316222301 Frigidaire Oven 8" Porcelain Drip In Stock WCI A316222301 $13.29

A316222201 Frigidaire Range Drip Bowl Assembl In Stock WCI A316222201 $12.18

L304458797 Frigidaire Range Universal Chrome In Stock WCI L304458797 $32.15

Panel, control mtg. WCI 318224401 Contact Us For Availability

Pan, surface element, small, bisque WCI 318067060 Contact Us For Availability

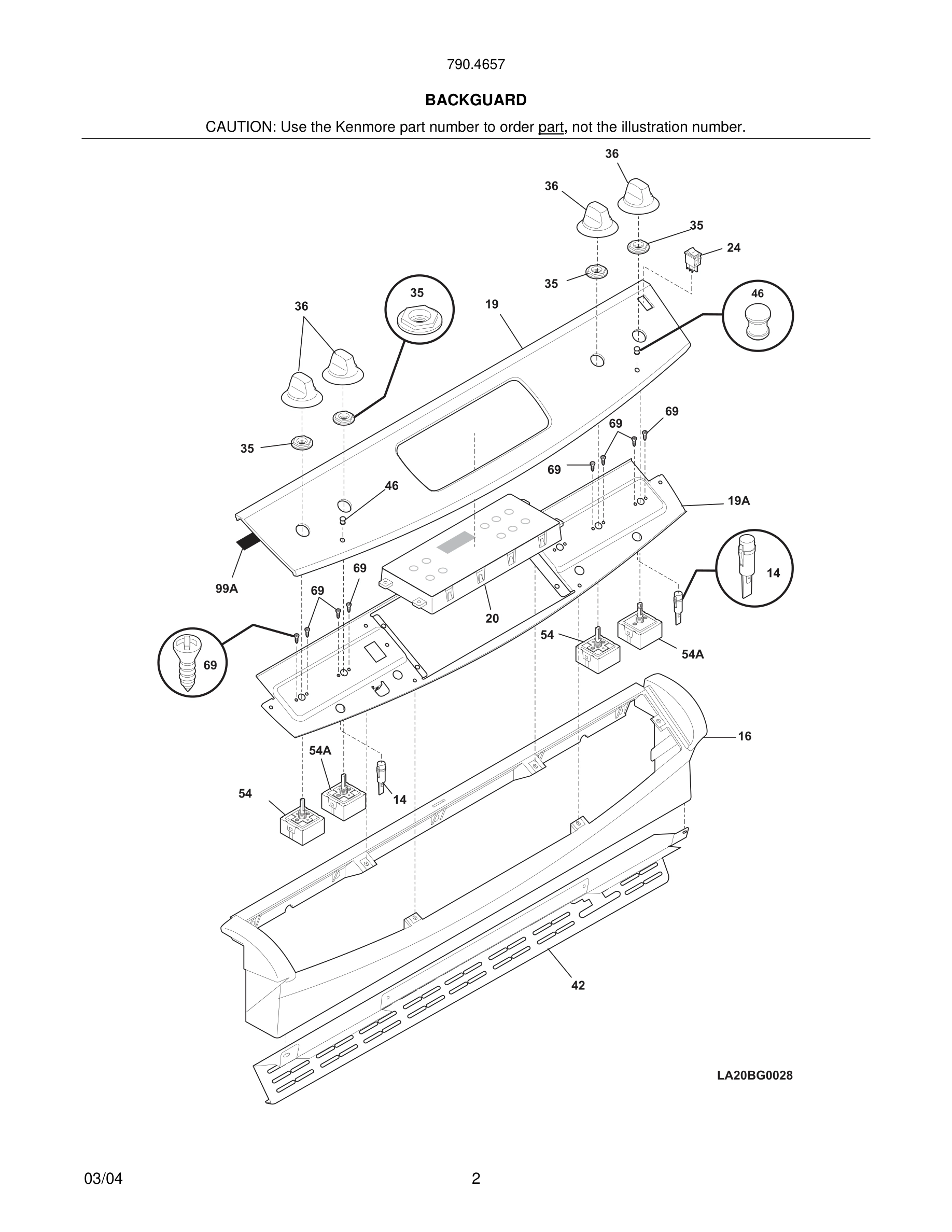

20#

Clock/Timer, electronic, black, ES300 WCI 318185477 Contact Us For Availability

20#

Clock/Timer, electronic, bisque, ES300 WCI 318185476 Contact Us For Availability

20A

316220804 Frigidaire Oven Overlay In Stock WCI 316220804 $27.18

20A

316220805 Frigidaire Oven Overlay In Stock WCI 316220805 $57.81

23

Hinge, oven door WCI 318024700 Contact Us For Availability

Terminal Block, surface element, 36", white l WCI 318223414 Contact Us For Availability

Terminal Block, surface element, 48", orange WCI 318223413 Contact Us For Availability

Terminal Block, surface element, 36", yellow WCI 318223415 Contact Us For Availability

Terminal Block, surface element, 42", brown l WCI 318223418 Contact Us For Availability

28

5303017715 Frigidaire Medallion Backorder WCI 5303017715 $38.09

28

Medallion, stainless steel, surf elem WCI 3017801 Contact Us For Availability

31

Latch, oven door WCI 5303310536 Contact Us For Availability

35

Support, glass, white, (4) WCI 318183101 Contact Us For Availability

35

Support, glass, bisque, (4) WCI 318183102 Contact Us For Availability

36

Knob, control, white WCI 316208112 Contact Us For Availability

36

Knob, control, black WCI 316208113 Contact Us For Availability

36

Knob, control, bisque WCI 316208114 Contact Us For Availability

37#

316217002 Frigidaire Oven Temperature Probe In Stock WCI 316217002 $43.36

39

5304519505 Frigidaire White Handle Kit Backorder WCI 5304519505 $69.03

39

Handle, door, bisque WCI 316209702 Contact Us For Availability

39

Handle, door, black WCI 316209701 Contact Us For Availability

41

Cover, hinge cutout WCI 5303310526 Contact Us For Availability

54

5303300265 Frigidaire Oven Screw Backorder WCI 5303300265 $9.04

54

Housing, oven light WCI 318222400 Contact Us For Availability

58B

Insulation, oven back WCI 318133785 Contact Us For Availability

64

Tape, 0.762 m, Neoprene WCI 5304417120 Contact Us For Availability

66#

318255605 Frigidaire Oven Broil Element Range In Stock WCI 318255605 $115.29

67#

318255006 Frigidaire Oven Range Bake Element In Stock WCI 318255006 $134.35

68

5304403015 Frigidaire Oven Support Backorder WCI 5304403015 $20.91

69

5303288565 Frigidaire Screw In Stock WCI 5303288565 $1.87

70

Shield, insulation WCI 318194400 Contact Us For Availability

70

Bracket, slide, rear WCI 5303311143 Contact Us For Availability

71

Panel, wiring cover, rear WCI 5303310515 Contact Us For Availability

71

Magnet & spring assy WCI 5303311144 Contact Us For Availability

72

Bracket & wheel assy WCI 5303311145 Contact Us For Availability

76

Front, oven WCI 318225302 Contact Us For Availability

77

Bracket, trim, handle, (2) WCI 318043100 Contact Us For Availability

80

318054701 Frigidaire Plate Backorder WCI 318054701 $13.57

81

Spring, oven WCI 318192400 Contact Us For Availability

83

Liner, oven WCI 318089613 Contact Us For Availability

86

Receptacle, hinge WCI 5303310524 Contact Us For Availability

87

Plate, mounting WCI 318111803 Contact Us For Availability

88

Rod, latch WCI 318118904 Contact Us For Availability

89#

318095957 Frigidaire Oven Motor Backorder WCI 318095957 $85.37

89*

Switch WCI 318120711 Contact Us For Availability

93

Support, terminal block, (4) WCI 318122500 Contact Us For Availability

99A

318223900 Frigidaire Oven Gasket Backorder WCI 318223900 $47.53

102

Support, oven front WCI 5303311142 Contact Us For Availability

108#

318073028 Frigidaire Oven Motor In Stock WCI 318073028 $186.75

127

318317100 Frigidaire Adapter Assembly Backorder WCI 318317100 $47.51

128

Bushing WCI 5303311163 Contact Us For Availability

129

5303311164 Frigidaire Oven Spring Backorder WCI 5303311164 $11.32

141#

Switch, thermal cutout WCI 318005201 Contact Us For Availability

142

Deflector WCI 318123901 Contact Us For Availability

145

Weight WCI 5303311108 Contact Us For Availability

146

Cover, weight WCI 318038502 Contact Us For Availability

162

Box, extension WCI 318225800 Contact Us For Availability

170

Anti-tip accessories WCI 5304405243 Contact Us For Availability

176

316205500 Frigidaire Oven Nut In Stock WCI 316205500 $7.25

191

Bracket, angle, corner WCI 5303304030 Contact Us For Availability

219#

Thermostat, safety WCI 318003606 Contact Us For Availability

285

Shield, hidden wires WCI 318236200 Contact Us For Availability
