Model Kenmore 790.46373403 RANGE – Common Parts & Diagrams

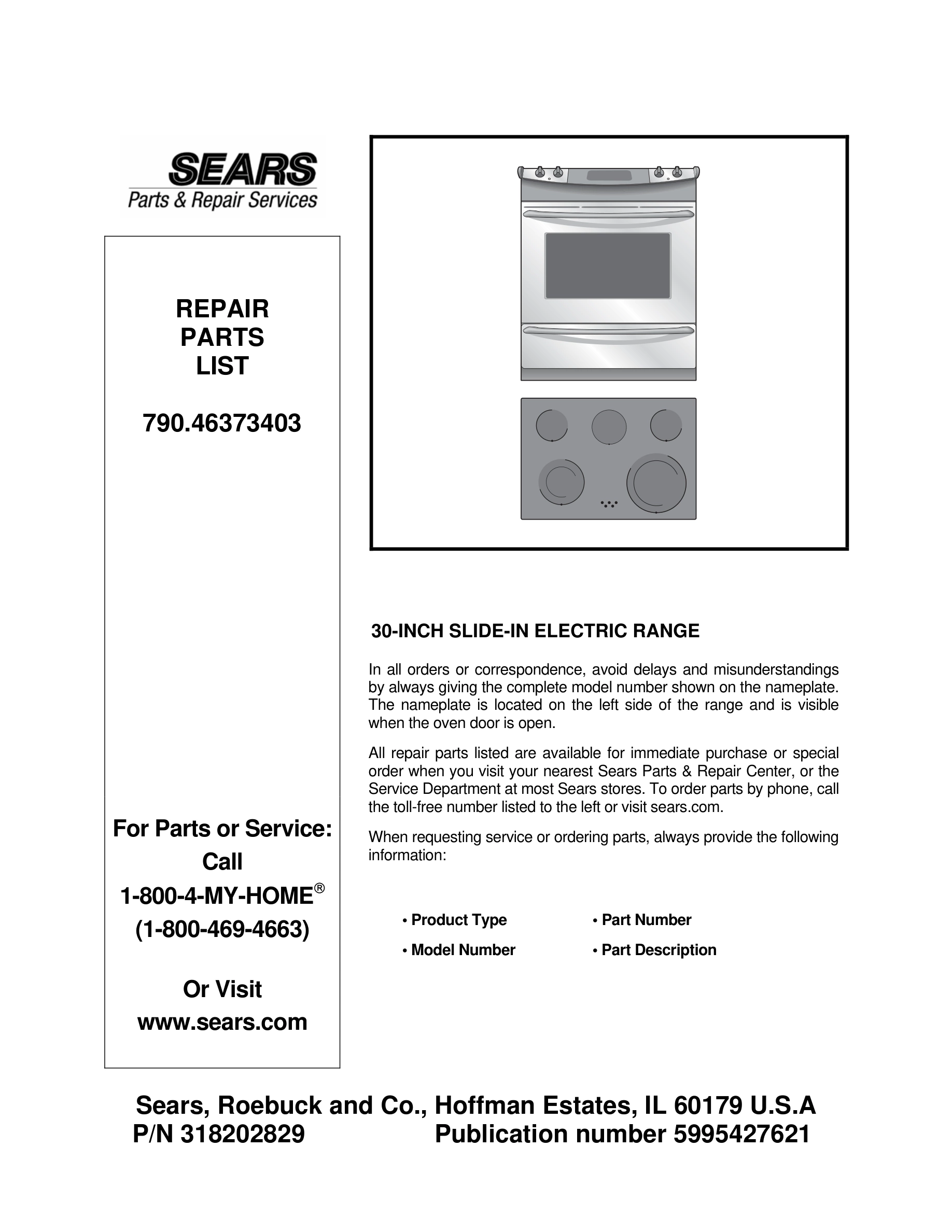

01 - COVER

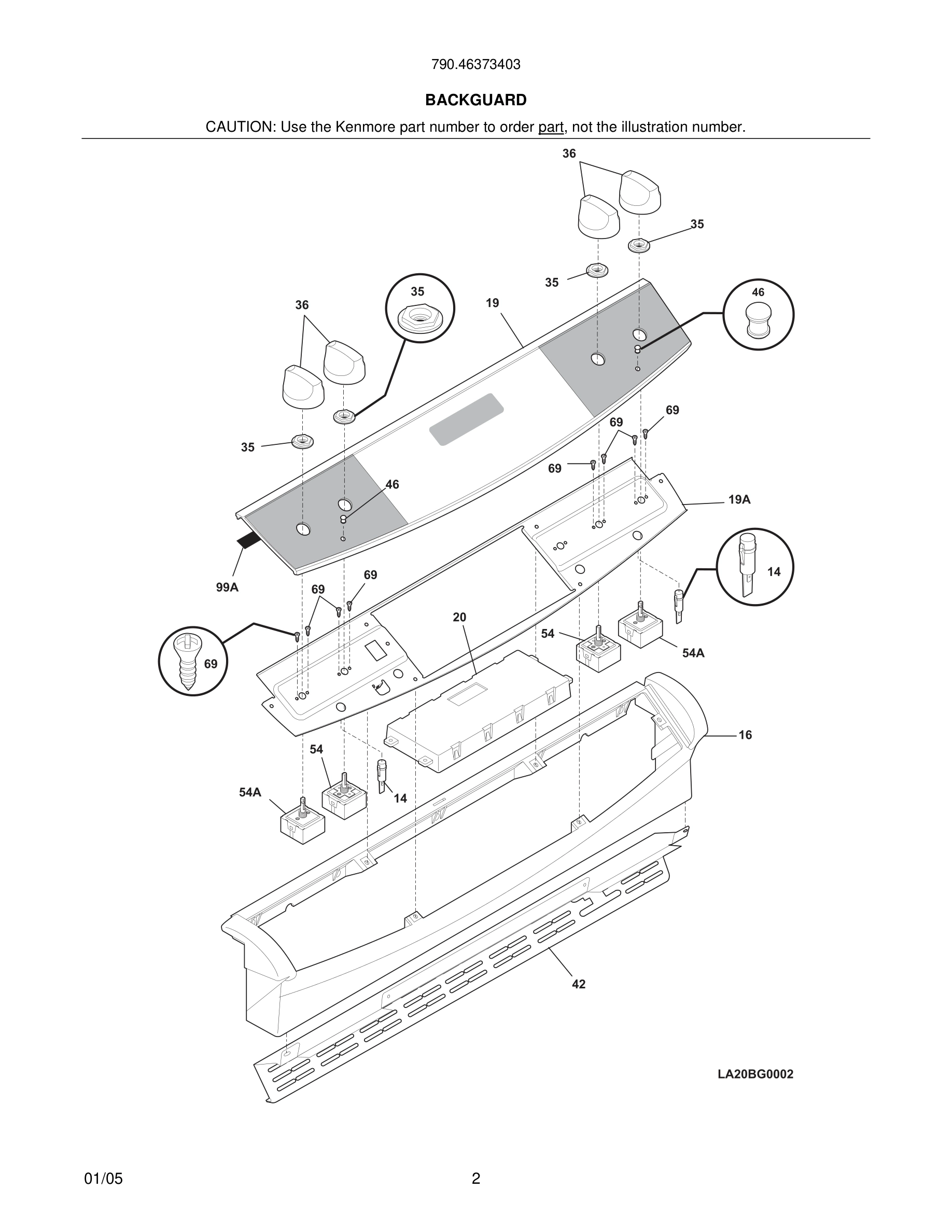

03 - BACKGUARD
05 - BODY

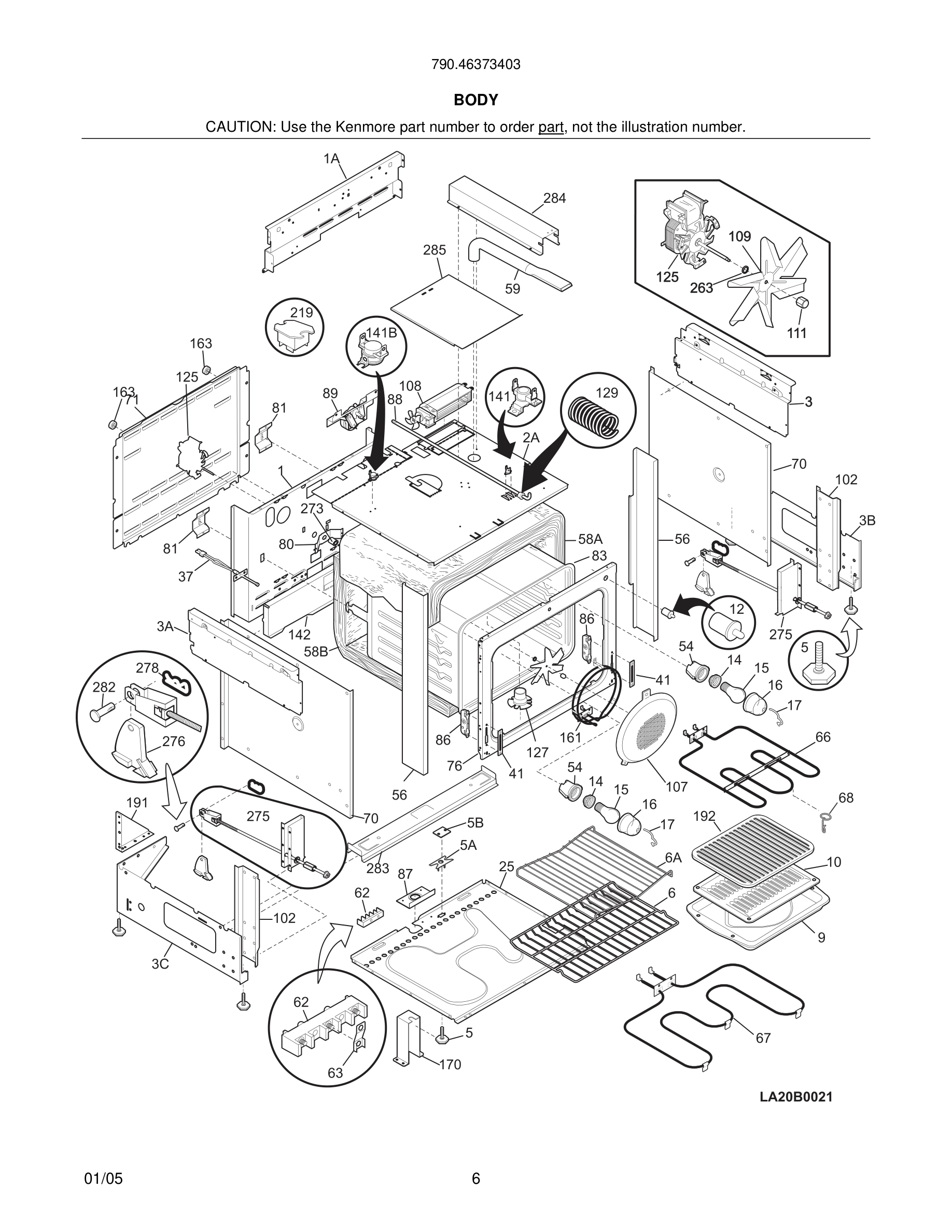

07 - BODY

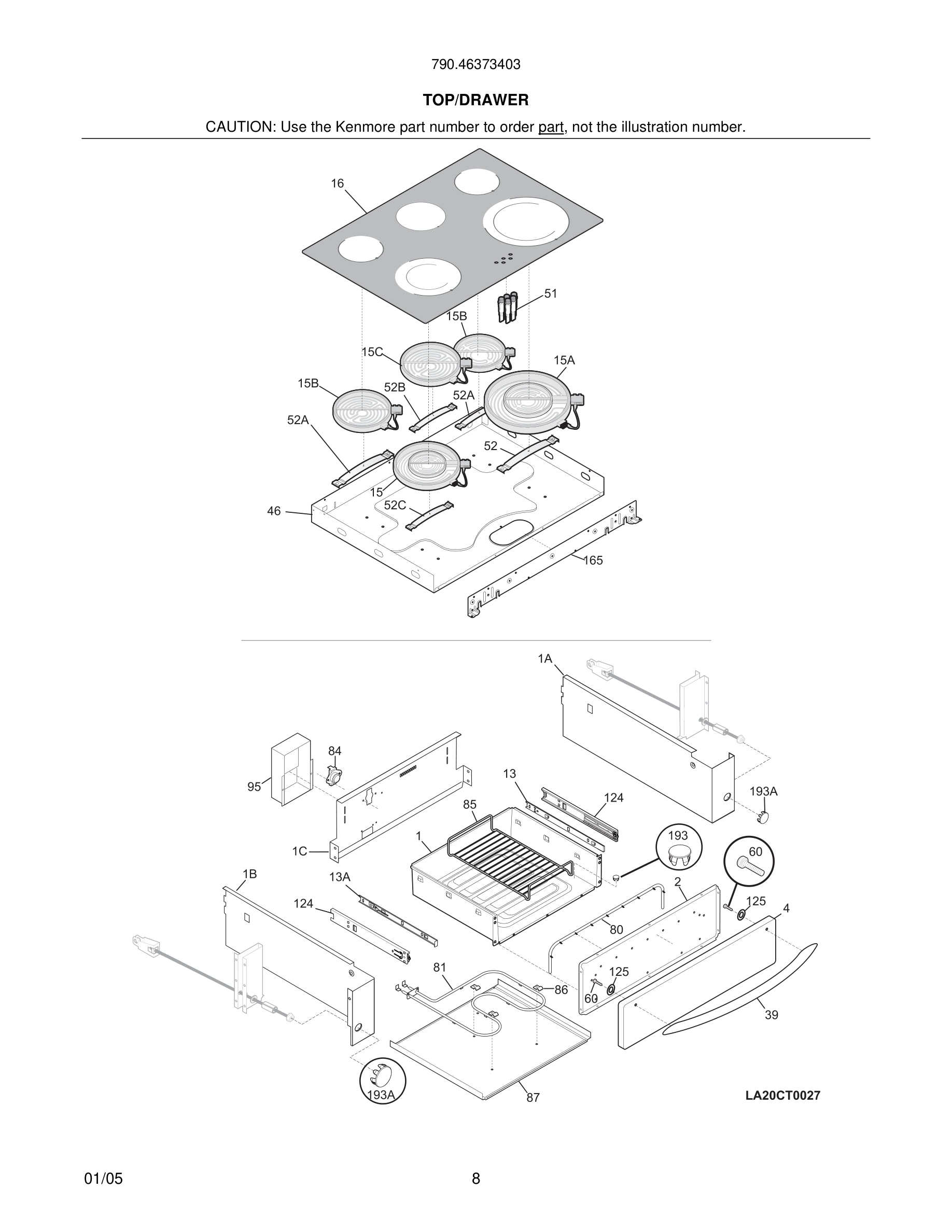

09 - TOP/DRAWER

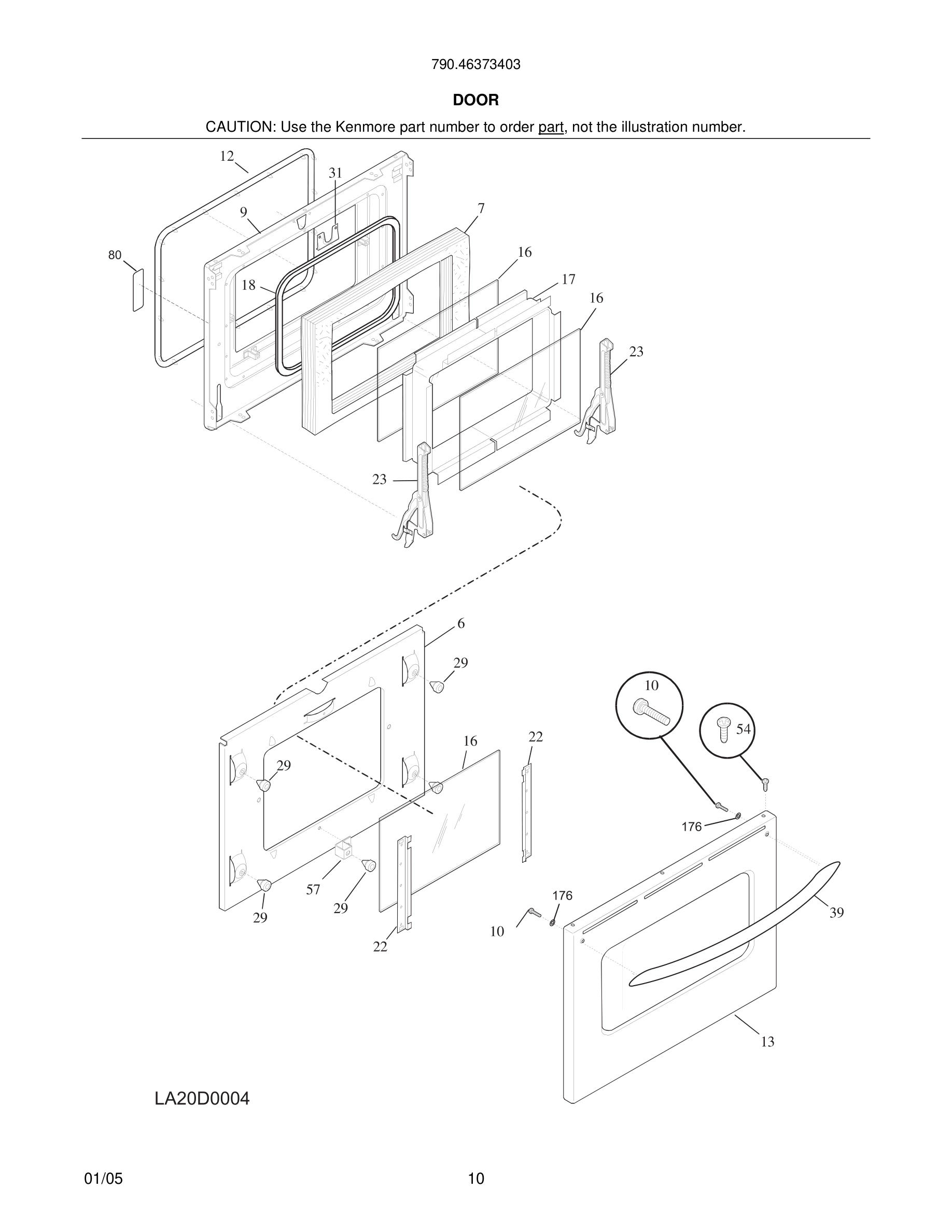

11 - DOOR

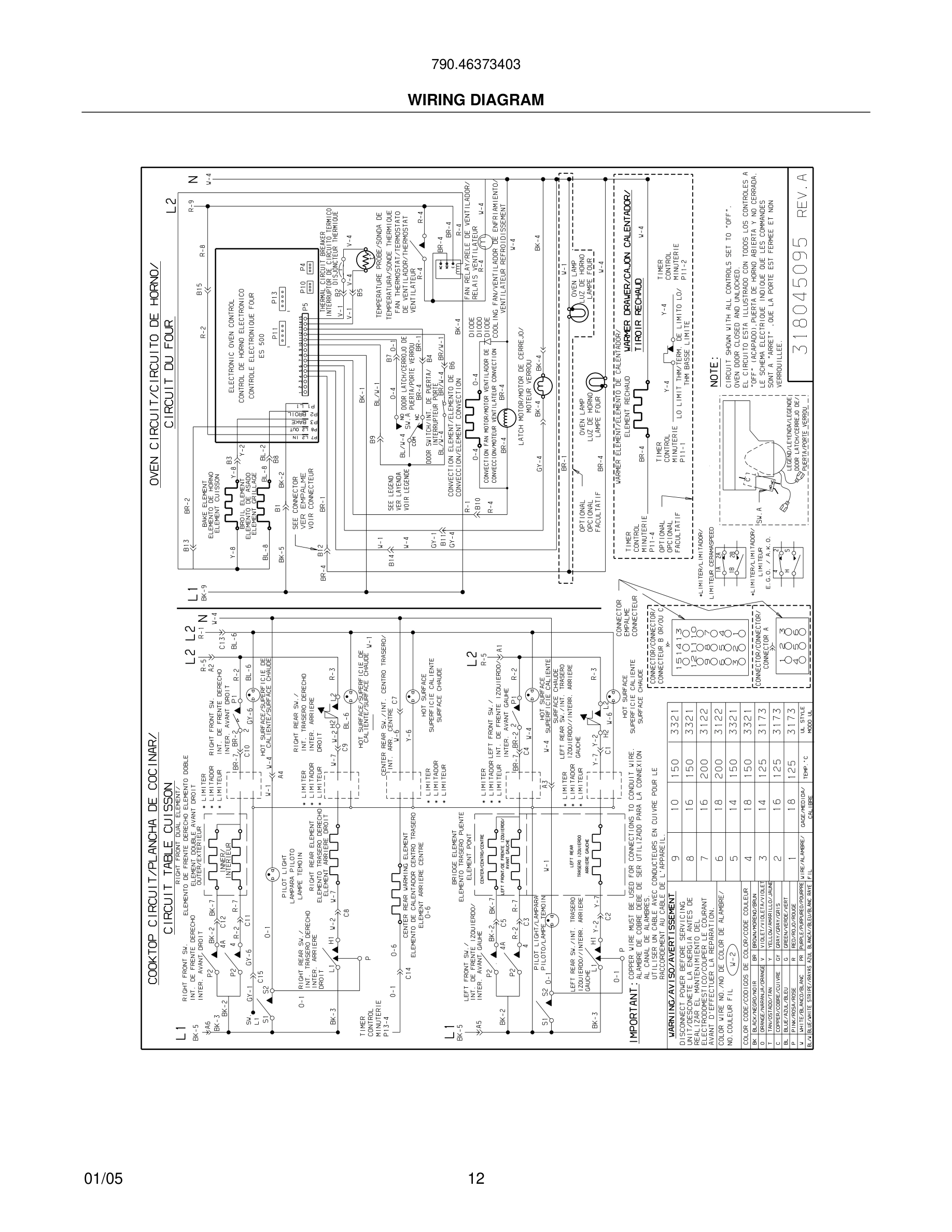

12 - WIRING DIAGRAM
Common parts from model Kenmore 790.46373403 RANGE
*
Clip, wiring WCI 318226300 Contact Us For Availability
*
Bushing, side panel, nylon, RH, snap WCI 08008009 Contact Us For Availability
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
1
Drawer, warmer WCI 318142500 Contact Us For Availability
1A
Deflector, warmer drawer, RH WCI 318143333 Contact Us For Availability
1B
Deflector, warmer drawer, LH WCI 318143332 Contact Us For Availability
1C
Deflector, warmer drawer, rear WCI 318143203 Contact Us For Availability
2
Liner, drawer WCI 318108025 Contact Us For Availability
4
Panel, drawer, stainless WCI 318107909 Contact Us For Availability
6
Rack, oven WCI 318025311 Contact Us For Availability
6
Deflector, door WCI 318056815 Contact Us For Availability
7
Insulation, oven door WCI 318285051 Contact Us For Availability
9
Liner, door WCI 318157011 Contact Us For Availability
13
Stainless Panel, oven door, w/ glass WCI 318187942 Contact Us For Availability
15C#
Element, surface, warmer, 100 W WCI 318198816 Contact Us For Availability
16
Panel, glass, inner oven door WCI 318041603 Contact Us For Availability
16
Main Top, glass assy., black WCI 318223625 Contact Us For Availability
16
Console, assy., graphite, w/ end caps WCI 318235003 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass WCI 318042102 Contact Us For Availability
18
Seal, window WCI 318053001 Contact Us For Availability
19A
Panel, control mtg. WCI 318224403 Contact Us For Availability
20#
Clock/Timer, electronic, ES550 WCI 316272208 Contact Us For Availability
22
Bar, glass retainer WCI 5303310511 Contact Us For Availability
23
Hinge, oven door, (2) WCI 5303310828 Contact Us For Availability
29
Bumper, base WCI 318147410 Contact Us For Availability
31
Latch, oven door WCI 5303310536 Contact Us For Availability
39
Handle, door/drawer, stainless WCI 316432300 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
46
Box, burner WCI 318225401 Contact Us For Availability
52B
Spring, element mtg, 700W & 2100W WCI 318122004 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
57
Stiffener, glass WCI 318172902 Contact Us For Availability
80
Gasket, warmer drawer WCI 318054310 Contact Us For Availability
80
Label, anti-tip WCI 316221000 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
84#
Thermostat WCI 318005105 Contact Us For Availability
86
Clip, hold down, warmer element WCI 316095800 Contact Us For Availability
87
Base, warmer WCI 318121503 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
95
Cover, wire WCI 318143702 Contact Us For Availability
102
Support, oven front WCI 5303311142 Contact Us For Availability
107
Cover, fan WCI 318219401 Contact Us For Availability
125#
Motor, fan WCI 316136300 Contact Us For Availability
141#
Switch, thermal cutout WCI 318005201 Contact Us For Availability
141B
Thermostat, safety WCI 318003615 Contact Us For Availability
142
Deflector WCI 318123901 Contact Us For Availability
161#
Element, convection, 350 W WCI 318255501 Contact Us For Availability
165
Plate, mounting WCI 318227502 Contact Us For Availability
170
Bracket, Anit-tip WCI 5304417440 Contact Us For Availability
191
Bracket, angle, corner WCI 5303304030 Contact Us For Availability
193
Cap, plug WCI 5303325173 Contact Us For Availability
193A
Plug, button WCI 3204817 Contact Us For Availability
219#
Relay WCI 318112701 Contact Us For Availability
273
Tube, protector WCI 318249400 Contact Us For Availability
275
Leveling assy WCI 318174800 Contact Us For Availability
276
Came WCI 318096200 Contact Us For Availability
278
Lock Pin WCI 5304412258 Contact Us For Availability
282
Pivot pin WCI 5304412259 Contact Us For Availability
283
Support, reinforcement WCI 318179400 Contact Us For Availability
284
Box, vent tube WCI 318226600 Contact Us For Availability
× ![]()
