Model Kenmore 790.46372401 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD
05 - BODY

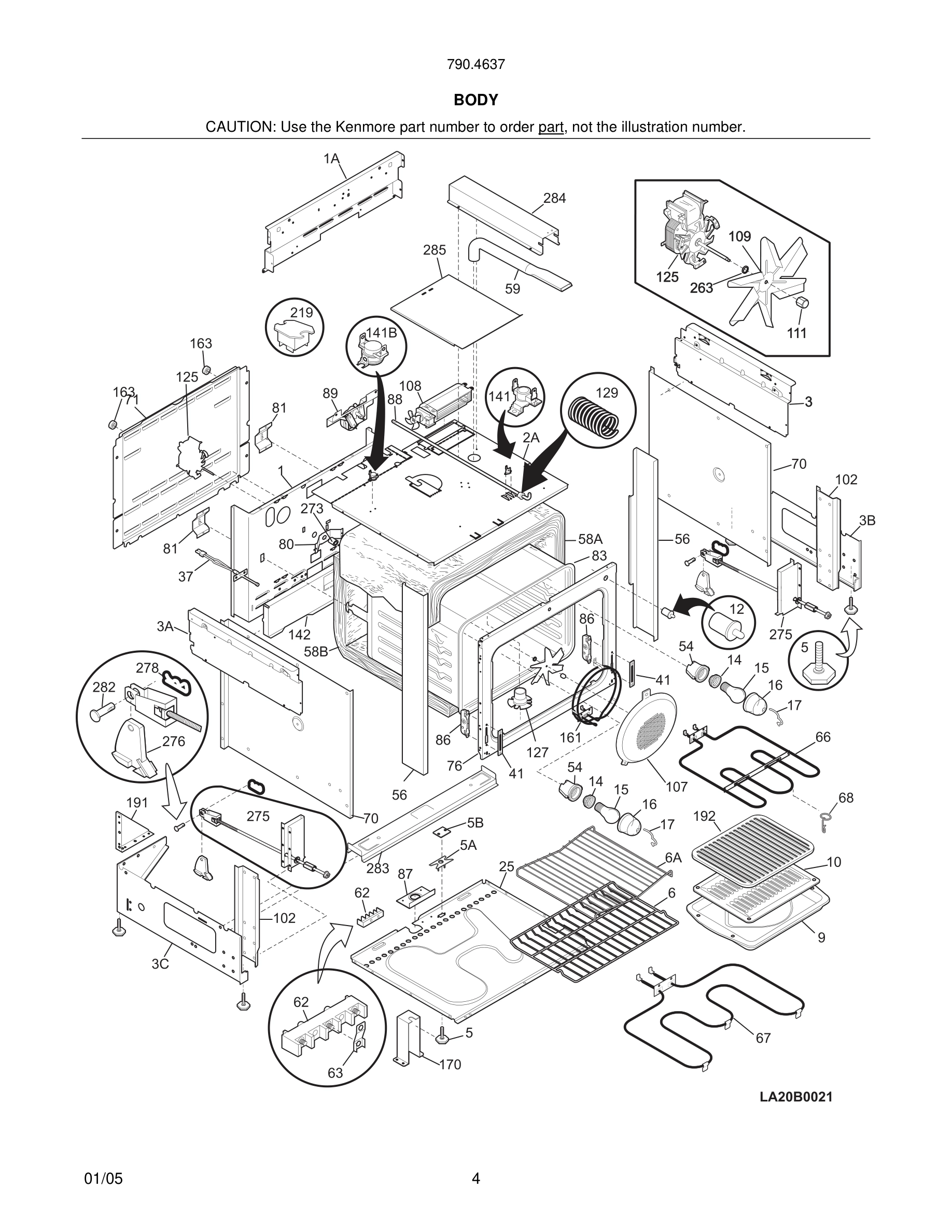

07 - BODY

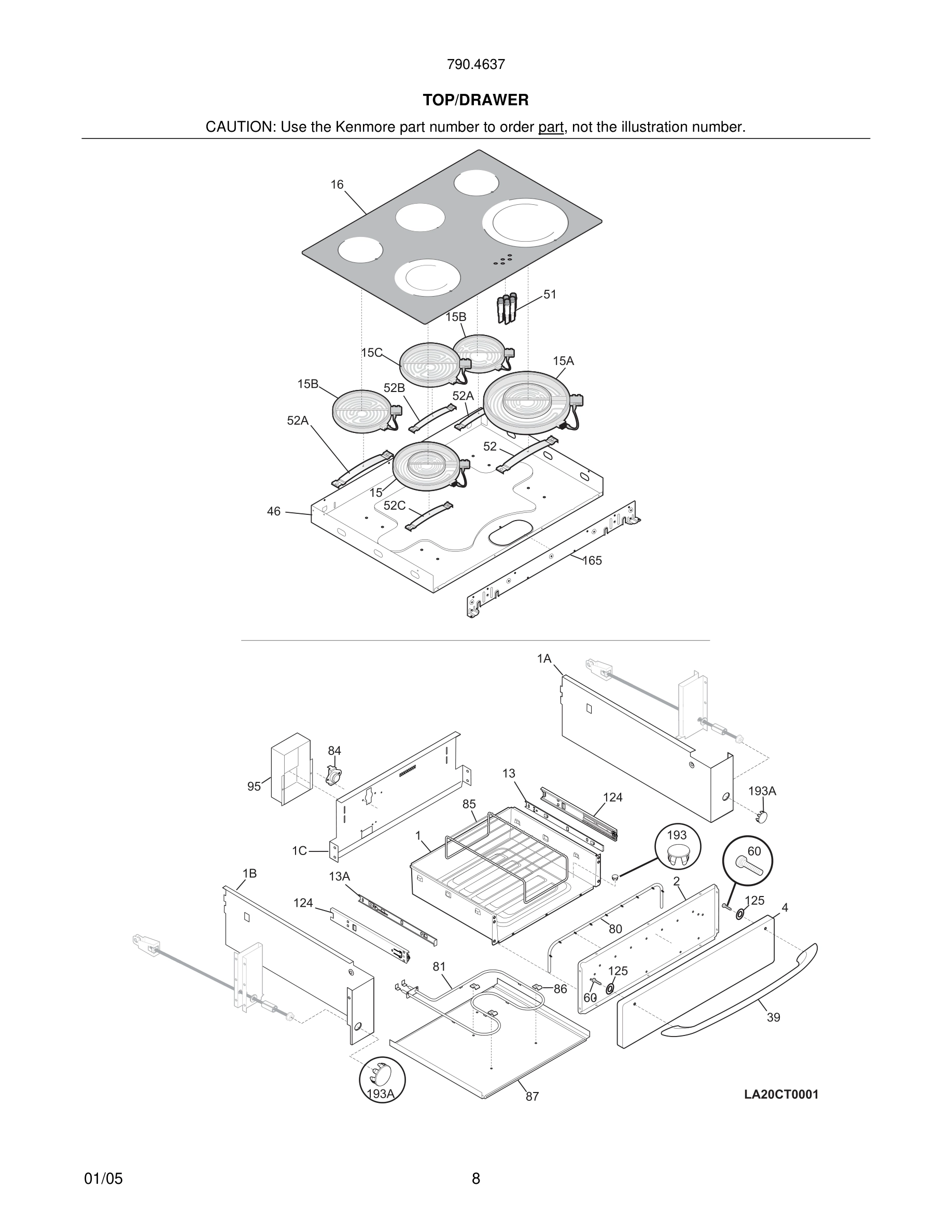

09 - TOP/DRAWER

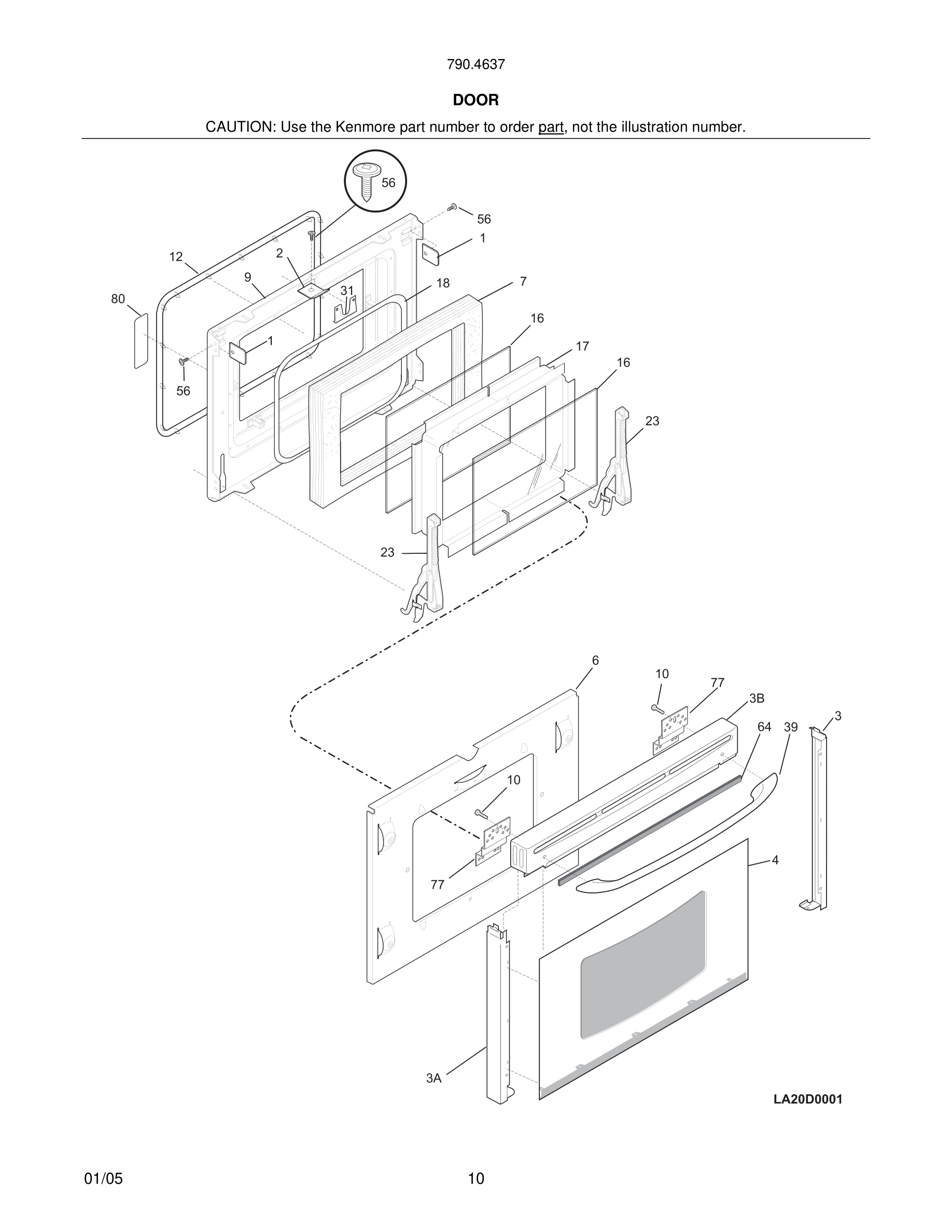

11 - DOOR

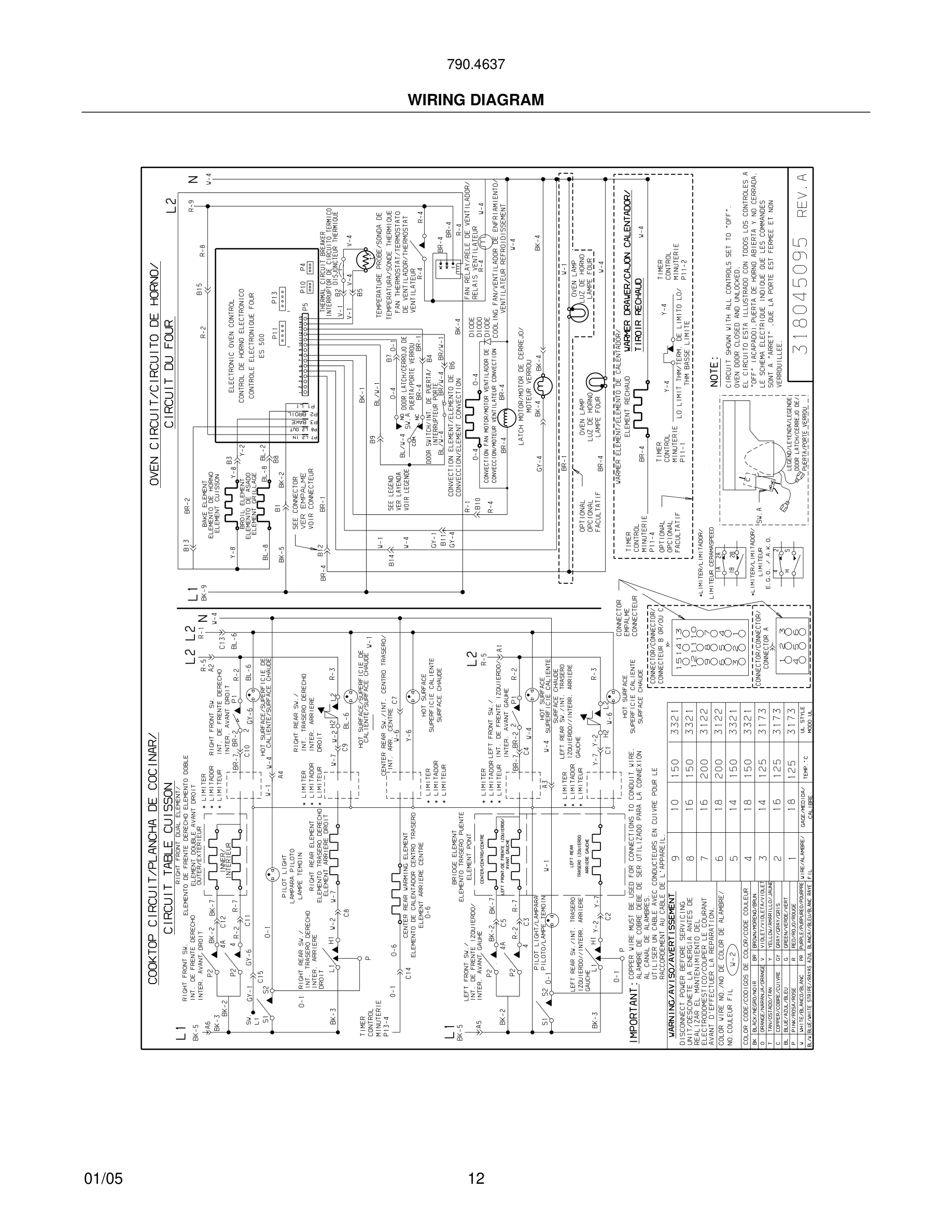

12 - WIRING DIAGRAM
Common parts from model Kenmore 790.46372401 RANGE
*
Clip, wiring WCI 318226300 Contact Us For Availability
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
1
Drawer, warmer WCI 318142500 Contact Us For Availability
1
Bracket, trim mtg WCI 318180310 Contact Us For Availability
1A
Deflector, warmer drawer, RH WCI 318143333 Contact Us For Availability
1B
Deflector, warmer drawer, LH WCI 318143332 Contact Us For Availability
1C
Deflector, warmer drawer, rear WCI 318143203 Contact Us For Availability
2
Liner, drawer WCI 318108021 Contact Us For Availability
2
Bracket, upper trim mtg WCI 318180312 Contact Us For Availability
3
Trim, door, white, RH side WCI 318187810 Contact Us For Availability
3
Trim, door, bisque, RH side WCI 318187812 Contact Us For Availability
3
Trim, door, black, RH side WCI 318187814 Contact Us For Availability
3A
Trim, door, white, LH side WCI 318187811 Contact Us For Availability
3A
Trim, door, bisque, LH side WCI 318187813 Contact Us For Availability
3A
Trim, door, black, LH side WCI 318187815 Contact Us For Availability
3B
Trim, door, white, top WCI 318176646 Contact Us For Availability
3B
Trim, door, bisque, top WCI 318176648 Contact Us For Availability
3B
Trim, door, black, top WCI 318176647 Contact Us For Availability
4
Panel, drawer, white, front WCI 318134015 Contact Us For Availability
4
Panel, drawer, bisque, front WCI 318134016 Contact Us For Availability
4
Panel, drawer, black, front WCI 318134017 Contact Us For Availability
4
Panel, door front assy, glass, white, with lo WCI 318187721 Contact Us For Availability
4
Panel, door front assy, glass, bisque, with l WCI 318187722 Contact Us For Availability
4
Panel, door front assy, glass, black, with lo WCI 318187723 Contact Us For Availability
6
Rack, oven WCI 318025311 Contact Us For Availability
6
Deflector, door WCI 318056815 Contact Us For Availability
7
Insulation, oven door WCI 318285051 Contact Us For Availability
9
Liner, door WCI 318157011 Contact Us For Availability
15C#
Element, surface, warmer, 100 W WCI 318198816 Contact Us For Availability
16
Panel, glass, inner oven door WCI 318041603 Contact Us For Availability
16
Console, assy., black, w/ end caps WCI 318235021 Contact Us For Availability
16
Main Top, glass assy., black WCI 318223625 Contact Us For Availability
16
Main Top, glass assy., white WCI 318223623 Contact Us For Availability
16
Main Top, glass assy., bisque WCI 318223624 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass WCI 318042102 Contact Us For Availability
18
Seal, window WCI 318053001 Contact Us For Availability
19
Panel, control assy., white, w/ membrane WCI 318239713 Contact Us For Availability
19A
Panel, control mtg. WCI 318224403 Contact Us For Availability
20#
Clock/Timer, electronic, ES550 WCI 316272208 Contact Us For Availability
23
Hinge, door, (2) WCI 318024721 Contact Us For Availability
31
Latch, oven door WCI 5303310536 Contact Us For Availability
35
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
35
Support, glass, bisque, (4) WCI 318183102 Contact Us For Availability
39
Handle, door, white WCI 316268301 Contact Us For Availability
39
Handle, door, bisque WCI 316268302 Contact Us For Availability
39
Handle, door, black WCI 316268300 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
46
Box, burner WCI 318225401 Contact Us For Availability
52B
Spring, element mtg, 700W & 2100W WCI 318122004 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
64
Tape, 0.762 m, Neoprene WCI 5304417120 Contact Us For Availability
77
Bracket, trim, handle, (2) WCI 318043100 Contact Us For Availability
80
Gasket, warmer drawer WCI 318054310 Contact Us For Availability
80
Label, anti-tip WCI 316221000 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
84#
Thermostat WCI 318005105 Contact Us For Availability
86
Clip, hold down, warmer element WCI 316095800 Contact Us For Availability
87
Base, warmer WCI 318121503 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
95
Cover, wire WCI 318143702 Contact Us For Availability
102
Support, oven front WCI 5303311142 Contact Us For Availability
107
Cover, fan WCI 318219401 Contact Us For Availability
125#
Motor, fan WCI 316136300 Contact Us For Availability
141#
Switch, thermal cutout WCI 318005201 Contact Us For Availability
141B
Thermostat, safety WCI 318003615 Contact Us For Availability
142
Deflector WCI 318123901 Contact Us For Availability
161#
Element, convection, 350 W WCI 318255501 Contact Us For Availability
165
Plate, mounting WCI 318227502 Contact Us For Availability
170
Bracket, Anit-tip WCI 5304417440 Contact Us For Availability
191
Bracket, angle, corner WCI 5303304030 Contact Us For Availability
193
Cap, plug WCI 5303325173 Contact Us For Availability
193A
Plug, button WCI 3204817 Contact Us For Availability
219#
Relay WCI 318112701 Contact Us For Availability
273
Tube, protector WCI 318249400 Contact Us For Availability
275
Leveling assy WCI 318174800 Contact Us For Availability
276
Came WCI 318096200 Contact Us For Availability
278
Lock Pin WCI 5304412258 Contact Us For Availability
282
Pivot pin WCI 5304412259 Contact Us For Availability
283
Support, reinforcement WCI 318179400 Contact Us For Availability
284
Box, vent tube WCI 318226600 Contact Us For Availability
× ![]()
