Model Kenmore 790.46353402 RANGE – Common Parts & Diagrams

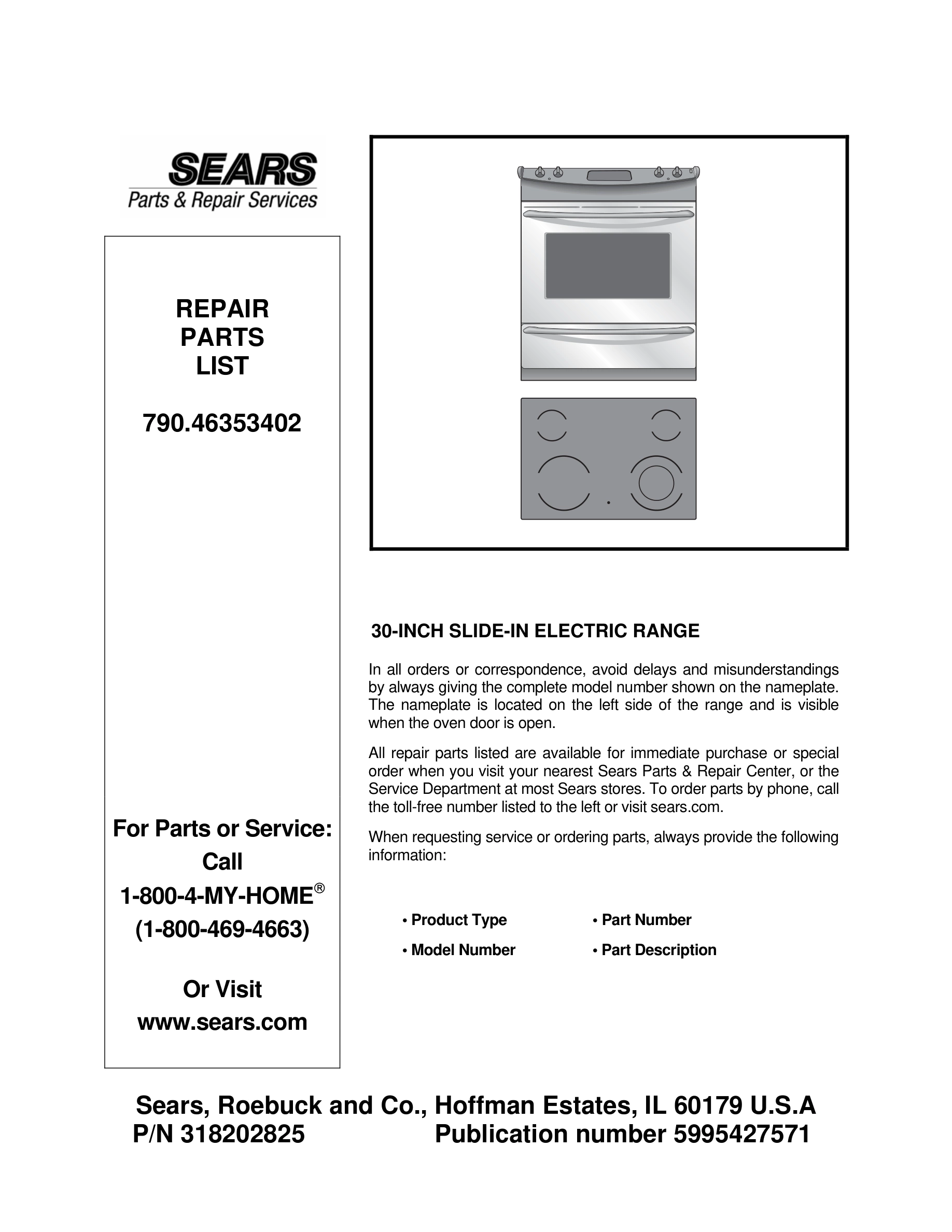

01 - COVER

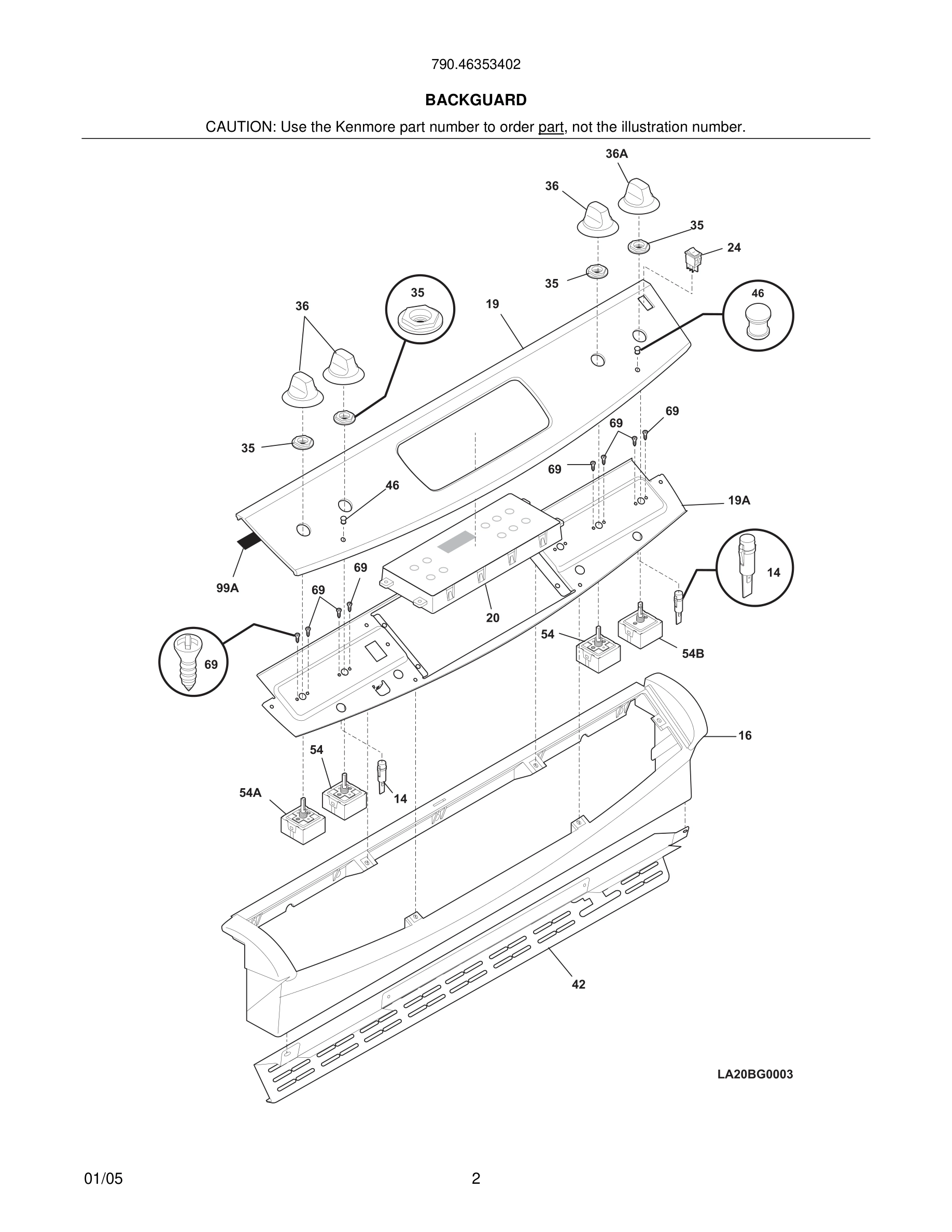

03 - BACKGUARD
05 - BODY
07 - TOP/DRAWER
09 - DOOR
10 - WIRING DIAGRAM
Common parts from model Kenmore 790.46353402 RANGE
*
Cap, plug WCI 5303325173 Contact Us For Availability
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
1*
Bracket, drawer channel WCI 318248600 Contact Us For Availability
4
Panel, drawer, stainless WCI 318107909 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
6
Deflector, door WCI 318056815 Contact Us For Availability
7
Insulation, oven door WCI 318285051 Contact Us For Availability
9
Liner, door WCI 318157011 Contact Us For Availability
11
Bracket, drawer, (2) WCI 318263100 Contact Us For Availability
13
Channel, drawer, RH WCI 5303311129 Contact Us For Availability
13
Stainless Panel, oven door, w/ glass WCI 318187942 Contact Us For Availability
13A
Channel, drawer, LH WCI 5303311130 Contact Us For Availability
16
Panel, glass, inner oven door WCI 318041603 Contact Us For Availability
16
Console, assy., black, w/ end caps WCI 318235021 Contact Us For Availability
16
Main Top, glass assy., black WCI 318223606 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass WCI 318042102 Contact Us For Availability
18
Seal, window WCI 318053001 Contact Us For Availability
19A
Panel, control mtg. WCI 318224401 Contact Us For Availability
20#
Clock/Timer, electronic, black, ES300 WCI 318185477 Contact Us For Availability
22
Bar, glass retainer WCI 5303310511 Contact Us For Availability
23
Hinge, oven door, (2) WCI 5303310828 Contact Us For Availability
29
Bumper, base WCI 318147410 Contact Us For Availability
31
Latch, oven door WCI 5303310536 Contact Us For Availability
36
Knob, control, black WCI 316208113 Contact Us For Availability
36A
Knob, dual control, black WCI 316208116 Contact Us For Availability
39
Handle, door, black WCI 316209701 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
46
Box, burner WCI 318225401 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
57
Stiffener, glass WCI 318172902 Contact Us For Availability
70
Bracket, slide, rear WCI 5303311143 Contact Us For Availability
71
Magnet & spring assy WCI 318279800 Contact Us For Availability
72
Bracket & wheel assy WCI 5303311145 Contact Us For Availability
80
Label, anti-tip WCI 316221000 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
87
Plate, mounting WCI 318111803 Contact Us For Availability
88
Rod, latch, w/bushing WCI 318250210 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
102
Support, oven front WCI 5303311142 Contact Us For Availability
141#
Switch, thermal cutout WCI 318005201 Contact Us For Availability
141B
Thermostat, safety WCI 318003615 Contact Us For Availability
142
Deflector WCI 318123901 Contact Us For Availability
165
Plate, mounting WCI 318227502 Contact Us For Availability
170
Anti-tip & accessories WCI 5304405244 Contact Us For Availability
191
Bracket, angle, corner WCI 5303304030 Contact Us For Availability
219#
Relay WCI 318112701 Contact Us For Availability
284
Box, vent tube WCI 318226600 Contact Us For Availability
× ![]()
