Model Kenmore 790.46352401 RANGE – Common Parts & Diagrams

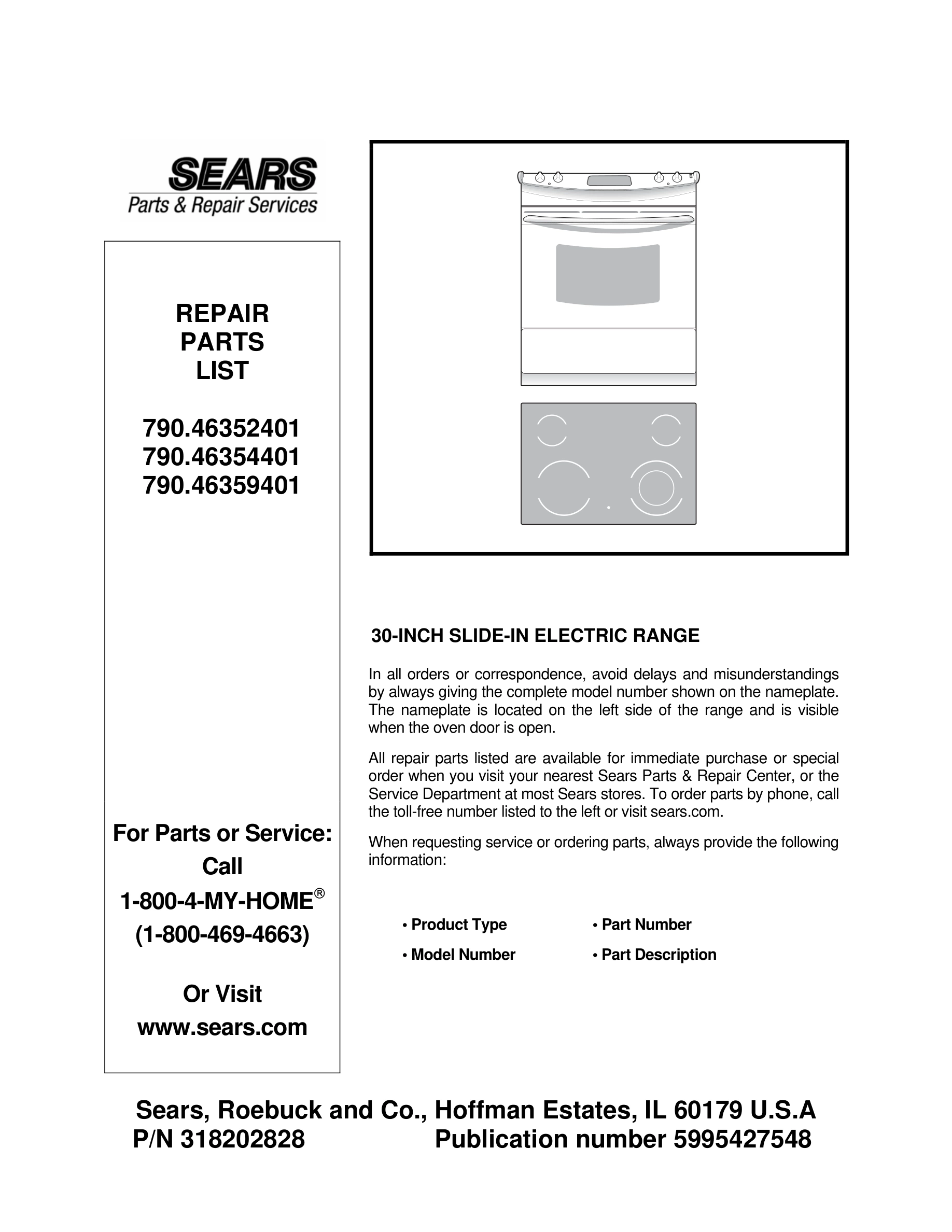

01 - COVER

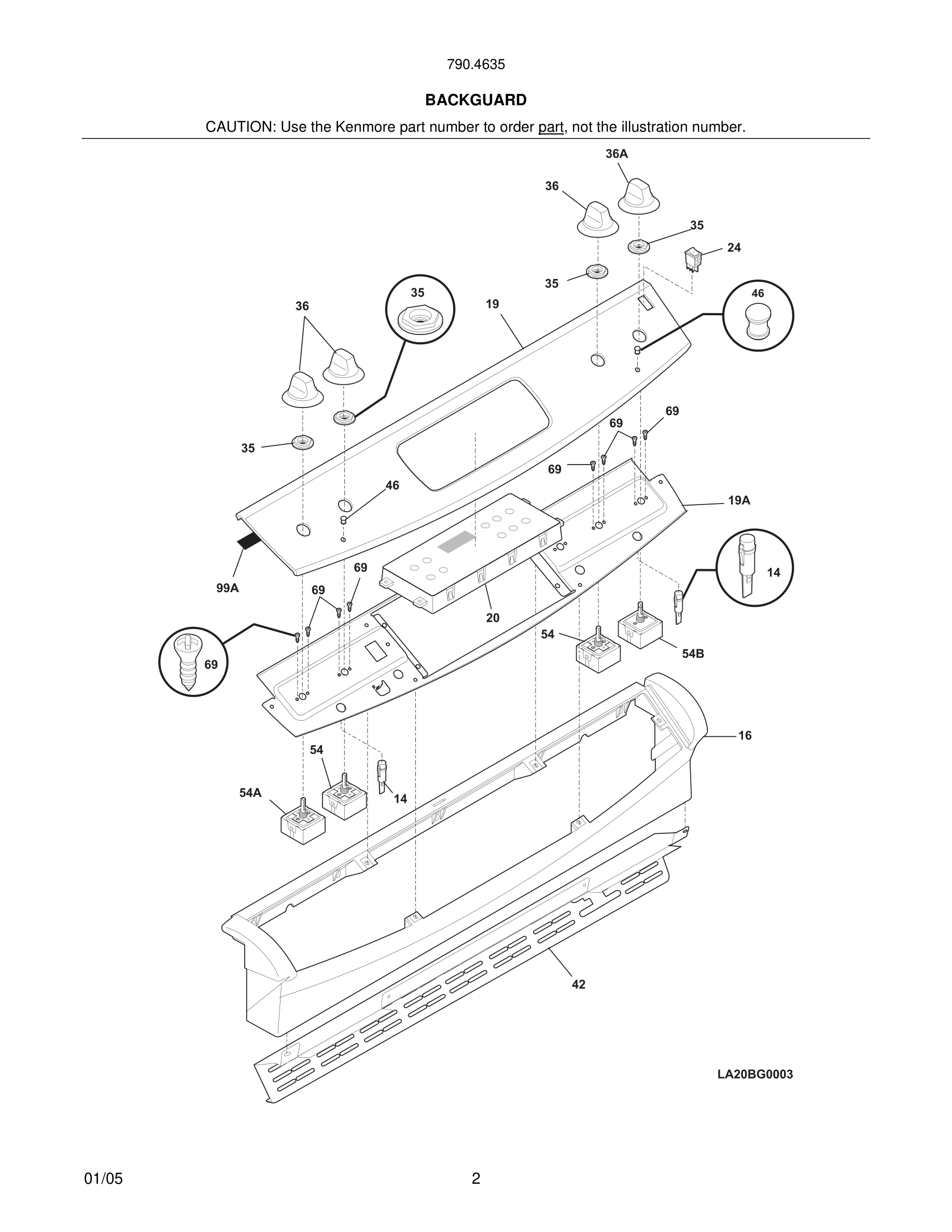

03 - BACKGUARD
05 - BODY

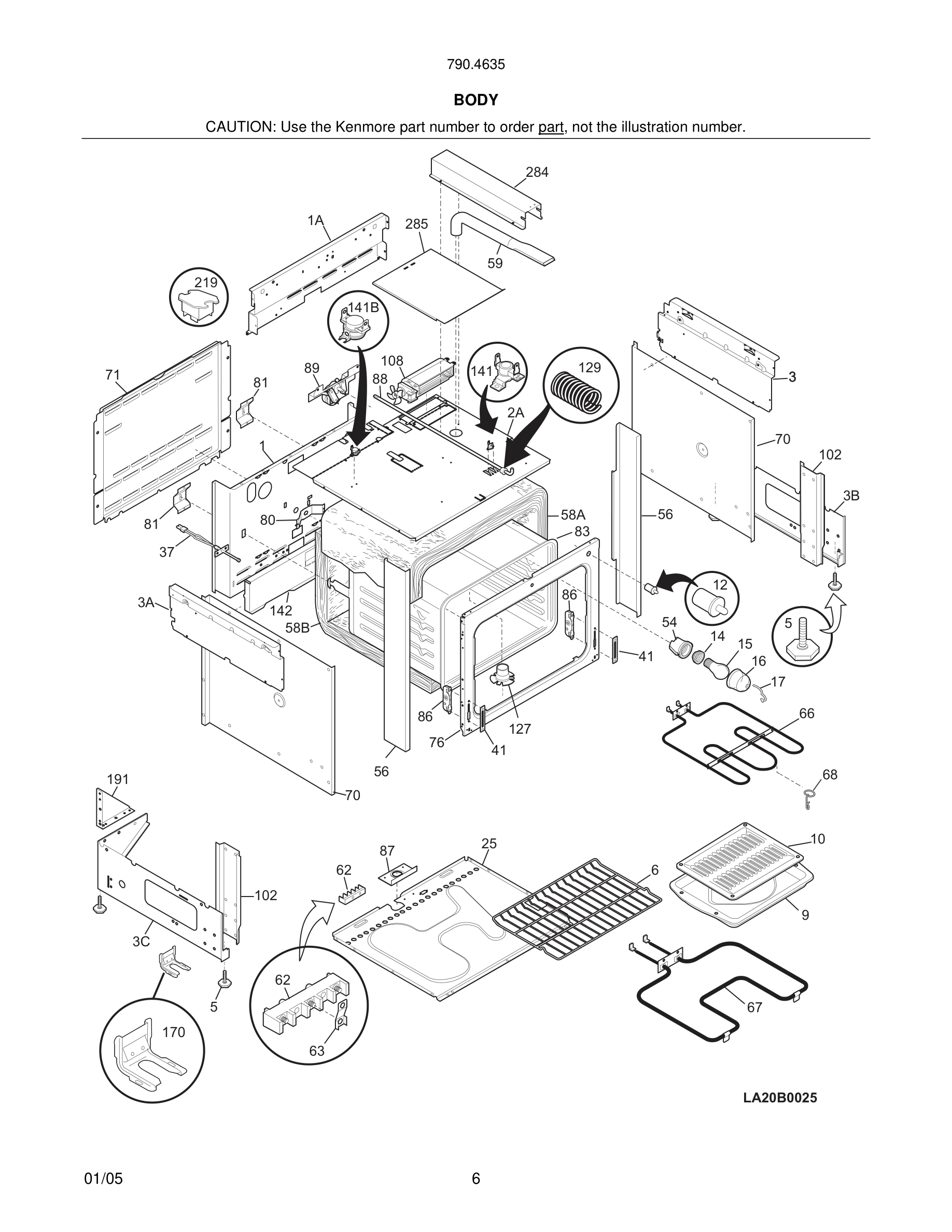

07 - BODY

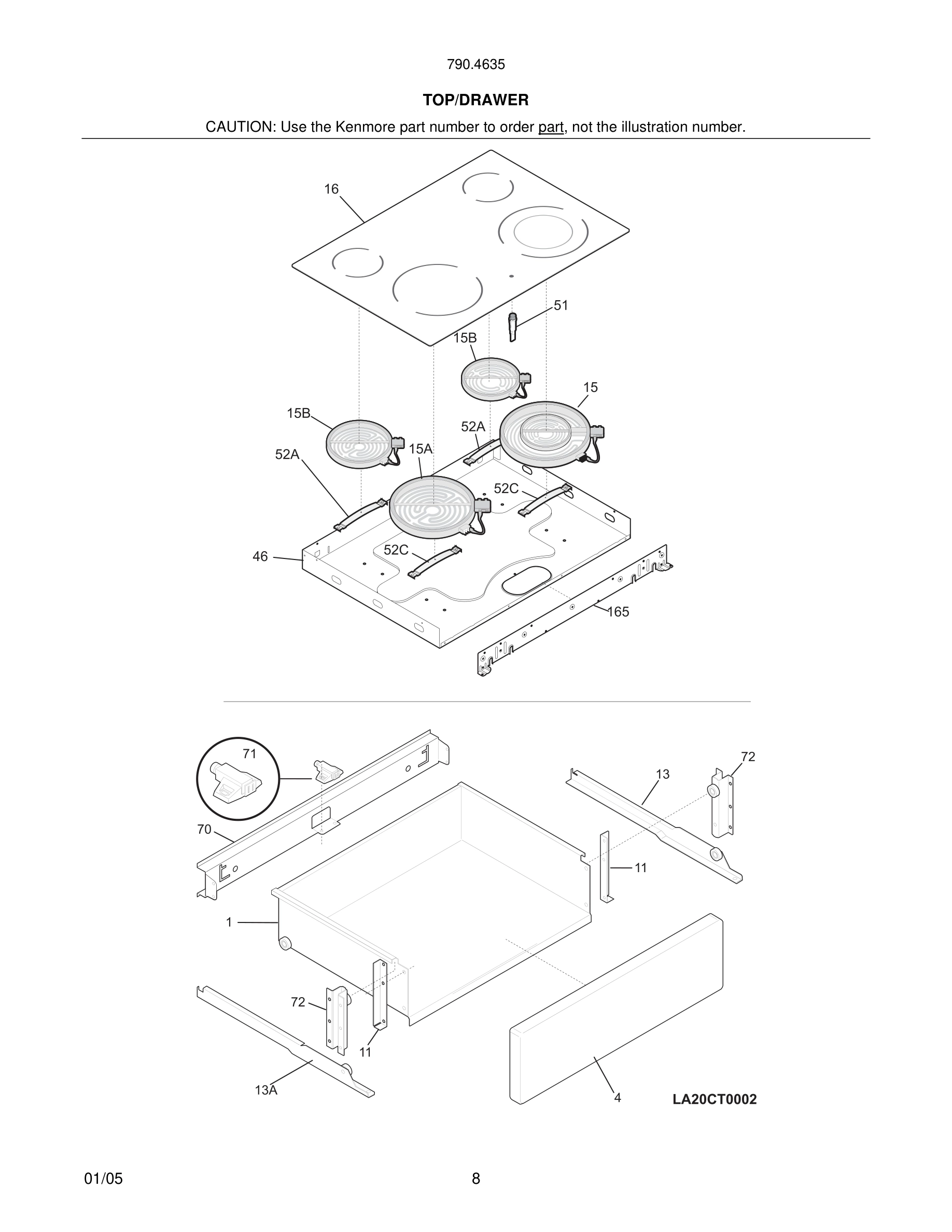

09 - TOP/DRAWER

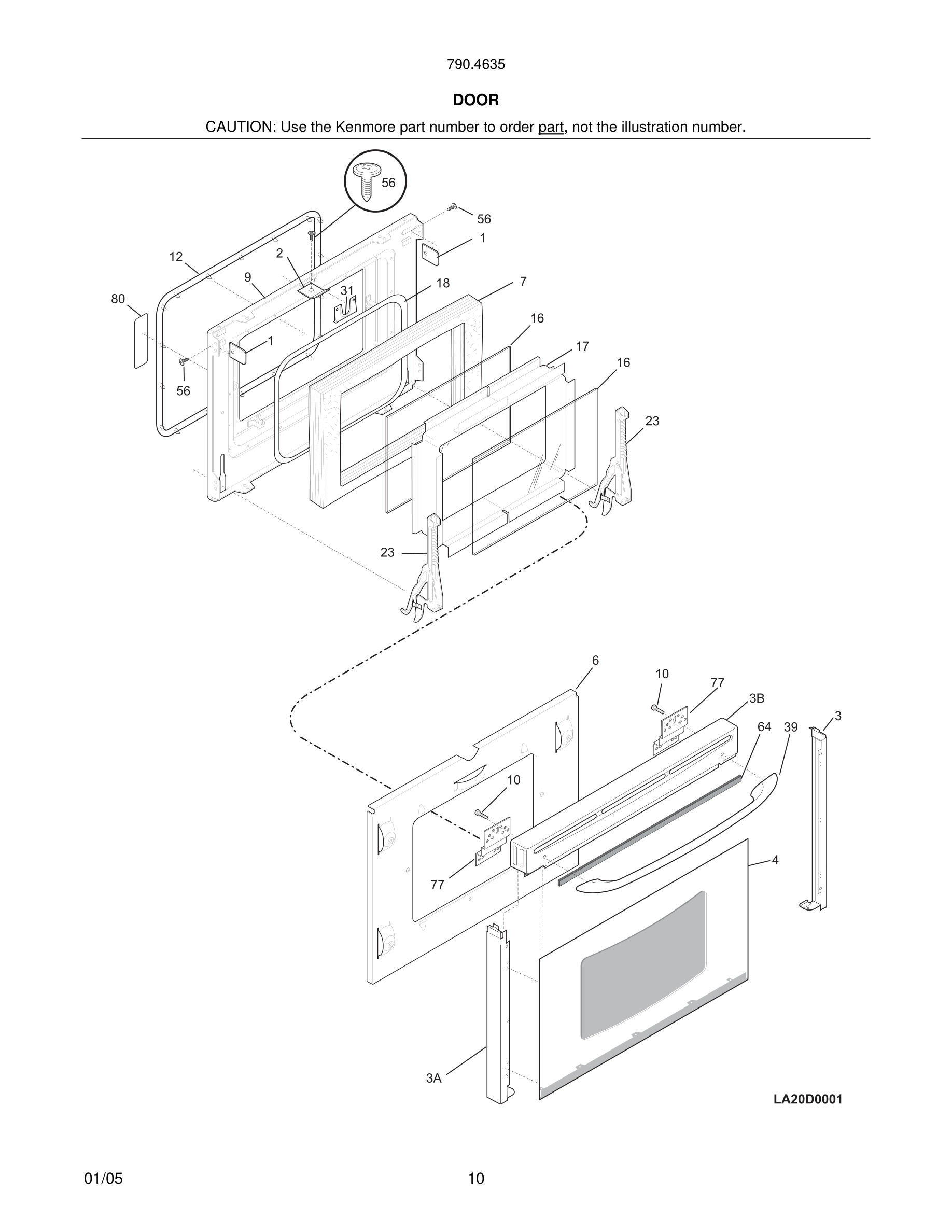

11 - DOOR

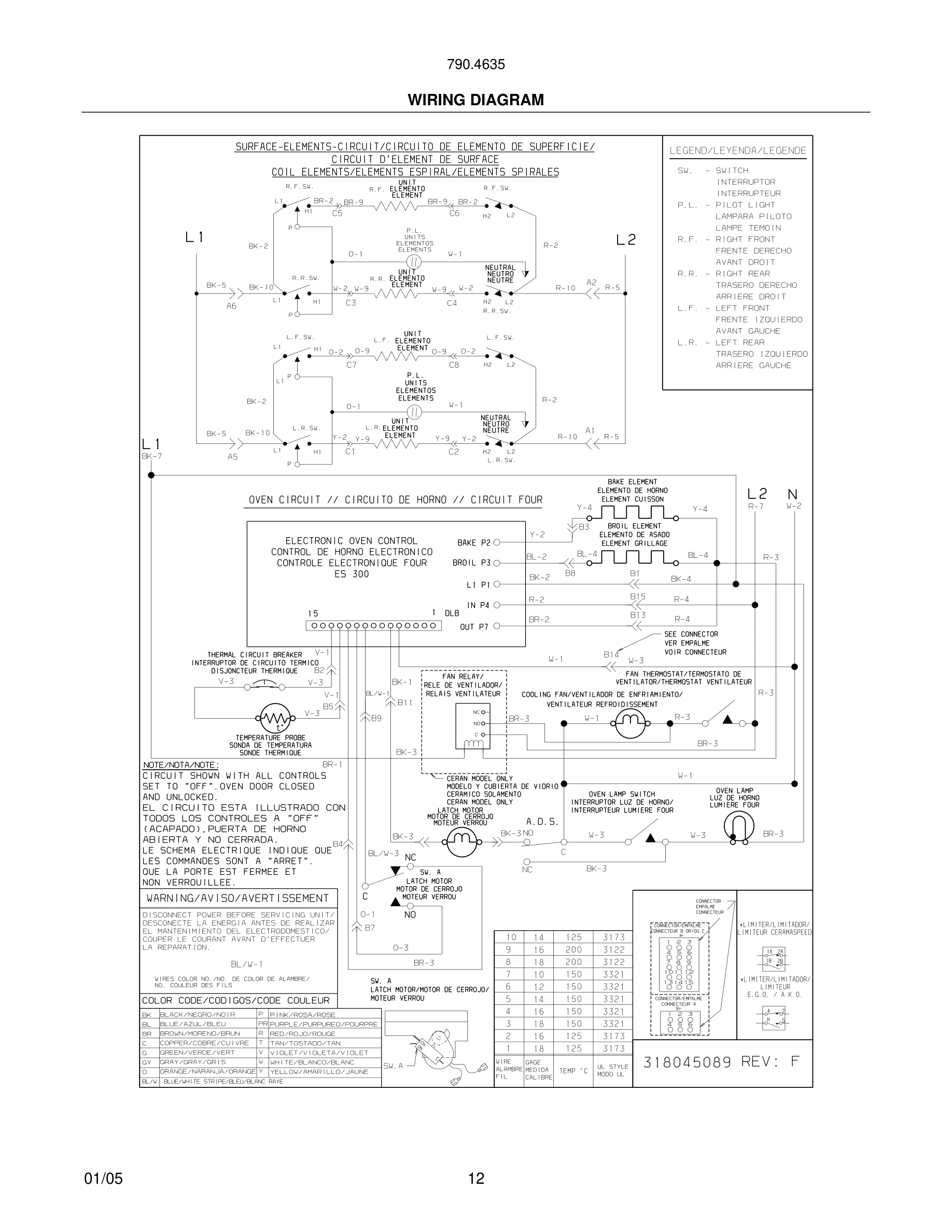

12 - WIRING DIAGRAM
Common parts from model Kenmore 790.46352401 RANGE
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Cap, plug WCI 5303325173 Contact Us For Availability
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
1
Bracket, trim mtg WCI 318180310 Contact Us For Availability
1*
Bracket, drawer channel WCI 318248600 Contact Us For Availability
2
Bracket, upper trim mtg WCI 318180312 Contact Us For Availability
3
Trim, door, white, RH side WCI 318187810 Contact Us For Availability
3
Trim, door, bisque, RH side WCI 318187812 Contact Us For Availability
3
Trim, door, black, RH side WCI 318187814 Contact Us For Availability
3A
Trim, door, white, LH side WCI 318187811 Contact Us For Availability
3A
Trim, door, bisque, LH side WCI 318187813 Contact Us For Availability
3A
Trim, door, black, LH side WCI 318187815 Contact Us For Availability
3B
Trim, door, white, top WCI 318176646 Contact Us For Availability
3B
Trim, door, bisque, top WCI 318176648 Contact Us For Availability
3B
Trim, door, black, top WCI 318176647 Contact Us For Availability
4
Panel, drawer, white, front WCI 318134011 Contact Us For Availability
4
Panel, drawer, bisque, front WCI 318134013 Contact Us For Availability
4
Panel, drawer, black, front WCI 318134012 Contact Us For Availability
4
Panel, door front assy, glass, white, with lo WCI 318187721 Contact Us For Availability
4
Panel, door front assy, glass, bisque, with l WCI 318187722 Contact Us For Availability
4
Panel, door front assy, glass, black, with lo WCI 318187723 Contact Us For Availability
6
Deflector, door WCI 318056815 Contact Us For Availability
7
Insulation, oven door WCI 318285051 Contact Us For Availability
9
Liner, door WCI 318157011 Contact Us For Availability
11
Bracket, drawer, (2) WCI 318263100 Contact Us For Availability
13
Channel, drawer, RH WCI 5303311129 Contact Us For Availability
13A
Channel, drawer, LH WCI 5303311130 Contact Us For Availability
16
Panel, glass, inner oven door WCI 318041603 Contact Us For Availability
16
Console, assy., black, w/ end caps WCI 318235021 Contact Us For Availability
16
Main Top, glass assy., black WCI 318223606 Contact Us For Availability
16
Main Top, glass assy., white WCI 318223604 Contact Us For Availability
16
Main Top, glass assy., bisque WCI 318223605 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass WCI 318042102 Contact Us For Availability
18
Seal, window WCI 318053001 Contact Us For Availability
19A
Panel, control mtg. WCI 318224401 Contact Us For Availability
20#
Clock/Timer, electronic, black, ES300 WCI 318185477 Contact Us For Availability
20#
Clock/Timer, electronic, bisque, ES300 WCI 318185476 Contact Us For Availability
23
Hinge, door, (2) WCI 318024721 Contact Us For Availability
31
Latch, oven door WCI 5303310536 Contact Us For Availability
35
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
35
Support, glass, bisque, (4) WCI 318183102 Contact Us For Availability
36
Knob, control, white WCI 316208112 Contact Us For Availability
36
Knob, control, black WCI 316208113 Contact Us For Availability
36
Knob, control, bisque WCI 316208114 Contact Us For Availability
36A
Knob, dual control, white WCI 316208115 Contact Us For Availability
36A
Knob, dual control, black WCI 316208116 Contact Us For Availability
36A
Knob, dual control, bisque WCI 316208117 Contact Us For Availability
39
Handle, door, bisque WCI 316209702 Contact Us For Availability
39
Handle, door, black WCI 316209701 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
46
Box, burner WCI 318225401 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
64
Tape, 0.762 m, Neoprene WCI 5304417120 Contact Us For Availability
70
Bracket, slide, rear WCI 5303311143 Contact Us For Availability
71
Magnet & spring assy WCI 318279800 Contact Us For Availability
72
Bracket & wheel assy WCI 5303311145 Contact Us For Availability
77
Bracket, trim, handle, (2) WCI 318043100 Contact Us For Availability
80
Label, anti-tip WCI 316221000 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
102
Support, oven front WCI 5303311142 Contact Us For Availability
141#
Switch, thermal cutout WCI 318005201 Contact Us For Availability
141B
Thermostat, safety WCI 318003615 Contact Us For Availability
142
Deflector WCI 318123901 Contact Us For Availability
165
Plate, mounting WCI 318227502 Contact Us For Availability
170
Anti-tip & accessories WCI 5304405244 Contact Us For Availability
191
Bracket, angle, corner WCI 5303304030 Contact Us For Availability
219#
Relay WCI 318112701 Contact Us For Availability
284
Box, vent tube WCI 318226600 Contact Us For Availability
× ![]()
