Model Electrolux 790.46264500 Electric Range (Kenmore 79046264500) – Common Parts & Diagrams

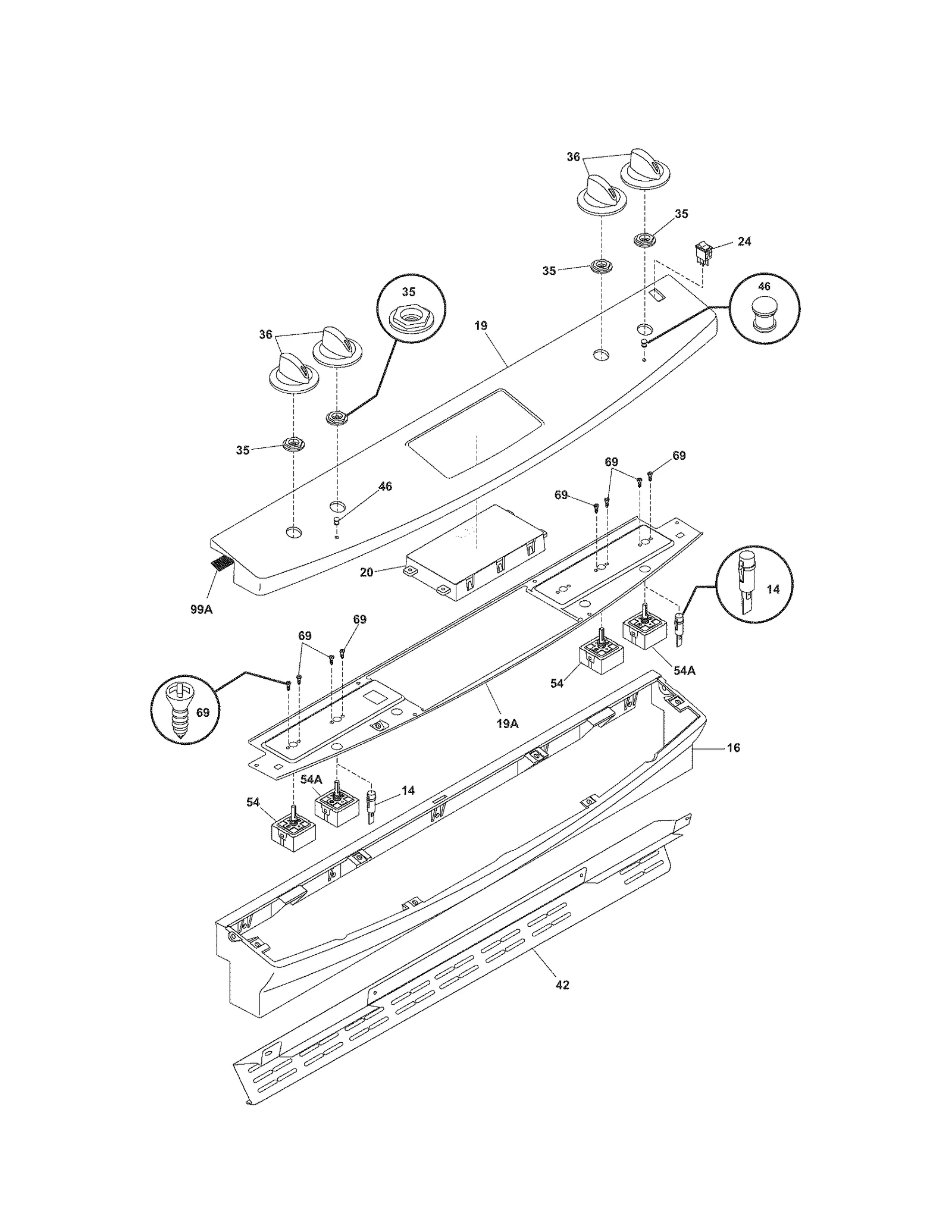

BACKGUARD

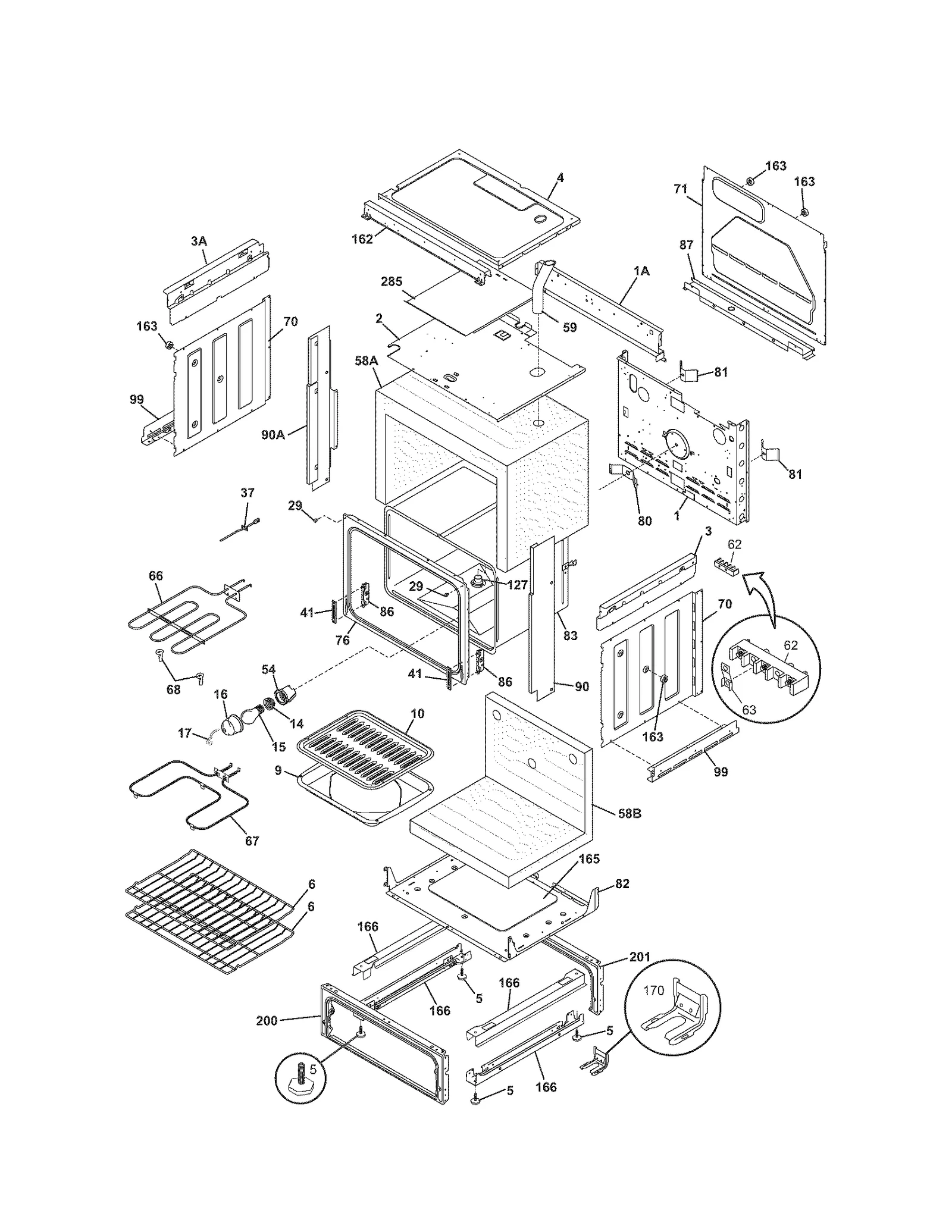

BODY

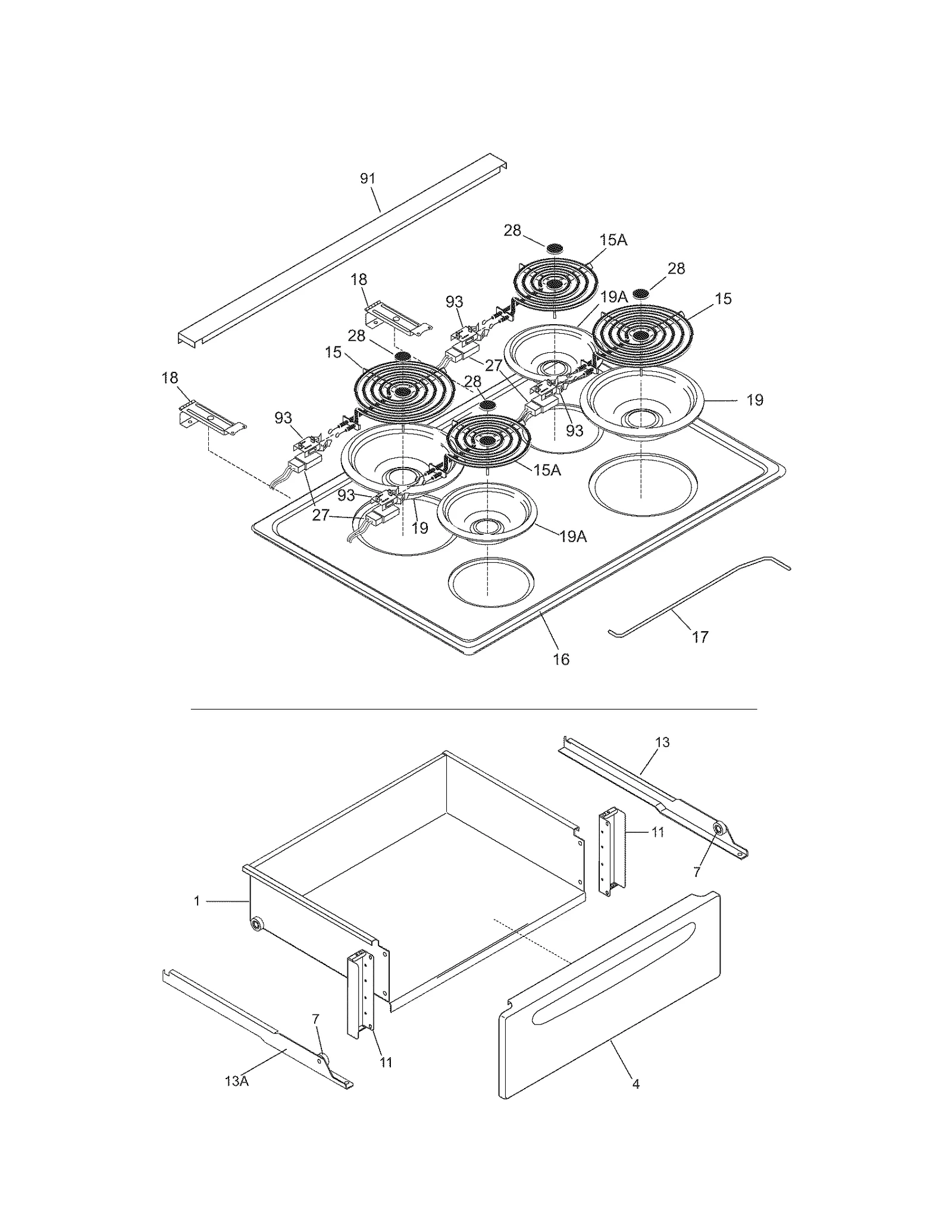

TOP/DRAWER

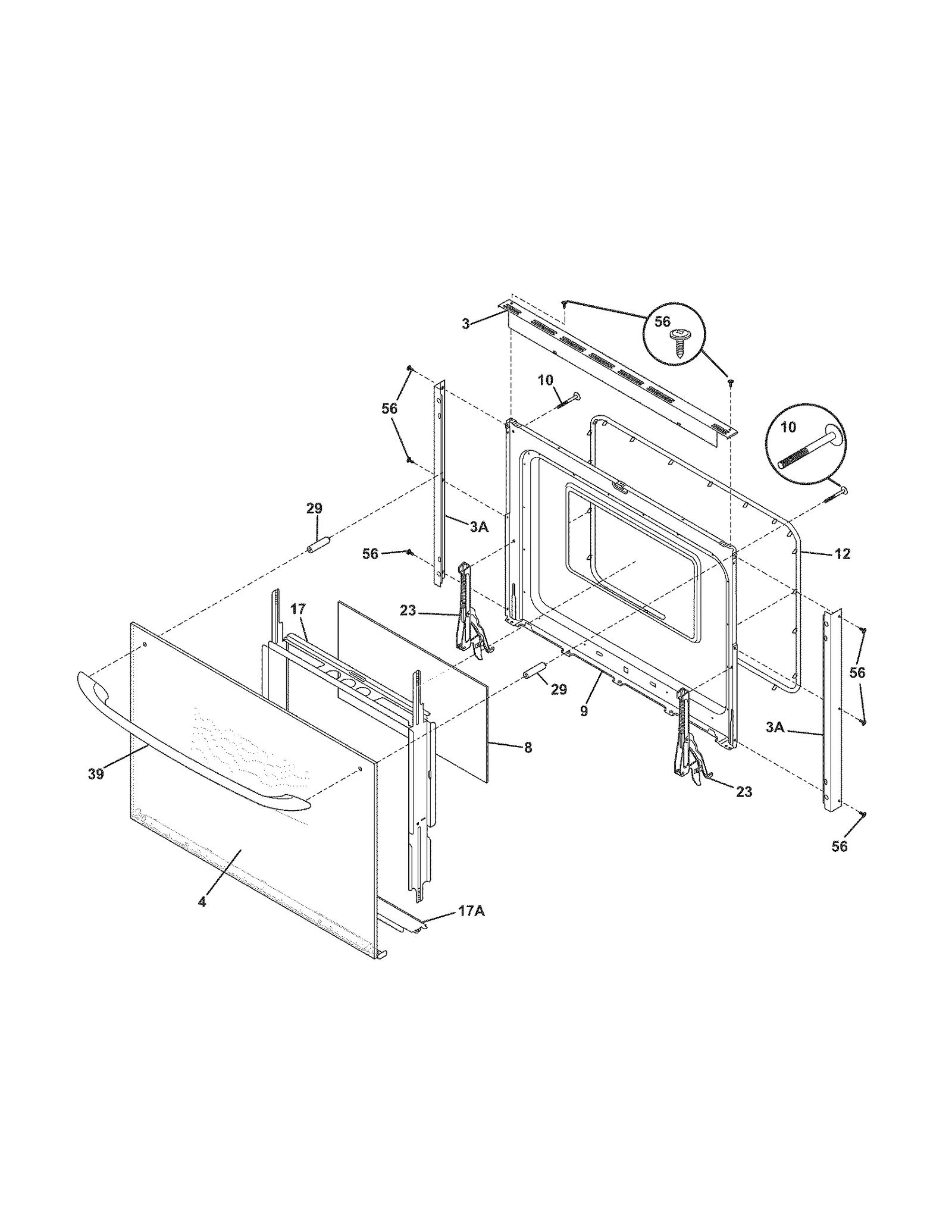

DOOR
Common parts from model Electrolux 790.46264500 Electric Range (Kenmore 79046264500)
3
Crosley Range Oven Door Trim WCI 318260201 Contact Us For Availability
3A
Range Oven Door Trim WCI 318260401 Contact Us For Availability
4
Panel WCI 318298901 Contact Us For Availability
4
Panel WCI 318298902 Contact Us For Availability
4
Glass Assembly WCI 318261307 Contact Us For Availability
4
Glass Assembly WCI 318261308 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
7
Range Spacer WCI 318014800 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316427700 Contact Us For Availability
9
Liner WCI 318259625 Contact Us For Availability
11
Bracket WCI 318298601 Contact Us For Availability
12
Range Oven Door Seal WCI 318053325 Contact Us For Availability
13
Range Broil Drawer Slide Rail, Right WCI 318018100 Contact Us For Availability
13A
Range Storage Drawer Support Track, Left WCI 318018101 Contact Us For Availability
16
Range Control Panel WCI 318296600 Contact Us For Availability
16
Main WCI 318225602 Contact Us For Availability
16
Main WCI 318225603 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Rod WCI 3051554 Contact Us For Availability
17
Bracket WCI 318300503 Contact Us For Availability
17A
Bracket WCI 318300601 Contact Us For Availability
18
Range Main Top Hinge WCI 318227710 Contact Us For Availability
19A
Range Drip Pan WCI 318067060 Contact Us For Availability
23
Hinge WCI 5303320452 Contact Us For Availability
28
Medallion WCI 3017801 Contact Us For Availability
29
Spacer WCI 318014402 Contact Us For Availability
35
Range Surface Burner Knob Support WCI 318183101 Contact Us For Availability
35
Range Surface Burner Knob Support (Bisque) WCI 318183102 Contact Us For Availability
39
Oven Door Handle WCI 316209702 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
90
Panel Filler, Right WCI 318296902 Contact Us For Availability
90A
Range Panel WCI 318296903 Contact Us For Availability
91
Crosley Range Main Top Filler Trim, Rear WCI 318304301 Contact Us For Availability
91
Range Trim WCI 318304302 Contact Us For Availability
93
Support WCI 318122500 Contact Us For Availability
99A
Gasket WCI 318313200 Contact Us For Availability
127
Adapter WCI 318317000 Contact Us For Availability
165
Plate WCI 318322600 Contact Us For Availability
166
Range Base WCI 318298400 Contact Us For Availability
170
Anti-Tip WCI 318335501 Contact Us For Availability
200
Frame WCI 318298201 Contact Us For Availability
201
Frame WCI 318298210 Contact Us For Availability
285
Shield WCI 318236200 Contact Us For Availability
NI
Range Wire Harness WCI 318224817 Contact Us For Availability
NI
Range Wire Harness WCI 318301100 Contact Us For Availability
NI
Range Igniter Wire Harness WCI 318224815 Contact Us For Availability
NI
Range Wire Harness WCI 318224920 Contact Us For Availability
NI
Shouldr Bolt WCI 3051050 Contact Us For Availability
NI
Range Wire Harness Retainer WCI 5304400192 Contact Us For Availability
NI
Wiring Harness WCI 318301000 Contact Us For Availability
NI
Screw WCI 5303325171 Contact Us For Availability
NI
Cap WCI 5303325173 Contact Us For Availability
NI
Range Anti-Tip Decal WCI 316221000 Contact Us For Availability
× ![]()
