Model Kenmore 790.46262502 RANGE – Common Parts & Diagrams

*

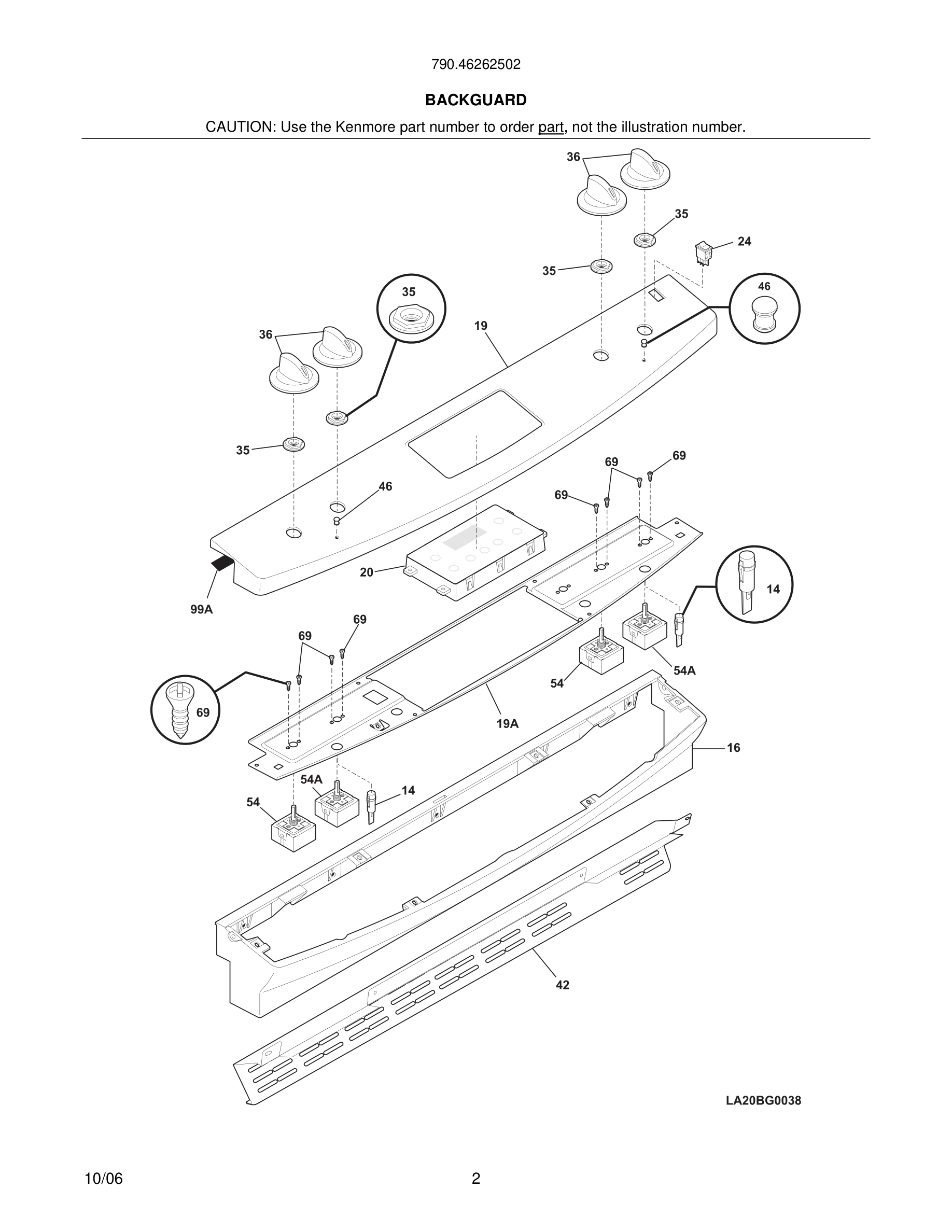

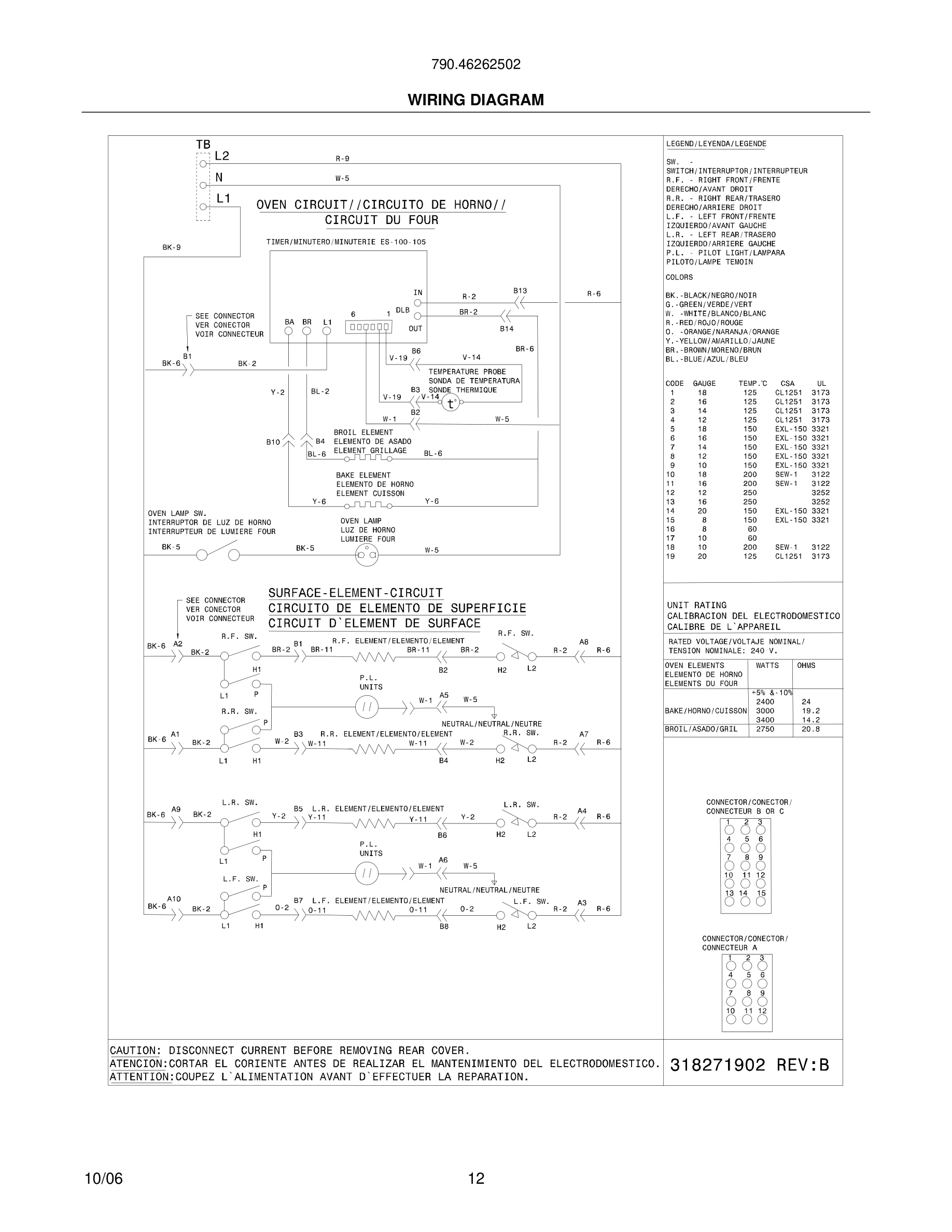

Wiring Harness, backguard
Wiring Harness, backguard WCI 318301100 Contact Us For Availability
View on Model
*

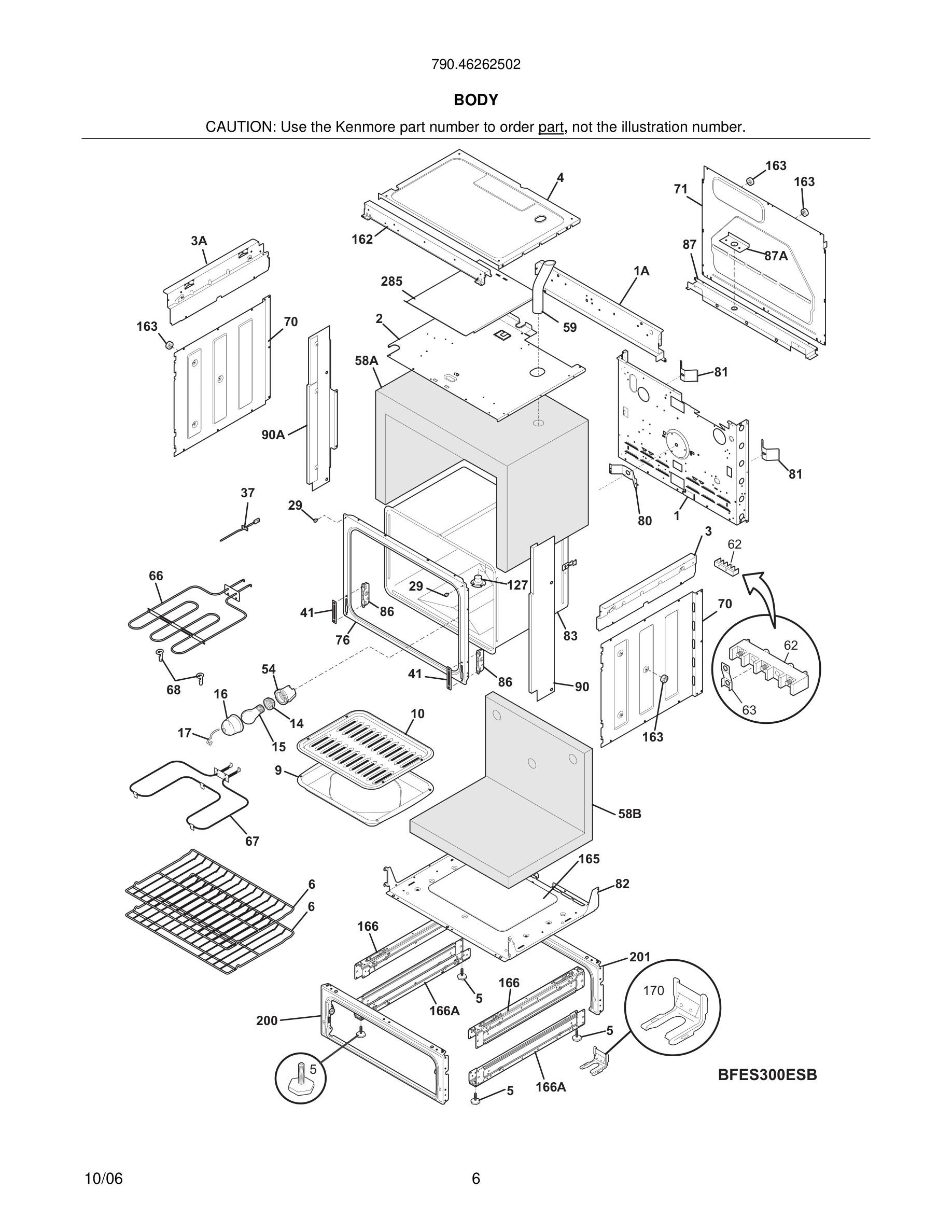

Label, anti-tip
Label, anti-tip WCI 316221000 Contact Us For Availability
View on Model
*#
Harness, wiring, timer
Harness, wiring, timer WCI 318224817 Contact Us For Availability
View on Model
*#
Harness, wiring, infinite switch
Harness, wiring, infinite switch WCI 318224815 Contact Us For Availability
View on Model
*#
Harness, wiring, main
Harness, wiring, main WCI 318224920 Contact Us For Availability
View on Model
3

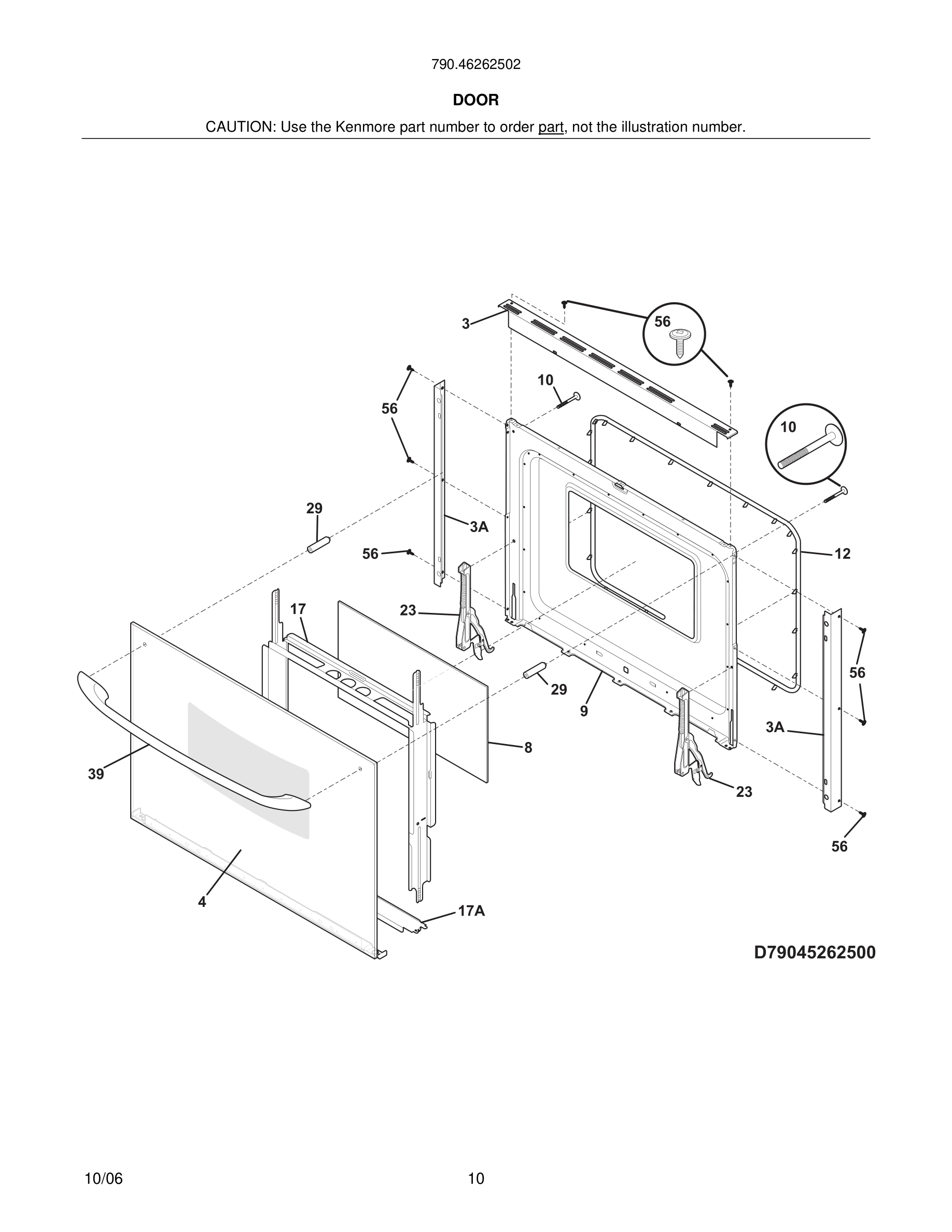

Trim, oven door, black, upper
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
4
Glass Assy., oven door, white, outer, w/trim
Glass Assy., oven door, white, outer, w/trim WCI 318261309 Contact Us For Availability
View on Model
6
Rack, oven
Rack, oven WCI 318345207 No Longer Available
View on Model
8
Glass, oven door, inner
Glass, oven door, inner WCI 316427700 Contact Us For Availability
View on Model
9
Liner, oven door
Liner, oven door WCI 318259625 Contact Us For Availability
View on Model
12
Seal, door, lower oven
Seal, door, lower oven WCI 318053325 Contact Us For Availability
View on Model

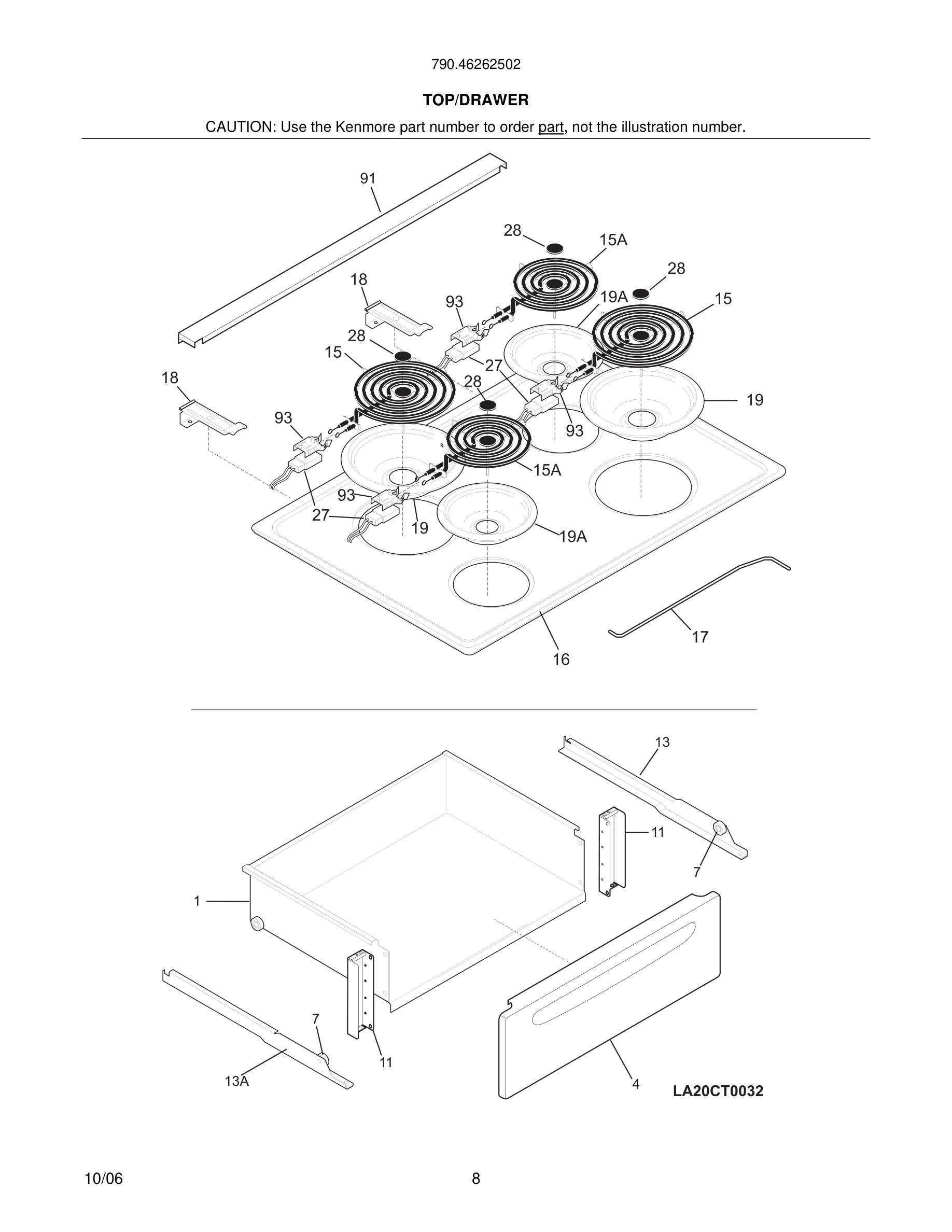

13
Channel, drawer, RH
Channel, drawer, RH WCI 318018100 Contact Us For Availability
View on Model
13A
Channel, drawer, LH
Channel, drawer, LH WCI 318018101 Contact Us For Availability
View on Model
16
Console, assy., white
Console, assy., white WCI 318296600 Contact Us For Availability
View on Model
16*
Clip, console, (2)
Clip, console, (2) WCI 5304447071 Contact Us For Availability
View on Model
17
Retainer, light cover
Retainer, light cover WCI 5304400195 Contact Us For Availability
View on Model
17
Bracket, glass
Bracket, glass WCI 318300503 Contact Us For Availability
View on Model
17A
Bracket, glass, lower
Bracket, glass, lower WCI 318300601 Contact Us For Availability
View on Model
18
Hinge, maintop, (2)
Hinge, maintop, (2) WCI 318227710 Contact Us For Availability
View on Model
19
Panel, control, white
Panel, control, white WCI 318297508 Contact Us For Availability
View on Model
20#
Clock/Timer, EOC, white, ES105
Clock/Timer, EOC, white, ES105 WCI 318185334 Contact Us For Availability
View on Model
23
Hinge, oven door
Hinge, oven door WCI 5303320452 Contact Us For Availability
View on Model
28
Medallion, stainless steel, surf elem
Medallion, stainless steel, surf elem WCI 3017801 Contact Us For Availability
View on Model
29
Spacer, door
Spacer, door WCI 318014402 Contact Us For Availability
View on Model
35
Support, glass, white, (4)
Support, glass, white, (4) WCI 318183101 Contact Us For Availability
View on Model
41
Cover, hinge cutout
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
View on Model
54
Housing, oven light
Housing, oven light WCI 318222400 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
86
Receptacle, hinge
Receptacle, hinge WCI 318342400 Contact Us For Availability
View on Model
90
Panel, filler, white, RH
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
View on Model
91
Trim, filler, white, rear
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
View on Model
93
Support, terminal block, (4)
Support, terminal block, (4) WCI 318122500 Contact Us For Availability
View on Model
99A
Gasket, grey
Gasket, grey WCI 318313200 Contact Us For Availability
View on Model
127
Adapter, vent tube
Adapter, vent tube WCI 318317000 Contact Us For Availability
View on Model
170
Anti-tip & accessories
Anti-tip & accessories WCI 318335500 Contact Us For Availability
View on Model
200
Frame & Wheel Assembly, black
Frame & Wheel Assembly, black WCI 318335600 Contact Us For Availability
View on Model
201
Frame, drawer
Frame, drawer WCI 318298210 Contact Us For Availability
View on Model
